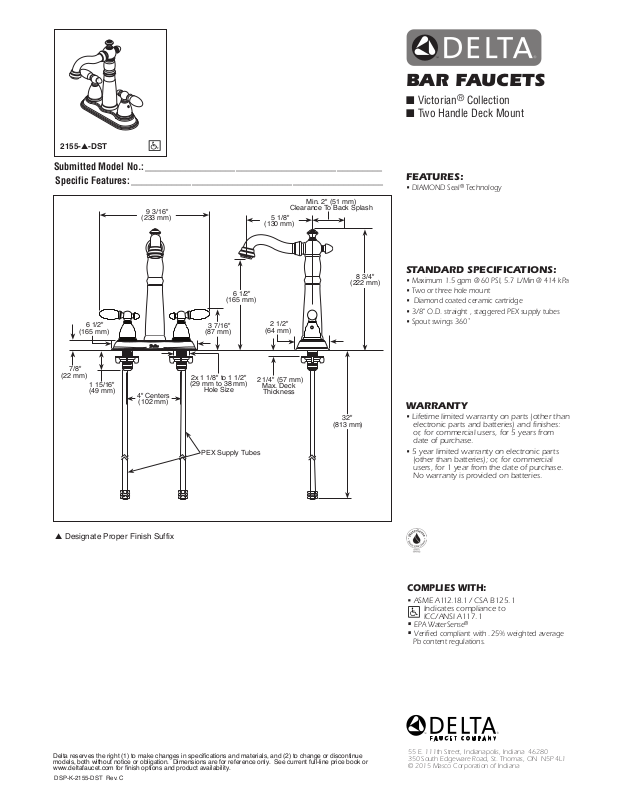

Page 1
2155-▲-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2" (51 mm)
9 3/16"
(233 mm)
Clearance To Back Splash
5 1/8"
(130 mm)
BAR FAUCETS
■ Victorian® Collection
■ Two Handle Deck Mount
FEATURES:
• DIAMOND Seal® Technology
6 1/2"
(165 mm)
7/8"
(22 mm)
1 15/16"
(49 mm)
4" Centers
(102 mm)
▲ Designate Proper Finish Suffix
6 1/2"
(165 mm)
3 7/16"
(87 mm)
2x 1 1/8" to 1 1/2"
(29 mm to 38 mm)
Hole Size
PEX Supply Tubes
2 1/2"
(64 mm)
2 1/4" (57 mm)
Max. Deck
Thickness
(222 mm)
32"
(813 mm)
8 3/4"
STANDARD SPECIFICATIONS:
• Maximum 1.5 gpm @ 60 PSI, 5.7 L/Min @ 414 kPa
• Two or three hole mount
• Diamond coated ceramic cartridge
• 3/8" O.D. straight , staggered PEX supply tubes
• Spout swings 360˚
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-2155-DST Rev. C
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
