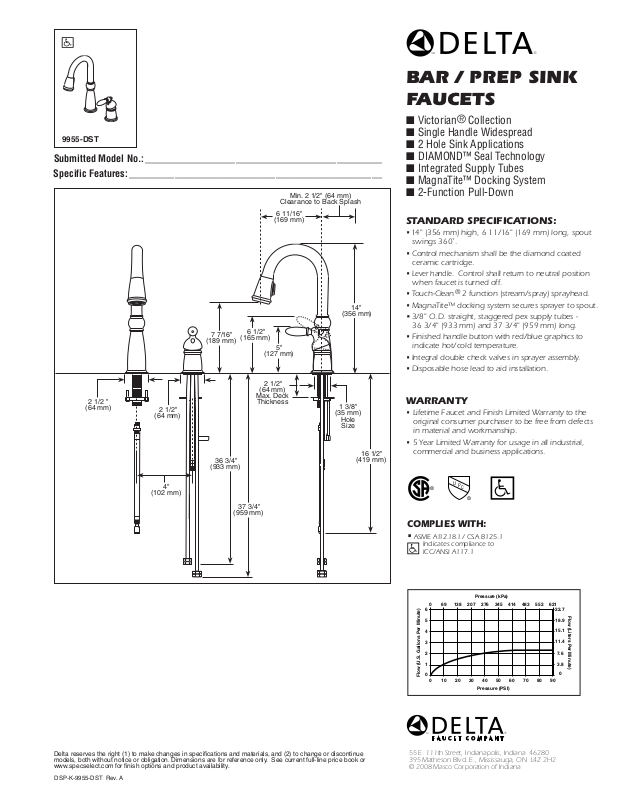

Delta 9955-DST User Manual

0

1

2

3

4

5

0102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

6

069 138 207 276 345 414 483 552 621

0

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Minute)

9955-DST

®

®

U

P

C

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

Min. 2 1/2" (64 mm)

Clearance to Back Splash

6 11/16"

(169 mm)

14"

(356 mm)

6 1/2"

(165 mm)

2 1/2"

(64 mm)
Max. Deck
Thickness

5"

(127 mm)

1 3/8"

(35 mm)

Hole
Size

16 1/2"

(419 mm)

2 1/2 "

(64 mm)

2 1/2"

(64 mm)

7 7/16"

(189 mm)

36 3/4"

(933 mm)

bar / prep sink
FaUCeTs

■ Victorian® Collection

■ Single Handle Widespread

■ 2 Hole Sink Applications

■ DIAMOND™ Seal Technology

■ Integrated Supply Tubes

■ MagnaTite™ Docking System

■ 2-Function Pull-Down

STANDARD SPECIFICATIONS:

•

14" (356 mm) high, 6 11/16" (169 mm) long, spout

swings 360˚.

•

Control mechanism shall be the diamond coated

ceramic cartridge.

• Lever handle.
when faucet is turned off.

•

Touch-Clean

•

MagnaTite™ docking system secures sprayer to spout.

• 3/8" O.D. straight, staggered pex supply tubes -
36 3/4" (933 mm) and 37 3/4" (959 mm) long.

•

Finished handle button with red/blue graphics to

indicate hot/cold temperature.

•

Integral double check valves in sprayer assembly.

•

Disposable hose lead to aid installation.

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial,
commercial and business applications.

Control shall return to neutral position

®

2 function (stream/spray) sprayhead.

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.

DSP-K-9955-DST Rev. A

4"

(102 mm)

37 3/4"

(959 mm)

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1

Indicates compliance to
ICC/ANSI A117.1

55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana
