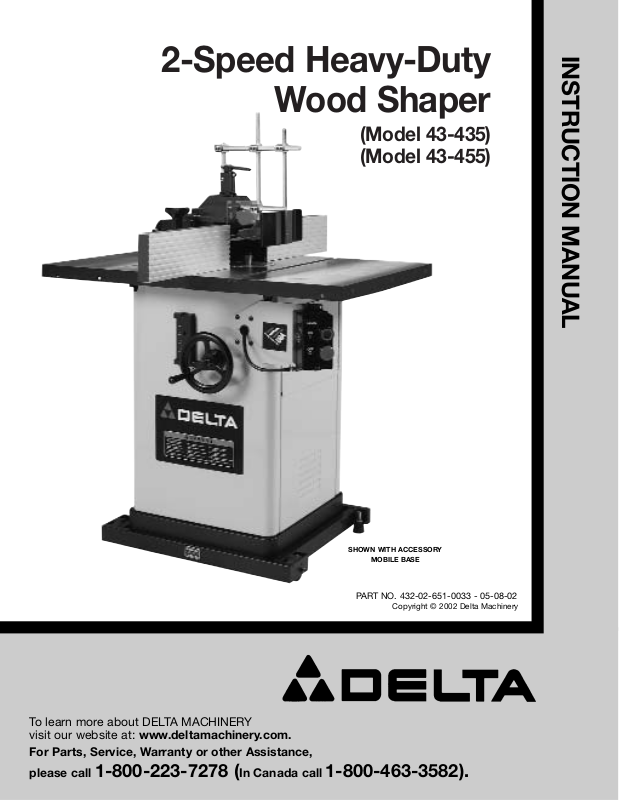

Page 1

2-Speed Heavy-Duty

Wood Shaper

(Model 43-435) (Model 43-455)

INSTRUCTION MANUAL

PART NO. 432-02-651-0033 - 05-08-02

To learn more about DELTA MACHINERY visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance, please call

1-800-223-7278 (In Canada call 1-800-463-3582).

SHOWN WITH ACCESSORY

MOBILE BASE

Page 2

GENERAL SAFETY RULES

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there are certain hazards involved with the operation of the product. Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards, goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make up for poor judgment, carelessness or inattention. Always use common sense

and exercise caution in the workshop.

If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your personal safety is your responsibility.

This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not be modified and/or used for any application other than that for which it was designed. If you have any questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should be performed on the product.

Technical Service Manager Delta Machinery 4825 Highway 45 North Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY

1. FOR YOUR OWN SAFETY, READ INSTRUCTION

MANUAL BEFORE OPERATING THE TOOL. Learn the

tool’s application and limitations as well as the specific hazards peculiar to it.

2. KEEP GUARDS IN PLACE and in working order.

3. ALWAYS WEAR EYE PROTECTION.

Wear safety glasses. Everyday eyeglasses only have impact resistant lenses; they are not safety glasses. Also use face or dust mask if cutting operation is dusty. These safety glasses must conform to ANSI Z87.1 requirements. NOTE: Approved glasses have Z87 printed or stamped on them.

4. REMOVE ADJUSTING KEYS AND WRENCHES. Form

habit of checking to see that keys and adjusting wrenches are removed from tool before turning it “on”.

5. KEEP WORK AREA CLEAN. Cluttered areas and

benches invite accidents.

6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t

use power tools in damp or wet locations, or expose them to rain. Keep work area well-lighted.

7. KEEP CHILDREN AND VISITORS AWAY. All children

and visitors should be kept a safe distance from work area.

8. MAKE WORKSHOP CHILDPROOF – with padlocks,

master switches, or by removing starter keys.

9. DON’T FORCE TOOL. It will do the job better and be

safer at the rate for which it was designed.

10. USE RIGHT TOOL. Don’t force tool or attachment to do a job for which it was not designed.

11. WEAR PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or other jewelry to get caught in moving parts. Nonslip footwear is recommended. Wear protective hair covering to contain long hair.

12. SECURE WORK. Use clamps or a vise to hold work when practical. It’s safer than using your hand and frees both hands to operate tool.

13. DON’T OVERREACH. Keep proper footing and bal- ance at all times.

14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

15. DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.

16. USE RECOMMENDED ACCESSORIES. The use of accessories and attachments not recommended by Delta may cause hazards or risk of injury to persons.

17. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in “OFF” position before plugging in power cord.

In the event of a power failure, move switch

to the “OFF” position.

18. NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.

19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to ensure that it will operate properly and perform its intended function – check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

20. DIRECTION OF FEED. Feed work into a blade or cut- ter against the direction of rotation of the blade or cutter only.

21. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don’t leave tool until it comes to a complete stop.

22.

STAY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN OPERATING A POWER TOOL. DO NOT USE TOOL WHILE TIRED OR UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR MEDICATION. A moment of inattention while operating power tools

may result in serious personal injury.

23. MAKE SURE TOOL IS DISCONNECTED FROM POWER SUPPLY while motor is being mounted, connected or reconnected.

24. THE DUST GENERATED by certain woods and wood products can be injurious to your health. Always operate machinery in well ventilated areas and provide for proper dust removal. Use wood dust collection systems whenever possible.

25.

WARNING: SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER CONSTRUCTION ACTIVITIES contains

chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other

masonry products, and

· arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Page 3

1. DO NOT OPERATE THIS MACHINE UNTIL it is assem- bled and installed according to the instructions.

2. OBTAIN ADVICE from your supervisor, instructor, or another qualified person if you are not familiar with the operation of this machine.

3. FOLLOW ALL WIRING CODES and recommended electrical connections.

4. USE THE GUARDS WHENEVER POSSIBLE. Check to

see that they are in place, secured, and working correctly.

5. NEVER TURN THE MACHINE “ON” before clearing the

table of all objects (tools, scraps of wood, etc.).

6. AVOID AWKWARD OPERATIONS AND HAND POSI-

TIONS where a sudden slip could cause a hand to move into the cutter.

7. KEEP ARMS, HANDS AND FINGERS away from the

cutter.

8. NEVER START THE MACHINE with the workpiece con-

tacting the cutter.

9. NEVER REACH UNDER THE TABLE while the machine

is running.

10. KEEP CUTTERS SHARP and free from rust and pitch.

11. NEVER ADJUST THE FENCE while the machine is run-

ning.

12. ADJUST THE FENCE HALVES so that the cutter open-

ing is never more than is required to clear the cutter.

13. LOCK THE FENCE hardware after making fence adjust-

ments.

14. PROPERLY SECURE THE CUTTERS before starting

the machine.

15. DO NOT PERFORM ANY OPERATION FREE-HAND.

Use the fence for straight-shaping, a miter gauge for end-shaping, and the starting pin and rub collars for curve-shaping.

16. KEEP THE FRONT MOTOR ACCESS PANEL

CLOSED while the machine is running.

17. DO NOT FEED A WORKPIECE that is warped, con-

tains knots, or is embedded with foreign objects (nails, staples, etc.).

18. NEVER RUN A WORKPIECE between the fence and

the cutter.

19. USE A MITER GAUGE and a clamp attachment for end

shaping a workpiece whenever possible. Remove the fence during this operation.

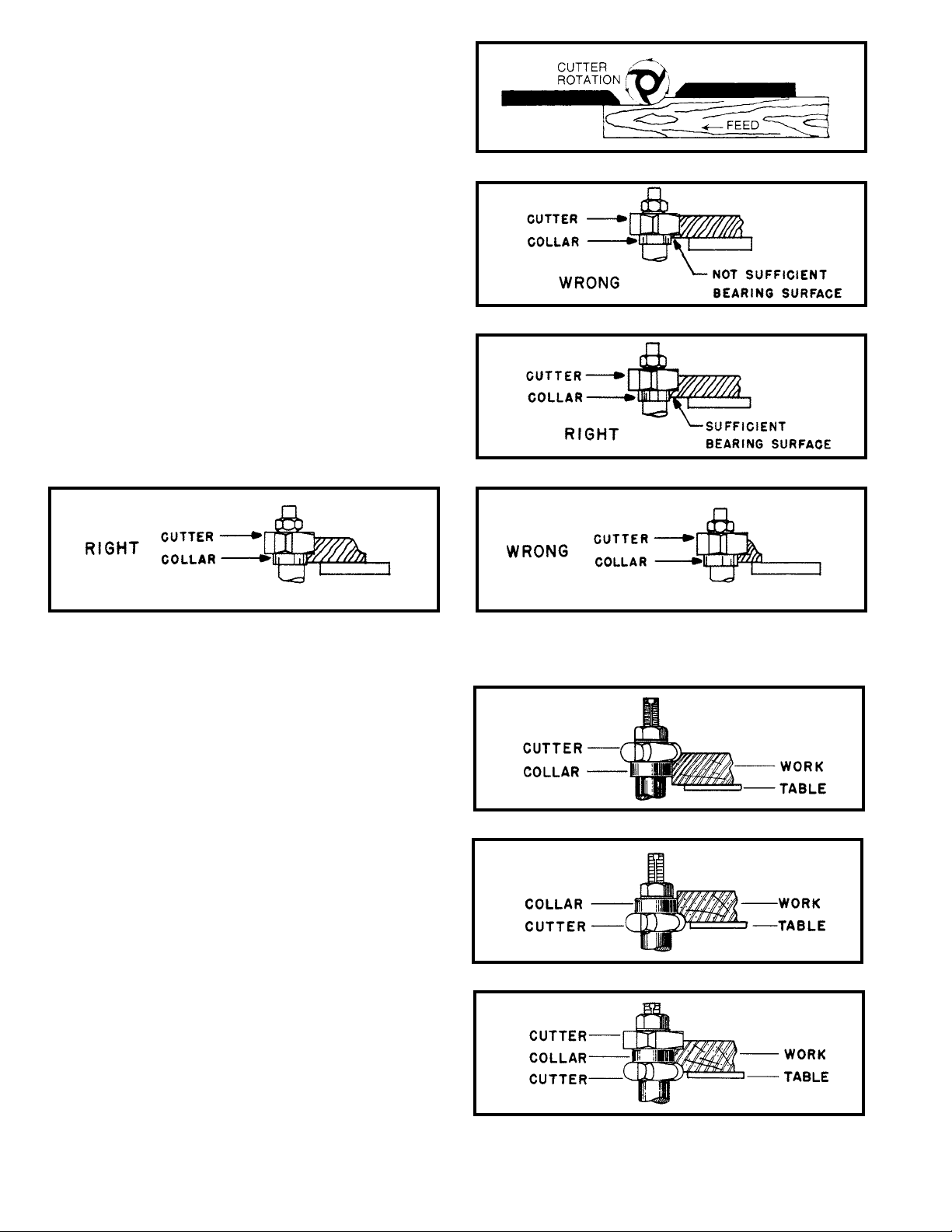

20. PROVIDE SUFFICIENT BEARING SURFACE when

shaping with a starting pin and collar(s) Figs. B and C.

ADDITIONAL SAFETY RULES FOR WOOD SHAPERS

Fig. B

21. ONLY SHAPE LARGE WORKPIECES when using start-

ing pin and collar(s). DO NOT SHAPE short or light workpieces when using starting pin and collar(s). (Figs. D and E).

Fig. D

Fig. E

WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

Fig. F

SUFFICIENT

BEARING SURFACE

CUTTER COLLAR

RIGHT

CUTTER COLLAR

RIGHT

CUTTER COLLAR

WRONG

CUTTER

COLLAR

WORK TABLE

22. POSITION THE CUTTER below the collar(s) when

shaping with starting pin and collar(s)

(Fig. F).

24. NEVER PERFORM LAYOUT, assembly or set-up

work on the table/work area when the machine is running.

25. TURN THE MACHINE “OFF” AND DISCONNECT THE MACHINE from the power source before installing or removing accessories, before adjusting or changing setups, or when making repairs.

26. TURN THE MACHINE “OFF”, disconnect the machine from the power source, and clean the table/work area before leaving the machine. LOCK THE SWITCH IN THE “OFF” POSITION to prevent unauthorized use.

27. ADDITIONAL INFORMATION regarding the safe and proper operation of this machine is available from the Power Tool Institute, 1300 Summer Avenue, Cleveland, OH 44115-2851. Information is also available from the National Safety Council, 1121 Spring Lake Drive, Itasca, IL 60143-3201. Please refer to the American National Standards Institute ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor OSHA 1910.213 Regulations.

Fig. G

CUTTER ROTATION

FEED

Fig. C

INSUFFICIENT

BEARING SURFACE

CUTTER COLLAR

WRONG

23. FEED WORKPIECE against cutter rotation (Fig. G).

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others.

Page 4

WARNING: DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.

WARNING: THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELEC-

TRIC SHOCK.

POWER CONNECTIONS

Model 43-435 - A separate electrical circuit should be used for this machine. This circuit should not be less than #12

wire and should be protected with a 20 amp time lag fuse or motor-starting circuit breaker. If an extension cord is used, use only 3-wire extension cords which have 3-prong grounding type plugs and matching receptacle which will accept the tool’s plug. Before connecting the motor to the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the same characteristics as indicated on the tool. All line connections should make good contact. Running on low voltage will damage the motor

Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating between 150 250 volts, inclusive:

If the tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. AA, the tool will have a grounding plug that looks like the plug illustrated in Fig. AA. Make sure the tool is connected to an outlet having the same configuration as the plug. No adapter is available or should be used with this tool. If the tool must be reconnected for use on a different type of electric circuit, the reconnection should be made by qualified service personnel; and after reconnection, the tool should comply with all local codes and ordinances.

GROUNDED OUTLET BOX

CURRENT CARRYING PRONGS

GROUNDING BLADE IS LONGEST OF THE 3 BLADES

Fig. AA

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the tool’s plug. When using an extension cord, be sure to use one heavy enough to carry the current of the tool. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. 5 shows the correct gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

EXTENSION CORDS

Fig. 5

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC TOOLS

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 240

up to

50 18 AWG 0-6 240 50-100 16 AWG 0-6 240 100-200 16 AWG 0-6 240 200-300 14 AWG

6-10 240

up to

50 18 AWG 6-10 240 50-100 16 AWG 6-10 240 100-200 14 AWG 6-10 240 200-300 12 AWG

10-12 240

up to

50 16 AWG 10-12 240 50-100 16 AWG 10-12 240 100-200 14 AWG 10-12 240 200-300 12 AWG

12-16 240

up to

50 14 AWG 12-16 240 50-100 12 AWG 12-16 240

GREATER THAN 100 FEET NOT RECOMMENDED

GROUNDING INSTRUCTIONS

WARNING: IN ALL CASES, MAKE CERTAIN THAT THE RECEPTACLE IN QUESTION IS

PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK THE RECEPTACLE.

Page 5

UNPACKING AND CLEANING

Carefully unpack the tool from the shipping container. Clean all loose parts and remove the protective coating from the machined surface of the tool. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline, or lacquer thinner for this purpose).

OPERATING INSTRUCTIONS

FOREWORD

Delta Model 43-435 (3 HP) and Model 43-455 (5 HP) are both single phase, 240V wood shaping machines. They utilize a Poly Vbelt drive system that transmits more efficient torque to the spindle and have a capacity (under nut) of 5".

NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING, OR ACCESSORIES.

Model 43-455 - This machine is not supplied with a power cord, and must be be permanently connected to the

building electrical system and grounded according to the National Electrical Code and/or local codes and ordinances. Since this machine is permanently connected to the building electrical system, extension cords cannot be used with this shaper.

Permanently connected tools:

If the tool is intended to be permanently connected the tool should be connected to a grounded metal permanent wiring system; or to a system having an equipment-grounding conductor.

Page 6

4. 10" Wide Cast Iron Extension Wings (2)

5. Wrenches (2)

6. 7/16-20 x 1" Hex Head Screws (6) for mounting extension wing

7. Flat Washers (6) for mounting extension wing

8. Handwheel

9. Key for Handwheel

10. Lock Knob

11. Spindle Guard

12. 1-1/4" I.D. Washer (2)

13. 1-1/4" I.D. x 3/8" Thick Collar

14. 1-1/4" I.D. x 1/2" Thick Collar

15. 1-1/4" I.D. x 5/8" Thick Collar

16. 1-1/4" I.D. x 1" Thick Collars (3)

17. Spindle Nut

18. 1-1/4" Keyed Washer

19. Spindle

20. Tie Rod

21. Tie Rod Nut

22. #10-32 Keps Nut (2) for mounting switch-to-switch mounting bracket

23. #10-32 x 1/2" Phillips Head Screws (2) for mounting switch-to-switch mounting bracket

24. 1/4-20 Flange Nuts (4) for mounting switch mounting bracket to shaper

25. 1/4-20 x 7/8" Truss Head Machine Screws (4) for mounting switch mounting bracket

26. Switch Adapter Plates (2) for mounting switch mounting bracket to shaper

27. Starting Pin

CARTON CONTENTS

Model 43-455

4. 10" Wide Cast Iron Extension Wings

5. Wrenches (2)

6. 7/16-20 x 1" Hex Head Screws (6) for mounting extension wings

7. Flat Washers (6) for mounting extension wings

8. Handwheel

9. Key for Handwheel

10. Lock Knob

11. Spindle Guard

12. 3/4" I.D. Washer (2)

13. 3/4" I.D. x 1/2" Thick Collar

14. 3/4" I.D. x 3/4" Thick Collar

15. 3/4" I.D. x 1" Thick Collar

16. Spindle Nut

17. 3/4" Keyed Washer

18. Spindle

19. Tie Rod

20. Tie Rod Nut

21. #10-32 Keps Nut (2) for mounting switch-to-switch mounting bracket

22. #10-32 x 1/2" Phillips Head Screw (2) for mounting switch-to-switch mounting bracket

23. 1/4-20 Flange Nut (4) for mounting switch mounting bracket to shaper

24. 1/4-20 x 7/8"Truss Head Machine Screw (4) for mounting switch mounting bracket to shaper

25. Switch Adapter Plate (2) for mounting switch mounting bracket to shaper

26. Starting Pin"

Model 43-435

Page 7

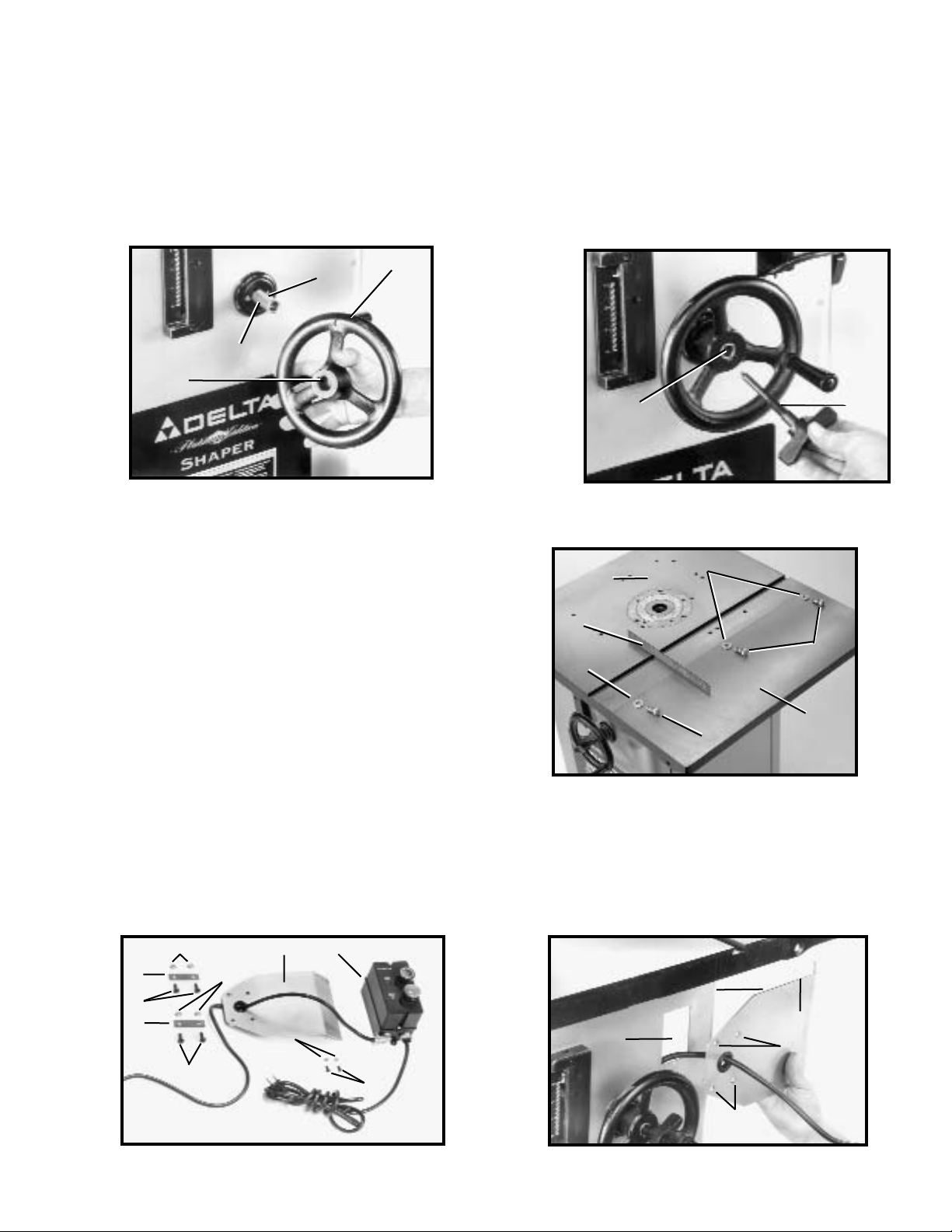

Fig. 6

Fig. 7

Fig. 8

ATTACHING EXTENSION WINGS TO SHAPER TABLE

Attach the extension wing (A) Fig. 8 to shaper table (B) using three 7/16-20 x 1" hex head screws (C) and flat washers (D). Use a straight edge (E) Fig. 8 to level the extension wing with the shaper table before tightening the three screws (C). Attach and level the remaining extension wing.

Fig. 9

Fig. 10

1. The on/off switch (A) Fig. 9 and switch mounting bracket (B) are shipped inside the shaper cabinet. Open the side door of the shaper cabinet, remove the switch package, and remove all packaging material.

2. Position the switch mounting bracket (B) Fig. 10 with the holes (C) over hole (D) in the shaper cabinet (E). Fasten the bracket (B) to the cabinet (E) using the four 1/4-20 x 7/8" truss head screws (F) Fig. 9, 1/4-20 flange nuts (G) and the two switch adapter plates (H).

ATTACHING SWITCH BRACKET AND ON/OFF SWITCH

ASSEMBLY INSTRUCTIONS

WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE TOOL IS COMPLETELY ASSEMBLED, AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION MANUAL.

ATTACHING SPINDLE RAISING AND LOWERING HANDWHEEL

1. Insert key (A) Fig. 6 into slot in spindle raising and lowering shaft (B).

2. Place the handwheel (C) Fig. 6 on the spindle shaft (B). Fit the key (A) into the slot (D) in the handwheel. Insert the set screw that holds the handwheel to the shaft. Tighten the screw firmly against the key.

3. Thread the lock knob (E) Fig. 7 into the spindle shaft (B).

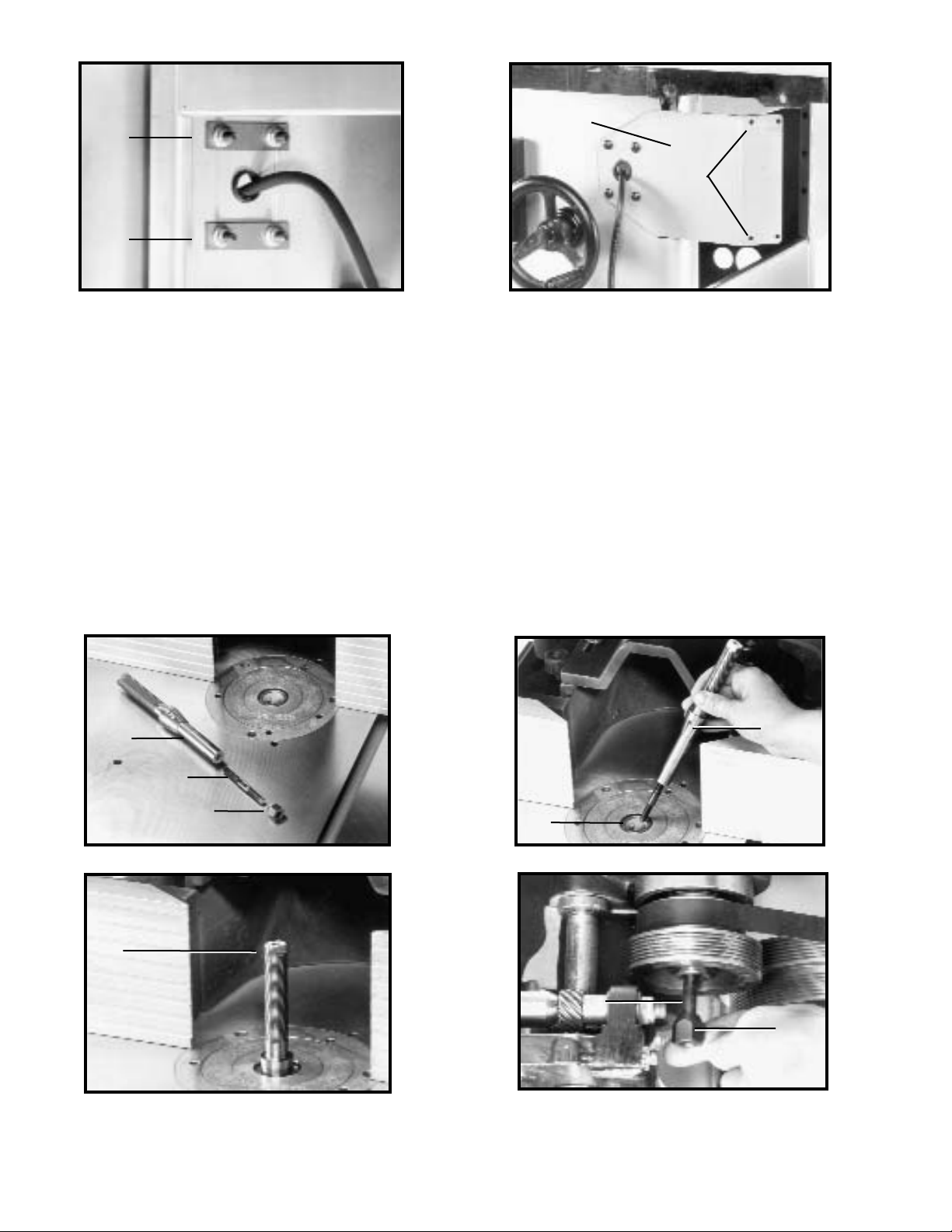

Page 8

Fig. 12

Fig. 13

ATTACHING AND CHANGING SPINDLES

1. DISCONNECT TOOL FROM POWER SOURCE.

2. Thread one end of the tie rod (A) Fig. 12 into the threaded hole in the bottom of the spindle (B).

3. Insert tie rod and spindle into the spindle cartridge. Line up the pin (C) Fig. 13 with the notch (D) in the spindle.

4. Thread nut (E) Figs. 12 and 15 on the bottom end of the tie rod (A).

5. Use a wrench on the flats (F) Fig. 14 to hold the spindle while tightening the nut (E) Fig. 15 on the bottom of the tie rod.

Fig. 14

Fig. 15

Fig. 11B

NOTE: Position the switch adapter plates (H) inside the shaper cabinet (Fig. 11).

4. Attach the on/off switch (A) Fig. 9 to the switch mounting bracket (B) Fig. 11B, through the two holes (J). Use two #10-32 x 1/2" Phillips head screws (K) Fig. 9 and secure with #10-32 Keps nuts (L).

Fig. 11

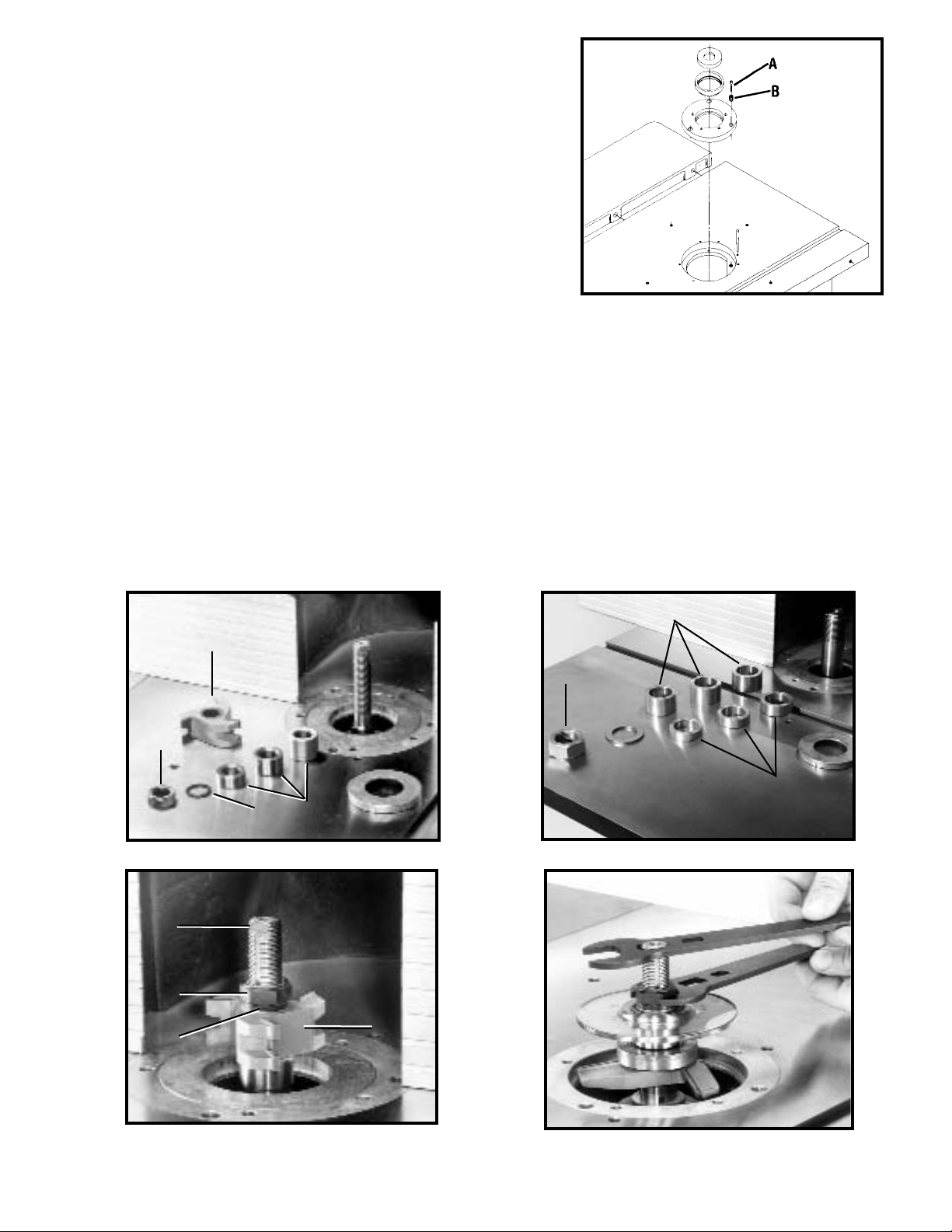

Page 9

Fig. 18

Fig. 19

1. Disconnect tool from power source.

2. Three different-sized collars (A) Fig. 17A are supplied with the 43-435 shaper. These collars allow the cutter and/or the 4-1/2" diameter spindle guard to be positioned at various locations on the spindle.

3. Six different-sized collars (A) Fig. 17B are supplied with the 43-455 shaper. These collars allow the cutter and/or the 6-1/2” spindle guard to be positioned at various locations on the spindle.

4. When attaching cutters to the spindle, position the cutter as close to the bottom of the spindle as possible. This action will reduce the possibility of spindle run-out, which can affect the appearance of the cut.

5. Determine which, if any, collars are needed. Then attach the cutter (B) Fig. 17A, keyed washer (C), and spindle nut (D) (Figs. 17A and 17B). Place one wrench on the flats (A) on top of the spindle and one wrench on the spindle nut (D). Tighten as shown in Fig. 19.

6. IMPORTANT: Always place “keyed” washer (C) Fig. 18, on spindle before screwing on nut (D). The “keyed” washer

ATTACHING CUTTERS AND COLLARS TO SPINDLE

Fig. 17B

Fig. 17A

Fig. 16

ATTACHING TABLE INSERTS

Three table inserts are provided for various size cutters, (Fig. 16). The large insert is adjustable. To set it flush with the table:

1. Remove the three slotted head screws (A) Fig. 16.

2. Use a screwdriver to turn the three adjusting screws (B) Fig.16 until the insert is flush with the table.

3. Replace the slotted head screws (A).

Page 10

Fig. 25

RAISING AND LOWERING SPINDLE

The spindle can be raised or lowered by loosening lock knob (A) Fig. 25, and turning handwheel (B). To raise the spindle height, turn the handwheel (B) clockwise. To lower the spindle height, turn handle (B) counterclockwise.

The scale (C) Fig. 25 indicates the spindle travel range from 0" to 3" and is marked in 1/16" increments. Minor cutter height adjustments can be measured using the pointer (D) along the scale (C). CAUTION: Always tighten lock knob (A) after adjusting spindle height.

D C

STARTING AND STOPPING THE TOOL

To start the machine, push “ON” button (A) Fig. 23. To stop the machine, push “OFF” button (B).

IMPORTANT: When the tool is not in use, the switch should be locked in the “OFF” position to prevent unauthorized use, using a padlock (C) Fig. 24 with a 3/16" diameter shackle.

OPERATING CONTROLS AND ADJUSTMENTS

Fig. 23

Fig. 20

Fig. 21

Fig. 22

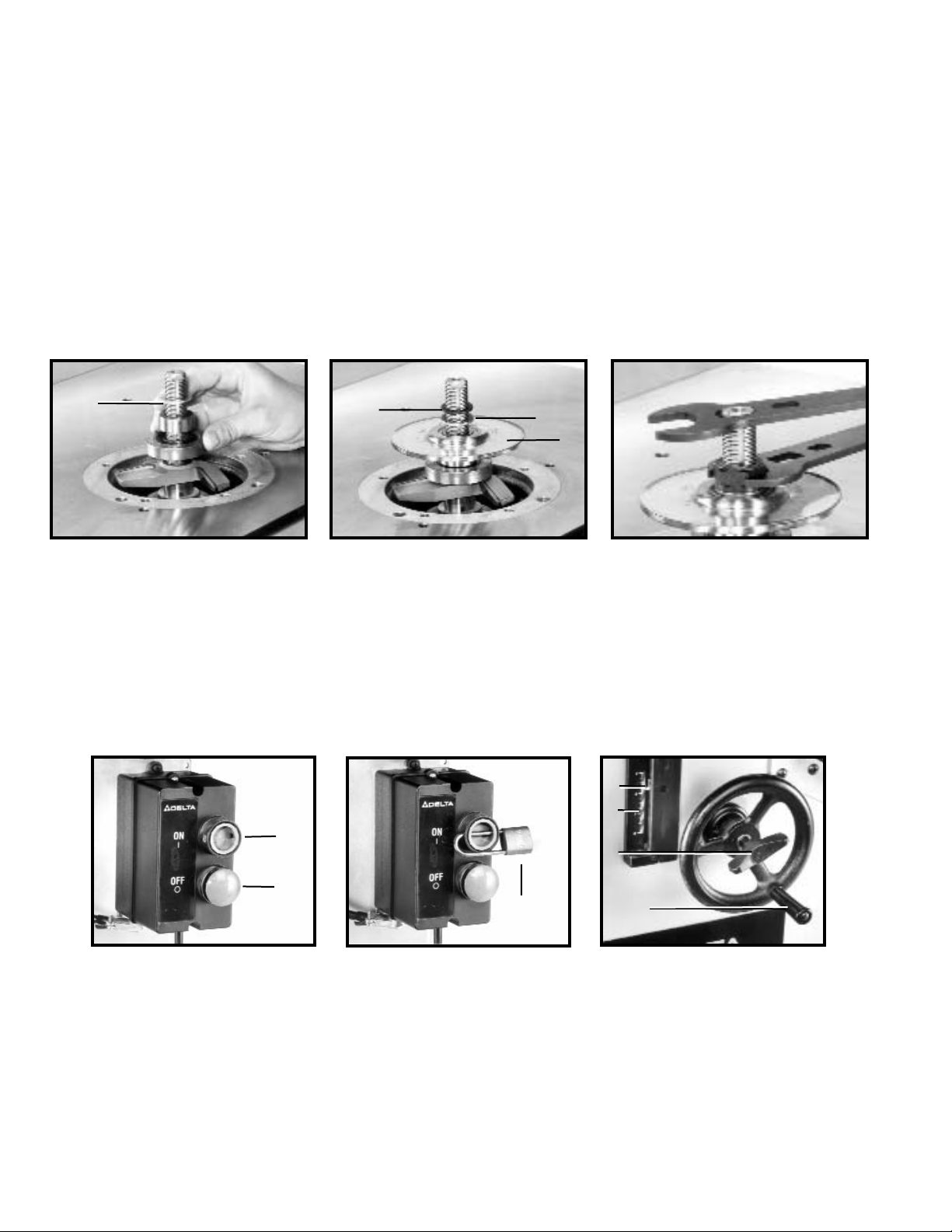

ATTACHING SPINDLE GUARD

A 4-1/2”spindle guard is supplied with the 43-435, while a 6-1/2" spindle is supplied with the 43-455.

CAUTION: The diameter of the spindle guard should be at least 1" more than the maximum cutting circle of the shaper cutter and the height of the guard should not exceed 1/4" above the material.

To attach spindle guard:

1. DISCONNECT TOOL FROM POWER SOURCE.

2. Two 3/4" I.D. or two 1-1/4" I.D washers are supplied with the 4-1/2" or 6-1/2" spindle guards to accommodate either spindle. Place one of the washers (A) on the spindle (Fig.20).

3. Place the spindle guard (B) Fig. 21 on the spindle. Install the other washer (C) and the “keyed” washer (D) on the spindle.

4. Thread the spindle nut (E) Fig. 22 on the spindle. Place one wrench on the flats at the top of the spindle and one wrench on spindle nut (E) and tighten.

5. IMPORTANT: Always place the “keyed” washer (D) Fig. 21, on the spindle before screwing on the spindle nut (E)

Fig. 22. The “keyed” washer (D) Fig.21 prevents the spindle nut (E) Fig. 22 from loosening when the spindle turns counterclockwise.

Fig. 24

Page 11

Fig. 26

Fig. 27

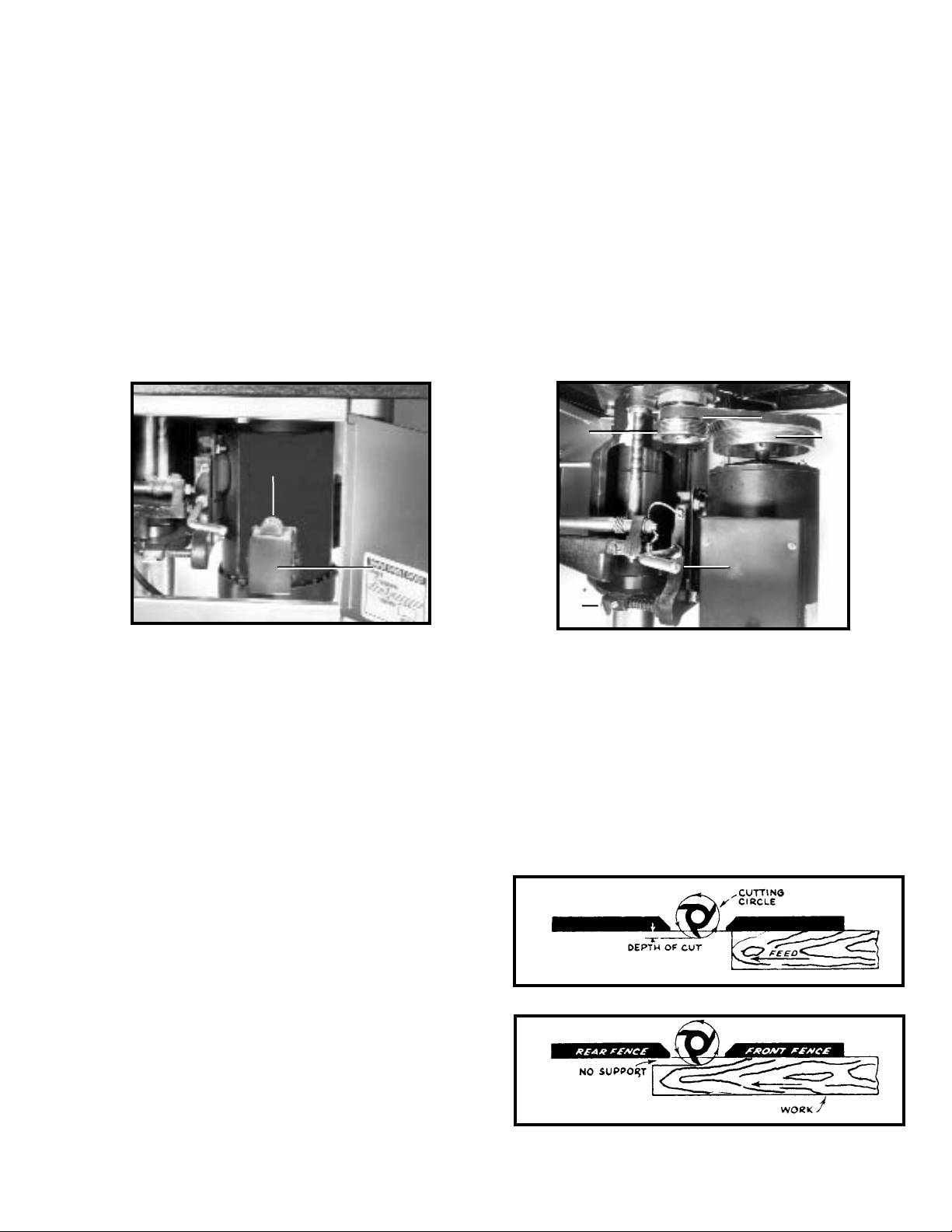

CHANGING SPEEDS AND ADJUSTING BELT TENSION

The tool is supplied with a 2-step motor pulley and a 2-step spindle pulley that provide spindle speeds of 7,000 and 10,000 RPM. With the belt on the largest step of the motor pulley and the smallest step of the spindle pulley, the spindle speed will be 10,000 RPM. With the belt on the smallest step of the motor pulley and the largest step of the spindle pulley, the spindle speed will be 7,000 RPM.

A chart (Y) Fig. 26 that illustrates the correct belt placement for 7,000 or 10,000 RPM is located on the inside panel of the motor access door.

To change speeds and adjust belt tension:

1. Disconnect tool from power source.

Open motor access door (Y) Fig. 26.

3. Loosen the thumb screw (A) Fig. 27. Release tension on the belt by moving the lever (B) to the left. Position the belt (C) on the desired steps of the spindle pulley (D) and the motor pulley (E), and apply belt tension by moving the lever (B) to the right. When the desired belt tension is attained, tighten the thumb screw (A).

4. Proper belt tension is approximately a 3/32" deflection when using light finger pressure on the belt between pulleys. IMPORTANT: Pulleys (D) and (E) Fig. 27 should always be aligned with each other to provide maximum belt performance and reduce belt wear. To check pulley alignment, refer to section “REPLACING SPINDLE CARTRIDGE”.

REVERSING SPINDLE ROTATION

Caution: Disconnect tool from power source.

The motor is equipped with a reversing switch (X) Fig. 26, located on the motor junction box.

CAUTION: Never attempt to reverse the rotation of the spindle with the motor running.

OPERATIONS

The following examples show set-up and operational procedures when using the fence, collars, and starting pin. Please review this information carefully before turning on the power to avoid personal injury and/or damage to the machine.

SHAPING WHEN USING THE

FENCE AS A GUIDE

Using the fence is the safest and most satisfactory method of shaping. Most straight work can be shaped using the fence described below.

1. For average work, where a portion of the original edge of the work is not touched by the cutter, both the front and rear fences are in a straight line (Fig. 28).

2. When the shaping operation removes the entire edge of the work (jointing or making a full bead), the shaped edge will not be supported by the rear fence when both fences are in line (Fig. 29). In this case, the work should be advanced to the position shown in Fig. 29 and stopped.

Fig. 28

Fig. 29

Page 12

Fig. 36

Fig. 37

Fig. 34

POSITION OF COLLARS

1. The collars may be used in any of three positions: above, below, or between two cutters.

2. When the collar is used below the cutter (Fig. 35), the operator can see the progress of the cut. NOTE: Any accidental lifting of the work will gouge the wood and ruin the workpiece.

3. When the collar is used above the cutter (Fig. 36), the operator will be unable to see the cut. However, the advantage in this method is that the cut is not affected by slight variations in the thickness of the stock. Also, accidental lifting of the work will not gouge the workpiece. Simple correction for the mistake is to repeat the operation.

4. The collar between cutters method (Fig. 37) has the advantages of the first two methods and is frequently used when both edges of the work are to be shaped.

Fig. 35

Fig. 30

3. The rear fence should then be advanced to contact the work (Fig. 30), putting it in line with the cutting circle.

SHAPING WITH COLLARS AND STARTING PIN

When shaping with collars and starting pin, follow the rules below for superior finishing and safety in operation.

Fig. 31

Fig. 32

1. Free the collars of ALL gum or other substances, and make sure that they are smooth.

2. Check to see that the edge of the work is smooth. ANY irregularity in the surface that rides against the collar will be duplicated on the moulded surface.

3. A portion of the edge of the work MUST remain untouched by the cutters in order that the collar will have sufficient bearing surface. The wrong method is shown in Fig. 31, while Fig. 32 illustrates the right method.

4. The work MUST be fairly heavy in proportion to the cut being made (Fig. 33). Under NO circumstances should short work of light body be shaped against the collars (Fig. 34).

5. When shaping with collars and starting pin, use the spindle guard supplied with the tool.

Fig. 33

Page 13

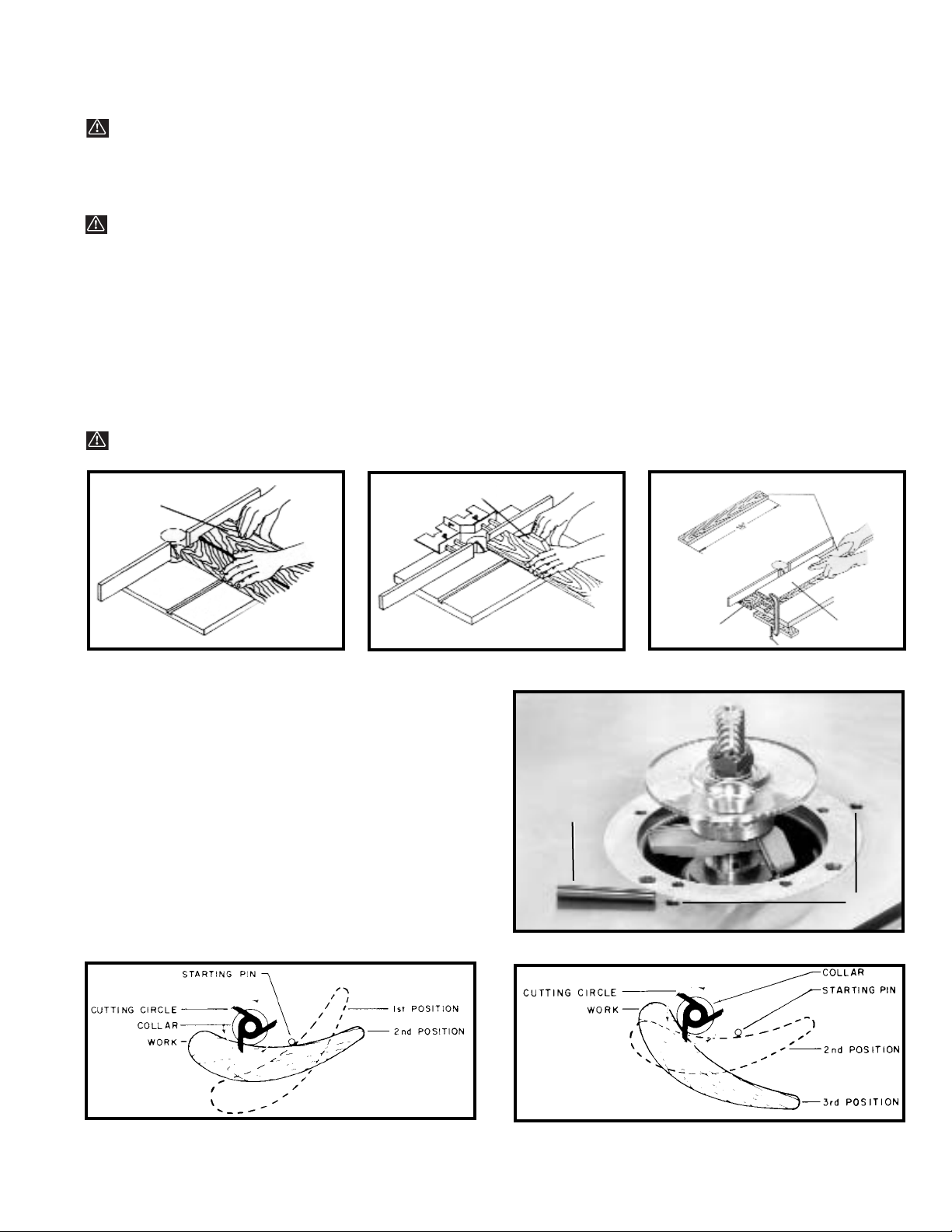

END SHAPING

Maintain sufficient support of the workpiece during all shaping operations. When end shaping a workpiece that is not long enough to be sufficiently supported halfway through the cut, USE A MITER GAUGE OR BACK-UP BLOCK (Figs. 38 and 39).

WARNING: Shaping a narrow workpiece without sufficient support could result in serious injury.

The infeed fence assembly must be parallel to the miter slot when using the miter gauge. Adjust the outfeed fence so that it will not contact the workpiece after it has passed the cutter. Place the workpiece firmly against the miter gauge and infeed fence and feed the cutter by pushing the miter gauge.

WARNING: Failure to hold the workpiece firmly against the miter gauge during the cut could result in slippage of the workpiece, causing serious personal injury and/or damage to the workpiece.

CROSS GRAIN SHAPING

Shaping across the grain will usually cause some splitting at the end of the cut. Feeding the workpiece slowly across the cutter at the end of the cut can minimize the splitting. Shape the cross-grain cuts first. Shaping with the grain last will usually remove the splintered end.

SHAPING NARROW MATERIAL

Clamp a support (Fig. 40) to the tool when shaping narrow material (less than 3" wide) Feed the workpiece under this support with a push stick. NOTE: The push stick should be slightly narrower and thinner than the workpiece.

WARNING: Shaping narrow material without proper support and push stick could result in serious injury.

Fig. 38

Fig. 39

Fig. 40

Fig.41

STARTING PIN

1. The tool is supplied with a tapered starting pin (A) Fig. 41, which is used as a support when starting the cut. The starting pin (A) is placed in one of the tapered holes (B) in the table.

2. Place the work in the first position using the guide pin as a support (Fig. 42). Swing the work into the cutter as shown in the second position (Fig. 42). The work will be supported by the collar and starting pin (Fig. 42).

3. After the cut has started, swing the work free of the starting pin and let it ride only against the collar (third position, Fig. 43). ALWAYS FEED WORKPIECE AGAINST

THE ROTATION OF THE CUTTER. IMPORTANT: Advancing the work to the cutter without

the side support of the starting pin will provide serious kickback. ALWAYS USE THE STARTING PIN.

Fig. 42

Fig. 43

BACK-UP BLOCK

Warning:

Keep Hands

Away from Cutter

Warning:

Keep Hands

Away from Cutter

MITER GUAGE

PUSH STICK

Slightly narrower and

thinner than workpiece

WORK SUPPORT

WORKPIECE

WARNING;

KEEP HANDS

AWAY FROM

CUTTER

Page 14

PARTS, SERVICE OR WARRANTY ASSISTANCE

All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network of PorterCable · Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).

Fig. 44

Fig. 45

ACCESSORIES

A complete line of accessories is available from your Delta Supplier, Porter-Cable · Delta Factory Service Centers, and Delta Authorized Service Stations. Please visit our Web Site www.deltamachinery.com for a catalog or for the name of your near- est supplier.

WARNING: Since accessories other than those offered by Delta have not been tested

with this product, use of such accessories could be hazardous. For

safest operation, only

Delta recommended accessories should be used with this product.

REPLACING SPINDLE CARTRIDGE

1. Disconnect tool from power source.

2. IMPORTANT: When replacing the spindle cartridge, bolt (A) Fig. 44 should only be tightened 7 to 10 foot pounds.

3. The spindle pulley (D) Fig. 45, and motor pulley (E) should always be aligned with each other to provide maximum belt performance and to reduce belt wear. To check the pulley alignment, place a straight edge against the underside of both pulleys (Fig. 45). If an adjustment is necessary, loosen the set screw (F) and move the motor pulley up or down until the two pulleys (D) and (E) are aligned. Tighten the set screw.

4. Proper belt tension is approximately a 3/32" deflection when using light finger pressure on the belt between pulleys (D) and (E) Fig. 45.

Page 15

Two Year Limited Warranty

Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which in normal use has proven to be defective in workmanship or material, provided that the customer returns the product prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that electric motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement. Delta will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or alteration made or specifically authorized by anyone other than an authorized Delta service facility or representative. Under no circumstances will Delta be liable for incidental or consequential damages resulting from defective products. This warranty is Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly disclaimed by Delta.

Printed in U.S.A.

Page 16

The following are trademarks of PORTER-CABLE·DELTA (Las siguientes son marcas registradas de PORTER-CABLE S.A.): BAMMER®, INNOVATION THAT WORKS

, JETSTREAM®, LASERLOC®, OMNIJIG®, POCKET CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-

CABLE

, QUICKSAND®, SANDTRAP®, SAW BOSS®, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®, STAIR-EASE®, THE PROFESSION-

AL EDGE

, THE PROFESSIONAL SELECT®, TIGER CUB®, TIGER SAW®, TORQBUSTER®, WHISPER SERIES®, DURATRONIC™, FLEX™, FRAME SAW™, MICRO-SET™, MORTEN™, NETWORK™, RIPTIDE™, TRU-MATCH™, WOODWORKER’S CHOICE™, THE AMERICAN WOOD SHOP™ (design) , AUTO-SET™, B.O.S.S.™, BUILDER’S SAW™, CONTRACTOR’S SAW™, DELTA™, DELTACRAFT™, HOMECRAFT™, JET-LOCK™, KICKSTAND™, THE LUMBER COMPANY™ (design). MICRO-SET™, Q3™, QUICKSET II™, QUICKSET PLUS™, SAFEGUARD II™, SANDING CENTER™, SIDEKICK™, UNIFENCE™, UNIGUARD™, UNIRIP™, UNISAW™, VERSA-FEEDER™ , THINLINE™, TPS™, Emc²™.

Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también pueden estar registradas en otros países.

PORTER-CABLE • DELTA SERVICE CENTERS

(CENTROS DE SERVICIO DE PORTER-CABLE

• DELTA)

Parts and Repair Service for Porter-Cable •Delta Machinery are Available at These Locations

(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable

•

Delta)

Authorized Service Stations are located in many large cities. Telephone 800-438-2486 or 731-541-6042 for assistance locating one. Parts and accessories for Porter-Cable

Delta products should be obtained by contacting any Porter-Cable·Delta Distributor, Authorized

Service Center, or Porter-Cable

Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will

be directed to the nearest Porter-Cable·Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas grandes ciudades. Llame al 800-438-2486 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios para los productos Porter-Cable

Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable

Delta, Centro

de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable

Delta. Si no tiene acceso a ninguna de estas opciones, llame al

800-223-7278 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable

Delta más cercano.

ARIZONA

Tempe 85282 (Phoenix) 2400 West Southern Avenue Suite 105 Phone: (602) 437-1200 Fax: (602) 437-2200

CALIFORNIA

Ontario 91761 (Los Angeles) 3949A East Guasti Road Phone: (909) 390-5555 Fax: (909) 390-5554

San Leandro 94577 (Oakland) 3039 Teagarden Street Phone: (510) 357-9762 Fax: (510) 357-7939

COLORADO

Arvada 80003 (Denver) 8175 Sheridan Blvd., Unit S Phone: (303) 487-1809 Fax: (303) 487-1868

FLORIDA

Davie 33314 (Miami) 4343 South State Rd. 7 (441) Unit #107 Phone: (954) 321-6635 Fax: (954) 321-6638

Tampa 33609 4538 W. Kennedy Boulevard Phone: (813) 877-9585 Fax: (813) 289-7948

GEORGIA

Forest Park 30297 (Atlanta) 5442 Frontage Road, Suite 112 Phone: (404) 608-0006 Fax: (404) 608-1123

ILLINOIS

Addison 60101 (Chicago) 400 South Rohlwing Rd. Phone: (630) 424-8805 Fax: (630) 424-8895

Woodridge 60517 (Chicago) 2033 West 75th Street Phone: (630) 910-9200 Fax: (630) 910-0360

MARYLAND

Elkridge 21075 (Baltimore) 7397-102 Washington Blvd. Phone: (410) 799-9394 Fax: (410) 799-9398

MASSACHUSETTS

Braintree 02185 (Boston) 719 Granite Street Phone: (781) 848-9810 Fax: (781) 848-6759

Franklin 02038 (Boston) Franklin Industrial Park 101E Constitution Blvd. Phone: (508) 520-8802 Fax: (508) 528-8089

MICHIGAN

Madison Heights 48071 (Detroit) 30475 Stephenson Highway Phone: (248) 597-5000 Fax: (248) 597-5004

MINNESOTA

Minneapolis 55429 5522 Lakeland Avenue North Phone: (763) 561-9080 Fax: (763) 561-0653

MISSOURI

North Kansas City 64116 1141 Swift Avenue P.O. Box 12393 Phone: (816) 221-2070 Fax: (816) 221-2897

St. Louis 63119 7574 Watson Road Phone: (314) 968-8950 Fax: (314) 968-2790

NEW YORK

Flushing 11365-1595 (N.Y.C.) 175-25 Horace Harding Expwy. Phone: (718) 225-2040 Fax: (718) 423-9619

NORTH CAROLINA

Charlotte 28270 9129 Monroe Road, Suite 115 Phone: (704) 841-1176 Fax: (704) 708-4625

OHIO

Columbus 43214 4560 Indianola Avenue Phone: (614) 263-0929 Fax: (614) 263-1238

Cleveland 44125 8001 Sweet Valley Drive Unit #19 Phone: (216) 447-9030 Fax: (216) 447-3097

OREGON

Portland 97230 4916 NE 122 nd Ave.

Phone: (503) 252-0107 Fax: (503) 252-2123

PENNSYLVANIA

Willow Grove 19090 520 North York Road Phone: (215) 658-1430 Fax: (215) 658-1433

TEXAS

Carrollton 75006 (Dallas) 1300 Interstate 35 N, Suite 112 Phone: (972) 446-2996 Fax: (972) 446-8157

Houston 77055 West 10 Business Center 1008 Wirt Road, Suite 120 Phone: (713) 682-0334 Fax: (713) 682-4867

WASHINGTON

Auburn 98001(Seattle) 3320 West Valley HWY, North Building D, Suite 111 Phone: (253) 333-8353 Fax: (253) 333-9613

Printed in U.S.A.

CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS

ALBERTA

Bay 6, 2520-23rd St. N.E. Calgary, Alberta T2E 8L2 Phone: (403) 735-6166 Fax: (403) 735-6144

BRITISH COLUMBIA

8520 Baxter Place Burnaby, B.C. V5A 4T8 Phone: (604) 420-0102 Fax: (604) 420-3522

MANITOBA

1699 Dublin Avenue Winnipeg, Manitoba R3H 0H2 Phone: (204) 633-9259 Fax: (204) 632-1976

ONTARIO

505 Southgate Drive Guelph, Ontario N1H 6M7 Phone: (519) 836-2840 Fax: (519) 767-4131

QUÉBEC

1515 ave. St-Jean Baptiste, Québec, Québec G2E 5E2 Phone: (418) 877-7112 Fax: (418) 877-7123

1447, Begin St-Laurent, (Montréal), Québec H4R 1V8 Phone: (514) 336-8772 Fax: (514) 336-3505
