Introduction
3
Introduction
Features
Congratulations, on your purchase of the XpressRC!
The XpressRC has these exciting features to enhance your listening experience:
• Large, customizable, color display – view the content you want; the way you want it.
• Multi Channel viewing-View the current channel and three other channels OR view
the current and the previous channels at the same time.
• Pause and Replay up to 60 minutes of live XM programming.
• SongSaver allows you to easily save up to 10 of your favorite songs
any time.
• TuneSelect nds your favorite artists or songs and alerts you when they’re playing
on an XM channel.
• GameSelect nds your favorite sports and team events and alerts you when
they’re playing on an XM channel.
• Sports and Stock Tickers so you are up to speed on the latest scores and stocks
while listening to your favorite XM programming.
• Quick and easy setup
Please read the entire user guide before using your XpressRC
4
About XM Satellite Radio
XM is America’s number one satellite radio company. Broadcasting live daily from
studios in Washington, DC, New York City, Chicago, the Country Music Hall of Fame in
Nashville, Toronto and Montreal, XM’s 2007 lineup includes more than 170 digital channels of choice from coast to coast: commercial-free music, premier sports, news, talk
radio, comedy, children’s and entertainment programming; and the most advanced
trac and weather information.
XM, the leader in satellite-delivered entertainment and data services for the automobile market through partnerships with General Motors, Honda, Hyundai, Nissan,
Porsche, Subaru, Suzuki and Toyota, is available in 140 dierent vehicle models for
2007. XM’s industry-leading products are available at consumer electronics retailers
nationwide. For more information about XM hardware, programming and partnerships,
please visit http://www.xmradio.com/.
About Delphi
Delphi is a world leader in mobile electronics, vehicle components, and audio technology. Delphi created the rst in-dash radio in 1936 and continues its strong tradition
of innovation in the audio industry. Now Delphi technology has helped make satellite
radio a reality, and Delphi continues to expand its in-vehicle and consumer electronics technologies. With its exciting line of satellite radio products, Delphi oers a broad
portfolio of products to answer a wide variety of information and entertainment needs
– in the vehicle, home, oce, or virtually anywhere.
5
Introduction
Safety and Care Information
IMPORTANT: Always read and understand all the instructions to avoid injury
to yourself and/or damage to your device. XM Satellite Radio claims no
responsibility for damage from data loss due to breakdown, repair, or other
causes.
• Do not expose to extreme temperatures (above 140°F or below -4°F,
or above 60°C or below -20°C).
• Do not expose to moisture. Do not use device near or in water.
• Do not let any foreign matter spill into device.
• Do not store in dusty areas.
• Do not expose to chemicals such as benzene and thinners. Do not use liquid
or aerosol cleaners. Clean with a soft damp cloth only.
• Do not expose to direct sunlight, re, ame or other heat sources for
a prolonged period.
• Do not try to disassemble and/or repair device yourself.
• Do not drop your device or subject it to severe impact.
• Do not place heavy objects on device.
• Do not subject device to excessive pressure.
6
WARNING
• Opening the case may result in electric shock.
• The uninsulated parts inside the power adapter and cradle may cause
electric shock or re. For your safety, please do not open these
components. Do not let metallic objects, such as necklaces or coins,
come into contact with the power adapter plugs.
• To avoid electric shock, use the power adapter only with an outlet that
matches the shape of the adapter’s plug.
• Make sure that you insert the adapter’s plug all the way into the outlet.
• Do not plug several devices into the same electrical outlet.
• Use the power adapter and cradle away from water sources to avoid re
or electric shock.
• Do not touch the device with wet hands.
When using this product it is always important to keep your eyes on the road and
hands on the wheel. Not doing so could result in personal injury, death, and/or damage
to your device, accessories, and/or to your vehicle or other property.
Your device should be placed in your vehicle where it will not interfere with the function of safety features, e.g., deployment of airbags. Failure to correctly place device may
result in injury to you or others if the unit becomes detached during an accident and/or
obstructs the deployment of an airbag.
7
Introduction
8
5
2
7
4
1
9
6
3
mute
info
menu
display
0
jump fav
+
What’s in the Box?
RC
Xpress
Car Cradle
8
Car Power Adapter
Remote Control
Swivel Mount
XM Car Antenna
Cassette Adapter
Vent Mount
Swivel Mount
Preparation Kit
XpressRC functions
Number Keys
Enter a channel
directly, select your
favorite channels, or
access songs saved
in SongSaver.
Info
Displays either your
personal stock or info
extras information.
60-Minute Replay Buttons
Pause and replay up to 60
minutes of live XM broadcast.
Jump
Switches between
current channel and
previous channel.
Display
Customize the way you view
content on the display.
Power Button
XM Button
Confirms selection for channel
and menu items, also press
and hold to GameSelect, to
TuneSelect or to save a song.
Left and Right Arrows
Search for channels by
category.
5-way Navigation
Knob
Previews channels; also selects
various menu options.
Menu
Access advanced features
and configuration options.
Fav
Choose among direct
channel entry, favorite
channels, and SongSaver
modes.
9
8
5
2
7
4
1
9
6
3
mute
info
menu
display
0
jump
+
fav
Introduction
Remote Control functions
Power Button
60-Minute Replay Buttons
Pause and replay up to 60
minutes of live XM broadcast.
XM Button
Confirms selection for channel
and menu items, also press
and hold to GameSelect, to
TuneSelect or to save a song.
Info
Displays either your personal
stock or info extras information.
Number Keys
Enter a channel directly,
select your favorite channels,
or access songs saved in
SongSaver.
Jump
Switches between current
channel and previous channel.
10
Arrow Buttons
Select menu entries,
change channels.
Display
Customize the way you view
content on the display.
Menu
Access advanced features
and configuration options.
Mute
Silences live, saved songs,
and replayed XM content.
+ and -
Change channels or control
volume for audio system
(sold separately)
Fav
Choose among direct
channel entry, favorite
channels, and SongSaver
mode.
5-way navigation knob
Turn the knob to scroll through a list.
Press the center of the XM button to make a selection.
Press the edge of the XM button to select display, jump, < or >.
(XM button)
Toggle right Toggle left Toggle up Toggle downPress center button
11
Vehicle Installation
12
Vehicle Installation
Step 1: Mount the XM Antenna
The XM antenna contains a strong magnet which
will stick to any metal parts of your vehicle.
1 Choose the best location for your XM
antenna considering your own
personal situation. Pay particular
attention to any accessories that you
may have like luggage racks and how
frequently you may use them.
We recommend mounting the antenna just above either the front windshield or the
back window as shown.
Magnet
13
Vehicle Installation
2 Place the antenna in the location you selected.
3 Route the cable:
• If you placed the XM antenna on the front of the vehicle, route the cable
across the top of the windshield. Gently pry up the rubber weather seal
and tuck the cable underneath. Follow the weather seal down the side
of the windshield to the door jam. Tuck the cable into the door jam and
then under the oormat to the car cradle.
14
• If you placed the XM antenna on the rear of the vehicle, route the cable under the
weather seal of the rear window. Tuck the antenna cable around and down the window
to the lowest point, just above the trunk.
Next, route the cable from the rear window molding into the weather stripping around
the trunk opening. Run the cable into the trunk and then into the rear passenger
compartment. Route the cable through the main compartment by tucking it under the
door jam trim or under the carpet and up to the radio.
4 Make sure any excess cable does not interfere with vehicle operations.
TIP! Always be careful to include enough slack in your cable to accommodate
open doors or trunk lids. Use things typically found around the home, like
electrical tape, to secure cables in areas so that hinges do not pinch the cable
with the door. Hide any excess cable in the trim.
15
Vehicle Installation
Step 2: Install the vent or swivel
mount.
You can use either the vent mount or the swivel
mount for your XpressRC depending on your
particular situation.
Installing the vent mount
1 Locate a vent with horizontal slats
sturdy enough to hold your XM cradle and radio.
2 Adjust the clamps to t your vent.
3 Snap the mount onto the vent.
To remove, push the mount into the vent, then lift up.
Vent Mount
Extra Adhesive
Pad
Swivel Mount
16
Installing the swivel mount
CAUTION! The adhesive used with the swivel mount may make it dicult
to remove. Do not install this mount on leather surfaces and make sure
the air temperature is at least 60°F (15°C).
1 Locate a at surface for the mount. Make sure there is ample room
for the XM cradle and radio when installed.
2 Clean the surface with the preparation kit and let it dry thoroughly.
3 Peel o the adhesive liner. Position, press, and hold the swivel mount
in place for 30 seconds.
IMPORTANT! Let the adhesive cure for 24 hours before attaching the XM
cradle and radio to the mount.
4 Turn the swivel to accommodate the XM cradle and radio. Adjust the
tension via the center screw.
You can adjust this screw
to adjust the tension of the
mount with a screwdriver.
17
Vehicle Installation
To remove, carefully lift the adhesive pad with your ngers or a spoon. Warming the pad
with a hair dryer for several minutes will help soften the adhesive.
You can reinstall the swivel mount using the extra adhesive pad.
Step 3: Connect your XpressRC.
1 Plug the antenna into ANT IN on the cradle.
2 Plug the power adapter into DC IN on the cradle.
3 Plug the audio adapter into AUDIO OUT on the cradle.
• Use the Cassette Adapter if your vehicle has a built-in cassette player.
• Use a mini audio cable (sold separately) if your vehicle has
an audio input jack.
4 Insert the cradle into the mount.
5 Insert your XpressRC into the cradle.
NOTE! If your car does not contain a cassette player or an audio input, you will need to
use either the XM SureConnect (sold separately) or the FM Direct adapter (sold
separately).
18
ANT IN
AU
D
IO OUT
DC IN
XM Antenna
Cassette Adapter
Xpress
RC
Car Cradle
Power Adapter
19
Vehicle Installation
• XM SureConnect (sold separately): You can listen to your XpressRC through your
car stereo by using XpressRC’s built-in FM modulator and the XM SureConnect.
Simply nd an unused FM frequency on the stereo and set your XpressRC
to transmit on that same frequency. Refer to Find an FM frequency page 51
for more information.
• FM Direct Adapter (sold separately): This option directly connects the XpressRC
to your car’s audio system and antenna. A professional installation is recommended
if you choose to use this method. Professional installation can help improve your
radio’s reception and signicantly reduce the visibility of wires. To learn more, check
with the retailer where you bought your radio or go to xmradio.com/shop and click on
“Accessories.”
Step 4: Turning on your XpressRC.
1 Turn on your car radio.
2 Insert the cassette adapter.
NOTE: If you are using the XM SureConnect or the FM Direct
adapter, refer to Turn the FM modulator on/o on page 50 for
more information.
3 Turn on your XpressRC.
NOTE: You may experience a brief delay while your XpressRC powers up. If you press
the power button during this time, you will see a “Please Wait” message.
20
Activation
21
Activation
Before you can listen to any of XM’s more than 170 channels, you must rst activate
your XpressRC.
1 Make sure your XpressRC is properly installed and receiving the XM
signal so that you can hear the audio on Channel 1.
2 Make a note of your XM Radio ID. You can nd it:
• On XM Channel 0
• On the rear package label
• On the label on the back of your Xpress
NOTE: The XM Radio ID does not use the letters I, O, S, or F.
3 Activate your service:
• Online: Go to activate.xmradio.com
OR
• By phone: call 1-800-XM-RADIO (1-800-967-2346)
4 When your service is activated, your XpressRC will receive all channels.
This usually takes 10 to 15 minutes, but may take up to an hour. Your radio
must remain on until activated.
RC
22
Using your Xpress
RC
23
Using your Xpress
RC
Listening to XM
Enter a channel
1 Turn the knob to scroll through the list of channels.
2 You’ll see the channel logo and current artist. In a few seconds,
the current song title appears.
3 Press the XM button to select a channel.
Refer to page 31 for instructions.
24
TIP: You can congure XpressRC to automatically tune to the channel you scroll to.
View a category
With so many channels to choose from, XM Satellite Radio has organized them into
categories to make it easier for you to nd the ones that suit your taste.
1 To view a category, press < or >.
2 Scroll through the category to nd the channel you want.
3 Press the XM button.
TIP! To briey listen to each channel in the category, select Scan, then
press the XM button.
Direct channel entry
1 To enter a channel number, make sure “Direct” is on the screen. If not,
press fav.
25
Using your Xpress
2 Use the number buttons or remote to enter the channel number.
RC
Jump to the previous channel
Press jump to listen to the previous channel you selected.
TIP! You can view both current and the previous channel at the same time. Refer to
Changing the display mode on page 34.
Set your favorite channels
You can assign up to 10 of your favorite channels to the number buttons so you can
quickly access them.
To assign a favorite channel to a number button:
1 Tune to the desired channel.
2 Be sure you are in Favorite Channels mode. Press fav until “Favorite
Channels” appears in the title bar.
26
3 Press and hold the number button
you want to use for that channel.
To listen to a favorite channel:
1 Be sure you are in Favorite Channels
mode. Press fav until “Favorite
Channels” appears in the title bar.
2 Press the number button where the
desired channel is programmed.
TIP! To see your list of Favorite Channels, press < or >. Select a favorite and press the
XM button to listen to that channel.
27
Using your Xpress
Skip a channel
1 To remove channels from the channel list, press menu.
2 Select Channel Access. Press the XM button.
3 Select Channel Skip/Add. Press the XM button.
4 Each channel preceded by appears in the list of channels. To remove
a channel from the list, scroll to the channel and press the XM button.
RC
28
5 Each channel preceded by Ø does
not appear in the list of channels.
To add a channel back to the list,
scroll to the channel and press the
XM button.
6 When nished, press < or menu
repeatedly to return to normal
operation.
Block xL (explicit language) channels:
When xL appears in the channel logo, explicit language will be heard on that channel.
To skip all explicit language channels:
1 Press menu.
2 Select Channel Access, and press the XM button.
3 Select xL Channels, and press the XM button.
4 Turn the knob until Channel Access is OFF.
29
Using your Xpress
5 Press the XM button.
6 None of the explicit language channels will appear on the channel list
or on the channel skip/add list.
To add explicit language channels to the channel list:
1 Press menu.
2 Select Channel Access, and press the XM button.
3 Select xL Channels, and press the XM button.
4 Turn the knob until Channel Access is ON.
5 Press the XM button.
6 The explicit language channels will now appear on the channel list
and on the channel skip/add list.
IMPORTANT! To completely block access to an XM channel, contact XM Listener Care
at 1-800-XM-RADIO (1-800-967-2346) or online at
http://www.xmradio.com/parentalcontrols/index.jsp.
RC
30
Tune directly to a channel:
Usually, you press the XM button to select a channel. You can change this so that your
radio automatically tunes to the channel when highlighted for longer than 3 seconds.
To automatically tune to a channel:
1 Press menu.
2 Select Channel Access, and press the XM button.
3 Select Direct Tune, and press the XM button.
4 Turn the knob until Direct Tune is ON.
5 Press the XM button.
31
To disable Direct Tune:
1 Press menu.
2 Select Channel Access, and press the XM button.
3 Select Direct Tune, and press the XM button.
4 Turn the knob until Direct Tune is OFF.
5 Press the XM button.
32
Special Features
33
Special Features
Change the display mode
You can view multiple channels on the display to see what else is playing. View the
content you want; the way you want it.

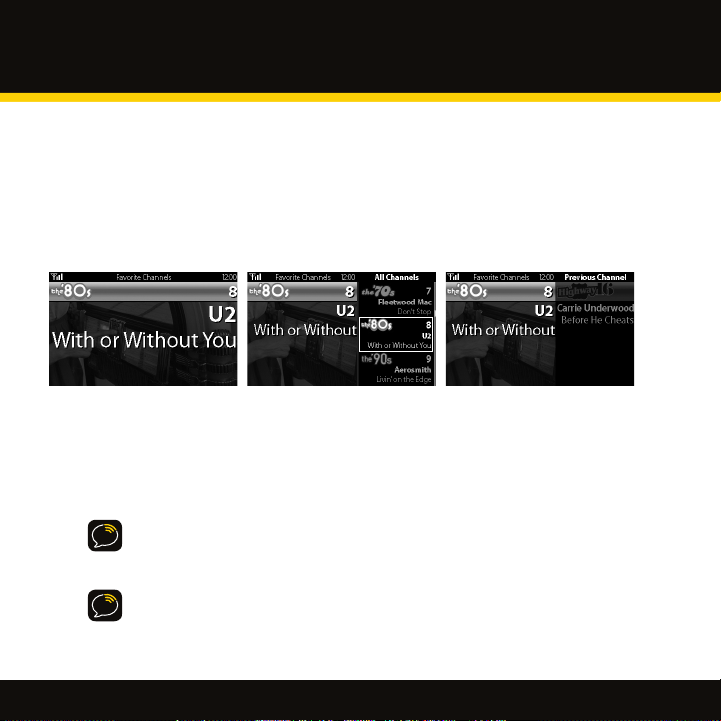

Choose from:
single current channel split screen with current and previous
split screen with current channel and
channel list
channel
To change the mode, press display.
TIP! When in split screen with the channel list, you can scroll through the list
of channels, just like when it appears on the full screen. Press < or > to change
categories. Press the XM button to select a channel.
TIP! Press jump to change to the previous channel.
34
Save your favorite songs
1 When you hear a song you like, press and hold the XM button until “Add to
SongSaver” appears.
2 Press the XM button again
35
Special Features
3 Your song is saved to the next available number button.
To listen to a saved song:
1 Press fav until “SongSaver” appears.
2 Press a number button for the song you want to hear.
TIP! To see your list of saved songs either rotate the knob while in single (default)
display mode or go to split screen and view 6 songs. Pressing or takes you
to the previous and next songs respectively.
NOTE! Resetting factory default settings will permanently remove any SongSaver
songs.
TIP! When all ten buttons are used, the next song added to SongSaver overwrites
the oldest song saved (i.e., the 11th song is saved to button 1).
NOTE! Only songs from live XM can be added to SongSaver.
36
60 minute pause and replay
60 minute replay gives you the opportunity to “hear that again.” This feature applies to
the current listening session only. Turning your XpressRC o removes all tracks from the
up-to-60 minute buer.
Both split screen modes will display previously played tracks. In single channel mode you
can turn the knob to view the Replay List. You can scroll up and down the list by turning
the knob. Press the XM button to make a selection. Older info is displayed at the bottom
of the list.
To pause:
1 Press .
2 To resume play, press
again.
To listen to the previous track:
1 Press
2 If the current track has been playing for longer than 5 seconds, it is played
from its beginning. If the current track has been playing for less than 5
seconds, the previous track is played.
to skip back to a previous track.
37
Special Features
3 Press to rewind the song.
TIP! Press and hold
To listen to the next track:
1 Press
2 Press and hold to fast forward the song.
TIP! To return to the live XM broadcast, press and hold
TIP! If you press or
to skip to the next track.
for 3 seconds to skip to the rst track.
button until “Live” appears.
in live mode XpressRC will put you in replay mode.
TuneSelect favorite artists and songs
TuneSelect nds your favorite artist and song whenever they’re being played on any
XM channel. XpressRC can track up to 20 of your favorite artists or songs.
1 When you hear a favorite artist or song, press and hold the XM button
for 2 seconds.

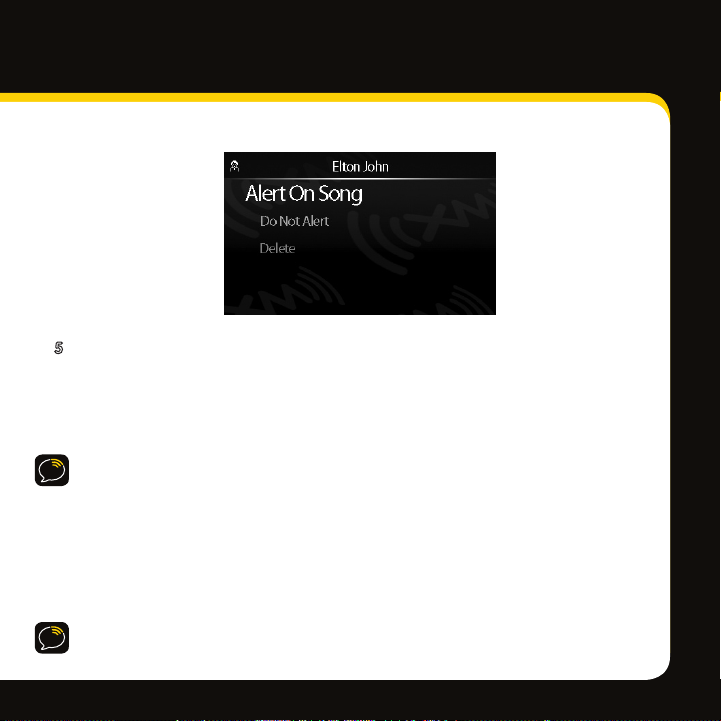

2 Select TuneSelect Artist to be notied when any song by the artist is
played on any channel. Press the XM button.
38
Select TuneSelect Song to be notied when the song is played on any
channel. Press the XM button
3 When an artist or song that you have TuneSelected plays on any channel,
you’ll hear a special tone and message. To switch to that channel, press
the XM button.
39
Special Features
To remove an artist or song from your TuneSelect list:
1 Press menu.
2 Select Edit Alerts, and press the XM button.
3 Select Edit TuneSelect, and press the XM button.
4 Select the artist or song you
want to remove from your
TuneSelect list, and press the
XM button.
40
5 Select Do Not Alert to disable the alert for that artist or song. Press the XM
button.
Select Delete to remove the artist or song from your list. Press the
XM button.
TIP! You can switch between Alert On Artist and Alert On Song at the “Edit Alerts >
Edit TuneSelect” sub menu.
• To alert on an artist name, select a song title and chose Alert On Artist. Press the XM
button.
• To alert on a song title, select an artist name and chose Alert On Song. Press the XM
button.
TIP! You can also TuneSelect artists and songs in both Replay and SongSaver modes.
41
Special Features
GameSelect favorite sports and teams
You can select up to 50 of your favorite sports and/or teams; you view their scores and
stats at any time. In addition, you will be notied when they play on any XM channel.
1 Press menu.
2 Select Info Extras, and press the XM button.
3 Select Sports, and press the XM button.
4 Select a favorite sport, and press the XM button.
5 If your favorite sport is played by teams, select your favorite team,
and press the XM button.
6 A check mark appears next to sports/teams you have selected.
42
7 To view current scores and stats for the sports and teams on your list,
press info.
8 When your sport/team plays on any
channel, you’ll hear a special tone
and receive a message. To switch to
that channel, press the XM button.
TIP! You can also set a GameSelect by pressing and holding the XM Button for 2
seconds while listening to your favorite team or sport.
NOTE! If a GameSelected event occurs on more than one channel simultaneously, a
list of channels will be displayed.
To remove a sport or team from your list:
1 Press menu.
2 Select Info Extras, and press the XM button.
3 Select Sports, and press the XM button.
4 Select the sport (or team’s sport) to be removed and press the XM button.
43
Special Features
5 If applicable, select the team to be removed, and press the XM button.
To disable GameSelect alert:
1 Press menu.
2 Select Edit Alerts, and press the XM button.
3 Select Edit GameSelect, and press the XM button.
4 Select the sport or team you no longer want to be alerted about,
and press the XM button.
Get stock quotes
You can track the price and daily movement for up to 20 of your favorite stock symbols.
NOTE! Information about most stocks and indices listed on the NYSE, AMEX, or
NASDAQ is available. Market information is delayed approximately 25 minutes. Stock
data provided by ComStock, Inc.
1 Press menu.
2 Select Info Extras, and press the XM button.
44
3 Select Stocks, and press the XM button.
4 If you already have stocks in your list, select Add Stock and press the
XM button. If not, then this step will be skipped for you.
5 Turn the knob to select the letters for the stock symbol. Press the XM button
after each letter.
TIP! XpressRC will help you complete the symbols for more than 9,000 regularly
traded stocks.
6 When nished, press the XM button.
7 At a live play screen, Press info to see your stock quotes.
TIP! To turn on/o the scrolling of stock prices, refer to Changing the display appearance
on page 57.
45
Special Features
To remove a stock:
1 Press menu.
2 Select Info Extras, and press the XM button.
3 Select Stocks, and press the XM button.
4 Select Erase Stocks, and press the XM button.
5 Select the stock you want to remove from your list, and press the XM button.
6 Select Yes, and press the XM button.
TIP! To remove your entire stock list, select Erase All Stocks, press the XM button, select
Yes, and press the XM button.
46
How Else Can You Use Your Xpress
RC
?
47
How Else Can You Use Your XpressRC?
XM oers a variety of accessories that allow you to adapt your XpressRC solution to your
lifestyle and enhance your listening experience. With such accessories, you can take your
single radio and also use it in the home, the oce, multiple vehicles or almost any location you like.
• In the Home, Oce, etc. – With a Home Kit, you can plug your XpressRC into
your existing home, oce, or other stereo system/powered speakers via RCA
inputs and hear XM programming in high-quality stereo sound.
• In Multiple Vehicles – With a Car Kit, you can take your XpressRC between
vehicles without having to remove your primary radio mount, antenna, etc.
You can go from your workday commuter car to your spouse’s car to a family car
for weekends to a rental car while traveling.
• In Almost Any Location You Like – With a desktop and a portable sound system
you have the freedom to experience XM where and when you want, from the bed room, to the oce, to the kitchen, to outside on the deck, to a picnic.
For more information on XM accessories or to purchase an XM accessory, please visit your
local retailer or www.xmradio.com/accessories.
48
Configuring your Xpress
RC
49
Configuring your Xpress
Turn the FM modulator on/o
(Car cradle only. For use with XM SureConnect or FM Direct adapter.)
If you are using the SureConnect or FM Direct Adapter to transmit audio, you must turn
the FM Modulator on and set the FM frequency on both your XpressRC and your car radio.
1 Press menu.
2 Select Vehicle Mode, and press the XM button.
3 Select FM Modulator, and press the XM button.
4 Select On, and press the XM button.
RC
50
5 Your XpressRC automatically scans for all available FM frequencies.
6 Locate a suitable FM frequency from the list and press the XM button.
7 Set your car radio to the frequency selected.
TIP! The best FM frequency to use is displayed at the top of the list. It is recommended
to choose that frequency. However, if you are not satised with the sound quality,
select a dierent FM frequency within the list (or select View All Frequencies to see 100
frequencies), press XM, and tune your car stereo to that frequency.
Find an FM frequency
If necessary, you can make your XpressRC search for FM frequencies at any time.
1 With the FM Modulator set to ON, press and hold jump for two seconds.
2 Your XpressRC automatically scans for all available FM frequencies.
3 Locate a suitable FM frequency from the list and press the XM button.
4 Set your car radio to the frequency selected.
OR
1 Press menu.
51
2 Select Vehicle Mode, and press the XM button.
3 With the FM Modulator ON, select Frequency Finder and press.
4 Your XpressRC automatically scans for all available FM frequencies.
52
Configuring your Xpress
6 Locate a suitable FM frequency from the list and press the XM button.
7 Set your car radio to the frequency selected.
RC
Set the line out level
To connect the Audio Out on the XpressRC car cradle directly to your car’s stereo to transmit audio, you can:
• Use the cassette adapter
• Use your car stereo’s audio input called “Aux In”
Either of these methods will give you the best audio quality. When using either of these
methods to transmit audio through your car’s stereo, you can adjust XpressRC’s audio level
to match other audio sources.
1 Press menu.
2 Select Vehicle Mode, and press the XM button.
3 Select Line Out Level, and press the XM button.
Line Out Level is available only when the FM Modulator is turned OFF.
53
Configuring your Xpress
4 Turn the knob to increase or decrease the level.
5 Press the XM button.
Do not use the Line Out Level menu item as a volume control; use the volume control
on your car stereo instead. Line Out Level is used to adjust the volume level to match
other audio sources (your CD player, other FM stations, or MP3 player).
TIP! If using your XpressRC in a home stand (sold separately) or audio system (sold
separately), press the XM button, then select Line Out Level.
RC
Set the tone
(Audio system option -- audio systems are sold separately)
You can adjust the bass and treble to suit the kind of music you’re listening to.
54
1 Press menu.
2 Select Set Tone.
3 Select Bass or Treble.
4 Turn the knob to change the level.
5 Press the XM button .
6 Press menu to return to normal operation.
Aim antenna for best reception
For best reception, your XM antenna should have an unobstructed view of the XM satellites in the southern sky. In large cities, XM has a network of ground repeaters to help
increase the signal coverage.
Your XpressRC can help you aim the antenna for
best reception.
1 Press menu.
2 Select Antenna Aiming, and
press the XM button.
55
Configuring your Xpress
3 The Satellite and Terrestrial bars show the level of your current signal.
4 Move around your antenna if you are having trouble getting a signal.
5 Press the XM button.
RC
Display Settings
To change the display’s brightness, backlight timer, and Auto Dimming status:
1 Press menu.
2 Select Change Display, and press the XM button.
3 Select Display Setting, and press the XM button.
4 Change:
• Brightness – Select Brightness, and press the XM button. Turn the
knob to adjust the brightness. Press the XM button when nished.
• Backlight – Select Backlight, and press the XM button. Select the
timer setting for the backlight. Press the XM button when nished.
• Auto Dimmer – Select Auto Dimmer, and press the XM button.
With the Auto Dimmer set to “On”, the brightness of the display will
adjust automatically for daytime and night time modes.
56
Display appearance
At times, cold weather can negatively aect the visual quality of scrolling text. By default,
Stock information scrolls and Sport information pages.
1 Press menu.
2 Select Change Display, and press the XM button.
3 Select Display Appearance, and press the XM button.
• Stocks – Select Stocks, and press the XM button. Select either
Scrolling (the stock ticker will scroll across the screen) or Paging (stock
information will appear one page at a time). Press the XM button when
nished.
• Sports – Select Sports, and press the XM button. Select either
Scrolling (scores will scroll across the screen) or Paging (scores will
appear one page at a time). Press the XM button when nished.
57
Configuring your Xpress
RC
Set time
The time is automatically set for you.
To set your time zone:
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Set Clock, and press the XM button.
4 Select Time Zone, and press the XM button.
5 Turn the knob to your time zone, and press the XM button.
To turn on/o Daylight Savings Time:
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Set Clock, and press the XM button.
4 Select Daylight Savings, and press the XM button.
58
5 Turn the knob to:
• On if your area participates in Daylight Savings Time
• O if your area does not participate in Daylight Savings Time
6 Press the XM button.
To change the format of the time:
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Set Clock, and press the XM button.
4 Select Hour Mode, and press the XM button.
5 Turn the knob to:
• 12 to show time using a standard clock
• 24 to show time using a 24-hour clock
6 Press the XM button.
59
Configuring your Xpress
RC
Automatic power
Usually, your XpressRC turns on automatically when it is plugged in and receiving power.
You can change this so you must manually turn the radio on/o each time.
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Automatic Power, and press the XM button.
4 Turn the knob to:
• On to have your radio turn on automatically when it is plugged in
• O to turn your radio on manually after it is plugged in
5 Press the XM button.
TIP! With XpressRC in it car cradle, the remote will not be able to turn it on.
60
Delayed power
This option is available if you are using the car cradle and the cigarette lighter is always
powered.
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Delayed Power, and press the XM button.
• Turn the knob to choose the amount of time (60, 90, 120, or 180
minutes) that should pass before the radio turns o automatically.
4 Press the XM button.
61
Configuring your Xpress
RC
Sleep timer
The Sleep Timer is available only with the home stand and sound systems (sold separately).
Your XpressRC has a sleep timer that can automatically shut o the unit after a period
of time. By default, the sleep timer is set to OFF but you can set it for 15, 30, 45 minutes
or 1 hour.
1 Press menu.
2 Select Set Time, and press the XM button.
3 Select Sleep Timer, and press the XM button.
• Turn the knob to choose the amount of time (15, 30, 45, or 1 hour)
that should pass before the radio turns o automatically.
4 Press the XM button.
62
Factory defaults
You can clear all of your personal settings (such as Favorite Channels, SongSaver songs,
TuneSelects, GameSelects, Stocks, and Sports information) and return the radio to its outof-the-box state.
NOTE! Clearing your personal settings permanently removes any SongSaver
songs and all personal settings.
1 Press menu.
2 Select Factory Defaults, and press the XM button.
3 Turn the knob to:
• Yes to clear your personal settings
• No to keep your personal settings
4 Press the XM button.
63
Demo mode
A sales demo will automatically play when your XpressRC has not been activated and is not
receiving a signal. After that, the sales demo will not appear. If desired, you can activate
the demo after your XpressRC is activated.
1 Make sure your XpressRC is not receiving a signal.
2 Press menu.
3 Select Factory Defaults, and press the XM button.
4 Select Sales Demo, and press the XM button.
5 Turn the knob to
• On to play the sales demo
• O when you’re ready to turn the sales demo o
6 Press the XM button.
64
Troubleshooting
65
Troubleshooting
XpressRC has been designed and built to be trouble-free but if you experience a problem,
try this:
• Check that all connections are rm and secure.
• Make sure the cigarette lighter/auxiliary power socket is clean and free
of corrosion.
• If you are using XpressRC in your vehicle, check the 12V adapter fuse by
unscrewing the ribbed end of the 12V adapter. If required, replace with a 1-amp
fuse only. If the 12V adapter does not have a removable end-cap, it has an internal
fuse that resets itself after it is left unplugged for a period of time.
If you see this on the screen: Try this
No signal Make sure the XM antenna is mounted outside of the
Antenna Make sure that the antenna cable is rmly and securely
vehicle.
Move your XM antenna away from the obstructed
area. For example, if you are parked in an underground
garage, you should receive a signal after leaving the
garage. If you are using XpressRC at home, move the
antenna to a south-facing window.
plugged into the cradle. Make sure the cable is not
bent or broken.
Turn XpressRC o, then on, to reset this message.
66
If you see this on the screen: Try this
O Air The channel you’ve selected is not currently
Loading Your XpressRC is acquiring audio or program
Updating XM is updating your XpressRC with the latest encryption
— No program information, such as artist name, song title,
broadcasting. Tune to another channel.
information from the XM signal. This message
usually goes away in a few seconds.
code. Wait until the update is done.
OR
You may be trying to tune to a channel that is blocked
or unavailable. Tune to another channel.
or channel exists.
If this happens: Try this
XpressRC shuts o unexpectedly If the sleep timer is set, the XpressRC will turn o after
You do not receive all the XM
channels you subscribed to
No audio Check all cables between your XpressRC and your stereo
No song title or artist name is
displayed
the selected length of time. Turn o the Delayed Power
feature.
If you have not yet activated your XM Satellite Radio
service, refer to Activation on page 22.
system for a rm and secure connection.
The information may not be available or updates may
be in progress.
67
Troubleshooting
If this happens: Try this
No audio when listening to via an
FM radio
Audio fades or has static when
listening
Check that your XpressRC and your car radio are tuned
to the same FM frequency.
Check all cables for a rm and secure connection.
If the problem persists, it might be interference from
another FM channel. Refer to Find an FM Frequency on
page 51 when using the XM SureConnect (sold separately) or the FM Direct adapter (sold separately).
Audio sounds too soft Raise or lower the FM audio level until the sound
XM Instant Trac and Weather
channels sound dierent from other
channels
The sales demo is playing Your XM antenna is not connect or you are not receiv-
quality improves. Refer to Setting the Line Out Level
on page 53.
These channels use a dierent audio technology than
the other XM channels so they often sound dierent
from other channels.
ing the XM signal. Check that the XM antenna is connect properly and is not obstructed.
68
ON
Product Specifications
69
Product Specifications
Dimensions
XpressRC 115 mm (W) X 63 mm (H) X 17 mm (D)
4.5 in (W) X 2.5 in (H) X 0.68 in(D)
Remote 40 mm (W) X 119 mm (H) X 14 mm (D)
1.5 in (W) X 4.7 in (H) X 0.55 in(D)
Weight
XpressRC 90 g (3.2 oz)
Remote 40 g (1.4 oz)
Audio Outputs 3.5 mm diameter mini stereo jack
External Power
Voltage 5V DC
Current 2000 mA
Polarity
Remote Battery
Type CR2032
Voltage 3 V
Model Numbers
XpressRC SA10316
Xpress home kit XMH-10A
Xpress car kit XMC-10A
70
Patent Information
It is prohibited to, and you agree that you will not, copy, decompile, disassemble,
reverse engineer, hack, manipulate, or otherwise access and/or make available any
technology incorporated in receivers compatible with the XM Satellite Radio system. Furthermore, the AMBE® voice compression software included in this product
is protected by intellectual property rights including patent rights, copyrights, and
trade secrets of Digital Voice Systems, Inc. The software is licensed solely for use within
this product. The music, talk, news, entertainment, data, and other content on the
Services are protected by copyright and other intellectual property laws and all ownership rights remain with the respective content and data service providers. You are
prohibited from any export of the content and/or data (or derivative thereof ) except in
compliance with applicable export laws, rules and regulations. The user of this or any
other software contained in an XM Radio is explicitly prohibited from attempting to
copy, decompile, reverse engineer, hack, manipulate or disassemble the object code, or
in any other way convert the object code into human-readable form.
Environmental Information
Follow local guidelines for waste disposal when discarding packaging and electronic
appliances.
Your Satellite Radio receiver is packaged with cardboard, polyethylene, etc., and does
not contain any unnecessary materials.
71
FCC Statement
Please note that the power cable that has been supplied with your device is supplied with permanently
attached ferrite beads. It is the responsibility of the user to use the power cable with the ferrite bead
The user is cautioned that changes or modications not expressly approved by XM
Satellite Radio Inc. can void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the installation instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna of the aected receiver.
• Increase the separation between the XM equipment and the aected receiver.
• Connect the XM equipment into an outlet on a circuit dierent from that to which
the aected receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! The FCC and FAA have not certied this Satellite Radio Receiver for use in
any aircraft (neither portable nor permanent installation). Therefore, XM Satellite Radio cannot support
this type of application or installation
72
Warranty
Delphi Limited Consumer Warranty
Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite Radio Products
sold by Delphi (each “Product”) to be free of defects in material and workmanship, subject
to the following conditions:
The duration of Delphi’s warranty with respect to each Product is limited to one (1) year
from the date of sale to the original consumer purchaser.
NO OTHER EXPRESS WARRANTIES ARE MADE WITH RESPECT TO ANY PRODUCT. ALL
IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE LIMITED TO THE WARRANTY PERIOD SET FORTH HEREIN.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL CONSUMER
PURCHASER OF THE PRODUCT.
Delphi will, as its sole obligation under this warranty, replace or repair, at its option, any
Product that does not conform to this warranty. Products may be repaired or replaced
with new or with refurbished items. This limited warranty does not cover defects in appearance, cosmetic or decorative items, including any non-operative parts. Under no circumstances will Delphi be liable for any incidental or consequential damages under this
warranty or any implied warranties. These remedies are the customer’s exclusive remedies
for breach of warranty. This limited warranty only extends to customers who purchase
the Products in the United States.Delphi will not be responsible for damage resulting
from any (i) deviation of Delphi’s operating instructions as printed in Delphi’s catalog or
on any packaging, labels or other literature provided with a Product, (ii) installation of a
Product in a manner which is inconsistent with Delphi’s written instructions, (iii) alteration
73
or modification of a Product, (iv) misuse, (v) neglect, (vi) abuse, (vii) accident, (viii) normal
wear and tear, (ix) commercial use, (x) improper storage, (xi) environmental conditions,
including excessive temperature or humidity, (xii) service by anyone other than a Delphi
authorized repair facility, (xiii) other improper application, installation or operation of this
Product, or (xiv) defects or malfunctions of which Delphi is not advised within ten (10)
days of the expiration of the limited warranty period.
How you (the Customer) can get service
To obtain warranty service during the first thirty (30) days after the date of purchase,
you must return the defective Product with the original receipt to the original place
of purchase. To obtain warranty service during the first thirty (30) days for Products
purchased from www.delphi.com and for all products for the remainder of the limited
warranty period, you must contact Delphi by phone at 1.877.GO DELPHI (1.877.463.3574).
If further clarification or additional information is required from Delphi, you may call
Delphi at 1.877.GO DELPHI (1.877.463.3574).If warranty service is needed at any time during the warranty period, the purchaser will be required to furnish a sales receipt/proof of
purchase indicating the date of purchase, amount paid, and place of purchase. Customers
who fail to provide such proof of purchase will be charged for the repair/replacement of
any Product.
How state law relates to the warranty
Some states do not allow limitations on the duration of implied warranties, or the exclusion or the limitation of incidental or consequential damages. So the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights. You may
also have other rights that may vary from state to state. NO PERSON IS AUTHORIZED BY
DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY.
74
Owner’s Record
The model number is located below and the serial number is located on the label on the
back of the XpressRC.
Record the serial number in the space provided below. Refer to these numbers whenever
you call your dealer regarding this product.
Model No.: SA10316
Serial No.:___________________________
75
SA10316
XM- 9 8 0 0 - 01 27 - 00
Delphi Corporation
1441 West Long Lake Road
Troy, Michigan 48098-5090 U.S.A.
1.877 GO.DELPHI
www.delphi.com
XM name and related logos are registered
trademarks of XM Satellite Radio Inc. All
other trademarks are the property of their
respective owners.
Printed on Recycled Paper
© 2007 Delphi Corporation. All rights reserved
DPSS-07-E-072
Loading...
