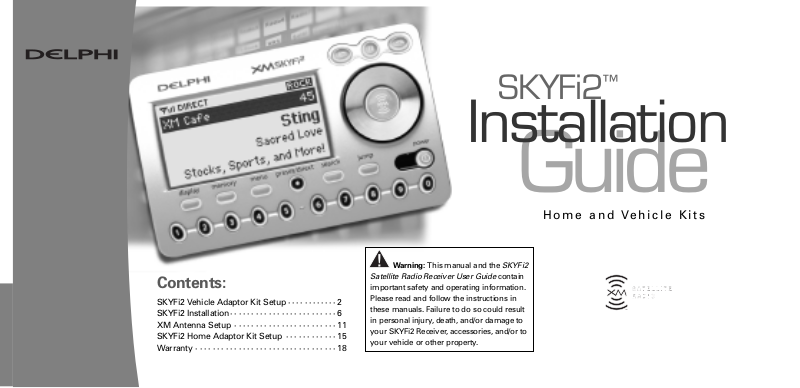

Contents:
SKYFi2 Vehicle Adaptor Kit Setup · · · · · · · · · · · · 2 SKYFi2 Installation· · · · · · · · · · · · · · · · · · · · · · · · · 6 XM Antenna Setup · · · · · · · · · · · · · · · · · · · · · · · · 11 SKYFi2 Home Adaptor Kit Setup · · · · · · · · · · · · 15 Warranty · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 18
SKYFi2™
Installation
Guide
Home and Vehicle Kits
Warning: This manual and the SKYFi2 Satellite Radio Receiver User Guide contain important safety and operating information. Please read and follow the instructions in these manuals. Failure to do so could result in personal injury, death, and/or damage to your SKYFi2 Receiver, accessories, and/or to your vehicle or other property.
2This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference, and
2.This device must accept any interference received, including interference that may cause undesired operation.
The Delphi XM® SKYFi2™ Satellite Radio Receiver incorporates an FM transmitter and is therefore classified as an intentional transmitter. Changes or modifications to the unit not expressly approved by Delphi can void your authority to operate this equipment.
Important: The FCC and FAA have not certified the Delphi XM SKYFi2 Satellite Radio Receiver for use in any aircraft (neither portable nor permanent installation). Therefore, Delphi cannot support this type of application or installation.
SKYFi2 Vehicle Adaptor Kit (SA10102) Setup
Your Delphi XM SKYFi2 Vehicle Adaptor Kit contains the following components:
SKYFi2 Cradle |
Vehicle swivel mount |
Vent mount |
|
|
|
|
|
|
Cassette audio |
|
Nokia®-style button |
|
12V power adaptor |
adaptor |
|
mount converter |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Figure 1. SKYFi2 Vehicle Adaptor Kit components.
XM Vehicle Antenna
Your kit also includes:
•Extra adhesive pad
•Surface preparation cleaning kit
•Alcohol prep pad
•Cable wrap
•Adhesive-backed Velcro® pads
Hooking up Your SKYFi2 Receiver |
3 |
Caution: Connect only appropriate input devices to the SKYFi2 Vehicle Adaptor Kit. Connecting any
incorrect input devices may damage the system and/ or the external electronic device. It is recommended that you use only the 12V to 6V conversion power adaptor that came with your SKYFi2 Vehicle Adaptor Kit.
Figure 2. Connect accessories to your SKYFi2 Cradle as shown.
4 |
Audio Quality |
|
|
|
|
|
The SKYFi2 Vehicle Adaptor Kit |
|
|
Good |
Better |
Best |
|
offers you many ways of connecting |
|
|
|
|
|
|
|
|
your SKYFi2 to your vehicle’s radio. |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
All options provide excellent sound |
|
Cassette Adaptor: |
|
|
|
|
quality and stereo separation. |
|
|
|
|
|
|
|
|
|
|
Direct Connect: |
|
|
|
|
|
Review and consider your own |
|
|
|
|
|
|
unique situation when choosing |
|
|
|
|
|
|
|
|
from the three options. |
|
FM Modulator: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cassette Adaptor
For vehicles with a built-in cassette player. Due to its superior audio quality, this configuration is recommended over the wired or wireless FM modulator configurations if a
cassette slot is available in the vehicle.
Direct Connect
The Delphi FM Direct Adaptor (SA10112) (sold separately) can provide audio input through the vehicle’s antenna lead. (Some vehicles may require special antenna lead adaptors.)
Wireless FM Modulator |
5 |
|
For the ultimate ease of installation, SKYFi2 has a built-in wireless FM modulator that allows you to hear XM programming on any nearby FM radio. This FM modulator is turned on whenever the cassette adaptor or any other audio cable is unplugged from the SKYFi2 Cradle. See the SKYFi2 Satellite Radio Receiver User Guide for more details.
6 |
SKYFi2 Installation |
Because every vehicle is different, these instructions are provided as a general guideline only. If you need help, consult a professional installer.
1.Decide which method (cassette adaptor, wireless FM modulator, or direct connect) is most appropriate for your vehicle and where you live.

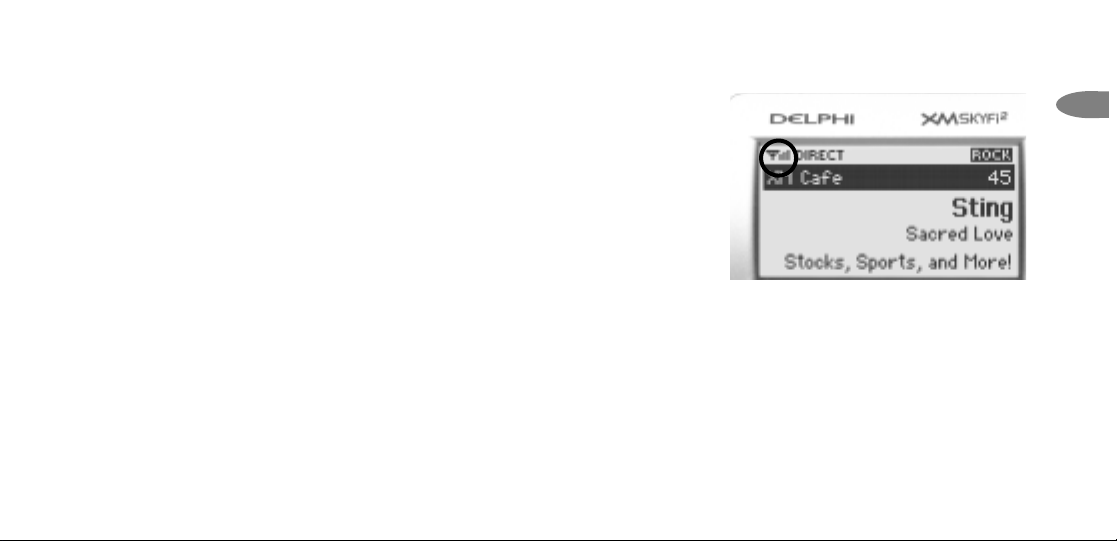

2.Verify the system is working by completing a test. Before installing the system, connect the XM Antenna, 12V power adaptor, and audio connector or cassette adaptor (if used) to the SKYFi2 Vehicle Adaptor cradle with the SKYFi2 Receiver
inserted. Plug the 12V power adaptor into the cigarette lighter and place the XM Antenna on the roof of your vehicle. Make sure you are outdoors and not surrounded by tall buildings or trees. Turn on both your vehicle’s radio and SKYFi2 Receiver. Tune the SKYFi2 Receiver to XM channel 1. You should be able to hear the XM Preview channel. If not, check all connections.
Note: If using the wireless FM modulator or the Delphi FM Direct Adaptor, set the SKYFi2 Receiver and the FM radio to the same frequency. See the SKYFi2 User Guide section on “Listening to XM Using Any FM Radio.”
Warning: Do not install the mount where it or SKYFi2 could block your vision or usage of controls, or interfere with any safety devices such as airbags. Failure to correctly place SKYFi2 could result in injury to you or others if the unit becomes detached during an accident and/or obstructs the deployment of an airbag.
