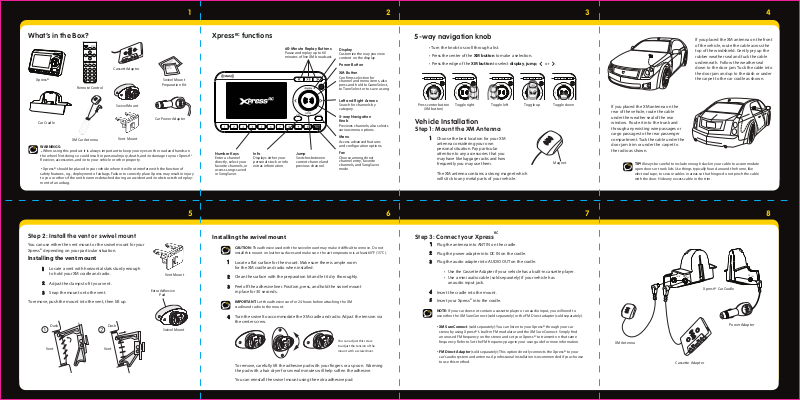

Delphi SA10316 User Manual

1 2 3 4

mute

info

display

jump fav

ANT IN

IO OUT

DC IN

What’s in the Box?

Cassett Adaptor

Xpress

Remote Control

Swivel Mount

Car Cradle

XM Car Antenna

WARNINGS: When using this product it is always important to keep your eyes on the road and hands on

•

the wheel. Not doing so could result in personal injury, death, and/or damage to your XpressRC Receiver, accessories, and/or to your vehicle or other property.

•

XpressRC should be placed in your vehicle where it will not interfere with the function of safety features, e.g., deployment of airbags. Failure to correctly place Xpress may result in injury to you or others if the unit becomes detached during an accident and/or obstructs the deployment of an airbag.

Vent Mount

Swivel Mount

Preparation Kit

Car Power Adapter

XpressRC functions

Number Keys

Enter a channel directly, select your favorite channels, or access songs saved in SongSaver.

Info

Displays either your personal stock or info extras information.

60-Minute Replay Buttons

Pause and replay up to 60 minutes of live XM broadcast.

Jump

Switches between current channel and previous channel.

Display

Customize the way you view content on the display

Power Button

XM Button

Confirms selection for channel and menu items, also press and hold to GameSelect, to TuneSelect or to save a song.

Left and Right Arrows

Search for channels by category.

5-way Navigation Knob

Previews channels; also selects various menu options.

Access advanced features and configuration options.

Fav

Choose among direct channel entry, favorite channels, and SongSaver mode.

5-way navigation knob

• Turn the knob to scroll through a list.

• Press the center of the XM button to make a selection.

• Press the edge of the XM button to select display, jump, or .

Press center button

(XM button)

Toggle right Toggle left Toggle up

Vehicle Installation

Step 1: Mount the XM Antenna

1 Choose the best location for your XM

antenna considering your own personal situation. Pay particular attention to any accessories that you may have like luggage racks and how frequently you may use them.

The XM antenna contains a strong magnet which will stick to any metal parts of your vehicle.

Toggle down

Magnet

If you placed the XM antenna on the front of the vehicle, route the cable across the top of the windshield. Gently pry up the rubber weather seal and tuck the cable underneath. Follow the weather seal down to the door jam. Tuck the cable into the door jam and up to the dash or under the carpet to the car cradle as shown.

If you placed the XM antenna on the rear of the vehicle, route the cable under the weather seal of the rear window. Route it into the trunk and through any existing wire passages or cargo passages to the rear passenger compartment. Tuck the cable under the door jam trim or under the carpet to the radio as shown.

TIP! Always be careful to include enough slack in your cable to accommodate

open doors or trunk lids. Use things typically found around the home, like electrical tape, to secure cables in areas so that hinges do not pinch the cable with the door. Hide any excess cable in the trim.

Step 2: Install the vent or swivel mount

You can use either the vent mount or the swivel mount for your XpressRC depending on your particular situation.

Installing the vent mount

1 Locate a vent with horizontal slats sturdy enough to hold your XM cradle and radio.

2 Adjust the clamps to t your vent.

3 Snap the mount onto the vent.

To remove, push the mount into the vent, then lift up.

Dash

Vent

Dash

Vent

Vent Mount

Extra Adhesive

Pad

Swivel Mount

Installing the swivel mount

CAUTION: The adhesive used with the swivel mount may make it dicult to remove. Do not install this mount on leather surfaces and make sure the air temperature is at least 60°F (15°C).

1 Locate a at surface for the mount. Make sure there is ample room for the XM cradle and radio when installed.

2 Clean the surface with the preparation kit and let it dry thoroughly.

3 Peel o the adhesive liner. Position, press, and hold the swivel mount in place for 30 seconds.

IMPORTANT: Let the adhesive cure for 24 hours before attaching the XM cradle and radio to the mount.

4 Turn the swivel to accommodate the XM cradle and radio. Adjust the tension via the center screw.

You can adjust this screw to adjust the tension of the mount with a screwdriver.

To remove, carefully lift the adhesive pad with your ngers or a spoon. Warming

Step 3: Connect your XpressRC

1 Plug the antenna into ANT IN on the cradle.

2 Plug the power adapter into DC IN on the cradle.

3 Plug the audio adapter into AUDIO OUT on the cradle.

• Use the Cassette Adapter if your vehicle has a built-in cassette player.

• Use a mini audio cable (sold separately) if your vehicle has an audio input jack.

4 Insert the cradle into the mount.

5 Insert your XpressRC into the cradle.

NOTE: If your car does not contain a cassette player or an audio input, you will need to

use either the XM SureConnect (sold separately) or the FM Direct adapter (sold separately).

XM SureConnect (sold separately): You can listen to your XpressRC through your car

•

stereo by using XpressRC’s built-in FM modulator and the XM SureConnect. Simply nd an unused FM frequency on the stereo and set your XpressRC to transmit on that same frequency. Refer to Set the FM frequency page in your user guide for more information.

FM Direct Adapter (sold separately): This option directly connects the XpressRC to your

•

car’s audio system and antenna. A professional installation is recommended if you choose to use this method.

XpressRC Car Cradle

Power Adapter

XM Antenna

Cassette Adapter

the pad with a hair dryer for several minutes will help soften the adhesive.

You can reinstall the swivel mount using the extra adhesive pad.

9 10 11

XM- 9 8 00 -0 1 2 5 - 00

Step 4: Turning on your XpressRC.

1 Turn on your car radio.

2 Insert the cassette adapter.

NOTE: If you are using the XM SureConnect or the FM Direct adapter, refer to Turn the FM modulator on/o on page 50 for more information.

3 Turn on your XpressRC.

NOTE: You may experience a brief delay while your XpressRC powers up. If you press the power button during this time, you will see a “Please Wait” message.

Activation

Before you can listen to any of XM’s great channels, you must rst activate your XpressRC.

1 Make sure your XpressRC is properly installed and receiving the XM signal so that you can hear the audio on channel 1.

2 Make a note of your XM Radio ID. You can nd it:

• On XM channel 0

• On the rear package label

• On the label on the back of your Xpress

NOTE: The XM Radio ID does not use the letters I, O, S, or F.

3 Activate your service:

• Browse to http://activate.xmradio.com and follow the instructions.

• Call 1 800 XM RADIO (1-800-967-2346).

4 When your service is activated, your XpressRC will receive all channels. This usually takes 10 to 15 minutes, but may take up to an hour. Your radio must remain on until activated.

Using your Xpress

Listening to XM

Enter a channel

1 Turn the knob to scroll through the list of channels.

2 You’ll see the channel logo and cur rent artist. In a few seconds, the current song title appears.

TIP! You can change the display mode to show both the current channel and all channels. Refer to Changing the display in your user guide.

3 Press the XM button to select a channel.

TIP! You can congure XpressRC to automatically tune to the channel you scroll to. Refer to page 32 for instructions on how to eliminate the need to enter your selection.

View a category

With so many channels to choose from, XM Satellite Radio has organized them into categories to make it easier for you to nd the ones that suit your taste.

1 To view a category, press or .

2 Scroll through the category to nd the channel you want.

3 Press the XM button.

TIP! To briey listen to each channel in the category, select Scan, then press the XM

button.

Quick Guide

Set your favorite channel

You can assign up to 10 of your favorite channels to the number buttons so you can quickly access them.

To assign a favorite channel to a button:

1 Tune to the desired channel.

2 Be sure you are in Favorite Channels

mode. Press fav until Favorite Channels appears in the title bar.

3 Press and hold the number button you want to use for that channel.

To listen to a favorite channel:

1 Be sure you are in Favorite Channels mode. Press fav until Favorite Channels appears in the title bar.

2 Press the number button where the desired channel is programmed.

TIP! To see your list of Favorite Channels, press or . Select a favorite and press the XM button to listen to that channel.

Change the display mode

You can view multiple channels on the display to see what else is playing.

Choose from:

split screen with channel listsingle current channel

To change the mode, press display.

TIP! When in split screen with the channel list, you can scroll through the list of channels, just like when it appears on the full screen. Press or to change

categories. Press the XM button to select a channel.

TIP! Press jump to change to the previous channel.

split screen with previous

FCC Statement

Please note that the power cable that has been supplied with your device is supplied with permanently attached ferrite beads. It is the responsibility of the user to use the power cable with the ferrite beads.

The user is cautioned that changes or modications not expressly approved by XM Satellite Radio Inc. can void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the installation instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna of the aected receiver.

• Increase the separation between the XM equipment and the aected receiver.

• Connect the XM equipment into an outlet on a circuit dierent from that to which the aected receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The FCC and FAA have not certied this Satellite Radio Receiver for use in any aircraft (neither portable nor permanent installation). Therefore, XM Satellite Radio cannot support this type of application or installation

DPSS-07-E-074

respective owners. other trademarks are the property of their trademarks of XM Satellite Radio Inc. A ll XM name and related logos are registered

www.delphi.com

1.877. GO.DELPHI

Troy, Michigan 48098-5090 U.S.A. 1441 West Long Lake Road Delphi Corporation

SA10316
