Personal Audio System
User Guide
For Use With Roady2™Satellite Radio Receiver
Warning: This manual contains important safety
and operating information. Please read and follow
the instructions in this manual. Failure to do so could
esult in personal injur
r
your Roady 2
and/or to your vehicle.
y, death, and/or damage to
™
Person al Audio System, your home,
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
IMPORTANT: The FCC and FAA have not certified the
Delphi XM®Roady2™Personal Audio System for use
in any aircraft (neither portable nor permanent
installation). Therefore, Delphi cannot support this
type of application or installation.
Welcome
Thank you for purchasing a Delphi Roady2 Personal Audio System.
The Delphi Roady2 Personal Audio System allows the Roady2 Satellite
Radio Receiver to become a completely portable and personal satellite
radio system.
With the Roady2 Personal Audio System, you have even more ways
to access over 130 XM Satellite Radio channels of music, news, and
information from coast to coast.
Your Roady2 Personal Audio System must be used only with the enclosed
connecting devices to ensure maximum performance and safety.
XM subscription required for reception. Not available in Alaska or Hawaii.
Satellite radio reception may vary or could potentially be degraded by satellite signal obstruction.
Caution: Do not modify or alter wires or connections in any way. Shortening wires or connections
may prevent proper functioning of the protection circuit. Doing so may damage your receiver and
will void your warranty.
Caution: This product is not water-resistant; do not expose to excessive humidity or rain.
Caution: Do not expose to direct sunlight or store in dusty areas.
Warning: When using the Roady2 Personal Audio System, follow the proper safety procedures
in your Roady2 User Guide. Not doing so could result in personal injury, death, and/or damage to
your Personal Audio System, other accessories, and/or to your vehicle or other property. To obtain
a copy of the Roady2 User Guide, go to www.shopdelphi.com.
About the Roady2 Personal Audio System
The Roady2 Personal Audio System is the latest accessory to accompany
the Roady2 Delphi XM Satellite Radio Receiver. The Roady2 Personal
Audio System allows Roady2 to become a completely portable, hand-held
satellite radio system. You can listen to either XM or FM stations. The
system includes a rechargeable and replaceable built-in battery, a customdesigned headset with a built-in XM antenna, and an AC power adaptor.
Note: The system will not work with the original Roady™Satellite
Radio Receiver.
About Roady2
Roady2 is the latest in the acclaimed line of portable devices from
Delphi and XM Satellite Radio and represents the best in audio technology.
The smallest and lightest satellite radio receiver currently available,
Roady2 is always ready to go with you. Just plug it in and go!
About Delphi
Delphi is a worldwide leader in mobile electronics, vehicle components,
and audio technology. Delphi created the first in-dash car radio in 1936
and continues its strong tradition of innovation in the audio industry.
Now Delphi technology has helped make satellite radio a reality, and
Delphi continues to expand its in-vehicle and consumer electronics
technologies. With its exciting line of satellite radio products, Delphi
offers a broad portfolio of products to answer a wide variety of information
and entertainment needs—in the vehicle, home, office, or virtually
anywhere. Visit www.shopdelphi.com for more information.
About XM
One big idea can change everything. And XM Satellite Radio is one big
idea: Radio to the Power of X
service offers over 130 digital channels of sheer variety: music, sports,
talk, comedy, drama, news, traffic and weather, kids programming, and
more. All 68 XM music channels are 100 percent commercial-free, and
XM’s instant traffic and weather channels provide the most comprehensive,
in-depth information on traffic incidents, delays, and road conditions available on radio. These services are available for a low monthly subscription,
and additional devices may qualify for a reduced subscription fee through
the XM Family Plan.
®
. America’s most popular satellite radio
Contents
Section 1: Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Section 2: Getting Started
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Inserting Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Removing Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Section 3: Displays and Features
Display Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Mode Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Volume Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
AC Power Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Section 4: Basic Operations
XM Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
FM Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Battery Operation and Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Installing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Battery indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Section 5: Reference
Taking Care of Your Roady2 Personal Audio System . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Contacting Product Technical Support . . . . . . . . . . . . . . . . . . . . . . . .17
Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Section 6: Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Section 1: Components
Your Roady2 Personal Audio System contains the following
components:
Headset with built-in
XM antenna
section one 1
Docking station
AC power adaptor
Section 2: Getting Started
Setup
To quickly begin enjoying your Roady2 Personal Audio System, follow the
steps in this section and also refer to your Roady2
To obtain a copy of the Roady2
Inserting Roady2:
1. Fully recharge and install the battery (see “Battery Operation and
Charging” on page 12).
2. Push down the latches on both sides of the Roady2 docking station
and, while holding the Roady2 docking station firmly using the grips
section two 2
provided, gently slide the tray outward (see figure 1).
Note: Do not use unnecessary force.
1. Press latches
User Guide, go to www.shopdelphi.com.
User Guide as noted.
Figure 1.
2. Slide tray out

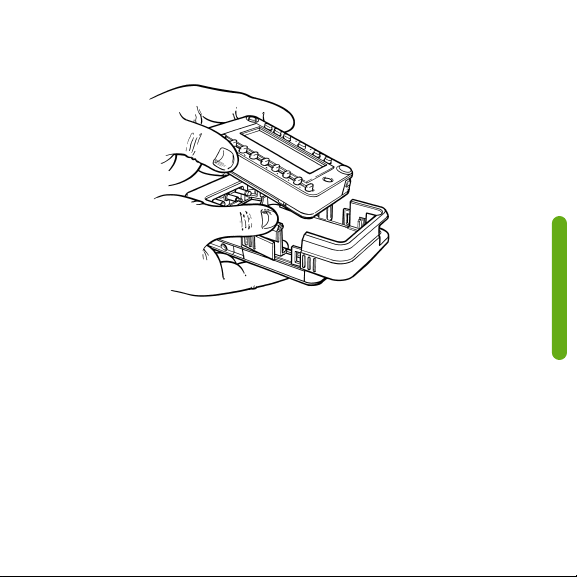

3. Place the Roady2 inside the Roady2 docking station (see figure 2).
Figure 2.
4. Gently push both ends of the Roady2 docking station together so that
both ends click back together.
Note: The Roady2 will fit snugly inside.
Do not use unnecessary force.
section two 3
5. Plug in the headset as shown in figure 3.
6. Turn the Roady2 Personal Audio System on by sliding the mode
section two 4
Figure 3.
switch to FM or XM as shown in figure 4. If the display is not on,
see “Troubleshooting” on page 15.
Note: The display on the Roady2
only appears if you are in XM mode.
Figure 4.
Caution: Take care not to accidentally bump the mode switch when the unit is off;
accidentally turning it on could run down the battery.
Mode switch
7. Refer to your Roady2 User Guide and do the following:
• Turn on the Auto-On feature (see Menu, Auto-On)
• Set the Roady2 audio level setting at 9 (see Menu, Audio Level)
• Select a screen color of red for optimal battery performance (see
Menu, Screen Color)
8. You are now ready to enjoy your Roady2 Personal Audio System. Refer
to other sections for information on displays, features, and basic operations.
Caution: Connect only appropriate input devices to the Roady2 Personal Audio System.
Connecting an incorrect input device may damage the system and/or the external electronic
device. You cannot use the Roady2 power adaptor with your Roady2 Personal Audio System.
section two 5
Removing Roady2:
1. Push down the latches on both sides of the Roady2 docking station
2. Remove the Roady2.
3. Gently push both ends of the Roady2 docking station together so that
section two 6
and, while holding the Roady2 docking station firmly, gently slide the
tray outward as shown in figure 5.
Note: Connectors are tight by design
to help ensure optimal performance. When removing Roady2, press
latches and slide tray firmly. Do not use unnecessary force.
both ends click back together.
Figure 5.
Section 3: Displays and Features
FM
102.1
FM
102.1
XM
Display Overview
The Roady2 Personal Audio System display shows the mode (FM or XM),
FM station, battery charge indicator, and volume. To view the XM channel,
use your Roady2 display.
Mode Display

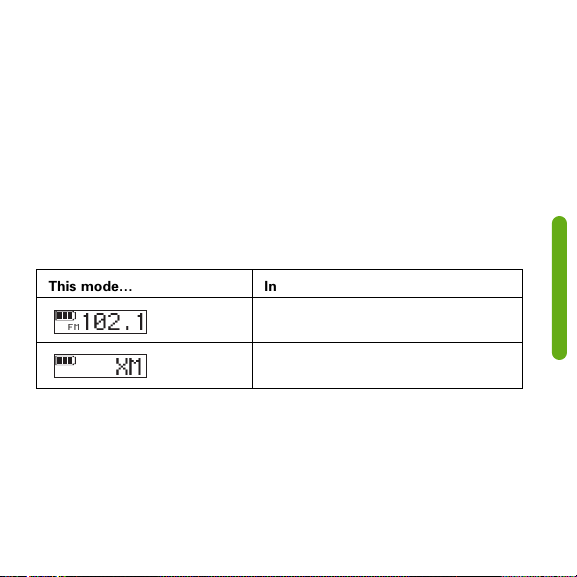

There are three modes: FM radio, XM satellite radio, and OFF.
section thr
This mode… Indicates…
ee 7
FM radio
XM satellite radio

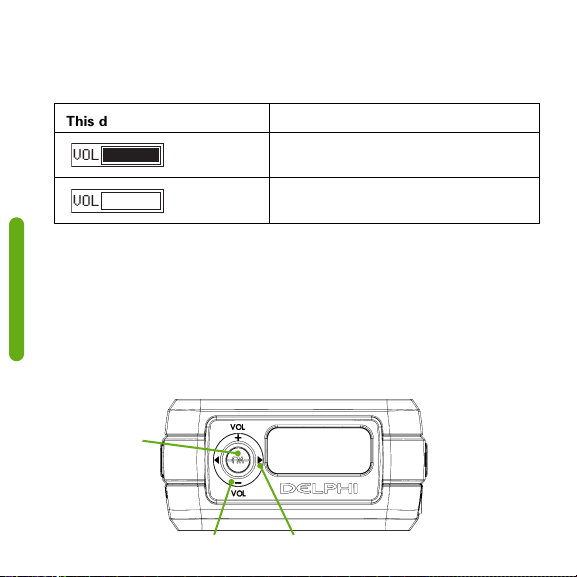

Volume Display
VOL
VOL
When you change the volume, the volume display appears.
This display… Indicates…
Backlight
Any time you adjust the controls or change modes the blue LED backlight
turns on for a short time so you can easily read the display information.
Battery Indicator
section three 8
See “Battery Operation and Charging” on page 12.
Controls
FM button
Maximum volume
Minimum volume
Volume control
Channel control
Headset
The unique headset has been specially designed for the Roady2 Personal
Audio System to receive satellite radio signals and produce excellent
sound quality. The headset contains a built-in antenna that has the same
ability to receive satellite signals as the antenna that is included in the
Roady2 package. There is a built-in volume control on the right side.
Like your Roady2 antenna, the headset must be in a line of sight with the
satellite in order to function. Being underneath large trees or inside buildings can affect satellite radio reception.
Caution: Do not plug your headset directly into your Roady2. Doing so could damage your
Roady2 and void your warranty.
Battery Pack
The Roady2 Personal Audio System uses a Lithium Ion battery for excellent performance. The battery must be in place for all functions.
To recharge the battery, use the AC adaptor and plug it into the unit with
the battery in place. The battery will fully charge in approximately two
hours when the Roady2 Personal Audio System is turned off.
A fully charged battery will run up to four hours in XM mode and at least
12 hours in FM mode.
section thr
ee 9
If you want your battery to last the longest, select a screen color of red on
your Roady2. Refer to your Roady2
obtain a copy of the
This product should not be operated if the air temperature is lower than 0˚C
(32˚F) or higher than 40˚C (104˚F).
AC Power Adaptor
The AC power adaptor allows you to recharge your Roady2 Personal
Audio System while you are using it, or when it is off.
Note: Charging is faster when in the OFF position.
Caution: Only use the AC power adaptor that is provided with your Roady2 Personal
Audio System. Do not use the DC power adaptor provided with your Roady2 Satellite
Radio Receiver.
section three 10
User Guide, visit www.shopdelphi.com.
User Guide for more information. To
Section 4: Basic Operations
XM Tuning
To tune XM channels:
1. Switch to XM.
Note: If you are in a location where you cannot receive satellite signals, you can still use the FM radio.
2. Follow the XM channel selection procedure in the Roady2
To obtain a copy of the Roady2 User Guide, go to www.shopdelphi.com.
Note: The joystick is used to tune FM stations, not XM channels.
FM Tuning
To tune FM stations:
1. Switch to FM.
2. Move the joystick left or right. A short tap and release will tune to the
next station. A one-second hold and release will seek until an FM
station is found. If you want to stop the seek, then just tap the joystick in
any direction.
User Guide.
section four 11
Volume Control
You can change the volume in three different ways. While the preferred
method is the Roady2 docking station joystick, you can also use the volume
dial on the headset or the volume control on the Roady2 unit itself.
Caution: Before putting on the headset, always adjust the volume setting at the lowest level to
avoid possible hearing damage.
Battery Operation and Charging
Your Roady2 Personal Audio System comes with a partially charged
Lithium Ion battery. Before you use your Roady2 Personal Audio System
for the first time, it is recommended that you fully charge the battery.
You can use the Roady2 Personal Audio System when the battery is
charging with the AC adaptor.
section four 12
Note: Remove the battery if the Roady2 Personal Audio System is not
used for more than 15 days. Even in the off position, a small amount of
power is being drawn and your battery may need to be recharged if not
removed.
Installing the battery:
The battery attaches to the back of the Roady2 Personal Audio System.
1. Ensure that the side latches of the Roady2 Personal Audio System
Roady2 docking station are in the closed position.
2. Place the bottom end of the battery into the prongs (so that the label is
hidden from view).
3. Snap the top of the battery into place
.
Removing the battery:
The battery is removed from the back of the Roady2 Personal Audio
System.
1. Turn off the Roady2 Personal Audio System by switching the
mode to OFF.
2. Press the latch at the top of the battery.
3. Lift the battery out of the Roady2 Personal Audio System
docking station.
Charging the battery:
You can recharge the battery by using the AC adaptor as shown in figure 6.
Note: Turning the Roady2 Personal Audio System off will reduce charging
time to approximately two hours.
Figure 6.
section four 13
You know the battery is charging when the battery indicators flash
sequentially.
Battery indicators:
The battery indicators (at the upper left part of the display) indicate
the state of the battery:
This indicator… Means the battery is…
Fully charged. Charging is complete.
100% charged.
66% charged.
section four 14
33% charged.
Empty. When the battery is nearly
empty, the empty icon flashes and then
the system turns off.
Not charging and the AC adaptor is
plugged in. See “Troubleshooting” on
page 16.
Charging.
Section 5: Reference
Taking Care of Your Roady2 Personal Audio System
Important:
• Use only a soft, dry cloth to clean the outside of your Roady2 Personal
Audio System and any peripherals.
• Do not use any solvents, chemicals, or cleaning solutions containing
alcohol, ammonia, or abrasives.
• Do not allow liquids to spill on the unit.
• Do not use sprays near your Roady2 Personal Audio System.
• It is best to keep your Roady2 Personal Audio System out of direct sunlight or other sources of extreme heat.
• Place your Roady2 Personal Audio System in a setting where air can
circulate around the unit (e.g., do not store in a vehicle’s glove box).
Caution: Refrain from using food or drinks near the Roady2 Personal Audio System. Spilling
food or drinks on the unit could damage it.
section five 15
Troubleshooting
Use the following troubleshooting section and the one from your Roady2
User Guide as needed. To obtain a copy of the Roady2 User Guide, go to
www.shopdelphi.com.
Problem Solution
The setup procedure
does not work.
You cannot receive XM channels.
section five 16
You cannot receive FM stations.
Battery is not charging properly.
The seek function does not stop.
• Ensure the Roady2 Personal Audio
System is plugged in correctly.
• Check to see if you can receive FM
signals. If so, then there is a
problem with the XM receiver.
Contact Delphi Product Technical
Support (see page 17).
• Ensure you are in an open area with
no obstructions such as large trees or
buildings.
• Ensure headset is plugged in.
• Move to an area where a strong FM
station exists.
• Ensure the battery is installed correctly
and the AC adaptor is plugged in.
• Use a new battery.
• Ensure headset is plugged in.
Contacting Product Technical Support
For additional information or assistance with your Roady2 Personal
Audio System, contact Delphi Technical support at 1.877.GO DELPHI
(1.877.463.3574) Monday—Friday, 8:00 a.m.—8 p.m. Eastern Time.
Technical Support is also available at www.delphi.com.
Technical Information
• Overall dimensions of Roady2 docking station: 5.03 in. long x 2.99 in.
wide x 1.42 in. thick (128 mm x 71 mm x 36 mm)
• Total unit (Roady2 docking station and battery): 10.58 oz.
(300 grams)
• Docking station unit (w/o battery): 3.55 oz. (95 grams)
• Battery: 3.70 oz. (105 grams)
• Roady2: 3.53 oz. (100 grams)
• AC adaptor: 19.58 oz. (555 grams)
• Integrated headset (with antenna): 4.06 oz. (115 grams)
Accessories
For a list of other accessories, visit www.shopdelphi.com.
section five 17
Section 6: Warranty
Portable XM Satellite Radio Accessories Limited Consumer Warranty
Delphi Product and Service Solutions (“Delphi”) warrants all Portable XM Satellite
Radio Accessory Products sold by Delphi (“Products”) to be free of defects in material and workmanship, subject to the following conditions.
The duration of Delphi’s warranty with respect to Delphi Portable XM Satellite Radio
Accessory Products is limited to one (1) year from the date of sale to the original
consumer purchaser. The duration of Delphi’s warranty with respect to the battery is
limited to thirty (30) days from the date of sale to the original consumer purchaser.
No other express warranties are made with respect to any Product. All implied
warranties, including warranties of merchantability and fitness for a particular
purpose, are limited to the warranty period set forth above. This warranty is not
transferable and applies only to the original consumer purchaser of the Product.
Delphi will, as its sole obligation under this warranty, replace or repair, at its option,
any Product that does not conform to this warranty. Products may be repaired or
replaced with new or with refurbished items. This limited warranty does not cover
section six 18
defects in appearance, cosmetic, or decorative items, including any non-operative
parts. Under no circumstances will Delphi be liable for any incidental or consequential
damages under this warranty or any implied warranties. These remedies are the customer’s exclusive remedies for breach of warranty. This limited warranty only extends
to customers who purchase the Products in the United States.
Delphi will not be responsible for damage resulting from any (i) deviation from
Delphi’s operating instructions as printed in Delphi’s catalog or on any packaging,
labels, or other literature provided with a Product, (ii) installation of a Product in a
manner which is inconsistent with Delphi’s written instructions, (iii) alteration or
modification of a Product, (iv) misuse, (v) neglect, (vi) abuse, (vii) accident, (viii) normal
wear and tear, (ix) commercial use, (x) improper storage, (xi) environmental conditions,
including excessive temperature or humidity, (xii) service by anyone other than a
Delphi authorized repair facility, (xiii) other improper application, installation, or operation
of the Product, or (xiv) defects or malfunctions of which Delphi is not advised within
ten (10) days of the expiration of the limited warranty period.
How You (the Customer) Can Get Service
To obtain warranty service, you must return the defective Product with the original
receipt to the original place of purchase. If further clarification or additional
information is required from Delphi, you may call Delphi at: 1.877.GO DELPHI
(1.877.463.3574).
If warranty service is needed at anytime during the warranty period, the
purchaser will be required to furnish a sales receipt/proof of purchase
indicating the date of purchase, amount paid, and place of purchase.
Customers who fail to provide such proof of purchase will be charged
for the repair/replacement of any Product.
How State Law Relates to the Warranty
Some states do not allow limitations on how long implied warranties last, or the
exclusion or the limitation of incidental or consequential damages. So the above
limitations or exclusions may not apply to you. This warranty gives you specific
legal rights. You may also have other rights that may vary from state to state.
NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY.
section six 19
Delphi Corporation
color logo
1441 West Long Lake Road • Troy, Michigan 48098-5090 U.S.A.
Customer Service: [1] 877.GO DELPHI
www.delphi.com
www.shopdelphi.com
The Roady2 name, XM name, and related logos are trademarks
of XM Satellite Radio Inc.
© 2004 Delphi Corporation. All rights reserved.
DPSS-04-E-068
Loading...
