DeLonghi WIR1, WIR2 User Manual

THERMOSTATICALLY CONTROLLED WALL MOUNTED
UNVENTED GAS HEATER WIR1-WIR2
(Equipped with Pilot Light Safety System)
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result caus­ing property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas suppli­er.
WARNING: Improper installation,adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installa­tion and operational procedures. For assistance or additional infor­mation consult a qualified installer, service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxy­gen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation section on page 4 of this manual.
This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
* Aftermarket: completion of sale, not for purpose of resale, from the manufacturer
SAVE THIS MANUAL FOR FUTURE REFERENCE
WIR 2 26-06-2003 18:21 Pagina 1
SAFETY INFORMATION WARNING:
Carbon monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be work­ing properly. Get fresh air at once! Have heater serviced. Some people are more affect­ed by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influ­ence of alcohol, and those at high altitudes. Natural and Propane/LP Gas: Natural and propane/LP gases are fuel gases. Fuel gases are odorless. An odor-making agent are added to fuel gases. The odor helps you detect a fuel gas leak. However, the odor added to fuel gas can fade. Fuel gas may be present even though no odor exists. Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.
2
TABLE OF CONTENTS
Safety information 2 Local codes 3 Product identification 3 Unpacking 3 Product features 4 Air for combustion and ventilation 4 Installation 7
Operating heater 11 Cleaning and maintenance 14 Specifications 15 Troubleshooting 16 Service hints 15 Technical service 15 Warranty information 19
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause seri­ous injury or death from burns, fire, explo­sion, electrical shock, and carbon monoxide poisoning.
DANGER: Carbon monoxide poisoning may lead to death!
WARNING: Any change to this heater or its control can be dangerous.
WARNING: Do not use any accessory not approved for use with this heater.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
Surface of heater becomes ver y hot when r un­ning heater. Keep children or adults away from the surface to avoid burns a clothing igniton. Heater will remain hot for a time after shut­down. Allow surface to cool before touching.
Carefully supervise young children when they are in the same room with heater.
Keep the appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bed­ding material,etc. It is imperative that con­trol compartments, burners and circulating air passageways of the appliance be kept clean.
WIR 2 26-06-2003 18:21 Pagina 2
1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.
2.Do not place propane/LP supply tank(s) inside any structure. Place propane/LP sup­ply tank(s) outdoors.
3. This heater shall not be installed in a bed­room or bathroom.
4. If you smell gas
- Shut off gas supply
- Do not try to light any appliance.
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’ s instructions
- If you cannot reach your gas supplier, call the fire department.
5. Always run heater with plaque control knob 1,2,3 or at the 1,2, or 4 locked posi­tions, Never set control knob between locked positions. Poor combustion and higher levels of carbon of monoxide may result.
6. This heater needs fresh, outside air ventila­tion to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for combustion and Ventilation, pages 4 through.
7. If heater shut off, do not light again until you provide fresh, outside air. If heater keeps shutting off, have it service.
8. Do not run heater
-where flammable liquids or vapors are used or stored
-under dusty conditions
9. Do not use heater if any part has been under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the con­trol system and any gas control which has been under water.
10.Turn off and unplug heater and let cool before servicing. Only a qualified ser vice
person should service and repair heater.
11.Operating heater above elevations of 4,500 feet could cause power outage.
12. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.
13. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these prod­ucts may create a white powder residue within burner box or on adjacent walls or furniture.
14.Provide adequate clearances around air openings.
LOCAL CODES
Install and use heater with care. Follow all local codes, use the latest edition of National
Fuel Gas Code, ANSI Z223.1/NFPA 54*
* Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY10018
National Fire Protection, Inc
Batterymarch Park
Quincy, MA 02269
PRODUCT IDENTIFICATION
UNPACKING
1. Remove the heater from carton.
2. Remove all protective packaging applied to heater for shipment.
3. Check heater for any shipping damage. If heater is damaged, promptly inform deal­er where you bought heater.
3
Fig.1
WIR 2 26-06-2003 18:21 Pagina 3
PRODUCT FEATURES Safety device
This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent­free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.
Piezo ignition system
This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.
AIR FOR COMBUSTION AND VENTILATION
Today’s home are built more energy efficient than ever. New materials, increased insula­tion, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combus­tion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will ensure proper venting of vented fuel-burning appli­ances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section
5.3 Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classification:
1. Unusually Tight Contruction
2. Unconfined Space
3. Confined Space
The information on page 4 through 6 will help you classify your space and provide adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside
atmosphere have a continuous water vapor retarder with a rating of one perm (6x10
-11
Kg per pa-sec-m2) or less with
openings gasketed or sealed and
b. weather stripping has been added on
openable windows and doors and
c. caulking or sealants are applied to areas
such as joints around window and door frames, between sole plates and floors, between sole plates and floors, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.
If your home meets all of three criteria above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 6 If you home does not meet all of the three cri­teria above, proceed to Determining Fresh-Air Flow For Heater Location, page 5
4
WARNING: This heater shall not be installed in a confined space or unusually tight con­struction unless provisions are provided for adequate combustion and ventilation. Read the following instructions to ensure proper fresh air for this and other fuel-burning appliances in your home.
WIR 2 26-06-2003 18:21 Pagina 4
Confined and Unconfined Space
The National Fuel gas Code, ANSI Z223.1/NFP A 54 defines a confined space as
a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4,8 m
3
per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4,8 m
3
per kw) of the aggregate input rating of all apliances installed in that space. Rooms com­municating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.
*Adjoining rooms are communicating only if there are doorless passageways or ventilation grilles between them.
DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION. Determining if you have a confined or uncon­fined space.
Use this work sheet to determine if you have a confined or unconfined space. Space: includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grilles between the rooms.
1. Determine the volume of the space (length
x width x height).
length x width x height =________ cu.ft.
(volume of space)
Example: space size 20ft. (length) x 16 ft
(width) x 8ft (ceiling height) = 2560 cu. ft. (volume of space)
If additional ventilation to adjoining room
is supplied with grilles or openings, add the
volume of these rooms to the total volume
of the space.
2. Multiply the space volume by 20 to deter-
mine the maximum Btu/Hr the space can support. ________ (volume of space) x 20= 51.200
(maximum Btu/Hr the space can support)
Example:2560 cu. ft (volume of space) x
20= 51.200 (maximum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appli­ances in the space.
Vent-free heater ____________Btu/Hr Gas water heater* ____________Btu/Hr Gas furnace ____________Btu/Hr Vented gas heater ____________ Btu/Hr Gas fireplace logs ____________Btu/Hr Other gas appliances* +________Btu/Hr Total =___________Btu/Hr
* Do not include direct-vent gas appliances. Direct-
vent draws combustion air from the outdoors and vents to the outdoors.
Example
Gas water heater* 40,000
Btu/Hr
Vent-free heater + 20,000
Btu/Hr
Total = 60,000
Btu/Hr
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.
Btu/Hr (maximum the space can support) Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space
can support) 60,000 Btu/Hr (actual amount of Btu/Hr
used) The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can sup­port. You must provide additional fresh air.
Your options are as follows: A. Rework worksheet, adding the space of an
adjoining room. If the extra space pro­vides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See ventilation air from inside building, page 4
B. Vent room directly to outdoors. See ventila-
tion air from outdoors, page 4
C. Install a lower Btu/Hr heater, if lower
Btu/Hr size makes room unconfined.
5
WIR 2 26-06-2003 18:21 Pagina 5
If the actual Btu/Hr used is less than the max­imum Btu/Hr the space can support, the space is an unconfined space. Y ou will need no addi­tional fresh air ventilation.
VENTILATION AIR Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent open­ings: one within 12” of the ceiling and one within 12” of the floor on the wall connecting the two spaces (see options 1 and 2, figure ??). Follow the National Fuel gas Code, ANSI
Z223.1/NFA 54, section air for combustion and ventilation for required size of ventilation
grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grilles or ducts. You must provide two permanent open­ings: one within 12”of the ceiling and one within 12” of the floor . Connect these items directly to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel gas Code, ANSI
Z223.1/NFA 54, section air for combustion and ventilation for required size of ventilation grills or
ducts.
IMPORT ANT: Do not provide openings for inlet or outlet air into attic has a thermostat-con­trolled power vent. Heated air entering the attic will activate the power vent.
6
WARNING: if the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54 section 5.3 or applicable local codes.
Fig.2 V entilation Air from Inside Building
Fig.3 V entilation Air From Outdoors
WIR 2 26-06-2003 18:21 Pagina 6
INSTALLATION
CHECK GAS TYPE
Use only the correct type of gas (natural or propane/LP). If your gas supply is not the correct gas type, do not install heater. Call dealer where you bought heater for proper type heater.
INSTALLATION ITEMS
Before installing heater, make sure you have the items listed below.
• for propane/LP gas, external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve*
•ground joint union
• test gauge connection*
• sediment trap
• tee joint
• pipe wrench
• for natural gas, test gauge connection*
LOCATING HEATER
This heater is designed to be mounted on a wall.
IMPORT ANT: vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See air for Combustion and Ventilation, pages 4 through
6. If high humidity is experienced, a dehumidifier may be used to help lower the water vapor con­tent in the air.
For convenience and efficiency, install heater
•Where there is easy access for operation, inspection, and service.
• In coldest part of room.
7
NOTICE: This heater is intended for use as a supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as you primary heat source.
WARNING: A qualified service person must install heater. Follow all local codes.
WARNING: maintain the minimum clearances shown in figure 4 if you can, provide greater clearances from floor, ceiling, and joining wall.
WARNING: Never install the heater
• in the bathroom
•in a recreational vehicle
• where curtains, furniture, clothing, or other flammable object are less than 36 inches
CAUTION: if you install the heater in a home garage
• heater pilot and burner must be at least 18 inches above floor
• place heater where moving vehicle will not hit it.
CAUTION: This heater creates warm air cur­rents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may dis­color walls or cause odors.
from the front, top, or sides of the heater.
• as a fireplace insert
• in high traffic areas
• in windy or drafty area

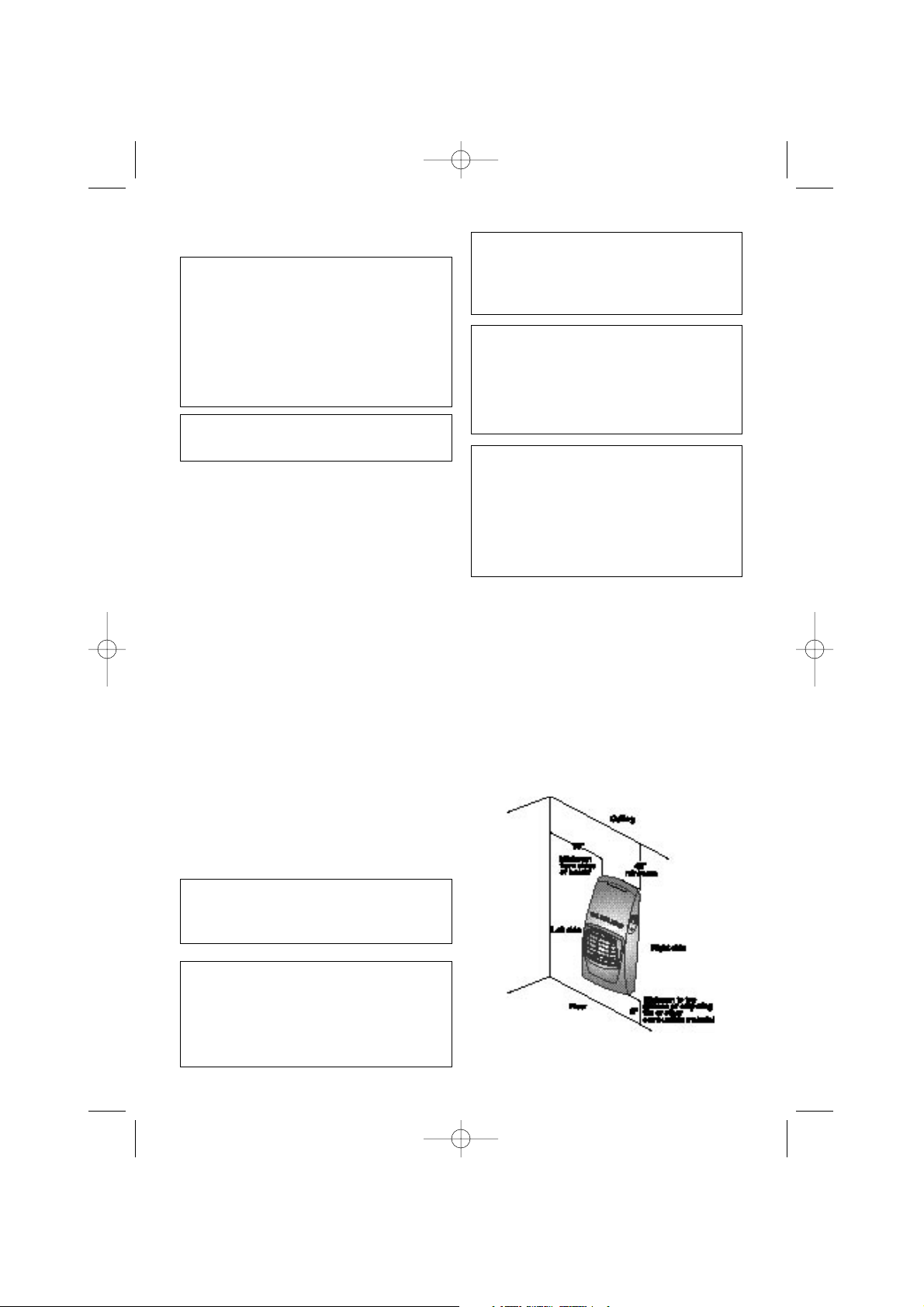

Fig.4 Mounting Clearances As Viewed From Front of Heater
WIR 2 26-06-2003 18:21 Pagina 7
INSTALLATION

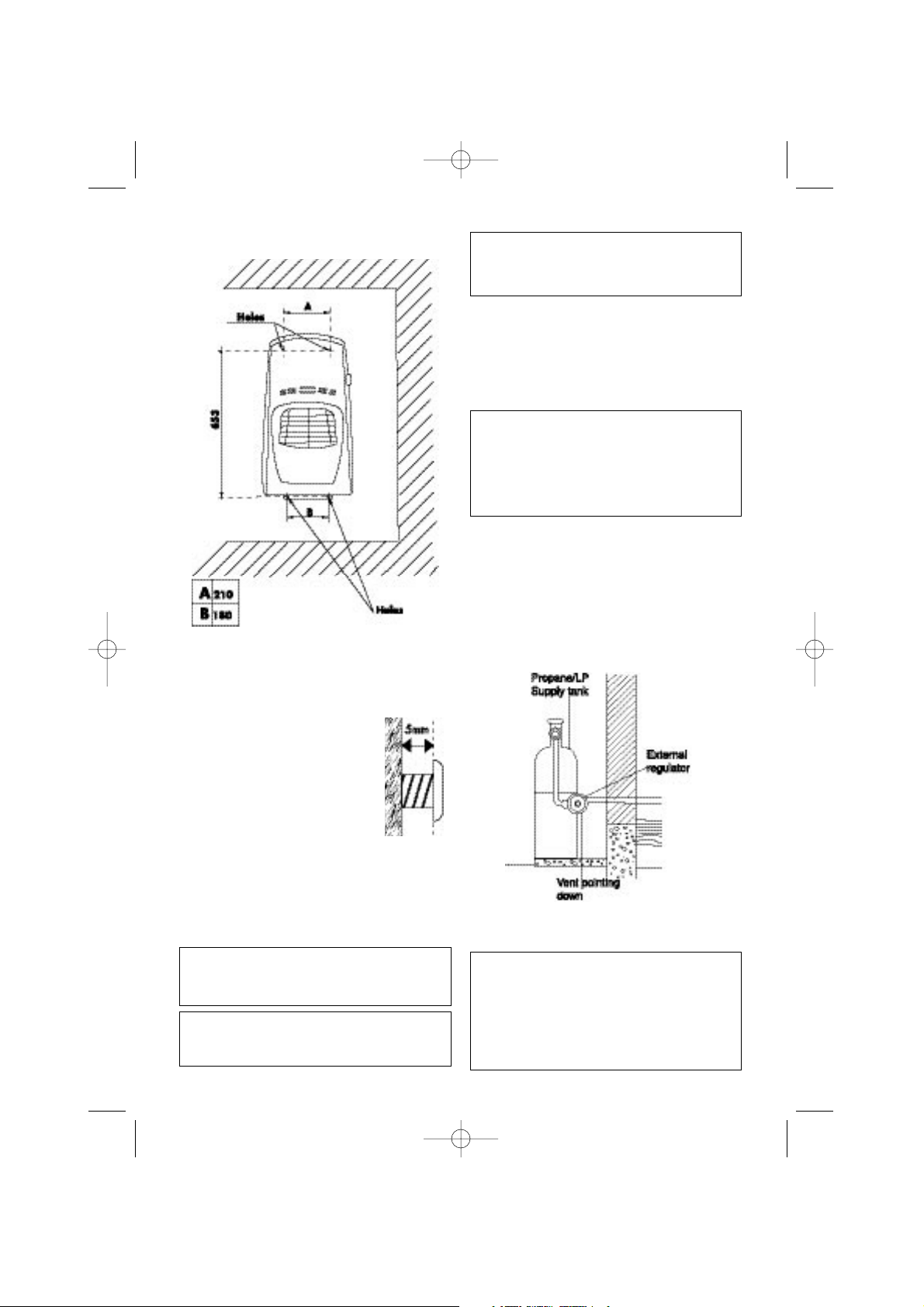

• Sign in the wall to make the hole “A”.
• Drill the wall by using a 1/4” drill.
• Insert the two plastic expansion anchors supplied in the installation kit, in the holes.
• Insert two of the four screws supplied in the holes letting them stick out from the wall for at least 5 mm (see fig. aside)
• Hook the appliance and label the holes B.
• Remove the appliance and by using the same drill as before, drill the holes. Insert the removing 2 plas­tic anchors.
• Hook the appliance and fix it in the lower part, by using the remaining 2 screws.
CONNECTING TO GAS SUPPLY
IMPORTANT: For natural gas, check gas line pressure before connecting heater to gas line. Gas line pressure must be no greater than 14 inches of water. If gas line pressure is higher, heater regulator damage could occur.
For propane/LP gas, the installer must supply an external regulator. The external regulatr will reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regula­tor damage could occur. Install the external regulator with the vent pointing down as shown in figure 6. Pointing the vent down pro­tects it from freezing rain or sleet.
8
WARNING: This appliance requires a 3/8” NPT (National Pipe Thread) inlet connection to the pressure regulator.
WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.
WARNING: For natural gas, never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.
CAUTION: For propane/LP gas, never connect heater directly to the propane/LP supply. This heater requires an external regulator (not sup­plied). Install the external regulator between the heater and propane/LP supply.
fig. 5

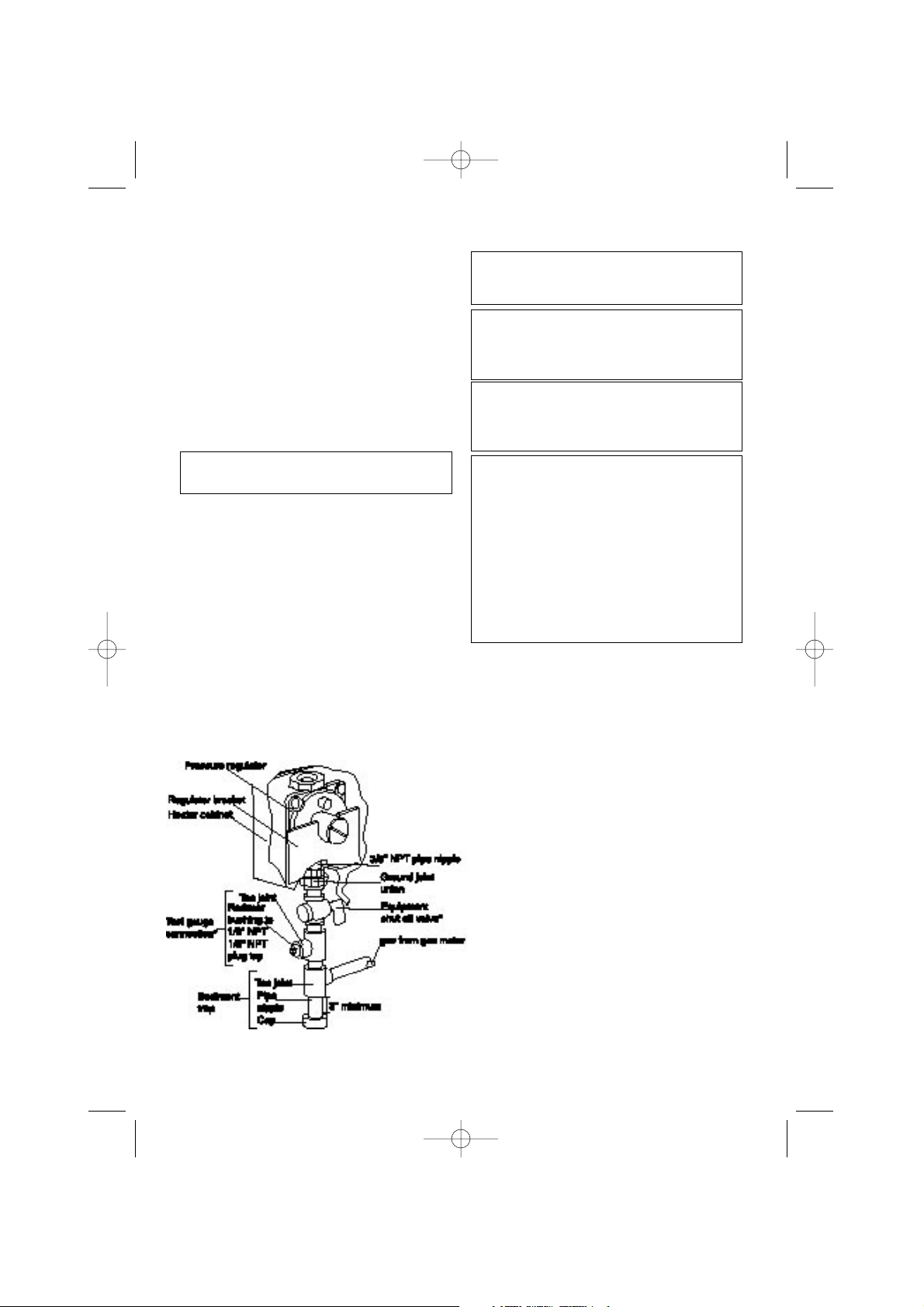

Fig.6 External Regulator With Vent Pointing Down
CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of large enough diameter to allow proper gas volume to heater . If pipe is too small, undue loss of volume will occur.
WIR 2 26-06-2003 18:21 Pagina 8
Installation must include equipment shutoff valve, union, and plugged 1/8” NPT tap. Locate NPT tap within reach for test gauge hook up. NTP tap must be upstream from heater (see fig 7) IMPORTANT: install an equipment shutoff valve in accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance. Apply pipe joint sealant lightly to male NTP threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.
Install sediment trap in supply line as shown in fig. 7. Place sediment trap where it is within reach for cleaning. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contami­nants. This keeps them from going into heater controls. If sediment trap is not installed or is installed incorrectly, heater may not run prop­erly. IMPORTANT: hold the pressure regulator with wrench when connecting it to gas piping and/or fittings. Do not over tighten pipe con­nection to regulator. The regulator body could be damaged.
CHECKING GAS CONNECTIONS
1. Disconnect appliance with its appliances main gas valve (control valve) and equip­ment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where equipment shutoff valve was connected.
3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for nat­ural gas, or using compressed air.
4. Check all joints of gas supply piping sys­tem. Apply a non-corrosive leak detection fluid to all joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fit­tings for leaks.
9
WARNING: Use pipe joint sealant that is resist­ant to liquid petroleum (LP) gas.
WARNING: test all gas piping and connections for leaks after installing or servicing . Correct all leaks at once.
WARNING: never use an open flame to check for a leak. Apply a non-corrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.
CAUTION: For propane/LP gas, make sure external regulator has been installed between propane/LP supply and heater. See guidelines under connecting to Gas Supply, page 8.
* A CSA design-certified equipment shutoff valve with 1/8” NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design certified shutoff valve from your dealer.
fig. 7
The appliance and its appliance main gas valve must be disconnected from the gas supply piping system during any pressure testing of that system pressures in excess of 1/2 psi (3.5 Kpa). The appliance must be isolated from the gas supply piping system by closing its equip­ment shut-off valve during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2 psi (3,5 kpa).
WIR 2 26-06-2003 18:21 Pagina 9
Test pressures equal or less than 1/2 PSIG (3,5 Kpa)
1. Close equipment shutoff valve (see figure 8).
2. Pressurize supply piping system by either opening propane/LP supply tank valve located on or near gas meter for natural gas, or using compressed air.
3. Check all joints from gas meter for natural gas (see figure B) or propane/LP supply tank for propane /LP gas, to equipment shutoff valve (see figure C). Apply a non­corrosive leak detection fluid to all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNEC­TIONS
1. Open equipment shutoff valve (see figure A).
2. For natural gas open main gas valve locat­ed on or near gas meter. For propane/LP gas open propane /LP supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve thermostat gas valve (see figure 8/9 or 10). Apply a non-corrosive leak detection fluid to all joints. Bubbles form­ing show a leak.
5. Correct all leaks at once.
6. Light heater (see operating heater, page
11). Check all other internal joints for leaks.
7. Turn off heater (see to turn off gas to appli­ance, page 12)
10

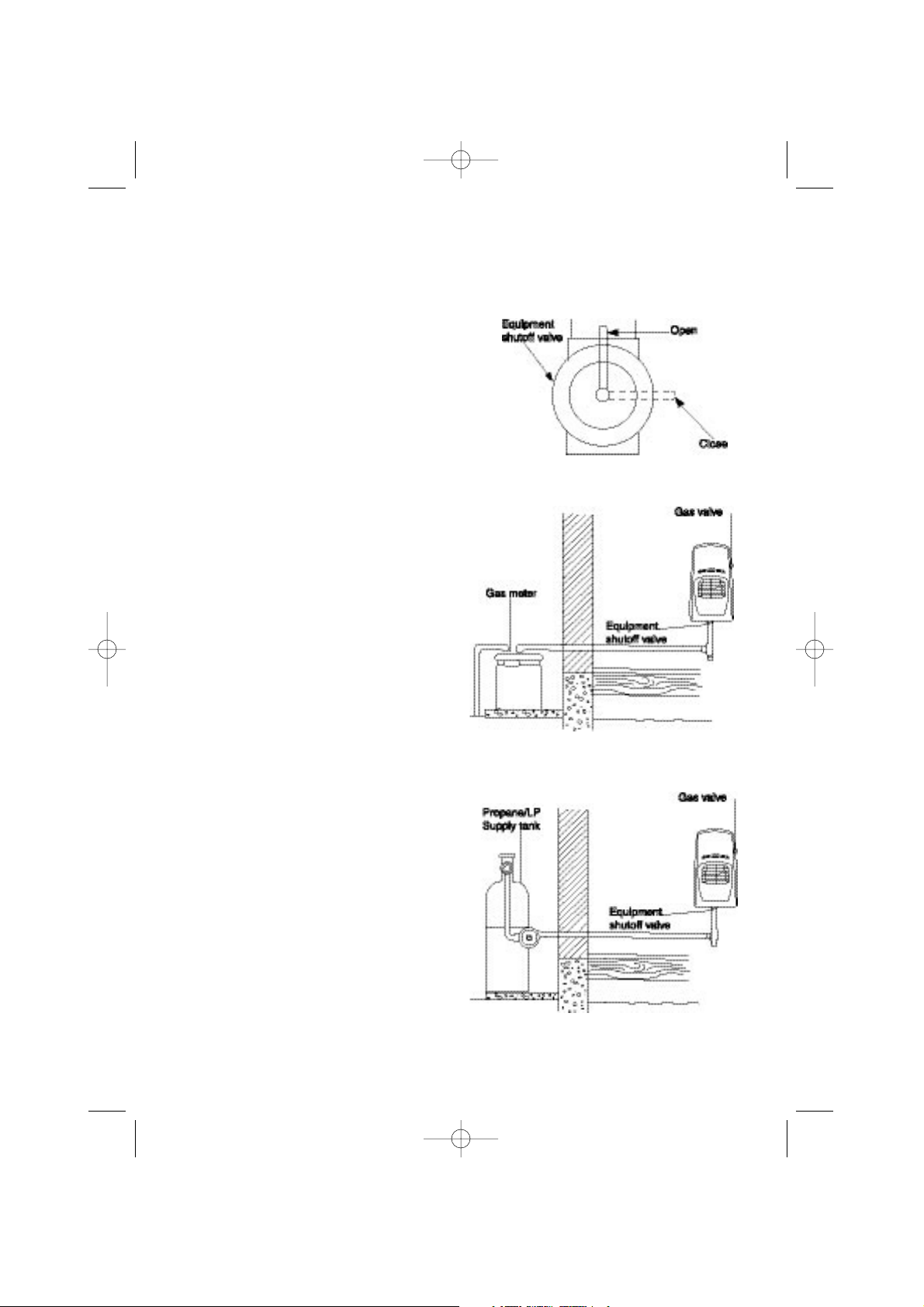

Fig.8 Equipment Shutoff Valve
Fig.9 Checking Gas Joints for Natural Gas
Fig.10 Checking Gas Joints for Propane/LP Gas
WIR 2 26-06-2003 18:21 Pagina 10
11
OPERATING HEATER
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot, follow these instructions exactly.
B. Before lighting smell all around the appli-
ance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS.
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli­er‘s instruction.
• If you cannot reach your gas supplier, call
the fire department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified serv­ice technician or gas supplier. Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.
1. STOP! Read the safety information above.
2. Make sure equipment shutoff valve is fully
open.
3. Turn thermostat control knob clockwise
to the OFF position (see fig. 11).
4. Wait five minutes to clear out any gas.
Then smell for gas, including near the
floor. If you smell gas, STOP! Follow the safety information. If you don’t smell gas, go to the next step.
5. Turn thermostat control knob counterclock­wise to the pilot position. Press in thermostat control knob for 5 seconds (see fig. 11).
Note: you may be running this heater for the
first time after hooking up to gas supply. If so, you may need to press in control knob for 30 seconds or more. This will allow air to bleed from the gas system.
• If thermostat control knob does not pop up when released, contact a qualified service person or gas supplier for repairs.
6. Keep thermostat control knob pressed in while pushing down and releasing the ignitor button. This will light pilot. If neces­sary, continue to press ignitor button until pilot lights.
If pilot does not light:
• turn thermostat control knob clockwise
to the OFF position.
• repeat step 5 and 6. If pilot does not stay lit after several tries:
• refer to troubleshooting, pages 16 trough
18.
• contact a qualified service person or a gas supplier for repairs.
7. Keep thermostat control knob presed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.
Note: If pilot goes out, repeat steps 3 through 7.
8. Turn thermostat control knob counterclock­wise to the desired heating level. The main burner should light. Set control knob to any heat level between HI and LOW (see fig. 12).
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: if you do not not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
LIGHTING INSTRUCTION

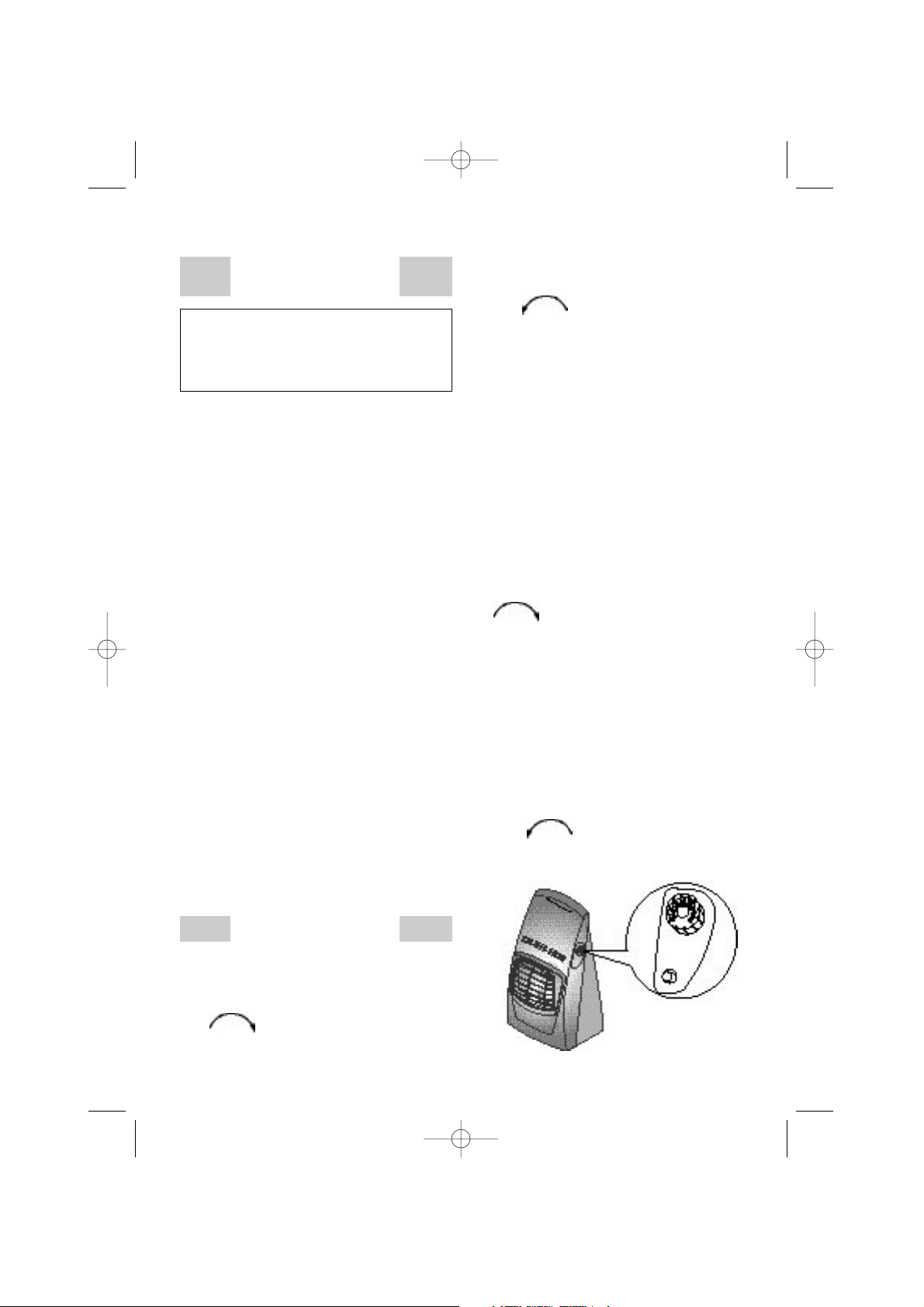

Fig.11 Control Knob
WIR 2 26-06-2003 18:21 Pagina 11
The thermostatic control used on this model turn on and off the burner. The thermostat used on this heater senses the room temperature. At times the room may exceed the set tempera­ture. If so, the burner will shut off. The burner will cycle back on when room temperature drops below the set temperature. The control knob can be set to any 2 comfort level between HI and LOW. All plaques will turn off and on. Note: The thermostat sensing bulb measures the temperature of air near the heater cabinet. This may not always agree with room temper­ature (depending on housing construction, installation location, room size, open air tem­peratures, etc.) Frequent use of your heater will let you determine your own comfort levels.
Shutting off burner only (pilot stays lit)
Turn thermostat control knob clockwise
to the PILOT position.
Shutting off heater
Turn thermostat control knob clockwise to the OFF position.
INSPECTING HEATER
Check pilot flame pattern and burner flame pattern often.

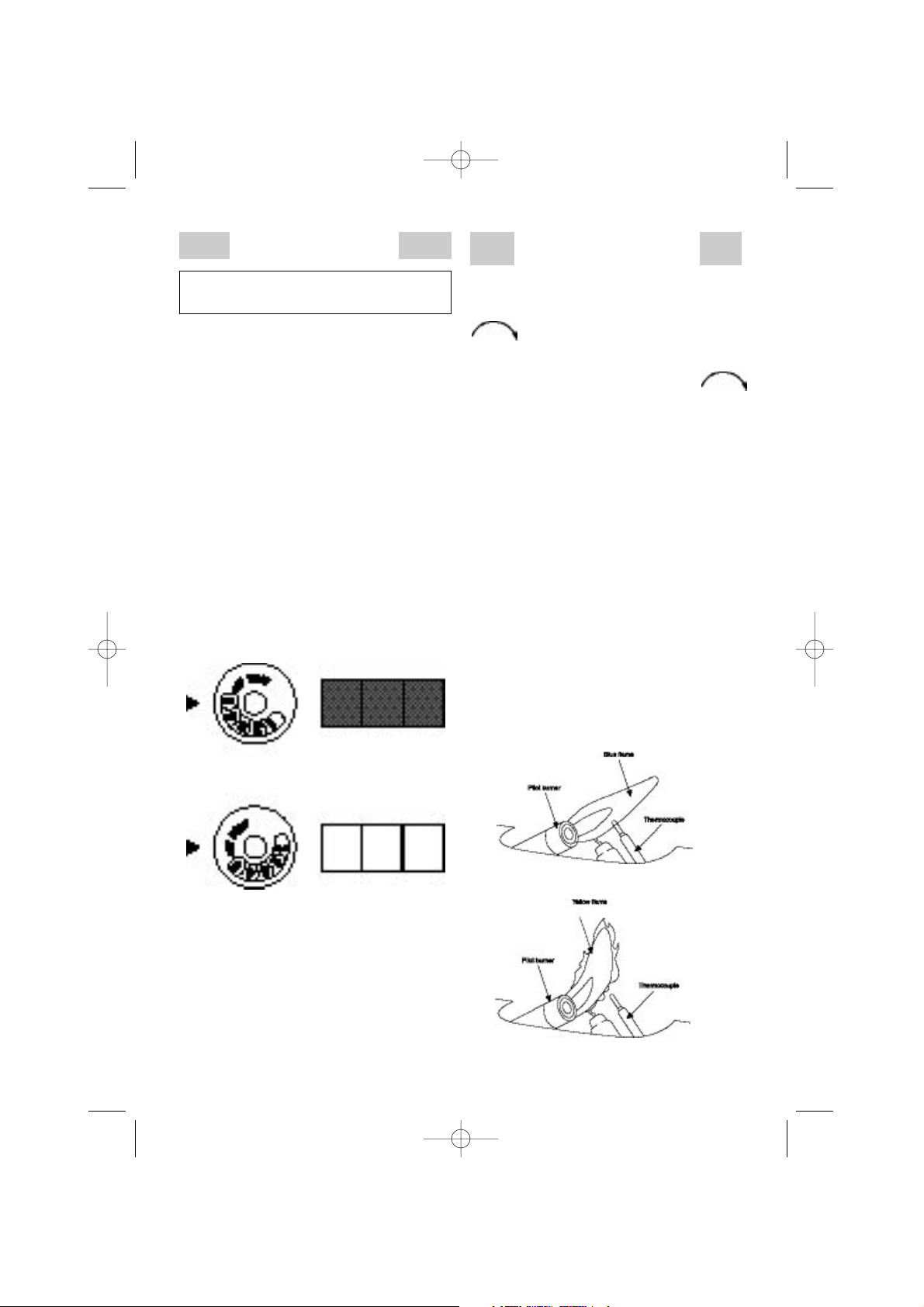

PILOT FLAME PATTERN
Figure shows a correct pilot flame pattern. Figure 13 shows an incorrect pilot flame pat­tern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermo­couple to cool. When the thermocouple cools, the heater will shut down. If pilot flame pattern is incorrect, as shown in figure 14.
• turn heater off (see above, to turn off the
gas to appliance )
• see troubleshooting, pages 16 through 18
Note: the pilot flame on natural gas units will
have a slight curve, but flame should be blue and have no yellow or orange color.
12
TO SELECT HEATING LEVEL
CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.
TO TURN OFF GAS TO APPLI-
ANCE
fig.13
fig. 14

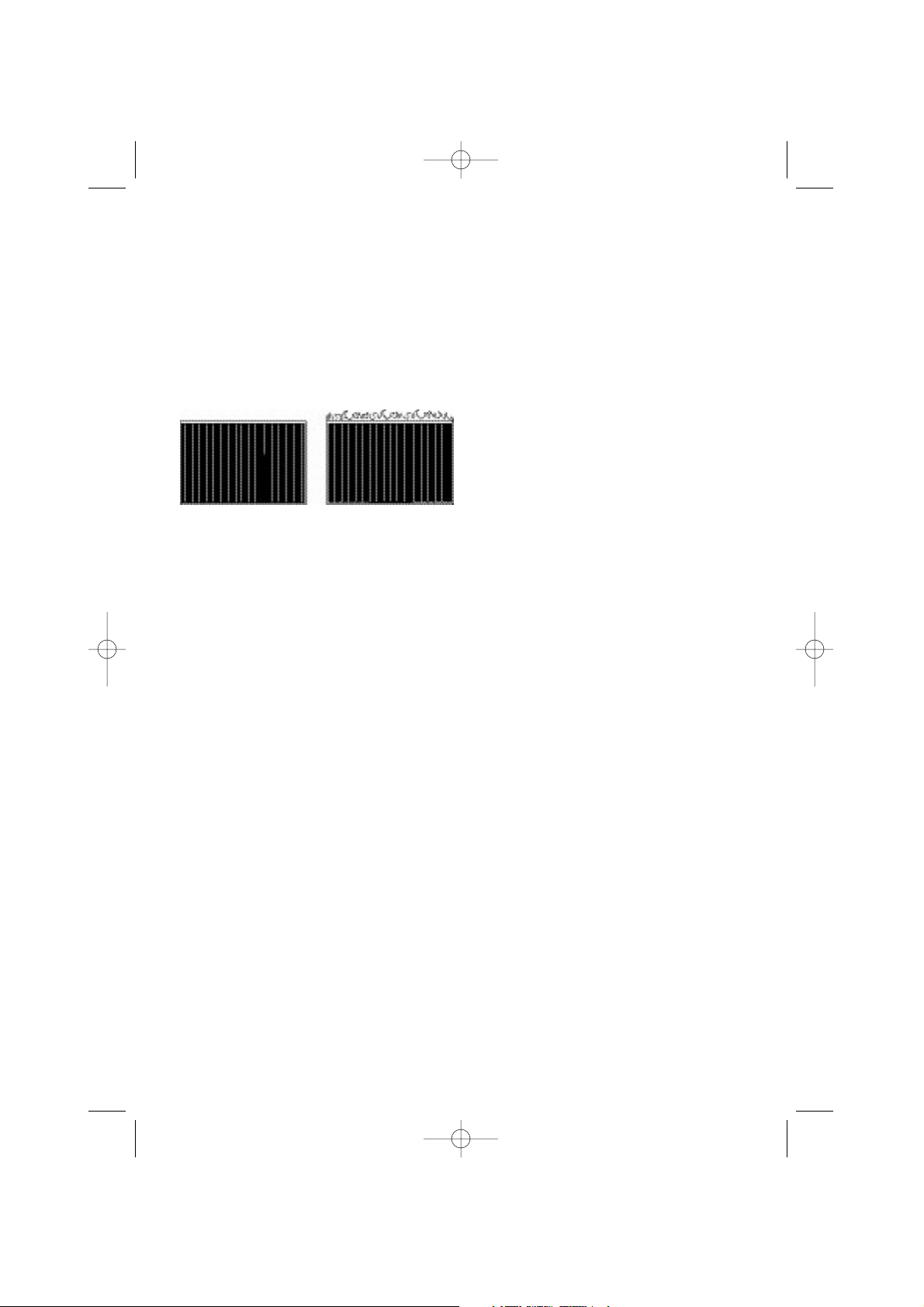

Fig.12 Burner Patterns
Control Knob
WIR 2 26-06-2003 18:21 Pagina 12
BURNER FLAME PATTERN
Figure 15 shows a correct burner flame pat­tern. Figure 16 shows a incorrect burner flame pattern. If burner flame pattern is incorrect, as shown in figure 16
• turn heater off (see to turn off gas to appli­ance, page 12)
• see troubleshooting, pages 16 through 18
13
correct burner
fig. 16
fig. 15
incorrect burner
WIR 2 26-06-2003 18:21 Pagina 13
CLEANING AND MAINTENANCE
ODS/PILOT AND BURNER
•Use a vacuum cleaner, pressurized air, or
small, soft bristled brush to clean.
CLEANING BURNER PILOT AIR INLET
The primary air inlet holes allow the proper amount of air to mix with the gas. This pro­vides clean burning flame. Keep these holes clear of dust, dirt, and lint. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We reccommend that you clean the unit every three months dur­ing operation and have heater inspected year­ly by a qualified service person.
We also reccommend than you keep the burn­er tube and pilot assembly clean and free of dust and dirt. To clean these parts we recom­mend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry composition. If using compressed air in a can, please follow the directions on the can. If you don’t follow directions on the can, you could damage the pilot assembly.
1. Shut off the unit, including the pilot. Allow
the unit to cool for at least thirty minutes.
2. Inspect burner, pilot for dust and dirt.
3. Blow air through the ports/slots and holes
in the burner.
4. Never insert objects into the pilot tube.
Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly (see figure 14). With the
unit off, lightly blow air through the air inlet. You may blow through a drinking straw if compressed air is not available.
CABINET Air passageways
•Use a vacuum cleaner or pressurized air to clean.
Exterior
• Use a soft cloth dampened with a mild soap and water mixture.
Wipe the cabinet to remove dust.
14
CAUTION: you must keep control areas, burner, and circulating air passageways of heater clean. Do not close this zone. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified serv­ice person. Heater may need more frequent cleaning due to excessive lint from carpet­ing, bedding material, pet hair, etc.
WARNING: Turn off heater and let cool before cleaning

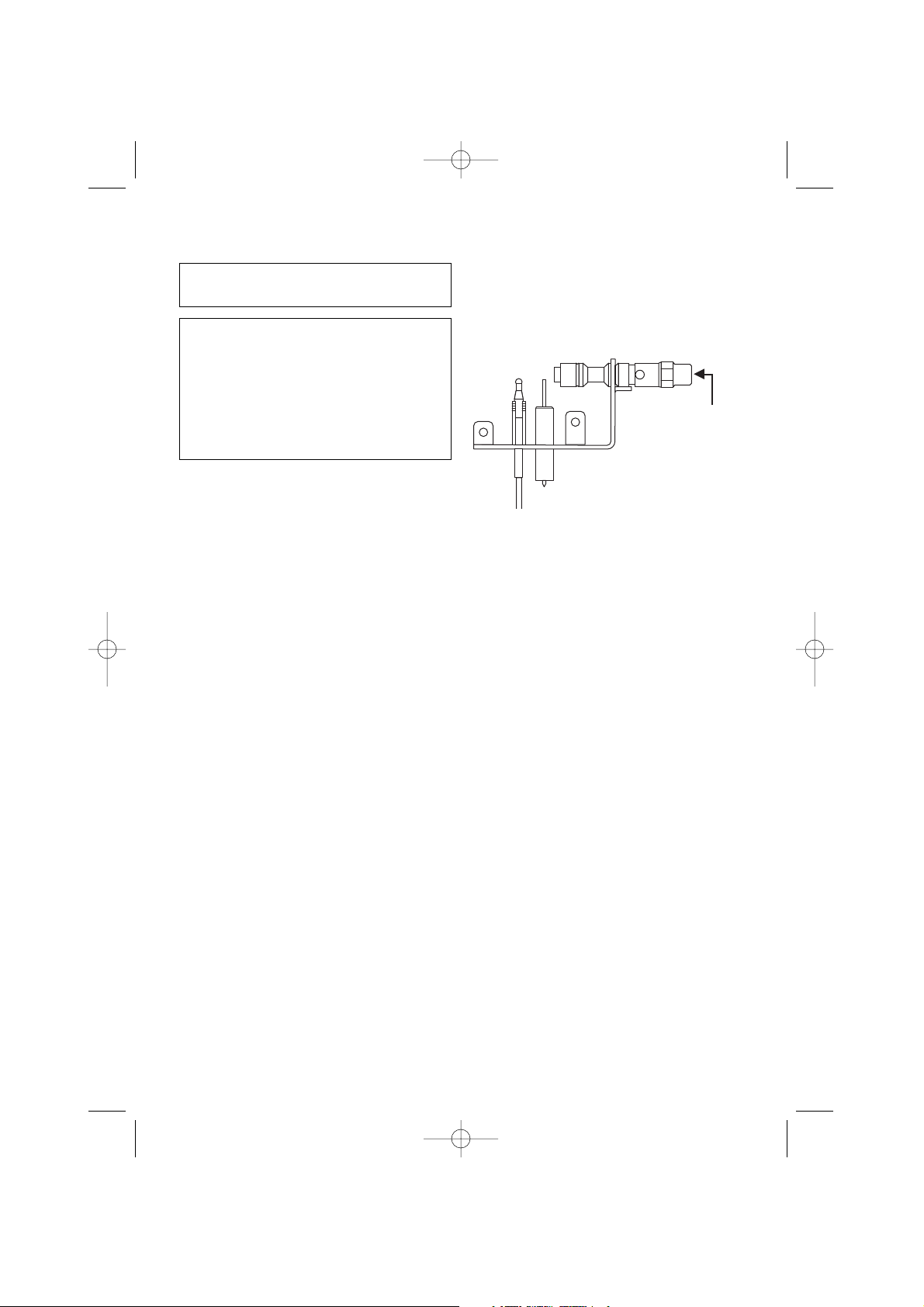

Pilot air inlet
fig. 17
Pilot assembly
WIR 2 26-06-2003 18:21 Pagina 14
15
SPECIFICATION
This heater is equipped with an oxygen deple­tion safety system and safety shut-off system.
APPLIANCE DIMENSIONS
Width: 15.75 inches Height: 29.14 inches Depth: 9.65 inches
PACKAGING DIMENSIONS
Width: 18.7 inches Height: 31.3 inches Depth: 11.8 inches
REPLACEMENT PARTS
Note: use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact an authorized dealer from whom you purchased this product. If they are unable to supply original replacement part(s), call De’Longhi Usa . When contacting your dealer, have ready:
•your name
• your adress
•model and serial numbers of your heater
• how heater was malfunctioning
• Type of gas used (natural gas)
• purchase date Usually, we will ask you to return the defective
part to the factory
Heater ratings in british thermal units per hour (BTUH)
Model
Model
Setting
Input
(BTUH)
Type
gas
Pressure
regulator setting
Orifice
Drill size
n° of
radiators
Inlet gas pressure
(inches of water)
LP GAS
NAT
GAS
pilot ON
pilot
ON
400
13660
1000
13660
L.P.*
NATURAL
8”
6”
0,95
0,70
1,25
0,92
3
3
MAX
MIN
13”
10,5”
11”
3,5”
for elevations above 2000 feet reduce rating 4% for each 1000 feet above sea level. * L.P.- Liquified Petroleum
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this poduct.
TECHNICAL SERVICE
You may have further questions about installa­tion, operation, or troubleshootimg. If so, con­tact De’Longhi Usa toll-free number 1-800­322-3848
WIR 2 26-06-2003 18:21 Pagina 15
16
TROUBLESHOOTING
WARNING: if you smell gas
• Shut off gas supply
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any phone in your building
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instrc­tions
• If you cannot reach your gas supplier, call the fire department.
IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning sup­plies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc.,cre­ate fumes. These fumes may mix with combustion air and create odors.
OBSERVED PROBLEM
POSSIBLE CAUSE
REMEDY
Heater produces unwanted odors
1. Heater burning vapors from paint, hair spray, glues, etc. See important statement above
2. Gas leak. See warning statement at top of page
1. Ventilate room. Stop using odor causing products while heater is running
2. Locate and correct all leaks (see checking gas connections, page)
Heater shuts off in use
1. Not enough fresh air is available
2. Burner orifice is clogged
1. Contact local natural gas company
2. Clean burner orifice (see clean­ing and maintenance, pag 14) or replace the burner.
Burner backfiring during combustion
1. Burner orifice is clogged or damaged
2. Low line pressure
3. Ods/pilot is partially clogged
1. Open window and/or door for ventilation
2. Contact local natural gas company
3. Clean ODS/pilot (see cleaning and maintenace page)
Gas odor even when con­trol knob is in OFF posi­tion
1. Gas leak. See warning statement at top of page
2. Thermostat control valve defective
1. Locate and correct all leaks (see checking gas connections, page
9)
2. Replace thermostat control valve
Gas odor during combus­tion
1. Foreign matter between control valve and burner
2. Gas leak. See warning statement at top of page
1. Take apart gas tubing and remove foreign matter
2. Locate and correct all leaks (see checking gas connections, page 9
Heater produces a click­ing/ticking noise just after burner is lit or shut off
1. Metal expanding while heating or con­tracting while cooling
1. This is common with most heaters. If noise is excessive, contact qualified service person
Moisture/condensation noticed on windows
1. Not enough combustion/ventilation air 1. Refer to fresh air for combustion and ventilation, page 4
Note: All troubleshooting items are listed in order of operation
WARNING: only a qualified service person should ser v­ice and repair heater
CAUTION: never use wire,needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit
WIR 2 26-06-2003 18:21 Pagina 16
17
TROUBLESHOOTING
Note: All troubleshooting items are listed in order of operation
WARNING: only a qualified service person should ser v­ice and repair heater
CAUTION: never use wire,needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit
OBSERVED PROBLEM
POSSIBLE CAUSE
REMEDY
When ignitor button is pressed in, there is no spark at ODS/pilot
1. Ignitor electrode positioned wrong
2. Ignitor electrode broken
3. Ignitor electrode not connected to ignitor cable
4. Ignitor cable pinched or wet
5. Broken ignitor cable
6. Bad piezo ignitor
1. Replace ignitor
2. Replace ignitor
3. Reconnect ignitor cable
4. Free ignitor cable if pinched by any metal or tubing. Keep igni­tor cable dry
5. Replace piezo ignitor
6. Replace piezo ignitor
ODS/pilot lights but flame goes out when control knob is released.
1. Gas supply turned off or equipment shutoff valve closed
2. Control knob not fully pressed in while pressing ignitor button
3. Air in gas lines when installed
4. ODS/pilot is clogged
5. Gas regulator setting is not correct
6. Control knob not in pilot position
1. Turn on gas supply or open equipment shutoff valve
2. Fully press in control knob while pressing ignitor button
3. Continue holding down control knob. Repeat igniting opera­tion until air is removed
4. Clean ODS/pilot (see cleaning and maintenance, page 14 or replace ODS/pilot assembly
5. Replace gas regulator
6. Turn control knob to pilot position
When ignitor button is pressed in, there is a spark at ODS/pilot but no igniton
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Equipment shutoff valve not fully open
4. Thermocouple connection loose at control valve
5. Pilot flame not touching thermocou­ple, which, allows thermocouple to cool, causing pilot flame to go out. This poblem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot
6. Thermocouple damaged
7. Control valve damaged
1. Press in control knob fully
2. After ODS/Pilot light, keep control knob pressed in 30 seconds
3. Fully open equipment shutoff valve
4. Hand-tighten until snug, then tight 1/4 turn more
5. A) Contact local natural gas company B) Clean ODS/Pilot (see clean­ing and maintenance, page 14) or replace ODS/Pilot assembly)
6. Replace ODS/Pilot
7. Replace thermostat control valve
WIR 2 26-06-2003 18:21 Pagina 17
18
OBSERVED PROBLEM
POSSIBLE CAUSE
REMEDY
Burner does not light after ODS/pilot is lit
1. Burner orifice is clogged
2. Inlet gas pressure is too low
1. Clean burner orifice (see clean­ing and maintenance, pag 14) or replace the burner
2. Contact local natural gas com­pany
Dalayed ignition of burn­er
1. Manifold pressure is too low
2. Burner orifice is clogged
1. Contact local natural gas com­pany
2. Clean burner orifice (see clean­ing and maintenance, pag 14) or replace the burner
Burner backfiring during combustion
1. Burner orifice is clogged or damaged
2. Burner damaged
3. Gas regulator defective
1. Clean burner orifice (see clean­ing and maintenance, pag 14) or replace the burner
2. Replace burner
3. Replace gas regulator
Burner plaque(s) does not glow
1. Plaque damaged
2. Control knob set between locked positions
3. Inlet gas pressure is too low
1. Replace burner
2. Turn control knob until it locks at desired setting
3. Contact local natural gas com­pany
Slight smoke or odor dur­ing initial operation
1. Residues from manufacturing processes 1. Problem will stop after a few hours of operation
Heater produces whistling noise when burner is lit
1. turning control knob to HIGH position
when burner is cold
2. Air in gas line
3. Air passageways on heater blocked
4. Dirty or partially clogged burner ori-
fice
1. Turn control knob to LOW position and let warm up for a minute
2. Operate burner until air is removed from line. Have gas line checked by local natural gas company
3. Observe minimum installation clearances (see figure 4, page 7
4. Clean burner (see cleaning and maintenance, page 14) or replace the burner
White powder residue forming with burner box or on adjacent walls or furniture
1. When heated, vapors from furniture polish, wax, carpet cleaners, etc., turn into white powder residue
1. Turn heater off when using fur­niture polish, wax, carpet cleaner or similar products
Note: All troubleshooting items are listed in order of operation
WARNING: only a qualified service person should ser v­ice and repair heater
CAUTION: never use wire,needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit
WIR 2 26-06-2003 18:21 Pagina 18
19
Limited Warranty
What Does This Warraty Cover? We warrant each appliance to be free from defects in material and
workmanship. Our obligation under this warranty is limited to replacement or repair, free of charge at our factory or authorized service centers, of any defective par t or parts there of other than parts damaged in transit, which shall be returned to us, transportation prepaid. PLEASE BE ADVISED THAT ANY SHIPPING COST FOR REPLACEMENT ITEMS WILL BE CHARGED TO THE CONSUMER. This warranty shall apply only if the appliance is used in accordance with the factory directions which accompany it, and on an Alternating Current (AC) circuit. How Long Does The Coverage Last? This warranty runs for one year from the date of delivery and applies only to the original purchaser for use. What Does This Warranty Not Cover? This warranty does not cover defects or damage of the appli­ance which result from repairs or alterations to the machine outside our factory or authorized service cen­ters, nor shall it apply to any appliance which has been subject to abuse, misuse, negligence or accidents. Also, consequential and incidental damages resulting from the use of this product or arising out of any breach of contract or breach of this warranty are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
How Do You Get Service? If repairs become necessary or spare parts are needed, plase write to: De’Longhi America Inc.
Park 80 West Plaza One 4th floor Saddle Brook, NJ 07663 or call Service Tel. No. 1-800-322-3848
The above warranty is in lieu of all other express warranties and representations; All implied warranties are limited to the applicable warranty period set forth above. This limitation does apply if you enter into an extended warranty with De’Longhi. Some states do not allow limitations on how long an implied warranty lasts, so the above exclusions may not apply to you. De’ Longhi does not authorize any other person or com­pany to assume for it any liability in connection with the sale or use of its appliance. How Does State Law Apply? This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
De’ Longhi CANADA
6150Mc Laughlin Road
Mississauga, ON
L5R 4E1
WIR 2 26-06-2003 18:21 Pagina 19
Loading...
