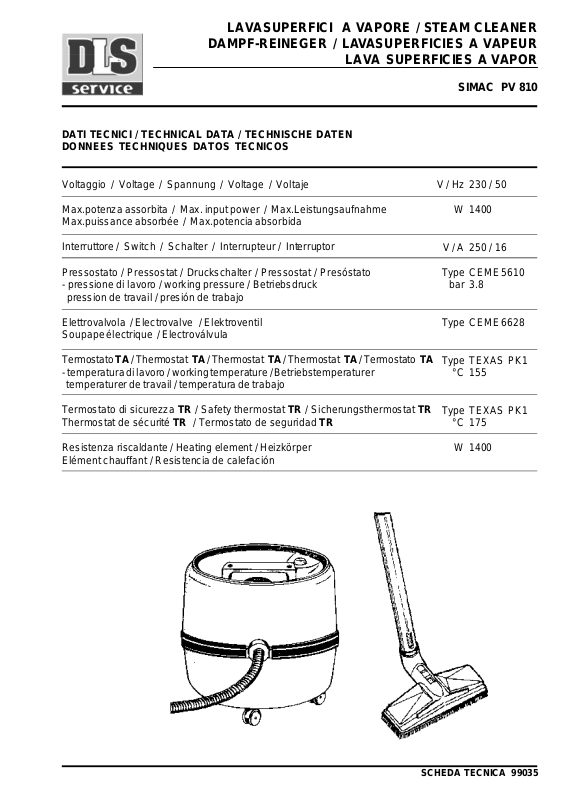

LAVASUPERFICI A VAPORE / STEAM CLEANER
SCHEDA TECNICA 99035
DAMPF-REINEGER / LAVASUPERFICIES A VAPEUR
DATI TECNICI / TECHNICAL DATA / TECHNISCHE DATEN
DONNEES TECHNIQUES DATOS TECNICOS
LAVA SUPERFICIES A VAPOR
SIMAC PV 810
Voltaggio / Voltage / Spannung / Voltage / Voltaje
Max.potenza assorbita / Max. input power / Max.Leistungsaufnahme
Max.puissance absorbée / Max.potencia absorbida
Interruttore / Switch / Schalter / Interrupteur / Interruptor
Pressostato / Pressostat / Druckschalter / Pressostat / Presóstato
- pressione di lavoro / working pressure / Betriebsdruck
pression de travail / presión de trabajo
Elettrovalvola / Electrovalve / Elektroventil
Soupape électrique / Electroválvula
Termostato TA / Thermostat TA / Thermostat TA / Thermostat TA / Termostato TA
- temperatura di lavoro / working temperature / Betriebstemperaturer
temperaturer de travail / temperatura de trabajo
Termostato di sicurezza TR / Safety thermostat TR / Sicherungsthermostat TR
Thermostat de sécurité TR / Termostato de seguridad TR
Resistenza riscaldante / Heating element / Heizkörper
Elément chauffant / Resistencia de calefación
V / Hz
W
V / A
Type
bar
Type
Type
°C
Type
°C
W
230 / 50
1400
250 / 16
CEME 5610
3.8
CEME 6628
TEXAS PK1
155
TEXAS PK1
175
1400
SCHEMA ELETTRICO / ELECTRIC DIAGRAM / SCHALTPLAN
SCHEDA TECNICA 99035
SCHEMA ELECTRIQUE / ESQUEMA ELECTRICO
SE
EV
PS
TA
C
IG
L
R
TR
IM
LEGENDA LEGEND LEGENDE LEGENDE LEGENDA
C Condensatore antidisturbo Antinoise capacitor Entstörkondensator Condensateur Condensador
EV Elettrovalvola Electrovalve Elektroventil Soupape électrique Electroválvula
IG Interruttore generale Main switch Hauptschalter Interrupteur général Interruptor generale
IM Interruttore impugnatura Handgrip switch Griff-Schalter Interrupteur manche Interruptor empunadura
L Spia On / Off On / Off lamp Ein/Aus Lampe On / Off lampe On / Off lampara
PS Pressostato Pressostat Druckschalter Pressostat Presóstato
R Resistenza Heating element Heizkörper Elément chauffant Resistencia
SE Scheda elettronica Electronic board Electronicplatine Fiche èlettronique Ficha elettronica
TA Termostato Thermostat Thermostat Thermostat Termostato
TR TermostatoSafety Sicherungs- Thermostat Termostato Termostato
di sicurezza thermostat -thermostat de sécurité de seguridad
