Page 1

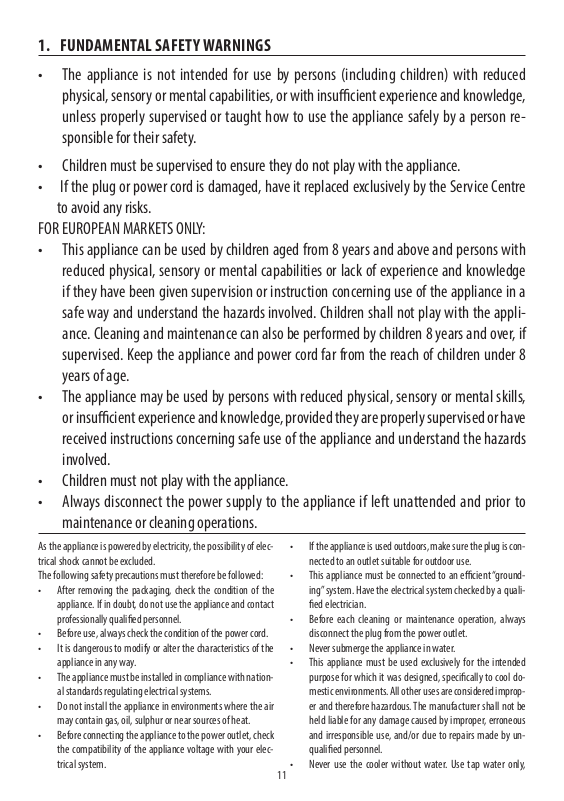

1. FUNDAMENTAL SAFETY WARNINGS
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or with insucient experience and knowledge,
unless properly supervised or taught how to use the appliance safely by a person responsible for their safety.
• Children must be supervised to ensure they do not play with the appliance.
• If the plug or power cord is damaged, have it replaced exclusively by the Service Centre
to avoid any risks.
FOR EUROPEAN MARKETS ONLY:
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance can also be performed by children 8 years and over, if
supervised. Keep the appliance and power cord far from the reach of children under 8
years of age.
• The appliance may be used by persons with reduced physical, sensory or mental skills,
or insucient experience and knowledge, provided they are properly supervised or have
received instructions concerning safe use of the appliance and understand the hazards
involved.
• Children must not play with the appliance.
• Always disconnect the power supply to the appliance if left unattended and prior to
maintenance or cleaning operations.
As the appliance is powered by electricity, the possibility of electrical shock cannot be excluded.
The following safety precautions must therefore be followed:
•
After removing the packaging, check the condition of the
appliance. If in doubt, do not use the appliance and contact
professionally qualied personnel.
• Before use, always check the condition of the power cord.
• It is dangerous to modify or alter the characteristics of the
appliance in any way.
• The appliance must be installed in compliance with nation-
al standards regulating electrical systems.
• Do not install the appliance in environments where the air
may contain gas, oil, sulphur or near sources of heat.
• Before connecting the appliance to the power outlet, check
the compatibility of the appliance voltage with your electrical system.
• If the appliance is used outdoors, make sure the plug is connected to an outlet suitable for outdoor use.
• This appliance must be connected to an ecient “grounding” system. Have the electrical system checked by a qualied electrician.
• Before each cleaning or maintenance operation, always
disconnect the plug from the power outlet.
• Never submerge the appliance in water.
• This appliance must be used exclusively for the intended
purpose for which it was designed, specically to cool domestic environments. All other uses are considered improper and therefore hazardous. The manufacturer shall not be
held liable for any damage caused by improper, erroneous
and irresponsible use, and/or due to repairs made by unqualied personnel.
• Never use the cooler without water. Use tap water only,
11
Page 2
without any additives. Fill the tank only when the appliance is turned o.
• Do not move the appliance when the tank is full and when
in use.
• Do not leave the appliance turned on when not in use as
this may be a source of danger.
• Never place hands, the face or body directly above or near
the grill when the appliance is in use.
• Place the appliance on a stable and at surface.
Never place the appliance on carpet or rugs or on delicate
furniture that may be damaged by contact with water.
• Do not place the appliance near sources of heat such as
heaters, radiators, etc.. Place your appliance near a power
outlet.
• When the appliance is connected to the mains, keep the
following safety rules in mind:
- do not touch the appliance with wet or damp hands;
- do not use the appliance with bare or wet feet;
- do not pull on the power cord or appliance to detach the
plug from the power outlet;
- keep the appliance far from the reach of children;
- do not insert foreign bodies into the appliance;
- do not leave the appliance exposed to atmospheric agents;
• If you wish to permanently eliminate the appliance, after
disconnecting the plug from the power outlet it is recommended to make it unusable by severing the power cord.
• In the event of a fault and/or malfunction, turn the appliance o without tampering with it. For all repairs, contact
an authorised technical service centre only and request the
use of original spare parts and accessories.
• Avoid the use of power cord extensions.
Important!
Store the packaging material (plastic bags, styrofoam) far from
the reach of children.
CHOKING HAZARD. The appliance might contain small parts.
Some of those small parts might be required to get disassembled during cleaning and maintenance operations. Handle with
care and keep small parts out of reach of children.
2. DESCRIPTION
2.1 Description of appliance
A1. Rotating grill: can be manually oriented (make this adjust-
ment with rotation disabled)
A2. Tank water level indicator
A3. Wheels
A4. Cable reel
A5. Handle
A6. Power cord
A7. Extractable water tank
A8. Filter housing
A9. Dust lter
A10. Cooling pad
A11. Honeycomb cooling pad
A12. Ice box
2.2 Description of control panel (B)
B1. ON/OFF: to turn the appliance on and o
B2. Fan speed. Press to select one of 3 possible speeds:
MED, MAX, MIN
B3. Cooling/humidication. Press to activate or deactivate the
function
B4. Select the fan mode:
• Natural : the device will run random fan cycles at
dierent speeds, pausing every now and then for a few
seconds.
• Sleep (night): the appliance will run at MAX speed for
30 minutes, then at MED speed for 30 minutes; it will then
remain at minimum speed.
B5. “Swing” mode (rotation): When selected, the grill rotates.
B6. “AUTO OFF” (automatic shutdown): press to set a delayed
shutdown (from 1 to 24 hours).
• When pressed, the symbol is shown on the display
and the numeric value ashes for about 5 seconds: once
they remain xed, the automatic shutdown programme
has been saved.
• To deactivate “AUTO OFF” (automatic shutdown): press the
key until selecting “00”, then wait for the symbol and numeric value to turn o.
2.3 Description of display (C)
C1. “AUTO OFF” (automatic shutdown) programming viewer
C2. “Cooling/humidication” active
C3. “Ioniser” active (always on as the function is included in
every operating mode)
C4. “Sleep” (night) fan mode active
C5. “Natural” fan mode active
C6. “AUTO-OFF” (automatic shutdown) programmed
C7. “Swing” (rotation) mode selected
C8. “MIN” fan speed
C9. “MED” fan speed
C10. “MAX” fan speed
2.4 Description of remote control
D1. ON/OFF: to turn the appliance on and o
D2. “Swing” mode (rotation): When selected, the grill rotates.
D3. “AUTO-OFF” (automatic shutdown) (see B6)
D4. Fan speed (see B2)
D5. Fan mode selection (see B4)
D6. Cooling/humidication. Press to activate or deactivate the
function
12
Page 3
3. INSTRUCTIONS FOR USE
3.1 First use
• When used for the rst time, a strange smell may be detected. This is part of the appliance’s normal operation.
• USE OF REMOTE CONTROL: Before using the appliance for
the rst time, remove the plastic tab (g. 1). Point the remote control toward the LED display. The maximum operating distance is approx. 6 metres from the receiver.
3.2 Turning the appliance on and o
1. Connect the appliance to a power outlet: the appliance will
make an audible signal. The machine is ready for use.
2. Press the key (B1 or D1). The appliance will turn on
with the “MED” fan speed and “ionisation” active (g.2);
3. To turn the appliance o, press the key (B1 or D1).
3.3 Selecting the fan speed
1. Press the key (B2 or D4);
2. Each time the key is pressed, the fan speed changes (
MED, MAX, MIN) (g. 3).
3.4 Cooling/humidication
Prepare the appliance by lling up the water tank.
1. Extract the water tank (g. 4) and ll it with fresh tap water
(MAX 4.5L); take care not to exceed the MAX level visible
through the level indicator (A2). The MAX level guarantees
6 hours of appliance use;
2. Re-insert the water tank;
3. Press the key (B3 or D6): the corresponding symbol
will light up on the display (g. 5). The air enters the cooling device and exits cooled, thus helping to reduce the air
temperature;
Note:
When this function is used for the rst time, the water in the
tank may change colour: this is part of the appliance’s normal
operation.
To improve the performance of the appliance, use the “Ice box”
(A11).
4. Fill the “Ice box” with tap water (g. 6);
5. Place the ”Ice box” in the freezer (g. 7) and leave it there
until it freezes;
6. Extract the water tank and insert the “Ice box” inside, placing it in the rear left corner (g. 8).
Note:
Make sure the “Ice box” is properly positioned in its housing (g.
8).
7. Re-insert the water tank, turn on the appliance and select
the “Cooling/humidication” function: the air delivered by
the appliance will be cooler (g. 9).
3.5 Selecting the fan mode
The appliance can be set to work in 3 dierent fan modes:
1. NORMAL - Press the key (B2 or D4) to select the fan
speed;
2. NATURAL Press the MODE key once (B4 or D5). The device
will run random fan cycles at dierent speeds, pausing
every now and then for a few seconds (g. 10);
3. SLEEP- Press the MODE key twice (B4 or D5). The appliance
will automatically work at MAX speed for 30 minutes, then
MED speed for 30 minutes: it will then continue at MIN
speed (g. 11).
3.6 Swing
1. Press the key (B5 or D2) to activate grill rotation (g.
12): the corresponding symbol will light up on the display;
2. To stop rotation, press the same key again.
Note:
The grill can be vertically tilted by manually adjusting it to direct the air ow (g. 13): make this adjustment with the grill
stopped, without forcing it.
3.7 AUTO-OFF
It is possible to delay shutdown by 1 to 24 hours by pressing the
key (B6 or D3).
1. Press until selecting the number reecting the desired
hours of operation: the number is shown on the display
(C1);
2. The symbol and numeric value ash to indicate that
automatic shutdown programming is in progress. When
the symbol and numeric value remain xed, programming
has been saved (g. 14).
Note:
To exit automatic shutdown, press the key (B6 or D3) until
setting the numeric value “00”: the symbol and “00” will
ash. When they turn o, automatic shutdown is cancelled.
4. FILLING THE WATER TANK
Before activating the Cooling/humidication function, always
make sure there is water in the tank. If the water nishes during
use, the appliance makes an audible signal and the symbol ashes on the display (g. 15): the device will nonetheless
continue to ventilate.
1. Extract the water tank (g. 4) and ll it with MAX 4.5L of
fresh tap water (always use tap water, never overll the
tank): check the water level indicator (A2);
2. Re-insert the water tank.
5. CLEANING AND MAINTENANCE
• Always disconnect the appliance from the mains before
carrying out cleaning operations.
• Never submerge the appliance in water.
13
Page 4
• Never pour water directly over the appliance (g. 16).
• Never use petrol, alcohol or solvents.
• Never spray insecticides or similar substances: the plastic
may be deformed.
• Clean the surfaces of the appliance using a soft cloth, never
use abrasive sponges as these may scratch the surface.
5.1 Cleaning the dust lter and honeycomb
cooling pad
Clean the dust lter regularly. The frequency of cleaning will depend on the frequency of use: if used daily, it is recommended to
clean the lter every week.
• Extract the dust lter and cooling pad (g. 17);
• Remove any dust from the lters using a vacuum cleaner
(g. 18);
• Wash the cooling pad thoroughly with water; then leave it
to completely dry and re-insert the lters in their housing
(g. 19).
Note:
For the continued performance of the appliance, it is recommended to replace the honeycomb cooling pad (A11) every 3
years.
5.2 Cleaning the water tank
• Extract the water tank (g. 4);
• Clean it thoroughly with a sanitising detergent, available
in stores (g. 20).
5.3 Replacing the remote control battery
• Extract the battery support on the back of the remote control (g. 21);
• Insert a battery type 3V CR2025 into the support, making
sure the poles are correctly matched (+ and -), then re-insert the support (g. 22).
The remote control is ready for use.
Note:
If the remote control is disposed of or replaced, the battery must
be removed and disposed of in accordance with laws in force,
insofar as batteries are harmful to the environment.
Do not throw the battery into an open ame as it may explode or
release hazardous liquids.
6. TROUBLESHOOTING
Below is a list of possible malfunctions.
If the problem cannot be resolved using the proposed solution, contact the Service Centre.
PROBLEM POSSIBLE CAUSE SOLUTION
The appliance doesn't turn on The power cord is not connected Make sure the power cord is connected and that
there is power
The appliance is not on
The appliance turns o Automatic shutdown has been activated Turn on the appliance and make sure the automat-
Excessive humidity in the room When the Cooling/humidication func-
tion is used, the appliance produces
humidity as a result of the evaporative
cooling eect. This is normal.
The symbol ashes on the
display (C2) and the appliance is
not cooling very well
There is no water in the tank Fill the tank with cold water as indicated in par. 3.4
Turn on the appliance by pressing the key
(B1 on the control panel or D1 on the remote
control)
ic shutdown symbol is o
The appliance cools most eciently in dry climates. If the humidity level is high (60% and
above) it is best not to use the cooling/humidication function
Make sure the windows/doors are open and that
there is a sucient ow of air in the room, so that
the air can best circulate. It is nonetheless possible
to use the appliance in fan mode
14
Page 5
PROBLEM POSSIBLE CAUSE SOLUTION
The appliance is not cooling very
well
The remote control doesn't work The remote control battery isn’t inserted
There is no water in the tank Fill the tank with cold water
Dirty lters Clean the lters as indicated in par. 5.1
Check that the battery is inserted as per the polari-
properly
ty guide on the back of the remote control.
The battery is at Replace with a new battery
The remote control is damaged If replacing the battery doesn’t solve the problem,
contact an authorised Service Centre
The appliance doesn’t respond The control panel on the appliance
doesn’t work
Use the remote control to activate the appliance.
If the appliance responds, there may be a problem
with the control panel: contact an authorised Service Centre
If neither the control panel nor the remote control
work, contact an authorised Service Centre
The appliance has been wet by
the rain
The appliance used outdoors was wet by
heavy rainfall
A small amount of rain on the appliance is not a
problem. However, make sure the appliance is
connected to suitable water-resistant power outlets. Before turning on the appliance, always make
sure the plug and power outlet are dry
7. DISPOSING OF THE APPLIANCE
The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.
15
Loading...
