EV100
EVAPORATIVE COOLER / HUMIDIFIER
IONIZER/CALENDAR with remote control
Thank you for purchasing the De’Longhi EV100 Evaporative Cooler.
This is a state of the art air cooler, humidifier and air purifier.
Please read this manual carefully to ensure correct use & long life of your unit.
Keep this manual in a safe place for future reference.
INSTALLATION & OPERATING GUIDE
1. Open the carton & remove the unit from the packaging.
2. Locate all accessories.
3. Open the water tank door, & fill tank with clean water up to the maximum
level but not past it – DO NOT OVERFILL.
If ice blocks are being used do not fill past the minimum level to allow for the
ice blocks to be inserted.
4. Be careful when filling the water tank to ensure no water is spilt on the
unit as damage may occur - Wipe up any spills immediately.
5. Keep the water tank door closed when unit is operating.
6. Always use clean water, purified or distilled water is preferable.
7. To turn the unit on, press the ON/SPEED button.
8. The timer can be set to turn the unit off after a pre-set period.
The maximum timer setting is 7 hours 30 minutes.
9. To oscillate air movement, press the oscillation button to start the
louvres moving from left to right & vise versa. You can also adjust the
vertical air movement manually by adjusting the vertical direction
vanes.
10. To turn the unit off press the OFF button and unit will go into standby
mode.
Remote Control:
(i). The unit can also be completely controlled with the remote control.
Insert 2 x AA batteries in the remote control – Alkaline batteries are
recommended for longer battery life.
(ii). Except for the PRESET button, all other functions on the remote are
on the control panel of the unit.
(iii). Pressing the PRESET button will set the unit automatically in the
following mode:
• Cool Air
• Air speed: Medium
• Mode: Natural
• Timer: 4 hrs
• Air Cooler/Humidifier: On
• Oscillation: Off
Caution:
Do not press the PRESET button on the remote control when
there is no water in the tank, otherwise damage may result.
When using the remote control, point it towards the front of the unit
within a 6 metre range.
Ice Blocks
Each unit comes with two “ice blocks” to keep the water inside the
water tank cool (8°C less than ambient temperature).
Use of Ice Blocks
(i) Put the ice blocks in the freezer until they are completely
frozen.
(ii). Place one ice block in the water tank first and then fill the tank
to the maximum level.
(iii). Close the door & press the COOLER/HUMIDIFIER button on
the control panel or remote control to start the cooler.
The temperature of the water will be much lower that that of
ambience, and will last for approx. 4 hours until the water gets warm.
(iv). The unit comes with 2 x ice blocks for consecutive use.
Calendar/Clock Alarm
(i). The calendar requires 2 x AAA batteries.
(ii). If the display on the LCD display shows faded digits, change
the batteries as soon as possible.
(iii). If the unit is not to be used for an extended period, remove
the batteries to avoid leakage.
2
Description of the Components

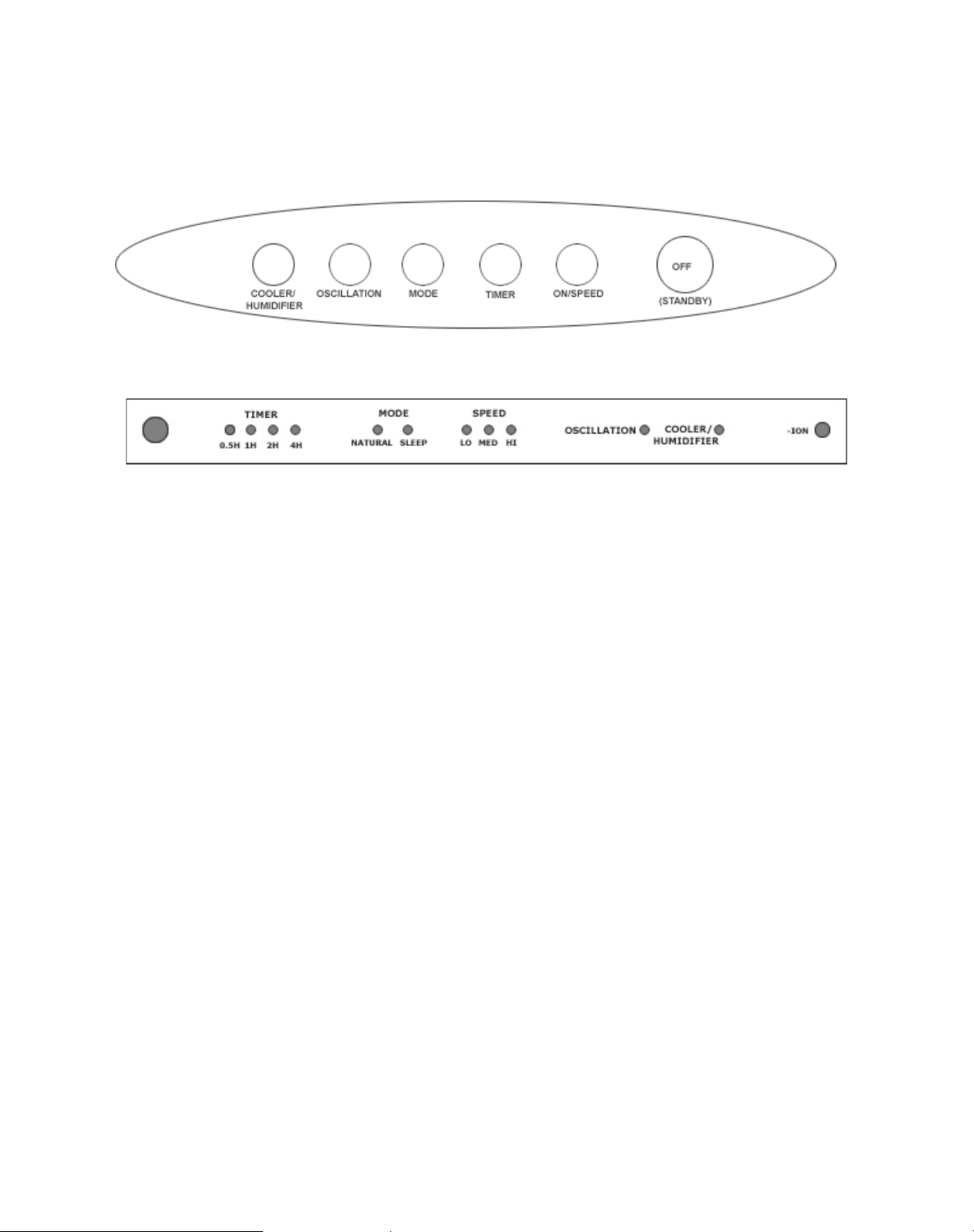

1. control panel
2. remote control receiver
3. function indicator
4. front air outlet
5. calendar LCD
6. calendar control button
7. water tank catch
8. water tank door
9. ice blocks
10. handle (one each side)
11. water level indicator
12. battery compartment
13. air filter (removable)
14. power cord & plug
15. castor
3
