DeLonghi DESM463 Series Users Operating Instructions, Installation Instructions
Users Operating Instructions
Installation Instructions
Before operating this oven,
please read these instruction carefully
DESM463 ..
multi-function oven
Important:
This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should
not be used in a commercial environment.
This appliance guarantee will be void if the appliance is used within a non domestic
environment i.e. a semi commercial, commercial or communal environment.
2
Dear Customer,
Thank you for having purchased and given your preference to
our product. The safety precautions and recommendations within
this booklet are for your own safety and that of others. They will also
provide a means by which to make full use of the features offered
by your appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any
other form of usage is to be considered as inappropriate and
therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use of the
appliance.
DECLARATION OF CE CONFORMITY
This double oven has been designed, constructed, and marketed in compliance with:
• Safety requirements of the “Low voltage” Directive 2006/95/EC;
• Safety requirements of the “EMC” Directive 2004/108/EC;
• Requirements of EU Directive 93/68/EEC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain signicant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
3
FIRST USE OF THE OVEN
It is advised to follow these instructions:
• Furnish the interior of the oven as described at chapter “Cleaning and maintenance”.
• Switch on the empty oven on max to eliminate grease from the heating elements.
• Let the oven cool down and clean the interior of the oven with a cloth soaked in
water and neutral detergent, then dry carefully.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged and that the
oven door closes correctly. In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should
not be left around within easy reach of children, as these may cause serious injuries.
• Do not attempt to modify the technical characteristics of the appliance as this may
cause danger to users.
• Do not carry out cleaning or maintenance operations on the appliance without having
previously disconnected it from the electric power supply.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to substitute ano-
ther model), before disposing of it, it is recommended that it be made inoperative in an
appropriate manner in accordance to health and environmental protection regulations,
ensuring in particular that all potentially hazardous parts be made harmless, especially
in relation to children who could play with unused appliances.
• After use, ensure that the knobs are in the off position.
• Household appliances are not intended to be played with by children.
• Keep children away from the cooker during use.
• Children, or persons with a disability which limits their ability to use the appliance,
should have a responsible person to instruct them in its use. The instructor should
be satised that they can use the appliance without danger to themselves or their
surroundings.
• During and after use of the appliance, certain parts will become very hot. Do not touch
hot parts. Care should be taken to avoid touching heating elements inside the oven.
• Some appliances are supplied with a protective lm on steel and aluminium parts.
This lm must be removed before using the appliance.
• WARNING: When correctly installed, your product meets all safety requirements laid
down for this type of product category. However special care should be taken around
the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.
• Fire risk! Do not store ammable material in the oven.
• Make sure that electrical cables connecting other appliances in the proximity of the
oven cannot become entrapped in the oven door.
4
• Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray
on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped,
remove the power cord.
• Always use oven gloves when removing the shelves and food trays from the oven
whilst hot.
• Do not hang towels, dishcloths or other items on the oven or its handle – as this could
be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build up in the oven base or
trays. Remove spillages as soon as they occur.
• Do not stand on the open oven door.
• Always stand back from the oven when opening the oven door to allow steam and hot
air to escape before removing the food.
• Safe food handling: Leave food in the oven for as short a time as possible before
and after cooking. This is to avoid contamination by organisms which may cause food
poisoning. Take particular care during warmer weather.
• This appliance is for domestic use only.
• If the supply cord is damaged, it must be replaced by a special cord by a quali-
ed electrical technician in order to avoid a hazard.
• Do not operate your appliance by means of an external timer or separate remotecontrol system.
5
CONTROL PANEL
1
Fig. 1.1
1
CONTROLS DESCRIPTION
1. Oven temperature control knob
2. Function selector control knob
3. Oven temperature indicator light

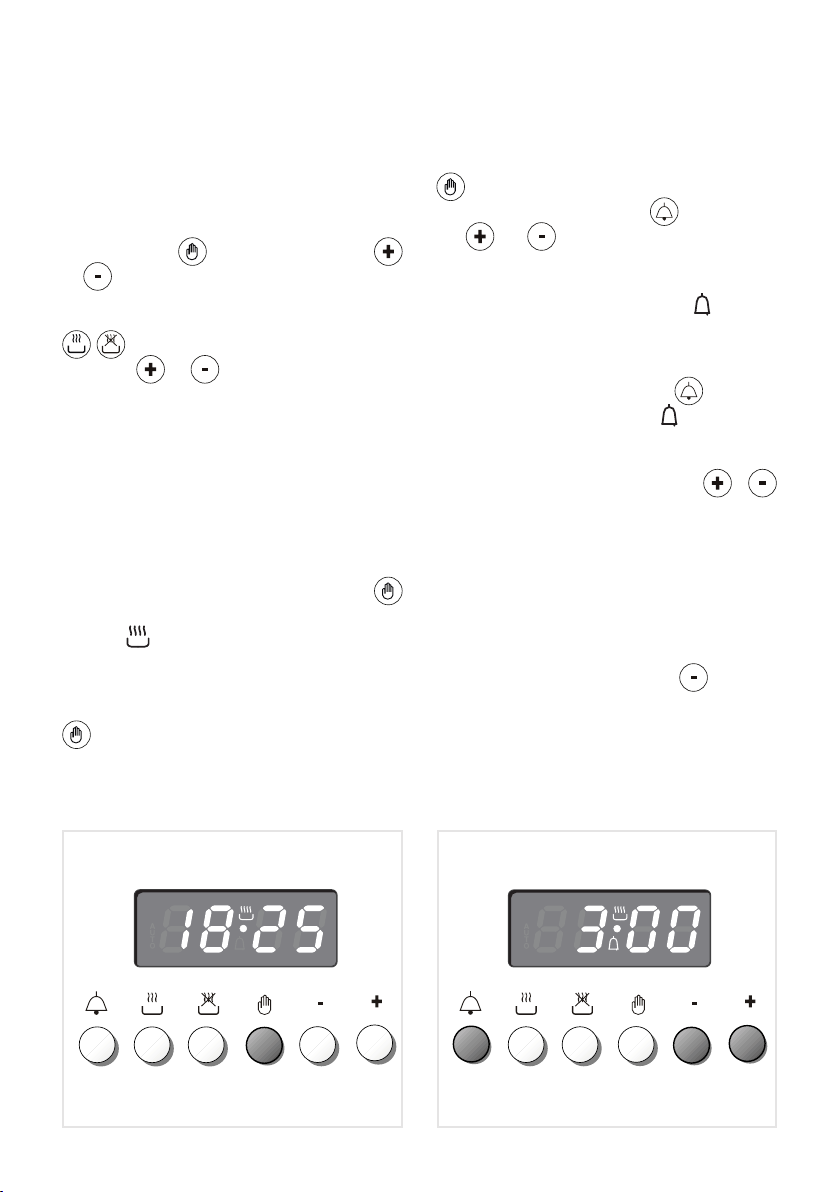

4. Digital electronic programmer
5. Power on indicator light
543
2
Note:
Your appliance has been tted with a cooling fan to achieve optimum efciency of the controls and to ensure lower surface temperatures are maintained.
When the oven is operating the cooling fan motor switches ON/OFF depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after
appliance has been switched off.
The duration of this time is dependent on previous cooking temperature and duration.
6
HOW TO USE THE OVEN
2
Attention: The oven door becomes
very hot during operation.
Keep children away.
WARNING:
The door is hot, use the handle.
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
GENERAL FEATURES
As its name indicates, this is an oven that
presents particular features from an operational point of view.
In fact, it is possible to insert 7 different programs to satisfy every cooking need.
The 7 positions, thermostatically controlled, are obtained by 4 heating elements
which are:
• Bottom element 1300 W
• Top element 1000 W
• Grill element 2000 W
• Circular element 2200 W
Note:
Before using for the rst time, it is advis-
able to operate the oven at the maximum
temperature (thermostat knob on position
250) for 60 minutes in the position
to eliminate possible traces of grease
on the heating elements.
Repeat the operation for another 15 minutes with the grill element on as explained in
the chapters GRILLING and USE OF THE
GRILL.
and
OPERATING PRINCIPLES
Heating and cooking in the MULTIFUNCTION oven are obtained in the following
ways:
a. by normal convection
The heat is produced by the upper and
lower heating elements.
b. by forced convection
A fan sucks in the air contained in the
oven mufe, which sends it through the
circular heating element and then sen-
ds it back through the mufe.
Before the hot air is sucked back again
by the fan to repeat the described cycle,
it envelops the food in the oven, provoking a complete and rapid cooking. It is
possible to cook several dishes simultaneously.
c. by semi-forced convection
The heat produced by the upper and
lower heating elements is distributed
throughout the oven by the fan.
d. by radiation
The heat is irradiated by the infra red
grill element.
e. by radiation and ventilation
The irradiated heat from the infra red
grill element is distributed throughout
the oven by the fan.
f. by ventilation
The food is defrosted by using the fan
only function without heat.
7
Fig. 2.2Fig. 2.1
THERMOSTAT KNOB
To turn on the heating elements of the oven, set function selector knob to the required position and the thermostat knob to the desired temperature.
To set the temperature, turn the thermostat control knob indicator mark to the required
temperature.
The elements will turn on or off automatically which is determined by the thermostat.
The operation of the heating elements is signalled by a light placed obove the knob.
FUNCTION SELECTOR KNOB
Rotate the knob clockwise to set the oven for one of the following functions.
OVEN LIGHT
By turning the knob onto this setting we light the oven cavity.
The oven remains alight while any of the functions is on.
TRADITIONAL CONVECTION COOKING
The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50°C and the maximum position
with the thermostat knob.
It is necessary to preheat the oven before introducing the foods to be cooked.
Recommended for:
For foods which require the same cooking temperature both internally and externally, i. e.
roasts, spare ribs, meringue, etc.
8
GRILLING
The infra-red heating element is switched on.
The heat is diffused by radiation.
Use with the oven door closed and the thermostat knob must be regulated between 50°C
and 225°C maximum.
For correct use see chapter “USE OF THE GRILL”.
Always grill with the oven door closed.
Recommended for:
Intense grilling, browning, cooking au gratin and toasting etc.
DEFROSTING FROZEN FOODS
Only the oven fan is on.
To be used with the thermostat knob on “
The defrosting is done by simple ventilation without heat.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
0” because the other positions have no effect.
HOT AIR COOKING
The circular element and the fan are on.
The heat is diffused by forced convection and the temperature must be regulated between
50 and the maximum position with the thermostat knob.
It is not necessary to preheat the oven.
Recommended for:
For foods that must be well done on the outside and tender or rare on the inside, i.e. lasa-
gna, lamb, roast beef, whole sh, etc.
VENTILATED GRILL COOKING
The infra-red grill and the fan are on. The heat is mainly diffused by radiation and the fan
then distributes it throughout the oven.
Use with the oven door closed and the thermostat knob must be regulated between 50°C
and 225°C maximum.
It is necessary to preheat the oven for about 5 minutes.
For correct use see chapter “GRILLING AND AU GRATIN”.
Always grill with the oven door closed.
Recommended for:
For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal
steak, steak, hamburger, etc.
9
