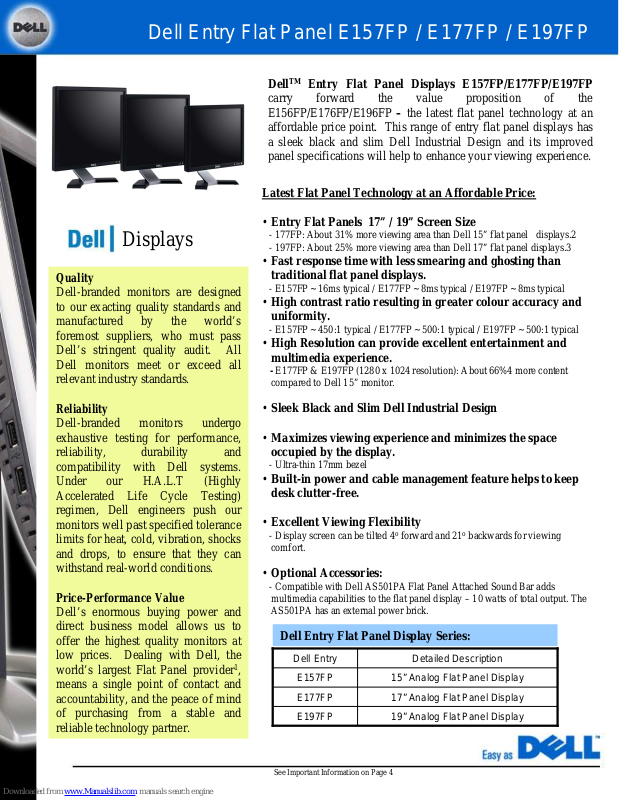

Dell Entry Flat Panel E157FP / E177FP / E197FP
Displays
Quality
Dell-branded monitors are designed
to our exacting quality standards and
manufactured by the world’s
foremost suppliers, who must pass
Dell’s stringent quality audit. All
Dell monitors meet or exceed all
relevant industry standards.
TM
Dell
Entry Flat Panel Displays E157FP/E177FP/E197FP
carry forward the value proposition of the
E156FP/E176FP/E196FP – the latest flat panel technology at an
affordable price point. This range of entry flat panel displays has
a sleek black and slim Dell Industrial Design and its improved
panel specifications will help to enhance your viewing experience.
Latest Flat Panel Technology at an Affordable Price:
• Entry Flat Panels 17” / 19” Screen Size
- 177FP: About 31% more viewing area than Dell 15” flat panel displays.2
- 197FP: About 25% more viewing area than Dell 17” flat panel displays.3
• Fast response time with less smearing and ghosting than
traditional flat panel displays.
- E157FP ~ 16ms typical / E177FP ~ 8ms typical / E197FP ~ 8ms typical
• High contrast ratio resulting in greater colour accuracy and
uniformity.
- E157FP ~ 450:1 typical / E177FP ~ 500:1 typical / E197FP ~ 500:1 typical
• High Resolution can provide excellent entertainment and
multimedia experience.
E177FP & E197FP (1280 x 1024 resolution): About 66%4 more content
-
compared to Dell 15” monitor.
Reliability
Dell-branded monitors undergo
exhaustive testing for performance,
reliability, durability and
compatibility with Dell systems.
Under our H.A.L.T (Highly
Accelerated Life Cycle Testing)
regimen, Dell engineers push our
monitors well past specified tolerance
limits for heat, cold, vibration, shocks
and drops, to ensure that they can
withstand real-world conditions.
Price-Performance Value
Dell’s enormous buying power and
direct business model allows us to
offer the highest quality monitors at
low prices. Dealing with Dell, the
world’s largest Flat Panel provider1,
means a single point of contact and
accountability, and the peace of mind
of purchasing from a stable and
reliable technology partner.
•
Sleek Black and Slim Dell Industrial Design
• Maximizes viewing experience and minimizes the space
occupied by the display.
- Ultra-thin 17mm bezel
• Built-in power and cable management feature helps to keep
desk clutter-free.
• Excellent Viewing Flexibility
- Display screen can be tilted 4oforward and 21obackwards for viewing
comfort.
• Optional Accessories:
- Compatible with Dell AS501PA Flat Panel Attached Sound Bar adds
multimedia capabilities to the flat panel display – 10 watts of total output. The
AS501PA has an external power brick.
Dell Entry Flat Panel Display Series:
Detailed DescriptionDell Entry
15” Analog Flat Panel DisplayE157FP
17” Analog Flat Panel DisplayE177FP
19” Analog Flat Panel DisplayE197FP
See Important Information on Page 4
Page 2
Panel
VIS (Viewable Image Size)
Preset Display Area:
DETAILED SPECIFICATIONS
Dell E197FP Dell E177FP Dell E157FP Dell Flat Panels
Active matrix - TFT LCDActive matrix - TFT LCDActive matrix - TFT LCDScreen Type
15 inches (15-inch viewable image
size)
16ms typicalTypical Response Time
17 inches (17-inch viewable image
size)
19 inches (19-inch viewable image
size)
0.294 mm0.264 mm0.297 mmPixel Pitch
8ms typical8ms typical
376.3 mm (14.8 inches)337.9 mm (13.3 inches)304.1 mm (11.9inches)Horizontal
301.1 mm (11.8 inches)270.3 mm (10.6 inches)228.1 mm (8.9 inches)Vertical
Viewing Angle
Resolution
Preset Display Modes
Display Modes
100°(vertical) typical, 130°
(horizontal) typical
120°(vertical) typical, 140°
(horizontal) typical
130°(vertical) typical, 140°
(horizontal) typical
300 cd/m2 typical300 cd/m2 typical250 cd/m2 typicalLuminance (Brightness)
500 : 1 typical500 : 1 typical450 : 1 typicalContrast Ratio
Anti-glare with hard-coating 3H Anti-glare with hard-coating 3HAnti-glare with hard-coating 3HFaceplate coating
4 CCFL type4 CCFL type2 CCFLBacklights
16.2 Million16.2 Million16.2 MillionNumber of colours
TN (Twisted Nematic)TN (Twisted Nematic)TN (Twisted Nematic)Panel Technology
30 kHz to 81 kHz (automatic)30 kHz to 81 kHz (automatic)30 kHz to 63 kHz (automatic)Horizontal scan range
56 Hz to 76 Hz (automatic)56 Hz to 76 Hz (automatic)56 Hz to 76 Hz (automatic)Vertical scan range
1280 x 1024 at 60 Hz1280 x 1024 at 60 Hz1024 x 768 at 60 HzOptimal preset resolution
1280 x 1024 at 75 Hz1280 x 1024 at 75 Hz1024 x 768 at 75 HzHighest preset resolution
31.5 kHz Horizontal, 70.1 Hz Vertical31.5 kHz Horizontal, 70.1 Hz Vertical31.5 kHz Horizontal, 70.1 Hz VerticalVGA, 720 x 400
31.5 kHz Horizontal, 59.9 Hz Vertical31.5 kHz Horizontal, 59.9 Hz Vertical31.5 kHz Horizontal, 60 Hz VerticalVGA, 640 x 480
37.5 kHz Horizontal, 75.0 Hz Vertical37.5 kHz Horizontal, 75.0 Hz Vertical37.5 kHz Horizontal, 75.0 Hz VerticalVESA, 640 x 480
37.9 kHz Horizontal, 60.3 Hz Vertical37.9 kHz Horizontal, 60.3 Hz Vertical37.9 kHz Horizontal, 60.3 Hz VerticalVESA, 800 x 600
46.9 kHz Horizontal, 75.0 Hz Vertical46.9 kHz Horizontal, 75.0 Hz Vertical46.9 kHz Horizontal, 75.0 Hz VerticalVESA, 800 x 600
48.4 kHz Horizontal, 60.0 Hz Vertical48.4 kHz Horizontal, 60.0 Hz Vertical48.4 kHz Horizontal, 60.0 Hz VerticalVESA, 1024 x 768
60.0 kHz Horizontal, 75.0 Hz Vertical60.0 kHz Horizontal, 75.0 Hz Vertical60.0 kHz Horizontal, 75.0 Hz VerticalVESA, 1024 x 768
67.5 kHz Horizontal, 75.0 Hz Vertical67.5 kHz Horizontal, 75.0 Hz VerticalNot applicableVESA, 1152 x 864
64.0 kHz Horizontal, 60.0 Hz Vertical64.0 kHz Horizontal, 60.0 Hz VerticalNot applicableVESA, 1280 x 1024
80.0 kHz Horizontal, 75.0 Hz Vertical80.0 kHz Horizontal, 75.0 Hz VerticalNot applicableVESA, 1280 x 1024
Page 3
Physical Characteristics
Signal cable type
Dimensions:
DETAILED SPECIFICATIONS
Dell E197FP Dell E177FP Dell E157FP Dell Flat Panels
Detachable, D-sub, 15pin,
attached to the monitor
Detachable, D-sub, 15pin, attached to
the monitor
Detachable, D-sub, 15pin, attached to
the monitor
15-pin D-subminiature (blue)15-pin D-subminiature (blue)15-pin D-subminiature (blue)Connector type
Yes (100mm)Yes (100mm)Yes (100mm)VESA Mounting Support
Height (compressed/locked in
landscape mode)
Width
Depth
Weight (monitor only)
Weight (with packaging)
Environmental
Power Usage:
AC input voltage
Temperature:
Operating
Conditions)
401.3 mm (15.8 inches)380.64 mm (14.99 inches)337.28mm (13.29 inches)
412.7 mm (16.2 inches)374.7 mm (14.75 inches)340.29mm (13.41 inches)
144.4 mm (5.7 inches)<140.0 mm (5.51 inches)132.58mm (5.22 inches)
4.1 kg (9.0 lb)4.0 kg (8.8 lb)2.45 kg (5.4 lb)
6.6 kg (14.6 lb)6.4 kg (14.1 lb)5.1kg (11.2 lb)
100~240 VAC/ 50/ 60 Hz100~240 VAC/ 50/ 60 Hz100~240 VAC/ 50/ 60 Hz
38.1W - 40.6W34W - 40W 20W - 26WOperating (Typical - Maximum)
<=1WActive Off
<=1WSwitched Off
<=2 W
<=1W
<=2 W
<=1W
5°to 35°C (41°to 95°F)5°to 35°C (41°to 95°F)5°to 35°C (41°to 95°F)
-20°to 60°C(-4°to 140°F)-20°to 60°C (-4°to 140°F)-20°to 60°C (-4°to 140°F)Non-operating (Shipping
Humidity:
Conditions)
Altitude:
3,658 m (12,000 ft)Operating
Non-operating (Shipping
Conditions)
Dell and the Dell logo are trademarks of Dell Inc. Dell disclaims proprietary interest in the marks and names of others. Copyright 2005 Dell Inc. All rights reserved.
10% to 80% (non-condensing)10% to 80% (non-condensing)10% to 80% (non-condensing)Operating
5% to 90% (non-condensing)5% to 90% (non-condensing)5% to 90% (non-condensing)Non-operating (Shipping
3,657.6m (12,000 ft) max3,657.6 m (12,000 ft) max
12,192 m (40,000 ft)12,192 m (40,000 ft)12,192 m (40,000 ft)
Page 4
Important Information
Dell cannot be held responsible for typography and photography.
1.DisplaySearch Q2 2006 Quarterly Desktop Monitor Report, “ No.1 Worldwide LCD Monitor
Shipment Brand Ranking for Q1 2006”, May 2006.
2.Dell UltraSharp 1505FP and Dell E157FP, 15” Flat Panel Display’s preset display area in
comparison to Dell E177FP, ~304mm or ~12inches (Width, W) x ~228mm or ~9inches (Height, H)
versus ~337mm or ~13inches (W) x ~270mm or ~11inches (H) respectively.
3.Dell UltraSharp1707FP and Dell E177FP, 17” Flat Panel Display’s preset display area in
comparison to Dell E197FP, ~337mm or ~13inches (Width, W) x ~270mm or ~11inches (Height, H)
versus ~376mm or ~15inches (W) x ~301mm or ~12inches (H) respectively.
4.Content area determined by total pixel count per given area. Dell UltraSharp 1505FP and Dell
E157FP, 15” Flat Panel Display’s resolution in comparison to Dell UltraSharp 1707FP / 1907FP and
Dell E177FP / E197FP, 17”/19” Flat Panel Display’s, 1024 x 768 pixels versus 1280 x 1024 pixels
respectively.
Dell and the Dell logo are trademarks of Dell Inc. Dell disclaims propriety interest in the marks and names of others.
Copyright 2006 Dell Inc. All rights reserved.
