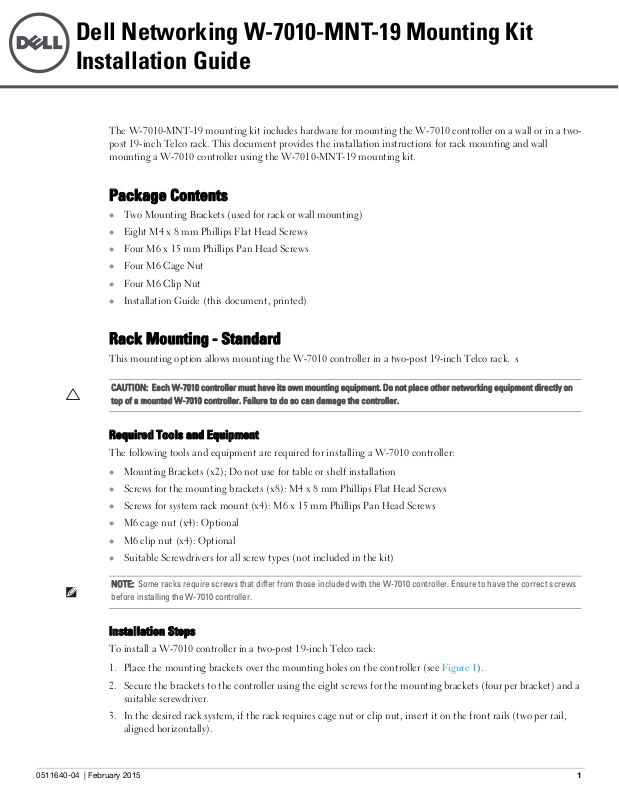

Dell Networking W-7010-MNT-19 Mounting Kit
Installation Guide
The W-7010-MNT-19 mounting kit includes hardware for mounting the W-7010 controller on a wall or in a twopost 19-inch Telco rack. This document provides the installation instructions for rack mounting and wall
mounting a W-7010 controller using the W-7010-MNT-19 mounting kit.
Package Contents
Two Mounting Brackets (used for rack or wall mounting)
Eight M4 x 8 mm Phillips Flat Head Screws
Four M6 x 15 mm Phillips Pan Head Screws
Four M6 Cage Nut
Four M6 Clip Nut
Installation Guide (this document, printed)
Rack Mounting - Standard
This mounting option allows mounting the W-7010 controller in a two-post 19-inch Telco rack. s
CAUTION: Each W-7010 controller must have its own mounting equipment. Do not place other networking equipment directly on
top of a mounted W-7010 controller. Failure to do so can damage the controller.
Required Tools and Equipment
The following tools and equipment are required for installing a W-7010 controller:
Mounting Brackets (x2); Do not use for table or shelf installation
Screws for the mounting brackets (x8): M4 x 8 mm Phillips Flat Head Screws
Screws for system rack mount (x4): M6 x 15 mm Phillips Pan Head Screws
M6 cage nut (x4): Optional
M6 clip nut (x4): Optional
Suitable Screwdrivers for all screw types (not included in the kit)
NOTE: Some racks require screws that differ from those included with the W-7010 controller. Ensure to have the correct screws
before installing the W-7010 controller.
Installation Steps
To install a W-7010 controller in a two-post 19-inch Telco rack:
1. Place the mounting brackets over the mounting holes on the controller (see Figure 1).
2. Secure the brackets to the controller using the eight screws for the mounting brackets (four per bracket) and a
suitable screwdriver.
3. In the desired rack system, if the rack requires cage nut or clip nut, insert it on the front rails (two per rail,
aligned horizontally).
0511640-04 | February 2015 1
Page 2
Figure 1 Attaching the Mounting Brackets for Rack Mounting
4. Mount the controller in the desired rack system using the four screws for system rack mount (two per bracket)
and a suitable screwdriver (see Figure 2).
Figure 2 Rack Mounting
NOTE: Leave a minimum of 10 cm (4 inches) of space on the left and right side of the controller for proper air flow and ventilation.
Leave additional space in the front and the back of the controller to access network cables, LED status indicators, and power cord.
Wall Mounting
The mounting brackets can also be used for wall mounting the W-7010 controller.
Required Tools and Equipment
The following tools and equipment are required for installing a W-7010 controller on a wall:
Mounting Brackets (x2)
Screws for the mounting brackets (x8): M4 x 8 mm Phillips Flat Head Screws
Wall Anchors: Optional accessory (not included in the kit)
Wall Mounting Screws: The type of screw depends on the installation surface (not included in the kit)
Suitable Screwdrivers for all screw types (not included in the kit)
2 Dell Networking W-7010-MNT-19 Mounting Kit | Installation Guide
Page 3
Installation Steps
To install a W-7010 controller on a wall:
NOTE: Ensure that the Ethernet ports are facing down when installing the W-7010 controller on a wall.
1. Fasten the mounting brackets over the mounting holes on the sides of the W-7010 controller using the eight
screws for the mounting brackets (four per bracket) and a suitable screwdriver (see Figure 3).
Figure 3 Attaching the Mounting Brackets for Wall Mounting
2. After choosing a mounting location, mark the locations on the wall for the mounting holes.
3. Create the holes and insert wall anchors if the installation requires them.
4. Align the mounting bracket holes with the holes created in the wall (see Figure 4).
5. Use appropriate screws to secure the W-7010 controller.
Figure 4 Wall Mounting
