1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode.
1
Set up your computer
2. Finish Windows system setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
● Connect to a network for Windows updates.
NOTE:
If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
● If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
● On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended
Table 1. Locate Dell apps
Dell appsDetails
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
6Set up your computer
Page 7
Table 1. Locate Dell apps (continued)
Dell appsDetails
SupportAssist
Proactively checks the health of your computer’s hardware
and software.
NOTE: Renew or upgrade your warranty by clicking the
warranty expiry date in SupportAssist.
Dell Update
Updates your computer with critical fixes and important
device drivers as they become available.
Dell Digital Delivery
Download software applications including software that is
purchased but not preinstalled on your computer.
4. Create recovery drive for Windows.
NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
For more information, see Create a USB recovery drive for Windows.
Set up your computer
7
Page 8
Create a USB recovery drive for Windows
Create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a
minimum capacity of 16 GB is required to create the recovery drive.
Prerequisites
NOTE: This process may take up to an hour to complete.
NOTE: The following steps may vary depending on the version of Windows installed. Refer to the Microsoft support site for
latest instructions.
Steps
1. Connect the USB flash drive to your computer.
2. In Windows search, type Recovery.
3. In the search results, click Create a recovery drive.
The User Account Control window is displayed.
4. Click Yes to continue.
The Recovery Drive window is displayed.
5. Select Back up system files to the recovery drive and click Next.
6. Select the USB flash drive and click Next.
A message appears, indicating that all data in the USB flash drive will be deleted.
7. Click Create.
8. Click Finish.
For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your
product's Service Manual at www.dell.com/support/manuals.
2
8Create a USB recovery drive for Windows
Page 9
Topics:
•Display view
•Left view
•Right view
•Palmrest view
•Bottom view
•Keyboard shortcuts
Display view
3
Chassis overview
1. RGB camera
2. Camera Status Light
3. Microphones
4. LCD panel
Chassis overview9
Page 10
Left view
1. Power connector port
2. Diagnostics LED LIght
3. HDMI port
4. Network port
5. USB Type-A 3.2 Gen 1 port
6. USB Type-A 3.2 Gen 1 port
7. Universal Audio Jack
Right view
1. SD-card reader
2. USB Type-A 2.0 Gen 1 Charging port
3. Wedge-shaped lock slot
10
Chassis overview
Page 11

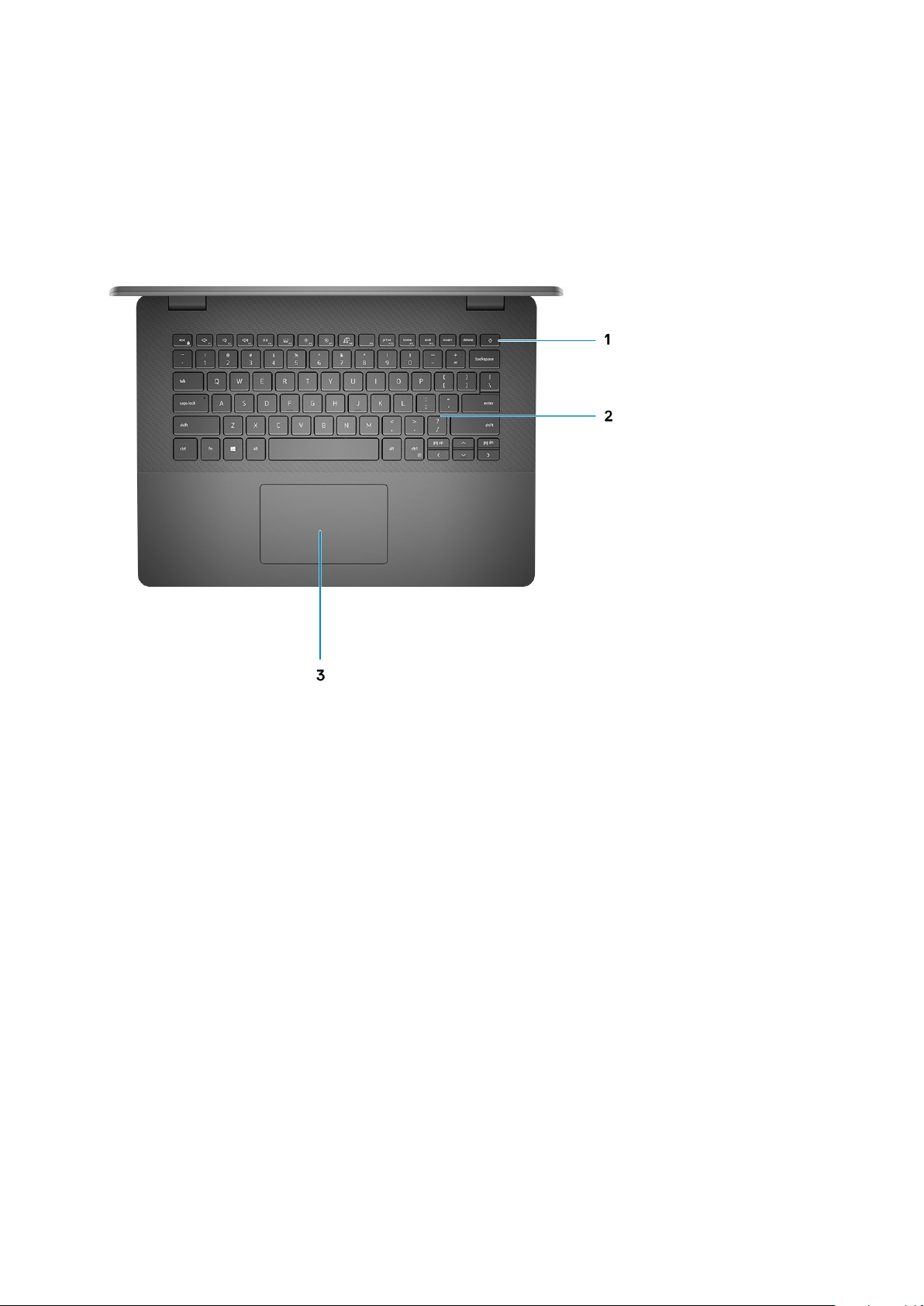

Palmrest view
1. Power button with optional fingerprint reader
2. Keyboard
3. Touchpad
Chassis overview
11
Page 12
Bottom view
1. Speakers
2. Service Tag label
3. Fan vents
Keyboard shortcuts
NOTE:
Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts
remain the same across all language configurations.
Table 2. List of keyboard shortcuts
KeysPrimary behavior
Fn + Esc
Fn + F1
Fn + F2
Fn + F3
Fn + F4
Fn + F5
Toggle Fn-key lock
Mute audio
Decrease volume
Increase volume
Play/Pause
Turn on/off keyboard backlight
12Chassis overview
Page 13
Table 2. List of keyboard shortcuts (continued)
KeysPrimary behavior
Fn + F6
Fn + F7
Fn + F8
Fn + F10
Fn + F11
Fn + 12
Fn + Ctrl
Decrease brightness
Increase brightness
Switch to external display
Print screen
Home
End
Open application menu
Chassis overview13
Page 14
Technical specifications
NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your
computer. For more information about the configuration of your computer, go to Help and Support in your Windows
operating system and select the option to view information about your computer.
Topics:
•Processors
•Chipset
•Operating system
•Memory
•Ports and connectors
•System board connectors
•Storage
•Media-card reader
•Audio
•Video
•Camera
•Communications
•Battery
•Power adapter
•Dimensions and weight
•Touchpad
•Display
•Keyboard
•Fingerprint reader in Power Button
•Sensor and control specifications
•Computer environment
4
Processors
Table 3. Processors
DescriptionValues
Processors
Wattage
Core count
Thread count
Speed
Cache
Integrated
graphics
AMD Athlon
Silver 3050U
15 W15 W15 W15 W15 W15 W
222444
244888
Up to 3.2 GHzUp to 3.3 GHzUp to 3.5 GHzUp to 3.5 GHzUp to 3.7 GHzUp to 4.0 GHz
4 MB4 MB4 MB4 MB4 MB4 MB
AMD Radeon
Graphics
AMD Athlon
Gold 3150U
AMD Radeon
Graphics
AMD Ryzen 3
3250U
AMD Radeon
Graphics
AMD Ryzen 5
3450U
AMD Radeon
Vega 8
Graphics
AMD Ryzen 5
3500U
AMD Radeon Vega
8 Graphics
AMD Ryzen 7
3700U
AMD Radeon Vega
10 Graphics
14Technical specifications
Page 15
Chipset
Table 4. Chipset
DescriptionValues
Chipset
Processor
Flash EPROM
PCIe bus
IntegratedIntegrated
AMD Athlon seriesAMD Ryzen series
16 MB16 MB
Up to Gen 3Up to Gen 3
Operating system
● Windows 10 Home (64-bit)
● Windows 10 Professional (64-bit)
Memory
Table 5. Memory specifications
DescriptionValues
Slots
Type
Two SODIMM
DDR4
Speed
Maximum memory
Minimum memory
Configurations supported
● 2400 MHz
16 GB
4 GB
● 4 GB, 1 x 4 GB, DDR4, 2400MHz, SO-DIMM
● 8 GB, 2 x 4 GB, DDR4, 2400MHz, SO-DIMM
● 8 GB, 1 x 8 GB, DDR4, 2400MHz, SO-DIMM
● 12 GB, 1x8 GB + 1x4 GB, DDR4, 2400MHz, SO-DIMM
● 16 GB, 2 x 8 GB, DDR4, 2400MHz, SO-DIMM
● 16 GB, 1 x 16 GB, DDR4, 2400MHz, SO-DIMM
Ports and connectors
Table 6. External ports and connectors
DescriptionValues
External:
Network
USB
One RJ 45 10/100 Mbps
● Two USB 3.2 Gen1 Type-A ports
● One USB 2.0 Type-A port
Audio
One Universal Audio Jack
Technical specifications15
Page 16
Table 6. External ports and connectors (continued)
DescriptionValues
Video
Power adapter port
Security
Card slot
One HDMI 1.4 port
4.5 mm barrel-type
One Wedge shaped lock slot
One SD card slot
Table 7. Internal ports and connectors
DescriptionValues
Internal:
One M.2 Key-M (2280 or 2230) for solid-state drive
One M.2 2230 Key-E for WLAN
SIM card
● One M.2 2230 slot for Wi-Fi
● One M.2 slot for 2230/2280 solid-state drive
● One M.2 3042 slot for WWAN
Not Supported
System board connectors
NOTE: To learn more about the features of different
types of M.2 cards, see the knowledge base article
SLN301626.
Table 8. System board connectors
FeatureSpecifications
M.2 Connectors● Two M.2 2280 Key-M connector
Storage
Your computer supports one of the following configurations:
● 2.5-in. 5400 RPM, SATA hard drive
● M.2 2230/2280 for solid-state drive
The primary drive of your computer varies with the storage configuration. For computers:
Backlit keyboardOptional (backlit and Non-backlit)
LayoutQWERTY
Fingerprint reader in Power Button
Table 22. Fingerprint reader specifications
DescriptionValues
Sensor technology
Sensor resolution
Sensor pixel size
CapacitiveCapacitive
363 dpi500 dpi
76 x 100108 x 88
Sensor and control specifications
Table 23. Sensor and control specifications
Specifications
1. Hall Effect Sensor (Detects when the lid is closed)
Computer environment
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 24. Computer environment
DescriptionOperatingStorage
Temperature range
0°C to 35°C (32°F to 95°F)-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)
Vibration (maximum)
Shock (maximum)
Altitude (maximum)
* M eas ure d u sin g a ra ndo m v ibr ati on spectrum that simulates user en vir onm ent .
† M eas ure d u sin g a 2 ms hal f-s ine pulse when the hard drive is i n u se.
22
Technical specifications
*
10% to 90% (non-condensing)0% to 95% (non-condensing)
0.66 GRMS1.30 GRMS
110 G†160 G†
-15.2 m to 3048 m (4.64 ft to 5518.4 ft)-15.2 m to 10668 m (4.64 ft to 19234.4
ft)
Page 23
Software
This chapter details the supported operating systems along with instructions on how to install the drivers.
Topics:
•Downloading Windows drivers
Downloading Windows drivers
Steps
1. Turn on the notebook.
2. Go to Dell.com/support.
3. Click Product Support, enter the Service Tag of your notebook, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your notebook model.
4. Click Drivers and Downloads.
5. Select the operating system installed on your notebook.
6. Scroll down the page and select the driver to install.
7. Click Download File to download the driver for your notebook.
8. After the download is complete, navigate to the folder where you saved the driver file.
9. Double-click the driver file icon and follow the instructions on the screen.
5
Software23
Page 24
System setup
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program.
Certain changes can make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen
information for future reference.
Use the BIOS Setup program for the following purposes:
● Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
● Change the system configuration information.
● Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling
base devices.
Topics:
•BIOS overview
•Entering BIOS setup program
•Navigation keys
•Boot Sequence
•System setup options
•System and setup password
6
BIOS overview
The BIOS manages data flow between the computer's operating system and attached devices such as hard disk, video adapter,
keyboard, mouse, and printer.
Entering BIOS setup program
About this task
Turn on (or restart) your computer and press F2 immediately.
Navigation keys
NOTE:
For most of the System Setup options, changes that you make are recorded but do not take effect until you restart
the system.
KeysNavigation
Up arrowMoves to the previous field.
Down arrowMoves to the next field.
EnterSelects a value in the selected field (if applicable) or follow the link in the field.
SpacebarExpands or collapses a drop-down list, if applicable.
TabMoves to the next focus area.
EscMoves to the previous page until you view the main screen. Pressing Esc in the main screen displays a
message that prompts you to save any unsaved changes and restarts the system.
24System setup
Page 25
Boot Sequence
Boot Sequence allows you to bypass the System Setup–defined boot device order and boot directly to a specific device (for
example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:
● Access System Setup by pressing F2 key
● Bring up the one-time boot menu by pressing F12 key
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options
are:
● Removable Drive (if available)
● STXXXX Drive (if available)
NOTE: XXX denotes the SATA drive number.
● Optical Drive (if available)
● SATA Hard Drive (if available)
● Diagnostics
The boot sequence screen also displays the option to access the System Setup screen.
System setup options
NOTE: Depending on your computer and its installed devices, the items listed in this section may or may not appear.
Table 25. System setup options—Main menu
Main
System TimeDisplays the current time in hh:mm:ss format.
System DateDisplays the current date in mm/dd/yyyy format.
BIOS VersionDisplays the BIOS version.
Product NameDisplays the model number of your computer.
Service TagDisplays the service tag of your computer.
Asset TagDisplays the asset tag of your computer.
CPU TypeDisplays the processor type.
CPU SpeedDisplays the processor speed.
CPU IDDisplays the processor identification code.
CPU Cache
L1 CacheDisplays the processor L1 cache size.
L2 CacheDisplays the processor L2 cache size.
L3 Cache
First HDDDisplays the type of hard drive installed.
M.2 PCIe SSDDisplay the M.2 PCIe SSD device information of the
AC Adapter TypeDisplays the type of AC adapter.
System MemoryDisplays the size of memory installed.
Memory SpeedDisplays the speed of memory.
Keyboard TypeDisplays the type of keyboard installed on the computer.
Displays the processor L3 cache size.
computer.
System setup25
Page 26
Table 26. System setup options—Advanced menu
Advanced
PowerNow! EnableEnables or disables the dynamic frequency scaling and
VirtualizationEnables or disables the Virtualization technology.
Integrated NICEnables or disables the on-board LAN controller.
USB EmulationEnables or disables the USB emulation feature. This feature
USB Wake SupportAllows you to enable USB devices to wake the computer
power-saving technology for the AMD processor.
Default: Enabled
Default: Enabled
Default: Enabled
defines how the BIOS, in the absence of a USB-aware
operating system, handles USB devices. USB emulation is
always enabled during POST.
NOTE: You cannot boot any type of USB device (floppy,
hard drive, or memory key) when this option is off.
Default: Enabled
from standby or to disable the USB wake support feature.
NOTE: If USB PowerShare is enabled, a device
connected to the USB PowerShare connector may not
wake the computer.
NOTE: To enable wake support for the fingerprint reader
the USB Wake Support needs to be enabled in the BIOS.
To enable USB wake support, complete the steps in the
knowledge base article SLN321473.
Default: Disabled
SATA OperationAllows you to configure the operating mode of the integrated
SATA hard drive controller.
Default: AHCI
Adapter WarningsAllows you to choose if the computer should display warning
messages when you use AC adapters that are not supported
by your computer.
Default: Enabled
Function Key BehaviorAllows you to set function key or multimedia key as the
default function key behavior.
Default: Multimedia key
Keyboard IlluminationSelects the operating mode of the keyboard illumination
feature.
Default: Bright
Keyboard Backlight with ACSelects the timeout value for the keyboard backlight when an
AC adapter is plugged into the computer.
Default: 1 minute
Keyboard Backlight with BatterySelects the timeout value for the keyboard backlight when
Battery HealthDisplays the battery health.
External USB PortsEnables or disables the USB Ports.
26System setup
the computer is running on battery power.
Default: 1 minute
Page 27
Table 26. System setup options—Advanced menu (continued)
Advanced
Default: Enabled
MicrophoneEnables or disables the microphone.
Default: Enabled
CameraEnables or disables the camera.
Default: Disabled
Battery Charge ConfigurationSet the battery charge settings with a preselected custom
charge start and stop.
Default: Adaptive
Advanced Battery Charge ConfigurationEnable Advanced Battery Charge Configuration from the
beginning of the day to a specified work period.
Default: Disabled
Maintenance
Data Wipe on next bootEnables or disables data wipe on the next boot.
Default: Disabled
BIOS Recovery from Hard DriveEnables the user to recover from certain corrupted BIOS
conditions from a recovery file on the user primary hard drive
or an external USB key.
BIOS Auto-Recovery
SupportAssist System Resolution
Auto OS Recovery ThresholdControls the automatic boot flow for SupportAssist System
SupportAssist OS RecoveryEnables or disables the boot flow for the SupportAssist OS
Enables BIOS to automatically recover BIOS without user
actions.
Default: Disabled
Resolution Console and for the Dell OS Recovery tool.
Default: 2
Recovery tool in the even of certain system errors.
Default: Disabled
Table 27. System setup options—Security menu
Security
Admin Password StatusDisplays if the administrator password is clear or set.
System Password StatusDisplays if the system password is clear or set.
Default: Not Set
Service TagSet your system’s Service Tag.
Asset TagSet your system’s Asset Tag.
Admin PasswordAllows you to set the administrator password. The
administrator password controls access to the system
setup utility.
System PasswordAllows you to set the system password. The system
password controls access to the computer at boot.
HDD PasswordAllows you to set the HDD password. The HDD password
controls access to the computers HDD.
System setup27
Page 28
Table 27. System setup options—Security menu (continued)
Security
Password ChangeAllows you to permit or deny system password or HDD
password changes.
Default: Permitted
Absolute
Absolute® StatusAllows you to activate or deactivate the Absolute® feature
Firmware TPMEnable or disable the firmware TPM.
PPI Bypass for Clear CommandAllows you to control the TPM Physical Presence Interface
UEFI Firmware Capsule UpdatesEnables or disables BIOS updates through UEFI capsule
®
Allows you to track your computer
Default: enabled
Default: Enabled
(PPI). When enabled, this setting will allow the OS to skip
BIOS PPI user prompts when issuing the Clear command.
Changes to this setting take effect immediately.
Default: Disabled
update packages.
Default: Enabled
WINDOWS SMM SECURITY MITIGATIONS TABLE
(WSMT)
Secure BootEnables or disables Secure Boot.
Enables or disables configuration of platform features on
Dell Client Systems with WSMT-enabled BIOS.
Default: Enabled
Default: Enabled
Table 28. System setup options—Boot menu
Boot
File Browser Add Boot OptionAllows you to add boot options.
Table 29. System setup options—Exit menu
Exit
Exit Saving ChangesAllows you to exit system setup and save your changes.
Save Change Without ExitAllows you to save your changes without exiting the BIOS
setup.
Exit Discarding ChangesAllows you to exit the BIOS setup without saving the
changes.
Load Optimal DefaultsAllows you to restore default values for all system setup
options.
Discard ChangesAllows you to load previous values for all system setup
options.
System and setup password
Table 30. System and setup password
Password typeDescription
System passwordPassword that you must enter to log on to your system.
28System setup
Page 29
Table 30. System and setup password (continued)
Password typeDescription
Setup passwordPassword that you must enter to access and make changes to
the BIOS settings of your computer.
You can create a system password and a setup password to secure your computer.
CAUTION: The password features provide a basic level of security for the data on your computer.
CAUTION: Anyone can access the data stored on your computer if it is not locked and left unattended.
NOTE: System and setup password feature is disabled.
Assigning a system setup password
Prerequisites
You can assign a new System or Admin Password only when the status is in Not Set.
About this task
To enter the system setup, press F12 immediately after a power-on or reboot.
Steps
1. In the System BIOS or System Setup screen, select Security and press Enter.
The Security screen is displayed.
2. Select System/Admin Password and create a password in the Enter the new password field.
Use the following guidelines to assign the system password:
● A password can have up to 32 characters.
● The password can contain the numbers 0 through 9.
● Only lower case letters are valid, upper case letters are not valid.
● Only the following special characters are valid: Space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).
3. Type the system password that you entered earlier in the Confirm new password field and click OK.
4. Press F10 to save the changes.
The computer restarts.
Deleting or changing an existing system setup password
Prerequisites
Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing
System password. You cannot delete or change an existing System password, if the Password Status is Locked.
About this task
To enter the System Setup, press F12 immediately after a power-on or reboot.
Steps
1. In the System BIOS or System Setup screen, select System Security and press Enter.
The System Security screen is displayed.
2. In the System Security screen, verify that Password Status is Unlocked.
3. Select System Password, update, or delete the existing system password, and press Enter or Tab.
If you change the System password, reenter the new password when prompted. To delete the System and/or
NOTE:
Setup password, key in a blank entry into the password window and hit enter.
System setup29
Page 30
4. Press F10 to save the changes.
The computer restarts.
Clearing BIOS (System Setup) and System passwords
About this task
To clear the system or BIOS passwords, contact Dell technical support as described at www.dell.com/contactdell.
NOTE: For information on how to reset Windows or application passwords, refer to the documentation accompanying
Windows or your application.
30System setup
Page 31
Getting help
Topics:
•Contacting Dell
Contacting Dell
Prerequisites
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing
slip, bill, or Dell product catalog.
About this task
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and
some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:
Steps
1. Go to Dell.com/support.
2. Select your support category.
3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
4. Select the appropriate service or support link based on your need.
7
Getting help31
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
