Dell
17”/19” LCD Flat Panel Monitors
TM
UltraSharp
TM

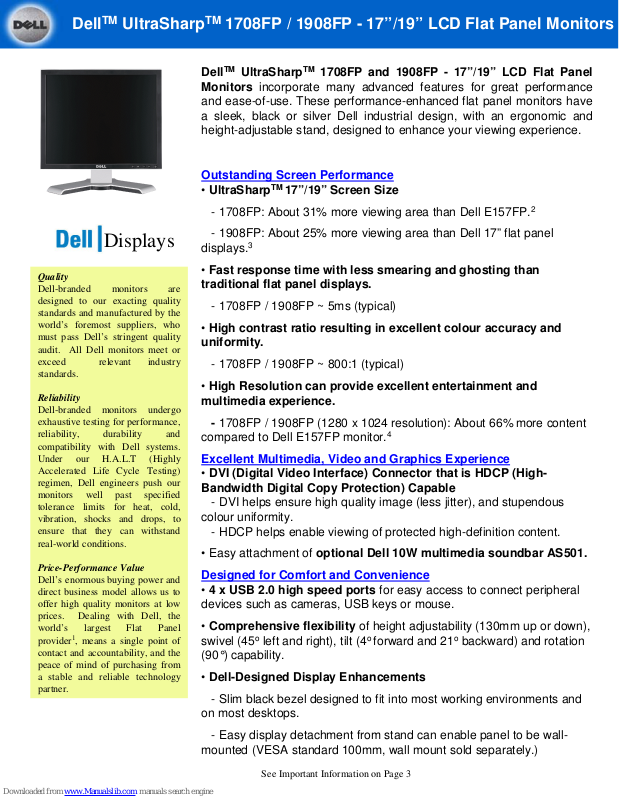

1708FP / 1908FP -
DellTMUltraSharpTM1708FP and 1908FP - 17”/19” LCD Flat Panel
Monitors incorporate many advanced features for great performance
and ease-of-use. These performance-enhanced flat panel monitors have
a sleek, black or silver Dell industrial design, with an ergonomic and
height-adjustable stand, designed to enhance your viewing experience.
Outstanding Screen Performance
• UltraSharpTM17”/19” Screen Size
Displays
Quality
Dell-branded monitors are
designed to our exacting quality
standards and manufactured by the
world’s foremost suppliers, who
must pass Dell’s stringent quality
audit. All Dell monitors meet or
exceed relevant industry
standards.
Reliability
Dell-branded monitors undergo
exhaustive testing for performance,
reliability, durability and
compatibility with Dell systems.
Under our H.A.L.T (Highly
Accelerated Life Cycle Testing)
regimen, Dell engineers push our
monitors well past specified
tolerance limits for heat, cold,
vibration, shocks and drops, to
ensure that they can withstand
real-world conditions.
Price-Performance Value
Dell’s enormous buying power and
direct business model allows us to
offer high quality monitors at low
prices. Dealing with Dell, the
world’s largest Flat Panel
provider1, means a single point of
contact and accountability, and the
peace of mind of purchasing from
a stable and reliable technology
partner.
- 1708FP: About 31% more viewing area than Dell E157FP.
2
- 1908FP: About 25% more viewing area than Dell 17” flat panel
displays.
3
• Fast response time with less smearing and ghosting than
traditional flat panel displays.
- 1708FP / 1908FP ~ 5ms (typical)
• High contrast ratio resulting in excellent colour accuracy and
uniformity.
- 1708FP / 1908FP ~ 800:1 (typical)
• High Resolution can provide excellent entertainment and
multimedia experience.
- 1708FP / 1908FP (1280 x 1024 resolution): About 66% more content
compared to Dell E157FP monitor.
4
Excellent Multimedia, Video and Graphics Experience
• DVI (Digital Video Interface) Connector that is HDCP (HighBandwidth Digital Copy Protection) Capable
- DVI helps ensure high quality image (less jitter), and stupendous
colour uniformity.
- HDCP helps enable viewing of protected high-definition content.
• Easy attachment of optional Dell 10W multimedia soundbar AS501.
Designed for Comfort and Convenience
• 4 x USB 2.0 high speed ports for easy access to connect peripheral
devices such as cameras, USB keys or mouse.
• Comprehensive flexibility of height adjustability (130mm up or down),
swivel (45oleft and right), tilt (4o forward and 21obackward) and rotation
(90°) capability.
• Dell-Designed Display Enhancements
- Slim black bezel designed to fit into most working environments and
on most desktops.
- Easy display detachment from stand can enable panel to be wall-
mounted (VESA standard 100mm, wall mount sold separately.)
See Important Information on Page 3
Page 2
DETAILED SPECIFICATIONS
Preset Display Area:
Preset Display Modes:
Other Connectors / Features
Dimensions (H x H x W x D) Inch
Dimensions (H x H x W x D) mm
Operating (Typical Maximum)
Flat Panel DisplayProduct Category
1708FPModel Name and Number
17 inches (17-inch)Monitor Size (Viewable Image Screen)
0.264mmPixel Pitch
5msResponse Type (Typical)
337mm (13.3 inches)Horizontal
270mm (10.6 inches)Vertical
160o(vertical), 160o(horizontal)Viewing Angle (Typical)
300cd/m2 TypicalLuminance (Brightness)
800:1Contrast Ratio (Typical)
30 kHz to 81 kHz (automatic)Horizontal Scan Frequency kHz
56 Hz to 76 Hz (automatic)Vertical Scan Frequency Hz
1280 x 1024 at 60 HzOptimal Resolution
31.5 kHz Horizontal, 70.0 Hz Vertical), 28.3 MHzVESA, 720 x 400
31.5 kHz Horizontal, 60.0 Hz Vertical), 25.2 MHzVESA, 640 x 480
37.5 kHz Horizontal, 75.0 Hz Vertical), 31.5 MHzVESA, 640 x 480
37.9 kHz Horizontal, 60.3 Hz Vertical), 49.5 MHzVESA, 800 x 600
46.9 kHz Horizontal, 75.0 Hz Vertical), 49.5 MHzVESA, 800 x 600
48.4 kHz Horizontal, 60.0 Hz Vertical), 65.0 MHzVESA, 1024 x 768
60.0 kHz Horizontal, 75.0 Hz Vertical), 78.8 MHzVESA, 1024 x 768
67.5 kHz Horizontal, 75.0 Hz Vertical), 108 MHzVESA, 1152 x 864
64.0 kHz Horizontal, 60.0 Hz Vertical), 135 MHzVESA, 1280 x 1024
80.0 kHz Horizontal, 75.0 Hz Vertical), 135 MHzVESA, 1280 x 1024
Analog, DVI-D (Digital) Connector Type
4 Universal Serial Bus (USB) 2.0 Ports, Kensington
security port
Tilt, Swivel, Pivot, Height AdjustableStand
YES (100mm)VESA Mounting Support
18.25 (extended) x 13.13 (compressed) x 14.65 x
7.17
463.6 (extended) x 333.6 (compressed) x 372.11 x
182
5.17 Kg (11.39 Ib)Weight with stand assembly and cables
6.7 Kg (14.76 Ib)Weight with packaging
100 to 240 VAC / 50 Hz / 60 Hz + 3 Hz / 2.0A (Max.)AC input voltage
Less than 2W- Active Off
Less than 1W- Switched Off
Flat Panel Display
1908FP
19 inches (19-inch)
0.294mm
5ms
380mm (14.96 inches)
300mm (11.81 inches)
160o(vertical), 160o(horizontal)
300cd/m2 Typical
800:1
30 kHz to 81 kHz (automatic)
56 Hz to 76 Hz (automatic)
1280 x 1024 at 60 Hz
Analog, DVI-D (Digital)
4 Universal Serial Bus (USB) 2.0 Ports, Kensington
security port
Tilt, Swivel, Pivot, Height Adjustable
YES (100mm)
19.39 (extended) x 14.26 (compressed) x 16.15 x 7.17
492.6 (extended) x 362.6 (compressed) x 410.1 x 182
5.74 Kg (12.64 Ib)
7.4 Kg (16.3 Ib)
100 to 240 VAC / 50 Hz / 60 Hz + 3 Hz / 2.0A (Max.)
Less than 2W
Less than 1W
Recycling: Dell recommends that customers dispose of their used computer hardware, including monitors, in
an environmentally sound manner. Potential methods include reuse of parts or whole products and recycling of
product, components and/or materials. For more information, please visit http://dell.com/recycling_programs
and www.dell.com/environment.
Page 3
Important Information
Dell cannot be held responsible for errors in typography and photography.
1. DisplaySearch Q3 2006 Quarterly Desktop Monitor Report, “No.1 Worldwide LCD
Monitor Shipment Branding Ranking for Q2 2006”, August 2006.
2. 31% more viewing area claim: Viewing area comparison based on Dell E157FP area
of ~69,365mm2/106sq. in. (~304.1mm/11.9” Length x 228.1mm/8.9” Height) and Dell
UltraSharp 1708FP area of ~90,990mm2/141sq. in. (~337mm/13.3” Length,
270mm/10.6” Height).
3. 25% more viewing area claim: Viewing area comparison based on Dell E177FP area
of ~90,990mm2/141sq. in. (~337mm/13.3” Length x 270mm/10.6” Height) and Dell
UltraSharp 1708FP / 1908FP area of ~114,000mm2/177sq. in. (~380mm/14.96”
Length, 300mm/11.81” Height).
4. 66% more content area: Content comparison based on Dell E157FP pixel count of
786,432 (1024 Horizontal x 768 Vertical) and Dell UltraSharp 1708FP / 1908FP pixel
count of 1,310,720 (1280 Horizontal x 1024 Vertical).
Certificates / Standards:
• CE-Declaration of Conformity
• Product Safety (LVD): EN 60950-1:200,1 UL, NOM, GS-Mark, NEMKO, SEMKO,
DEMKO, FIMKO, EZU, PCBC,
• Electromagnetic Compatibility (EMCD): EN55022, EN61000-3-2, EN61000-3-3,
EN55024, FCC Part 15 Class B; NEMKO, SEMKO, DEMKO, FIMKO, EZU, PCBC,
GOST, C-Tick, VCCI Class B, MIC, BSMI
• Ergonomics: ISO13406-2, GS-Mark, Ergonomics Approved Mark
• Environment: Energy Star, GOST hygienic, TCO' 99 / TCO'03 - model dependant
Dell and the Dell logos are trademarks of Dell Inc. Dell disclaims propriety interest in the marks and
names of others. Copyright 2007 Dell Inc. All rights reserved.
