Setting Up Your Studio Laptop

This section provides information about setting
up your Studio 1536/1537 laptop and connecting
peripherals.

Before Setting Up Your Computer

When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.

Restricting airflow around your Studio
laptop may cause it to overheat. To prevent
overheating ensure that you leave at least

10.2 cm (4 in) at the back of the computer and
a minimum of 5.1 cm (2 in) on all other sides.
You should never put your computer in an
enclosed space, such as a cabinet or drawer
when it is powered on.

CAUTION: Do not block, push objects into,
or allow dust to accumulate in the air
vents. Do not store your Dell™ computer
in a low-airflow environment, such as
a closed briefcase, while it is running.
Restricting the airflow can damage the
computer or cause a fire. The computer
turns on the fan when the computer gets
hot. Fan noise is normal and does not
indicate a problem with the fan or the
computer.

NOTICE: Placing or stacking heavy or sharp

objects on the computer may result in
permanent damage to the computer.

5

Setting Up Your Studio Laptop

Connect the AC Adapter

Connect the AC adapter to the computer and
then plug it into an electrical outlet or surge
protector.

6

CAUTION: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to a power strip or electrical outlet may
cause fire or equipment damage.

Setting Up Your Studio Laptop

Check the Wireless Switch

If you plan to use wireless connections, make
sure the wireless switch is in the “On” position.

Using The Wireless Switch

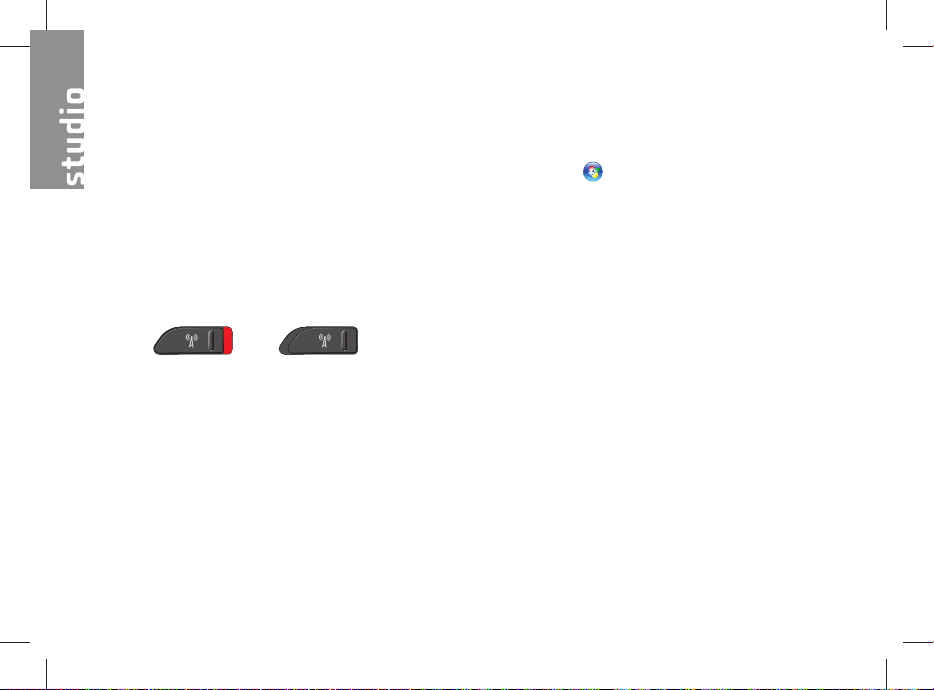

To turn on the wireless switch, slide it from the
rear to the front of the computer until it clicks
into place.

- Off - On

7

Setting Up Your Studio Laptop

Connect the Network Cable
(optional)

If you plan to use a wired network connection,
plug in the network cable.

8

Press the Power Button

Setting Up Your Studio Laptop

9

Setting Up Your Studio Laptop

Windows Vista® Setup

Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.

NOTICE: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.

10

Connect to the Internet (Optional)

NOTE: ISPs (Internet Service Providers)

and ISP offerings vary by country.

To connect to the Internet, you need an external
modem or network connection and an Internet
service provider ( ISP).

NOTE: If an external USB modem or WLAN
adapter is not a part of your original
order, you can purchase one from the Dell
website at www.dell.com.

Setting Up Your Studio Laptop

Setting Up a Wired Internet Connection

If you are using a dial-up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall connector
before you set up your Internet connection. If
you are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions and
see “Setting Up Your Internet Connection”
on page 12.

Setting Up a Wireless Connection

Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to
a wireless router:

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

Follow the instructions on the screen to 3.
complete the setup.

→ Connect To.

11

Setting Up Your Studio Laptop

Setting Up Your Internet Connection

To set up an Internet connection with a provided
ISP desktop shortcut:

Save and close any open files, and exit any 1.
open programs.

Double-click the ISP icon on the Microsoft2.
Windows

®

desktop.

®

Follow the instructions on the screen to 3.
complete the setup.

12

If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.

NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.

NOTE: Have your ISP information ready.
If you do not have an ISP, the Connect to
the Internet wizard can help you get one.

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

→ Control Panel.

Under 3. Network and Internet, click Connect

to the Internet.

The Connect to the Internet window appears.

Click either 4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:

Choose a. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth

®

wireless technology

connection.

Chose b. Dial-up if you will use an optional
USB dial-up modem or ISDN.

NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.

Follow the instructions on the screen and 5.
use the setup information provided by your
ISP to complete the setup.

Setting Up Your Studio Laptop

13

Using Your Studio Laptop

Your Studio 1536/1537 has indicators, buttons,
and features that provide information
at-a-glance and time-saving shortcuts for
common tasks.

Device Status Lights

The device status lights located on top of the
keyboard provide information for wireless
communication.

1 2 3

14

1

WiFi status light – Turns on when

wireless networking is enabled.

Use the wireless switch located at the
front, right side of the computer to quickly
turn all wireless communication On
and Off.

Using the Wireless Switch

To turn on the wireless switch, slide it
away from the front of the computer until it
clicks into place.

- Off - On

2

Bluetooth® status light

(optional) – Turns on when a card with

Bluetooth wireless technology is enabled.

NOTE: The card with Bluetooth
wireless technology is an optional
feature.

To turn off Bluetooth wireless, right-click
the bluetooth icon in the notification
area of your desktop, and click Disable
Bluetooth Radio or use the wireless
switch.

3

Hard drive activity light – Turns on

when the computer reads or writes data.
A flashing light indicates hard drive
activity.

NOTE: To avoid loss of data, never
turn off the computer while the hard
drive activity light is flashing.

Using Your Studio Laptop

15

Using Your Studio Laptop

Right Side Features

16

6

5

4

3

2

1

1

IEEE 1394 connector – Connects to

a high-speed serial multimedia devices,
such as digital video cameras.

2

USB 2.0 connectors (2) – Connects to

a USB device, such as a mouse, keyboard,
printer, external drive, or MP3 player.

3

Optical Disc Drive – Plays or burns only

standard-size and shape (12 cm) CDs, and
DVDs. Ensure that the side with print or
writing is facing upward when inserting
discs. For more information on using the
optical disk drive, see “Using the Optical
Disk Drive” on page 29.

4

AC adapter connector – Connects to

the AC adapter to power on the computer
and charge the battery when the computer
is not in use.

Using Your Studio Laptop

5

Battery status light – Indicates the

battery charging state:

Off – fully charged or the computer is •
turned off.

Solid white – charging.•
Solid amber – charge is low.•
Blinking amber – charge is critically •
low and you should either plug in the
AC adapter or save and close your open
documents and applications.

6

Power button and light – Turns the

power on or off when pressed. The light in
the button indicates the power state:

Blinking white – in sleep state.•
Solid white – in power-on state.•
Blinking amber – there may be •
a problem with the system board.
Solid amber – the system board cannot •
start initialization. There may be an
issue with either the system board or
power supply.

17

Using Your Studio Laptop

Left Side Features

18

12

11

10

9

8

7

6

5

4

3

2

1

Using Your Studio Laptop

1

DELL Wi-Fi Catcher™ Network

Locator button – Press this button for a

few seconds to scan for wireless networks
in your vicinity. The light in the center of
this button indicates the searching state:

Blinking white indicates searching.•
Solid white for 10 seconds then off •

indicates that a network was found.
Blinking white 10 times then off •

indicates that no network was found.

2

Security cable slot – Attaches a

commercially available antitheft device to
the computer.

NOTE: Before you buy an antitheft
device, ensure that it works with the
security cable slot on your computer.

3

Wireless On/Off switch – Use this

switch to rapidly turn all wireless devices
Off or On such as WLAN cards and internal
cards with Bluetooth wireless technology.

The wireless switch may be in the Off
position when your computer is shipped to
you. To turn the switch On, slide the switch
toward the front of the computer until it
clicks into place.

- Off - On

NOTE: This switch can be deactivated
through Dell QuickSet or the BIOS
(system setup program).

4

HDMI Connector – HDMI

(High-Definition Multimedia Interface)
connector carries an uncompressed all
digital signal to produce hi-definition
video and audio.

19

Using Your Studio Laptop

5

VGA connector – Connects to

a monitor or projector.

6

USB 2.0 connectors – Connects to

USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.

7

eSATA Connector – Connect eSATA

compatible storage devices, such as
external hard disk drives or optical drives.

8

Network connector – If you are

using a cabled network signal, this port
connects your computer to a network or
broadband device.

9

Audio In/ Microphone connector –

Connects to a microphone or inputs signal
for use with audio programs.

20

10

Audio Out/ Headphone

connectors (2) – Connects one or two

pairs of headphones, or sends audio to
a powered speaker or sound system.
The audio signal is the same for both
connectors.

SD/MMC - MS/Pro - xD

11

8-in-1 Media card reader – Provides a

fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:

Secure digital (SD) memory card•
Secure Digital Input Output (SDIO) card•
Multi Media Card (MMC)•
Memory Stick•
Memory Stick PRO•
xD-Picture Card (type - M and type - H)•
Hi Speed-SD•
Hi Density-SD•

NOTE: Your computer ships with a

blank

plastic
card slot. Blanks protect unused slots
from dust and other particles. Save
the blank for use when no media card
is installed in the slot; blanks from
other computers may not fit your
computer.

installed in the media

Using Your Studio Laptop

12

ExpressCard.

ExpressCard slot – Supports one

NOTE: Your computer ships with

blank

a plastic
ExpressCard slot. Blanks protect
unused slots from dust and other
particles. Save the blank for use when
no ExpressCard is installed in the slot;
blanks from other computers may not
fit your computer.

installed in the

21

Using Your Studio Laptop

Computer Base and Keyboard
Features

1

2

3

4

22

1

Caps Lock light – Turns on when using the

Caps Lock key.

2 Keyboard/ Backlit Keyboard (optional) –

If you have purchased the optional backlit
keyboard, the right-arrow key will have
the backlit keyboard icon
optional backlit keyboard provides visibility
in dark environments by illuminating all
symbols on the keys. The settings for this
keyboard can be personalized by using
Dell QuickSet. For more information on
keyboard, see the

Backlit Keyboard Brightness

Settings – Press <Fn> + right-arrow key to

toggle between the three lighting states (in
the given order).

The three lighting states are:

full keyboard/touch pad brightnessa.
half keyboard/touch pad brightnessb.
no lighting c.

Dell Technology Guide

on it. The

Using Your Studio Laptop

3

Touch pad – Provides the functionality of

a mouse to move the cursor, drag or move
selected items, and left-click by tapping
the surface. It supports circular scrolling
and zoom.

To change the circular scrolling and zoom
settings, double click the
icon in the notification area of your desktop.
In the Scrolling tab, you can enable or
disable scrolling or circular scrolling,
choose the scroll zone width, and

.

scroll speed.

In the Gestures tab, you can enable or
disable one finger zoom (zoom in and out
moving the finger upward or downward)
or the pinch zoom (zoom in and out by
spreading two fingers or by bringing two
fingers together).

4

Touch pad buttons – Provide left- and

right-click functions those on like a mouse.

Dell Touch pad

23

Using Your Studio Laptop

5

6

24

8

7

5

Analog Microphone – If you do not have

the optional built-in camera with dual
microphones, this single microphone is
used for conferencing and chat.

6

Consumer IR – Allows certain software

applications to be controlled by the Dell
Travel Remote (an optional device that can
be stored in the ExpressCard slot when not
in use).

7

Fingerprint reader (optional) – Helps to

keep you computer secure. When you
slide your finger over the reader, it uses
your unique fingerprint to authenticate
your user identity (by automating the entry
of user names and passwords) using
DigitalPersona Personal software. To
activate and use Digital Persona Personal,
click Start→ Programs→ DigitalPersona

Personal.

8

Num Lock light – Turns on when using the

Num Lock key.

Using Your Studio Laptop

25

Using Your Studio Laptop

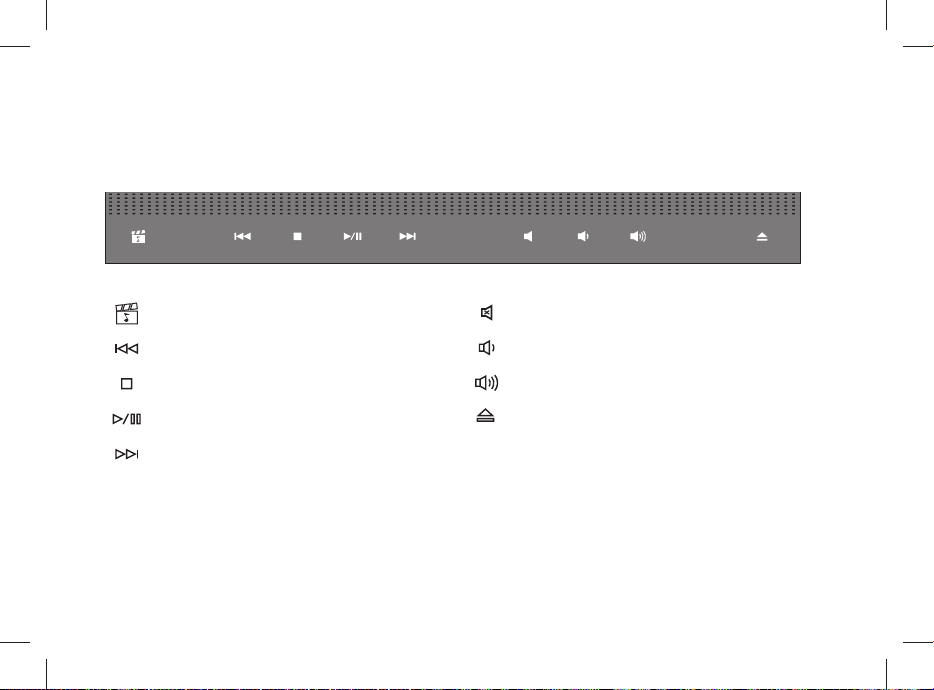

Media Controls

To use the media controls, lightly touch the symbol and then release. The control symbol will shine
for 2 seconds to confirm your selection then fade away.

Launch Dell MediaDirect

Play the previous track or chapter

Stop

Play or pause

Play the next track or chapter

26

Mute the sound

Turn down the volume

Turn up the volume

Eject the disc

Using Your Studio Laptop

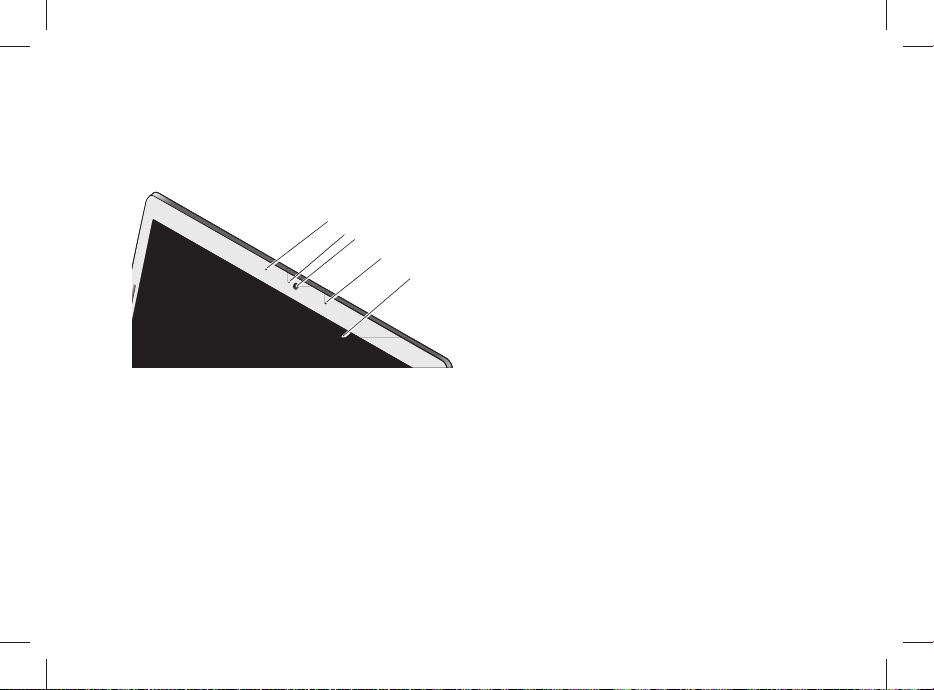

Display Features

The display panel holds an optional camera and
accompanying dual microphones.

1

2

3

4

5

1 Left digital array microphone (optional)

– Combines with the right digital array

microphone to provide high quality sound
for video chatting and voice recording.

2

Camera activity light (optional) – Indicates

when the camera is on or off. Based on
selections you made when purchasing
your computer, your computer may not
include a camera.

3

Camera (optional) – Built-in camera for

video capture, conferencing, and chat.
Based the on selections you made when
purchasing your computer, your computer
may not include a camera.

FastAccess facial recognition (optional)
– Helps to keep your Dell™ computer
secure. This advanced facial recognition
software learns your face and minimizes
the need for you to use login passwords.
For more information, click Start →

Programs → FastAccess Facial Recognition.

4 Right digital array microphone

(optional) – Combines with the left digital

array microphone to provide high quality
sound for video chatting and voice
recording.

5

Display – Your display can vary based on

selections you made when purchasing
your computer. For more information about
displays, see the

Dell Technology Guide

.

27

Using Your Studio Laptop

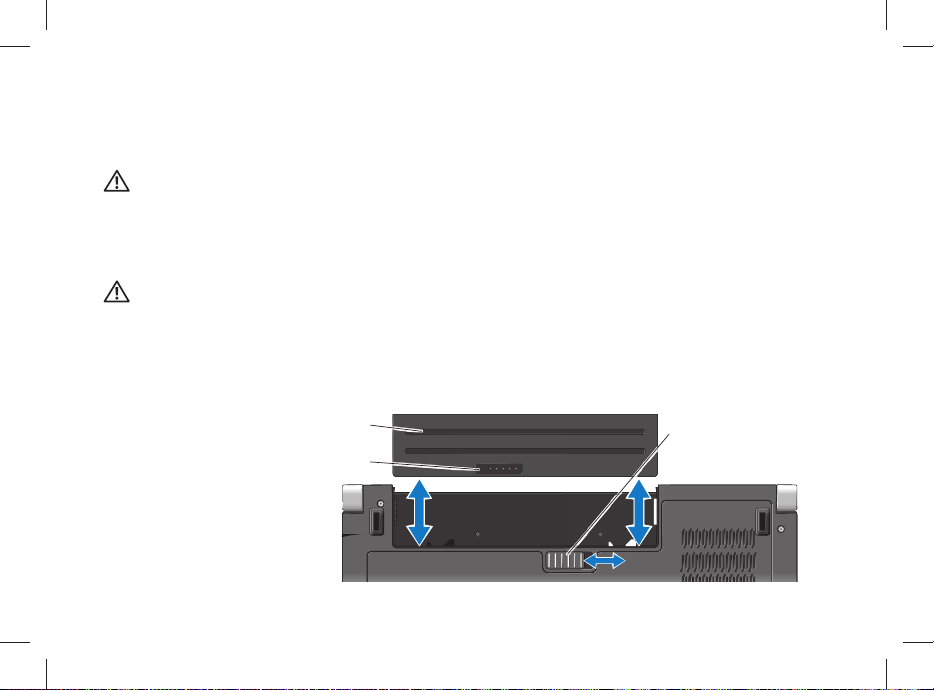

Removing and Replacing the
Battery

CAUTION: Using an incompatible battery

may increase the risk of fire or explosion.
This computer should only use a battery
purchased from Dell. Do not use batteries
from other computers.

CAUTION: Before removing the battery,
shut down the computer, and remove
external cables (including the AC adapter).

1

Battery

2

Battery charge/health gauge

3

Battery release latch

28

1

2

To remove the battery:

Shut down the computer and turn it over. 1.

Slide the battery release latch until it clicks 2.
into place.

Slide the battery out. 3.

To replace the battery, slide it into the bay until it
clicks into place.

3

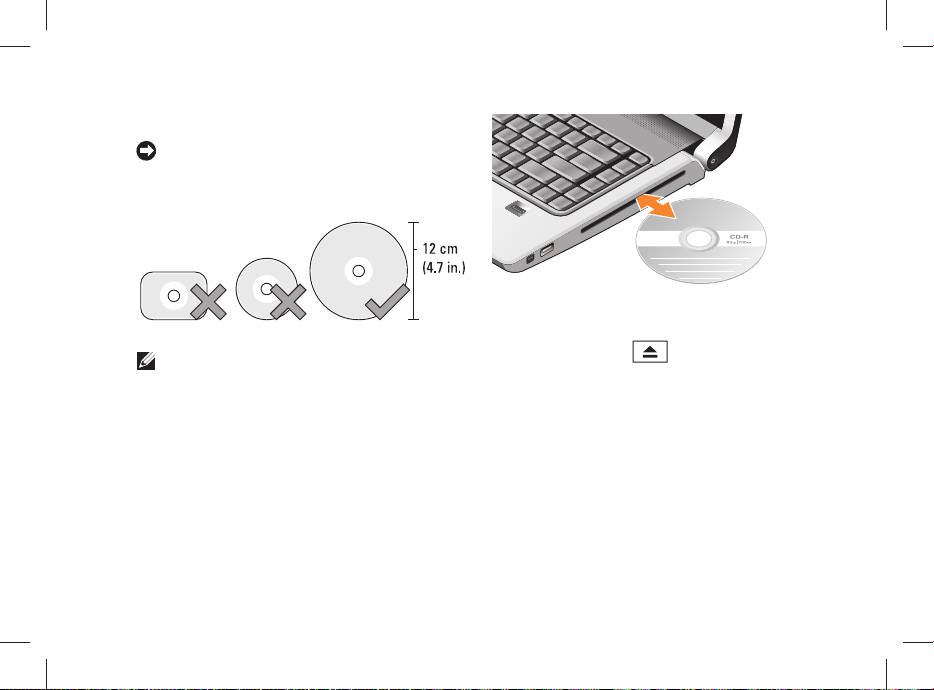

Using the Optical Disc Drive

NOTICE: Do not use non-standard-size or

shape discs (including mini-CDs and mini­DVDs) or you will damage the drive.

NOTE: Do not move the computer while
playing or recording CDs and DVDs.

Place the disc in the center of the disc slot, with
the label facing outwards and gently push the
disc into the slot. The drive will automatically
pull the disc in and begin reading its content.

Using Your Studio Laptop

To eject a disc from the drive, gently touch the
eject control button
to confirm a few seconds before ejecting the disc.

. The control will flash

29

Using Your Studio Laptop

Software Features

NOTE: For more information about the

features described in this section, see

Dell Technology Guide

the
drive or on the Dell Support website at

support.dell.com.

Productivity and Communication

You can use your computer to create
presentations, brochures, greeting cards, fliers,
and spreadsheets. You can also edit and view
digital photographs and images. Check your
purchase order for software installed on
your computer.

After connecting to the Internet, you can access
websites, setup an e-mail account, upload and
download files, and so on.

Entertainment and Multimedia

You can use your computer to watch videos,
play games, create your own CDs, listen to
music and internet radio stations. Your optical
disc drive may support multiple disc media

30

on your hard

formats including CDs, Blu-ray discs (if selected
at the time of purchase), and DVDs.

You can download or copy pictures and video files
from portable devices, such as digital cameras
and cell phones. Optional software applications
enable you to organize and create music and
video files that can be recorded to disc, saved
on portable products such as MP3 players and
handheld entertainment devices, or played and
viewed directly on connected TVs, projectors,
and home theater equipment.

Customizing the Desktop

You can customize your desktop to change the
appearance, resolution, wallpaper, screensaver,
and so on by accessing the Personalize
appearance and sounds window.

To access the display properties window:

Right-click an open area of the desktop.1.

Click 2. Personalize, to open the Personalize
appearance and sounds window and learn
more about your customization options.

Using Your Studio Laptop

Customizing Your Energy Settings

You can use the power options in your operating
system to configure the power settings on your
computer. Microsoft

®

Windows Vista® shipped
with Dell computer provides three default
options:

Dell Recommended• — This power option
offers full performance when you need it and
saves power during periods of inactivity.

Power saver• — This power option saves
power on your computer by reducing system
performance to maximize the life of the
computer and by reducing the amount of
energy consumed by your computer over its
lifetime.

High performance• — This power option
provides the highest level of system
performance on your computer by adapting
processor speed to your activity and by
maximizing system performance.

Backing Up Your Data

It is recommended that you periodically back
up files and folders on your computer. To back
up files:

Click 1. Start

→ Control Panel→ System

and Maintenance→ Welcome Center→
Transfer files and settings.

Click 2. Back up files or Back up computer.

Click 3. Continue on Your User Account Control
dialog box and follow the instructions in
the Back up Files wizard. This section
provides troubleshooting information for your
computer. If you can not solve your problem
using the following guidelines, see “Using
Support Tools” on page 37 or “Contacting
Dell” on page 52.

CAUTION: Only trained service personnel
should remove the computer cover. See the

Service Manual

on the Dell Support
website at support.dell.com for advanced
service and troubleshooting instructions.

31

Solving Problems

Network Problems

Wireless Connections

If the network connection is lost

— The wireless switch may be off. To turn on
the wireless switch, slide it from the rear to the
front of the computer until it clicks into place.

- Off - On

— The wireless router is offline or wireless has
been disabled on the computer.

Check your wireless router to ensure it is •
powered on and connected to your data
source (cable modem or network hub).

Re-establish your connection to the •
wireless router:

Save and close any open files, and exit a.
any open programs.

32

Click b. Start

Follow the instructions on the screen c.
to complete the setup.

Wired Connections

If the network connection is lost — The cable

is loose or damaged.

Check the cable to ensure it is plugged in •
and not damaged.

The link integrity light on the integrated network
connector lets you verify that your connection is
working and provides information on the status:

Green — A good connection exists between •
a 10-Mbps network and the computer.

Orange — A good connection exists between •
a 100-Mbps network and the computer.

→ Connect To.

Solving Problems

Yellow — A good connection exists between •
a 1000-Mbps network and the computer.

Off — The computer is not detecting a •
physical connection to the network.

NOTE: The link integrity light on the network
connector is only for the wired cable
connection. The link integrity light does not
provide status for wireless connections.

Power Problems

If the power light is off — The computer is

either turned off or is not receiving power.

Reseat the power cable into both the •
power connector on the computer and the
electrical outlet.

If the computer is plugged into a power strip, •
ensure that the power strip is plugged into
an electrical outlet and that the power strip
is turned on. Also bypass power protection
devices, power strips, and power extension
cables to verify that the computer turns on
properly.

Ensure that the electrical outlet is working •
by testing it with another device, such as
a lamp.

Check the AC adapter cable connections. If •
the AC adapter has a light, ensure that the
light on the AC adapter is on.

If the power light is solid white and the
computer is not responding — The display may

not be responding. Press the power button until
the computer turns off and then turn it back on.
If the problem persists, see the

on the Dell Support website at

Guide

support.dell.com.

If the power light is blinking white — The

computer is in standby mode. Press a key on
the keyboard, move the pointer using the touch
pad or a connected mouse, or press the power
button to resume normal operation.

If the power light is solid amber — The
computer has a power problem or an internal
device malfunction. For assistance contact Dell,
see “Contacting Dell” on page 52.

Dell Technology

33

Solving Problems

If the power light is blinking amber — The
computer is receiving electrical power, but a
device might be malfunctioning or incorrectly
installed. You may have to remove and then
reinstall the memory modules (for information on
removing and replacing memory modules, see
the Service Manual on the Dell Support website
at support.dell.com).

If you encounter interference that hinders
reception on your computer — An unwanted

signal is creating interference by interrupting or
blocking other signals. Some possible causes of
interference are:

Power, keyboard, and mouse extension •
cables.

Too many devices connected to a power •
strip.

Multiple power strips connected to the same •
electrical outlet.

34

Memory Problems

If you receive an insufficient memory
message—

Save and close any open files and exit any •
open programs you are not using to see if
that resolves the problem.

See the software documentation for •
minimum memory requirements. If
necessary, install additional memory (See
the Service Manual on the Dell Support
website at support.dell.com).

Reseat the memory modules (See the •
Service Manual on the Dell Support website
at support.dell.com) to ensure that your
computer is successfully communicating
with the memory.

If you experience other memory problems —

Ensure that you are following the memory •
installation guidelines (see the Service
Manual on the Dell Support website at
support.dell.com).

Solving Problems

Check if the memory module is compatible •
with your computer. Your computer supports
DDR2 memory. For more information about
the type of memory supported by your
computer, see “Basic Specifications” on
page 56.

Run the Dell Diagnostics (see “Dell •
Diagnostics” on page 39).

Reseat the memory modules (see the • Service

Manual on the Dell Support website at support.
dell.com) to ensure that your computer is

successfully communicating with the memory.

Lockups and Software Problems

If the computer does not start up — Ensure

that the power cable is firmly connected to the
computer and to the electrical outlet.

If a program stops responding — End the
program:

Press <Ctrl><Shift><Esc> simultaneously.1.

Click 2. Applications.

Click the program that is no longer 3.
responding

Click 4. End Task.

If a program crashes repeatedly — Check the
software documentation. If necessary, uninstall
and then reinstall the program.

NOTE: Software usually includes
installation instructions in its
documentation or on the CD.

If the computer stops responding —

NOTICE: You might lose data if you are

unable to perform an operating system
shutdown.

Turn the computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your mouse, press the power button for
at least 8 to 10 seconds until the computer turns
off and then restart your computer.

35

Solving Problems

If a program is designed for an earlier
Microsoft

®

Windows® operating system —

Run the Program Compatibility Wizard. The Program
Compatibility Wizard configures a program so that
it runs in an environment similar to non-Windows
Vista operating system environments.

Click 1. Start

→ Control Panel→

Programs→ Use an older program with this
version of Windows.

In the welcome screen, click 2. Next.

Follow the instructions on the screen.3.

If a solid blue screen appears — Turn the
computer off. If you are unable to get a response
by pressing a key on your keyboard or moving your
pointer or mouse, press and hold the power button
for at least 8 to 10 seconds until the computer
turns off and then restart your computer.

If you have other software problems —

Back up your files immediately.•

Use a virus-scanning program to check the •
hard drive or CDs.

36

Save and close any open files or programs •
and shut down your computer through the
Start

menu.

Check the software documentation or •
contact the software manufacturer for
troubleshooting information:

Ensure that the program is compatible –
with the operating system installed on
your computer.

Ensure that your computer meets the –
minimum hardware requirements needed
to run the software. See the software
documentation for information.

Ensure that the program is installed and –
configured properly.

Verify that the device drivers do not –
conflict with the program.

If necessary, uninstall and then reinstall –
the program Dell Support Center.

Using Support Tools

Dell Support Center

The Dell Support Center helps you find
the service, support, and system-specific
information you need. For more information
about Dell Support Center and available support
tools, click the Services tab at support.dell.com.

Click the
application. The home page provides links to access:

Self Help (Troubleshooting, Security, System •
Performance, Network/Internet, Backup/
Recovery, and Windows Vista)

Alerts (technical support alerts relevant to •
your computer)

Assistance from Dell (Technical Support with •
DellConnect
and Tutorials, How-To Help with Dell on Call,
and Online Scan with PCCheckUp)

icon in the taskbar to run the

™

, Customer Service, Training

About Your System (System Documentation, •
Warranty Information, System Information,
Upgrades & Accessories)

The top of the Dell Support Center home page
displays your system’s model number along with
its service tag and express service code.

For more information about the Dell Support
Center, see the
hard drive or on the Dell Support website at
support.dell.com.

Dell Technology Guide

on your

System Messages

If your computer has an issue or error, it may display
a System Message that will help you identify the
cause and action needed to resolve the issue.

NOTE: If the message you received is
not listed in the following examples,
see the documentation for either the
operating system or the program that was

37

Using Support Tools

running when the message appeared.
Alternatively you could see the Dell
Technology Guide in your hard disk or on
the Dell Support website at support.dell.
com or see “Contacting Dell” on page 52
for assistance.

Alert! Previous attempts at booting this system
have failed at checkpoint [nnnn]. For help
in resolving this problem, please note this
checkpoint and contact Dell Technical
Support — The computer failed to complete

the boot routine three consecutive times for the
same error see “Contacting Dell” on page 52 for
assistance.

CMOS checksum error — Possible motherboard
failure or RTC battery low. Replace the battery.
See the Service Manual on the Dell Support
website at support.dell.com or see “Contacting
Dell” on page 52 for assistance.

CPU fan failure — CPU fan has failed. Replace
the CPU fan. See the Service Manual on the Dell
Support website at support.dell.com.

38

Hard-disk drive failure — Possible hard disk
drive failure during POST, see “Contacting Dell”
on page 52 for assistance.

Hard-disk drive read failure — Possible hard
disk drive failure during HDD boot test see
“Contacting Dell” on page 52 for assistance.

Keyboard failure — Keyboard failure or
loose cable.

No boot device available — No bootable
partition on hard disk drive, the hard disk drive
cable is loose, or no bootable device exists.

If the hard drive is your boot device, ensure •
that the cables are connected and that the
drive is installed properly and partitioned as
a boot device.

Enter system setup and ensure that the boot •
sequence information is correct (see the
Dell Technology Guide on the Dell Support
website at support.dell.com).

Using Support Tools

No timer tick interrupt — A chip on the system
board might be malfunctioning or motherboard
failure (see “Contacting Dell” on page 52
for assistance).

USB over current error — Disconnect the USB
device. Your USB device needs more power for
it to function properly. Use an external power
source to connect the USB device, or if your
device has two USB cables, connect both
of them.

NOTICE - Hard Drive SELF MONITORING
SYSTEM has reported that a parameter has
exceeded its normal operating range. Dell
recommends that you back up your data
regularly. A parameter out of range may or may
not indicate a potential hard drive problem —

S.M.A.R.T error, possible hard disk drive failure.
This feature can be enabled or disabled in the
BIOS setup (see “Contacting Dell” on page 52
for assistance).

Hardware Troubleshooter

If a device is either not detected during
the operating system setup or is detected
but incorrectly configured, you can use the
Hardware Troubleshooter to resolve the
incompatibility.

To start the Hardware Troubleshooter:

Click 1. Start

Type 2. hardware troubleshooter in
the search field and press <Enter> to start
the search.

In the search results, select the option that 3.
best describes the problem and follow the
remaining troubleshooting steps.

→ Help and Support.

Dell Diagnostics

If you experience a problem with your
computer, perform the checks in “Lockups and
Software Problems” on page 56 and run the
Dell Diagnostics before you contact Dell for
technical assistance.

39

Using Support Tools

It is recommended that you print these
procedures before you begin.

NOTICE: Dell Diagnostics works only on
Dell computers.

NOTE: The

Drivers and Utilities

media
is optional and may not ship with your
computer.

See the System Setup section in the Dell
Technology Guide to review your computer’s
configuration information, and ensure that the
device that you want to test displays in the
system setup program and is active.

Start the Dell Diagnostics from your hard drive
or from the

Drivers and Utilities

media.

Starting Dell Diagnostics From Your Hard Drive

The Dell Diagnostics is located on a hidden
diagnostic utility partition on your hard drive.

NOTE: If your computer cannot display a
screen image, see “Contacting Dell” on
page 52.

40

Ensure that the computer is connected to an 1.
electrical outlet that is known to be working
properly.

Turn on (or restart) your computer.2.

When the DELL3.

™

logo appears, press <F12>
immediately. Select Diagnostics from the
boot menu and press <Enter>.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft® Windows®
desktop; then, shut down your computer
and try again.

NOTE: If you see a message stating that no
diagnostics utility partition has been found,
run the Dell Diagnostics from the

and Utilities

media.

Drivers

Press any key to start the Dell Diagnostics 4.
from the diagnostics utility partition on your
hard drive.

Using Support Tools

Starting Dell Diagnostics From the Drivers and
Utilities Media

Insert the1.

Drivers and Utilities

media.

Shut down and restart the computer.2.
When the DELL logo appears, press <F12>
immediately.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 3.
CD/DVD/CD-RW and press <Enter>.

Select the 4. Boot from CD-ROM option from
the menu that appears and press <Enter>.

Type 1 to start the CD menu and press 5.
<Enter> to proceed.

Select 6. Run the 32 Bit Dell Diagnostics from
the numbered list. If multiple versions are
listed, select the version appropriate for
your computer.

When the Dell Diagnostics 7. Main Menu
appears, select the test you want to run.

41

Restoring Your Operating System

You can restore your operating system in the
following ways:

System • Restore returns your computer to an
earlier operating state without affecting data
files. Use System Restore as the first solution
for restoring your operating system and
preserving data files.

Dell • Factory Image Restore returns your hard
drive to the operating state it was in when
you purchased the computer. This procedure
permanently delete all data on the hard drive
and remove any programs installed after
you received the computer. Use Dell Factory
Image Restore only if System Restore did not
resolve your operating system problem.

If you received an Operating System disc •
with your computer, you can use it to restore
your operating system. However, using the
Operating System disc also deletes all data

42

on the hard drive. Use the disc only if System
Restore did not resolve your operating
system problem.

System Restore

The Windows operating systems provide a
System Restore option which allows you to
return your computer to an earlier operating state
(without affecting data files) if changes to the
hardware, software, or other system settings have
left the computer in an undesirable operating
state. Any changes that System Restore makes to
your computer are completely reversible.

NOTICE: Make regular backups of your
data files. System Restore does not monitor
your data files or recover them.

NOTE: The procedures in this document
were written for the Windows default view,
so they may not apply if you set your Dell
computer to the Windows Classic view.

™

Restoring Your Operating System

Starting System Restore

Click 1. Start

In the 2. Start Search box, type System
Restore and press <Enter>.

NOTE: The User Account Control window
may appear. If you are an administrator on
the computer, click Continue; otherwise,
contact your administrator to continue the
desired action.

Click 3. Next and follow the remaining prompts
on the screen.

In the event that System Restore did not resolve
the issue, you may undo the last system restore.

Undoing the Last System Restore

NOTE: Before you undo the last system

restore, save and close all open files and
exit any open programs. Do not alter, open,
or delete any files or programs until the
system restoration is complete.

.

Click 1. Start

In the 2. Start Search box, type System
Restore and press <Enter>.

Click 3. Undo my last restoration and click
Next.

.

Dell Factory Image Restore

NOTICE: Using Dell Factory Image Restore

permanently deletes all data on the hard
drive and removes any programs or drivers
installed after you received your computer.
If possible, back up the data before using
these options. Use Dell Factory Image
Restore only if System Restore did not
resolve your operating system problem.

NOTE: Dell Factory Image Restore may
not be available in certain countries or on
certain computers.

Use Dell Factory Image Restore only as the
last method to restore your operating system.
These options restore your hard drive to the

43

Restoring Your Operating System

operating state it was in when you purchased
the computer. Any programs or files added
since you received your computer—including
data files—are permanently deleted from
the hard drive. Data files include documents,
spreadsheets, e-mail messages, digital photos,
music files, and so on. If possible, back up all
data before using Factory Image Restore.

Dell Factory Image Restore

Turn on the computer. When the Dell logo 1.
appears, press <F8> several times to access
the Vista Advanced Boot Options Window.

Select 2. Repair Your Computer.

The 3. System Recovery Options window
appears.

Select a keyboard layout and click 4. Next.

44

To access the recovery options, log on as a 5.
local user. To access the command prompt,
type administrator in the User name
field, then click OK.

Click 6. Dell Factory Image Restore. The Dell
Factory Image Restore welcome screen
appears.

NOTE: Depending upon your configuration,
you may need to select Dell Factory Tools,
then Dell Factory Image Restore.

Click 7. Next. The Confirm Data Deletion
screen appears.

NOTICE: If you do not want to proceed with
Factory Image Restore, click Cancel.

Click the checkbox to confirm that you want 8.
to continue reformatting the hard drive and
restoring the system software to the factory
condition, then click Next.

Restoring Your Operating System

The restore process begins and may take
five or more minutes to complete. A message
appears when the operating system and
factory-installed applications have been
restored to factory condition.

Click 9. Finish to reboot the system.

Operating System Reinstallation

Before you Begin

If you are considering reinstalling the Windows
operating system to correct a problem with a
newly installed driver, first try using Windows
Device Driver Rollback. If Device Driver
Rollback does not resolve the problem, then
use System Restore to return your operating
system to the operating state it was in before
you installed the new device driver. See “Using
Microsoft Windows System Restore”
on page 42.

NOTICE: Before performing the installation,
back up all data files on your primary
hard drive. For conventional hard drive
configurations, the primary hard drive is the
first drive detected by the computer.

To reinstall Windows, you need the following

Dell Operating System

• media

Dell Drivers and Utilities

• media

NOTE: The
contains drivers that were installed during
the assembly of the computer. Use the
Dell Drivers and Utilities media to load any
required drivers. Depending on the region
from which you ordered your computer, or
whether you requested the media, the

Drivers and Utilities
System

computer.

Dell Drivers and Utilities

media and

media may not ship with your

media

Operating

Dell

45

Restoring Your Operating System

Reinstalling Windows Vista

The reinstallation process can take 1 to 2 hours
to complete. After you reinstall the operating
system, you must also reinstall the device
drivers, virus protection program, and other
software.

Save and close any open files and exit any 1.
open programs.

Insert the 2.

Operating System

disc.

Click 3. Exit if the Install Windows message
appears.

Restart the computer.4.

When the DELL logo appears, press <F12> 5.
immediately.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

46

NOTE: The next steps change the boot
sequence for one time only. On the next
start-up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 6.
CD/DVD/CD-RW Drive and press <Enter>.

Press any key to 7. Boot from CD-ROM.
Follow the instructions on the screen to
complete the installation.

Getting Help

If you experience a problem with your computer,
you can complete the following steps to
diagnose and troubleshoot the problem:

See “Solving Problems” on page 1. 32 for
information and procedures that pertain to
the problem your computer is experiencing.

See “Dell Diagnostics” on page 2. 39 for
procedures on how to run Dell Diagnostics.

Fill out the “Diagnostic Checklist” on 3.
page 51.

Use Dell’s extensive suite of online services 4.
available at Dell Support (support.dell.com)
for help with installation and troubleshooting
procedures. See “Online Services” on
page 48 for a more extensive list of Dell
Support online.

If the preceding steps have not resolved the 5.
problem, see “Contacting Dell” on page 52.

NOTE: Call Dell Support from a telephone
near or at the computer so that the support
staff can assist you with any necessary
procedures.

NOTE: Dell’s Express Service Code system
may not be available in all countries.

When prompted by Dell’s automated telephone
system, enter your Express Service Code to
route the call directly to the proper support
personnel. If you do not have an Express
Service Code, open the Dell Accessories folder,
double-click the Express Service Code icon, and
follow the directions.

NOTE: Some of the services are not
always available in all locations outside
the continental U.S. Call your local
Dell representative for information on
availability.

47

Getting Help

Technical Support and Customer
Service

Dell’s support service is available to answer
your questions about Dell hardware. Our support
staff use computer-based diagnostics to provide
fast, accurate answers.

To contact Dell’s support service, see “Before
You Call” on page 51 and then see the contact
information for your region or go to

support.dell.com.

DellConnect™

DellConnect is a simple online access tool that
allows a Dell service and support associate to
access your computer through a broadband
connection, diagnose your problem and repair it
all under your supervision. For more information,
go to support.dell.com and click DellConnect.

48

Online Services

You can learn about Dell products and services
on the following websites:

www.dell.com•

www.dell.com/ap• (Asian/Pacific countries

only)

www.dell.com/jp• (Japan only)

www.euro.dell.com• (Europe only)

www.dell.com/la• (Latin American and

Caribbean countries)

www.dell.ca• (Canada only)

You can access Dell Support through the
following websites and e-mail addresses:

Dell Support websites

support.dell.com•

support.jp.dell.com• (Japan only)

support.euro.dell.com• (Europe only)

Getting Help

Dell Support e-mail addresses

[email protected]•

[email protected]•

[email protected]• (Latin America and

Caribbean countries only)

[email protected]• (Asian/Pacific
countries only)

Dell Marketing and Sales e-mail addresses

[email protected]• (Asian/Pacific
countries only)

[email protected]• (Canada only)

Anonymous file transfer protocol (FTP)

ftp.dell.com•

Log in as user: anonymous, and use your
e-mail address as your password.

AutoTech Service

Dell’s automated support service–AutoTech–
provides recorded answers to the questions

most frequently asked by Dell customers about
their portable and desktop computers.

When you call AutoTech, use your touch-tone
telephone to select the subjects that correspond
to your questions. For instructions on accessing
the telephone number to call your region, see
“Contacting Dell” on page 52.

Automated Order-Status Service

To check on the status of any Dell products that
you have ordered, you can go to
support.dell.com, or you can call the automated
order-status service. A recording prompts you
for the information needed to locate and report
on your order. For the telephone number to call
your region, see “Contacting Dell” on page 52
for problems with your order.

If you have a problem with your order, such as
missing parts, wrong parts, or incorrect billing,
contact Dell for customer assistance. Have your
invoice or packing slip handy when you call.

49

Getting Help

For the telephone number to call for your region,
see “Contacting Dell” on page 52.

Product Information

If you need information about additional
products available from Dell, or if you would like
to place an order, visit the Dell website at
www.dell.com. For the telephone number to call
for your region or to speak to a sales specialist,
see “Contacting Dell” on page 52.

Returning Items for Repair Under
Warranty or for Credit

Prepare all items being returned, whether for
repair or credit, as follows:

Call Dell to obtain a Return Material 1.
Authorization Number, and write it clearly
and prominently on the outside of the box.

For the telephone number to call for your 2.
region, see “Contacting Dell” on page 52.

Include a copy of the invoice and a letter 3.
describing the reason for the return.

50

Include a copy of the Diagnostics Checklist 4.
(see “Diagnostic Checklist” on page 51),
indicating the tests that you have run
and any error messages reported by the
Dell Diagnostics (see “Dell Diagnostics”
on page 39).

Include any accessories that belong with 5.
the item(s) being returned (power cables,
software, guides, and so on) if the return is
for credit.

Pack the equipment to be returned in the 6.
original (or equivalent) packing materials.

You are responsible for paying shipping 7.
expenses. You are also responsible for
insuring any product returned, and you
assume the risk of loss during shipment to
Dell. Collect On Delivery (C.O.D.) packages
are not accepted.

Returns that are missing any of the 8.
preceding requirements will be refused at
Dell’s receiving dock and returned to you.

Getting Help

Before You Call

NOTE: Have your Express Service Code

ready when you call. The code helps Dell’s
automated-support telephone system direct
your call more efficiently. You may also be
asked for your Service Tag (located on the
back or bottom of your computer).

Remember to fill out the following Diagnostics
Checklist. If possible, turn on your computer
before you call Dell for assistance and call from
a telephone at or near the computer. You may be
asked to type some commands at the keyboard,
relay detailed information during operations, or
try other troubleshooting steps possible only at
the computer itself. Ensure that the computer
documentation is available.

Diagnostic Checklist

Name:•

Date:•

Address:•

Phone number:•

Service Tag (bar code on the back or bottom •
of the computer):

Express Service Code:•

Return Material Authorization Number (if •
provided by Dell support technician):

Operating system and version:•

Devices:•

Expansion cards:•

Are you connected to a network? Yes /No•

Network, version, and network adapter:•

Programs and versions:•

51

Getting Help

See your operating system documentation
to determine the contents of the computer’s
start-up files. If the computer is connected to
a printer, print each file. Otherwise, record the
contents of each file before calling Dell.

Error message, beep code, or diagnostic •
code:

Description of problem and troubleshooting •
procedures you performed:

Contacting Dell

For customers in the United States, call
800- WWW-DELL (800-999-3355).

NOTE: If you do not have an active
Internet connection, you can find contact
information on your purchase invoice,
packing slip, bill, or Dell product catalog.

Dell provides several online and telephone­based support and service options. Availability
varies by country and product, and some
services may not be available in your area.

52

To contact Dell for sales, technical support, or
customer service issues:

Visit 1. support.dell.com.

Verify your country or region in the 2. Choose
A Country/Region drop-down menu at the
bottom of the page.

Click 3. Contact Us on the left side of the page.

Select the appropriate service or support link 4.
based on your need.

Choose the method of contacting Dell that is 5.
convenient for you.

Getting Help

53

Finding More Information and Resources

If you need to: See:

reinstall your operating system. the Operating System media.

run a diagnostic program for your computer,
reinstall notebook system software, or update
drivers for your computer, and readme files.

learn more about your operating system,
maintaining peripherals, RAID, Internet,
Bluetooth

®

, networking, and e-mail.

the

Drivers and Utilities

NOTE: Drivers and documentation updates
can be found on the Dell
at support.dell.com.

the

Dell Technology Guide

hard drive.

media.

™

Support website

installed on your

upgrade your computer with new or additional
memory, or a new hard drive.

reinstall or replace a worn or defective part.

54

the Service Manual on the Dell Support website
at support.dell.com

NOTE: In some countries, opening and
replacing parts of your computer may void
your warranty. Check your warranty and
return policies before working inside your
computer.

If you need to: See:

find safety best practices information for your
computer

review Warranty information, Terms and
Conditions (U.S. only), Safety instructions,

the safety and regulatory documents that
shipped with your computer and also see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.

Regulatory information, Ergonomics
information, and End User License Agreement.

find your Service tag/Express Service Code—

the back or bottom of your computer.
You must use the service tag to identify your
computer on support.dell.com or to contact
technical support.

find drivers and downloads.

access technical support and product help.

the Dell

support.dell.com.

check on your order status for new purchases.

find solutions and answers to common
questions.

locate information for last-minute updates
about technical changes to your computer or
advanced technical-reference material for
technicians or experienced users.

Finding More Information and Resources

™

Support website at

55

Basic Specifications

System Model

Dell Studio 1536/1537

This section provides basic information that you
may need when setting up, updating drivers for,
and upgrading your computer.

NOTE: Offerings may vary by region.
For more information regarding the
configuration of your computer, click
Start → Help and Support and select
the option to view information about your
computer.

56

Processor

Studio 1536

Type L2 cache

®

Sempron™

• AMD
Processor

®

• AMD

Athlon™ Dual Core

Processor

• AMD® Turion™ Dual Core

512 KB (AMD
Sempron)

1 MB (AMD
Athlon, AMD
Turion)

Processor

®

• AMD

Turion™ Ultra Dual

Core Processor

2 MB (AMD
Turion Ultra)

Basic Specifi cations

Processor

Studio 1537

Type L2 cache

®

Core™ 2 Duo

Intel
Processor

®

Intel

Pentium® Dual-Core

Processor

Intel® Celeron® Dual-Core
Processor

®

Intel

Celeron® Processor

512 KB (1 MB
(Intel Pentium,
Intel Celeron)

2 MB or 3 MB
(Intel Core 2
Duo)

6 MB (Intel Core
2 Duo)

L1 cache 64 KB (Intel - 32

KB per core)

256 KB (AMD ­128 KB per core)

Processor

External bus frequency Up to 1800 MHz

(Studio 1536)

Up to 1066 MHz
(Studio 1537)

ExpressCard

ExpressCard
controller

ExpressCard
connector

AMD M780G (Studio 1536)

Intel ICH9M (Studio 1537)

one ExpressCard slot
(54 mm)

Cards supported ExpressCard/34 (34 mm)

ExpressCard/54 (54 mm)

1.5 V and 3.3 V

ExpressCard

26 pins

connector size

57

Basic Specifi cations

Memory

Connectors two user-accessible

SODIMM connectors

Capacities 512 MB, 1 GB, and

2 GB

Memory type 800 MHz SODIMM

DDR2

Minimum Memory 512 MB (single

channel)

Maximum Memory 4 GB (dual channel

2G x2)

NOTE: For instructions on upgrading your
memory, see the Service Manual on the
Dell Support website at support.dell.com.

58

Computer Information

System Chipset RS780M + SB700

(Studio 1536)

Intel GM/PM 45 +
ICH9M
(Studio 1537)

Data bus width 64 bits

DRAM bus width dual channel (2)

64-bit buses

Processor address
bus width

Flash EPROM 2 MB

Graphics bus PCI-E X16

PCI bus 32 bits

32 bits

Basic Specifi cations

Communications

Modem type External V.92 56K USB

Modem

Modem controller Hardware Modem

Modem interface Universal Serial Bus

(USB)

Network adapter 10/100/1000 Ethernet LAN

on system board

Wireless internal WLAN

(half-size Mini-Card),
WWAN, Mini-Card with
Bluetooth

®

wireless

technology

WWAN ExpressCard

Bluetooth

®

wireless

technology

WiMax/Wifi Link half
mini-card

Video

Discrete

Video type integrated on system board

video controller ATI Mobility Radeon HD

3450

video memory GDDR2 256MB

UMA

Video type integrated on system board

Video controller Mobile Intel GMA

4500MHD, ATI Radeon

™

HD 3200 Graphics

video memory Intel: Up to 358 MB of

shared memory

AMD: Up to 256 MB of
shared memory
(32 MB dedicated local
frame buffer)

59

Basic Specifi cations

Video

LCD interface LVDS

TV support HDMI 1.2

Audio

Audio type IDT 92HD73C High

Definition Audio codec

Audio controller 5.1 channel High

Definition Audio

Stereo conversion 24-bit (analog-to-digital

and digital-to-analog)

Internal Interface Intel High Definition

Audio

External Interface microphone-in

connector, stereo
headphones/speakers
connector

Speaker two 4-ohm speakers

60

Audio

Internal speaker
amplifier

2 Watt per channel into
4 ohms

Volume controls program menus, media

control buttons

Ports and Connectors

Audio

microphone connector, two
stereo headphone/speakers
connector

IEEE 1394a 4-pin serial connector

(optional)

Consumer IR sensor compatible with

Philips RC6 (receive only)

Mini-Card one Type IIIA Mini Card

slots, one half-size Mini
Card slot

Network

RJ-45 port

adapter

Basic Specifi cations

Ports and Connectors

eSATA one seven-pin/four-

pin eSATA/USB combo
connector

USB four 4-pin USB 2.0-compliant

connectors

Video 15-hole connector

HDMI 19 pin

Display

Type (TrueLife) 15.4-inch WLED WXGA TL

15.4-inch WLED WXGA+ TL

15.4-inch CCFL WUGA TL

Dimensions:

Height 207 mm (8.14 in)

Width 331.2 mm (13.03 in)

Display

Diagonal 391.2 mm (15.4 in)

Maximum resolution

WXGA with
TrueLife

WXGA+ with
TrueLife

WUXGA with
TrueLife

Refresh rate 60 Hz

Operating
angle

1280 x 800

1440 x 900 at 262 K colors

1600 x 1200 at 262 K colors

0° (closed) to 140°

Viewing Angles:

Horizontal ±40° (WXGA with TrueLife)

±55° (WXGA+ with TrueLife)

±55° (WUXGA with TrueLife)

61

Basic Specifi cations

Display

Vertical +15°/–30° (WXGA with

TrueLife)

±45° (WXGA+ with TrueLife)

±45° (WUXGA with TrueLife)

Pixel pitch

WXGA with
TrueLife

WXGA+ with
TrueLife

WUXGA with
TrueLife

Controls brightness can be controlled

0.258 mm

0.2304 mm

0.1725 mm

through keyboard shortcuts

Dell Technology Guide

(see
for more information.)

62

Keyboard

Number of keys 86 (U.S. and Canada);

102 (Europe); 105 (Japan);
104 (Brazil)

Layout QWERTY/AZERTY/Kanji

Camera (optional)

Pixel 2.0 megapixel

Video
resolution

Diagonal
viewing angle

320x240 ~1600x1200 (640x480
at 30fps)

66°

Basic Specifi cations

Touch pad

X/Y position
resolution (graphics
table mode)

240 cpi

Size:

Width 73.09 mm (2.87-in)

sensor-active area

Height 40.09 mm (1.57-in)

rectangle

Battery

Type 4-cell/6-cell/9-cell “smart”

lithium ion

Depth 48.3 mm (1.9 inches) (4/6/9

cell)

Height 20.4 mm (0.8 in) (4/6 cell)

37.8 mm (1.5 in) (9 cell)

Battery

Width 206.6 mm (8.13 in) (4/6 cell)

284.9 mm (11.2 in) (9 cell)

Weight 0.24 kg (0.54 lb) (4 cell)

0.34 kg (0.75 lb) (6 cell)

0.5 kg (1.1 lb) (9 cell)

Voltage 11.1 VDC (6/9 cell)

14.8 VDC (4 cell)

Charge time
(approximate):

Computer off

4 hours

63

Basic Specifi cations

Battery

Operating time Battery operating time

varies depending on
operating conditions and
can be significantly reduced
under certain power­intensive conditions.

See

Dell Technology Guide

for more information..

Life span
(approximate)

300 discharge/charge
cycles

Temperature range:

Operating 0° to 35°C (32° to 95°F)

–

Storage

Coin-cell

40° to 65°C (–40° to 149°F)

CR-2032

battery

64

AC Adapter

Input voltage 100–240 VAC

Input current

1.5 A

(maximum)

Input frequency 50–60 Hz

Output power 65 W or 90 W

Output current (90 W) 5.62 A (maximum at

4-second pulse)

4.62 A (continuous)

Output current (65 W) 4.34 A (maximum at

4-second pulse)

3.34 A (continuous)

Rated output voltage 19.5 +/- 1 VDC

Dimensions:

65 W (E-Series)

Height 16 mm (0.6 in)

Basic Specifi cations

AC Adapter

Width 66 mm (2.6 in)

Depth 127 mm (5.0 in)

Weight (with cables) 0.29 kg (0.64 lb)

90 W (E-Series)

Height 16 mm (0.6 in)

Width 70 mm (2.8 in)

Depth 147 mm (5.8 in)

Weight (with cables) 0.345 kg (0.76 lb)

Temperature ranges:

Operating 0° to 35°C (32° to

95°F)

Storage

–

40° to 65°C (–40° to

149°F)

Physical

Height 25.3 mm to 38 mm

(1.0 in to 1.5 in)

Width 355.6 mm (14.0 in)

Depth 261.5 mm (10.30 in)

Weight (with 4-cell
battery):

Configurable to less than

2.68 kg (5.91 lb)

Relative humidity (maximum):

Operating 10% to 90%

(noncondensing)

Storage 5% to 95%

(noncondensing)

65

Basic Specifi cations

Physical

Maximum vibration (using a random-vibration
spectrum that simulates user environment):

Operating 0.66 GRMS

Storage 1.3 GRMS

Maximum shock (measured with hard drive
in head-parked position and a 2-ms half-sine
pulse):

Operating 110 G

Storage 163 G

Altitude (maximum):

Operating

–

15.2 to 3048 m

–

50 to 10,000 ft)

(

66

Physical

Storage

Airborne contaminant
level

–

15.2 to 10,668 m

–

50 to 35,000 ft)

(

G2 or lower
as defined by
ISA-S71.04-1985

Appendix

Macrovision Product Notice

This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering
or disassembly is prohibited.

67

Index

A

AC adapter

size and weight 64, 65

airflow, allowing 5

AutoTech 49

B

backups

creating 31

C

calling Dell 51

CDs, playing and creating 30

chipset 58

computer capabilities 30

computer, setting up 5

68

connect(ing)

to the Internet 10

conserving energy 31

Contacting Dell online 52

customer service 48

customizing

your desktop 30

your energy settings 31

D

damage, avoiding 5

data, backing up 31

DellConnect 48

Dell Diagnostics 39

Dell Factory Image Restore 42

Index

Dell Support Center 37

Dell support website 55

Dell Technology Guide

for further information 54

device status lights 14

Diagnostic Checklist 51

disc drive

supported disc sizes 29

discs

ejecting 29

using 29

drivers and downloads 55

DVDs, playing and creating 30

E

email addresses

for technical support 49

energy

conserving 31

expansion bus 59

F

finding more information 54

FTP login, anonymous 49

H

hardware problems

diagnosing 39

Hardware Troubleshooter 39

help

getting assistance and support 47

horizontal and vertical stand options 6

I

installing the stand 6

Internet connection 10

69

Index

ISP

Internet Service Provider 10

M

memory problems

solving 34

memory support 58

Microsoft™ Windows Vista

N

network connection

fixing 32

network speed

testing 32

O

order status 49

70

P

power problems, solving 33

power strips, using 6

problems, solving 32

processor 56

products

®

10

information and purchasing 50

R

reinstalling Windows 42

resources, finding more 54

restoring factory image 43

S

setup, before you begin 5

shipping products

for return or repair 50

software features 30

software problems 35

Index

solving problems 32

specifications 56

support email addresses 49

support sites

worldwide 48

System Messages 37

system reinstall options 42

System Restore 42

T

technical support 48

V

ventilation, ensuring 5

W

warranty returns 50

Windows, reinstalling 42

Windows Vista

Program Compatibility Wizard 36

reinstalling 46

setup 10

wired network

network cable, connecting 8

wireless network connection 32

wireless switch 7, 14, 32

®

71

Printed in the U.S.A.

www.dell.com | support.dell.com

Printed in Malaysia.

www.dell.com | support.dell.com

Printed in China.

Printed on recycled paper.

www.dell.com | support.dell.com

Printed in Brazil.

www.dell.com | support.dell.com

Printed in Ireland.

www.dell.com | support.dell.com
