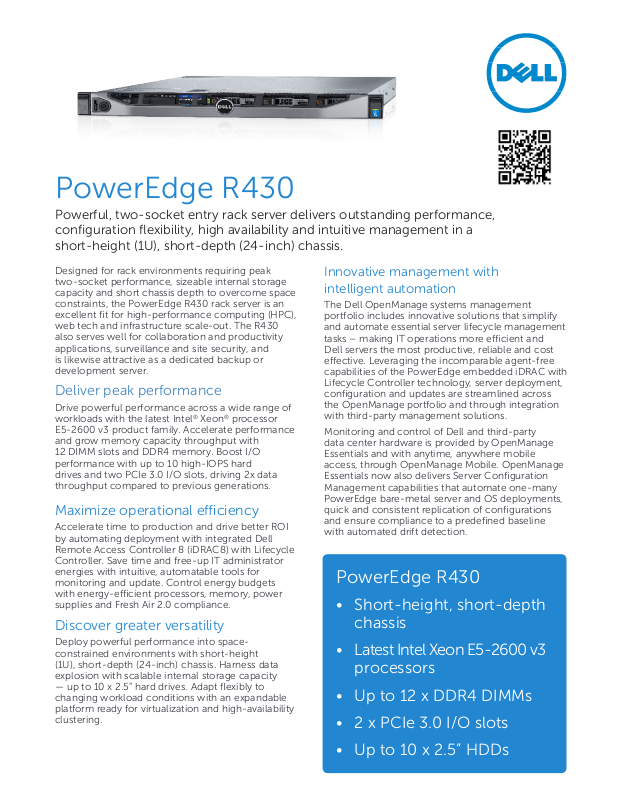

PowerEdge R430

Powerful, two-socket entry rack server delivers outstanding performance,

conguration exibility, high availability and intuitive management in a short-height (1U), short-depth (24-inch) chassis.

Designed for rack environments requiring peak two-socket performance, sizeable internal storage capacity and short chassis depth to overcome space constraints, the PowerEdge R430 rack server is an

excellent t for high-performance computing (HPC),

web tech and infrastructure scale-out. The R430 also serves well for collaboration and productivity applications, surveillance and site security, and is likewise attractive as a dedicated backup or development server.

Deliver peak performance

Drive powerful performance across a wide range of workloads with the latest Intel® Xeon® processor E5-2600 v3 product family. Accelerate performance and grow memory capacity throughput with 12 DIMM slots and DDR4 memory. Boost I/O performance with up to 10 high-IOPS hard

drives and two PCIe 3.0 I/O slots, driving 2x data

throughput compared to previous generations.

Maximize operational eciency

Accelerate time to production and drive better ROI by automating deployment with integrated Dell

Remote Access Controller 8 (iDRAC8) with Lifecycle Controller. Save time and free-up IT administrator

energies with intuitive, automatable tools for

monitoring and update. Control energy budgets with energy-ecient processors, memory, power

supplies and Fresh Air 2.0 compliance.

Innovative management with intelligent automation

The Dell OpenManage systems management portfolio includes innovative solutions that simplify and automate essential server lifecycle management

tasks – making IT operations more ecient and

Dell servers the most productive, reliable and cost

eective. Leveraging the incomparable agent-free capabilities of the PowerEdge embedded iDRAC with Lifecycle Controller technology, server deployment, conguration and updates are streamlined across

the OpenManage portfolio and through integration with third-party management solutions.

Monitoring and control of Dell and third-party data center hardware is provided by OpenManage Essentials and with anytime, anywhere mobile access, through OpenManage Mobile. OpenManage

Essentials now also delivers Server Conguration

Management capabilities that automate one-many PowerEdge bare-metal server and OS deployments,

quick and consistent replication of congurations and ensure compliance to a predened baseline

with automated drift detection.

PowerEdge R430

• Short-height, short-depth

Discover greater versatility

Deploy powerful performance into spaceconstrained environments with short-height

(1U), short-depth (24-inch) chassis. Harness data

explosion with scalable internal storage capacity

— up to 10 x 2.5” hard drives. Adapt exibly to

changing workload conditions with an expandable platform ready for virtualization and high-availability clustering.

chassis

• Latest Intel Xeon E5-2600 v3 processors

• Up to 12 x DDR4 DIMMs

• 2 x PCIe 3.0 I/O slots

• Up to 10 x 2.5” HDDs

Feature PowerEdge R430 technical specication

Form factor 1U rack server

Intel® Xeon® processor E5-2600 v3 product family Processor sockets: 2

Processor

Chipset: C610 Internal interconnect: Up to 9.6GT/s Cache: 2.5MB per core; core options: 6, 8, 10, 12, 16

Memory

DDR4 DIMMs at up to 2133MT/s

12 DIMM slots: 2GB/4GB/8GB/16GB/32GB

I/O slots 2 PCIe 3.0

SAS, SATA, nearline SAS, SSD Multiple R430 chassis available:

Storage

• 10 x 2.5” hot-plug drives

• 8 x 2.5” hot-plug drives

• 4 x 3.5” hot-plug drives

• 4 x 3.5” cabled drives

RAID controllers

Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830

Communications

4 x 1GbE LOM Add-in network interface cards (NICs) and host bus adapters (HBAs)

Power supplies 450W, 550W PSU

Systems management: IPMI 2.0 compliant;

Dell OpenManage Essentials; Dell OpenManage Mobile;

Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for

Microsoft® System Center

• Dell OpenManage Integration for VMware®

Systems management

Remote management iDRAC8 with Lifecycle Controller,

iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

vCenter™

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool®

and CA Network and Systems Management

• Dell OpenManage Plug-in for Oracle® Database

Manager

Optional supported hypervisors

Citrix® XenServer®, VMware vSphere ESXi™, Red Hat® Enterprise Virtualization

Microsoft Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2

Operating systems

Microsoft Windows HPC Server 2008 Novell® SUSE® Linux Enterprise Server Red Hat Enterprise Linux

VMware ESX

For more information on the specic versions and additions, visit Dell.com/OSsupport.

Rack support

OEM-ready version available

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled

mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com/OEM.

Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your

Recommended support

GB equals 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less.

PowerEdge solution. Consulting and deployment oerings are also available. Contact your Dell representative

today for more information. Availability and terms of Dell Services vary by region. For more information, visit

Dell.com/Services.

End-to-end technology solutions

Reduce IT complexity, lower costs and eliminate ineciencies by making IT and business solutions work harder for you.

You can count on Dell for end-to-end solutions to maximize your performance and uptime. A proven leader in Servers,

Storage and Networking, Dell Enterprise Solutions and Services deliver innovation at any scale. And if you’re looking to preserve cash or increase operational eciency, Dell Financial Services™ has a wide range of options to make technology acquisition easy and aordable. Contact your Dell Sales Representative for more information.**

Learn More at Dell.com/PowerEdge.
