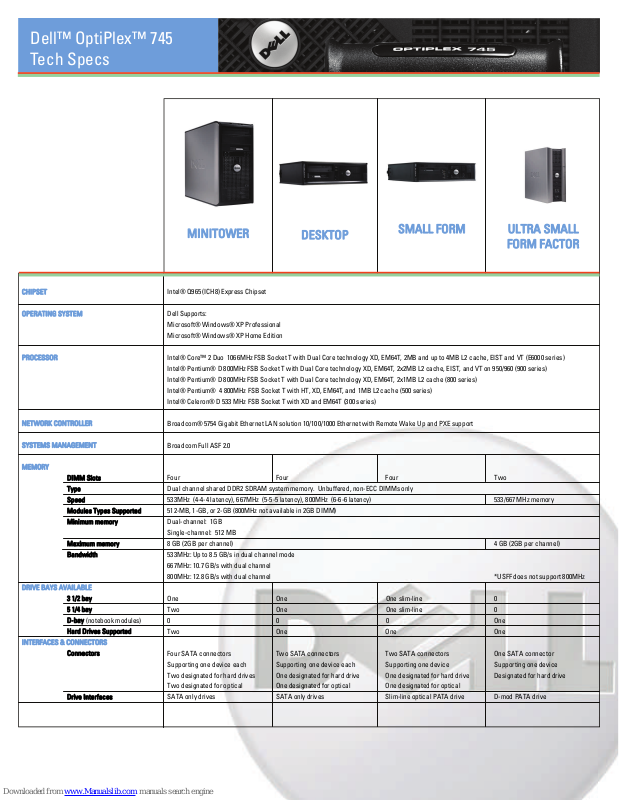

Dell OptiPlex 745 DESKTOP, OptiPlex 745 MINITOWER, OptiPlex 745 SMALL FORM FACTOR, OptiPlex 745 ULTRA SMALL FORM FACTOR Tech Specs
Page 1
Dell™ OptiPlex™ 745
Tech Specs
MINITOWER
DESKTOP
SMALL FORM ULTRA SMALL
FORM FACTOR
CHIPSET Intel® Q965 (ICH8) Express Chipset
OPERATING SYSTEM Dell Supports:
Microsoft® Windows® XP Professional
Microsoft® Windows® XP Home Edition
PROCESSOR Intel® Core™ 2 Duo 1066MHz FSB Socket T with Dual Core technology XD, EM64T, 2MB and up to 4MB L2 cache, EIST and VT (E6000 series)
Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x2MB L2 cache, EIST, and VT on 950/960 (900 series)
Intel® Pentium® D 800MHz FSB Socket T with Dual Core technology XD, EM64T, 2x1MB L2 cache (800 series)
Intel® Pentium® 4 800MHz FSB Socket T with HT, XD, EM64T, and 1MB L2 cache (500 series)
Intel® Celeron® D 533 MHz FSB Socket T with XD and EM64T (300 series)
NETWORK CONTROLLER Broadcom® 5754 Gigabit Ethernet LAN solution 10/100/1000 Ethernet with Remote Wake Up and PXE support
SYSTEMS MANAGEMENT Broadcom Full ASF 2.0
MEMORY
DIMM Slots Four Four Four Two
Type Dual channel shared DDR2 SDRAM system memory. Unbuffered, non-ECC DIMMs only
Speed 533MHz (4-4-4 latency), 667MHz (5-5-5 latency), 800MHz (6-6-6 latency) 533/667 MHz memory
Modules Types Supported 512-MB, 1-GB, or 2-GB (800MHz not available in 2GB DIMM)
Minimum memory Dual-channel: 1GB
Single-channel: 512 MB
Maximum memory 8 GB (2GB per channel) 4 GB (2GB per channel)
Bandwidth 533MHz: Up to 8.5 GB/s in dual channel mode
667MHz: 10.7 GB/s with dual channel
800MHz: 12.8 GB/s with dual channel *USFF does not support 800MHz
DRIVE BAYS AVAILABLE
3 1/2 bay One One One slim-line 0
5 1/4 bay Two One One slim-line 0
D-bay (notebook modules) 0 0 0 One
Hard Drives Supported Two One One One
INTERFACES & CONNECTORS
Connectors Four SATA connectors Two SATA connectors Two SATA connectors One SATA connector
Supporting one device each Supporting one device each Supporting one device Supporting one device
Two designated for hard drives One designated for hard drive One designated for hard drive Designated for hard drive
Two designated for optical One designated for optical One designated for optical
Drive Interfaces SATA only drives SATA only drives Slim-line optical PATA drive D-mod PATA drive
Page 2
Dell™ OptiPlex™ 745
Tech Specs
HARD DRIVE OPTIONS
Supported Types Serial ATA or Serial ATA 3.0
Available Drives 7200RPM SATA 3.0Gb/s: 80GB, 160GB, 250GB
10K RPM SATA 1.5Gb/s: 80GB
SMART Technology SMART III
Burst Transfer Rate 300 Mbit/s
Partition Support MS Windows XP Professional SP2: Support both FAT16 and FAT32. FAT32 will be the default configuration
MS Windows XP Home SP2: Support both FAT16 a
SYSTEM BOARD CONNECTORS
Serial ATA Four 7-pin connectors Two 7-pin connectors Two 7-pin connectors One 7-pin connector
Floppy drive 34-pin connector
Serial 12-pin connector, optional second serial port card (not available on USFF)
Fan 5-pin connector
PCI 2.3 120-pin connector
Front panel 40-pin connector
STANDARD I/O PORTS
Display Port 1 VGA Out (15-hole) DVI-I Out
USB 2.0 Two front and six rear Two front and five rear
Serial Port One, rear. One rear
Optional Adapters One, rear. 12-pin proprietary connector for PS/2 adapter or a second serial port. Not available on USFF
Internal USB 10-pin connector for optional media bay device
Parallel Port One, rear (25-hole, bi-directional)
Ethernet Network One, rear (RJ45)
Stereo line-in One minijack, rear
Speakers, line-out One minijack, rear
Microphone-in One minijack, front
Headphone One minijack, front
COMPUTER INFORMATION
System Clock Utilizes the CK-505 clock synthesizer chip, which incorporates Intel specifications for clock generation
Data bus width 64 bits
Address bus width 36 bits
DMA channels Eight
Interrupt levels 24
EXPANSION BUS INFORMATION
PCI 2.3 PCI: 33 MHz
PCI Express 1.0a PCI Express x1: 5 Gbps
PCI Express x16: 80 Gbps
SATA 1.0a and 2.0 SATA: 1.5 and 3.0 Gbps
USB 2.0 USB: 480 Mbps
PCI-E x1 Available slots One full height Not available Not available Not available
Connector Size 36 pins
Data Bus One bi-directional differential lane
pair (2.5Gbs per lane) 5Gbs total
Voltage 3.3V
Power 10 W (x1)
PCI Available slots Two Full-Height Two Low-Profile on board One Low-Profile Not available
Riser options: *
- Dual PCI Riser
- Combo x16/PCI Riser
Connector size 120 pins
Data Bus 32Bit/33MHz
Voltage 3.3 Volt External Operation (some pins 5 Volt Tolerant); 1.8V internal regulation
PCI Express x16 One Full-Height One Low-Profile One Low-Profile Not available
Available slots Riser option: *
Combo x16/PCI Riser
Co
Data Bus 16 bi-directional differential lane pair (2.5Gbs per lane) 80Gbs total
Voltage 12V
Power 75 W (x16) maximum
* One low-profile slot remains available on board when riser installed
nnector Size 164 pins
MINITOWER
* Front ports may be disabled
DESKTOP
4
7200RPM
SMALL FORM
FACTOR
ULTRA SMALL
FORM FACTOR
Page 3
Dell™ OptiPlex™ 745
Tech Specs
Integrated Intel Graphics Media Accelerator 965
Graphics Core Intel® Graphics Media Accelerator 3000
Memory None dedicated. Uses up to 256MB shared with system memory
Maximum Resolution Supports 640 x 480 up to 1920 x 1200 (refresh rates and additional resolutions are dependant on display)
RAMDAC 400MHz, 24-bit
Display Interface VGA DB-15 (analog) DVI-I native. Optional Y-dongle
Cable provides VGA output.
Dual Monitor Support Yes, in conjunction with discrete graphics card Yes, with dual dongle
Display Rotation Support Yes
Core Processor Speed 667MHz
3D Setup & Render Engine Supports D3D and OGL Pixilation Rules
Controller clock speed (MHz) Core Frequency: 667MHZ
sDVO Frequency: 270MHz
DVI (Digital) Adapter Card
Memory Uses integrated graphics. No memory dedicated Not available
Card Type Intel digital video output via PCI Express Integrated graphics only
Maximum Resolution 1920 x 1200 @ 60 Hz & 16.7 million colors DVI-I output
Display Interface DVI-D
Dual Monitor Support Extended Desktop using two display adapters
Clone and Twin display capabilities
Options Full height or low profile
Details Uses Integrated Graphics—Intel digital video output via PCI Express
128MB ATI Radeon® X1300
Memory 128MB DDR SDRAM Not available
Card Type PCI Express X16 Integrated graphics only
Maximum Resolution 1920 x 1200 @ 75 Hz & 16.7 million colors DVI-I output
RAMDAC Dual 400MHz
Display Interface Single DVI-I (VGA via included DVI to VGA Adapter) and S-Video TV-Out
Dual Monitor Support No
Display Rotation Support Yes
Options Full height or low profile
256MB ATI Radeon™ X1300 Pro
Memory 256MB DDR SDRAM Not available
Card Type PCI Express X16 Integrated graphics only
Maximum Resolution 1920 x 1200 @ 75Hz & 16.7 million colors DVI-I output
RAM
Display Interface Dual VGA (DB-15) or DVI via optional DMS-59 cables
Dual Monitor Support Yes
Display Rotation Support Yes
Options Full height or low profile
AUDIO
Type ADI 1983 High Definition Audio
Stereo conversion 20-bit analog-to-digital; 20-bit digital-to-analog
DAC Dual 400MHz
MINITOWER
DESKTOP
SMALL FORM
FACTOR
ULTRA SMALL
FORM FACTOR
Page 4
Dell™ OptiPlex™ 745
Tech Specs
POWER
DC Power Supply - Wattage 305W 280W 275W 220W (External power brick)
Power Efficiency 76% 76% 76% 80%
Heat Dissipation * 1041 BTU/hr 956 BTU/hr 939 BTU/hr 751 BTU/hr
* NOTE: Heat dissipation is calculated based upon the power supply rating. Does not include peripherals.
Voltage - Manual selection Manual selection power supplies: 90 to 135 V at 50/60 Hz; 180 to 265 V at 50/60 Hz External - Auto sensing
Backup battery 3-V CR2032 coin cell, Lithium ion
POWER MANAGEMENT
ACPI Wake-Up Event
Power Button Suspend or soft-off
RTC Alarm Suspend or soft-off
Wake On LAN Suspend or soft-off
PME Suspend or soft-off
Serial Port Ring Suspend or soft-off
USB Suspend only
Keyboard Suspend only
Mouse Suspend only
CHASSIS DIMENSIONS
Height 41.4 cm (16.3 inches) 11.4 cm (4.5 inches) 9.26 cm (3.65 inches) 26.4 cm (10.37 inches)
Width 18.5 cm (7.3 inches) 39.9 cm (15.7 inches) 31.37 cm (12.35 inches) 8.9 cm (3.5 inches)
Depth 43.8 cm (17.3 inches) 35.3 cm (13.9 inches) 34.03 cm (13.4 inches) 25.3 cm (9.95 inches)
Weight 12.34 kg (27.2 lb) 10.4 kg (23 lb) 7.4 kg (16.4 lb) 4.5 kg (10 lb)
Volume 33 Liters 15.7 Liters 9.97 Liters 6 Liters
PHYSICAL ATTRIBUTES
Temperature
Operating 10° to 35°C (50° to 95°F) 10° to 30°C (50° to 86°F)
Storage –40° to 65°C (–40° to 149°F)
Relative humidity 20% to 80% (non-condensing)
Maximum vibration
Operating 0.25 G at 3 to 200 Hz at 0.5 octave/min
Storage 0.5 G at 3 to 200 Hz at 1 octave/min
Maximum shock
Operating Bottom half-sine pulse with a change in velocity of 50.8 cm/sec (20 inches/sec)
Storage 27-G faired square wave with a velocity change of 508 cm/sec (200 inches/sec)
Altitude
Operating –15.2 to 3048 m (–50 to 10,000 ft)
Storage –15.2 to 10,668 m (–50 to 35,000 ft)
System Wakes From
MINITOWER
DESKTOP
SMALL FORM
FACTOR
ULTRA SMALL
FORM FACTOR
Page 5
Dell™ OptiPlex™ 745
ech Specs
T

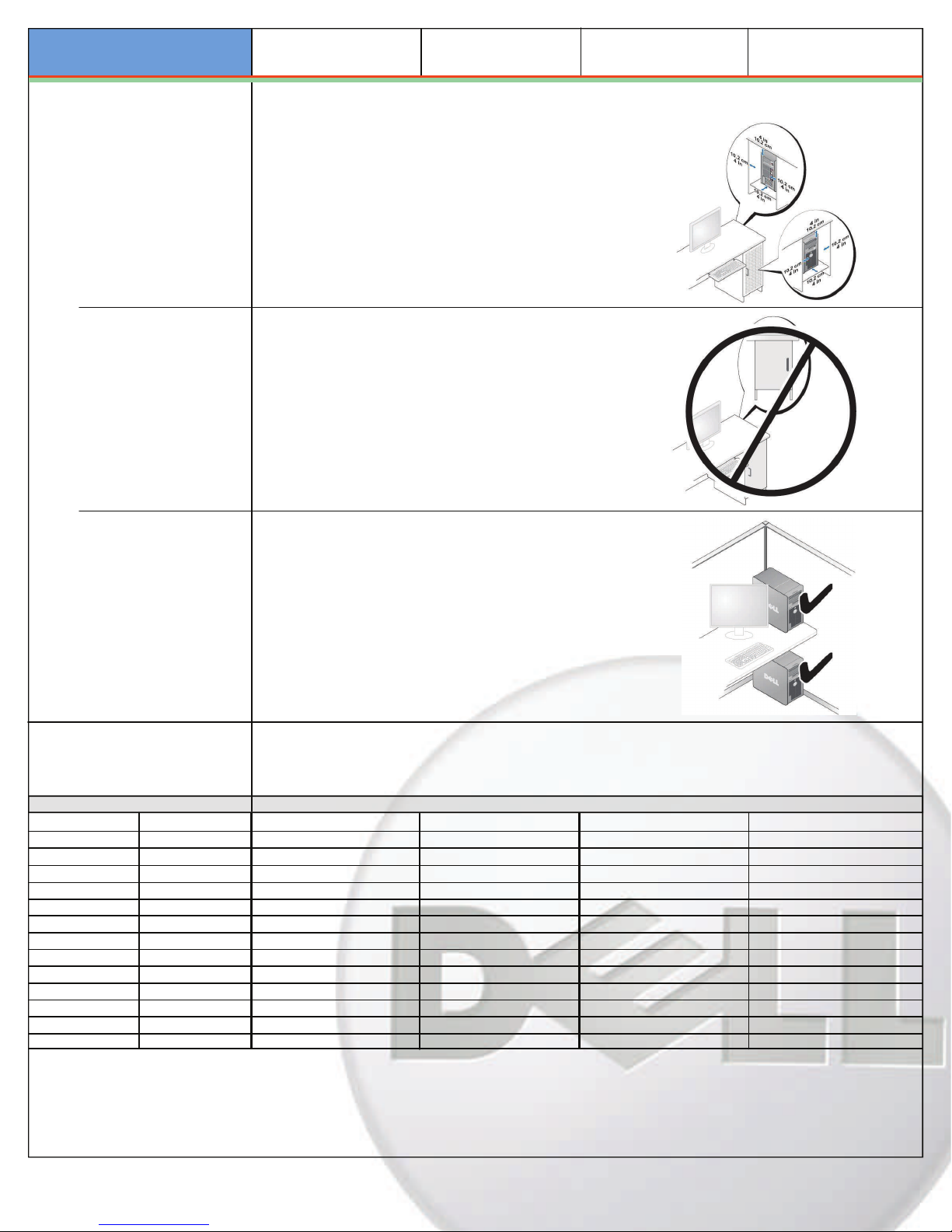

NCLOSURE & VENTILATION REQUIREMENTS
E
En
Rec
po
ANDARDS
ST
BI
OS Factory Defaul
IOS address
B
IOS chip (NVRAM)
B
up Option
Set
Parall
Parall
Wak
e on LAN
T
EIS
O
nboard Audio
oard Modem
Onb
Flex bay
xecute Disable
E
oard NIC
Onb
PS2 Mouse On Smart drive error report Off Fast Boot On
On
board USB
closure Ventilation
least 30% airflow through the enclosure (front and back).
Enclosure Minimum Clearance
computer to permit the airflow required for proper ventilation.
ommended Enclosure Do not install your computer in an enclosure that does not allow airflow.
This restricts the airflow and impacts your computer’s performance,
Open Desk Minimum Clearance
leave at least 5.1 cm (2 in.) clearance from the back of the computer
to the wall to permit the airflow required for proper ventilation.
TUV, UL, VCCI, USB 2.0, WEEE
ts (All Chassis
el Port mode
el Port address
)
F0000h
8Mb Mo
efault Factory Value
D
PS/2 Ke
378 Keyboard
Of
f
Off
On
On Prima
O
On Chas
On
On A
n (no boot)
(without PXE)
Su
our enclosure has doors, they need to be of a type that allows at
If y
Leave a 10.2 cm (4 in.) minimum clearance on all vented sides of the
ssibly causing it to overheat.
If y
our computer is installed in a corner, on a desk, or under a desk,
TCO99, Blue Angel, Green PC, Energy Star, BSMI, C-TICK, CE, FCC, IRAM, NEMKO, NFPA99, SABS, SASO, TCO,
USB front panel
dule bay
Serial
TPM
#1 Port
yboard Num lock
O
nboard Video
HD Acoustic mode
Onboard Video buffer
ry Video Add-in
spend mode
sis intrusion
/C recovery Off
OWER
MINIT
error report
SKTOP
DE
On
On Passwor
Auto
Report SA
On Flop
Auto Limit
ass
Byp
8MB HD
H
S3
On A
Off SERR
S
MALL FORM
FACTOR
Low power mode
d Disabled
POST hot keys
TA drives
py Internal
CPUID Off
ttings
ASF Se
Password
yper-threading
Auto Power on
uto Power time
Of
Se
On
Of
D
On
Off
12:00
On
TRA SMALL
UL
FORM
f
tup & Boot Menu
f
isabled
am
FACTOR
Page 6
Dell™ OptiPlex™ 745
Tech Specs
DISPLAYS CRT 17” E773s (16.0” viewable) Conventional CRT
17” E773MM (16.0” viewable) Multimedia CRT
Dell Flat Panel Analog 15” E157FP Flat Panel
17” E177FP Flat Panel
19” E197FP Flat Panel
Dell UltraSharp™ 17” UltraSharp™ 1707FP
Digital Flat Panel 17” UltraSharp™ 1707FPV
Adjustable Stand, VGA/DVI 19” UltraSharp™ 1907FP
19” UltraSharp™ 1907FPV
20” UltraSharp™ 2007FP
Dell Widescreen UltraSharp™ 20” Widescreen UltraSharp™ 2007FPW
Digital Flat Panel 24” Widescreen UltraSharp™ 2407FPW
Dell All-In-One UltraSharp™ None UltraSharp™ 1706FP All-In-One
Solution
PERIPHERALS
Keyboard Dell USB Keyboard, No Hot Keys
Dell USB Enhanced Multimedia Keyboard
Smart Card Reader USB Keyboard
Bluetooth Keyboard
Mouse Dell USB 2-Button Entry Mouse with Scroll, Black
Dell USB 2-Button Optical Premium Mouse with Scroll, Black
Bluetooth Mouse
Audio Internal Dell Business Audio Speaker
Dell A225 Stereo Speakers
Dell A525 Speakers
Dell AS501 Sound Bar - UltraSharp Flat Panel Attachable Speakers
Dell AS501PA Sound Bar - Entry FP Attachable Speakers
Optical Storage Drive 48X CD-ROM SATA 24X Slimline CD-ROM Drive
16X DVD-ROM SATA 8X Slimline DVD-ROM
48X32 CDRW/DVD Combo SATA 24X Slimline CDRW/DVD Combo
16X DVD+/-RW SATA 8X Slimline DVD+/-RW
Additional Storage 3.5" 1.44MB FDD Slimline 1.44MB FDD
USB 2.0 Memory Key: 256MB, 512MB
Dell 13 in 1 USB Media Card Reader
Communications Integrated Broadcom 10/10/10000Mb LOM
Dell V.92 PCI Data/Fax Controllerless Modem
Broadcom NetXtreme 10/100/1000 PCIe Gigabit Controller Card (Full Height or Low-profile)
Dell Wireless 1450 (802.11 a/b/g) WLAN USB 2.0 DT Adapter, 13 Channel
MINITOWER
DESKTOP
SMALL FORM
FACTOR
ULTRA SMALL
FORM FACTOR
1. The term Gigabit Ethernet does not connote an actual operating speed of 1 GB/sec. For high speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
2. Up to 256MB of system m emory may be allocated to support graphics, depending on system memory size and other factors.
3. The total amount of usable memory available will be less than 4 GB, depending on the actual system configuration
4. For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating system and will be less.
5. Di scs burned with this drive may not be compat ible with some existing drives and players ; using DVD+R media provides maximum compatibility.
6. For a copy of Dell’s guarantees or limited warranties , please write Dell USA L.P., A ttn: Warranties, One Dell Way, Round Rock, TX 78682. For more information, visit www.dell.com/us/en/gen/services/service_service_plans.htm.
7. Ser vice may be provided by third-party. Tech nician will be dispatched if necessary f ollowing phone based troubleshootin g. Subject to parts availability, geographical restrictions and terms of service contract. Service timing dependent upon time of
day call placed to Dell. U.S. only.
Dell OptiPlex is a tra demark of Dell Inc. Intel, Inte l inside logo and Pentium are r egistered trademarks of Intel Cor poration. Microsoft Windows XP is a registered trademarks of Microsoft Corporation. Other tr ademarks and trade names are us ed to identify the
entities claiming the marks and names of their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. © Copyright 2005 Dell Inc. All rights reserved.
Loading...
