Dell OpenManage Server Administrator Version 7.4 CIM Reference Guide

Dell OpenManage Server Administrator Version 7.4

CIM Reference Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

2014 - 03

Rev. A00

Contents

1 Introduction................................................................................................................7

Server Administrator.............................................................................................................................. 7

What’s New in This Release...................................................................................................................7

Documenting CIM Classes and Their Properties................................................................................. 7

Base Classes.....................................................................................................................................8

Parent Classes..................................................................................................................................9

Classes That Describe Relationships.............................................................................................. 9

Dell-Defined Classes....................................................................................................................... 9

Common Properties of Classes............................................................................................................9

Other Documents You May Need.......................................................................................................11

Typographical Conventions................................................................................................................12

2 CIM_Physical Element........................................................................................... 13

CIM_PhysicalElement..........................................................................................................................13

CIM_PhysicalPackage......................................................................................................................... 14

CIM_PhysicalFrame............................................................................................................................. 15

CIM_Chassis........................................................................................................................................ 16

DELL_Chassis.......................................................................................................................................17

CIM_PhysicalComponent................................................................................................................... 18

CIM_Chip.............................................................................................................................................19

CIM_PhysicalMemory.........................................................................................................................20

CIM_PhysicalConnector.....................................................................................................................22

CIM_Slot..............................................................................................................................................24

3 CIM_LogicalElement..............................................................................................27

CIM_LogicalElement...........................................................................................................................28

CIM_System........................................................................................................................................ 28

CIM_ComputerSystem....................................................................................................................... 29

DELL_System.......................................................................................................................................29

CIM_LogicalDevice.............................................................................................................................30

CIM_FRU............................................................................................................................................. 30

CIM_Sensor..........................................................................................................................................31

CIM_DiscreteSensor........................................................................................................................... 32

CIM_NumericSensor...........................................................................................................................33

CIM_TemperatureSensor....................................................................................................................36

CIM_CurrentSensor............................................................................................................................ 36

CIM_VoltageSensor.............................................................................................................................37

CIM_Tachometer................................................................................................................................38

CIM_WatchDog...................................................................................................................................39

CIM_CoolingDevice............................................................................................................................40

CIM_Fan.............................................................................................................................................. 40

CIM_UserDevice..................................................................................................................................41

CIM_PointingDevice............................................................................................................................41

CIM_Keyboard.....................................................................................................................................42

CIM_PowerSupply...............................................................................................................................43

CIM_Controller................................................................................................................................... 44

CIM_ParallelController....................................................................................................................... 44

CIM_SerialController...........................................................................................................................45

CIM_PCIController............................................................................................................................. 46

CIM_PCIDevice................................................................................................................................... 47

CIM_PCIBridge....................................................................................................................................48

CIM_Processor....................................................................................................................................48

CIM_StorageExtent............................................................................................................................. 55

CIM_Memory.......................................................................................................................................56

CIM_CacheMemory............................................................................................................................56

DELL_SoftwareFeature....................................................................................................................... 58

CIM_BIOSElement.............................................................................................................................. 58

CIM_SoftwareFeature......................................................................................................................... 59

DELL_SoftwareFeature....................................................................................................................... 60

CIM_SystemResource.........................................................................................................................60

CIM_IRQ.............................................................................................................................................. 61

CIM_MemoryMappedIO..................................................................................................................... 62

CIM_DMA............................................................................................................................................ 63

CIM_RedundancyGroup.....................................................................................................................64

CIM_ExtraCapacityGroup...................................................................................................................65

DELL_PSRedundancyGroup...............................................................................................................66

DELL_FanRedundancyGroup............................................................................................................. 66

CIM_EnabledLogicalElement............................................................................................................. 66

CIM_ServiceAccessPoint.................................................................................................................... 67

CIM_RemoteServiceAccessPoint....................................................................................................... 67

DELL_RemoteServiceAccessPort.......................................................................................................68

4 Dell-Defined Classes.............................................................................................. 71

DELL_PostLog......................................................................................................................................71

DELL_CMApplication.......................................................................................................................... 72

DELL_CMDevice..................................................................................................................................72

DELL_CMDeviceApplication............................................................................................................... 73

DELL_CMInventory............................................................................................................................. 73

DELL_CMOS........................................................................................................................................74

DELL_CMProductInfo......................................................................................................................... 74

DELL_BIOSExtensions.........................................................................................................................75

DELL_BIOSSettings..............................................................................................................................75

DELL_SDCardDevice...........................................................................................................................76

DELL_NetworkPort..............................................................................................................................77

DELL_PowerConsumptionAmpsSensor............................................................................................ 80

DELL_PowerConsumptionWattsSensor............................................................................................ 80

DELL_PowerConsumptionData..........................................................................................................81

DCIM_OEM_DataAccessModule........................................................................................................81

DCIM_RegisteredProfile..................................................................................................................... 82

5 CIM_Dependency...................................................................................................83

DELL_FanSensor................................................................................................................................. 83

CIM_PackageTempSensor................................................................................................................. 84

CIM_PackageVoltSensor.................................................................................................................... 84

CIM_PackageCurrentSensor.............................................................................................................. 85

CIM_PackageFanSensor..................................................................................................................... 85

CIM_PackagePowerSupplySensor..................................................................................................... 86

DELL_PackagePSRedundancy............................................................................................................86

DELL_PSRedundancy..........................................................................................................................87

DELL_AssociatedSupplyPCAmps........................................................................................................87

DELL_AssociatedSystemPCWatts.......................................................................................................87

AssociatedSystemPCData...................................................................................................................88

DELL_PowerProfileData..................................................................................................................... 88

Introduction

This reference guide documents the Dell OpenManage Server Administrator Common Information Model (CIM) provider contained in the Management Object File (MOF) dccim32.mof.

CIM provides a conceptual model for describing manageable objects in a systems management environment. CIM is a modeling tool rather than a programming language. CIM provides the structure for organizing objects into a model of a managed environment. For modeling a managed environment, CIM makes available a set of abstract and concrete classes of objects. These classes model the basic characteristics of systems, networks, and applications, as well as groupings of management-related data.

For more information about CIM, see the Distributed Management Task Force (DMTF) website at

dmtf.org and the Microsoft website at microsoft.com.

Server Administrator

Server Administrator provides a suite of systems management information for keeping track of your networked systems. In addition to providing systems management agents that are independent of the management console, Server Administrator supports these systems management standards: CIM and Simple Network Management Protocol (SNMP).

In addition to supporting systems management industry standards, Server Administrator provides additional systems management information about the specific components of your Dell system.

What’s New in This Release

The following attributes are added in Server Administrator 7.4:

• ChassisNodeID under DELL_Chassis class

• BladeFormFactor under DELL_RemoteServiceAccessPort class

For a list of platforms, operating systems, and browsers support added and deprecated, refer to the Dell

Systems Software Support Matrix Version 7.4 at dell.com/openmanagemanuals.

Documenting CIM Classes and Their Properties

The Dell CIM provider extends support to Dell-specific software and hardware components. The Dell MOF defines the classes for the Dell CIM provider. All of the supported classes and properties in the MOF are documented in this guide.

The following subsections define some of the basic building blocks of CIM classes that are used in describing the dccim32 provider name. These subsections also explain how the elements used in describing these classes are organized. This section does not document the entire CIM schema, but only those classes and properties supported by the dccim32 provider. The list of properties for each supported class varies greatly.

The property values being presented could be NULL or empty string on some systems, although in general, some non-empty values can be expected. Key properties (listed below) always carry non-empty values. It is recommended that you use only the following properties as key attributes:

• CIM_PhysicalElement: CreationClassName, Tag

• CIM_System: CreationClassName, Name

• CIM_LogicalDevice: SystemCreationClassName, SystemName, CreationClassName, DeviceID

• CIM_Dependency: Antecedent, Dependent

• CIM_SoftwareElement: Name, Version, SoftwareElementState, SoftwareElementID, TargetOperatingSystem

• CIM_SoftwareFeature: IdentifyingNumber, ProductName, Vendor, Version, Name

• CIM_IRQ: CSCreationClassName, CSName, CreationClassName, IRQNumber

• CIM_MemoryMappedIO: CSCreationClassName, CSName, CreationClassName, StartingAddress

• CIM_DMA: CSCreationClassName, CSName, CreationClassName, DMAChannel

• CIM_RedundancyGroup: CreationClassName, Name

• DELL_EsmLog: RecordNumber

• DELL_PostLog: RecordNumber

• DELL_BIOSExtensions: systemBIOSCharacteristics

• DELL_BIOSSettings: DisplayName

• CIM_ServiceAccessPoint: SystemCreationClassName, SystemName, CreationClassName, Name

Base Classes

The classes listed in the Server Administrator CIM provider class hierarchy do not have a parent property. These base classes do not derive from another class. The base classes are:

• CIM_ManagedSystemElement

• CIM_Dependency

• DELL_EsmLog

• DELL_PostLog

• DELL_CMApplication

• DELL_CMDevice

• DELL_CMDeviceApplications

• DELL_CMInventory

• DELL_CMOS

• DELL_CMProductInfo

The CIM_ManagedSystemElement class is the base class for the system element hierarchy from which all other CIM classes are derived. As a result, CIM_ManagedSystemElement has no parent. Examples of managed system elements include software components such as files, devices such as hard drives and controllers, and physical subcomponents of devices such as chip sets and cards. For the CIM_ManagedSystemElement properties, see Caption, CreationClassName, Description, Name, and Status in Common Properties of Classes

The Dell-defined classes are not defined in the official schema by the DMTF, the industry group that defines the standards for CIM, and hence do not have parent classes. CIM_Dependency does not have a parent class because it is a relationship or association between two managed system elements.

Parent Classes

Most classes in the dccim32 provider document both a Class Name and a Parent Class property. The parent class is the class from which any given class inherits its core properties. For example, the CIM_Controller class has the CIM_LogicalDevice class as its parent, and has various types of controllers (CIM_ParallelController, CIM_SerialController) as its children.

Classes That Describe Relationships

Classes that derive from CIM_Dependency have CIM_Dependency as their parent class, but they are documented in terms of antecedent and dependent elements in a relationship rather than in terms of common properties. Consider the following relationship between two CIM_ManagedSystemElements:

Antecedent CIM_PackageCurrentSensor Dependent CIM_PhysicalPackage

The CIM_PackageCurrentSensor class monitors an entire physical package, such as all the components contained in a given system chassis. The CIM_PhysicalPackage class is dependent on the CIM_PackageCurrentSensor class for this monitoring function.

Dell-Defined Classes

Server Administrator has extended some CIM classes and has created new classes to assist in managing systems and their components. In this document, the illustrations of the classes created and populated by Dell are represented by an orange circle icon.

Common Properties of Classes

Many classes have properties such as Caption, Description, and CreationClassName. Common Properties

of Classes defines properties that have the same meaning in every class that has this property and are

defined more than once in this guide.

Table 1. Common Properties of Classes

Property Description Data Type

Caption Describes the object using a

short textual description (one‑line string).

CreationClassName Indicates the name of the class or

the subclass used in the creation of an instance. When used with the other key properties of this class, this property allows all instances of this class and its subclasses to be uniquely identified.

CSCreationClassName Indicates the computer system’s

creation class name.

CSName Indicates the computer system’s

name.

string

Property Description Data Type

CurrentReading Indicates the actual current value

indicated by the sensor in amperes.

Description Provides a textual description of

the object.

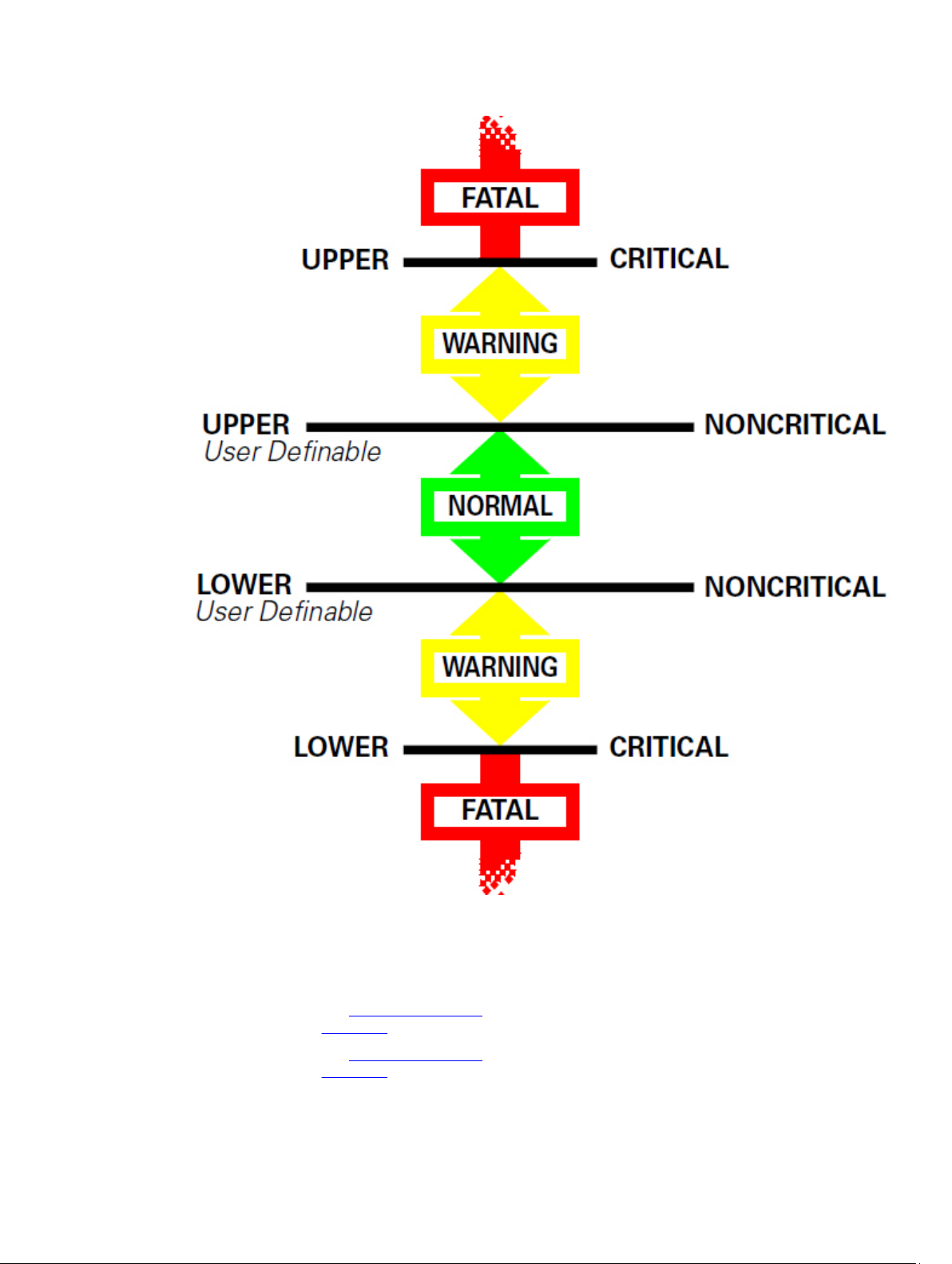

LowerThresholdNonCritical If current reading is between

lower threshold noncritical and upper threshold noncritical, the current state is normal. See Figure 3‑2.

LowerThresholdCritical If the current reading is between

upper threshold critical and upper threshold fatal, the current state is critical. See Figure 3‑2.

IsLinear Indicates that the sensor is linear

over its dynamic range.

Manufacturer Provides the name of the

organization responsible for producing the CIM_PhysicalElement or CIM_SoftwareElement. This may be the entity from whom the element is purchased, but not necessarily. Purchase information is contained in the vendor property of CIM_Product.

Name Defines the label by which the

object is known. When subclassed, the Name property can be overridden to be a Key property.

Status Provides a string indicating the

status of the component. Status values include:

Operational Status Values:

sint32

string

sint32

Boolean

string

• OK indicates that the object is functioning normally.

• Degraded means that the item is functioning, but not optimally.

• Stressed indicates that the element is functioning, but needs attention. Examples of Stressed states are overloaded, overheated, and so on.

Nonoperational Status Values:

• Non-recover means that a nonrecoverable error has occurred.

• Error means that an element has encountered an

Property Description Data Type

operational condition that is severe as compared to its normal mode of operation.

SystemCreationClassName Indicates the system’s creation

class name.

UnitModifier Provides the unit multiplier for

the values returned by this sensor. All the values returned by this sensor are represented in units of 10 raised to the power of the unit modifier. If the unit modifier is –6, then the units of the values returned are microvolts. The units apply to all numeric properties of the sensor, unless explicitly overridden by the units’ qualifier.

UpperThresholdCritical If the current reading is between

upper threshold critical and upper threshold fatal, the current status is critical. See Figure 3‑2.

UpperThresholdNonCritical If the current reading is between

lower threshold noncritical and lower threshold critical, the current status is noncritical. See Figure 3‑2.

Version Version should be in the form

<major>.<minor>.<revision> or <major>.<minor><letter><revisio n>; for example, 1.2.3 or 1.2a3.

string

sint32

string

Typographical Conventions

The following example shows how most of the classes in the Dell CIM provider are documented.

CIM_DMA Properties shows a partial class description for the DELL_DMA class.

NOTE: For a full class description, see CIM_DMA Properties.

Class Name appears in Courier typeface and provides the string that names the class in the MOF. Parent Class appears in Courier typeface and provides the name of the class from which the present class

is derived.

Property denotes the name of the attribute that is being defined for this class. Description includes text that defines the property. Data Type stipulates the format that the values of this property must take. Common data types include

Boolean, string, and various types of integer. Boolean indicates that the property must be expressed as one of two alternatives.

CIM_Physical Element

CIM_PhysicalElement is a CIM-defined class. The CIM_PhysicalElement class contains the subclasses

shown in Figure CIM_PhysicalElement Class Structure

CIM_PhysicalElement

Subclasses of the CIM_PhysicalElement class listed in Table below define any component of a system that has a distinct physical identity. Physical elements are tangible managed system elements (usually actual hardware items) that have a physical manifestation of some sort. By contrast, processes, files, and logical devices are not classified as physical elements. A managed system element is not necessarily a discrete component. A single card (which is a type of physical element) can host more than one logical device.

One card, for example, could implement both a modem and a local area network (LAN) adapter. In this case, the card would be represented by a single physical element associated with multiple logical devices.

Table 2. CIM_PhysicalElement Properties

Class Name: CIM_PhysicalElement Parent Class: CIM_ManagedSystemElement

Property Description Data Type

CreationClassName See Common Properties

of Classes

Manufacturer See Common Properties

of Classes

Model The name by which the

physical element is generally known.

string

SerialNumber A manufacturer-

allocated number used to identify the physical element.

Tag Uniquely identifies the

physical element and serves as the element’s key. The Tag property can contain information such as asset tag or serial number data. The key for a physical element is placed very high in the object hierarchy in order to identify the hardware/ entity independently, regardless of the physical placement in or on cabinets, adapters, and so on. For example, a hotswappable or removable component can be taken from its containing (scoping) package and be temporarily unused. The object still continues to exist and may even be inserted into a different scoping container. Therefore, the key for the physical element is an arbitrary string that is defined independently of any placement or location-oriented hierarchy.

string

CIM_PhysicalPackage

The CIM_PhysicalPackage class listed in Table below represents physical elements that contain or host other components. Examples are a rack enclosure or an adapter card with multiple functions.

Table 3. CIM_PhysicalPackage Properties

Class Name:

Parent Class:

CIM_PhysicalPackage

CIM_PhysicalElement

Property Description Data Type

Removable A CIM_PhysicalPackage is

removable if it is designed to be taken in and out of the physical container in which it is normally found without impairing the function of the overall package.

Replaceable A CIM_PhysicalPackage is

replaceable if it is possible to substitute a physically different element for the original element, as in a field replaceable unit (FRU). For example, some computer systems allow the microprocessor to be upgraded to one of a higher clock rating. In this case, the microprocessor is said to be replaceable.

Boolean

CIM_PhysicalFrame

The CIM_PhysicalFrame class described in Table properties contains other frame enclosures such as racks and chassis. Properties like VisibleAlarm or AudibleAlarm, and data related to security breaches are also members of this class.

Table 4. CIM_Physical Frame Properties

Class Name:

Parent Class:

Property Description Data Type

LockPresent Indicates whether the frame is

AudibleAlarm Indicates whether the frame is

VisibleAlarm Indicates that the equipment

SecurityBreach An enumerated, integer-valued

CIM_PhysicalFrame

CIM_PhysicalPackage

Boolean

protected with a lock.

Boolean

equipped with an audible alarm.

Boolean

includes a visible alarm.

uint16 property indicating that a physical breach of the frame is in progress. Values for the SecurityBreach property are:

1 - Other 2 - Unknown 3 - No breach 4 - Breach attempted 5 Breach successful

Class Name:

CIM_PhysicalFrame

Parent Class:

Property Description Data Type

IsLocked Indicates that the frame is

CIM_PhysicalPackage

Boolean currently locked.

CIM_Chassis

The CIM_Chassis class described in Table below represents the physical elements that enclose physical elements such as power supplies, fans, and processors.

Table 5. CIM_Chassis Parent Properties

Class Name: CIM_Chassis Parent Class:CIM_PhysicalFrame

Property Description Data Type

ChassisTypes Values for the

ChassisTypes property are:

uint16

1. Other

2. Unknown

3. Mini-tower

4. Tower

5. Space-saving

6. Main system chassis

7. Expansion chassis

8. Subchassis

9. Space-saving

10. Main system chassis

11. Expansion chassis

12. Subchassis

13. Bus expansion chassis

14. Peripheral chassis

15. Storage chassis

16. Rack-mount chassis

DELL_Chassis

The DELL_Chassis class explained in Table below defines the identifying and status properties of the chassis. DELL_Chassis inherits from CIM-defined classes, but is populated by Dell properties.

Table 6. DELL_Chassis Properties

Class Name:

Parent Class:

Property Description Data Type

AssetTag Indicates the container AssetTag

SystemClass Refers to the system type that is

SystemID Indicates the system identifier

LogFormat Defines whether the event log

FanStatus Indicates the global status of fan

TempStatus Indicates the global status of

VoltStatus Indicates the global status of

DELL_Chassis

CIM_Chassis

string string. This asset tag string is assigned by the system administrator.

uint16 installed and running the instrumentation. Values for the

SystemClass property are: 1 - Other 2 - Unknown 3 -

Workstation 4 - Server 5 - Desktop 6 - Portable

7 - Net PC

uint16 code.

uint16 data is unicode formatted or binary (raw). Values for the event

LogFormat property are: 1 - Formatted (event log only) 2 -

Unformatted 3 - Events_and_POST_Formatted

(both the event log and the power‑on self-test (POST) log are unicode formatted)

string sensors.

string temperature sensors.

string voltage sensors.

Class Name:

DELL_Chassis

Parent Class:

Property Description Data Type

AmpStatus Indicates the global status of

PsStatus Indicates the global status of

MemStatus Indicates the global status of

ProcStatus Indicates the global status of

FanRedStatus Indicates the global status of the

PsRedStatus Indicates the global status of the

IsDefaultThrSupported Indicates whether resetting default

ChassisSystemProperties Indicates chassis characteristics,

ChassisSystemRevision Indicates the chassis revision. uint16

EsmLogStatus Indicates the global status of ESM

MemoryRedStatus Indicates the global status of

ChassisExpressServiceCode Indicates the chassis express

ChassisNodeID Chassis Node ID string

CIM_Chassis

string current sensors.

string power supplies.

string memory devices.

string processor devices.

string cooling unit.

string power unit.

Boolean thresholds are supported.

uint16 such as energy smart and so on.

string log.

string memory redundancy.

string service code.

CIM_PhysicalComponent

The CIM_PhysicalComponent class listed in Table below represents any low-level or basic component within a package. A component object either cannot or does not need to be broken down into its constituent parts. For example, an application specific integrated circuit (ASIC) cannot be broken down into smaller discrete parts.

Table 7. CIM_PhysicalComponent Properties

Class Name:

Parent Class:

CIM_PhysicalComponent

CIM_PhysicalElement

CIM_Chip

The CIM_Chip class listed in Chip Properties represents any type of integrated circuit hardware, including ASICs, processors, memory chips, and so on.

Table 8. CIM_Chip Properties

Class Name: CIM_Chip Parent Class: CIM_PhysicalComponent

Property Description Data Type

FormFactor

0 — Unknown 1 — Other 2 — SIP 3 — DIP 4 — ZIP 5 — SOJ 6 — Proprietary 7 — SIMM 8 — DIMM 9 — TSOP 10 — PGA 11 — RIMM 12 — SODIMM 13 — SRIMM 14 — SMD 15 — SSMP 16 — QFP 17 — TQFP 18 — SOIC 19 — LCC 20 — PLCC 21 — BGA 22 — FPBGA 23 — LGA 24 — FB-DIMM

uint16

CIM_PhysicalMemory

The CIM_PhysicalMemory class listed in PhysicalMemoryProperties is a subclass of CIM_Chip, representing low-level memory devices, such as SIMMs, DIMMs, and so on.

Table 9. CIM_PhysicalMemory Properties

Class Name: CIM_PhysicalMemory Parent Class: CIM_Chip

Property Description Data Type

FormFactor See Chip Properties uint16

MemoryType Indicates the type of

physical memory. Values for the MemoryType property are:

0 - Unknown 1 - Other 2 - DRAM 3 - Synchronous DRAM 4 - Cache DRAM 5 - EDO 6 - EDRAM 7 - VRAM 8 - SRAM 9 - RAM 10 - ROM 11 — Flash 12 - EEPROM 13 - FEPROM 14 - EPROM 15 - CDRAM 16 - 3DRAM 17 - SDRAM 18 - SGRAM 19 - RDRAM 20 - DDR 21 - DDR2 22 - DDR2 FB-DIMM 24 - DDR3 25 - FBD2

uint16

TotalWidth Indicates the total width,

in bits, of the physical memory, including check or error correction bits. If there are no error correction bits, the value in this property should match that specified for the DataWidth property.

DataWidth Indicates the data width,

in bits, of the physical memory. A data width of 0 and a total width of 8 would indicate that the memory is solely used to provide error correction bits.

Speed Indicates the speed of

the physical memory, in nanoseconds.

Rank

SpeedAsString Indicates the accurate

Capacity Indicates the total

BankLabel A string identifying the

PositionInRow Specifies the position of

The Rank values of DIMM are:

0 - Unknown 1 - Single 2 - Dual 4 - Quad 8 - Octal 16 - Hexa

speed of the physical memory, in string format (with units).

capacity of this physical memory, in bytes.

physically labeled bank where the memory is located, for example, "Bank 0" or "Bank A."

the physical memory in a “row.” For example, if it takes two 8-bit memory devices to form a 16-bit row, then a value of 2 means that this memory is the second device. 0 is an invalid value for this property.

uint16

uint32

unit32

string

uint64

string

uint32

InterleavePosition Indicates the position of

this physical memory in an interleave. 0 indicates noninterleaved. 1 indicates the first position, 2 the second position, and so on. For example, in a 2:1 interleave, a value of 1 indicates that the memory is in the “even” position.

uint32

CIM_PhysicalConnector

The CIM_PhysicalConnector class listed in Physical Connector Properties includes physical elements such as plugs, jacks, or buses that connect physical elements. Any object that can be used to connect and transmit signals or power between two or more physical elements is a member of this class. For example, slots and D-shell connectors are types of physical connectors. See Connector Type Values for a list of valid connector type values.

Table 10. CIM_PhysicalConnector Properties

Class Name: CIM_PhysicalConnector Parent Class: CIM_PhysicalElement

Property Description Data Type

ConnectorPinout A free-form string

describing the pin configuration and signal usage of a physical connector.

ConnectorType An array of integers

defining the type of physical connector. An array is specified to allow the description of “combinations” of connector information. For example, one array entry could specify RS-232, another DB-25, and a third entry could define the connector as male. See

Type Values for the

values of the

Connector

string

uint16

ConnectorType property.

Table 11. Connector Type Values

0 - Unknown 30 - unused 60 - Micro-DIN 90 - On board IDE

Connector

1 - Other 31 - unused 61 - PS/2 91 - On board floppy

2 - Male 32 - IEEE-48 62 - Infrared 92 - 9 Pin dual inline

3 - Female 33 - AUI 63 - unused 93 - 25 Pin dual inline

4- Shielded 34 - UTP Category 3 64 - Access bus 94 - 50 Pin dual inline

5 - Unshielded 35 - UTP Category 4 65 - unused 95 - 68 Pin dual inline

6 - SCSI (A) HighDensity (50 pins)

7 - SCSI (A) Low-Density

36 - UTP Category 5 66 - Centronics 96 - On board sound

connector

37 - BNC 67 - Mini-Centronics 97 - Mini-jack

(50 pins)

8 - SCSI (P) HighDensity (68 pins)

9 - SCSI SCA-I (80 pins) 39 - RJ45 69 - Mini-Centronics

10 - SCSI SCA-II (80 pins)

11 - Fibre Channel (DB-9

38 - RJ11 68 - Mini-Centronics

98 - PCI-X

Type-14

99 - Sbus IEEE

Type-20

40 - Fiber MIC 70 - Mini-Centronics

Type-26

1396-1993 32-bit

100 - Sbus IEEE 1396-1993 64-bit

41 - unused 71 - Bus mouse 101 - unused

Copper)

12 - Fibre Channel (Fiber

42 - unused 72 - ADB 102 - GIO

Optical)

13 - Fibre Channel SCAII

43 - PCI 73 - AGP 103 - XIO

(40 pins)

14 - Fibre Channel SCAII

44 - ISA 74 - VME bus 104 - HIO

(20 pins)

15 - Fibre Channel BNC 45 - unused 75 - VME64 105 - NGIO

16 - ATA 3-1/2 inch (40

46 - VESA 76 - Proprietary 106 - PMC

pins)

17 - ATA 2-1/2 inch (44 pins)

18 - ATA-2 48 - unused 78 - Proprietary memory

47 - unused 77 - Proprietary

processor card slot

107 - MTRJ

108 - VF-45

card slot

19 - ATA-3 49 - unused 79 - Proprietary I/O riser

109 - Future I/O

slot

20 - ATA/66 50 - unused 80 - PCI-66 MHz 110 - SC

21 - DB-9 51 - unused 81 - AGP2X 111 - SG

22 - DB-15 52 - unused 82 - AGP4X 112 - Electrical

23 - DB-25 53 - USB 83 - PC-98 113 - Optical

24 - DB-36 54 - IEEE 1394 84 - PC-98-Hireso 114 - Ribbon

25 - RS-232C 55 - HIPPI 85 - PC-H98 115 - GLM

26 - RS-422 56 - HSSDC (6 pins) 86 - PC-98Note 116 - 1x9

27 - RS-423 57 - GBIC 87 - PC-98Full 117 - Mini SG

28 - RS-485 58 - DIN 88 - SSA SCSI 118 - LC

29 - RS-449 59 - Mini-DIN 89 - Circular 119 - HSSC

CIM_Slot

The CIM_Slot class listed in Table below represents connectors into which packages are inserted. For example, a physical package that is a hard drive can be inserted into a small computer system interfacesingle connector attachment (SCSI-SCA) slot. As another example, a card can be inserted into a 16-, 32-, or 64-bit expansion slot on a host board

Table 12. CIM_Slot Properties

Class Name:class CIM_Slot Parent Class: CIM_PhysicalConnector

Property Description Data Type

ConnectorType See Connector Type

Values

SupportsHotPlug Indicates whether the

slot supports hot-plug adapter cards.

MaxDataWidth Indicates the maximum

bus width in bits of adapter cards that can be inserted into this slot. Values for the MaxDataWidth property are as follows:

0 - Unknown 1 - Other 8 - bits 16 - bits 32 - bits 64 - bits 128 - bits

SystemSlotType

Indicates the type of system slot. Values for

uint16

Boolean

uint16

the SystemSlotType property are as follows:

1 - Other 2 - Unknown 3 - ISA 4 - MCA 5 - EISA 6 - PCI 7 - PCMCIA 8 - VL-VESA 9 - Proprietary 10 - Processor card Slot 11- Proprietary memory

card slot

12- I/O Riser card slot 13 - NuBus 14- PCI - 66MHz

capable

15 - AGP 16 - AGP 2X 17 - AGP 4X 18 - PCI-X 19 - AGP 8X 160 - PC-98/C20 161 - PC-98/C24 162 - PC-98/E 163 - PC-98/Local bus 164 - PC-98/Card 165 - PCI Express 166 - PCI Express x1 167 - PCI Express x2 168 - PCI Express x4 169 - PCI Express x8 170 - PCI Express x16 171 - PCI Express Gen 2 172 - PCI Express Gen 2

x1 173 - PCI Express Gen 2

x2 174 - PCI Express Gen 2

x4 175 - PCI Express Gen 2

x8 176 - PCI Express Gen 2

x16

CIM_LogicalElement

CIM_LogicalElement is a CIM-defined class containing the subclasses described in below Figure .

CIM_LogicalElement

Table properties lists the following characteristics for members of the CIM_LogicalElement class:

• Represent abstractions used to manage and coordinate aspects of a physical environment such as files, processes, systems, system capabilities, and network components in the form of logical devices

• Represent devices, where devices are abstractions of hardware entities that may or may not be realized in physical hardware

Table 13. CIM_LogicalElement Properties

Class Name:

Parent Class:

CIM_LogicalElement

CIM_ManagedSystemElement

CIM_System

The CIM_System class described in Table below defines a collection of managed system elements that operates as a functional whole. An instance of the CIM_System class contains a well-defined list of components that work together to perform a specific function.

Table 14. CIM_System Properties

Class Name: CIM_System Parent Class:CIM_LogicalElement

Property Description Data Type

CreationClassName See Common Properties

of Classes

Name Indicates the name of a

specific system, such as a particular storage system or server.

PrimaryOwnerContact Provides information

about how the primary system owner can be reached, for example, a phone number or e-mail address.

string

PrimaryOwnerName Indicates the name of

the primary system owner.

Roles An array of strings that

specifies the roles this system plays in the IT environment. For example, for an instance of a network system, the Roles property might contain the string "storage system."

string

CIM_ComputerSystem

The CIM_ComputerSystem class described in Table below contains some or all of the following CIM_ManagedSystemElements: file system, operating system, processor, and memory (volatile and/or nonvolatile storage). For properties, see CIM_System Properties.

Table 15. CIM_ComputerSystem Properties

Class Name:

Parent Class:

CIM_ComputerSystem

CIM_System

DELL_System

The DELL_System class described in Table below is the set of all Dell instrumented systems, including server, and storage systems. For properties, see CIM_System Properties

Table 16. DELL_System Properties

Class Name:

Parent Class:

DELL_System

CIM_ComputerSystem

CIM_LogicalDevice

The CIM_LogicalDevice class described below Table models a hardware entity that may be realized in physical hardware. CIM_LogicalDevice includes any characteristics of a logical device that manages its operation or configuration. An example of a logical device is a temperature sensor’s reading of the actual temperature.

Table 17. CIM_Logical Device Properties

Class Name: CIM_LogicalDevice Parent Class: CIM_LogicalElement

Property Description Data Type

SystemCreationClassNameSee Common Properties

of Classes

SystemName Indicates the scoping

system’s name.

CreationClassName See Common Properties

of Classes

DeviceID Identifies an address or

other identifying information to uniquely name the logical device.

string

CIM_FRU

The CIM_FRU class described in FRU Properties contains manufacturing information related to the Field Replaceable Units (FRU) of a system such as a system planar or I/O riser card.

Table 18. CIM_FRU Properties

Class Name: CIM_FRU

Parent Class: CIM_LogicalDevice

Property Description Data Type

FRUInformationState Indicates the state and

availability of FRU information.

FRUDeviceName Indicates the device

name of the FRU.

FRUManufacturingDate Name

FRUManufacturerName Indicates the name of

FRUPartNumberName Indicates the FRU part

FRUSerialNumberName Indicates the FRU serial

FRURevisionName Indicates the FRU

Indicates the manufacturing date of the FRU in ticks.

the manufacturer.

number.

revision number.

uint 16

string

datetime

string

CIM_Sensor

The CIM_Sensor class described in Table below contains hardware devices capable of measuring the characteristics of some physical property, for example, the temperature or voltage characteristics of a computer system

Table 19. CIM_Sensor Properties

Class Name: CIM_Sensor Parent Class: CIM_LogicalDevice

Property Description Data Type

SensorType Indicates the type of the

sensor, for example, voltage or temperature sensor.

Values for the SensorType property are:

0 - Unknown 1 - Other 2 - Temperature sensors

measure the

uint16

environmental temperature.

3 - Voltage sensors measure electrical voltage.

4 - Current sensors measure current readings.

5 - Tachometers measure speed/ revolutions of a device. For example, a fan device can have an associated tachometer that measures its speed.

6 - Batteries maintain the time and date and save the system’s BIOS configuration when the system is turned off.

OtherSensorType

PossibleStates Enumerates the string

CurrentState Indicates the current

PollingInterval Indicates the polling

Description Indicates the type of sensor when the SensorType property is set to Other.

outputs of the sensor. For example, a NumericSensor can report states based on threshold readings.

state of the sensor. This value is always one of the Possible States.

interval, in nanoseconds, that the sensor hardware or instrumentation uses to determine the current state of the sensor.

string

uint64

CIM_DiscreteSensor

The CIM_DiscreteSensor class described in Table below has a set of legal string values that it can report. The CIM_DiscreteSensor always has a "current reading" that corresponds to one of the enumerated values.

Table 20. CIM_DiscreteSensor Properties

Class Name: CIM_DiscreteSensor Parent Class: CIM_Sensor

Property Description Data Type

CurrentReading See Common Properties

of Classes

PossibleValues Enumerates the string

outputs that can be reported by the sensor.

sint32

CIM_NumericSensor

The CIM_NumericSensor class described in NumericSensor Properties returns numeric settings and may also support threshold settings. Figure below shows the relationship among upper and lower critical and upper and lower non-critical threshold values. The normal range falls between upper and lower noncritical thresholds.

Figure : Ranges for Threshold Values

Table 21. CIM_NumericSensor Properties

Class Name: CIM_NumericSensor Parent Class: CIM_Sensor

Property Description Data Type

UnitModifier See Common Properties

sint32

of Classes

CurrentReading See Common Properties

sint32

of Classes

IsLinear See Common Properties

of Classes

LowerThresholdNonCriti cal

UpperThresholdNonCriti cal

LowerThresholdCritical See Common Properties

UpperThresholdCritical See Common Properties

SupportedThresholds An array representing

EnabledThresholds An array representing

SettableThresholds An array representing

See Common Properties

of Classes

See Common Properties

of Classes

the thresholds supported by this sensor. The supported values are as follows:

1 LowerThresholdNonCriti cal

2 UpperThresholdNonCriti cal

3 LowerThresholdCritical

4 UpperThresholdCritical

the thresholds that are currently enabled for this sensor.

Enabled threshold values are as follows:

1 LowerThresholdNonCriti cal

2 UpperThresholdNonCriti cal

3 LowerThresholdCritical

4 UpperThresholdCritical

the writable thresholds supported by this sensor.

Settable threshold values are:

1 LowerThresholdNonCriti cal

Boolean

sint32

uint16

2 UpperThresholdNonCriti cal

CIM_TemperatureSensor

The CIM_TemperatureSensor class described in Table below contains sensors that sample ambient temperature and return a value in degrees celsius.

Table 22. CIM_TemperatureSensor Properties

Class Name: CIM_TemperatureSensor Parent Class: CIM_NumericSensor

Property Description Data Type

UnitModifier See Common Properties of

Classes

CurrentReading See Common Properties of

Classes

IsLinear See Common Properties of

Classes

LowerThresholdNonCritical See Common Properties of

Classes

UpperThresholdNonCritical See Common Properties of

Classes

LowerThresholdCritical See Common Properties of

Classes

UpperThresholdCritical See Common Properties of

Classes

sint32

Boolean

sint32

CIM_CurrentSensor

The CIM_CurrentSensor class described in Properties Table below contains sensors that measure amperage and return a value in amperes and watts.

Table 23. CIM_CurrentSensor Properties

Class Name: CIM_CurrentSensor Parent Class: CIM_NumericSensor

Property Description Data Type

UnitModifier See Common Properties of

Classes

CurrentReading See Common Properties of

Classes

IsLinear See Common Properties of

Classes

LowerThresholdNonCritical See Common Properties of

Classes

UpperThresholdNonCritical See Common Properties of

Classes

LowerThresholdCritical See Common Properties of

Classes

UpperThresholdCritical See Common Properties of

Classes

sint32

Boolean

sint32

CIM_VoltageSensor

The CIM_VoltageSensor class described in Table below contains sensors that measure voltage and return a value in volts. Table

Table 24. CIM_VoltageSensor Properties

Class Name: CIM_VoltageSensor Parent Class: CIM_NumericSensor

Property Description Data Type

UnitModifier See Common Properties of

Classes

CurrentReading See Common Properties of

Classes

IsLinear See Common Properties of

Classes

sint32

Boolean

LowerThresholdNonCritical See Common Properties of

Classes

sint32

UpperThresholdNonCritical See Common Properties of

Classes

LowerThresholdCritical See Common Properties of

Classes

UpperThresholdCritical See Common Properties of

Classes

sint32

CIM_Tachometer

The CIM_Tachometer class described in Table below contains devices that measure revolutions per minute (RPM) of a fan and return the value in RPMs.

Table 25. CIM_Tachometer Properties

Class Name: CIM_Tachometer Parent Class: CIM_NumericSensor

Property Description Data Type

SensorType See Common Properties of

Classes

UnitModifier See Common Properties of

Classes

CurrentReading See Common Properties of

Classes

IsLinear See Common Properties of

Classes

LowerThresholdNonCritical See Common Properties of

Classes

UpperThresholdNonCritical See Common Properties of

Classes

uint16

sint32

Boolean

sint32

CIM_WatchDog

The CIM_WatchDog class described in Table below represents a timer that is implemented in system hardware. The watchdog feature allows the hardware to monitor the state of the operating system, BIOS, or a software component installed on the system. If the monitored component fails to rearm the timer before its expiration, the hardware assumes that the system is in a critical state and could reset the system. This feature can also be used as an application watchdog timer for a mission-critical application. In this case, the application would assume responsibility for rearming the timer before expiration.

Table 26. CIM_WatchDog Properties

Class Name:

Parent Class:

Property Description Data Type

MonitoredEntity Indicates the entity that is

MonitoredEntity Description A string describing additional

TimeoutInterval Indicates the time-out interval

TimerResolution Indicates the resolution of the

CIM_WatchDog

CIM_LogicalDevice

uint16 currently being monitored by the watchdog feature. This property is used to identify the module that is responsible for rearming the watchdog at periodic intervals. Values for the MonitoredEntity property are:

1 - Unknown 2 - Other 3 - Operating System

string textual information about the monitored entity.

uint32 used by the watchdog, in microseconds.

uint32 watchdog timer. For example, if this value is 100, then the timer can expire anytime between –100 microseconds and +100 microseconds.

CIM_CoolingDevice

The CIM_CoolingDevice class described in CIM_CoolingDevice contains a set of devices that work to keep the ambient internal temperature of the system at a safe value.

Table 27. CIM_CoolingDevice Properties

Class Name:

Parent Class:

Property Description Data Type

ActiveCooling Specifies whether the device

CIM_CoolingDevice

CIM_LogicalDevice

Boolean provides active (as opposed to passive) cooling.

CIM_Fan

The CIM_Fan class described in below Table contains a set of devices that work to keep the ambient internal temperature of the system at a safe value by circulating air.

Table 28. CIM_Fan Properties

Class Name:

CIM_Fan

Parent Class:

Property Description Data Type

VariableSpeed Specifies if the fan supports

DesiredSpeed Indicates the currently requested

CIM_CoolingDevice

Boolean

variable speeds.

uint64 fan speed, defined in RPM. When the VariableSpeed value is TRUE, the fan supports variable speeds. When a variable speed fan is supported (VariableSpeed is TRUE), the actual speed is determined using a sensor

(CIM_Tachometer) that is associated with the fan.

CIM_UserDevice

The CIM_UserDevice class described in Table below contains logical devices that allow a system’s users to input or view data. Classes derived from CIM_UserDevice include CIM_Keyboard and CIM_PointingDevice.

Table 29. CIM_UserDevice Properties

Class Name:

Parent Class:

Property Description Data Type

IsLocked Indicates if the device is locked,

CIM_UserDevice

CIM_LogicalDevice

Boolean preventing user input or output.

CIM_PointingDevice

The CIM_PointingDevice class described in Table below includes those devices used to point to regions of a display. Examples of such devices are a mouse or a trackball.

Table 30. CIM_PointingDevice Properties

Class Name:

Parent Class:

CIM_PointingDevice

CIM_UserDevice

Property Description Data Type

PointingType Indicates the type of pointing

device. Values for the

PointingType property are: 1 — Other 2 - Unknown 3 - Mouse 4 - Trackball

uint16

5 - Trackpoint 6 - Glidepoint 7 - Touch pad 8 - Touch screen 9 - Mouse — optical sensor

NumberOfButtons Indicates the number of buttons.

If the CIM_PointingDevice has no buttons, a value of 0 is returned.

Handedness Integer indicating if the

CIM_PointingDevice is configured for right- or lefthanded operation. Values for the Handedness property are as follows:

0 - Unknown 1 - Not applicable 2 - Right-handed operation 3 - Left-handed operation

CIM_Keyboard

uint8

uint16

The CIM_Keyboard class described in Table below includes devices that allow users to enter data.

Table 31. CIM_Keyboard Properties

Class Name:

Parent Class:

Property Description Data Type

NumberOfFunctionKeys Indicates the number of function

Layout A free-form string indicating the

Password An integer indicating if a

CIM_Keyboard

CIM_UserDevice

keys on the keyboard.

format and layout of the keyboard.

hardware-level password is enabled at the keyboard, preventing local input. Values for the

Password property are: 1 - Other 2- Unknown

uint16

string

uint16

3- Disabled 4- Enabled 5- Not implemented

CIM_PowerSupply

The CIM_PowerSupply class described in Table below contains devices that provide current and voltage for the operation of the system and its components

Table 32. CIM_PowerSupply Properties

Class Name:

Parent Class:

Property Description Data Type

IsSwitchingSupply Indicates that the power supply

Range1InputVoltageLow Indicates the low voltage in

Range1InputVoltageHigh Indicates the high voltage in

ActiveInputVoltage Indicates which input voltage

CIM_PowerSupply

CIM_LogicalDevice

Boolean is a switching power supply and not a linear power supply.

uint32 millivolts of input voltage range 1 for this power supply. A value of 0 denotes unknown.

uint16 range is currently in use. Range 1, range 2, or both can be specified using the values 3, 4, or 5, respectively. If the supply is not drawing power, a value of 6 (neither) can be specified. This information is necessary in the case of an uninterruptible power supply (UPS), a subclass of power supply. Values for the

ActiveInputVoltage property are: 1 - Other 2 - Unknown 3 - Range 1 4 - Range 2 5 - Both range 1 and range 2

6 - Neither range 1 nor range 2

TotalOutputPower Represents the total output

power of the power supply in milliwatts. A value of 0 denotes that the power output is unknown.

PMCapable Indicates the Power Monitoring

capability.

uint32

Boolean

CIM_Controller

The CIM_Controller class described in below Table properties , groups miscellaneous control-related devices. Examples of controllers are small computer system interface (SCSI) controllers, Universal Serial Bus (USB) controllers, and serial controllers.

Table 33. CIM_Controller Properties

Class Name:

Parent Class:

Property Description Data Type

ProtocolSupported The protocol used by the

CIM_Controller

CIM_LogicalDevice

uint16 controller to access controlled devices. Values for the

ProtocolSupported property are: 1 - Other 2 - Unknown 3 - PCI 4 - Parallel protocol

CIM_ParallelController

The CIM_ParallelController class described in below contains a set of objects that control parallel devices. Parallel controllers transfer 8 or 16 bits of data at a time to the devices they control, for example, a parallel port controlling a printer.

Table 34. CIM_ParallelController Properties

Class Name:

Parent Class:

Property Description Data Type

DMASupport Set to TRUE if the parallel

Security An enumeration indicating the

CIM_ParallelController

CIM_Controller

Boolean controller supports DMA.

uint16 operational security for the controller. Values for the Security property are:

1 - Other 2 - Unknown 3 - None 4 - External interface locked out 5 - External interface enabled 6 - Boot bypass

CIM_SerialController

The CIM_SerialController class described in Table below contains controllers that transfer data one bit at a time to the devices they control, for example, a serial port controlling a modem.

Table 35. CIM_SerialController Properties

Class Name:

Parent Class:

Property Description Data Type

MaxBaudRate Indicates the maximum baud rate

Security An enumeration indicating the

CIM_SerialController

CIM_Controller

uint32 in bits per second supported by the serial controller.

uint16 operational security for the controller. Values for the Security property are:

1 - Other

2 - Unknown 3 - None 4 - External interface locked out 5 - External interface enabled 6 - Boot bypass

CIM_PCIController

The CIM_PCIController class described in Table below contains a set of devices that follow the Peripheral Component Interconnect (PCI) protocol defined by the Personal Computer Memory Card International Association (PCMCIA). The PCI protocol defines how data is transferred between devices. The CIM_PCIController class contains PCI adapters and bridges.

Table 36. CIM_PCIController Properties

Class Name:

Parent Class:

Property Description Data Type

CommandRegister The current contents of the

CIM_PCIController

CIM_Controller

uint16 register that provide basic control over the device’s ability to respond to, and/or perform PCI accesses. The data in the capabilities array is gathered from the PCI status register and the PCI capabilities list as defined in the PCI specification.

Values for the CommandRegister property are:

0 - Unknown 1 - Other 2 - Supports 66 MHz 3 - Supports user-definable

features 4 - Supports fast back-to-back

transactions

5 - PCI-X capable 6 - PCI power management

supported 7 - Message signaled interrupts

supported

8 - Parity error recovery capable 9 - AGP supported 10 - Vital product data supported 11 — Provides slot identification 12 - Hot swap supported

CIM_PCIDevice

The CIM_PCIDevice class shown in Table below describes the capabilities and management of a PCI device controller on an adapter card.

Table 37. CIM_PCIDevice Properties

Class Name:

Parent Class:

Property Description Data Type

BaseAddress Identifies an array of up to six

SubsystemID Identifies a subsystem identifier

SubsystemVendorID Identifies a subsystem vendor ID.

ExpansionROMBaseAddress Identifies a double-word

CIM_PCIDevice

CIM_PCIController

uint32 double-word base memory addresses.

uint16 code.

uint16 ID information is reported from a PCI device via protocol-specific requests. This information is also present in the CIM_PhysicalElement class (the manufacturer property) for hardware, and the CIM_Product class (the vendor property) for information related to product acquisition.

uint32 expansion ROM base memory address.

CIM_PCIBridge

The CIM_PCIBridge class described in PCIBridge Properties describes the capabilities and management of a PCI controller providing bridge-to-bridge capability. An example is a PCI to Industry-Standard Architecture (ISA) bus bridge.

Table 38. CIM_PCIBridge Properties

Class Name:

Parent Class:

Property Description Data Type

BaseAddress Identifies an array of double-

BridgeType Indicates the type of bridge. A

BaseAddress Identifies an array of double-

CIM_PCIBridge

CIM_PCIController

uint32

word base memory addresses.

uint16 bridge is PCI to <value>, except for the Host, which is a host-toPCI bridge. Values for the BridgeType property are as follows:

0 - Host 1 - ISA 128 - Other

uint32 word base memory addresses.

CIM_Processor

The CIM_Processor class described in Table below contains devices that interpret and execute commands, for example, the Intel Xeon microprocessor.

Table 39. CIM_Processor Properties

Class Name:

Parent Class:

CIM_Processor

CIM_LogicalDevice

Property Description Data Type

Role A string describing the role of the

string microprocessor, for example, central microprocessor or math processor.

UpgradeMethod Provides microprocessor socket

uint16 information including data on how this microprocessor can be upgraded (if upgrades are supported). This property is an integer enumeration. Values for the UpgradeMethod property are as follows:

1 - Other 2 - Unknown 3 - Daughter board 4 - ZIF socket 5 - Replacement/piggy back 6 - None 7 - LIF socket 8 - Slot 1 9 - Slot 2 10 - 370-pin socket 19 - Socket mPGA604 20 - Socket LGA771 21 - Socket LGA775 22 - Socket S1 23 - Socket AM2 24 - Socket F (1207) 25— Socket LGA1366

MaxClockSpeed Indicates the maximum speed (in

uint32 MHz) of this microprocessor.

Core count Indicates the number of core

uint16 processors detected.

CoreEnabledCount Indicates the number of core

uint16 processors enabled.

CurrentClockSpeed Indicates the current speed (in

uint32 MHz) of this microprocessor.

DataWidth Indicates the processor data

uint16 width in bits.

AddressWidth Indicates the processor address

uint16 width in bits.

Stepping Indicates the revision level of the

processor within the microprocessor family.

UniqueID Identifies a globally unique

identifier for the microprocessor. This identifier may only be unique within a microprocessor family.

Brand Indicates the brand name of the

processor.

Model Indicates the model name of the

processor.

ExtendedCharacteristics Indicates the extended

capabilities of the processor. This attribute is a bit field. The following are the definitions of a bit when set to one:

Bit 0 — Virtualization Technology (VT) supported

Bit 1 — Demand-Based Switching (DBS) supported

Bit 2 — eXecute Disable (XD) supported

Bit 3 — Hyper Threading (HT) supported

ExtendedStates Indicates the setting of the

extended capabilities of the processor. This attribute is a bit field. The following are the definitions of a bit when set to one:

Bit 0 — Virtualization Technology (VT) enabled

Bit 1 — Demand-Based Switching (DBS) enabled

Bit 2 — eXecute Disable (XD) enabled

Bit 3 — Hyper Threading (HT) enabled

CPUStatus Indicates the current status of the

microprocessor. For example, it may be disabled

by the user through the BIOS or disabled due to a POST error. Values for the CPUStatus property are as follows:

0 - Unknown 1 - Microprocessor enabled 2 - Microprocessor disabled by

user through BIOS setup 3 - Microprocessor disabled by

BIOS (POST error)

string

uint16

4 - Microprocessor is idle 5 - Other

Family Refers to the processor family

type. Values for the Family property are as follows:

1 - Other 2 - Unknown 3 - 8086 4 - 80286 5 - 80386 6 - 80486 7 - 8087 8 - 80287 9 - 80387 10 - 80487 11 - Pentium Brand 12 - Pentium Pro 13 - Pentium II 14 - Pentium processor with

MMX technology

15 - Celeron 16 - Pentium II Xeon 17 - Pentium III 18 - M1 family 19 - M2 family 24 — AMD Duron processor 25 — K5 family 26 - K6 family 27 - K6 -2 28 - K6-3 29 - AMD Athlon processor

family

30 - AMD29000 family 31 - K6-2+ 32 - Power PC family 33 - Power PC 601 34 - Power PC 603 35 - Power PC 603+ 36 - Power PC 604 37 - Power PC 620 38- Power PC X704 39- Power PC 750 40 - Intel Core Duo processor 41 - Intel Core Duo mobile

processor 42 - Intel Core Solo mobile

processor

uint16

43 - Intel Atom processor 48 - Alpha family 49 - Alpha 21064 50 - Alpha 21066 51 - Alpha 21164 52 - Alpha 21164 53 - Alpha 21164a 54 - Alpha 21264 55 - Alpha 21364 60 - AMD Opteron 4100 Series

processor

64 - MIPS family 65 - MIPS R4000 66 - MIPS R4200 67 - MIPSR4400 68 - MIPS R4600 69 - MIPS R10000 80 - SPARC family 81 - SuperSPARC 82 - microSPARC II 83 - microSPARC IIep 84 - UltraSPARC 85 - UltraSPARC II 86 - UltraSPARC IIi 87 - UltraSPARC III 88 - UltraSPARC IIIi 96 - 68040 97 - 68xxx family 98 - 68000 99 - 68010 100 - 68020 101 - 68030 112 - Hobbit family 120 - Crusoe 5000 family 121 - Crusoe 3000 family 122 - Efficeon 8000 family 128 - Weitek 130 - Itanium processor 131 - AMD Athlon 64 processor

family 132 - AMD Opteron processor

family 133 - AMD Sempron processor

family 134 - AMD Turion 64 Mobile

technology 135 - Dual-Core AMD Opteron

processor family

136 - AMD Athlon 64 X2 DualCore processor family

137 - AMD Turion 64 X2 Mobile technology

138 - Quad-Core AMD Opteron processor family

139 - Third-Generation AMD Opteron processor family

140 - AMD Phenom FX QuadCore processor family

141 - AMD Phenom X4 QuadCore processor family

142 - AMD Phenom X2 DualCore processor family

143 - AMD Athlon X2 Dual-Core processor family

144 - PA-RISC family 145 - PA-RISC 8500 146 - PA-RISC 8000 147 - PA-RISC 7300LC 148 - PA-RISC 7200 149 - PA-RISC 7100LC 150 - PA-RISC 7100 160 - V30 family 161 - Quad-Core Intel Xeon

processor 3200 Series 162 - Dual-Core Intel Xeon

processor 3000 Series 163 - Quad-Core Intel Xeon

processor 5300 Series 164 - Dual-Core Intel Xeon

processor 5100 Series 165 - Dual-Core Intel Xeon

processor 5000 Series 166 - Dual-Core Intel Xeon

processor LV 167 - Dual-Core Intel Xeon

processor ULV 168 - Dual-Core Intel Xeon

processor 7100 Series 169 - Quad-Core Intel Xeon

processor 5400 Series 170 - Quad-Core Intel Xeon

processor 171- Dual-Core Intel Xeon

processor 5200 Series 172- Dual-Core Intel Xeon

processor 7200 Series 173 - Quad-Core Intel Xeon

processor 7300 Series

174- Quad-Core Intel Xeon processor 7400 Series

175- Multi-Core Intel Xeon processor 7400 Series

176 - Pentium III Xeon 177 - Pentium III Processor with

Intel SpeedStep

178- Technology 179 - Pentium 4 180 - Intel Xeon 181- AS400 family 182 - Intel Xeon Processor MP 183 - AMD Athlon XP family 184 - AMD Athlon MP family 185 - Intel Itanium 2 186- Intel Pentium M processor 187 - Intel Celeron D processor 188 - Intel Pentium D processor 189 - Intel Pentium Extreme

Edition processor

190- Intel Core 2 processor 192 - Intel Core 2 Solo processor 193 - Intel Core 2 Extreme

processor 194- Intel Core 2 Quad

processor 195 - Intel Core 2 Extreme

mobile processor 196- Intel Core 2 Duo mobile

processor 197- Intel Core 2 Solo mobile

processor

198 - Intel Core i7 processor 199 - Dual-Core Intel Celeron

processor

200 - S/390 and zSeries family 201- ESA/390 G4 202- ESA/390 G5 203- ESA/390 G6 204 - z/Architecture base 206 - CEh 206 Intel Core i3

processor 214 - Multi-Core Intel Xeon

processor 215 - Dual-Core Intel Xeon

processor 3xxx Series 216 - Quad-Core Intel Xeon

processor 3xxx Series 217 - D9h 217 VIA Nano

processor family

218 - Dual-Core Intel Xeon processor 5xxx Series

219 - Quad-Core Intel Xeon processor 5xxx Series

221 - Dual-Core Intel Xeon processor 7xxx Series

222- Dual-Core Intel Xeon processor 7xxx Series

223 Multi-Core Intel Xeon processor 7xxx Series

224 - E0h 224 Multi-Core Intel Xeon processor 3400 Series

230 - Embedded AMD Opteron Quad-Core processor family

231 - AMD Phenom Triple-Core processor family

232 - AMD Turion Ultra DualCore Mobile processor family

233 - AMD Turion Dual-Core Mobile processor family

234 - AMD Turion Dual-Core Mobile processor family

235- AMD Sempron SI processor family

238 - AMD Opteron Six-Core processor family

250 - i860 251 - i960 260 - SH-3 261 - SH-4 280 - ARM 281 - StrongARM 300 - 6x86 301 - MediaGX 302 - MII 320 - WinChip 350- DSP 500 - Video processor

CIM_StorageExtent

The CIM_StorageExtent identified in Table below contains devices that manage data storage, for example, hard drives or microprocessor memory.

Table 40. CIM_StorageExtent Properties

Class Name:

Parent Class:

CIM_StorageExtent

CIM_LogicalDevice

CIM_Memory

The CIM_Memory class identified in Table below describes the capabilities and management of storage extent devices, for example, cache memory or system memory.

Table 41. CIM_Memory Properties

Class Name:

Parent Class:

CIM_Memory

CIM_StorageExtent

CIM_CacheMemory

The CIM_CacheMemory class described in CacheMemoryProperties describes the capabilities and management of cache memory. Cache memory allows a microprocessor to access data and instructions faster than normal system memory

Table 42. CIM_CacheMemory Properties

Class Name:

Parent Class:

Property Description Data Type

Level Defines if this is the primary,

CIM_CacheMemory

CIM_Memory

uint16 secondary, or tertiary cache.

Values for the Level property are as follows:

1- Other 2- Unknown 3- Primary 4 - Secondary 5- Tertiary 6- Not applicable

WritePolicy Defines if this cache is a write-

back or write-through cache or if this information varies with address or is defined individually for each input/output (I/O). Values for the property are as follows:

1- Other 2- Unknown 3- Write-back 4 - Write-through 5- Varies with address 6- Determination per I/O

CacheType Defines if this cache is for

instruction caching, data caching, or both (unified). Values for the CacheType property are as follows:

1- Other 2- Unknown 3- Instruction 4- Data 5- Unified

LineSize Indicates the size, in bytes, of a

single cache bucket or line.

ReadPolicy Defines the policy used by the

cache for handling read requests. Values for the ReadPolicy property are as follows:

1- Other 2- Unknown 3- Read 4- Read-ahead 5- Read and read-ahead 6- Determination per I/O

WritePolicy

uint16

uint32

uint16

DELL_SoftwareFeature

The DELL_SoftwareFeature described in Table below defines the universal resource locator (URL) of the systems management software and the language in which systems management information displays. Defining these properties enables users to manage a system using an Internet browser. You can access Server Administrator using the secure hypertext transfer protocol (https) and a preassigned port number of 1311, or you can specify a port number of your own choice.

Table 43. DELL_SoftwareFeature Properties

Class Name:

Parent Class:

Property Description Data Type

OmsaURL Defines the URL for Server

Language Sets the language for systems

AgentVersion Defines the version information of

DELL_SoftwareFeature

CIM_SoftwareFeature

string

Administrator.

string

management information.

string local CIM agent (same as ISVC version.)

CIM_BIOSElement

The CIM_BIOSElement class listed in BIOSElement Properties describes the BIOS for the system. The BIOS controls the following:

• Communications between the microprocessor and peripheral devices, such as the keyboard and the video adapter.

• Miscellaneous functions, such as system messages.

Table 44. CIM_BIOSElement Properties

Class Name:

Parent Class:

Property Description Data Type

Version Provides the product version

Manufacturer See Common Properties of

PrimaryBIOS Specifies whether a given BIOS is

CIM_BIOSElement

CIM_SoftwareElement

string

information.

string

Classes

Boolean the primary BIOS for the system. When the value = TRUE, the BIOS is the primary BIOS.

CIM_SoftwareFeature

The CIM_SoftwareFeature class described in Table properties below defines a particular function or capability of a product or application system. This class is intended to be meaningful to a consumer, or user of a product, rather than to explain how the product is built or packaged. When a software feature can exist on multiple platforms or operating systems (for example, a client component of a three-tiered client/server application might run on Windows Server 2003), a software feature is a collection of all the software elements for these different platforms. The users of the model must be aware of this situation because typically they are interested in a sub-collection of the software elements required for a particular platform.

Table 45. CIM_SoftwareFeature Properties

Class Name:

Parent Class:

Property Description Data Type

IdentifyingNumber Provides product identification

ProductName Identifies the commonly used

Vendor Identifies the name of the

CIM_SoftwareFeature

CIM_LogicalElement

string such as a serial number of the software

string product name.

string product’s supplier. Corresponds to the vendor property in the product object in the DMTF solution exchange standard.

Version Identifies the product version

information. Corresponds to the version property in the product object in the DMTF solution exchange standard.

Name Defines the label by which the

object is known to the users. This label is a user-defined name that uniquely identifies the element.

string

DELL_SoftwareFeature

Table 46. DELL_SoftwareFeature Properties

Class Name:

Parent Class:

Property Description Data Type

OmsaURL Defines the URL for Server

Language Sets the language for systems

AgentVersion Defines the version information of

DELL_SoftwareFeature

CIM_SoftwareFeature

string

Administrator.

string

management information.

string local CIM agent (same as ISVC version.)

CIM_SystemResource

The CIM_SystemResource class described in Table below provides access to system resources from an operating system. System resources consist of interrupt requests (IRQs) and direct memory access (DMA) capabilities.

Table 47. CIM_SystemResource Properties

Class Name:

Parent Class:

CIM_SystemResource

CIM_LogicalElement

CIM_IRQ

The CIM_IRQ class described in Properties Table below , contains IRQ information. An IRQ is a signal that data is about to be sent to or received by a peripheral device. The signal travels by an IRQ line to the microprocessor. Each peripheral connection must be assigned an IRQ number. For example, the first serial port in the computer (COM1) is assigned to IRQ4 by default.

Table 48. CIM_IRQ Properties

Class Name:

Parent Class:

Property Description Data Type

CSCreationClassName See Common Properties of

CSName See Common Properties of

CreationClassName See Common Properties of

IRQNumber Identifies the interrupt request

Availability Indicates the availability of the

TriggerLevel Indicates if the interrupt is

CIM_IRQ

CIM_SystemResource

string

Classes

string

Classes

string

Classes

uint32

number.

uint16 IRQ. Values for the Availability property are as follows:

1- Other 2- Unknown 3- Available 4 - In use/not available 5- In use and available

uint16 triggered by the hardware signal going high or low. Values for the

TriggerLevel property are as follows:

1- Other 2- Unknown 3- Active low 4- Active high

TriggerType Indicates if edge (value=4) or

level triggered (value=3) interrupts occur.

1- Other 2- Unknown 3- Level 4- Edge

Shareable Indicates if the IRQ can be

shared. A value of TRUE indicates that the IRQ can be shared.

Hardware Indicates if the interrupt is

hardware- or software-based. (A value of TRUE indicates that the interrupt is hardware based.) On a personal computer, a hardware IRQ is a physical wire to a programmable interrupt controller (PIC) chip set through which the microprocessor can be notified of time critical events. Some IRQ lines are reserved for standard devices such as the keyboard, diskette drive, and the system clock. A software interrupt is a programmatic mechanism to allow an application to get the attention of the processor.

uint16

Boolean

CIM_MemoryMappedIO

The CIM_MemoryMappedIO class described in properties Table below addresses both memory and port I/O resources for personal computer architecture memory mapped I/O.

Table 49. CIM_MemoryMappedIO Properties

Class Name:

Parent Class:

Property Description Data Type

CSCreationClassName See Common Properties of

CSName See Common Properties of

CreationClassName See Common Properties of

StartingAddress Identifies the starting address of

EndingAddress Identifies the ending address of

MappedResource Indicates the type of memory

CIM_MemoryMappedIO

CIM_SystemResource

string

Classes

string

Classes

string

Classes

uint64 memory mapped I/O.

uint16 mapped I/O. MappedResource defines if memory or I/O is mapped, and for I/O, if the mapping is to a memory or a port space. Memory mapped I/O values are as follows:

1- Other 2- Mapped memory 3 - I/O mapped to memory

space

4- I/O mapped to port space

CIM_DMA

The CIM_DMA class described in DMA Properties contains DMA information. A DMA channel allows certain types of data transfer between RAM and a device to bypass the microprocessor.

Table 50. CIM_DMA Properties

Class Name:

Parent Class:

Property Description Data Type

CSCreationClassName See Common Properties of

CSName. See Common Properties of

CreationClassName See Common Properties of

DMAChannel A part of the object’s key value, the

Availability Availability of the DMA. Availability

CIM_DMA

CIM_SystemResource

string

Classes

string

Classes

string

Classes

uint32

DMA channel number.

uint16

values are defined as follows:

• 1 - Other

• 2 - Unknown

• 3 - Available

• 4 - In Use/Not Available

• 5 - In Use and Available/

Shareable

CIM_RedundancyGroup

The CIM_RedundancyGroup class described in Table properties below is a set of components that provide more instances of a critical component than are required for the system’s operation. The extra components are used in case of critical component failure. For example, multiple power supplies allow a working power supply to take over when another power supply has failed.

Table 51. CIM_RedundancyGroup Properties

Class Name:

Parent Class:

Property Description Data Type

CreationClassName See Common Properties of

Name Serves as the key for the

CIM_RedundancyGroup

CIM_LogicalElement

string

Classes

string redundancy group’s instance in an enterprise environment.

RedundancyStatus Provides information on the state

of the redundancy group. Values for the RedundancyStatus property are as follows:

0- Unknown 1- Other 2- Fully redundant. Fully

redundant - all of the configured redundancy is still available.

3 - Degraded redundancy. Degraded redundancy - that some failures have been experienced but some reduced amount of redundancy is still available.

4 - Redundancy lost. Redundancy lost - that a sufficient number of failures have occurred so that no redundancy is available and the next failure experienced causes overall failure.

CIM_ExtraCapacityGroup

uint16

The CIM_ExtraCapacityGroup class described in below properties Table applies to systems that have more capability and components than are required for normal operation, for example, systems that have extra fans or power supplies.

Table 52. CIM_ExtraCapacityGroup Properties

Class Name:

Parent Class:

Property Description Data Type

MinNumberNeeded Specifies the smallest number of

CIM_ExtraCapacityGroup

CIM_RedundancyGroup

uint32 elements that must be operational in order to have redundancy. For example, in an N +1 redundancy relationship, the MinNumberNeeded property should be set to N.

DELL_PSRedundancyGroup

The DELL_PSRedundancyGroup described in Table below is a Dell-specific extension of the CIM_ExtraCapacityGroup class. The DELL_PSRedundancyGroup class defines what constitutes power supply redundancy in a system.

Table 53. DELL_PSRedundancyGroup Properties

Class Name:

Parent Class:

DELL_PSRedundancyGroup

CIM_ExtraCapacityGroup

DELL_FanRedundancyGroup

The DELL_FanRedundancyGroup described in Table below defines what constitutes fan redundancy in a system.

Table 54. DELL_FanRedundancyGroup Properties

Class Name:

Parent Class:

DELL_FanRedundancyGroup

CIM_ExtraCapacityGroup

CIM_EnabledLogicalElement

The CIM_EnabledLogicalElement class described in Table below extends the CIM_LogicalElement class to abstract the concept of an element that is enabled or disabled, such as a LogicalDevice or ServiceAccessPoint.

Table 55. CIM_EnabledLogicalElement Properties

Class Name:

Parent Class:

CIM_EnabledLogicalElementGroup

CIM_LogicalElementGroup

CIM_ServiceAccessPoint

The CIM_ServiceAccessPoint class described in Table below represents the ability to utilize or invoke a service. Access points indicate that a service is available to other entities for use.

Table 56. CIM_ServiceAccessPoint Properties

Class Name:

Parent Class:

CIM_ServiceAccessPoint

CIM_EnabledLogicalElement

CIM_RemoteServiceAccessPoint

The CIM_RemoteServiceAccessPoint class identified in Table below describes the accessing and addressing of information for a remote connection that is known to a local network element. This information is contained in the local network element since this is the context in which it is remote. The relevance of the remote service access point and information on its use are described by subclassing or associating to the CIM_RemoteServiceAccessPoint class.

Table 57. CIM_RemoteServiceAccessPoint Properties

Class Name:

Parent Class:

Property Description Data Type

AccessInfo Describes accessing or addressing

CIM_RemoteServiceAccessPoi ntGroup

CIM_ServiceAccessPointGrou p

string of information for a remote connection. This can be a host

Class Name:

CIM_RemoteServiceAccessPoi ntGroup

Parent Class:

Property Description Data Type

InfoFormat Indicates an enumerated integer

CIM_ServiceAccessPointGrou p

name, network address, and other similar information.

uint16 describing the format and interpretation of the AccessInfo property. This property can have the following values:

1 - Other 2 - Host Name 3 - IPv4 Address 4 - IPv6 Address 5 - IPX Address 6 - DECnet Address 7 - SNA Address 8 - Autonomous System Number 9 - MPLS Label

10..99 - DMTF Reserved 100 - Dial String 101 - Ethernet Address 102 - Token Ring Address 103 - ATM Address 104 - Frame Relay Address

105..199 - DMTF Reserved 200 - URL

32768..65535 - Vendor Specific

DELL_RemoteServiceAccessPort

The DELL_RemoteServiceAccessPort class described in Table below is an extended class of the CIM_RemoteServiceAccessPoint class. The DELL_RemoteServiceAccessPort class provides information about Dell implementation-specific attributes

Table 58. DELL_RemoteServiceAccessPort Properties

Class Name:

DELL_RemoteServiceAccessP ort

Parent Class:

CIM_RemoteServiceAccessPo int

Property Description Data Type

PortName Displays the name of the service

string

access port.

VersionString Indicates the version of the

string

access point service.

RemoteAccessType Indicated the type of remote

uint16 access service. This property can have the following values:

0- BMC 8- IMC 9 - CMC 10- iDRAC6 11 - iDRAC6 for modular systems 13 - BMC 16 - iDRAC7 17 - iDRAC7 for modular systems

BladeFormFactor Type of Blade Form Factor. This

uint16 property can have the following values:

0- singleWidthHalfHeight 1- dualWidthHalfHeight 2- singleWidthFullHeight 3- dualWidthFullHeight 4- singleWidthQuarterHeight 5- 1UHalfWidth 6- 1UQuarterWidth 7- 1UFullWidth 255- notApplicable

Dell-Defined Classes

Dell-defined classes are defined and populated by Dell rather than by the Common Information Model (CIM). For information on how the logs are formatted, see DELL_Chassis Properties.

The DELL_EsmLog class described in DELL_EsmLog Properties records failure threshold violations collected by Server Administrator’s embedded server management (ESM) capabilities.

Table 59. DELL_EsmLog Properties

Class Name:DELL_EsmLog Parent Class: None

Property Description Data Type

recordNumber Provides an index to the

ESM table.

logRecord Provides the ESM

message content.

eventTime Indicates the time that

the message is generated.

status Indicates the severity of

the event that caused the log to be generated.

uint32

string

datetime

string

DELL_PostLog

The DELL_PostLog class described in DELL_PostLog Properties is a record of the system’s power-on self-test (POST). When you turn on a system, the POST tests various system components, such as random-access memory (RAM), the hard drives, and the keyboard.

Table 60. DELL_PostLog Properties

Class Name: DELL_PostLog Parent Class: None

DELL_CMApplication

NOTE: Dell-updateable components, such as BIOS and firmware, are considered applications.

The DELL_CMApplication class described in DELL_CMApplication contains information related to the Dell change management applications.

Table 61. DELL_CMApplication

Class Name: DELL_CMApplication Parent Class: None

Property Description Data Type

componentType Defines the application

type.

subComponentID Defines an application

string.

version Indicates the current

version of the application.

name Indicates the name of

the application.

deviceKey Indicates the device key

of the application.

string

DELL_CMDevice

The DELL_CMDevice class described in DELL_CMDevice Properties contains information related to the Dell change management device.

Table 62. DELL_CMDevice Properties

Class Name: DELL_CMDevice Parent Class: None

Property Description Data Type

componentID Defines a component

string.

name Indicates the name of

the device.

vendorID Defines an ID for vendor

supplying the device.

string

subVendorID Defines an ID for an

additional vendor supplying the device.

deviceID Indicates the ID of the

device.

subDeviceID Indicates the ID for

additional device.

bus Indicates the PCI bus

number.

device Indicates the PCI device

number.

function Indicates the PCI

function number.

string

DELL_CMDeviceApplication

The DELL_CMDeviceApplication class described in CMDeviceApplication Properties contains information related to the Dell change management association between the device and application.

Table 63. DELL_CMDeviceApplication Properties

Class Name: DELL_CMDeviceApplication Parent Class: None

Property Description Data Type

antecedent Refers to the device. string

dependent Refers to the application. string

DELL_CMInventory

The DELL_CMInventory class described in DELL _CMInventory Properties contains information related to the Dell Change Management inventory.

Table 64. DELL _CMInventory Properties

Class Name: DELL_CMInventory Parent Class: None

Property Description Data Type

local Indicates the locale of

the system.

string

schemaVersion Indicates the inventory

schema implemented by the system.

systemID Defines the system ID. string

string

DELL_CMOS

The DELL_CMOS class described in DELL_CMOS Properties contains information related to the Dell change management operating system.

Table 65. DELL_CMOS Properties

Class Name: DELL_CMOS Parent Class:None

Property Description Data Type

architecture Indicates the

architecture of the operating system.

vendor Indicates the vendor of

the operating system.

majorVersion Indicates the major

version of the operating system.

minorVersion Indicates the minor

version of the operating system.

spMajorVersion Indicates the current

service pack number for the operating system’s major version.

spMinorVersion Indicates the current

service pack number for the operating system’s minor version.

string

DELL_CMProductInfo

The DELL_CMProductInfo class described in DELL_CMProductInfo Properties contains information related to the Dell change management product.

Table 66. DELL_CMProductInfo Properties

Class Name: DELL_CMProductInfo Parent Class: None

Property Description Data Type

name Indicates the name of

the product.

description Provides a short

description of the product.

vendor Indicates the name of

the product manufacturer.

version Indicates the current

version number of the product.

string

DELL_BIOSExtensions

The DELL_BIOSExtensions identified in DELL_BIOSExtensions Properties contains information related to the specific extension of the data attributes on your system.

Table 67. DELL_BIOSExtensions Properties

Class Name:

Parent Class:

Property Description Data Type

systemBIOSCharacteristics Indicates the characteristics of

systemBIOSCharacteristicsExt1 Indicates the specific extension of

systemBIOSCharacteristicsExt2 Indicates the specific extension of

DELL_BIOSExtensions

CIM_ManagedSystemElement

uint64

BIOS on your system.

uint8

the data attributes on your system.

uint8

the data attributes on your system.

DELL_BIOSSettings

The DELL_BIOSSettings identified in DELL_BIOSSettings Properties contains information related to setting parameters in the Dell System Management BIOS.

Table 68. DELL_BIOSSettings Properties

Class Name:

Parent Class:

Property Description Data Type

DellInstanceID Defines the instance ID of this

DELL_BIOSSettings

CIM_ManagedSystemElement

uint32

class.

Class Name:

DELL_BIOSSettings

Parent Class:

TrustedPlatformModule Enables or Disables the Trusted

CIM_ManagedSystemElement

uint8 Platform Module (TPM). Values for the TPM property are:

0 - Other 1 - Unsupported 2 - Off 3 - On with BIOS Management 4 - On without BIOS Measurement

DELL_SDCardDevice

The DELL_SDCard Devices identified in DELL_SDCardDevice Properties contains information related to the SD card devices.

Table 69. DELL_SDCardDevice Properties

Class Name:

Parent Class:

Property Description Data Type

sdType An enumerated storage device

sdCertified Indicates the licensing information

sdCardSizeMB Indicates the size of the storage

sdCardFreeSizeMB Indicates the available size of SD

sdCardState Indicates the value of the SD Card.

DELL_SDCardDevice

CIM_LogicalDevice

uint8 type. The values for this property are:

1 - Other 2 - Unknown 3 - Hypervisor SD 4 - Virtual Flash SD

uint8 of SD media. The values for this property are:

0 - Unknown 1 - Unlicensed 2 - Licensed

uint32 device in MB.

uint32 Media in MB.

The values for this property are: 0 - Present 1 and 2 - Reserved 3 - Offline Detected 4 - Failed Detectez 5 - Active 6 - Bootable

Class Name:

DELL_SDCardDevice

Parent Class:

CIM_LogicalDevice

7 - Write Protected

DELL_NetworkPort

The Dell_Network Port class described in DELL_NetworkPort Properties represents the Dell-specific features of the network adapters.

Table 70. DELL_NetworkPort Properties

Class Name:

Parent Class:

Property Description Data Type

NIC Capabilities NIC Capabilities bitmask indicates

NIC TOE Capability Defines the TOE capability of the

DELL_NetworkPort

CIM_Network Port

uint 32

the capabilities of the NIC. The bitmask for the NIC

Capability property are: Bit 0, Value 0 - Reporting NIC

capabilities through this attribute is not supported.

Bit 0, Value 1 - Reporting NIC capabilities through this attribute is supported.

Bit 1, Value 0 - NIC is not TOE capable.

Bit 1, Value 1 - NIC is TOE capable.

Bit 2, Value 0 - NIC is not iSCSI capable.

Bit 2, Value 1 - NIC is iSCSI capable.

Bit 3, Value 0 - NIC is not FCoE capable.

Bit 3, Value 1 - NIC is FCoE capable.

uint 32

NIC. Values for the NIC TOE Capability

property are:

0 - NIC/driver does not support querying for capability.

1 - NIC/driver supports querying for capability but query returned an error.

2 - NIC/driver supports querying for capability and querying indicates that it is capable.

4 - NIC/driver supports querying for capability and querying indicates that it is not capable.

8 - NIC/driver supports querying for capability but an error prevented querying the NIC/ driver.

16 - NIC/driver supports querying for capability but NIC/driver did not respond to query.

NOTE: Boolean value is defined if TOE is enabled (Boolean is TOEEnable).

NIC RDMA Capability

NIC iSCSI Capability Defines the iSCSI capability of the

Defines the RDMA capability of the NIC.

Values for the NIC RDMA Capability property are:

0 - NIC/driver does not support querying for capability.

1 - NIC/driver supports querying for capability but query returned an error.

2 - NIC/driver supports querying for capability and querying indicates that it is capable.

4 - NIC/driver supports querying for capability and querying indicates that it is not capable.

8 - NIC/driver supports querying for capability but an error prevented querying the NIC/ driver.

16 - NIC/driver supports querying for capability but NIC/driver did not respond to query.

NOTE: Boolean value is defined if RDMA is enabled (Boolean is RDMAEnable).

NIC. Values for the NIC iSCSI

Capability property are: 0 - NIC/driver does not support

querying for capability.

uint 32

1 - NIC/driver supports querying for capability but query returned an error.

2 - NIC/driver supports querying for capability and querying indicates that it is capable.

4 - NIC/driver supports querying for capability and querying indicates that it is not capable.

8 - NIC/driver supports querying for capability but an error prevented querying the NIC/ driver.

16 - NIC/driver supports querying for capability but NIC/driver did not respond to query.

NOTE: Boolean value is defined if iSCSI is enabled (Boolean is iSCSIEnable).

NIC Status

BusNumber Indicates the PCI bus number. uint 8

DeviceNumber Indicates the PCI device number. uint 8

FunctionNumber Indicates the PCI function

DriverVersion Indicates the NIC driver version. string

IPAddresss Indicates the NIC IP address. string

SubnetMask Indicates the NIC subnet mask. string

DHCPServer Indicates the DHCP server. string

DefaultGateway Indicates the default gateway. string

CurrentMacAddress Indicates the NIC’s current MAC

OSAdapterDescription Describes the operating system

OSProductName Describes the product name of

Indicates the status of the NIC or driver.

The values for the NIC Status property are:

0 - Unknown 1 - Connected 2 - Disconnected 3 - Driver is bad 4 - Driver is disabled 10 - Hardware is initializing 12 - Hardware is closing 13 - Hardware is not ready

number.

address.

adapter.

the operating system.

uint 32

uint 8

string

ServiceName Indicates the service name. string

DELL_PowerConsumptionAmpsSensor

The DELL_PowerConsumptionAmpsSensor identified in DELL_PowerConsumptionAmpsSensor contains information related to monitoring the power consumption.

Table 71. DELL_PowerConsumptionAmpsSensor

Class Name:

Parent Class:

Property Description

UnitModifier

CurrentReading

IsLinear

LowerThresholdNonCritical

UpperThresholdNonCritical

LowerThresholdCritical

UpperThresholdCritical

DELL_PowerConsumptionAmpsS ensor

CIM_Numeric Sensor

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

Data Type

sint32

Boolean

sint32

DELL_PowerConsumptionWattsSensor

The DELL_PowerConsumptionWattsSensor identified in DELL_PowerConsumptionWattsSensor contains information related to monitoring the power consumption.

Table 72. DELL _PowerConsumptionWattsSensor

Class Name:

Parent Class:

Property Description

UnitModifier

CurrentReading

DELL_PowerConsumptionWatts Sensor

CIM_Numeric Sensor

See Common Properties of

Classes

See Common Properties of

Classes

Data Type

sint32

Class Name:

DELL_PowerConsumptionWatts Sensor

Parent Class:

IsLinear

LowerThresholdNonCritical

UpperThresholdNonCritical

LowerThresholdCritical

UpperThresholdCritical

CIM_Numeric Sensor

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

See Common Properties of

Classes

Boolean

sint32

DELL_PowerConsumptionData

The DELL_PowerConsumptionData identified in DELL_PowerConsumptionData contains information about the total power consumed from a start time and peak values registered during a time period.

Table 73. DELL _PowerConsumptionData

Class Name:

Parent Class:

DELL_PowerConsumptionData

CIM_Logical Device

Property Description Data Type

cumulative PowerReading Indicates the total power

consumed from a start time.

peakAmpReading Indicates the time from which

the peak amperage reading is being monitored.

peakWattReading Indicates the time from which

the peak watt reading is being monitored.

ResetCounters Is the function used to reset the

peak readings.

powerCapSetting This refers to the user configured

power setting.

instHeadroom This refers to the instantaneous

headroom.

peakHeadRoom Is the function used to set the

power budget.

uint 32

uint 16

uint 32

uint 16

uint 32

DCIM_OEM_DataAccessModule

The DCIM_OEM_DataAccessModule class is derived from the CIM_ManagedElement class. This class models hardware information in a proprietary format.

Class Name: DCIM_OEM_DataAccessModule

Parent Class: CIM_ManagedElement

Property Description Data Type

InstanceID Identifies the instance. string

GlobalStatus Represents the global health status

of the system. This property can have the following values:

0 - Other 1 - Unknown 2 - OK 3 - Warning / Non-Critical 4 - Critical 5 - Non-Recoverable .. - Reserved

NOTE: GlobalStatus property is available only for Linux systems.

sint32

SendCmd The SendCmd method is used to

invoke proprietary hardware management operation.

iDRACIPv4 Provides Remote Access controller

(iDRAC ) IPv4 address.

iDRACIPv6 Provides Remote Access controller

(iDRAC ) IPv6 address.

string

DCIM_RegisteredProfile

The DCIM_RegisteredProfile class is derived from the CIM_RegisteredProfile class. This class advertises the capabilities of DCIM_OEM_DataAccessModule.

CIM_Dependency

The CIM_Dependency class is an association used to establish dependency relationships between two managed system elements. The CIM_Dependency class described in the figure below does not have a parent class because it is a relationship or association between two elements.

Each class derived from the CIM_Dependency class has an element called an antecedent that represents the independent object in this association, and another element called a dependent that represents the object that is dependent on the antecedent. For example, consider two managed system elements: Chassis1 and PowerSupply3. Chassis1 is the antecedent element because a managed power supply would always be either contained in, or grouped with, a chassis.

DELL_FanSensor

The DELL_FanSensor class described in DELL_FanSensor Properties defines a Dell-specific association between a fan and a sensor. The entire package as opposed to a fan dedicated to cooling only some of the components in the package.

Table 74. DELL_FanSensor Properties

Class Name: DELL_FanSensor Parent Class:CIM_Dependency

Element Description

Antecedent

CIM_PackageFanSensor class contains fans that assist in cooling the

CIM_Tachometer refers to the

tachometer (fan sensor) that measures the RPM of the fan.

Dependent

CIM_Fanrefers to the fan whose revolutions are measured by the tachometer.

CIM_PackageTempSensor

The CIM_PackageTempSensor class described in CIM_PackageTempSensor Properties contains temperature sensors that are often installed in a package such as a chassis or a rack to assist in the monitoring of the package in general. This relationship is described by the CIM_PackageTempSensor association.

Table 75. CIM_PackageTempSensor Properties

Class Name: CIM_PackageTempSensor Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent

CIM_TempSensor refers to the temperature sensor for the package.

CIM_PhysicalPackage refers to the physical package whose environment is being monitored.

CIM_PackageVoltSensor

The CIM_PackageVoltSensor class described in CIM_PackageVoltage Properties contains voltage sensors that are often installed in a package such as a chassis or a rack to assist in the monitoring of the package in general. This relationship is described by the CIM_PackageVoltSensor association.

Table 76. CIM_PackageVoltage Properties

Class Name: CIM_PackageVoltSensor Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent

CIM_PackageVoltSensor

refers to the voltage sensor for the package.

CIM_PhysicalPackage refers to the physical package whose voltages are being monitored.

CIM_PackageCurrentSensor

The CIM_PackageCurrentSensor class described in CIM_PackageCurrentSensor Properties contains amperage sensors that are often installed in a package such as a chassis or a rack to assist in the monitoring of the package in general. This relationship is described by the CIM_PackageCurrentSensor association.

Table 77. CIM_PackageCurrentSensor Properties

Class Name: CIM_PackageCurrentSensor Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent

CIM_CurrentSensor refers to the amperage sensor for the package.

CIM_PhysicalPackagerefers to the physical package whose amperage is being monitored.

CIM_PackageFanSensor

The CIM_PackageFanSensor class described in CIM_PackageFanSensor Properties contains fan sensors that monitor the whole package.

Table 78. CIM_PackageFanSensor Properties

Class Name:CIM_PackageFanSensor Parent Class: CIM_Dependency

Element Description

Antecedent CIM_Fan refers to the cooling

device for the package.

Dependent CIM_PhysicalPackage refers

to the physical package whose environment is being monitored.

CIM_PackagePowerSupplySensor

The CIM_PackagePowerSupplySensor class described in CIM_PackagePowerSupplySensor Properties contains power supplies that provide power to the whole package.

Table 79. CIM_PackagePowerSupplySensor Properties

Class Name: CIM_PackagePowerSupplySensor Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent CIM_PhysicalPackage refers

CIM_PowerSupplySensor

refers to the power supply sensor that monitors wattage for the entire package.

to the package whose wattage is being monitored.

DELL_PackagePSRedundancy

The DELL_PackagePSRedundancy class described in DELL_PackagePSRedundancy Properties defines what constitutes a power supply redundancy for an entire package.

Table 80. DELL_PackagePSRedundancy Properties

Class Name: DELL_PackagePSRedundancy Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent CIM_PhysicalPackagerefers to

DELL_PSRedundancyGroup

refers to power supplies that deliver wattage for the entire package.

the package to which the wattage is being supplied.

DELL_PSRedundancy

The DELL_PSRedundancy class described in DELL_PSRedundancy Properties defines what constitutes a power supply redundancy for Dell systems.

Table 81. DELL_PSRedundancy Properties

Class Name: DELL_PSRedundancy Parent Class: CIM_Dependency

Element Description

Antecedent

Dependent CIM_PhysicalPackage refers

CIM_PowerSupplySensor

refers to the power supply sensor that monitors wattage for the entire package.

to the package whose wattage is being monitored.

DELL_AssociatedSupplyPCAmps

The DELL_AssociatedSupplyPCAmps class described in DELL _AssociatedSupplyPCAmps is a PowerConsumptionAmpsSensor associated with a CIM_PowerSupply which is defined by this class.

Table 82. DELL _AssociatedSupplyPCAmps

Class Name:

Parent Class:

Property Description Data Type

Antecedent Indicates the PowerSupply

Dependent Indicates the

DELL_AssociatedSupplyPCAmp s

CIM_Dependency

uint 16 instance.

uint 16

PowerConsumptionAmpsSensor

associated with the CIM_PowerSupply.

DELL_AssociatedSystemPCWatts

The DELL_AssociatedSystemPCWatts class described in DELL_AssociatedSystemPCWatts is

PowerConsumptionWattsSensor associated with a Dell_System which is defined by this class.

Table 83. DELL _AssociatedSystemPCWatts

Class Name:

Parent Class:

Property Description Data Type

Antecedent Indicates the Dell_System

Dependent Indicates the

DELL_AssociatedSystemPCWat ts

CIM_Dependency

uint 16 instance.

uint 16

PowerConsumptionWattsSenso r associated with the system.

AssociatedSystemPCData

The AssociatedSystemPCData identified in AssociatedSystemPCData is a PowerConsumptionData associated with a Dell_System which is defined by this class.

Table 84. AssociatedSystemPCData

Class Name:

Parent Class:

Property Description Data Type

Antecedent Indicates the Dell_System

Dependent Indicates the

DELL_AssociatedSupplyPCAmp s

CIM_Dependency

uint 16 instance.

uint 16

PowerConsumptionData

associated with the Power Supply.

DELL_PowerProfileData

The DELL_PowerProfileData identified in DELL _PowerProfileData contains information related to power profiling and power knob data.

Table 85. DELL _PowerProfileData

Class Name:

Parent Class:

Property Description Data Type

chassisIndex Indicates the chassisIndex for

supportedProfile Indicates the supported profiles. uint 16

profileSetting Indicates the Profile setting. uint 16

customCPUCaps Indicates the Custom Profile CPU

customCPUSettings Indicates the Custom Profile CPU

DELL_PowerProfileData

CIM_LogicalDevice

uint 8 this power profile.

uint 16 management capability.

uint 16 management setting.

Class Name:

Parent Class:

customMemCaps Indicates the Custom Profile

customMemSettings Indicates the Custom Profile

customFanSettings Indicates the Custom Profile fan

DELL_PowerProfileData

CIM_LogicalDevice

memory management capability.

management setting.

uint 16

Dell OpenManage Server Administrator Version 7.4 CIM Reference Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Server Administrator

What’s New in This Release

Documenting CIM Classes and Their Properties

Base Classes

Parent Classes

Classes That Describe Relationships

Dell-Defined Classes

Common Properties of Classes

Other Documents You May Need

Typographical Conventions

CIM_Physical Element

CIM_PhysicalElement

CIM_PhysicalPackage

CIM_PhysicalFrame

CIM_Chassis

DELL_Chassis

CIM_PhysicalComponent

CIM_Chip

CIM_PhysicalMemory

CIM_PhysicalConnector

CIM_Slot

CIM_LogicalElement

CIM_LogicalElement

CIM_System

CIM_ComputerSystem

DELL_System

CIM_LogicalDevice

CIM_FRU

CIM_Sensor

CIM_DiscreteSensor

CIM_NumericSensor

CIM_TemperatureSensor

CIM_CurrentSensor

CIM_VoltageSensor

CIM_Tachometer

CIM_WatchDog

CIM_CoolingDevice

CIM_Fan

CIM_UserDevice

CIM_PointingDevice

CIM_Keyboard

CIM_PowerSupply

CIM_Controller

CIM_ParallelController

CIM_SerialController

CIM_PCIController

CIM_PCIDevice

CIM_PCIBridge

CIM_Processor

CIM_StorageExtent

CIM_Memory

CIM_CacheMemory

DELL_SoftwareFeature

CIM_BIOSElement

CIM_SoftwareFeature

DELL_SoftwareFeature

CIM_SystemResource

CIM_IRQ

CIM_MemoryMappedIO

CIM_DMA

CIM_RedundancyGroup

CIM_ExtraCapacityGroup

DELL_PSRedundancyGroup

DELL_FanRedundancyGroup

CIM_EnabledLogicalElement

CIM_ServiceAccessPoint

CIM_RemoteServiceAccessPoint

DELL_RemoteServiceAccessPort

Dell-Defined Classes

DELL_PostLog

DELL_CMApplication

DELL_CMDevice

DELL_CMDeviceApplication

DELL_CMInventory

DELL_CMOS
