Dell OpenManage Server Administrator Version 6.1 SNMP Reference Guide

Download

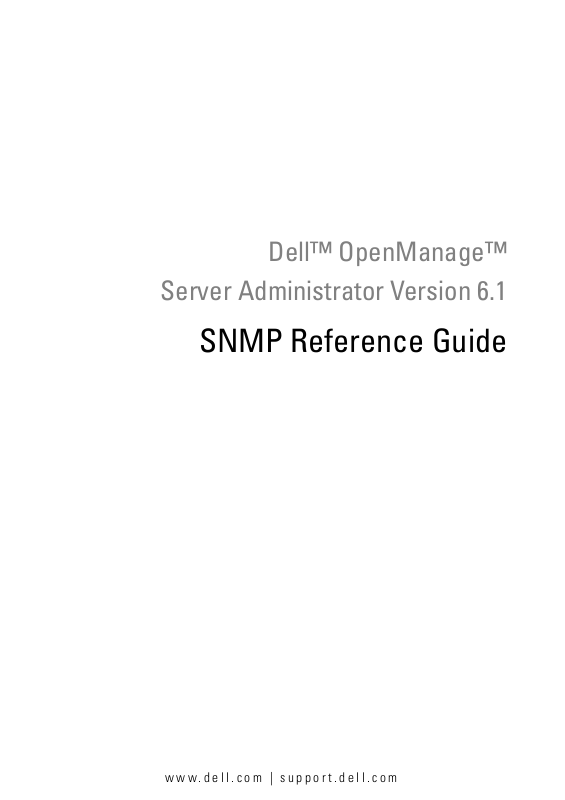

Dell™ OpenManage™

Server Administrator Version 6.1

SNMP Reference Guide

www.dell.com | support.dell.com

Notes and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

____________________

Reproduction of these whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, PowerEdge, PowerVault, and OpenManage are

trademarks of Dell Inc.; Microsoft, Windows, and Windows NT are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries; Intel, Itanium, Pentium, and Celeron are registered trademarks, and MMX, Xeon, Core and Intel386 are trademarks of Intel Corporation in the United States and/or other countries; UNIX is a registered trademark of The Open Group in the United States and in other countries; VESA is a registered trademark of the Video Electronics Standards Association; AMD, AMD Athlon, AMD Opteron, AMD Sempr on, AMD Turion, and AMD Duron are trademarks of Advanced Micro Devices, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

April 2009

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . 19

Audience . . . . . . . . . . . . . . . . . . . . . . 19

What’s New in this Release

Supported SNMP Versions

What’s New in Miscellaneous Traps

. . . . . . . . . . . . . . . 19

. . . . . . . . . . . . 19

. . . . . . . 19

What's New in Device Group . . . . . . . . . . . 20

What's New in Chassis Information Group

Introduction to the SNMP Reference Guide

General Content

. . . . . . . . . . . . . . . . . . 20

Server Administrator Instrumentation MIB

Server Administrator Remote Access MIB

. . . . 20

. . . . . . 20

. . . . 21

. . . . 23

Server Administrator Baseboard

Management Controller, ASF MIB . . . . . . . . . 24

Server Administrator Field Replaceable

Unit MIB . . . . . . . . . . . . . . . . . . . . . . 24

Server Administrator Storage Management MIB

. . . . . . . . . . . . . . . . . 25

Server Administrator Change

Management MIB . . . . . . . . . . . . . . . . . 26

Dell RAC Out-of-Band MIB

. . . . . . . . . . . . . 26

How This Guide Defines Technical Terms . . . . . 27

SNMP Basic Terminology

Frequently Used Terms in Variable Names

. . . . . . . . . . . . . 28

. . . . 31

Ta bl es . . . . . . . . . . . . . . . . . . . . . . . 31

Reference Guide Content Tables

Section Organization

. . . . . . . . . . . . . . . . 34

. . . . . . . . . . 34

Other Documents You May Need . . . . . . . . . 36

Contents 3

Introduction to the Server Administrator

SNMP Subagent . . . . . . . . . . . . . . . . . . . . . 36

SNMP MIB OIDs

. . . . . . . . . . . . . . . . . . 37

SNMP Security . . . . . . . . . . . . . . . . . . . 39

Management Actions

SNMP Traps

. . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . 40

2 Instrumentation MIB Version Group . . . . 41

MIB Major Version Number . . . . . . . . . . . . . . . 41

MIB Minor Version Number

MIB Maintenance Version Number

. . . . . . . . . . . . . . . 42

. . . . . . . . . . . 42

3 Systems Management

Software Group . . . . . . . . . . . . . . . . . . . . 43

Systems Management Software . . . . . . . . . . . . 44

Systems Management Software Name

Systems Management Software Version Number Name

. . . . . . . . . . . . . . . 44

Systems Management Software

Build Number . . . . . . . . . . . . . . . . . . . . 44

Systems Management Software

Description Name . . . . . . . . . . . . . . . . . 45

Systems Management Software Supported Protocol

. . . . . . . . . . . . . . . . . 45

Systems Management Software

Preferred Protocol . . . . . . . . . . . . . . . . . 45

Systems Management Software

Update Level Name . . . . . . . . . . . . . . . . . 45

Systems Management Software URL Name

Systems Management Software

Language Name . . . . . . . . . . . . . . . . . . 46

Systems Management Software Global Version Name

. . . . . . . . . . . . . . . . 46

. . . . . . 44

. . . . 46

4 Contents

Systems Management Software

Feature Flags . . . . . . . . . . . . . . . . . . . . 46

Systems Management Software SNMP

Agent Feature Flags . . . . . . . . . . . . . . . . 47

Systems Management Software

Manufacturer Name . . . . . . . . . . . . . . . . 47

Systems Management Software Variable Values

. . . 47

4 System State Group . . . . . . . . . . . . . . . . . 49

System State Group Table . . . . . . . . . . . . . . . . 49

System State Table

. . . . . . . . . . . . . . . . . 49

5 Chassis Information Group . . . . . . . . . . . 69

Chassis Information Group Tables . . . . . . . . . . . 69

Chassis Information Table

UUID Table

. . . . . . . . . . . . . . . . . . . . . 82

. . . . . . . . . . . . . 69

POST Log Table . . . . . . . . . . . . . . . . . . . 84

Event Log Table

System BIOS Table

. . . . . . . . . . . . . . . . . . . 86

. . . . . . . . . . . . . . . . . 89

Firmware Table . . . . . . . . . . . . . . . . . . . 95

Intrusion Table

Baseboard Table

Chassis Information Group Variable Values

. . . . . . . . . . . . . . . . . . . 98

. . . . . . . . . . . . . . . . . . 100

. . . . . . 105

6 Operating System Group . . . . . . . . . . . . 119

Operating System Group Table . . . . . . . . . . . . . 119

Operating System Table

. . . . . . . . . . . . . . 119

Operating System Memory Table . . . . . . . . . 121

Contents 5

7 System Resource Group . . . . . . . . . . . . 125

System Resource Group Tables . . . . . . . . . . . . . 125

System Resource Map Table

System Resource Owner Table

System Resource Input/Output (I/O)

Port Table . . . . . . . . . . . . . . . . . . . . . . 130

System Resource Memory Table

System Resource Interrupt Table

System Resource Direct Memory

Access (DMA) Table . . . . . . . . . . . . . . . . 139

. . . . . . . . . . . . 125

. . . . . . . . . . . 127

. . . . . . . . . . 133

. . . . . . . . . 136

System Resource Group Variable Values

. . . . . . . . 142

8 Power Group . . . . . . . . . . . . . . . . . . . . . 147

Power Group Tables . . . . . . . . . . . . . . . . . . . 147

Power Unit Table

Power Supply Table

. . . . . . . . . . . . . . . . . . 147

. . . . . . . . . . . . . . . . 150

Voltage Probe Table . . . . . . . . . . . . . . . . 154

Amperage Probe Table

AC Power Switch Table

. . . . . . . . . . . . . . . 158

. . . . . . . . . . . . . . 164

AC Power Cord Table . . . . . . . . . . . . . . . . 167

Battery Table

Power Usage Table

Power Group Variable Values

. . . . . . . . . . . . . . . . . . . . 169

. . . . . . . . . . . . . . . . . 171

. . . . . . . . . . . . . . 176

9 Thermal Group . . . . . . . . . . . . . . . . . . . . 187

Thermal Group Tables . . . . . . . . . . . . . . . . . . 187

Cooling Unit Table

Cooling Device Table . . . . . . . . . . . . . . . . 190

Temperature Probe Table

. . . . . . . . . . . . . . . . . 187

. . . . . . . . . . . . . 195

6 Contents

Thermal Group Variable Values

. . . . . . . . . . . . . 201

10 User Security Group . . . . . . . . . . . . . . . 205

User Security Group Table . . . . . . . . . . . . . . . 205

User Security Table

. . . . . . . . . . . . . . . . 205

11 Remote Flash BIOS Group . . . . . . . . . . . 209

Remote Flash BIOS Group Table . . . . . . . . . . . . 209

Remote Flash BIOS Table

. . . . . . . . . . . . . 209

Remote Flash BIOS Variable Values

. . . . . . . . . . 212

12 Port Group . . . . . . . . . . . . . . . . . . . . . . . 215

Port Group Tables . . . . . . . . . . . . . . . . . . . . 215

Pointing Port Table

Keyboard Port Table

. . . . . . . . . . . . . . . . . 215

. . . . . . . . . . . . . . . . 218

Processor Port Table . . . . . . . . . . . . . . . . 221

Memory Device Port Table

Monitor Port Table

. . . . . . . . . . . . . 224

. . . . . . . . . . . . . . . . . 227

Small Computer System

Interface (SCSI) Port Table . . . . . . . . . . . . . 230

Parallel Port Table

. . . . . . . . . . . . . . . . . 232

Serial Port Table . . . . . . . . . . . . . . . . . . 236

Universal Serial Bus (USB) Port Table

Port Group Variable Values

. . . . . . . . . . . . . . . 243

. . . . . . . 240

13 Device Group . . . . . . . . . . . . . . . . . . . . 249

Device Tables . . . . . . . . . . . . . . . . . . . . . . 249

Pointing Device Table

Keyboard Device Table

Processor Device Table . . . . . . . . . . . . . . 255

Processor Device Status Table

Cache Device Table

. . . . . . . . . . . . . . . 250

. . . . . . . . . . . . . . . 252

. . . . . . . . . . 263

. . . . . . . . . . . . . . . . 265

Contents 7

Memory Device Table . . . . . . . . . . . . . . . 271

Memory Device Mapped Address Table

. . . . . . 279

Generic Device Table . . . . . . . . . . . . . . . . 282

PCI Device Table

PCI Device Configuration Space Table

. . . . . . . . . . . . . . . . . . 285

. . . . . . . 288

Network Device Table . . . . . . . . . . . . . . . 291

Managed System Services Device Table

. . . . . 299

Device Group Variable Values

. . . . . . . . . . . . . 302

14 Slot Group . . . . . . . . . . . . . . . . . . . . . . . 325

System Slot Group Table . . . . . . . . . . . . . . . . . 325

System Slot Table

System Slot Variable Values

. . . . . . . . . . . . . . . . . . 325

. . . . . . . . . . . . . . . 329

15 Memory Group . . . . . . . . . . . . . . . . . . . . 339

Physical Memory Tables . . . . . . . . . . . . . . . . 339

Physical Memory Array Table

Physical Memory Array Mapped Table

. . . . . . . . . . . 339

. . . . . . 344

Physical Memory Configuration Table . . . . . . . 347

Physical Memory Logging Table

Redundant Memory Unit Table

. . . . . . . . . . 349

. . . . . . . . . . . 351

Physical Memory Card Table . . . . . . . . . . . . 354

Memory Group Variable Values

. . . . . . . . . . . . . 357

16 BIOS Setup Control Group . . . . . . . . . . . 363

8 Contents

BIOS Group Tables . . . . . . . . . . . . . . . . . . . . 363

BIOS Setup Control Table

SCSI Control Table

Parallel Port Control Table

. . . . . . . . . . . . . 363

. . . . . . . . . . . . . . . . . 374

. . . . . . . . . . . . . 376

Serial Port Control Table . . . . . . . . . . . . . . 378

USB Control Table . . . . . . . . . . . . . . . . . 380

IDE Control Table

. . . . . . . . . . . . . . . . . . 382

Diskette Control Table . . . . . . . . . . . . . . . 384

Network Interface Control Table

. . . . . . . . . . 386

BIOS Group Variable Values

. . . . . . . . . . . . . . 389

17 Local Response Agent Group . . . . . . . . 399

LRA Group Tables . . . . . . . . . . . . . . . . . . . . 399

LRA Global Settings

LRA Global Settings Table

. . . . . . . . . . . . . . . . 399

. . . . . . . . . . . . . 400

LRA Action Table . . . . . . . . . . . . . . . . . . 402

Local Response Agent Variable Values

. . . . . . . . . 404

18 Cost of Ownership Group . . . . . . . . . . . 407

Cost of Ownership Group Tables . . . . . . . . . . . . 407

Cost of Ownership Table

COO Service Contract Table

COO Cost Event Log Table

COO Warranty Table . . . . . . . . . . . . . . . . 422

COO Lease Information Table

COO Schedule Number Table

COO Options Table . . . . . . . . . . . . . . . . . 428

COO Maintenance Table

COO Repair Table

COO Support Information Table . . . . . . . . . . 434

COO Trouble Ticket Table

. . . . . . . . . . . . . . 407

. . . . . . . . . . . . 418

. . . . . . . . . . . . . 420

. . . . . . . . . . . 424

. . . . . . . . . . . 427

. . . . . . . . . . . . . . 430

. . . . . . . . . . . . . . . . . . 432

. . . . . . . . . . . . . 436

Cost of Ownership Variable Values

. . . . . . . . . . . 438

Contents 9

19 Remote Access Group . . . . . . . . . . . . . . 441

DRAC 4 and DRAC 5 . . . . . . . . . . . . . . . . . . . 441

Remote Access Table

. . . . . . . . . . . . . . . 441

DRAC III

. . . . . . . . . . . . . . . . . . . . . . . . . 447

Remote Access Table

. . . . . . . . . . . . . . . 448

Remote User Administration Table . . . . . . . . . 457

Remote SNMP Trap Table

Remote Dial-Up Table

. . . . . . . . . . . . . 465

. . . . . . . . . . . . . . . 470

Remote User Dial-In Configuration Table . . . . . 474

Remote Dial-Out Table

Remote Access Variable Values

. . . . . . . . . . . . . . . 477

. . . . . . . . . . . . 480

20 Cluster Group . . . . . . . . . . . . . . . . . . . . 497

Cluster Group . . . . . . . . . . . . . . . . . . . . . . 497

Cluster Table

Cluster Group Variable Values

. . . . . . . . . . . . . . . . . . . . 497

. . . . . . . . . . . . . 500

21 Baseboard Management

Controller Group . . . . . . . . . . . . . . . . . . 501

Baseboard Management Controller Group Tables . . . 501

Baseboard Management Controller Table

Baseboard Management Controller Serial

Interface Table . . . . . . . . . . . . . . . . . . . 505

Baseboard Management Controller

LAN Interface Table . . . . . . . . . . . . . . . . 509

. . . . . 501

10 Contents

Baseboard Management Controller Group Variable Values

. . . . . . . . . . . . . . . . . . 513

22 Field Replaceable Unit Group . . . . . . . . 517

Field Replaceable Unit Group Tables . . . . . . . . . . 517

Field Replaceable Unit Table

. . . . . . . . . . . . 517

FRU Group Variable Values

. . . . . . . . . . . . . . . 521

23 Storage Management Group . . . . . . . . . 523

Storage Management Group . . . . . . . . . . . . . . 523

Storage Management Information Group

Global Data Group

Physical Devices Group

Controller Table

Channel Table

Enclosure Table

. . . . . . . . . . . . . . . . . . . . 526

. . . . . . . . . . . . . . . . . 532

. . . . . . . . . . . . . . . . . . 533

. . . . . . . . . . . . . . . . . . . 550

. . . . . . . . . . . . . . . . . . 555

Array Disk Table . . . . . . . . . . . . . . . . . . 565

Array Disk Enclosure Connection Table

Array Disk Channel Connection Table

Fan Table . . . . . . . . . . . . . . . . . . . . . . 583

Fan Connection Table

Power Supply Table

. . . . . . . . . . . . . . . 589

. . . . . . . . . . . . . . . . 591

Power Supply Connection Table . . . . . . . . . . 596

Temperature Probe Table

. . . . . . . . . . . . . 598

Temperature Probe Connection Table

Enclosure Management Module Table . . . . . . 605

Enclosure Management Module Connection Table

. . . . . . . . . . . . . . . . . . 610

Battery Table . . . . . . . . . . . . . . . . . . . . 613

Battery Connection Table

. . . . . . . . . . . . . 619

. . . . . . . . 525

. . . . . . 577

. . . . . . . 580

. . . . . . . 603

Contents 11

Logical Devices Group . . . . . . . . . . . . . . . . . 621

Virtual Disk Table

Array Disk Logical Connection Table

. . . . . . . . . . . . . . . . . . 621

. . . . . . . . 630

Storage Management Event Group

. . . . . . . . . . . 633

24 Change Management Group . . . . . . . . . 637

Inventory Group . . . . . . . . . . . . . . . . . . . . . 637

Device Group

Device Group Table

Application Group

Application Group Table

Operating System Group

Inventory Collector Product Information

. . . . . . . . . . . . . . . . . . . . . . 638

. . . . . . . . . . . . . . . . . 638

. . . . . . . . . . . . . . . . . . . . 640

. . . . . . . . . . . . . . 641

. . . . . . . . . . . . . . . . . 643

. . . . . . . . 644

25 Dell RAC Out-of-Band Group . . . . . . . . . 647

Product Information . . . . . . . . . . . . . . . . . . . 647

DRsProductName

DRsProductShortName . . . . . . . . . . . . . . 647

DRsProductDescription

DRsProductManufacturer

DRsProductVersion . . . . . . . . . . . . . . . . . 648

DRsChassisServiceTag

DRsProductURL

DRsProductChassisAssetTag . . . . . . . . . . . 649

DRsProductChassisLocation

DRsProductChassisName

DRsSystemServiceTag . . . . . . . . . . . . . . . 650

DRsProductSystemAssetTag

. . . . . . . . . . . . . . . . . 647

. . . . . . . . . . . . . . 648

. . . . . . . . . . . . . 648

. . . . . . . . . . . . . . . 648

. . . . . . . . . . . . . . . . . . 649

. . . . . . . . . . . 649

. . . . . . . . . . . . . 649

. . . . . . . . . . . . 650

12 Contents

DRsProductSystemSlot . . . . . . . . . . . . . . 650

DRsProductType

. . . . . . . . . . . . . . . . . . 650

DRsFirmwareVersion . . . . . . . . . . . . . . . . 651

Chassis Status

DRsGlobalSystemStatus

. . . . . . . . . . . . . . . . . . . . . . 651

. . . . . . . . . . . . . . 651

DRsGlobalCurrStatus . . . . . . . . . . . . . . . . 651

DRsIOMCurrStatus

DRsKVMCurrStatus

. . . . . . . . . . . . . . . . . 652

. . . . . . . . . . . . . . . . 652

DRsRedCurrStatus . . . . . . . . . . . . . . . . . 652

DRsPowerCurrStatus

DRsFanCurrStatus

. . . . . . . . . . . . . . . 653

. . . . . . . . . . . . . . . . . 653

DRsBladeCurrStatus . . . . . . . . . . . . . . . . 653

DRsTempCurrStatus

DRsCMCCurrStatus

. . . . . . . . . . . . . . . . 654

DRsGlobalPrevStatus . . . . . . . . . . . . . . . 654

DRsIOMPrevStatus

DRsKVMPrevStatus

. . . . . . . . . . . . . . . . . 655

. . . . . . . . . . . . . . . . 655

DRsRedPrevStatus . . . . . . . . . . . . . . . . . 655

DRsPowerPrevStatus

DRsFanPrevStatus

. . . . . . . . . . . . . . . 656

. . . . . . . . . . . . . . . . . 656

DRsBladePrevStatus . . . . . . . . . . . . . . . . 656

DRsTempPrevStatus

DRsCMCPrevStatus

. . . . . . . . . . . . . . . . 657

DRsIOMChangeTime . . . . . . . . . . . . . . . . 657

DRsKVMChangeTime

DRsRedChangeTime

. . . . . . . . . . . . . . . 658

. . . . . . . . . . . . . . . . 658

DRsPowerChangeTime . . . . . . . . . . . . . . . 658

DRsFanChangeTime

DRsBladeChangeTime

. . . . . . . . . . . . . . . . 658

. . . . . . . . . . . . . . . 659

DRsTempChangeTime . . . . . . . . . . . . . . . 659

DRsCMCChangeTime

. . . . . . . . . . . . . . . 659

Contents 13

Chassis Power . . . . . . . . . . . . . . . . . . . . . . 660

DRsCMC Power Table

DRsCMC Power Table Entry

. . . . . . . . . . . . . . . 660

. . . . . . . . . . . . 660

DRsCMC PSUTable . . . . . . . . . . . . . . . . . 660

DRsCMC PSUTableEntry

. . . . . . . . . . . . . . 661

CMC Power Information

DRsChassisIndex

DRsPotentialPower

DRsIdlePower

. . . . . . . . . . . . . . . . . 661

. . . . . . . . . . . . . . . . . . 661

. . . . . . . . . . . . . . . . . 661

. . . . . . . . . . . . . . . . . . . 662

DRsMaxPowerSpecification . . . . . . . . . . . . 662

DRsPowerSurplus

DRsKWhCumulative

. . . . . . . . . . . . . . . . . 662

. . . . . . . . . . . . . . . . 663

DRsKWhCumulativeTime . . . . . . . . . . . . . . 663

DRsWattsPeakUsage

DRsWattsPeakTime

. . . . . . . . . . . . . . . . 663

DRsWattsMinUsage . . . . . . . . . . . . . . . . 664

DRsWattsMinTime

DRsWattsResetTime

. . . . . . . . . . . . . . . . . 664

. . . . . . . . . . . . . . . . 664

DRsWattsReading . . . . . . . . . . . . . . . . . 665

DRsAmpsReading

CMC PSU Information

DRsPSUChassisIndex

DRsPSUIndex

DRsPSULocation

. . . . . . . . . . . . . . . . . 665

. . . . . . . . . . . . . . . . . . 665

. . . . . . . . . . . . . . . 665

. . . . . . . . . . . . . . . . . . . . 666

. . . . . . . . . . . . . . . . . . 666

DRsPSUMonitoringCapable . . . . . . . . . . . . 666

DRsPSUVoltsReading

DRsPSUAmpsReading

. . . . . . . . . . . . . . . 666

. . . . . . . . . . . . . . . 667

DRsPSUWattsReading . . . . . . . . . . . . . . . 667

14 Contents

Chassis Alerts . . . . . . . . . . . . . . . . . . . . . . 667

DRsCASubSystem

DrsCASSCurrStatus

. . . . . . . . . . . . . . . . . 667

. . . . . . . . . . . . . . . . 668

DrsCASSPrevStatus . . . . . . . . . . . . . . . . 668

DrsCASSChangeTime

DrsCAMessage

. . . . . . . . . . . . . . . 668

. . . . . . . . . . . . . . . . . . 668

Legacy Alerting

DRsAlertSystem

DRsAlertTableIndexOID

. . . . . . . . . . . . . . . . . . . . . 669

. . . . . . . . . . . . . . . . . . 669

. . . . . . . . . . . . . . 669

DRsAlertMessage . . . . . . . . . . . . . . . . . 669

DRsAlertCurrentStatus

DRsAlertPreviousStatus

. . . . . . . . . . . . . . . 670

. . . . . . . . . . . . . . 670

DRsAlertData . . . . . . . . . . . . . . . . . . . . 670

26 Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . 671

Trap Variables . . . . . . . . . . . . . . . . . . . . . . 672

. . . . . . . . . . . . . . . . . . . . . . . 672

System

Table Index OID

Message . . . . . . . . . . . . . . . . . . . . . . 672

Current Status

Previous Status

Data . . . . . . . . . . . . . . . . . . . . . . . . 673

Understanding the Trap Description

Understanding Trap Severity

Instrumentation Traps

Miscellaneous Traps

Temperature Probe Traps

Cooling Device Traps

Voltage Probe Traps . . . . . . . . . . . . . . . . 685

Amperage Probe Traps

Chassis Intrusion Traps

. . . . . . . . . . . . . . . . . . 672

. . . . . . . . . . . . . . . . . . . 673

. . . . . . . . . . . . . . . . . . 673

. . . . . . . . . . 674

. . . . . . . . . . . . . . 678

. . . . . . . . . . . . . . . . . . 678

. . . . . . . . . . . . . . . . 679

. . . . . . . . . . . . . 680

. . . . . . . . . . . . . . . . 683

. . . . . . . . . . . . . . . 687

. . . . . . . . . . . . . . 689

Contents 15

Redundancy Unit Traps . . . . . . . . . . . . . . . 690

Power Supply Traps

. . . . . . . . . . . . . . . . 692

Memory Device Traps . . . . . . . . . . . . . . . 694

Fan Enclosure Traps

AC Power Cord Traps

. . . . . . . . . . . . . . . . 696

. . . . . . . . . . . . . . . . 697

Hardware Log Traps . . . . . . . . . . . . . . . . 698

Processor Device Status Traps

Pluggable Device Traps

. . . . . . . . . . 699

. . . . . . . . . . . . . . 700

Battery Traps . . . . . . . . . . . . . . . . . . . . 702

RAC Traps

BMC Traps

. . . . . . . . . . . . . . . . . . . . . . . . 703

. . . . . . . . . . . . . . . . . . . . . . . . 709

27 Storage Management

Alert Reference . . . . . . . . . . . . . . . . . . . 715

Alert Monitoring and Logging . . . . . . . . . . . . . . 715

Viewing Alerts

Alert Severity Levels

SNMP Support for Storage Management Alerts

SNMP Trap Forwarding

SNMP Trap Definitions

SNMP Trap Variables

Viewing SNMP Traps

Alert Descriptions and Corrective Actions

. . . . . . . . . . . . . . . . . . . . . 716

. . . . . . . . . . . . . . . . . . 716

. . . . . . . . . . . . . . 717

. . . . . . . . . . . . . . . 718

. . . . . . . . . . . . . . . . 718

. . . . . . . . . . . . . . . . . . 719

. . . . . . . 719

. . . . 717

16 Contents

A Standard Data Type Definitions . . . . . . 721

Common Data Types . . . . . . . . . . . . . . . . . . . 721

Variables with Data Types of State Capabilities and State Capabilities Unique

. . . . . . . . . . . . . 722

Dell Status Data Types

Dell Date

. . . . . . . . . . . . . . . . . . . . . . . . . 725

Full Dates

. . . . . . . . . . . . . . . . . 724

. . . . . . . . . . . . . . . . . . . . . . 726

B SNMP Sample Output . . . . . . . . . . . . . . 727

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 733

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 771

Contents 17

18 Contents

Introduction

This introduction is divided into two sections. The first section, "Introduction to the SNMP Reference Guide," explains the SNMP Reference Guide design. All essential Simple Network Management Protocol (SNMP) terms are defined in this section. Some of the vocabulary may seem complex and unfamiliar to system administrators who are using SNMP for the first time. SNMP experts can skim this section, and beginners can read the section more carefully.

The second section, "Introduction to the Server Administrator SNMP Subagent," is a more technical introduction to the management information base (MIB) that underlies Server Administrator services.

Audience

This guide is intended for system administrators, network administrators, and anyone who wants to write SNMP MIB applications to monitor systems.

What’s New in this Release

This section lists the SNMP versions supported and changes to the Server Administrator MIBs in this release.

Supported SNMP Versions

Operating System Supported SNMP version

Windows SNMP v1 and v2c

Linux SNMP v1, v2c and v3

What’s New in Miscellaneous Traps

Added the following trap:

• System Software Event

Introduction 19

What's New in Device Group

Added the following value to DellProcessorDeviceFamily enumeration:

• deviceFamilyIsSixCoreAMDOpteron (238)

What's New in Chassis Information Group

Added the following values to DellHostControlCapabilities enumeration:

• manualRebootWithOSShutdownCapable(16)

• manualRebootWithoutOSShutdownCapable(32)

• manualPowerOffWithOSShutdownCapable(64)

• manualPowerOffWithoutOSShutdownCapable(128)

• manualPowerCycleWithOSShutdownCapable(256)

• manualPowerCycleWithoutOSShutdownCapable(512)

Introduction to the SNMP Reference Guide

This reference guide provides a formatted version of the Server Administrator Instrumentation MIB (filename 10892.mib), the Server Administrator Remote Access MIB (filename dcs3rmt.mib), the Server Administrator Field Replaceable Unit MIB (filename dcs3fru.mib), the Server Administrator Storage Management MIB (filename dcstorag.mib), the Server Administrator Change Management MIB (filename dellcm.mib) and the Dell RAC Out-of- Band MIB (filename dellRAC.mib) that are released with the current version of Dell™ OpenManage™ Server Administrator.

Sections in this guide follow MIB groups and provide explanations and definitions for the terms used to define MIB objects. Content in this reference guide is organized as documented in the following subsections.

General Content

Table 1-1 describes the sections that provide general information about the MIBs documented in this guide.

20 Introduction

Table 1-1. General Content Sections in This Guide

Section Topics MIB Group

Number

1 Introduction to SNMP basics and to the MIBs that

support Server Administrator services

26 Traps — describes in-band traps defined in the Server

Administrator Instrumentation MIB and out-of-band traps sent by the Remote Access Controller (RAC) and Baseboard Management Controller (BMC).

Appendix A Standard Data Type Definitions — defines standard

data types used in this reference guide.

Appendix B SNMP Sample Output — provides a sample SNMP

output.

Glossary Defines acronyms, abbreviations, and technical terms

used in this reference guide.

5000

Server Administrator Instrumentation MIB

The Server Administrator Instrumentation MIB (filename 10892.mib) provides instrumentation data that allows you to monitor the health of a system with SNMP management applications. It provides:

• Information about the status of temperatures, power supplies, voltages, currents, fans, and memory at key points in the system

• Rapid access to detailed fault and performance information gathered by industry standard systems management agents

• Version information for Basic Input/Output System (BIOS), firmware, and operating system

• A detailed account of every cost of ownership (COO) detail about your system

In addition, traps are sent to report a change in status of the health of critical components.

The Server Administrator Instrumentation MIB structures its MIB objects into groups of scalar objects or MIB tables that provide related information. Table 1-2 describes each Server Administrator Instrumentation MIB group and lists the MIB group number assigned to the MIB group. The Server Administrator Instrumentation MIB groups are identified

Introduction 21

by the SNMP OID 1.3.6.1.4.1.674.10892.1.<MIB group number>, where <MIB group number> is the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group.

Table 1-2. Server Administrator Instrumentation MIB Sections

in This Guide

Section Topics MIB Group

Numbers

2 Instrumentation MIB Version Group — defines version

numbers of the Instrumentation MIB

3 Systems Management Software Group — defines information

about the systems management software and the supported systems management standards

4 System State Group — defines status, state, and redundancy for

a system and its components

5 Chassis Information Group — defines chassis types, events, and

indicators

6 Operating System Group — defines variables for name, version,

service pack, and other information about a system’s operating system

7 System Resource Group — defines variables for input/output

ports, memory, interrupts, and direct memory access

8 Power Group — defines variables for power units, power

supplies, and their current and voltage probes

9 Thermal Group — defines variables for temperature probes and

cooling devices

10 User Security Group — defines variables for creating and

modifying user accounts

11 Remote Flash BIOS Group — defines variables for updating the

system’s BIOS remotely

12 Port Group — defines variables for major port types such as

keyboard, monitor, small computer system interface (SCSI), Universal Serial Bus (USB), and parallel and serial ports

100

200

300

400

500

600

700

800

900

1000

22 Introduction

Table 1-2. Server Administrator Instrumentation MIB Sections

in This Guide

Section Topics MIB Group

13 Device Group — defines variables for pointing,

keyboard,processor, cache, memory, and personal computer interface devices

14 Slot Group — defines variables for the system’s slots 1200

15 Memory Group — defines variables for the system’s

physical memory

16 BIOS Setup Control Group — defines variables for BIOS

functions such as boot sequence, speakers, Wake on the local area network (LAN), diskettes, ports, and network interface controllers (NIC)

17 Local Response Agent Group — defines variables for global

settings and actions. These variables allow users to predetermine how the system responds to a particular type of event

18 Cost of Ownership Group — defines variables for tracking data

on the system’s service contract, lease, repair records, trouble tickets, and so on

20 Cluster Group — defines variables for systems that operate as a

cluster

21 Baseboard Management Controller Group — provides

information about the Baseboard Management Controller (BMC) that may be present in your system. In addition to providing general information about the BMC, this group provides information about the serial and local area network (LAN) interfaces of the BMC

26 Traps — defines the types of alerts that can be sent to report the

status of critical components

(continued)

Numbers

1100

1300

1400

1500

1600

1800

1900

5000

Server Administrator Remote Access MIB

The Server Administrator Remote Access MIB (filename dcs3rmt.mib) provides in-band information about remote access hardware that may be present in your system.

Introduction 23

The Server Administrator Remote Access MIB structures its MIB objects into groups of scalar objects or MIB tables that provide related information. Table 1-3 describes each Server Administrator Remote Access MIB group and lists the MIB group number assigned to the MIB group. The Server Administrator Remote Access MIB groups are identified by the SNMP OID

1.3.6.1.4.1.674.10892.1.<MIB group number> where <MIB group number> is the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group.

Table 1-3. Server Administrator Remote Access MIB Sections in This Guide

Section Topic MIB Group

Numbers

19 Remote Access Group — provides information about remote

access hardware that may be present in your system and defines variables for administrative users, SNMP trap destinations, modem configuration for dial-up networking, dial-in configuration, and dial-out destinations

1700

Server Administrator Baseboard Management Controller, ASF MIB

The Server Administrator BMC MIB (filename DcAsfSrv.mib) provides information about the traps sent by BMC. The Server Administrator BMC MIB structures its MIB objects that provide related information. The BMC MIB groups are identified by the SNMP OID 1.3.6.1.4.1.3183.1.1.<MIB group number> The BMC MIB is adheres to ASF 2.0 standard and hence the enterprise ID is wired for management (3183).

Server Administrator Field Replaceable Unit MIB

The Server Administrator Field Replaceable Unit MIB (filename dcs3fru.mib) provides information about field replaceable unit (FRU) hardware that may be present in your system.

The Server Administrator Field Replaceable Unit MIB structures its MIB objects into groups of scalar objects or MIB tables that provide related information. Table 1-4 describes each Server Administrator Field Replaceable Unit MIB group and lists the MIB group number assigned to the MIB group. The Server Administrator Field Replaceable Unit MIB groups are identified by the SNMP OID 1.3.6.1.4.1.674.10892.1.<MIB group number> where

24 Introduction

<MIB group number> is the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group.

Table 1-4. Server Administrator Field Replaceable Unit MIB Sections in This Guide

Section Topic MIB Group

Numbers

22 Field Replaceable Unit Group — provides information about

field replaceable units that may be present in your system

2000

Server Administrator Storage Management MIB

The Server Administrator Storage Management MIB (filename dcstorag.mib) provides storage management data that allows you to monitor the health of storage resources with SNMP management applications.

Table 1-5 describes each Server Administrator Storage Management MIB group and lists the MIB group number assigned to the MIB group. The Server Administrator Storage Management MIB groups are identified by the SNMP OID 1.3.6.1.4.1.674.<MIB group number> where <MIB group number> is the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group.

Table 1-5. Server Administrator Storage Management MIB Sections in This Guide

Section Topics MIB Group

Numbers

23 Storage Management Group — consists of definitions for the

following MIB groups:

• Storage Management Group

• Storage Management Information Group

• Global Data Group

• Physical Devices Group

•Logical Devices Group

• Storage Management Event Group

27 Storage Management Alert Reference — lets you monitor the

health of storage resources such as controllers, connectors, array disks, and virtual disks

10893

Introduction 25

Server Administrator Change Management MIB

The Server Administrator Change Management MIB (filename dellcm.mib) provides management data that allows you to monitor the inventory of devices and applications with SNMP management applications.

Table 1-6 describes each Server Administrator Change Management MIB group and lists the MIB group number assigned to the MIB group. The Server Administrator Change Management MIB groups are identified by the SNMP OID 1.3.6.1.4.1.674.<MIB group number> where <MIB group number> is the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group.

Table 1-6. Server Administrator Change Management MIB Sections in This Guide

Section Topics MIB Group

Number

24 Change Management Group - describes the inventory data

provided by the Change Management MIB that allows users to monitor devices and software present on a particular managed computer chassis

10899

Dell RAC Out-of-Band MIB

The Dell RAC Out-of-Band MIB (filename dellRAC.mib) provides management data that allows you to monitor the Chassis Management Controller. This MIB also contains information on RAC legacy alerting. Table 1-7 describes each Dell RAC Out-of-Band group and lists the MIB group number assigned to the MIB group. See the relevant section for more information about the MIB objects defined in a MIB group

26 Introduction

Table 1-7. Dell RAC Out-of-Band MIB

Section Topics MIB Group

Number

25 The Dell RAC Out-of-Band MIB consists of information for

the following groups:

• Product Information

•Chassis Status

•Chassis Power

• CMC Power Information

•CMC PSU Information

•Chassis Alerts

Legacy Alerting

•

How This Guide Defines Technical Terms

The following table provides information about where to find definitions for technical terms in this reference guide.

Table 1-8. Where to Find Definitions for Technical Terms

Type of Definition See

Basic SNMP vocabulary. Introduction

MIB-group-specific variable values. MIB-group-specific MIB variables contain links to the tables that define these values in the last section of the section in which these variables are used.

Systems management terms, acronyms, and commonly managed components referred to in this reference guide.

Server Administrator-standard data types that specify variable values in this reference guide.

Sections 3, 5, 7, 8, 9, and 11 through 18.

Glossary

Appendix A, "Standard Data Typ e Def i ni tio n s. "

Introduction 27

SNMP Basic Terminology

It is important to have a good understanding of the key technical terms used in this guide. This guide provides definitions for all essential terms used in describing the Server Administrator MIBs. The Glossary contains definitions for all essential terms and acronyms.

SNMP Master Agent

Typically, the SNMP agent on a managed system consists of one SNMP master agent and zero or more SNMP extension agents. This SNMP agent extendable structure facilitates the addition of new MIB modules without having to rebuild the entire SNMP agent and is invisible to SNMP management applications.

The SNMP master agent is responsible for receiving SNMP request protocol messages from SNMP management applications and sending SNMP response protocol messages. As part of processing SNMP request protocol messages, the SNMP master agent typically communicates with one or more SNMP extension agents. This communication does not involve standard SNMP protocol messages. The SNMP master agent uses an extension protocol that shields the SNMP extension agent from the standard SNMP protocol messages. The extension protocol also provides a way for SNMP extension agents to send SNMP event notifications (called traps in SNMPv1). The SNMP master agent is also responsible for sending SNMP event notification protocol messages to SNMP management applications.

On supported operating systems, the SNMP master agent is provided with the operating system. For example, on supported Microsoft operating systems, the Windows SNMP service is the SNMP master agent. For information on the versions of the SNMP protocol supported by the SNMP master agent, see the operating system documentation.

Windows®

SNMP Extension Agent

The SNMP extension agent is responsible for registering the MIB objects that it supports with the SNMP master agent and then processing requests from the SNMP master agent for those MIB objects. The SNMP extension agent also initiates event notifications to the SNMP master agent. The SNMP extension agent does not receive or send standard SNMP protocol messages. The SNMP extension agent communicates with the SNMP master agent using an extension protocol defined by the SNMP master agent.

The Server Administrator SNMP subagent is an SNMP extension agent.

28 Introduction

Managed Object

A managed object is any item in a computer system that can be singled out for discovery, monitoring, or user intervention and correction.

NOTE: Not all managed objects described in this guide are supported by all systems.

MIB

A MIB acts as a structured road map for managed objects. As an Application Programming Interface (API), a MIB allows systems management tools to retrieve data maintained by an agent. The server administrator MIB is divided into several major groups of managed objects.

Variable

A variable is a component of a managed object. A temperature probe, for example, has a variable to describe its capabilities, its health or status, and certain indexes that you can use to locate specific temperature probes. One index for the probe would be the probe’s chassis number. Some systems may have multiple chassis—one chassis for the central processing unit and another chassis for storage. A chassis within a system can also have more than one temperature probe. Variables for a temperature probe include its capabilities, status, chassis index, and index.

One-Based Index

When an index is one-based, counting starts at 1. One-based indexing counts the first instance as 1, the second index as 2, and so on.

Zero-Based Index

When an index is zero-based, counting starts at 0. Zero-based indexing counts the first instance as 0, the second index as 1, and so on.

Introduction 29

Fields

Managed object variables contain fields. In this reference guide, managed object variables have the following fields defined:

Name is the exact string by which the variable is known in the MIB. MIB variables are named according to the following conventions:

• Variable names start with a lowercase letter.

• Spaces are not allowed between words in the variable name.

• Acronyms are in uppercase letters, except when an acronym is the first word in the variable name.

• With the exception of the first letter of the variable name and acronyms, all other words in the variable name start with capital letters.

The following variable names illustrate these conventions:

– temperatureProbeLowerCriticalThreshold

– coolingUnitIndex

– pCIDeviceSpeed

Object Identifier (OID) is the unique number assigned to an object defined in a MIB. An OID is written as a sequence of subidentifiers in decimal notation. Each OID in this reference guide has a prefix that identifies the managed objects as belonging to Dell™: 1.3.6.1.4.1.674. The additional numbers identify the MIB group and subgroup as well as the table entry number of any variables.

For example, the OID for the temperature probe managed object table is

700.20 and the variable for the location of the temperature probe (temperatureProbeLocationName) has an OID of 700.20.1.8. The full OIDs for these items are 1.3.6.1.4.1.674.10892.1.700.20 for the temperatureProbeTable and 1.3.6.1.4.1.674.10892.1.700.20.1.8 for the temperatureProbeLocation. For more information about the structure of OIDs, see "SNMP MIB OIDs."

Description is a brief explanation of what a particular managed object does.

Syntax defines the data type in which the values of the variable must be

expressed. Most variables in this reference guide use standard data types such as string or boolean. All data types that are unique to server administrator variables are defined at the end of the section in which they occur. Standard data types are defined in "Standard Data Type Definitions."

30 Introduction

Access specifies whether persons with administrative privileges can read but not modify the value of a variable (read only) or can both read and modify the value of a variable (read-write).

Frequently Used Terms in Variable Names

The following terms are frequently used in the name of a MIB variable:

Capability refers to the actions an object can perform, or to actions that can be taken by the object. Hot-pluggable is an example of a capability. If a card is hot-pluggable, it can be replaced while a system is running. Capability settings refer to the capabilities of the object that the user can select from and activate if desired. Capability settings allow users of the server administrator to predetermine how an object will behave under specific conditions.

Settings are the conditions of a manageable object that determine what happens when a certain value is detected in a component. For example, a user can set the upper critical threshold of a temperature probe to 75 degrees Celsius. If the probe reaches that temperature, the setting causes an alert to be sent to the management console. Some settings, when reached, can trigger a system shutdown or other response to prevent damage to the system.

State refers to the condition of an object that has more than one condition. For example, an object may be in a "not ready" or in an "enabled" state.

Status refers to the health of an object or how the object is functioning. For example, the status of a temperature probe that is measuring acceptable temperatures would be reported as normal. When the probe begins reading temperatures that exceed limits set by the user, it reports a critical status.

Tables

This reference guide contains two types of tables: tables that are used to organize and define variable values and tables that define MIB objects. Readers must understand the difference between these two types of tables.

SNMP Tables

Most of the MIB objects defined in this reference guide are organized into SNMP tables. SNMP tables organize data into two-dimensional structural arrays. In SNMP, objects that have a relationship to other objects are called columnar objects. Columnar objects are objects used to form lists and tables. When a MIB group is divided into one or more discrete tables, the word

Introduction 31

"table" has a technical meaning. An example is the section of this reference guide entitled Universal Unique Identifier (UUID). The UUID object has a type and a value that uniquely identifies an object such as a chassis. The table defines all of the variables that comprise the managed object UUID.

The following table is an example of an SNMP table. The table contains variables that must occur in a definite sequence. In the example table the defined variables are UUID Chassis Index, UUID Index, UUID Type, and UUID Value.

Example SNMP Table

UUID Table

These objects comprise the Server Administrator definitions for the UUID.

Name uUIDTable

Object ID 1.3.6.1.4.1.674.10892.1.300.20

Description Defines the UUID table.

Syntax SEQUENCE OF UUIDTableEntry

Access Not accessible

UUID Table Entry

Name uUIDTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1

Description Defines the UUID table entry.

Syntax UUIDTableEntry

Access Not accessible

Index uUIDIndex, uUIDchassisIndex

32 Introduction

UUID Chassis Index

Name uUIDchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

UUID Index

Name uUIDIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.2

Description Defines the index of the UUID in a specified chassis.

Syntax DellObjectRange

Access Read-only

UUID Type

Name uUIDType

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.3

Description Defines the type of the UUID for this chassis.

Syntax DellUUIDType

Access Read-only

UUID Value

Name uUIDValue

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.4

Description Defines the value of the UUID for this chassis.

Syntax OCTET STRING (SIZE[16])

Access Read-only

Introduction 33

Reference Guide Content Tables

NOTE: Variable values are defined for any variable that is Server

Administrator-specific. Industry-standard variable definitions are documented in "Standard Data Type Definitions."

Some of the tables in this guide have no technical significance in SNMP. These tables are designed to show information in a readable form. The following table, for example, defines the Server Administrator-specific variable, DellFanControlCapabilities. The table provides the name of the variable, its data type, the values that are valid for the variable, and the meaning of each value.

Table 1-9. Example Variable Type Definition Table

Variable Name:

Data Type: Integer

Possible Data Values Meaning of Data Value

unknown(1)

lowSpeedCapable(2)

highSpeedCapable(4)

lowOrHighSpeedCapable(6)

DellFanControlCapabilities

The fan’s capabilities are unknown.

The fan can be set to low speed.

The fan can be set to high speed.

The fan can be set to low or high speed.

This type of table is used throughout the reference guide to list and define variable values. Tables that explain Server Administrator-specific variable values are located in the final section of sections that define Server Administrator-specific variables. In the preceding example, the variable name is DellFanControlCapabilities. This variable must be expressed as an integer and has four possible values: unknown, lowSpeedCapable, highSpeedCapable, and lowOrHighSpeed Capable.

Section Organization

Sections in this reference guide are based on the Server Administrator MIBs, so the complexity of each section depends on the complexity of each MIB group. The first section provides a high-level introduction to the MIB group. If the group is defined by one or more tables, the second section lists these tables. The third section documents the variables that comprise the group, and if applicable,

34 Introduction

the variables that comprise the tables. The fourth section contains definitions for any Server Administrator-specific variables that are used in the section. The following example shows the typical content of these four sections.

BIOS Setup Control Group

This section explains the purpose of the MIB group and summarizes the major features of the component groups.

BIOS Group Tables

If there is more than one SNMP table for a group, this section lists all of the tables. For this BIOS group example, there are eight tables listed. In each section, double-clicking any table on the list takes you to that table.

• BIOS Setup Control Table

•SCSI Control Table

• Parallel Port Control Table

• Serial Port Control Table

• USB Control Table

• IDE Control Table

• Diskette Control Table

• Network Interface Control Table

Variables that make up each table in the group

This section documents the variables for the eight tables that comprise the BIOS group.

BIOS Va r ia bl e Va lu es

This section explains any Server Administrator-specific variables and data types that are used in this section. In the BIOS group example, there are 17 unique, Server Administrator-specific variable meanings. Information on each Server Administrator-specific variable is presented in a formatted table.

Introduction 35

Introduction to the Server Administrator SNMP Subagent

This guide provides formatted information drawn primarily from the MIB files written for the Server Administrator services that support the SNMP protocol.

For each of the variables defined in the MIBs, the following fields are specified:

•Variable name

• OID or unique identifying number

•Description

• Data type of the variable (for example: integer, string, octet string)

• Whether the variable is accessible, not accessible, read-only, or read-write

• Index or indexes, if applicable

For each MIB group that has unique variable definitions, tables are included in the last section of the section to explain the meaning of the terms.

Standards for writing MIBs are defined by the Internet Engineering Task Force (IETF). Structure of Management Information (SMI) is a standard that specifies the rules for defining the structure and type of managed objects and events in a MIB. SMIv1 is specified in Request For Comments (RFC) 1155. The Server Administrator MIB conforms to the SMIv1 standard.

36 Introduction

SNMP is a systems management standard originally designed for network management. SNMP manages much more than networks. Information Technology (IT) professionals use SNMP for monitoring and managing computer systems and the various components and peripherals supported by their systems.

SNMP standards are defined by the Internet Engineering Task Force (IETF). SNMP version 1 was published in August 1988 and is the most commonly supported version of SNMP. SNMP version 2 was first published in May 1993, but has not gained widespread market acceptance. SNMP version 3 was recently completed and has addressed security issues that exist in version 1.

All SNMP systems consist of one or more managed systems that provide data through an SNMP agent to a management system. The management system provides a user interface to view data from the managed systems. The management system and managed systems communicate over a network (typically through User Datagram Protocol/Internet Protocol [UDP/IP]).

The management system and a managed system communicate by means of a common data schema. SNMP MIB files define the structure, type, and values of the SNMP data. While MIBs can be standardized or enterprise specific, most operating systems supply SNMP agents for the standard MIB-I and MIB-II schemas. MIB-I defines a base set of standard management information for systems implementing the Internet Protocol (IP) suite. MIB-II defines characteristics of the system, characteristics of network interfaces, and characteristics of components of the IP on the system. In addition to the standard MIBs, many hardware vendors have defined MIBs that provide management data specific to their systems and peripheral devices.

Monitored data can be retrieved through SNMP using the Get command. Typically, this command requires the host name or IP address of the target machine as well as the OID of the data to retrieve. Exact details are dependent on the operating system and the development tools being used to create the management application. The Get command has a variant known as GetNext.

SNMP MIB OIDs

Each data class within an MIB is defined by an OID. OIDs are unique across all MIBs. An OID consists of a series of digits separated by periods. The OID functions in a similar fashion to a phone number. The phone number 011-512-471-0000 uniquely identifies a single phone. The phone number can be broken down into a number of components to uniquely identify a phone.

Introduction 37

The first component, 011, is the country code for the United States. The second component, 512, identifies the area code for central Texas. The third component, 471, is the phone exchange for a large state university in the city of Austin. The final component, 0000, is the main switchboard.

There are two main differences between the phone number example and an actual OID. The first difference is that there are many more components in an OID, up to 128. The combination of these components is called an OID prefix. The second difference is that OIDs support the concept of indexes or keys. The OID prefix specifies the data class but does not specify an instance of the data within the class. Indexes can be used to identify the instances of a data class. These indexes are referred to as the OID suffix.

The assignment of values for each OID prefix component can be illustrated by using a tree structure. The following is an example of an OID assignment:

ROOT

CCITT(0)

ISO(

ORG(

DOD(

INTERNET(

MGMT(2)

EXPERIMENTAL(3)

PRIVATE(

SNMPv2(6)

MIB(1)

ENTERPRISES(

DELL(

674)

38 Introduction

In the preceding example, the OID prefix for the Dell enterprise would be

1.3.6.1.4.1.674.

The numbers in boldface type show the categories and numbers that apply to Server Administrator. All Server Administrator-defined OIDs consist of

1.3.6.1.4.1.674 followed by additional component values.

SNMP Security

SNMP version 1 has a very limited security mechanism. SNMP agents support the use of a community string, which is configured at each SNMP agent and is passed as a part of all SNMP request messages. There is no verification that the requester is actually a member of the specified community.

Because most system and network management data is not confidential, this limited security is acceptable for Get types of requests. On the other hand, this security is not acceptable for Set types of operations where an SNMP request could power off a system, reconfigure a redundant array of independent disks (RAID) card, and so on. Some vendors have chosen not to support SNMP Set operations for this reason. Server Administrator is able to support SNMP Set operations because its SNMP agents implement a hash/digest mechanism to prevent unauthorized SNMP Set operations. One limitation of this practice is that only server administrator-developed SNMP management applications have the capability to support the hash/digest mechanism.

NOTE: The default SNMP agent configuration usually includes a SNMP community

name such as public. For security reasons, change the SNMP community names from their default values. For information about changing SNMP community names, see the Dell OpenManage Server Administrator User’s Guide. This guide is available on the Dell Support website at support.dell.com and on the Dell Systems Management Tools and Documentation DVD. For additional guidelines, see the Securing an SNMP Environment article, dated May 2003, in the Dell Power Solutions magazine. This magazine is also available at www.dell.com/powersolutions.

NOTE: Server Administrator provides support to enable or disable SNMP Set

operations. For more information on enabling or disabling SNMP Set operations in Server Administrator, see the Dell OpenManage Server Administrator User’s Guide or the Dell OpenManage Server Administrator Command Line Interface User's Guide.

Introduction 39

Management Actions

Management actions can be performed using the SNMP Set command. These actions can consist of configuring a phone number for the system’s owner, rebooting a system, or changing the asset tag of the system. See the previous section, "SNMP Security," for limitations on Set operations.

SNMP Traps

SNMP is frequently used to monitor systems for fault conditions such as temperature violations, hard drive failures, and so on. Management applications can monitor for these conditions by polling the appropriate OIDs with the Get command and analyzing the returned data. This method has its drawbacks. If it is done frequently, significant amounts of network bandwidth can be consumed. If it is done infrequently, the response to the fault condition may not occur in a timely fashion. SNMP traps avoid these limitations of the polling method.

An SNMP trap is an asynchronous event indicating that something significant has occurred. This is analogous to a pager receiving an important message, except that the SNMP trap frequently contains all the information needed to diagnose a fault.

Two drawbacks to SNMP traps are that they are sent using UDP, which is not a guaranteed delivery mechanism, and that they are not acknowledged by the receiver.

An SNMP trap message contains the trap’s enterprise OID, the agent IP address, a generic trap ID, the specific trap ID, a time stamp, and zero or more variable bindings (varbinds). The combination of an enterprise OID and a specific trap ID uniquely identifies each Server Administrator-defined trap. A varbind consists of an OID and its value and provides additional information about the trap.

In order for a management system to receive SNMP traps from a managed system, the node must be configured to send traps to the management system. Trap destination configuration is dependent on the operating system. When this configuration is done, a management application on the management system can wait for traps and act on them when received.

For a list of traps supported by the server administrator SNMP subagent, see "Traps."

40 Introduction

Instrumentation MIB Version Group

The Instrumentation Management Information Base (MIB) Version Group defines the attributes that identify the version of the Instrumentation MIB supported by the systems management software.

The mIBMajorVersionNumber, mIBMinorVersionNumber, and mIBMaintenanceVersionNumber they are not related to other MIB objects and are thus not placed in a table.

MIB Major Version Number

Name mIBMajorVersionNumber

Object ID 1.3.6.1.4.1.674.10892.1.1.1.0

Description Defines the major version number of the version of this MIB

supported by the systems management software. For example, if the MIB version is 1.2.3, the major version number is 1.

A major version number change indicates a major change in object functionality.

Syntax DellUnsigned8BitRange

Access Read-only

attributes are scalar objects, meaning that

Instrumentation MIB Version Group 41

MIB Minor Version Number

Name mIBMinorVersionNumber

Object ID 1.3.6.1.4.1.674.10892.1.1.2.0

Description Defines the minor version number of the version of this MIB

supported by the systems management software. For example, if the MIB version is 1.2.3, the minor version number is 2.

A minor revision provides additional support for new objects as well as problem fixes.

Syntax DellUnsigned8BitRange

Access Read-only

MIB Maintenance Version Number

Name mIBMaintenanceVersionNumber

Object ID 1.3.6.1.4.1.674.10892.1.1.3.0

Description Defines the maintenance version number for the version of this

MIB supported by the systems management software. For example, if the MIB version is 1.2.3, the maintenance version number is 3.

Syntax DellUnsigned8BitRange

Access Read-only

42 Instrumentation MIB Version Group

Systems Management Software Group

The Systems Management Software Group allows users to see information about the standards and software that are supported by the agent of a particular managed computer chassis. The Systems Management Software Group classifies each computer chassis according to the systems management standard that the agent supports.

Additional objects define the universal resource locator (URL) of the systems management software and the language in which systems management information displays. Defining these objects enables users to manage a system using an internet browser. You can access Server Administrator using the secure hypertext transfer protocol (https) and a pre-assigned port number of 1311, or you can specify a port number of your own choosing.

NOTE: Using the Software → Server Preferences menu of Server Administrator,

you can bind to either one IP address or to all IP addresses.

NOTE: To manage a system remotely using Server Administrator, type one of the

following in the address field of your browser:

https://<systemname>:<1311 or user specified port number>

https://<IP address>:<1311 or user specified port number>

To manage a system locally using Server Administrator, type the following in the address field of your browser:

https://localhost:<1311 or user-specified port number>

Systems Management Software Group 43

Systems Management Software

The following objects describe the fields for server administrator systems management information. The systems management software variables are scalar objects, meaning that they are not related to other management information base (MIB) objects and are thus not placed in a table.

Systems Management Software Name

Name systemManagementSoftwareName

Object ID 1.3.6.1.4.1.674.10892.1.100.1

Description Defines the systems management software product name.

Syntax DellString

Access Read-only

Systems Management Software Version Number Name

Name systemManagementSoftwareVersionNumberName

Object ID 1.3.6.1.4.1.674.10892.1.100.2

Description Defines the version number of the systems management

software.

Syntax DellString

Access Read-only

Systems Management Software Build Number

Name systemManagementSoftwareBuildNumber

Object ID 1.3.6.1.4.1.674.10892.1.100.3

Description Defines the build number of the systems management software.

Syntax DellUnsigned16BitRange

Access Read-only

44 Systems Management Software Group

Systems Management Software Description Name

Name systemManagementSoftwareDescriptionName

Object ID 1.3.6.1.4.1.674.10892.1.100.4

Description Defines the description of the systems management software.

Syntax DellString

Access Read-only

Systems Management Software Supported Protocol

Name systemManagementSoftwareSupportedProtocol

Object ID 1.3.6.1.4.1.674.10892.1.100.5

Description Defines the systems management standards (SNMP or CIM)

supported by the systems management software.

Syntax SMSSupportedTypes (See Table 3-1.)

Access Read-only

Systems Management Software Preferred Protocol

Name systemManagementSoftwarePreferredProtocol

Object ID 1.3.6.1.4.1.674.10892.1.100.6

Description Defines the preferred systems management standard for the

systems management software.

Syntax SMSSupportedTypes (See Table 3-1.)

Access Read-only

Systems Management Software Update Level Name

Name systemManagementSoftwareUpdateLevelName

Object ID 1.3.6.1.4.1.674.10892.1.100.7

Description Defines the update level of the system management software.

Syntax DellString

Access Read-only

Systems Management Software Group 45

Systems Management Software URL Name

Name systemManagementSoftwareURLName

Object ID 1.3.6.1.4.1.674.10892.1.100.8

Description Defines the universal resource locator (URL) of the systems

management software.

Syntax DisplayString (SIZE (0..1024))

Access Read-only

Systems Management Software Language Name

Name systemManagementSoftwareLanguageName

Object ID 1.3.6.1.4.1.674.10892.1.100.9

Description Defines the language of the systems management software.

Syntax DisplayString (SIZE (0..255))

Access Read-only

Systems Management Software Global Version Name

Name systemManagementSoftwareGlobalVersionName

Object ID 1.3.6.1.4.1.674.10892.1.100.10

Description Defines the global version of the systems management software.

Syntax DellString

Access Read-only

Systems Management Software Feature Flags

Name systemManagementSoftwareFeatureFlags

Object ID 1.3.6.1.4.1.674.10892.1.100.11

Description Defines the features of the systems management software.

Syntax SMSFeatureFlags (See Table 3-2)

Access Read-only

46 Systems Management Software Group

Systems Management Software SNMP Agent Feature Flags

Name systemManagementSoftwareSNMPAgentFeatureFlags

Object ID 1.3.6.1.4.1.674.10892.1.100.12

Description Defines the features of the SNMP agent software provided by the

operating system.

Syntax SMSSNMPAgentFeatureFlags (See Table 3-3)

Access Read-only

Systems Management Software Manufacturer Name

Name systemManagementSoftwareManufacturerName

Object ID 1.3.6.1.4.1.674.10892.1.100.13

Description Defines the manufacturer of the systems management software.

Syntax DellString

Access Read-only

Systems Management Software Variable Values

This section includes definitions of server administrator-specific variable values used in this section.

Table 3-1. Systems Management Software Supported Standards

Variable Name:

Data Type: Integer

Possible Data Values Meaning of Data Value

supportsSNMP(1) This system supports SNMP.

supportsDMI(2) This system supports DMI.

supportsSNMPandDMI(3) This system supports SNMP and DMI.

supportsCIMOM(4) This system supports CIM.

supportsSNMPandCIMOM(5) This system supports SNMP and CIM.

SMSSupportedTypes

Systems Management Software Group 47

Table 3-2. Systems Management Software Feature Flags

Variable Name:

Data Type: Integer

Possible Data Values Meaning of Data Value

none(0) The Systems Management Software

webOneToOneManagementPreferred(1) The web 1:1 management preferred

Table 3-3. Systems Management Software SNMP Agent Feature Flags

Variable Name:

Data Type: Integer

Possible Data Values Meaning of Data Value

none(0) The Systems Management Software

supportsSparseTables(1) The SNMP agent supports sparse tables.

SMSFeatureFlags

features are not enabled.

feature is enabled.

SMSSNMPAgentFeatureFlags

SNMP agent features are not enabled.

48 Systems Management Software Group

System State Group

The Management Information Base (MIB) variables presented in this section enable you to track various attributes that describe the state of the critical components supported by your system. Components monitored under the System State Group include power supplies, AC power cords, AC power switches, and cooling devices, as well as temperature, fan, amperage, and voltage probes.

System State Group Table

The System State Group defines objects in the System State MIB table.

System State Table

The following object sets up the System State Table:

Name systemStateTable

Object ID 1.3.6.1.4.1.674.10892.1.200.10

Description Defines the System State Table.

Syntax SEQUENCE OF SystemStateTableEntry

Access Not accessible

System State Table Entry

Name systemStateTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1

Description Defines the System State Table entry.

Syntax SystemStateTableEntry

Access Not accessible

Index systemStatechassisIndex

System State Group 49

System State Chassis Index

Name systemStatechassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

System State Global System Status

Name systemStateGlobalSystemStatus

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.2

Description Defines the global system status of all chassis being monitored by

this instrumentation instance.

Syntax DellStatus

Access Read-only

System State Chassis State

Name systemStateChassisState

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.3

Description Defines the system state of this chassis.

Syntax DellStateSettings

Access Read-only

System State Chassis Status

Name systemStateChassisStatus

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.4

Description Defines the system status of this chassis.

Syntax DellStatus

Access Read-only

50 System State Group

System State Power Unit State Details

Name systemStatePowerUnitStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.5

Description Defines the state of all power units in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the state of a specific power unit. The first byte returned represents the state of the first power unit, the second byte returned represents the state of the second power unit, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Power Unit Status Redundancy

Name systemStatePowerUnitStatusRedundancy

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.6

Description Defines the system status of the power unit(s) in this chassis.

Syntax DellStatus

Access Read-only

System State Power Unit Status Details

Name systemStatePowerUnitStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.7

Description Defines the status of all power units in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the status of a specific power unit. The first byte returned represents the status of the first power unit, the second byte returned represents the status of the second power unit, and so on. The bytes have the same definition type as DellStatusRedundancy.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 51

System State Power Supply State Details

Name systemStatePowerSupplyStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.8

Description Defines the state of all power supplies in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the state of a specific power supply. The first byte returned represents the state of the first power supply, the second byte returned represents the state of the second power supply, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Power Supply Status Combined

Name systemStatePowerSupplyStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.9

Description Defines the status of all power supplies in this chassis.

Syntax DellStatus

Access Read-only

System State Power Supply Status Details

Name systemStatePowerSupplyStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.10

Description Defines the status of all power supplies in this chassis. The results

are returned as a binary octet string, Each byte of the octet string represents the status of a specific power supply. The first byte returned represents the status of the first power supply, the second byte returned represents the status of the second power supply, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

52 System State Group

System State Voltage State Details

Name systemStateVoltageStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.11

Description Defines the state of all voltage probes in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the status of a specific voltage probe. The first byte returned represents the status of the first voltage probe, the second byte returned represents the status of the second voltage probe, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Voltage Status Combined

Name systemStateVoltageStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.12

Description Defines the status of all voltage probes in this chassis.

Syntax DellStatus

Access Read-only

System State Voltage Status Details

Name systemStateVoltageStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.13

Description Defines the status of all voltage probes in this chassis.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 53

System State Amperage State Details

Name systemStateAmperageStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.14

Description Defines the state of all current probes in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the status of a specific current probe. The first byte returned represents the state of the first current probe, the second byte returned represents the state of the second current probe, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Amperage Status Combined

Name systemStateAmperageStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.15

Description Defines the status of all amperage probes in this chassis. The result

is returned as a combined status value. The value has the same definition type as DellStatus.

Syntax DellStatus

Access Read-only

System State Amperage Status Details

Name systemStateAmperageStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.16

Description Defines the status of all amperage probes in this chassis. The results

are returned as a binary octet string. Each byte of the octet string represents the status of a specific amperage probe. The first byte returned represents the status of the first amperage probe, the second byte returned represents the status of the second amperage probe, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

54 System State Group

System State Cooling Unit State Details

Name statesystemStateCoolingUnitStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.17

Description Defines the state of all cooling units in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the state of a specific cooling unit. The first byte returned represents the state of the first cooling unit, the second byte returned represents the state of the second cooling unit, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Cooling Unit Status Redundancy

Name systemStateCoolingUnitStatusRedundancy

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.18

Description Defines the state of all cooling units in this chassis.

Syntax DellStatusRedundancy

Access Read-only

System State Cooling Unit State Details

Name systemStateCoolingUnitstateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.19

Description Defines the state of all cooling units in this chassis. The results are

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 55

System State Cooling Device State Details

Name systemStateCoolingDeviceStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.20

Description Defines the state of all cooling devices in this chassis. The results are

returned as a binary octet string. Each byte of the octet string represents the state of a specific cooling device. The first byte returned represents the state of the first cooling device, the second byte returned represents the state of the second cooling device, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Cooling Device Status Combined

Name systemStateCoolingDeviceStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.21

Description This attribute defines the cooling device status of all cooling devices

in this chassis. The results is returned as a combined status value. The value has the same definition type as DellStatus.

Syntax DellStatus

Access Read-only

System State Cooling Device Status Details

Name systemStateCoolingDeviceStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.22

Description Defines the status of all cooling devices in this chassis. The results

are returned as a binary octet string. Each byte of the octet string represents the status of a specific cooling device. The first byte returned represents the status of the first cooling device, the second byte returned represents the status of the second cooling device, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

56 System State Group

System State Temperature State Details

Name systemStateTemperatureStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.23

Description Defines the state of all temperature probes in this chassis.

The results are returned as a binary octet string. Each byte of the octet string represents the state of a specific temperature probe. The first byte returned represents the state of the first temperature probe, the second byte returned represents the status of the second temperature probe, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Temperature Status Combined

Name systemStateTemperatureStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.24

Description Defines the status of all temperature probes in this chassis.

The result is returned as a combined status value. The value has the same definition type as DellStatus.

Syntax DellStatus

Access Read-only

System State Temperature Status Details

Name systemStateTemperatureStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.25

Description Defines the status of all temperature probes in this chassis. The first

byte returned represents the status of the first temperature probe, the second byte returned represents the status of the second temperature probe, and so on.

Syntax OCTET STRING (SIZE(1..128)

Access Read-only

System State Group 57

System State Memory Device State Details

Name systemStateMemoryDeviceStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.26

Description Defines the state of all memory devices in this chassis. The results

are returned as a binary octet string. Each byte of the octet string represents the state of the specific memory device. The first byte returned represents the state of the first memory device, the second byte returned represents the status of the second memory device, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128)

Access Read-only

System State Memory Device Status Combined

Name systemStateMemoryDeviceStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.27

Description Defines the status of all memory devices in this chassis.

Syntax DellStatus

Access Read-only

System State Memory Device Status Details

Name systemStateMemoryDeviceStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.28

Description Defines the status of all memory devices in this chassis. The results

are returned as a binary octet string. Each byte of the octet string represents the status of a specific memory device. The first byte returned represents the status of the first memory device, the second byte returned represents the status of the second memory device, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128)

Access Read-only

58 System State Group

System State Chassis Intrusion State Details

Name systemStateChassisIntrusionStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.29

Description Defines the intrusion state of all intrusion detection devices in this

chassis. The results are returned as a binary octet string. Each byte of the octet string represents the status of a specific intrusion detection device. The first byte returned represents the status of the first intrusion detection device, the second byte returned represents the status of the second intrusion detection device, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128)

Access Read-only

System State Chassis Intrusion Status Combined

Name systemStateChassisIntrusionStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.30

Description Defines the intrusion status of all intrusion detection devices in this

chassis. The result is returned as a combined status value. The value has the same definition type as DellStatus.

Syntax DellStatus

Access Read-only

System State Chassis Intrusion Status Details

Name systemStateChassisIntrusionStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.31

Description Defines the intrusion status of all intrusion detection devices in this

chassis. The first byte returned represents the status of the first intrusion detection device, the second byte returned represents the status of the second intrusion detection device, and so on.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 59

System State AC Power Switch State Details

Name systemStateACPowerSwitchStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.32

Description Defines the individual state of all AC power switches in this chassis.

The first byte returned represents the state of the first AC power switch, the second byte returned represents the state of the second AC power switch, and so on.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State AC Power Switch Status Redundancy

Name systemStateACPowerSwitchStatusRedundancy

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.33

Description Defines the overall redundancy status of the AC power switches in

this chassis.

Syntax DellStatusRedundancy

Access Read-only

System State AC Power Switch Status Details

Name systemStateACPowerSwitchStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.34

Description Defines the individual status of all AC power switches in this

chassis. The first byte returned represents the status of the first AC power switch, the second byte returned represents the status of the second AC power switch, and so on.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

60 System State Group

System State AC Power Cord State Details

Name systemStateACPowerCordStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.35

Description Defines the individual state of all AC power cords for any AC power

switches in this chassis. The first byte returned represents the state of the first AC power cord, the second byte returned represents the state of the second AC power cord, and so on.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State AC Power Cord Status Combined

Name systemStateACPowerCordStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.36

Description Defines the overall status of all AC power cords for any AC power

switches in this chassis.

Syntax DellStatus

Access Read-only

System State AC Power Cord Status Details

Name systemStateACPowerCordStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.37

Description Defines the individual status of all AC power cords for any

AC power switches in this chassis. The first byte returned represents the status of the first AC power cord, the second byte returned represents the status of the second AC power cord, and so on.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 61

System State Redundant Memory Unit State Details

Name systemStateRedundantMemoryUnitStateDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.38

Description Defines the state of all redundant memory units in this chassis.

The results are returned as a binary octet string, each byte of the octet string represents the state of the specific object. The first byte returned represents the state of the first object, and so on. The bytes have the same definition type as DellStateSettings.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Redundant Memory Unit Status Redundancy

Name systemStateRedundantMemoryUnitStatusRedundancy

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.39

Description Defines the overall redundancy status for redundant memory.

Syntax DellStatusRedundancy

Access Read-only

System State Redundant Memory Unit Status Details

Name systemStateRedundantMemoryUnitStatusDetails

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.40

Description Defines the status of all redundant memory units in this chassis.

The results are returned as a binary octet string, each byte of the octet string represents the status of the specific object. The first byte returned represents the status of the first object, and so on. The bytes have the same definition type as DellStatusRedundancy.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

62 System State Group

System State Event Log Status

Name systemStateEventLogStatus

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.41

Description Defines the overall status of this chassis (ESM) event log.

Syntax DellStatus

Access Read-only

System State Power Unit Status Combined

Name systemStatePowerUnitStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.42

Description Defines the combined status of all power units of this chassis.

Syntax DellStatus

Access Read-only

System State Power Unit Status List

Name systemStatePowerUnitStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.43

Description Lists the status of each power unit of this chassis. The results are

returned as a binary octet string where each byte of the octet string represents the status of a power unit. The first byte returned represents the status of the first power unit, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 63

System State Cooling Unit Status Combined

Name systemStateCoolingUnitStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.44

Description Defines the combined status of all cooling units of this chassis.

Syntax DellStatus

Access Read-only

System State Cooling Unit Status List

Name systemStateCoolingUnitStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.45

Description Lists the status of each cooling unit of this chassis. The results are

returned as a binary octet string where each byte of the octet string represents the status of a cooling unit. The first byte returned represents the status of the first cooling unit, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State AC Power Switch Status Combined

Name systemStateACPowerSwitchStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.46

Description Defines the combined status of all AC power switches of this

chassis.

Syntax DellStatus

Access Read-only

64 System State Group

System State AC Power Switch Status List

Name systemStateACPowerSwitchStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.47

Description Lists the status of each AC power switch of this chassis. The results

are returned as a binary octet string where each byte of the octet string represents the status of an AC power switch. The first byte returned represents the status of the first AC power switch, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Redundant Memory Unit Status Combined

Name systemStateRedundantMemoryUnitStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.48

Description Defines the combined status of all redundant memory units of this

chassis.

Syntax DellStatus

Access Read-only

System State Redundant Memory Unit Status List

Name systemStateRedundantMemoryUnitStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.49

Description Lists the status of each redundant memory unit of this chassis.

The results are returned as a binary octet string where each byte of the octet string represents the status of a redundant memory unit. The first byte returned represents the status of the first redundant memory unit, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 65

System State Processor Device Status Combined

Name systemStateProcessorDeviceStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.50

Description Defines the combined status of all processor devices of this chassis.

Syntax DellStatus

Access Read-only

System State Processor Device Status List

Name systemStateProcessorDeviceStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.51

Description Lists the status of each processor device of this chassis. The results

are returned as a binary octet string where each byte of the octet string represents the status of a processor device. The first byte returned represents the status of the first processor device, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Battery Status Combined

Name systemStateBatteryStatusCombined

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.52

Description Defines the combined status of all batteries of this chassis.

Syntax DellStatus

Access Read-only

66 System State Group

System State Battery Status List

Name systemStateBatteryStatusList

Object ID 1.3.6.1.4.1.674.10892.1.200.10.1.53

Description Lists the status of each battery of this chassis. The results are

returned as a binary octet string where each byte of the octet string represents the status of a battery. The first byte returned represents the status of the first battery, and so on. The bytes have the same definition type as DellStatus.

Syntax OCTET STRING (SIZE(1..128))

Access Read-only

System State Group 67

68 System State Group

Chassis Information Group

The Chassis Information Group provides information about the type or types of chassis in your system, as well as information about the light-emitting diode (LED) indicators and settings for devices on each chassis. Information is also available about the current date and time displayed on the chassis, intrusion warnings, watchdog timer, systems management basic input/output system (SMBIOS), and so on.

Chassis Information Group Tables

The following management information base (MIB) tables define the objects in the Chassis Information Group:

• Chassis Information Table

• UUID Table

•POST Log Table

•Event Log Table

• System BIOS Table

•Firmware Table

•Intrusion Table

•Baseboard Table

Chassis Information Table

The following object sets up the Chassis Information Table.

Name chassisInformationTable

Object ID 1.3.6.1.4.1.674.10892.1.300.10

Description Defines the chassis information table.

Syntax SEQUENCE OF ChassisInformationTableEntry

Access Not accessible

Chassis Information Group 69

Chassis Information Table Entry

Name chassisInformationTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1

Description Defines the chassis information table entry.

Syntax ChassisInformationTableEntry

Access Not accessible

Index chassisIndexChassisInformation

Chassis Index Chassis Information

Name chassisIndexChassisInformation

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.1

Description Defines the index (one-based) of this chassis. The first chassis

will be numbered one.

Syntax DellObjectRange

Access Read-only

Chassis State Capabilities

Name chassisStateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.2

Description Defines the capabilities of the chassis.

Syntax DellStateCapabilities

Access Read-only

Chassis State Settings

Name chassisStateSettings

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.3

Description Defines the state settings for the chassis.

Syntax DellStateSettings

Access Read-write

70 Chassis Information Group

Chassis Status

Name chassisStatus

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.4

Description Defines the status of the chassis.

Syntax DellStatus

Access Read-only

Chassis Parent Index Reference

Name chassisparentIndexReference

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.4

Description Defines the index (one-based) of the parent chassis of this

chassis, if any. A zero (0) means that this chassis is the parent of all other chassis managed by the Server Administrator.

Syntax DellObjectRange

Access Read-only

Chassis Type

Name chassisType

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.6

Description Defines the chassis type.

Syntax DellChassisType (See Table 5-2.)

Access Read-only

Chassis Name

Name chassisName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.7

Description Defines the user-assigned chassis name of the chassis.

Syntax DellString

Access Read-write

Chassis Information Group 71

Chassis Manufacturer Name

Name chassisManufacturerName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.8

Description Defines the manufacturer’s name for this chassis.

Syntax DellString

Access Read-only

Chassis Model Name

Name chassisModelName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.9

Description Defines the system model type for this chassis.

Syntax DellString

Access Read-only

Chassis Asset Tag Name

Name chassisAssetTagName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.10

Description Defines the user-assigned asset tag name for this chassis.

Syntax DisplayString (SIZE (0..10))

Access Read-write

Chassis Service Tag Name

Name chassisServiceTagName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.11

Description Defines the service tag name for this chassis.

Syntax DisplayString (SIZE (0..7))

Access Read-only

72 Chassis Information Group

Chassis ID

Name chassisID

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.12

Description Defines the asset tag name for this chassis.

Syntax DellUnsigned8BitRange

Access Read-only

Chassis ID Extension

Name chassisIDExtension

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.13

Description Defines the SMBIOS machine ID of this chassis.

Syntax DellUnsigned16BitRange

Access Read-only

Chassis System Class

Name chassisSystemClass

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.14

Description Defines the chassis class of this chassis.

Syntax DellChassisSystemClass (See Table 5-21.)

Access Read-only

Chassis System Name

Name chassisSystemName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.15

Description Defines the system name of this chassis.

Syntax DellString

Access Read-only

Chassis Information Group 73

Chassis System Boot Date Name

Name chassisSystemBootDateName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.16

Description Defines the boot time of this system.

Syntax DellDateName

Access Read-only

Chassis System Date Name

Name chassisSystemDateName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.17

Description Defines the current time on this system.

Syntax DellDateName

Access Read-only

Chassis System Location Name

Name chassisSystemLocationName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.18

Description Defines the user-assigned location for this chassis.

Syntax DellString

Access Read-write

Chassis System Primary User Name

Name chassisSystemPrimaryUserName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.19

Description Defines the user-assigned primary user name for this chassis.

Syntax DellString

Access Read-write

74 Chassis Information Group

Chassis System User Phone Number Name

Name chassisSystemUserPhoneNumberName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.20

Description Defines the user-assigned phone number of the primary user of

the system.

Syntax DellString

Access Read-write

Chassis Connection Status Unique

Name chassisConnectionStatusUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.21

Description Defines the status of the connection from the system chassis to

an expansion chassis.

Syntax DellConnectionStatus (See Table 5-3.)

Access Read-only

Chassis Fan Control Capabilities Unique

Name chassisFanControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.22

Description Defines the capabilities of the fan control function in this chassis.

Syntax DellFanControlCapabilities (See Table 5-4.)

Access Read-only

Chassis Fan Control Settings Unique

Name chassisFanControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.23

Description Defines the readings and settings of the fan control hardware in

the chassis.

Syntax DellFanControlSettings

Access Read-write

Chassis Information Group 75

Chassis LED Control Capabilities Unique

Name chassisLEDControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.24

Description Defines the capabilities of the LED control function in the chassis.

Syntax

Access Read-only

DellLEDControlCapabilities (See Table 5-5.)

Chassis LED Control Settings Unique

Name chassisLEDControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.25

Description Defines the readings and settings of the LED control hardware

in the chassis.

Syntax DellLEDControlSettings (See Table 5-6.)

Access Read-write

Chassis Hard-Drive (HD) Fault Clear Control Capabilities

Name chassisHDFaultClearControlCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.26

Description Specifies whether the chassis allows reset of the chassis

hard-drive fault LED.

Syntax DellHDFaultLEDControlCapabilities (See Table 5-7.)

Access Read-only

Chassis HD Fault Clear Control Settings

Name chassisHDFaultClearControlSettings

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.27

Description Allows reset of the chassis hard-drive fault LED.

Syntax DellHDFaultLEDControlSettings (See Table 5-8.)

Access Read-write

76 Chassis Information Group

Chassis Identify Flash Control Capabilities

Name chassisIdentifyFlashControlCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.28

Description Specifies whether the chassis front-panel LED can be set to flash.

Syntax DellChassisIdentifyControlCapabilities (See Table 5-9.)

Access Read-only

Chassis Identify Flash Control Settings

Name chassisIdentifyFlashControlSettings

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.29

Description Causes the chassis front-panel LED to flash.

Syntax DellChassisIdentifyControlSettings (See Table 5-10.)

Access Read-write

Chassis Lock Present

Name chassisLockPresent

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.30

Description Specifies whether a chassis lock is present on the chassis.

Syntax DellBoolean

Access Read-only

Chassis Host Control Capabilities Unique

Name chassishostControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.31

Description Defines the capabilities of the host control object.

Syntax DellHostControlCapabilities (See Table 5-11.)

Access Read-only

Chassis Information Group 77

Chassis Host Control Settings Unique

Name chassishostControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.32

Description Defines the current settings of the host control object.

Syntax DellHostControlSettings (See Table 5-12.)

Access Read-write

Chassis Watchdog Control Capabilities Unique

Name chassiswatchDogControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.33

Description Defines the capabilities of the watchdog timer object.

Syntax DellWatchDogControlCapabilities (See Table 5-13.)

Access Read-only

Chassis Watchdog Control Settings Unique

Name chassiswatchDogControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.34

Description Defines the current settings and the values allowed to be set for

the watchdog timer object.

Syntax DellWatchDogControlCapabilities (See Table 5-13.)

Access Read-write

Chassis Watchdog Control Expiry Time Capabilities Unique

Name chassiswatchDogControlExpiryTimeCapabilities

Unique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.35

Description Defines the capabilities of the watchdog expiry timer object.

Syntax DellWatchDogTimerCapabilities (See Table 5-13.)

Access Read-only

78 Chassis Information Group

Chassis Watchdog Control Expiry Time

Name chassiswatchDogControlExpiryTime

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.36

Description Defines the current reading and allows setting of the nonrecoverable

watchdog expiry timer object.

Syntax DellUnsigned16BitRange

Access Read-write

Chassis Allow Set Commands From SNMP

Name chassisallowSETCommandsfromSNMP

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.37

Description Specifies whether Simple Network Management Protocol (SNMP)

Set type commands are allowed by Server Administrator.

This attribute does not reflect whether SNMP Set type commands are allowed by the SNMP master agent.

Syntax DellBoolean

Access Read-only

Chassis Power Button Control Capabilities Unique

Name chassisPowerButtonControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.38

Description Defines the capabilities of the power button control function.

Syntax DellPowerButtonControlCapabilities (See Table 5-16)

Access Read-only

Chassis Information Group 79

Chassis Power Button Control Settings Unique

Name chassisPowerButtonControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.39

Description Defines the current reading and allows setting of the power button

control hardware.

Syntax DellPowerButtonControlSettings (See Table 5-17)

Access Read-write

Chassis Reseller Name

Name chassisResellerName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.40

Description Defines the name of the chassis reseller.

Syntax DisplayString (SIZE (0..128))

Access Read-only

Chassis Reseller Contact Information Name

Name chassisResellerContactInformationName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.41

Description Defines the chassis reseller contact information name.

Syntax DisplayString (SIZE (0..128))

Access Read-only

Chassis Reseller Product Name

Name chassisResellerProductName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.42

Description Defines the chassis reseller product name.

Syntax DisplayString (SIZE (0..128))

Access Read-only

80 Chassis Information Group

Chassis Reseller System ID

Name chassisResellerSystemID

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.43

Description Defines the chassis reseller system ID.

Syntax DellUnsigned16BitRange

Access Read-only

Chassis NMI Button Control Capabilities Unique

Name chassisNMIButtonControlCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.44

Description Defines the capabilities of the NMI button control function.

Syntax DellNMIButtonControlCapabilities (See Table 5-18)

Access Read-only

Chassis NMI Button Control Settings Unique

Name chassisNMIButtonControlSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.45

Description Defines the current reading and allows setting of the NMI button

control hardware.

Syntax DellNMIButtonControlSettings (See Table 5-19)

Access Read-write

Chassis System Properties

Name chassisSystemProperties

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.46

Description Defines the properties of the system.

Syntax DellSystemProperties (See Table 5-20)

Access Read-only

Chassis Information Group 81

Chassis System Revision Number

Name chassisSystemRevisionNumber

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.47

Description Defines the revision number of the system where zero indicates the

original version of the system. The revision number is not available on all systems.

Syntax DellUnsigned8BitRange

Access Read-only

Chassis System Revision Name

Name chassisSystemRevisionName

Object ID 1.3.6.1.4.1.674.10892.1.300.10.1.48

Description Defines the revision name of the system, if applicable.

Syntax DellString

Access Read-only

UUID Table

These objects comprise the server administrator definitions for the Universal Unique Identifier (UUID).

Name uUIDTable

Object ID 1.3.6.1.4.1.674.10892.1.300.20

Description Defines the UUID table.

Syntax SEQUENCE OF UUIDTableEntry

Access Not accessible

82 Chassis Information Group

UUID Table Entry

Name uUIDTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1

Description Defines the UUID table entry.

Syntax UUIDTableEntry

Access Not accessible

Index uUIDIndex, uUIDchassisIndex

UUID Chassis Index

Name uUIDchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

UUID Index

Name uUIDIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.2

Description Defines the index of the UUID in a specified chassis.

Syntax DellObjectRange

Access Read-only

UUID Type

Name uUIDType

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.3

Description Defines the type of the UUID for this chassis.

Syntax DellUUIDType

Access Read-only

Chassis Information Group 83

UUID Value

Name uUIDValue

Object ID 1.3.6.1.4.1.674.10892.1.300.20.1.4

Description Defines the value of the UUID for this chassis.

Syntax OCTET STRING (SIZE(16))

Access Read-only

POST Log Table

This section defines attributes for the power-on self-test (POST) log. When you turn on your computer, the POST checks various system components before the operating system loads. The POST tests the random-access memory (RAM), the hard drives, and the keyboard, for example. While the POST is running, it makes a log file that system administrators can view. The variables in this section also contribute to managing the POST log.

Name postLogTable

Object ID 1.3.6.1.4.1.674.10892.1.300.30

Description Defines the POST Log Table.

Syntax SEQUENCE OF PostLogTableEntry

Access Not accessible

POST Log Table Entry

Name postLogTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1

Description Defines the POST Log Table entry.

Syntax PostLogTableEntry

Access Not accessible

Index postLogchassisIndex, postLogRecordIndex

84 Chassis Information Group

POST Log Chassis Index

Name postLogchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

POST Log Record Index

Name postLogRecordIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.2

Description Defines the record number (one-based) of the POST log.

Syntax DellUnsigned32BitRange

Access Read-only

POST Log State Capabilities Unique

Name postLogStateCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.3

Description Defines the capabilities of the object that is writing the POST log.

Syntax DellStateCapabilitiesLogUnique

Access Read-only

POST Log State Settings Unique

Name postLogStateSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.4

Description Defines the state of the object that is writing the POST log.

Syntax DellStateSettingsLogUnique

Access Read-write

Chassis Information Group 85

POST Log Record

Name postLogRecord

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.5

Description Defines the data for the specified chassis and record index in the

POST log being returned.

Syntax DisplayString (SIZE (0..1024))

Access Read-only

POST Log Format

Name postLogFormat

Object ID 1.3.6.1.4.1.674.10892.1.300.30.1.5

Description Defines format of the POST log.

Syntax DellLogFormat (See Table 5-1.)

Access Read-only

Event Log Table

Name eventLogTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.40

Description Defines the Event Log Table.

Syntax SEQUENCE OF EventLogTableEntry

Access Not accessible

Event Log Table Entry

Name eventLogTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1

Description Defines the event Log Table Entry.

Syntax EventLogTableEntry

Access Not accessible

Index eventLogchassisIndex,eventLogRecordIndex

86 Chassis Information Group

Event Log Chassis Index

Name eventLogchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

Event Log Record Index

Name eventLogRecordIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.2

Description Defines the record index of the event log.

Syntax DellUnsigned32BitRange

Access Read-only

Event Log State Capabilities Unique

Name eventLogStateCapabilitiesUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.3

Description Defines the capabilities of the object that is writing the event log.

Syntax DellStateCapabilitiesLogUnique

Access Read-only

Event Log State Settings Unique

Name eventLogStateSettingsUnique

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.4

Description Defines the state settings for the object that is writing the event log.

Syntax DellStateSettingsLogUnique

Access Read-write

Chassis Information Group 87

Event Log Record

Name eventLogRecord

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.5

Description Defines the data for the specified chassis and log record index in the

event log being returned.

Syntax DisplayString (SIZE (0..1024))

Access Read-only

Event Log Format

Name eventLogFormat

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.6

Description Defines the format of the event log.

Syntax DellLogFormat (See Table 5-1.)

Access Read-only

Event Log Severity Status

Name eventLogSeverityStatus

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.7

Description Defines the severity of the event log record.

Syntax DellStatus

Access Read-only

Status Mandatory

Event Log Date Name

Name eventLogDateName

Object ID 1.3.6.1.4.1.674.10892.1.300.40.1.8

Description Defines the date and time of the event log record.

Syntax DellDateName

Access Read-only

Status Mandatory

88 Chassis Information Group

System BIOS Table

This table lists objects that define the system’s basic input/output system (BIOS).

Name systemBIOSTable

Object ID 1.3.6.1.4.1.674.10892.1.300.50

Description Defines the System BIOS Table.

Syntax SEQUENCE OF SystemBIOSTableEntry

Access Not accessible

System BIOS Table Entry

Name systemBIOSTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1

Description Defines the System BIOS Table entry.

Syntax SystemBIOSTableEntry

Access Not accessible

Index systemBIOSchassisIndex,systemBIOSIndex

System BIOS Chassis Index

Name systemBIOSchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

System BIOS Index

Name systemBIOSIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.2

Description Defines the index (one-based) of the system BIOS of this object.

Syntax DellObjectRange

Access Read-only

Chassis Information Group 89

System BIOS State Capabilities

Name systemBIOSStateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.3

Description Defines the capabilities of the system BIOS of this object.

Syntax DellStateCapabilities

Access Read-only

System BIOS State Settings

Name systemBIOSStateSettings

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.4

Description Defines the state of the system BIOS of this object.

Syntax DellStateSettings

Access Read-write

System BIOS Status

Name systemBIOSStatus

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.5

Description Defines the status of the system BIOS of this object.

Syntax DellStatus

Access Read-only

System BIOS Size

Name systemBIOSSize

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.6

Description Defines the image size of the system BIOS in kilobytes (KB).

A zero (0) indicates that the image size of the BIOS is unknown.

Syntax DellUnsigned32BitRange

Access Read-only

90 Chassis Information Group

System BIOS Release Date Name

Name systemBIOSReleaseDateName

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.7

Description Defines the release date of the system BIOS.

Syntax DellDateName

Access Read-only

System BIOS Version Name

Name systemBIOSVersionName

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.8

Description Defines the version name of the system BIOS.

Syntax DellString

Access Read-only

System BIOS Starting Address

Name systemBIOSStartingAddress

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.9

Description Defines the starting address of the system BIOS. A zero (0) indicates

that the address is unknown.

Syntax DellUnsigned64BitRange

Access Read-only

System BIOS Ending Address

Name systemBIOSEndingAddress

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.10

Description Defines the ending address of the system BIOS. A zero (0) indicates

that the address is unknown.

Syntax DellUnsigned64BitRange

Access Read-only

Chassis Information Group 91

System BIOS Manufacturer Name

Name systemBIOSManufacturerName

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.11

Description Defines the system BIOS manufacturer’s name.

Syntax DellString

Access Read-only

System BIOS Characteristics

Name systemBIOSCharacteristics

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.12

Description Defines characteristics of the system BIOS. This attribute is a bit

field where a bit has the meaning defined below when set to 1 (one). Bit 63 is the first bit in the value, and bit 0 is the last bit in the value. See the description of DellUnsigned64BitRange at the beginning of this file for more information on the format of the value.

Bits 48-63 need to be examined in the context of the system ID. The system ID is available in the attribute chassisID. If the value for chassisID is non-zero, bits 48-63 have the meaning defined below: Bit Position Meaning if Set

-------------- -----------------Bit 0Reserved Bit 1Reserved Bit 2Unknown Bit 3BIOS Characteristics Not Supported Bit 4ISA is supported Bit 5MCA is supported Bit 6EISA is supported Bit 7PCI is supported Bit 8PC Card (PCMCIA) is supported Bit 9Plug and Play is supported Bit 10APM is supported Bit 11BIOS is Upgradeable (Flash) Bit 12BIOS shadowing is allowed Bit 13VL-VESA is supported Bit 14ESCD support is available Bit 15Boot from CD is supported

92 Chassis Information Group

Name systemBIOSCharacteristics

Description Bit Position Meaning if Set

-------------- ------------------

Bit 16Selectable Boot is supported Bit 17BIOS ROM is socketed Bit 18Boot From PC Card (PCMCIA) is supported Bit 19EDD (Enhanced Disk Drive) Specification is supported Bit 20Int 13h - Japanese Floppy for NEC 9800 1.2mb (3.5 in, 1k Bytes/Sector, 360 RPM) is supported Bit 21Int 13h - Japanese Floppy for Toshiba 1.2mb (3.5 in, 360 RPM) is supported Bit 22Int 13h - 5.25 in / 360 KB Floppy Services are supported Bit 23Int 13h - 5.25 in /1.2MB Floppy Services are supported Bit 24Int 13h - 3.5 in / 720 KB Floppy Services are supported Bit 25Int 13h - 3.5 in / 2.88 MB Floppy Services are supported Bit 26Int 5h, Print Screen Service is supported Bit 27Int 9h, 8042 Keyboard services are supported Bit 28Int 14h, Serial Services are supported Bit 29Int 17h, Printer Services are supported Bit 30Int 10h, CGA/Mono Video Services are supported Bit 31NEC PC-98 Bit 32-47Reserved Bit 48Built-in NIC supports Magic Packet Bit 49System supports Wake-on-LAN Bit 50System supports chassis intrusion Bit 51Built-in NIC supports pattern-matching Bit 52System BIOS supports a 7-character service tag Bit 53-63Reserved

Syntax DellUnsigned64BitRange

Chassis Information Group 93

System BIOS Characteristics Ext 1

Name systemBIOSCharacteristicsExt1

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.13

Description Defines additional characteristics of the system basic input/output

system (BIOS). This attribute is a bit field where a bit has the meaning defined below when set to 1 (one).

Bit Position Meaning if Set

-------------- -----------------Bit 0ACPI supported Bit 1USB Legacy is supported Bit 2AGP is supported Bit 3I2O boot is supported Bit 4LS-120 boot is supported Bit 5ATAPI ZIP Drive boot is supported Bit 61394 boot is supported Bit 7Smart Battery supported

Syntax DellUnsigned8BitRange

Access Read-only

System BIOS Characteristics Ext 2

Name systemBIOSCharacteristicsExt2

Object ID 1.3.6.1.4.1.674.10892.1.300.50.1.14

Description Defines additional characteristics of the system BIOS.

This attribute is a bit field where a bit has the meaning defined below when set to 1 (one).

Bit Position Meaning if Set

--------------- -------------------Bit 0BIOS Boot Specification supported Bit 1Function key-initiated Network Service boot supported Bit 2Targeted Content Distribution supported Bit 3-7Reserved

Syntax DellUnsigned8BitRange

Access Read-only

94 Chassis Information Group

Firmware Table

Name firmwareTable

Object ID 1.3.6.1.4.1.674.10892.1.300.60

Description Defines the Firmware Table.

Syntax SEQUENCE OF FirmwareTableEntry

Access Not accessible

Firmware Table Entry

Name firmwareTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1

Description Defines the Firmware Table entry.

Syntax FirmwareTableEntry

Access Not accessible

Index firmwarechassisIndex, firmwareIndex

Firmware Chassis Index

Name firmwarechassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

Firmware Index

Name firmwareIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.2

Description Defines the index (one-based) of the firmware in this chassis.

Syntax DellObjectRange

Access Read-only

Chassis Information Group 95

Firmware State Capabilities

Name firmwareStateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.3

Description Defines the capabilities of the firmware states.

Syntax DellStateCapabilities

Access Read-only

Firmware State Capabilities

Name firmwareStateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.4

Description Defines the state of the firmware and allows for the setting of the

firmware.

Syntax DellStateSettings

Access Read-write

Firmware Status

Name firmwareStatus

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.5

Description Defines the status of the firmware.

Syntax DellStateSettings

Access Read-only

Firmware Size

Name firmwareSize

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.6

Description Defines the image size of the firmware in KB. A zero (0) indicates

that the size is unknown.

Syntax DellUnsigned16BitRange

Access Read-only

96 Chassis Information Group

Firmware Type

Name firmwareType

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.7

Description Defines the type of the firmware.

Syntax DellFirmwareType

Access Read-only

Firmware Type Name

Name firmwareTypeName

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.8

Description Defines the name of firmware type.

Syntax DellString

Access Read-only

Firmware Update Capabilities

Name firmwareUpdateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.9

Description Defines the bitmap of supported methods for firmware update.

Syntax DellUnsigned16BitRange

Access Read-only

Firmware Date Name

Name firmwareDateName

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.10

Description Defines the date of the firmware.

Syntax DellDateName

Access Read-only

Chassis Information Group 97

Firmware Version Name

Name firmwareVersionName

Object ID 1.3.6.1.4.1.674.10892.1.300.60.1.11

Description Defines the version name of the firmware.

Syntax DellString

Access Read-only

Intrusion Table

The following objects and attributes describe the different forms of chassis intrusion, a situation that occurs when the cover of a computer is removed.

Name intrusionTable

Object ID 1.3.6.1.4.1.674.10892.1.300.70

Description Defines the Intrusion Table.

Syntax SEQUENCE OF IntrusionTableEntry

Access Not accessible

Intrusion Table Entry

Name intrusionTableEntry

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1

Description Defines the Intrusion Table entry.

Syntax IntrusionTableEntry

Access Not accessible

Index intrusionchassisIndex, intrusionIndex

Intrusion Chassis Index

Name intrusionchassisIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.1

Description Defines the index (one-based) of this chassis.

Syntax DellObjectRange

Access Read-only

98 Chassis Information Group

Intrusion Index

Name intrusionIndex

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.2

Description Defines the index of the intrusion objects in this subgroup.

Syntax DellObjectRange

Access Read-only

Intrusion State Capabilities

Name intrusionStateCapabilities

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.3

Description Defines the capabilities of the intrusion object.

Syntax DellStateCapabilities

Access Read-only

Intrusion State Settings

Name intrusionStateSettings

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.4

Description Defines the settings of the intrusion object.

Syntax DellStateSettings

Access Read-write

Intrusion Status

Name intrusionStatus

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.5

Description Defines the status of the intrusion object.

Syntax DellStatus

Access Read-only

Chassis Information Group 99

Intrusion Reading

Name intrusionReading

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.6

Description Defines the reading of the intrusion object.

Syntax DellIntrusionReading

Access Read-only

Intrusion Type

Name intrusionType

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.7

Description Defines the type of the intrusion object.

Syntax DellIntrusionType

Access Read-only

Intrusion Location Name

Name intrusionLocationName

Object ID 1.3.6.1.4.1.674.10892.1.300.70.1.8

Description Defines the location name of the intrusion object in this subgroup.

Syntax DellString

Access Read-only

Baseboard Table

This table lists objects that define the baseboard of a system.

Name baseBoardTable

Object ID 1.3.6.1.4.1.674.10892.1.300.80

Description Defines the Baseboard Table.

Syntax SEQUENCE OF BaseBoardTableEntry

Access Not accessible

100 Chassis Information Group
