Dell K7822 User Manual

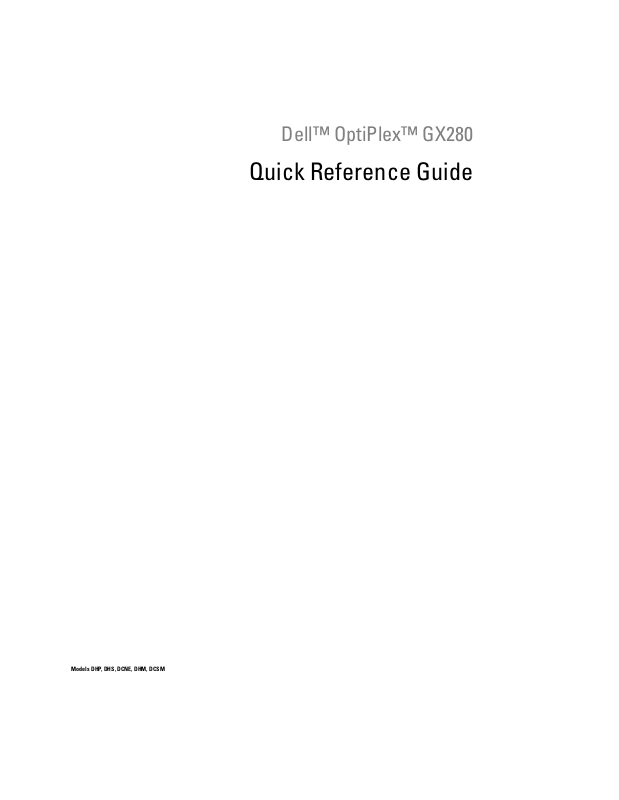

Dell™ OptiPlex™ GX280

Quick Reference Guide

Models DHP, DHS, DCNE, DHM, DCSM
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems are not applicable.
Quick Reference Guide, Drivers and Utilities
The
CD, and operating system media are optional and may not ship
with all computers.
____________________
Information in this document is subject to change without notice. © 2004 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, OptiPlex, and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Models DHP, DHS, DCNE, DHM, DCSM
September 2004 P/N K7822 Rev. A00

Contents

Finding Information for Your Computer . . . . . . . . . . . . . . . . . . . 5
Front and Back Views
Small Form-Factor Computer Small Desktop Computer Desktop Computer Small Mini-Tower Computer Mini-Tower Computer
Opening the Computer Cover
. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . 13
Small Form-Factor, Small Desktop, and Small Mini-Tower Computers Desktop and Mini-Tower Computers
Inside Your Computer
. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Small Form-factor Computer Small Desktop Computer Desktop Computer
. . . . . . . . . . . . . . . . . . . . . . . . . . 15
Small Mini-Tower Computer Mini-Tower Computer
Setting Up Your Computer
Power Connections
Solving Problems
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dell Diagnostics System Lights
. . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
. . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . 15
. . 13
Diagnostic Lights
Beep Codes Running the Dell™ IDE Hard Drive Diagnostics Resolving Software and Hardware Incompatibilities Using Microsoft Reinstalling Microsoft
Using the Drivers and Utilities CD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
. . . . . . . . . . . . . 27
®
Windows® XP System Restore . . . . . . . . . . . . 28
®
Windows® XP . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . 32
. . . . . . . . . . 27
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contents 3
4 Contents

Finding Information for Your Computer

What Are You Looking For? Find It Here
• A diagnostic program for my computer
• Drivers for my computer
• My computer documentation
• My device documentation
• Desktop System Software (DSS)
• Operating system updates and patches
• Terms and Conditions
• Warranty information
• Safety instructions
• Regulatory information
• Ergonomics information
• End User License Agreement
Drivers and Utilities CD (also known as the ResourceCD)
technical changes to your computer or advanced technical-reference material for technicians or experienced users.
Desktop System Software (DSS)
Located on the
support.dell.com
at
Product Information Guide
Drivers and Utilities
Documentation and drivers are already installed on your computer. You can use the CD to reinstall drivers, run the Dell Diagnostics, or access your documentation.
NOTE: The Drivers and Utilities CD is optional
and may not ship with all computers.
Readme files may be included on your CD to provide last-minute updates about
CD and the Dell Support website
.
• How to remove and replace parts
• Technical specifications
• How to configure system settings
• How to troubleshoot and solve problems
• Service Tag and Express Service Code
• Microsoft Windows License Label
Dell™ OptiPlex™ User’s Guide
®
Microsoft
1
Click the
2
Click
• Enter the Express Service Code to direct your call when contacting technical support. The Express Service Code is not available in all countries.
Windows® XP Help and Support Center
Start
button and click
User’s and system guides
Help and Support.
and click
Service Tag and Microsoft Windows License
These labels are located on your computer.
•Use the Service Tag to identify your computer when you use technical support.
User’s guides
support.dell.com
Quick Reference Guide 5
.
or contact
What Are You Looking For? Find It Here
• Latest drivers for my computer
• Answers to technical service and support questions
• Online discussions with other users and technical support
Dell Support Website — support.dell.com
NOTE: Select your region to view the appropriate support site.
The Dell Support website provides several online tools, including:
• Troubleshooting — Hints and tips, articles from technicians, and online
• Documentation for my computer
• Upgrades — Upgrade information for components, such as memory, the
• Services and Warranties — Contact information, order status, warranty,
• Downloads — Drivers, patches, and software updates
• User Guides — Computer documentation and product specifications
www.dell.com | support.dell.com
• Service call status and support history
• Top technical issues for my computer
• Frequently asked questions
• File downloads
Dell Premier Support Website — premiersupport.dell.com
The Dell Premier Support website is customized for corporate, government, and education customers. This website may not be available in all regions.
• Details on my computer configuration
• Service contract for my computer
• How to use Windows XP
• Documentation for my computer
• Documentation for devices (such as a modem)
• How to reinstall my operating system
Windows Help and Support Center
1
2
3
4
Operating System CD
The operating system is already installed on your computer. To reinstall your operating system, use the Operating System CD. See your OptiPlex User’s Guide for instructions.
NOTE: The operating system media is optional and may not ship with all
• Regulatory model information and chassis type
• DHP — Small form-factor chassis
• DHS — Small desktop chassis
• DCSM — Desktop chassis
• DHM — Small mini-tower chassis
• DCNE — Mini-Tower chassis
courses
hard drive, and the operating system
and repair information
Click the
Start
button and click
Help and Support
. Type a word or phrase that describes your problem and click the arrow icon. Click the topic that describes your problem. Follow the instructions on the screen.
computers.
After you reinstall your operating system, use the Drivers and Utilities CD (optional) to reinstall drivers for the devices that came with your computer.
Your operating system product key label is located on your computer.
NOTE: The color of your CD varies based on the
operating system you ordered.
6 Quick Reference Guide

Front and Back Views

Small Form-Factor Computer

CD/DVD-drive activity light
USB 2.0 connectors (2)
headphone connector
parallel connector
serial connector
video connector
CD/DVD-drive eject button
hard-drive activity light
network activity light
network adapter connector
link integrity light
diagnostic lights
floppy-drive eject button
Microsoft Windows Product Key
power button
power light
line-in connector
line-out connector
card slots (2)
power connector
microphone connector
USB 2.0 connectors (6)
Quick Reference Guide 7

Small Desktop Computer

front panel door
headphone connector
USB 2.0 connectors (2)
CD/DVD-drive eject button
www.dell.com | support.dell.com
front panel door
parallel connector
serial connector
power light
power button
network activity light
network adapter connector
link integrity light
video connector
diagnostic lights (4)
floppy-drive eject button
floppy-drive activity light
hard-drive activity light
line-in connector
microphone connector
USB 2.0 connectors (6)
Microsoft Windows Product Key
line-out connector
card slots (2)
power connector
8 Quick Reference Guide

Desktop Computer

Microsoft Windows Product Key
CD/DVD-drive eject button
floppy-drive eject button
microphone
connector
USB 2.0 connectors (2)
power button
power light
diagnostic lights
headphone connector
network adapter connector
card slots (3)
parallel connector
serial connector
video connector
network activity light
link integrity light
line-in connector
line-out connector
voltage selection switch
power connector
microphone connector
USB 2.0 connectors (6)
Quick Reference Guide 9

Small Mini-Tower Computer

Microsoft Windows Product Key
CD/DVD-drive eject button
www.dell.com | support.dell.com
front-panel door NOTE: See "Small Mini­Tower Computer — Front-Panel Door and Hinge Arms" on page 11 for more information.
voltage selection switch
USB 2.0 connectors (6)
microphone connector
floppy-drive activity light
power light
power button
power connector
parallel connector
video connector
diagnostic lights
line-out connector
card slots (5)
floppy-drive eject button
hard-drive activity light
front panel door
headphone connector
USB 2.0 connectors (2)
serial connector
link integrity light
network adapter connector
network activity light
line-in connector
10 Quick Reference Guide
Small Mini-Tower Computer — Front-Panel Door and Hinge Arms
To prevent damage to your computer, the front-panel door is designed to "break away" if it is lifted up or pushed down too far.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
To reattach the front-panel door:
1. Lower the two hinge arms to the vertical. position
2. Align the two clips on the front-panel door with the hinge arms, and press inward.
To reattach the hinge arms, first remove the front-panel door by gently snapping it off the two hinge arms:
1. Use your fingers to pull here to remove the front­panel insert.
2. Lift both hinge arms to a horizontal position.
3. Look through the two view slots and align the pivot bar with the two pivot-bar slots.
pivot bar
pivot-bar slot
Quick Reference Guide 11

Mini-Tower Computer

Microsoft Windows Product Key
CD/DVD-drive eject button
www.dell.com | support.dell.com
microphone connector
headphone connector
diagnostic lights
voltage selection switch
line-out connector
network activity light
network adapter connector
link integrity light parallel connector
floppy-drive eject button
USB 2.0 connectors (2)
power button
power light
power connector
line-in connector
microphone connector
USB 2.0 connectors (6)
video connector
12 Quick Reference Guide
serial connector
card slots (4)

Opening the Computer Cover

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet
before opening the cover.
Before opening the cover, remove the lock if a lock is installed on the back of the computer.

Small Form-Factor, Small Desktop, and Small Mini-Tower Computers

NOTICE: Ensure that there is sufficient space to support the open cover—at least 30 cm (1 ft) of desk top
space.
Remove the computer stand, if one is attached.
1
2
Locate the the
two
NOTICE: Open the cover slowly to ensure that you do not damage any
cables.
Raise the back of the cover, and pivot it toward the front of the
3
computer.
NOTE: When opening the small mini-tower computer, first press
the release button on the right side of the computer with one hand while pulling up on the top of the cover with the other hand, and then press the release button on the left side of the computer with one hand while pulling up on the top of the cover with the other hand.
two
release buttons shown in the figure. Then press
release buttons as you lift the cover.

Desktop and Mini-Tower Computers

Locate the cover release lever on the back of the computer, and press the lever to release the cover.
Quick Reference Guide 13

Inside Your Computer

Small Form-factor Computer

www.dell.com | support.dell.com
padlock ring
PCI-E x16 connector

Small Desktop Computer

floppy drive
hard drive
heat sink and blower assembly
CD/DVD drive
floppy drive
CD/DVD drive
internal speaker
chassis intrusion switch
SATA connector
system board
power supply
hard drive
heat sink and blower assembly
PCI-E x16 connector
PCI-E x1 connector
14 Quick Reference Guide
system board
internal speaker
chassis intrusion switch
SATA connector(s) (2) NOTE: Your computer may not have the SATA1 connector.
power supply
card cage

Desktop Computer

r
power supply
CD/DVD, floppy, and hard drive (stacked)

Small Mini-Tower Computer

chassis intrusion switch
SATA connectors (2)
system board
PCI-E x16 connecto
heat sink shroud assembly
power supply
heat sink shroud assembly
padlock ring
PCI-E x16 connector
PCI-E x1 connector
CD/DVD drive
system board
floppy drive
hard drive
internal speaker
chassis intrusion switch
SATA connectors (4) NOTE: Your computer may not have the SATA1 or SATA3 connectors.
Quick Reference Guide 15

Mini-Tower Computer

power supply
floppy drive
CD/DVD drive
chassis intrusion switch
SATA connectors (2)
www.dell.com | support.dell.com

Setting Up Your Computer

CAUTION: Before performing any of the procedures in this section, follow the safety instructions in
Product Information Guide.
NOTICE: If your computer has an expansion card installed (such as a modem card), connect the
appropriate cable to the card, not to the connector on the back panel.
You must complete all the steps to properly set up your computer. See the appropriate figures that follow the instructions.
1
Connect the keyboard and mouse.
NOTICE: Do not attempt to operate a PS/2 mouse and a USB mouse simultaneously.
Connect the modem or network cable.
2
Insert the network cable, not the telephone line, into the network connector. If you have an optional modem, connect the telephone line to the modem.
system board
PCI-E x16 connector
heat sink shroud assembly
hard drive
NOTICE: Do not connect a modem cable to the network adapter. Voltage from telephone
communications can cause damage to the network adapter.
16 Quick Reference Guide
3
Connect the monitor.
Align and gently insert the monitor cable to avoid bending connector pins. Tighten the thumbscrews on the cable connectors.
NOTE: Some monitors have the video connector underneath the back of the screen. See the
documentation that came with your monitor for its connector locations.
Connect the speakers.
4
5
Connect power cables to the computer, monitor, and devices and insert the other ends of the power cables to electrical outlets.
6
Verify that the voltage selection switch is set correctly for your location.
Your computer has a manual voltage selection switch. Computers with a voltage selection switch on the back panel must be manually set to operate at the correct operating voltage.
NOTICE: To help avoid damaging a computer with a manual voltage selection switch, set the switch for
the voltage that most closely matches the AC power available in your location.
NOTE: Before you install any devices or software that did not ship with your computer, read the
documentation that came with the device or software, or contact the vendor to verify that the device or software is compatible with your computer and operating system.
NOTE: Your computer may vary slightly from the following setup figures.
Set Up Your Keyboard and Mouse
Quick Reference Guide 17
Set Up Your Monitor
www.dell.com | support.dell.com
18 Quick Reference Guide

Power Connections

Solving Problems

Dell provides a number of tools to help you if your computer does not perform as expected. For the latest troubleshooting information available for your computer, see the Dell Support website at
support.dell.com
If computer problems occur that require help from Dell, write a detailed description of the error, beep codes, or diagnostics light patterns; record your Express Service Code and Service Tag below; and then contact Dell from the same location as your computer.
See "Finding Information for Your Computer" on page 5 for an example of the Express Service Code and Service Tag.
Express Service Code:___________________________
Service Tag:___________________________
.

Dell Diagnostics

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTE: The Drivers and Utilities CD (ResourceCD) is optional and therefore may not ship with all
computers.
When to Use the Dell Diagnostics
If you experience a problem with your computer, perform the checks in "Solving Problems" of your online
User’s Guide
NOTICE: The Dell Diagnostics works only on Dell™ computers.
and run the Dell Diagnostics before you contact Dell for technical assistance.
Quick Reference Guide 19
Enter system setup, review your computer’s configuration information, and ensure that the device you want to test displays in system setup and is active.
Start the Dell Diagnostics from either your hard drive or from the optional (also known as the ResourceCD).
Starting the Dell Diagnostics From Your Hard Drive
1
Turn on (or restart) your computer.
2
When the DELL™ logo appears, press <F12> immediately.
NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell
Diagnostics from your Drivers and Utilities CD (optional).
www.dell.com | support.dell.com
If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft
3
When the boot device list appears, highlight
4
When the Dell Diagnostics
Starting the Dell Diagnostics From the Drivers and Utilities CD
NOTE: The Drivers and Utilities CD (ResourceCD) is optional and therefore may not ship with all
computers.
Insert the
1
2
Shut down and restart the computer.
When the DELL logo appears, press <F12> immediately.
Drivers and Utilities
®
Windows® desktop. Then shut down your computer and try again.
Main Menu
Drivers and Utilities
Boot to Utility Partition
appears, select the test you want to run.
CD.
and press <Enter>.
CD
If you wait too long and the Windows logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.
NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer
boots according to the devices specified in system setup.
When the boot device list appears, highlight
3
4
Select the
5
Select the
6
Ty p e 1 to start the ResourceCD menu.
7
Ty p e 2 to start the Dell Diagnostics.
8
Select
IDE CD-ROM Device
Boot from CD-ROM
Run the 32 Bit Dell Diagnostics
select the version appropriate for your computer.
9
When the Dell Diagnostics
20 Quick Reference Guide
IDE CD-ROM Device
option from the CD boot menu.
option from the menu that appears.
from the numbered list. If multiple versions are listed,
Main Menu
appears, select the test you want to run.
and press <Enter>.
Dell Diagnostics Main Menu
1
After the Dell Diagnostics loads and the
Main Menu
screen appears, click the button for the
option you want.
Option Function
Express Test Performs a quick test of devices. This test typically takes 10 to 20 minutes and
requires no interaction on your part. Run Express Test first to increase the possibility of tracing the problem quickly.
Extended Test Performs a thorough check of devices. This test typically takes an hour or more
and requires you to answer questions periodically.
Custom Test Tests a specific device. You can customize the tests you want to run.
Symptom Tree Lists the most common symptoms encountered and allows you to select a test
based on the symptom of the problem you are having.
2
If a problem is encountered during a test, a message appears with an error code and a description of the problem. Write down the error code and problem description and follow the instructions on the screen.
If you cannot resolve the error condition, contact Dell.
NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell,
technical support will ask for your Service Tag.
3
If you run a test from the
Custom Test
or
Symptom Tree
option, click the applicable tab
described in the following table for more information.
Ta b Function
Results Displays the results of the test and any error conditions encountered.
Errors Displays error conditions encountered, error codes, and the problem
description.
Help Describes the test and may indicate requirements for running the test.
Configuration Displays your hardware configuration for the selected device.
The Dell Diagnostics obtains configuration information for all devices from system setup, memory, and various internal tests, and it displays the information in the device list in the left pane of the screen. The device list may not display the names of all the components installed on your computer or all devices attached to your computer.
Parameters Allows you to customize the test by changing the test settings.
4
When the tests are completed, if you are running the Dell Diagnostics from the
Utilities
CD (optional), remove the CD.
Drivers and
Quick Reference Guide 21
Loading...
+ 49 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
