Dell Inspiron 3252 User Manual

Page 1
Inspiron 3252 Service Manual
Computer Model: Inspiron 3252 Regulatory Model: D14S Regulatory Type: D14S001
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your computer.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.
2015 - 07
Rev. A00
Page 3
Contents
Before working inside your computer.....................................8
Before you begin ...............................................................................................8
Safety instructions..............................................................................................8
Recommended tools......................................................................................... 9
After working inside your computer...................................... 11
Technical overview....................................................................12
Inside View Of Your Computer........................................................................12
System-Board Components............................................................................13
Removing the computer cover .............................................. 14
Procedure.........................................................................................................14
Replacing the computer cover ...............................................15
Procedure.........................................................................................................15
Removing the coin-cell battery..............................................16
Prerequisites.....................................................................................................16
Procedure.........................................................................................................16
Replacing the coin-cell battery.............................................. 18
Procedure.........................................................................................................18
Post-requisites................................................................................................. 18
Removing the front bezel ....................................................... 19
Prerequisites.....................................................................................................19
Procedure.........................................................................................................19
3
Page 4
Replacing the front bezel.........................................................21
Procedure.........................................................................................................21
Post-requisites................................................................................................. 21

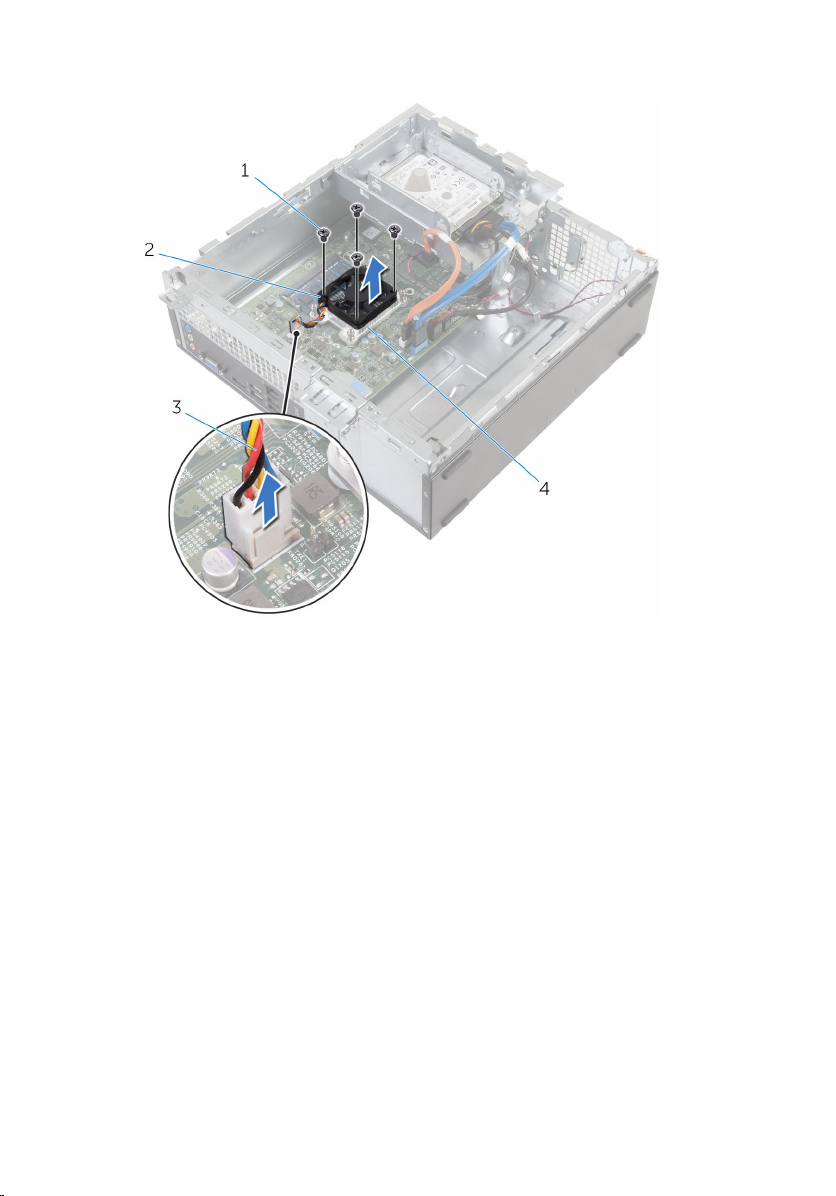

Removing the fan...................................................................... 22
Prerequisites.....................................................................................................22
Procedure.........................................................................................................22
Replacing the fan.......................................................................25
Procedure.........................................................................................................25
Post-requisites................................................................................................. 25
Removing the heat sink............................................................26
Prerequisites.....................................................................................................26
Procedure........................................................................................................ 26
Replacing the heat sink............................................................28
Procedure........................................................................................................ 28
Post-requisites.................................................................................................28
Removing the memory module..............................................29
Prerequisites.....................................................................................................29
Procedure........................................................................................................ 29
Replacing the memory module...............................................31
Procedure.........................................................................................................31
Post-requisites................................................................................................. 32
Removing the 3.5-inch hard drive..........................................33
Prerequisites.....................................................................................................33
Procedure.........................................................................................................33
4
Page 5
Replacing the 3.5-inch hard drive.......................................... 37
Procedure.........................................................................................................37
Post-requisites................................................................................................. 37
Removing the 2.5-inch hard drives........................................38
Prerequisites.....................................................................................................38
Procedure........................................................................................................ 39
Replacing the 2.5-inch hard drives........................................42
Procedure........................................................................................................ 42
Post-requisites.................................................................................................42
Removing the drive cage ........................................................ 43
Prerequisites.....................................................................................................43
Procedure........................................................................................................ 44
Replacing the drive cage......................................................... 48
Procedure........................................................................................................ 48
Post-requisites.................................................................................................48
Removing the optical drive..................................................... 49
Prerequisites.................................................................................................... 49
Procedure........................................................................................................ 49
Replacing the optical drive...................................................... 51
Procedure.........................................................................................................51
Post-requisites................................................................................................. 51
Removing the wireless card.................................................... 52
Prerequisites.....................................................................................................52
Procedure.........................................................................................................52
5
Page 6
Replacing the wireless card.....................................................54
Procedure........................................................................................................ 54
Post-requisites................................................................................................. 55
Removing the antenna modules............................................ 56
Prerequisites.....................................................................................................56
Procedure.........................................................................................................57
Replacing the antenna modules.............................................59
Procedure........................................................................................................ 59
Post-requisites.................................................................................................59
Removing the power-button module...................................60
Prerequisites.................................................................................................... 60
Procedure........................................................................................................ 60
Replacing the power-button module................................... 62
Procedure........................................................................................................ 62
Post-requisites.................................................................................................62
Removing the system board....................................................63
Prerequisites.....................................................................................................63
Procedure........................................................................................................ 63
Replacing the system board....................................................66
Procedure........................................................................................................ 66
Post-requisites.................................................................................................66
BIOS setup program................................................................. 68
Overview..........................................................................................................68
Entering BIOS setup program.........................................................................68
Clearing Forgotten Passwords........................................................................68
Prerequisites...............................................................................................69
Procedure.................................................................................................. 69
6
Page 7
Post-requisites...........................................................................................69
Clearing CMOS Settings.................................................................................. 70
Prerequisites...............................................................................................70
Procedure...................................................................................................70
Post-requisites............................................................................................71
Flashing the BIOS.......................................................................72
Getting help and contacting Dell........................................... 73
Self-help resources..........................................................................................73
Contacting Dell................................................................................................74
7
Page 8

Before working inside your computer

CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts.
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Before you begin

1 Save and close all open files and exit all open applications. 2 Shut down your computer.
– Windows 10: Click or tap Start PowerShut down.
– Windows 8.1: On the Start screen, click or tap the power icon
Shut down.
– Windows 7: Click or tap Start Shut down.
NOTE: If you are using a different operating system, see the documentation of your operating system for shut-down instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all cables such as telephone cables, network cables and so
on, from your computer.
5 Disconnect all attached devices and peripherals, such as keyboard,
mouse, monitor, and so on, from your computer.
6 Remove any media card and optical disc from your computer, if
applicable.
7 After the computer is unplugged, press and hold the power button for 5
seconds to ground the system board.

Safety instructions

Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety.
8
Page 9
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power source.
CAUTION: To avoid damaging the computer, ensure that the work surface is flat and clean.
CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts.
CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety instructions that shipped with the product or at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull tab, not on the cable itself. Some cables have connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When disconnecting cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables, ensure that the ports and connectors are correctly oriented and aligned.
CAUTION: Press and eject any installed card from the media-card reader.

Recommended tools

The procedures in this document may require the following tools:
Philips screwdriver
9
Page 10
Flat-head screwdriver
Plastic scribe
10
Page 11

After working inside your computer

CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, and cables you removed
before working on your computer.
3 Replace any media cards, discs, and any other parts that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical
outlets.
5 Turn on your computer.
11
Page 12

Technical overview

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Inside View Of Your Computer

1 drive cage 2 memory module 3 cooling assembly 4 system board 5 chassis
12
Page 13

System-Board Components

1 fan-cable connector 2 memory-module slot 3 power-button cable connector 4 wireless-card slot 5 password jumper 6 CMOS jumper 7 drive power-cable connector 8 primary hard-drive data cable
9 optical-drive data-cable/
secondary hard-drive data-cable connector
connector
10 coin-cell battery
13
Page 14

Removing the computer cover

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Place the computer on its side with the vents facing up. 2 Remove the screws that secure the computer cover to the chassis. 3 Release the computer cover by sliding it toward the back of the
computer.
4 Lift the computer cover away from the chassis.
14
1 computer cover 2 screws (2) 3 chassis
Page 15

Replacing the computer cover

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Align the tabs on the computer cover with the slots on the chassis and
slide it toward the front of the computer.
2 Replace the screws that secure the computer cover to the chassis.
15
Page 16

Removing the coin-cell battery

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended that you note the BIOS setup program’s settings before removing the coin-cell battery.

Prerequisites

Remove the computer cover.

Procedure

Using your fingertips, gently press the securing clip on the coin-cell battery socket to release the coin-cell battery.
16
Page 17
1 plastic scribe 2 coin-cell battery 3 battery socket
17
Page 18

Replacing the coin-cell battery

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

With the positive-side facing up, snap the coin-cell battery into the battery socket.

Post-requisites

Replace the computer cover.
18
Page 19

Removing the front bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

Remove the computer cover.

Procedure

1 Place the computer in an upright position. 2 Release the front-bezel tabs by moving them outward.
19
Page 20
3 Gently rotate and pull the front bezel away from the chassis.
20
1 front-bezel tabs (3) 2 chassis 3 front bezel
Page 21

Replacing the front bezel

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Align and insert the tabs on the front bezel into the slots on the front
panel.
2 Rotate the front bezel toward the chassis until the front-bezel tabs snap
into place.

Post-requisites

Replace the computer cover.
21
Page 22

Removing the fan

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel.

Procedure

1 Remove the screws that secure the drive cage to the chassis.
22
Page 23
2 Press the tab and slide the drive cage outward.
1 tab 2 drive cage 3 screws (2)
3 Disconnect the fan cable from the system board. 4 Remove the screws that secure the fan to heat sink.
23
Page 24
5 Lift the fan, along with its cable, off the heat sink.
1 screws (4) 2 fan 3 fan cable 4 heat sink
24
Page 25

Replacing the fan

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Place the fan on the heat sink. 2 Align the screw holes on the fan with the screw holes on the heat sink. 3 Replace the screws that secure the fan to the heat sink on the system
board.
4 Connect the fan cable to the system board. 5 Slide the drive cage into the chassis. 6 Align the screw holes on the drive cage with screw holes on the chassis. 7 Replace the screws that secure the drive cage to the chassis.

Post-requisites

1 Replace the front bezel. 2 Replace the computer cover.
25
Page 26

Removing the heat sink

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
WARNING: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in your skin can reduce the heat transfer capability of the thermal grease.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Remove the fan.

Procedure

1 In sequential order (indicated on the heat sink), loosen the captive screws
that secure the heat sink to the system board.
26
Page 27
2 Lift the heat sink off the system board.
1 heat sink 2 captive screws (4)
27
Page 28

Replacing the heat sink

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
CAUTION: Incorrect alignment of the heat sink can cause damage to the system board and processor.
NOTE: The original thermal grease can be reused if the original system board and heat sink are reinstalled together. If either the system board or the heat sink is replaced, use the thermal pad provided in the kit to ensure that thermal conductivity is achieved.

Procedure

1 Align the captive screws on the heat sink with the screw holes on the
system board.
2 Tighten the captive screws to secure the heat sink to the system board.

Post-requisites

1 Replace the fan. 2 Replace the front bezel. 3 Replace the computer cover.
28
Page 29

Removing the memory module

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel.

Procedure

1 Using your fingertips, spread apart the securing clips at each end of the
memory-module slot until the memory module pops up.
29
Page 30
2 Slide and remove the memory module from the memory-module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the edges only. Do not touch the components on the memory module.
30
1 memory module 2 securing clips (2)
Page 31

Replacing the memory module

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Align the notch on the memory module with the tab on the memory-
module slot.
31
Page 32
2 Insert the memory module into the memory-module slot and press the
memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
1 memory-module slot 2 tab 3 memory module 4 securing clips (2) 5 notch

Post-requisites

1 Replace the front bezel. 2 Replace the computer cover.
32
Page 33

Removing the 3.5-inch hard drive

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel.

Procedure

1 Disconnect the power cable and the data cable from the hard drive.
33
Page 34
2 Remove the screw that secures the hard-drive assembly to the drive
cage.
1 screws (2) 2 hard-drive assembly 3 power cable 4 data cable
34
Page 35
3 Using the pull-tab, slide the hard-drive assembly toward the inside of the
computer and lift it off the drive cage.
1 hard-drive assembly
4 Turn the hard-drive assembly over. 5 Remove the screws that secure the hard-drive bracket to the hard-drive
assembly.
35
Page 36
6 Slide the hard drive out of the hard-drive bracket.
1 screws (2) 2 hard drive 3 hard-drive bracket
36
Page 37

Replacing the 3.5-inch hard drive

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Slide the hard drive into the hard-drive bracket. 2 Align the screw holes on the hard drive with the screw holes on the hard-
drive bracket.
3 Replace the screws that secure the hard-drive bracket to the hard drive. 4 Turn over the hard-drive assembly. 5 Slide and place the hard-drive assembly into the drive cage. 6 Replace the screws that secure the hard-drive assembly to the drive
cage.
7 Connect the power cable and data cable to the hard-drive assembly.

Post-requisites

1 Replace the front bezel. 2 Replace the computer cover.
37
Page 38

Removing the 2.5-inch hard drives

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

Remove the computer cover.
38
Page 39

Procedure

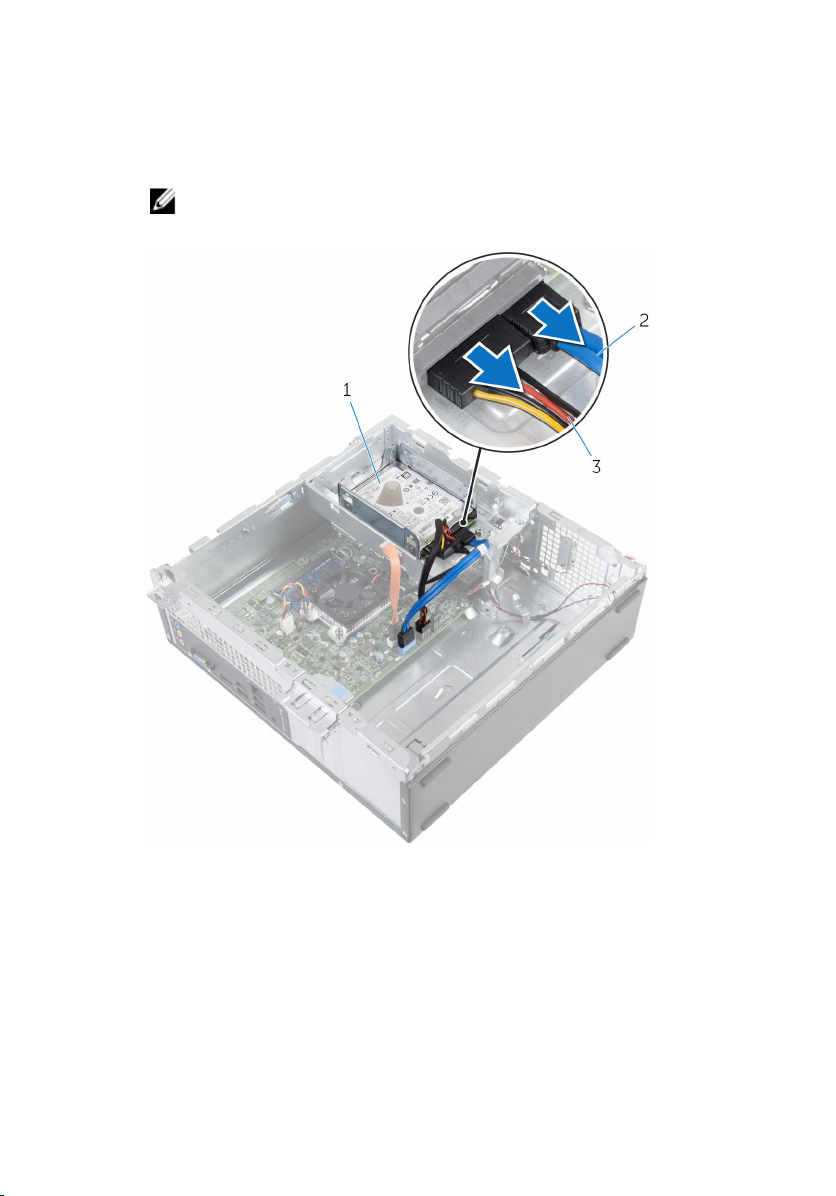

1 Disconnect the power cable and the data cable from the hard drive.
NOTE: Disconnect the cables from the second hard drive, if installed.
1 hard-drive assembly 2 data cable 3 power cable
2 Remove the screw that secures the hard-drive bracket to the drive cage.
39
Page 40
3 Slide and lift the hard-drive assembly off the drive cage.
1 hard-drive assembly 2 screw 3 drive cage
4 Remove the screws that secure the hard drive to the hard-drive bracket.
40
Page 41
5 Slide the hard drive out of the hard-drive bracket.
1 hard drive 2 hard-drive bracket 3 screws (4)
NOTE: Follow step 4 to step 5 to remove the second hard drive, if installed.
41
Page 42

Replacing the 2.5-inch hard drives

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Slide the hard drive into the hard-drive bracket. 2 Align the screw holes on the hard drive with the screw holes on the hard-
drive bracket.
3 Replace the screws that secure the hard drive to the hard-drive bracket.
NOTE: Follow step 1 to step 2 to remove the second hard drive, if installed.
4 Slide and place the hard-drive assembly into the drive cage. 5 Replace the screw that secures the hard-drive bracket to the drive cage. 6 Connect the power cable and data cable to the hard drive.
NOTE: Connect the cables to the second hard drive, if installed.

Post-requisites

Replace the computer cover.
42
Page 43

Removing the drive cage

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel.
43
Page 44

Procedure

1 Disconnect the power cables and data cables from all the drives.
NOTE: The number and type of drives varies depending on the configuration you ordered.
44
1 drive cage 2 hard-drive cable 3 optical-drive cable 4 power cable
Page 45
2 3.5–inch hard drive: Remove the screws that secure the drive cage to the
chassis, then press the tab and slide the drive cage outward.
1 screws (3) 2 3.5–inch hard drive
assembly
3 tab
45
Page 46
3 2.5–inch hard drive: Remove the screws that secure the drive cage to the
chassis, then press the tab and slide the drive cage outward.
46
1 tab 2 2.5–inch hard drive
assembly
3 screws (2)
Page 47
4 Turn the drive cage at an angle to release the tab on the drive cage from
the slot on the chassis.
1 tab 2 drive cage
5 Lift the drive cage off the chassis. 6 Using the pull-tab, slide the 3.5 inch hard-drive assembly toward the
inside of the computer and lift it, if installed.
7 Remove the 2.5–inch hard drive, if installed. 8 Remove the optical drive, if applicable.
47
Page 48

Replacing the drive cage

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Replace the optical drive, if applicable. 2 Replace the 2.5–inch hard drive, if installed. 3 Slide and place the 3.5 inch hard-drive assembly into the drive cage, if
installed.
4 Align the tab on the drive cage to the slot on the chassis. 5 Slide the drive cage into the chassis. 6 Replace the screws that secure the drive cage to the chassis. 7 Connect the power cables and data cables to all the drives.
NOTE: The number and type of drives varies depending on the configuration you ordered.

Post-requisites

1 Replace the front bezel. 2 Replace the computer cover.
48
Page 49

Removing the optical drive

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Follow the procedure from step 1 to step 5 in ”Removing the drive cage".

Procedure

1 Turn the drive cage over. 2 Remove the screws that secure the optical-drive assembly to the drive
cage.
49
Page 50
3 Slide the optical-drive assembly out of the drive cage.
NOTE: Note the orientation of the optical drive so that you can replace it correctly.
1 optical-drive assembly 2 drive cage 3 screws (2)
4 Carefully pull the optical-drive bezel and remove it from the optical drive.
50
1 optical-drive bezel 2 optical drive
Page 51

Replacing the optical drive

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Align the tabs on the optical-drive bezel with the slots on the optical
drive and snap the optical-drive bezel into place.
2 Slide the optical-drive assembly into the drive cage. 3 Replace the screws that secure the optical-drive assembly to the drive
cage.

Post-requisites

1 Follow the procedure from step 4 to step 7 in ”Replacing the drive cage". 2 Replace the front bezel. 3 Replace the computer cover.
51
Page 52

Removing the wireless card

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Follow the procedure from step 1 to step 5 in ”Removing the drive cage".

Procedure

1 Remove the screw that secures the wireless-card bracket to the system
board.
2 Slide and lift the wireless-card bracket off the wireless card. 3 Disconnect the antenna cables from the wireless card.
52
Page 53
4 Slide the wireless card out of the wireless-card slot.
1 screw 2 wireless-card bracket 3 antenna cables (2) 4 wireless card 5 wireless-card slot
53
Page 54

Replacing the wireless card

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

CAUTION: To avoid damage to the wireless card, do not place any cables under it.
1 Align the notch on the wireless card with the tab on the wireless-card
slot.
2 Slide the wireless card into the wireless-card slot. 3 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
4 Place the wireless-card bracket on the wireless card and align the screw
hole on the wireless-card bracket with the screw hole on the system board.
54
Page 55
5 Replace the screw that secures the wireless card to the system board.
1 wireless card 2 notch 3 tab 4 antenna cables (2) 5 wireless-card bracket 6 screw

Post-requisites

1 Follow the procedure from step 4 to step 7 in ”Replacing the drive cage". 2 Replace the front bezel. 3 Replace the computer cover.
55
Page 56

Removing the antenna modules

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Follow the procedure from step 1 to step 5 in ”Removing the drive cage". 4 Remove the wireless card.
56
Page 57

Procedure

1 Gently slide the antenna cables through the routing hole on the chassis.
1 routing hole 2 antenna cables (2)
2 Remove the screws that secure the antenna modules to the chassis.
57
Page 58
3 Using a plastic scribe, gently pry the antenna modules off the chassis.
1 plastic scribe 2 antenna cables (2) 3 screws (2) 4 antenna modules (2)
58
Page 59

Replacing the antenna modules

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Align the screw holes on the antenna modules with the screw holes on
the chassis.
2 Replace the screws that secure the antenna modules to the chassis. 3 Slide the antenna cables through the routing hole on the chassis.

Post-requisites

1 Replace the wireless card. 2 Follow the procedure from step 4 to step 7 in ”Replacing the drive cage". 3 Replace the front bezel. 4 Replace the computer cover.
59
Page 60

Removing the power-button module

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Follow the procedure from step 1 to step 5 in ”Removing the drive cage".

Procedure

1 Disconnect the power-button cable from the system board. 2 Using a plastic scribe, press down the clip on top of the power-button
module to release it from the chassis.
3 Using a plastic scribe, press the clip at the bottom of the power-button
module upward.
60
Page 61
4 Slide the power-button module, along with its cable, through the slot on
the front panel.
1 power-button cable 2 power-button module 3 tabs (2)
61
Page 62

Replacing the power-button module

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Procedure

1 Slide the power-button cable through the slot on the chassis. 2 Align and push the power-button module into the slot on the front panel
till the clips on the module snap in place.
3 Connect the power-button cable to the system board.

Post-requisites

1 Follow the procedure from step 4 to step 7 in ”Replacing the drive cage". 2 Replace the front bezel. 3 Replace the computer cover.
62
Page 63

Removing the system board

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must make the desired changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can reconnect the cables correctly after you replace the system board.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Follow the procedure from step 1 to step 5 in ”Removing the drive cage". 4 Remove the memory module. 5 Remove the wireless card. 6 Remove the fan. 7 Remove the heat sink.

Procedure

1 Disconnect the power-button cable, hard-drive data cable, optical-drive
data cable, and hard-drive and optical-drive power cable from the system board.
63
Page 64
2 Remove the screw that secures the front panel to the chassis.
1 front panel 2 screw
3 Press the tab down to release the front panel from the chassis and then
rotate it outward.
4 Remove the screws that secure the system board to the chassis.
64
Page 65
5 Starting from the back of the chassis, lift and slide the system board out
of the chassis.
1 screws (6) 2 system board
65
Page 66

Replacing the system board

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must make the desired changes again after you replace the system board.

Procedure

1 Slide the ports on the system board into the slots on the back of the
chassis and gently place the system board into the chassis.
2 Align the screw holes on the system board with the screw holes on the
chassis.
3 Replace the screws that secure the system board to the chassis. 4 Close the front panel and align the screw hole on the front panel to the
screw hole on the chassis.
5 Replace the screw that secures the front panel to the chassis. 6 Connect the power-button cable, hard-drive data cable, optical-drive
data cable, and hard-drive and optical-drive power cable to the system board.

Post-requisites

1 Replace the heat sink. 2 Replace the fan. 3 Replace the wireless card. 4 Replace the memory module. 5 Follow the procedure from step 4 to step 7 in ”Replacing the drive cage". 6 Replace the front bezel.
66
Page 67
7 Replace the computer cover.
67
Page 68

BIOS setup program

Overview

CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS setup program. Certain changes can make your computer work incorrectly.
NOTE: Before you change BIOS setup program, it is recommended that you write down the BIOS setup program screen information for future reference.
Use BIOS setup program to:
Get information about the hardware installed in your computer, such as the amount of RAM, the size of the hard drive, and so on.
Change the system configuration information.
Set or change a user-selectable option, such as the user password, type of hard drive installed, enabling or disabling base devices, and so on.

Entering BIOS setup program

1 Turn on (or restart) your computer. 2 During POST, when the DELL logo is displayed, watch for the F2 prompt
to appear and then press F2 immediately.
NOTE: The F2 prompt indicates that the keyboard has initialized. This prompt can appear very quickly, so you must watch for it, and then press F2. If you press F2 before the F2 prompt, this keystroke is lost. If you wait too long and the operating system logo appears, continue to wait until you see the operating system’s desktop. Then, turn off your computer and try again.

Clearing Forgotten Passwords

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.
68
Page 69

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Remove the drive cage.

Procedure

1 Remove the jumper plug from pins 2 and 3 and replace it on pins 1 and 2. 2 Wait for 5 seconds. 3 Remove the jumper plug from pins 1 and 2 and replace it on pins 2 and 3.
1 jumper plug 2 pin 1 3 pin 2 4 pin 3

Post-requisites

1 Replace the drive cage. 2 Replace the front bezel. 3 Replace the computer cover.
69
Page 70

Clearing CMOS Settings

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in
Before working inside your computer. After working inside your
computer, follow the instructions in After working inside your
computer. For more safety best practices, see the Regulatory
Compliance home page at www.dell.com/regulatory_compliance.

Prerequisites

1 Remove the computer cover. 2 Remove the front bezel. 3 Remove the drive cage.

Procedure

1 Remove the jumper plug from pins 2 and 3 and replace it on pins 1 and 2. 2 Wait for 5 seconds.
70
Page 71
3 Remove the jumper plug from pins 1 and 2 and replace it on pins 2 and 3.
1 jumper plug 2 pin 1 3 pin 2 4 pin 3

Post-requisites

1 Replace the drive cage. 2 Replace the front bezel. 3 Replace the computer cover.
71
Page 72

Flashing the BIOS

You may need to flash (update) the BIOS when an update is available or when you replace the system board. To flash the BIOS:
1 Turn on the computer. 2 Go to www.dell.com/support. 3 Click Product Support, enter the Service Tag of your computer and click
Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads. 5 Select the operating system installed on your computer. 6 Scroll down the page and expand BIOS. 7 Click Download File to download the latest version of the BIOS for your
computer.
8 Save the file and, once the download is complete, navigate to the folder
where you saved the BIOS update file.
9 Double-click the BIOS update file icon and follow the instructions on the
screen.
72
Page 73

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:
Information about Dell products and services
Windows 8.1 and Windows 10 Dell Help & Support app
Windows 10 Get started app
Windows 8.1 Help + Tips app
Accessing help in Windows 8, Windows 8.1, and Windows 10
Accessing help in Windows 7
Online help for operating system
Troubleshooting information, user manuals, setup instructions, product specifications, technical help blogs, drivers, software updates, and so on
www.dell.com
In Windows search, type Help and Support, and press Enter.
Click Start Help and Support.
www.dell.com/support/windows www.dell.com/support/linux
www.dell.com/support
Learn about your operating system, setting up and using your computer, data backup, diagnostics, and so on.
See Me and My Dell at www.dell.com/support/manuals.
73
Page 74

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country and product, and some services may not be available in your country.
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
74
