Inspiron 5582
Service Manual
Regulatory Model: P78F
Regulatory Type: P78F001
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks
may be trademarks of their respective owners.
2018 - 12
Rev. A00
Page 3
Contents
1 Before working inside your computer............................................................................................................. 7
Before you begin ................................................................................................................................................................7
2 After working inside your computer............................................................................................................... 8
3 Safety instructions........................................................................................................................................ 9
Electrostatic discharge—ESD protection.......................................................................................................................9
ESD eld service kit ........................................................................................................................................................ 10
Components of an ESD eld service kit.................................................................................................................. 10
ESD protection summary ..........................................................................................................................................10
Transporting sensitive components................................................................................................................................ 11
Lifting equipment ........................................................................................................................................................11
4 Recommended tools.....................................................................................................................................12
5 Screw list..................................................................................................................................................... 13
6 Removing the base cover............................................................................................................................. 15
Procedure.......................................................................................................................................................................... 15
7 Replacing the base cover..............................................................................................................................17
Procedure...........................................................................................................................................................................17
8 Removing the battery...................................................................................................................................19
Prerequisites......................................................................................................................................................................19
Procedure.......................................................................................................................................................................... 19
9 Replacing the battery...................................................................................................................................21
Procedure.......................................................................................................................................................................... 21
Post-requisites..................................................................................................................................................................22
10 Removing the coin-cell battery...................................................................................................................23
Procedure..........................................................................................................................................................................23
11 Replacing the coin-cell battery....................................................................................................................24
Procedure..........................................................................................................................................................................24
12 Removing the memory modules..................................................................................................................25
Prerequisites..................................................................................................................................................................... 25
Procedure..........................................................................................................................................................................25
13 Replacing the memory modules..................................................................................................................26
Procedure..........................................................................................................................................................................26
Post-requisites..................................................................................................................................................................27
Contents
3
Page 4
14 Removing the solid-state drive/Intel Optane memory module.................................................................... 28
Prerequisites..................................................................................................................................................................... 28
Procedure..........................................................................................................................................................................28
15 Replacing the solid-state drive/Intel Optane memory module.................................................................... 30
Procedure..........................................................................................................................................................................30
Post-requisites.................................................................................................................................................................. 31

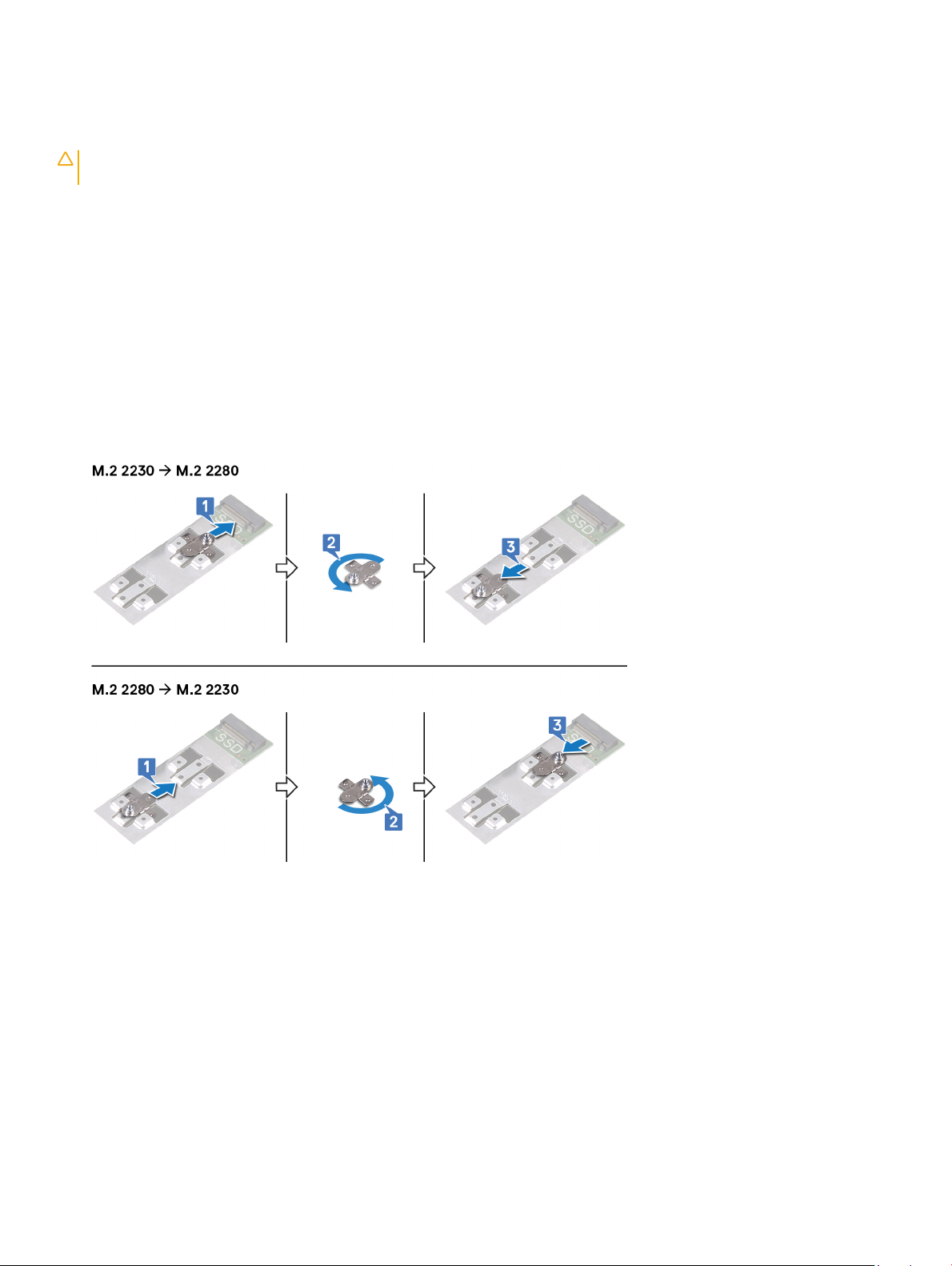

Procedure to move the screw mount............................................................................................................................ 31
16 Removing the hard drive.............................................................................................................................33
Prerequisites..................................................................................................................................................................... 33
Procedure..........................................................................................................................................................................33

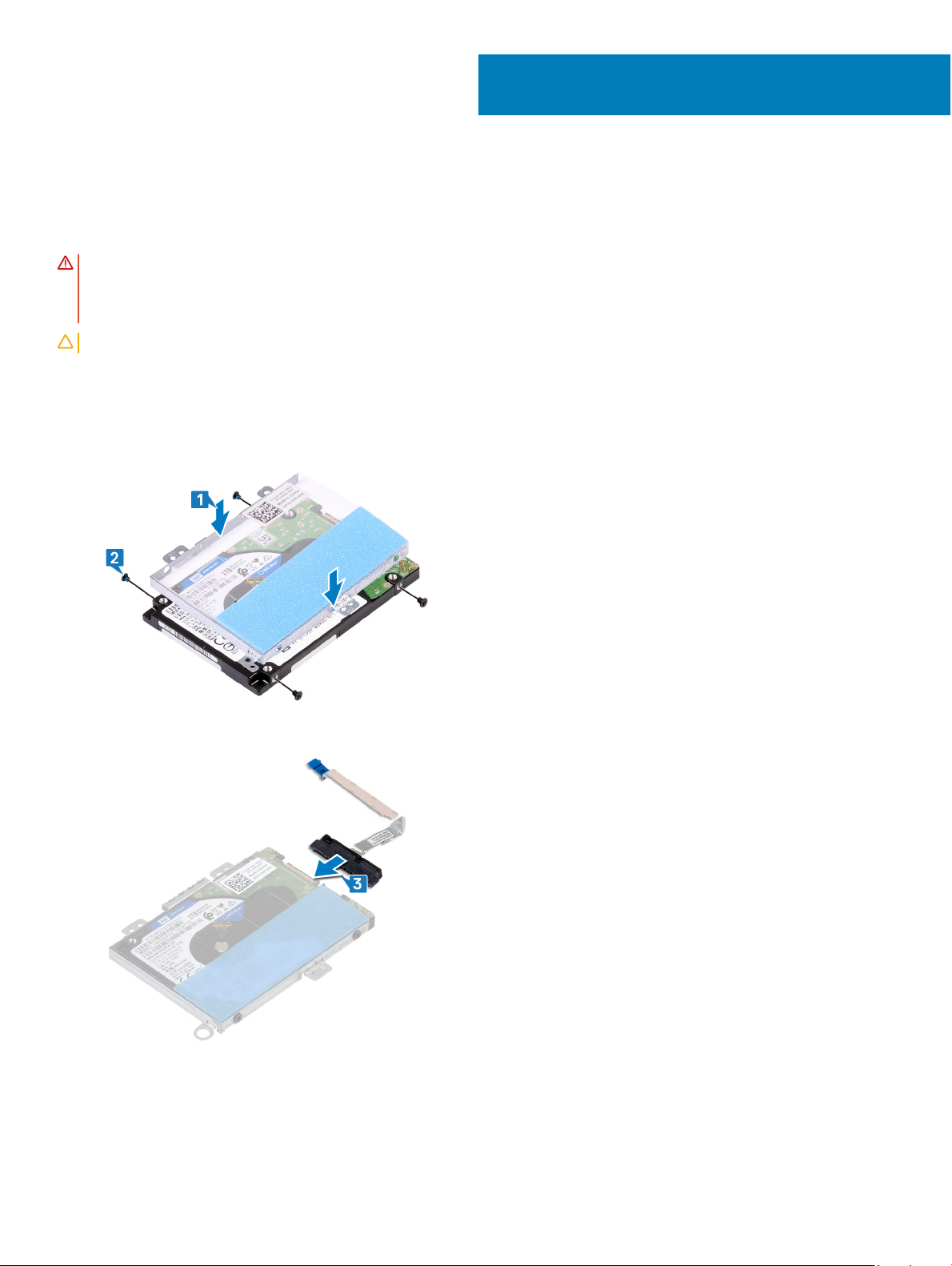

17 Replacing the hard drive.............................................................................................................................35
Procedure..........................................................................................................................................................................35
Post-requisites..................................................................................................................................................................36
18 Removing the heat sink.............................................................................................................................. 37
Prerequisites..................................................................................................................................................................... 37
Procedure..........................................................................................................................................................................37
19 Replacing the heat sink.............................................................................................................................. 38
Procedure..........................................................................................................................................................................38
Post-requisites..................................................................................................................................................................38
20 Removing the fan...................................................................................................................................... 39
Prerequisites..................................................................................................................................................................... 39
Procedure..........................................................................................................................................................................39

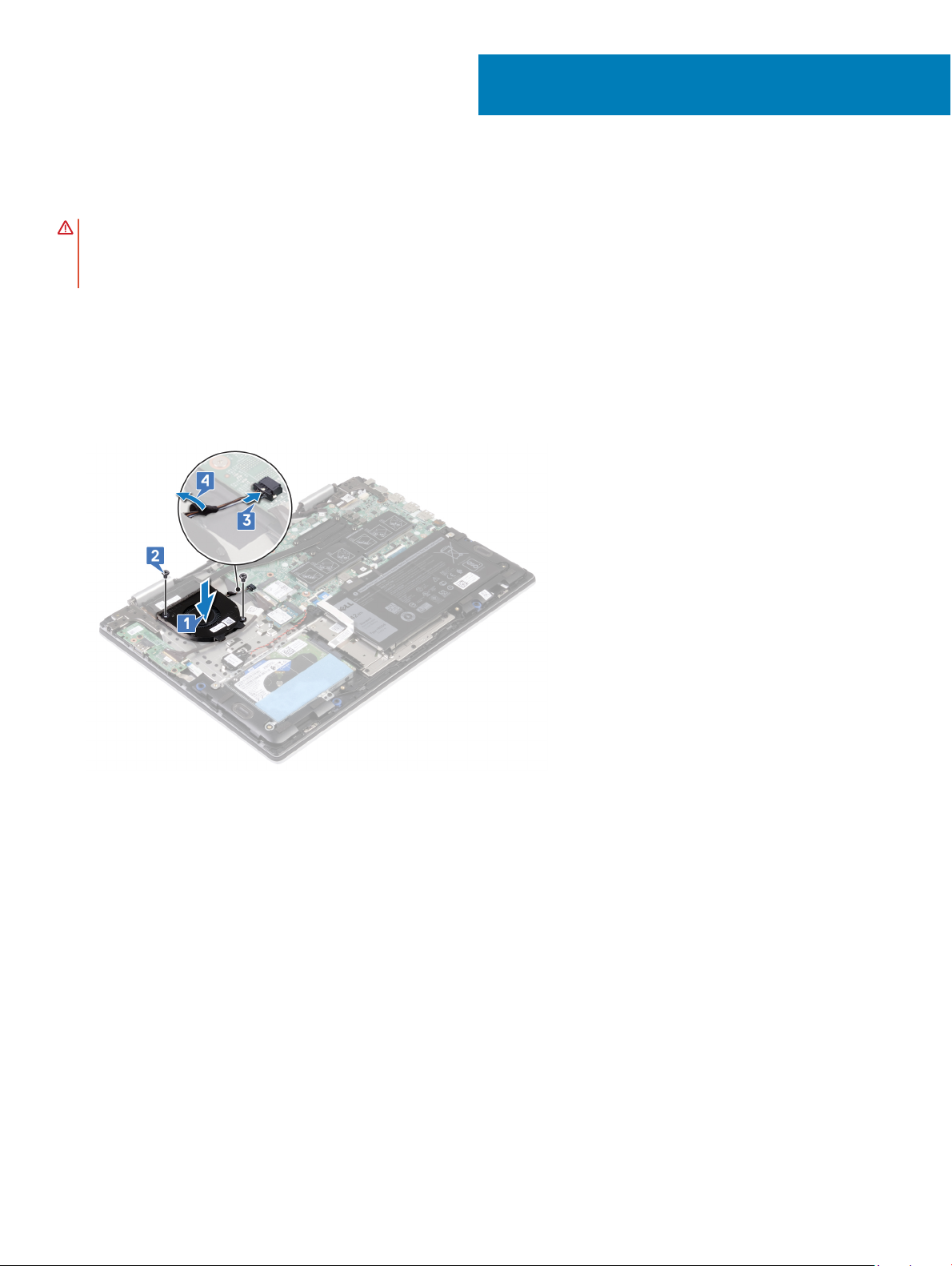

21 Replacing the fan....................................................................................................................................... 40
Procedure..........................................................................................................................................................................40
Post-requisites..................................................................................................................................................................40
22 Removing the speakers.............................................................................................................................. 41
Prerequisites......................................................................................................................................................................41
Procedure.......................................................................................................................................................................... 41
23 Replacing the speakers..............................................................................................................................42
Procedure..........................................................................................................................................................................42
Post-requisites..................................................................................................................................................................42
24 Removing the I/O board.............................................................................................................................43
Prerequisites..................................................................................................................................................................... 43
Procedure..........................................................................................................................................................................43
25 Replacing the I/O board.............................................................................................................................44
Procedure..........................................................................................................................................................................44
Contents
4
Page 5
Post-requisites..................................................................................................................................................................44
26 Removing the power-adapter port.............................................................................................................45
Prerequisites..................................................................................................................................................................... 45
Procedure..........................................................................................................................................................................45
27 Replacing the power-adapter port............................................................................................................. 46
Procedure..........................................................................................................................................................................46
Post-requisites..................................................................................................................................................................46
28 Removing the wireless card........................................................................................................................47
Prerequisites..................................................................................................................................................................... 47
Procedure..........................................................................................................................................................................47
29 Replacing the wireless card....................................................................................................................... 49
Procedure..........................................................................................................................................................................49
Post-requisites..................................................................................................................................................................49
30 Removing the display assembly................................................................................................................. 50
Prerequisites.....................................................................................................................................................................50
Procedure......................................................................................................................................................................... 50
31 Replacing the display assembly.................................................................................................................. 52
Procedure..........................................................................................................................................................................52
Post-requisites..................................................................................................................................................................53
32 Removing the power button.......................................................................................................................54
Prerequisites..................................................................................................................................................................... 54
Procedure..........................................................................................................................................................................54
33 Replacing the power button.......................................................................................................................55
Procedure......................................................................................................................................................................... 55
Post-requisites................................................................................................................................................................. 55
34 Removing the system board.......................................................................................................................56
Prerequisites.....................................................................................................................................................................56
Procedure......................................................................................................................................................................... 56
35 Replacing the system board.......................................................................................................................58
Procedure......................................................................................................................................................................... 58
Post-requisites................................................................................................................................................................. 59
36 Removing the touchpad.............................................................................................................................60
Prerequisites.....................................................................................................................................................................60
Procedure......................................................................................................................................................................... 60
37 Replacing the touchpad............................................................................................................................. 62
Procedure..........................................................................................................................................................................62
Contents
5
Page 6
Post-requisites..................................................................................................................................................................63
38 Removing the palm-rest and keyboard assembly....................................................................................... 64
Prerequisites..................................................................................................................................................................... 64
Procedure..........................................................................................................................................................................64
39 Replacing the palm-rest and keyboard assembly....................................................................................... 65
Procedure......................................................................................................................................................................... 65
Post-requisites................................................................................................................................................................. 65
40 Device drivers............................................................................................................................................66
Intel Chipset Software Installation Utility......................................................................................................................66
Video drivers.....................................................................................................................................................................66
Intel Serial IO driver..........................................................................................................................................................66
Intel Trusted Execution Engine Interface......................................................................................................................66
Intel Virtual Button driver................................................................................................................................................66
Wireless and Bluetooth drivers.......................................................................................................................................66
41 System setup..............................................................................................................................................67
System setup....................................................................................................................................................................67
Entering BIOS setup program.........................................................................................................................................67
Navigation keys................................................................................................................................................................ 67
Boot Sequence.................................................................................................................................................................67
System setup options......................................................................................................................................................68
Clearing CMOS settings..................................................................................................................................................73
Clearing BIOS (System Setup) and System passwords..............................................................................................73
42 Troubleshooting..........................................................................................................................................74
Enhanced Pre-Boot System Assessment (ePSA) diagnostics................................................................................... 74
Running the ePSA diagnostics..................................................................................................................................74
System diagnostic lights..................................................................................................................................................74
Flashing BIOS (USB key)................................................................................................................................................ 75
Flashing the BIOS.............................................................................................................................................................76
Enabling Intel Optane memory....................................................................................................................................... 76
Disabling Intel Optane memory.......................................................................................................................................76
WiFi power cycle..............................................................................................................................................................76
Flea power release............................................................................................................................................................77
43 Getting help and contacting Dell................................................................................................................78
Self-help resources.......................................................................................................................................................... 78
Contacting Dell................................................................................................................................................................. 78
Contents
6
Page 7
Before working inside your computer
NOTE: The images in this document may dier from your computer depending on the conguration you ordered.
Before you begin
1 Save and close all open les and exit all open applications.
2 Shut down your computer. Click Start > Power > Shut down.
NOTE: If you are using a dierent operating system, see the documentation of your operating system for shut-down
instructions.
3 Disconnect your computer and all attached devices from their electrical outlets.
4 Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.
5 Remove any media card and optical disc from your computer, if applicable.
1
Before working inside your computer 7
Page 8
After working inside your computer
CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your computer.
2 Connect any external devices, peripherals, or cables you removed before working on your computer.
3 Replace any media cards, discs, or any other parts that you removed before working on your computer.
4 Connect your computer and all attached devices to their electrical outlets.
5 Turn on your computer.
2
8 After working inside your computer
Page 9
Safety instructions
Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety
best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you nish working inside the
computer, replace all covers, panels, and screws before connecting to the electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work surface is at and clean.
CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching pins and contacts.
CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety instructions that shipped
with the product or at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the
metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity,
which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull tab, not on the cable itself. Some cables have
connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When disconnecting
cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables, ensure that the ports and
connectors are correctly oriented and aligned.
3
CAUTION: Press and eject any installed card from the media-card reader.
Electrostatic discharge—ESD protection
ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards, processors,
memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such as intermittent
problems or a shortened product life span. As the industry pushes for lower power requirements and increased density, ESD protection is an
increasing concern.
Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous
Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.
Two recognized types of ESD damage are catastrophic and intermittent failures.
• Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an immediate and
complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a static shock and
immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional memory.
• Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures
means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static shock, but the
tracing is merely weakened and does not immediately produce outward symptoms related to the damage. The weakened trace may
take weeks or months to melt, and in the meantime may cause degradation of memory integrity, intermittent memory errors, etc.
The more dicult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.
Perform the following steps to prevent ESD damage:
• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not provide
adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts with increased
sensitivity to ESD damage.
Safety instructions 9
Page 10
• Handle all static-sensitive components in a static-safe area. If possible, use anti-static oor pads and workbench pads.
• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static packing
material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you discharge static
electricity from your body.
• Before transporting a static-sensitive component, place it in an anti-static container or packaging.
ESD eld service kit
The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components: anti-static
mat, wrist strap, and bonding wire.
Components of an ESD eld service kit
The components of an ESD eld service kit are:
• Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an anti-static
mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on the system being
worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on the mat. ESD-sensitive
items are safe in your hand, on the ESD mat, in the system, or inside a bag.
• Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and bare metal
on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is temporarily placed on
the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat, and the hardware is known as
bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use wireless wrist straps. Always be aware that the
internal wires of a wrist strap are prone to damage from normal wear and tear, and must be checked regularly with a wrist strap tester
in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week.
• ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best
practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester is the best
method for doing this test. If you do not have your own wrist strap tester, check with your regional oce to nd out if they have one.
To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push the button to test. A
green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails.
• Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts that are
insulators and often highly charged.
• Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For example,
deploying the kit for a server environment is dierent than for a desktop or portable environment. Servers are typically installed in a rack
within a data center; desktops or portables are typically placed on oce desks or cubicles. Always look for a large open at work area
that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate the type of system that is being
repaired. The workspace should also be free of insulators that can cause an ESD event. On the work area, insulators such as Styrofoam
and other plastics should always be moved at least 12 inches or 30 centimeters away from sensitive parts before physically handling any
hardware components.
• ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded bags are
preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new part arrived in.
The ESD bag should be folded over and taped shut and all the same foam packing material should be used in the original box that the
new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESD-protected work surface, and parts should
never be placed on top of the ESD bag because only the inside of the bag is shielded. Always place parts in your hand, on the ESD mat,
in the system, or inside an anti-static bag.
• Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to be
returned to Dell, it is critical to place these parts in anti-static bags for safe transport.
ESD protection summary
It is recommended that all eld service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all
times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while
performing service and that they use anti-static bags for transporting sensitive components.
Safety instructions
10
Page 11
Transporting sensitive components
When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in
anti-static bags for safe transport.
Lifting equipment
Adhere to the following guidelines when lifting heavy weight equipment:
CAUTION: Do not lift greater than 50 pounds. Always obtain additional resources or use a mechanical lifting device.
1 Get a rm balanced footing. Keep your feet apart for a stable base, and point your toes out.
2 Tighten stomach muscles. Abdominal muscles support your spine when you lift, osetting the force of the load.
3 Lift with your legs, not your back.
4 Keep the load close. The closer it is to your spine, the less force it exerts on your back.
5 Keep your back upright, whether lifting or setting down the load. Do not add the weight of your body to the load. Avoid twisting your
body and back.
6 Follow the same techniques in reverse to set the load down.
Safety instructions 11
Page 12
The procedures in this document may require the following tools:
• Philips screwdriver #1
• Flat-head screwdriver
• Plastic scribe
4
Recommended tools
12 Recommended tools
Page 13
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then
place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when
the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when replacing a
component.
NOTE: Screw color may vary with the conguration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
5
Base cover Palm-rest and keyboard
assembly
Battery Palm-rest and keyboard
assembly
Hard-drive assembly Palm-rest and keyboard
assembly
Hard-drive bracket Hard drive M3x3 4
Solid-state drive Palm-rest and keyboard
assembly
I/O board Palm-rest and keyboard
assembly
Fan Palm-rest and keyboard
assembly
Wireless card System board M2x3 1
Power button with
ngerprint reader (Only on
computers shipped with
nger print reader)
Palm-rest and keyboard
assembly
M2x7 6
M2x3 2
M2x3 3
M2x3 1
M2x3 2
M2x3 2
M2x2.5 2
Power-adapter port Palm-rest and keyboard
assembly
Power button Palm-rest and keyboard
assembly
USB Type-C bracket System board M2x3 2
System board Palm-rest and keyboard
assembly
M2x3 1
M2x2.5 2
M2x2 Big Head 5
Screw list 13
Page 14
Component Secured to Screw type Quantity Screw image
Touchpad bracket Palm-rest and keyboard
assembly
Touchpad Palm-rest and keyboard
assembly
Display assembly Palm-rest and keyboard
assembly
M2x3 3
M2x2 Big Head 4
M2.5x5 6
14 Screw list
Page 15
Removing the base cover
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Remove the six screws (M2x7) that secure the base cover to the palm-rest and keyboard assembly.
2 Loosen the three captive screws that secure the base cover to the palm-rest and keyboard assembly.
6
3 Using your ngertips, pry the base cover o the palm-rest and keyboard assembly from the top left corner.
4 Lift the base cover o the palm-rest and keyboard assembly.
Removing the base cover 15
Page 16
5 Peel o the tape that secures the battery cable to the battery.
6 Peel the tape that secures the battery cable to the battery-cable connector.
7 Disconnect the battery cable from the system board.
8 Turn the computer over, open the display, then press and hold the power button for 15 seconds to ground the system board.
16
Removing the base cover
Page 17
Replacing the base cover
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Close the display and turn the computer over. Connect the battery cable to the system board.
2 Adhere the tape that secures the battery cable to the battery-cable connector.
3 Adhere the tape that secures the battery cable to the battery.
7
4
Align the tabs on the base cover with the slots on the palm-rest and keyboard assembly and snap the base cover into place.
Replacing the base cover 17
Page 18
5 Tighten the three captive screws that secure the base cover to the palm-rest and keyboard assembly.
6 Replace the six screws that secure the base cover to the palm-rest and keyboard assembly.
18 Replacing the base cover
Page 19
Removing the battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Peel o the tape that secures the battery cable to the battery.
2 Peel the tape that secures the battery cable to the battery-cable connector.
3 Disconnect the battery cable from the system board.
8
4 Remove the two screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
5 Lift the battery o the palm-rest and keyboard assembly.
Removing the battery 19
Page 20
20 Removing the battery
Page 21
Replacing the battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.
2 Replace the two screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
9
3 Connect the battery cable to the system board.
4 Adhere the tape that secures the battery cable to the battery-cable connector.
5 Adhere the tape that secures the battery cable to the battery.
Replacing the battery 21
Page 22
Post-requisites
Replace the base cover.
22
Replacing the battery
Page 23
Removing the coin-cell battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended that you note
the BIOS setup program’s settings before removing the coin-cell battery.
Procedure
1 Disconnect the coin-cell battery cable from the system board.
2 Remove the coin-cell battery cable from the routing guides on the palm-rest and keyboard assembly.
3 Peel the coin-cell battery o the palm-rest and keyboard assembly.
10
Removing the coin-cell battery 23
Page 24
Replacing the coin-cell battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Adhere the coin-cell battery to the palm-rest and keyboard assembly.
2 Route the coin-cell battery cable through the routing guides on the palm-rest and keyboard assembly.
3 Connect the coin-cell battery cable to the system board.
11
24 Replacing the coin-cell battery
Page 25
Removing the memory modules
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Locate the memory module on the system board and lift the mylar that covers the memory modules.
12
2 Use your ngertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops
up.
3 Remove the memory module from the memory-module slot.
Removing the memory modules 25
Page 26
Replacing the memory modules
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Locate the memory modules on the system board and lift the mylar that covers the memory modules.
13
2 Align the notch on the memory module with the tab on the memory-module slot.
3 Slide the memory module rmly into the slot at an angle.
4 Press the memory module down until it clicks into place.
NOTE
: If you do not hear the click, remove the memory module and reinstall it.
5 Release the mylar that covers the memory modules on the system board.
26 Replacing the memory modules
Page 27
Post-requisites
Replace the base cover.
Replacing the memory modules
27
Page 28
14
Removing the solid-state drive/Intel Optane
memory module
You need to disable the Intel Optane memory before removing Intel Optane memory module from your computer. For more information
about disabling the Intel Optane memory, see Disabling Intel Optane memory.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
CAUTION: You need to disable the Intel Optane memory before removing Intel Optane memory module from your computer. For
more information about disabling the Intel Optane memory, see Disabling Intel Optane memory.
Remove the base cover.
Procedure
1 Locate the solid-state drive/Intel Optane memory module on the system board.
2 Remove the screw (M2x3) that secures the solid-state drive/Intel Optane memory module to the palm-rest and keyboard assembly.
3 Slide and remove the solid-state drive from the solid-state drive slot.
28 Removing the solid-state drive/Intel Optane memory module
Page 29
Removing the solid-state drive/Intel Optane memory module 29
Page 30
15
Replacing the solid-state drive/Intel Optane
memory module
Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about enabling the Intel Optane
memory, see Enabling Intel Optane memory.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
Procedure
NOTE: Follow the procedure to change the location of the screw mount, in case if you are replacing the solid-state drive of a
dierent form factor.
1 Align the notch on the solid-state drive/Intel Optane memory module with the tab on the solid-state drive/Intel Optane memory
module slot.
2 Slide the solid-state drive/Intel Optane memory module rmly into the solid-state drive/Intel Optane memory module slot at an angle.
3 Gently press the other end of the solid-state drive/Intel Optane memory module and replace the screw (M2x3) that secures the solid-
state drive/Intel Optane memory module to the palm-rest and keyboard assembly.
30 Replacing the solid-state drive/Intel Optane memory module
Page 31
Post-requisites
Replace the base cover.
CAUTION: Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about
enabling the Intel Optane memory, see Enabling Intel Optane memory.
Procedure to move the screw mount
This computer supports two solid-state drive form factors:
• M.2 2230
• M.2 2280
If you are replacing the solid-state drive of a dierent form factor other than the one removed, see the following procedure to move the
location of the screw mount.
1 Remove the screw mount from the palm-rest and keyboard assembly.
2 Turn the screw mount to 180 degrees.
3 Insert the screw mount into the other screw mount slot on the palm-rest and keyboard assembly.
4 Align the notch on the solid-state drive/Intel Optane memory module with the tab on the solid-state drive slot.
5 Slide the solid-state drive/Intel Optane memory module rmly into the solid-state drive slot at an angle.
6 Press the other end of the solid-state drive/Intel Optane memory module and replace the screw (M2x3) that secures the solid-state
drive to the palm-rest assembly.
Replacing the solid-state drive/Intel Optane memory module
31
Page 32
32 Replacing the solid-state drive/Intel Optane memory module
Page 33
Removing the hard drive
If your computer is using a SATA storage device accelerated by Intel Optane memory, disable Intel Optane before removing the SATA
storage device. For more information about disabling the Intel Optane, see Disabling Intel Optane.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
Procedure
16
1 Open the latch, and disconnect the hard-drive cable from the system board.
2 Remove the three screws (M2x3) that secure the hard-drive assembly to the palm-rest and keyboard assembly.
3 Lift the hard-drive assembly along with its cable o the palm-rest and keyboard assembly.
4 Disconnect the interposer from the hard-drive assembly.
Removing the hard drive 33
Page 34
5 Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
6 Remove the hard-drive bracket o the hard drive.
34 Removing the hard drive
Page 35
Replacing the hard drive
Enable Intel Optane after replacing the SATA storage. For more information about enabling the Intel Optane, see Enabling Intel Optane.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
Procedure
1 Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.
2 Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
17
3 Connect the interposer to the hard-drive assembly.
4 Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest and keyboard assembly.
5 Replace the three screws (M2x3) that secure the hard-drive assembly to the palm-rest and keyboard assembly.
6 Connect the hard-drive cable to the connector on the system board.
Replacing the hard drive 35
Page 36
Post-requisites
1 Replace the battery.
2 Replace the base cover.
36 Replacing the hard drive
Page 37
Removing the heat sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
WARNING: The heat sink may become hot during normal operation. Allow sucient time for the heat sink to cool before you
touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in your skin can
reduce the heat transfer capability of the thermal grease.
Prerequisites
Remove the base cover.
Procedure
1 In reverse order (as indicated on the heat-sink), loosen the four captive screws that secure the heat sink to the system board.
18
NOTE
: The number of screws may vary depending on the conguration ordered.
2 Lift the heat sink o the system board.
Removing the heat sink 37
Page 38
19
Replacing the heat sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad provided in the kit to ensure that thermal
conductivity is achieved.
Procedure
1 Place the heat sink on the system board as illustrated, aligning the screw holes on the heat sink with the screw holes on the system
board.
2 In sequential order (as indicated on the heat-sink), tighten the four captive screws that secure the heat sink to the system board.
NOTE: The number of screws may vary depending on the conguration ordered.
Post-requisites
Replace the base cover.
38 Replacing the heat sink
Page 39
Removing the fan
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Peel o the tape that secures the fan cable to the palm-rest and keyboard assembly.
2 Disconnect the fan cable from the system board.
3 Remove the two screws (M2x3) that secure the fan to the palm-rest and keyboard assembly.
4 Lift the fan o the palm-rest and keyboard assembly.
20
Removing the fan 39
Page 40
Replacing the fan
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Align the screw holes on the fan with the screw holes on the palm-rest and keyboard assembly.
2 Replace the two screws (M2x3) securing the fan to the palm-rest and keyboard assembly.
3 Connect the fan cable to the system board.
4 Adhere the tape that secures the fan cable to the palm-rest and keyboard assembly.
21
Post-requisites
Replace the base cover.
40 Replacing the fan
Page 41
Removing the speakers
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Disconnect the speaker cable from the system board.
2 Note the cable routing, and remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
3 Remove the speakers, along with the cable from the palm-rest and keyboard assembly.
22
Removing the speakers 41
Page 42
Replacing the speakers
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Using the alignment posts, align and place the speakers on the palm-rest and keyboard assembly.
NOTE: Replace the rubber grommets if they are pushed up while replacing the speakers.
2 Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3 Connect the speaker cable to the system board.
23
Post-requisites
Replace the base cover.
42 Replacing the speakers
Page 43
Removing the I/O board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Peel o the tape that secures the I/O-board cable to the palm-rest and keyboard assembly.
2 Open the latch, and disconnect the I/O-board cable from the I/O board.
3 Disconnect the ngerprint-reader board cable from the I/O board.
4 Remove the two screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly.
5 Lift the I/O board o the palm-rest and keyboard assembly.
24
Removing the I/O board 43
Page 44
25
Replacing the I/O board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Place the I/O board on the palm-rest and keyboard assembly, and then align the screw holes on the I/O board with the screw holes on
the palm-rest and keyboard assembly.
2 Replace the two screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly.
3 Slide the ngerprint-reader cable into the connector on the I/O board and close the latch to secure the cable.
4 Slide the I/O-board cable into the connector on the I/O board and close the latch to secure the cable.
5 Adhere the tape that secures the I/O-board cable to the palm-rest and keyboard assembly.
Post-requisites
Replace the base cover.
44 Replacing the I/O board
Page 45
Removing the power-adapter port
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Disconnect the power-adapter port cable from the system board.
2 Remove the screw (M2x3) that secures the power-adapter port to the palm-rest and keyboard assembly.
3 Lift the power-adapter port along with its cable o the palm-rest and keyboard assembly.
26
Removing the power-adapter port 45
Page 46
Replacing the power-adapter port
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Place the power-adapter port into the slot on the palm-rest and keyboard assembly, and then align the screw hole on the power-
adapter port with the screw hole on the palm-rest and keyboard assembly.
2 Replace the screw (M2x3) that secures the power-adapter port to the palm-rest and keyboard assembly.
3 Connect the power-adapter port cable to the system board.
27
Post-requisites
Replace the base cover.
46 Replacing the power-adapter port
Page 47
Removing the wireless card
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Locate the wireless card on the system board.
28
2 Remove the screw (M2x3) that secures the wireless-card bracket and wireless card to the system board.
3 Lift the wireless-card bracket o the wireless card.
4 Disconnect the antenna cables from the wireless card.
5 Slide and remove the wireless card from the wireless-card slot.
Removing the wireless card 47
Page 48
48 Removing the wireless card
Page 49
29
Replacing the wireless card
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
CAUTION: To avoid damage to the wireless card, do not place any cables under it.
1 Connect the antenna cables to the wireless card.
2 Align the notch on the wireless card with the tab on the wireless-card slot and slide the wireless card at an angle into the wireless-card
slot.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 2. Antenna-cable color scheme
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
3 Align the screw hole on the wireless-card bracket with the screw hole on the wireless card and the system board.
4 Replace the screw (M2x3) that secures the wireless-card bracket and wireless card to the system board.
Post-requisites
Replace the base cover.
Replacing the wireless card 49
Page 50
Removing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the wireless card.
Procedure
1 Peel o the tape that secures the fan cable to the palm-rest and keyboard assembly.
2 Disconnect the fan cable from the system board.
3 Open the latch, and disconnect the I/O cable from the system board.
4 Peel o the tape that secures the antenna cable to the palm-rest and keyboard assembly.
5 Peel o the tape that secures the touchscreen cable and the display cable to their respective connectors on the system board.
6 Open the latch, and disconnect the touchscreen cable from the system board.
7 Open the latch, and disconnect the display cable from the system board.
30
8 Turn the computer over, and open the display as far as possible. Then place the computer face down on a at surface.
CAUTION
9 Remove the antenna cables from the routing guides on the palm-rest and keyboard assembly.
10 Remove the six screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
11 Gently lift the display assembly o the palm-rest and keyboard assembly.
50 Removing the display assembly
: Place the computer on a soft and clean surface to avoid scratching the display.
Page 51
Removing the display assembly 51
Page 52
Replacing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
31
1
Align the screw holes on the display assembly with the screw holes on the palm-rest and keyboard assembly.
2 Replace the six screws (M2.5x5) that secure the display assembly to the palm-rest and keyboard assembly.
3 Route the antenna cables through the routing guides on the palm-rest and keyboard assembly.
4 Close the display, and turn the computer over.
5 Adhere the tape that secures the antenna cable to the palm-rest and keyboard assembly.
6 Connect the fan cable to the system board.
7 Adhere the tape that secures the fan cable to the palm-rest and keyboard assembly.
8 Slide the I/O cable into the slot on the system board and close the latches to secure the cable.
9 Slide the touchscreen cable into the slot on the system board and close the latch to secure the cable.
10 Slide the display cable into the slot on the system board and close the latch to secure the cable.
11 Adhere the tape that secures the touchscreen cable to the system board.
12 Adhere the tape that secures the display cable to the system board.
CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.
52 Replacing the display assembly
Page 53
Post-requisites
1 Replace the wireless card.
2 Replace the base cover.
Replacing the display assembly
53
Page 54
Removing the power button
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the I/O board.
3 Remove the wireless card.
4 Remove the display assembly.
Procedure
32
1
Remove the two screws (M2x2.5) that secure the power button to the palm-rest and keyboard assembly.
2
Open the latch, and disconnect the ngerprint-reader cable from the power button cable connector.
3 Peel o the power button or power button with ngerprint reader from the palm-rest and keyboard assembly.
: Your computer is shipped with either a power button or power button with ngerprint reader, depending on the
NOTE
conguration ordered.
: This step is applicable only on the computers that are shipped with ngerprint reader.
NOTE
54 Removing the power button
Page 55
Replacing the power button
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Place the power button or power button with ngerprint reader into the slot on the palm-rest and keyboard assembly.
2
Open the power button cable connector latch, reconnect the ngerprint-reader cable and close the latch.
3 Replace the two screws (M2x2.5) that secure the power button to the palm-rest and keyboard assembly.
NOTE: This step is applicable only on the computers that are shipped with ngerprint reader.
33
Post-requisites
1 Replace the display assembly.
2 Replace the wireless card.
3 Replace the I/O board.
4 Replace the base cover.
Replacing the power button 55
Page 56
Removing the system board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program
after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must
make the appropriate changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can reconnect
the cables correctly after you replace the system board.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
3 Remove the memory modules.
4 Remove the coin-cell battery.
5 Remove the solid-state drive/Intel Optane memory module.
6 Remove the fan.
7 Remove the heat sink.
8 Remove the wireless card.
9 Remove the display assembly.
34
Procedure
1 Open the latch, and disconnect the I/O-board cable from the system board.
2 Disconnect the power-adapter port cable from the system board.
3 Remove the two screws (M2x3) that secure the USB Type-C port bracket to the system board and palm-rest assembly.
4 Lift the USB Type-C port bracket o the system board.
5 Disconnect the speaker cable from the system board.
6 Open the latch, and disconnect the keyboard cable from the system board.
7 Open the latch, and disconnect the touchpad cable from the system board.
8 Open the latch, and disconnect the hard-drive cable from the system board.
9 Disconnect the coin-cell battery cable from the system board.
56 Removing the system board
Page 57
10 Remove the ve screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.
11 Lift the system board o the palm-rest and keyboard assembly.
Removing the system board
57
Page 58
Replacing the system board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup program
after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program. You must
make the appropriate changes again after you replace the system board.
Procedure
1 Align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly.
2 Replace the ve screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.
35
3 Slide the I/O-board cable into the connector on the system board and close the latch to secure the cable.
4 Connect the power-adapter port cable to the system board.
5 Align the screw holes on the USB Type-C port bracket with the screw holes on the system board.
6 Replace the two screws (M2x3) that secure the USB Type-C port bracket to the system board.
7 Connect the speaker cable to the system board.
8 Slide the keyboard cable into the connector on the system board and close the latch to secure the cable.
9 Slide the touchpad cable into the connector on the system board and close the latch to secure the cable.
10 Slide the hard-drive cable into the connector on the system board and close the latch to secure the cable.
11 Connect the coin-cell battery to the system board.
58 Replacing the system board
Page 59
Post-requisites
1 Replace the display assembly.
2 Replace the wireless card.
3 Replace the heat sink.
4 Replace the fan.
5 Replace the solid-state drive/Intel Optane memory module.
6 Replace the coin-cell battery.
7 Replace the memory modules.
8 Replace the battery.
9 Replace the base cover.
Replacing the system board
59
Page 60
Removing the touchpad
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
Procedure
1 Open the latch, and disconnect the touchpad cable from the system board.
2 Peel the tapes that secure the touchpad to the palm-rest and keyboard assembly.
3 Remove the three screws (M2x3) that secure the touchpad bracket to the palm-rest and keyboard assembly.
4 Lift the touchpad bracket o the palm-rest and keyboard assembly.
36
5 Remove the four screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.
6 Lift the touchpad, along with the cable, at an angle from under the touch-pad bracket o the palm-rest and keyboard assembly.
60 Removing the touchpad
Page 61
Removing the touchpad 61
Page 62
Replacing the touchpad
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
1 Align the screw holes on the touchpad with the screw holes on the palm-rest and keyboard assembly.
2 Replace the four screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.
37
3 Align the screw holes on the touchpad bracket with the screw holes on the touchpad.
4 Replace the three screws (M2x3) that secure the touchpad bracket to the touchpad.
5 Adhere the tapes that secure the touchpad to the keyboard shield.
6 Slide the touchpad cable into the connector on the system board and close the latch to secure the cable.
62 Replacing the touchpad
Page 63
Post-requisites
1 Replace the battery.
2 Replace the base cover.
Replacing the touchpad 63
Page 64
Removing the palm-rest and keyboard assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery.
3 Remove the memory modules.
4 Remove the coin-cell battery.
5 Remove the solid-state drive/Intel Optane memory module.
6 Remove the hard drive.
7 Remove the heat sink.
8 Remove the fan.
9 Remove the I/O board.
10 Remove the speakers.
11 Remove the power-adapter port.
12 Remove the wireless card.
13 Remove the display assembly.
14 Remove the system board.
15 Remove the touchpad.
38
Procedure
After performing the steps in prerequisites, we are left with the palm-rest and keyboard assembly.
64 Removing the palm-rest and keyboard assembly
Page 65
Replacing the palm-rest and keyboard assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure
Place the palm-rest and keyboard assembly on a clean and at surface.
39
Post-requisites
1 Replace the touchpad.
2 Replace the system board.
3 Replace the display assembly.
4 Replace the wireless card.
5 Replace the power-adapter port.
6 Replace the speakers.
7 Replace the I/O board.
8 Replace the fan.
9 Replace the heat sink.
10 Replace the hard drive.
11 Replace the solid-state drive/Intel Optane memory module.
12 Replace the coin-cell battery.
13 Replace the memory modules.
14 Replace the battery.
15 Replace the base cover.
Replacing the palm-rest and keyboard assembly 65
Page 66
Device drivers
Intel Chipset Software Installation Utility
In the Device Manager, check if the chipset driver is installed.
Install the Intel chipset updates from www.dell.com/support.
Video drivers
In the Device Manager, check if the video driver is installed.
Install the video driver update from www.dell.com/support.
Intel Serial IO driver
In the Device Manager, check if the Intel Serial IO driver is installed.
40
Install the driver updates from www.dell.com/support.
Intel Trusted Execution Engine Interface
In the Device Manager, check if the Intel Trusted Execution Engine Interface driver is installed.
Install the driver update from www.dell.com/support.
Intel Virtual Button driver
In the Device Manager, check if the Intel Virtual Button driver is installed.
Install the driver updates from www.dell.com/support.
Wireless and Bluetooth drivers
In the Device Manager, check if the network card driver is installed.
Install the driver updates from www.dell.com/support.
In the Device Manager, check if the Bluetooth driver is installed.
Install the driver updates from www.dell.com/support.
66 Device drivers
Page 67
41
System setup
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not be displayed.
System setup
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain changes can
make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen
information for future reference.
Use the BIOS Setup program for the following purposes:
• Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
• Change the system conguration information.
• Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.
Entering BIOS setup program
1 Turn on (or restart) your computer.
2 During POST, when the DELL logo is displayed, watch for the F2 prompt to appear, and then press F2 immediately.
NOTE
: The F2 prompt indicates that the keyboard is initialized. This prompt can appear very quickly, so you must watch
for it, and then press F2. If you press F2 before the F2 prompt, this keystroke is lost. If you wait too long and the
operating system logo appears, continue to wait until you see the desktop. Then, turn o your computer and try again.
Navigation keys
NOTE
: For most of the System Setup options, changes that you make are recorded but do not take eect until you restart the
system.
Keys Navigation
Up arrow Moves to the previous eld.
Down arrow Moves to the next eld.
Enter Selects a value in the selected eld (if applicable) or follow the link in the eld.
Spacebar Expands or collapses a drop-down list, if applicable.
Tab Moves to the next focus area.
NOTE: For the standard graphics browser only.
Esc Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message
that prompts you to save any unsaved changes and restarts the system.
Boot Sequence
Boot Sequence allows you to bypass the System Setup–dened boot device order and boot directly to a specic device (for example:
optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:
System setup 67
Page 68
• Access System Setup by pressing F2 key
• Bring up the one-time boot menu by pressing F12 key
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:
• Removable Drive (if available)
• STXXXX Drive
NOTE: XXX denotes the SATA drive number.
• Optical Drive (if available)
• SATA Hard Drive (if available)
• Diagnostics
NOTE: Choosing Diagnostics will display the ePSA diagnostics screen.
The boot sequence screen also displays the option to access the System Setup screen.
System setup options
NOTE: Depending on this computer and its installed devices, the items listed in this section may or may not appear.
Table 3. System setup options—System information menu
General-System Information
System Information
BIOS Version Displays the BIOS version number.
Service Tag Displays the Service Tag of the computer.
Asset Tag Displays the Asset Tag of the computer.
Ownership Tag Displays the Ownership Tag of the computer.
Manufacture Date Displays the manufacture date of the computer.
Ownership Date Displays the ownership date of the computer.
Express Service Code Displays the express service code of the computer.
Memory Information
Memory Installed Displays the total computer memory installed.
Memory Available Displays the total computer memory available.
Memory Speed Displays the memory speed.
Memory Channel Mode Displays single or dual channel mode.
Memory Technology Displays the technology used for the memory.
DIMM A Size Displays the DIMM A memory size.
DIMM B Size Displays the DIMM B memory size.
Processor Information
Processor Type Displays the processor type.
Core Count Displays the number of cores on the processor.
Processor ID Displays the processor identication code.
Current Clock Speed Displays the current processor clock speed.
Minimum Clock Speed Displays the minimum processor clock speed.
Maximum Clock Speed Displays the maximum processor clock speed.
68 System setup
Page 69
General-System Information
Processor L2 Cache Displays the processor L2 Cache size.
Processor L3 Cache Displays the processor L3 Cache size.
HT Capable Displays whether the processor is HyperThreading (HT) capable.
64-Bit Technology Displays whether 64-bit technology is used.
Device Information
SATA-0 Displays the SATA-0 device information of the computer.
SATA-1 Displays the SATA-1 device information of the computer.
LOM MAC Address Displays the LAN On Motherboard (LOM) MAC address of the computer.
Video Controller Displays the video controller type of the computer.
dGPU Video Controller Displays the discrete graphics information of the computer.
Video BIOS Version Displays the video BIOS version of the computer.
Video Memory Displays the video memory information of the computer.
Panel Type Displays the Panel Type of the computer.
Native Resolution Displays the native resolution of the computer.
Audio Controller Displays the audio controller information of the computer.
Wi-Fi Device Displays the wireless device information of the computer.
Bluetooth Device Displays the bluetooth device information of the computer.
Battery Information Displays whether bluetooth is installed in the computer.
Boot Sequence
Boot Sequence Displays the boot sequence.
Boot List Option Displays the available boot options.
Advanced Boot Options
Enable Legacy Option ROMs Enables or disables the Legacy Option ROMs.
UEFI Boot Path Security Enables or disables the user to enter Admin password when booting a UEFI boot path
from the F12 Boot Menu.
Date/Time Displays the current date in MM/DD/YY format and current time in HH:MM:SS
AM/PM format.
Table 4. System setup options—System Conguration menu
System Conguration
SATA Operation Congure operating mode of the integrated SATA hard drive controller.
Drives Enables or disables various drives on board.
SMART Reporting Enables or disables Self-Monitoring, Analysis, and Reporting Technology (SMART)
during system startup.
USB Conguration
Enable Boot Support Enables or disables booting from USB mass storage devices such as external hard
drive, optical drive, and USB drive.
Enable External USB Port Enables or disables booting from USB mass storage devices connected to external
USB port.
USB PowerShare Enables or disables the USB PowerShare.
Audio Enables or disables the integrated audio controller.
System setup 69
Page 70
System Conguration
Keyboard Illumination Enables you to choose the mode of the keyboard illumination feature.
Keyboard Backlight Timeout on AC Enables you to dene the timeout value for the keyboard backlight when a power
adaper is plugged.
Keyboard Backlight Timeout on Battery Enables you to dene the timeout value for the keyboard backlight when the
computer is running on battery.
Miscellaneous Devices Enable or disable various onboard devices.
Enable Camera Enable or disable the camera.
Table 5. System setup options—Video menu
Video
LCD Brightness Set the panel brightness independently for Battery and AC power.
Table 6. System setup options—Security menu
Security
Admin Password Set, change, or delete the administrator password.
System Password Set, change, or delete the system password.
Internal HDD-0 Password Set, change, or delete the internal hard-disk drive password.
Strong Password Enable or disable strong passwords.
Password Conguration Control the minimum and maximum number of characters allowed for the Admin and
System passwords.
Password Bypass Bypass the System (Boot) Password and the internal HDD password prompts during
a system restart.
Password Change Enable or disable changes to the System and Hard Disk passwords when an
administrator password is set.
Non-Admin Setup Changes Determines whether changes to the setup option are permitted when an
administrator password is set.
UEFI Capsule Firmware Updates Enable or disable BIOS updates through UEFI capsule update packages.
PTT Security Enable or disable Platform Trust Technology (PTT) visibility to the operating system.
Computrace(R) Enable or disable the BIOS module interface of the optional Computrace(R) Service
from Absolute Software.
Admin Setup Lockout Enable to prevent users from entering Setup when an Admin Password is set.
Master Password Lockout Enables or disables the master password lockout support.
SMM Security Mitigation Enables or disables additional UEFI Security Mitigation protections.
Table 7. System setup options—Secure Boot menu
Secure Boot
Secure Boot Enable Enables or disables the secure boot feature.
Secure Boot Mode Enables or disables the user to choose the secure boot mode.
Expert Key Management
Enable Custom Mode Enables or disables custom mode.
Expert Key Management Enables or disables Expert Key Management.
70 System setup
Page 71
Secure Boot
Custom Mode Key Management Select the custom values for expert key management.
Table 8. System setup options—Intel Software Guard Extensions menu
Intel Software Guard Extensions
Intel SGX Enable Enable or disable Intel Software Guard Extensions.
Enclave Memory Size Set the Intel Software Guard Extensions Enclave Reserve Memory Size.
Performance
Multi Core Support Enable multiple cores.
Default: Enabled.
Intel SpeedStep Enable or disable Intel Speedstep Technology.
Default: Enabled.
NOTE: If enabled, the processor clock speed and core voltage are adjusted
dynamically based on the processor load.
C-States Control Enable or disable additional processor sleep states.
Default: Enabled.
Intel TurboBoost Enable or disable Intel TurboBoost mode of the processor.
Default: Enabled.
HyperThread Control Enable or disable HyperThreading in the processor.
Default: Enabled.
Power Management
AC Behavior Enables the system to turn on automatically, when AC is inserted.
Enable Intel Speed Shift Technology Enables or disables the Intel Speed Shift technology support.
Auto On Time Enable to set the computer to turn on automatically every day or on a preselected
date and time. This option can be congured only if the Auto On Time is set to
Everyday, Weekdays, or Selected Days.
Default: Disabled.
USB Wake Support Enables the USB devices to wake the computer from Standby.
Block Sleep Enables you to block entering to sleep mode in OS environment.
Advanced Battery Charge Conguration Enables Advanced Battery Charge Conguration from the beginning of the day to a
specied work period.
Primary Battery Charge Conguration Sets the primary battery charge settings with a preselected custom charge start and
stop.
Default: Adaptive.
POST Behavior
Adapter Warnings Enable adapter warnings.
Default: Enabled.
Fn Lock Options Enable or disable the Fn lock mode.
Fastboot Enable to set the speed of the boot process.
Default: Thorough.
System setup 71
Page 72
Intel Software Guard Extensions
Extend BIOS POST Time Set the BIOS POST time.
Full Screen Logo Enables you to display full screen logo if your image matches screen resolution.
Warning and Errors Enables the computer to pause when warnings and errors are detected during boot
process.
MAC Address Pass Through Replaces the external NIC MAC address.
Table 9. System setup options—Virtualization Support menu
Virtualization Support
Virtualization Specify whether a Virtual Machine Monitor (VMM) can utilize the additional hardware
capabilities provided by Intel Virtualization Technology.
VT for Direct I/O Specify whether a Virtual Machine Monitor (VMM) can utilize the additional hardware
capabilities provided by Intel Virtualization Technology for Direct I/O.
Table 10. System setup options—Wireless menu
Wireless
Wireless Switch Determine which wireless devices can be controlled by the Wireless Switch.
Wireless Device Enable Enable or disable internal wireless devices.
Table 11. System setup options—Maintenance menu
Maintenance
Service Tag Display the system’s Service Tag.
Asset Tag Create a system Asset Tag.
BIOS Downgrade Control ashing of the system rmware to previous revisions.
Data Wipe Enable to securely erase data from all internal storage devices.
BIOS Recovery Enable the user to recover from certain corrupted BIOS conditions from a recovery
le on the user primary hard drive or an external USB key.
First Power On Date Sets ownership date.
Table 12. System setup options—System Logs menu
System Logs
BIOS Events Display BIOS events.
Thermal Events Display the Thermal events.
Power Events Display the Power events.
Table 13. System setup options—SupportAssist System Resolution menu
SupportAssist System Resolution
Auto OS Recovery Threshold Control the automatic boot ow for SupportAssist System Resolution Console and for
the Dell OS Recovery tool.
SupportAssist OS Recovery Enable or disable the boot ow for the SupportAssist OS Recovery tool when certain
system errors.
72 System setup
Page 73
Clearing CMOS settings
CAUTION: Clearing CMOS settings will reset the BIOS settings on your computer.
1 Remove the base cover.
2 Disconnect the battery cable from the system board.
3 Remove the coin-cell battery.
4 Wait for one minute.
5 Replace the coin-cell battery.
6 Connect the battery cable to the system board.
7 Replace the base cover.
Clearing BIOS (System Setup) and System passwords
To clear the system or BIOS passwords, contact Dell technical support as described at www.dell.com/contactdell.
NOTE: For information on how to reset Windows or application passwords, refer to the documentation accompanying Windows
or your application.
System setup 73
Page 74
42
Troubleshooting
Enhanced Pre-Boot System Assessment (ePSA) diagnostics
CAUTION: Use the ePSA diagnostics to test only your computer. Using this program with other computers may cause invalid
results or error messages.
The ePSA diagnostics (also known as system diagnostics) performs a complete check of your hardware. The ePSA is embedded with the
BIOS and is launched by the BIOS internally. The embedded system diagnostics provides a set of options for particular devices or device
groups allowing you to:
• Run tests automatically or in an interactive mode
• Repeat tests
• Display or save test results
• Run thorough tests to introduce additional test options to provide extra information about the failed device(s)
• View status messages that inform you if tests are completed successfully
• View error messages that inform you of problems encountered during testing
: Some tests for specic devices require user interaction. Always ensure that you are present at the computer terminal
NOTE
when the diagnostic tests are performed.
Running the ePSA diagnostics
1 Turn on your computer.
2 As the computer boots, press the F12 key as the Dell logo appears.
3 On the boot menu screen, select the Diagnostics option.
4 Click the arrow at the bottom left corner.
Diagnostics front page is displayed.
5 Click the arrow in the lower-right corner to go to the page listing.
The items detected are listed.
6 To run a diagnostic test on a specic device, press Esc and click Yes to stop the diagnostic test.
7 Select the device from the left pane and click Run Tests.
8 If there are any issues, error codes are displayed.
Note the error code and validation number and contact Dell.
System diagnostic lights
Battery-status light
Indicates the power and battery-charge status.
Solid white — Power adapter is connected and the battery has more than 5 percent charge.
Amber — Computer is running on battery and the battery has less than 5 percent charge.
O
74 Troubleshooting
Page 75
• Power adapter is connected and the battery is fully charged.
• Computer is running on battery and the battery has more than 5 percent charge.
• Computer is in sleep state, hibernation, or turned o.
The power and battery-status light blinks amber along with beep codes indicating failures.
For example, the power and battery-status light blinks amber two times followed by a pause, and then blinks white three times followed by
a pause. This 2,3 pattern continues until the computer is turned o indicating no memory or RAM is detected.
The following table shows dierent power and battery-status light patterns and associated problems.
Table 14. LED codes
Diagnostic light codes Problem description
2,1 Processor failure
2,2 System board: BIOS or ROM (Read-Only Memory) failure
2,3 No memory or RAM (Random-Access Memory) detected
2,4 Memory or RAM (Random-Access Memory) failure
2,5 Invalid memory installed
2,6 System-board or chipset error
2,7 Display failure
3,1 Coin-cell battery failure
3,2 PCI, video card/chip failure
3,3 Recovery image not found
3,4 Recovery image found but invalid
3,5 Power-rail failure
3,6 System BIOS Flash incomplete
3,7 Management Engine (ME) error
Camera status light: Indicates whether the camera is in use.
• Solid white — Camera is in use.
• O — Camera is not in use.
Caps Lock status light: Indicates whether Caps Lock is enabled or disabled.
• Solid white — Caps Lock enabled.
• O — Caps Lock disabled.
Flashing BIOS (USB key)
1 Follow the procedure from step 1 to step 7 in "Flashing the BIOS" to download the latest BIOS setup program le.
2 Create a bootable USB drive. For more information see the knowledge base article SLN143196 at www.dell.com/support.
3 Copy the BIOS setup program le to the bootable USB drive.
4 Connect the bootable USB drive to the computer that needs the BIOS update.
5 Restart the computer and press F12 when the Dell logo is displayed on the screen.
6 Boot to the USB drive from the One Time Boot Menu.
7 Type the BIOS setup program lename and press Enter.
8 The BIOS Update Utility appears. Follow the instructions on the screen to complete the BIOS update.
Troubleshooting
75
Page 76
Flashing the BIOS
You may need to ash (update) the BIOS when an update is available or when you replace the system board.
Follow these steps to ash the BIOS:
1 Turn on your computer.
2 Go to www.dell.com/support.
3 Click Product support, enter the Service Tag of your computer, and then click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads > Find it myself.
5 Select the operating system installed on your computer.
6 Scroll down the page and expand BIOS.
7 Click Download to download the latest version of the BIOS for your computer.
8 After the download is complete, navigate to the folder where you saved the BIOS update le.
9 Double-click the BIOS update le icon and follow the instructions on the screen.
Enabling Intel Optane memory
1 On the taskbar, click the search box, and then type Intel Rapid Storage Technology.
2 Click Intel Rapid Storage Technology.
The Intel Rapid Storage Technology window is displayed.
3 On the Status tab, click Enable to enable the Intel Optane memory.
4 On the warning screen, select a compatible fast drive, and then click Yes to continue enabling Intel Optane memory.
5 Click Intel Optane memory > Reboot to complete enabling your Intel Optane memory.
NOTE
: Applications may take up to three subsequent launches after enablement to see the full performance benets.
Disabling Intel Optane memory
CAUTION
blue screen error. The Intel Rapid Storage Technology user interface can be removed without uninstalling the driver.
NOTE: Disabling Intel Optane memory is required before removing the SATA storage device accelerated by the Intel Optane
memory module from the computer.
1 On the taskbar, click the search box, and then type Intel Rapid Storage Technology.
2 Click Intel Rapid Storage Technology.
The Intel Rapid Storage Technology window is displayed.
3 On the Intel Optane memory tab, click Disable to disable the Intel Optane memory.
4 Click Yes if you accept the warning.
The disabling progress is displayed.
5 Click Reboot to complete disabling your Intel Optane memory and restart your computer.
: After disabling Intel Optane memory, do not uninstall the driver for Intel Rapid Storage Technology as it will result in a
NOTE
: For computers in which Intel Optane memory acts as a primary storage, do not disable the Intel Optane memory.
The Disable option will be grayed out.
WiFi power cycle
If your computer is unable to access the internet due to WiFi connectivity issues a WiFi power cycle procedure may be performed. The
following procedure provides the instructions on how to conduct a WiFi power cycle:
Troubleshooting
76
Page 77
NOTE: Some ISPs (Internet Service Providers) provide a modem/router combo device.
1 Turn o your computer.
2 Turn o the modem.
3 Turn o the wireless router.
4 Wait for 30 seconds.
5 Turn on the wireless router.
6 Turn on the modem.
7 Turn on your computer.
Flea power release
Flea power is the residual static electricity that remains on the computer even after it has been powered o and the battery has been
removed. The following procedure provides the instructions on how to conduct ea power release:
1 Turn o your computer.
2 Disconnect the power adapter from your computer.
3 Press and hold the power button for 15 seconds to drain the ea power.
4 Connect the power adapter to your computer.
5 Turn on your computer.
Troubleshooting 77
Page 78
Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 15. Self-help resources
Self-help resources Resource location
Information about Dell products and services www.dell.com
My Dell app
Tips
Contact Support In Windows search, type Contact Support, and press Enter.
43
Online help for operating system www.dell.com/support/windows
Troubleshooting information, user manuals, setup instructions,
product specications, technical help blogs, drivers, software
updates, and so on.
Dell knowledge base articles for a variety of computer concerns.
Learn and know the following information about your product:
• Product specications
• Operating system
• Setting up and using your product
• Data backup
• Troubleshooting and diagnostics
• Factory and system restore
• BIOS information
www.dell.com/support
1 Go to www.dell.com/support.
2 Type the subject or keyword in the Search box.
3 Click Search to retrieve the related articles.
See Me and My Dell at www.dell.com/support/manuals.
To locate the Me and My Dell relevant to your product, identify your
product through one of the following:
• Select Detect Product.
• Locate your product through the drop-down menu under View
Products.
• Enter the Service Tag number or Product ID in the search bar.
Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
: Availability varies by country and product, and some services may not be available in your country.
NOTE
NOTE: If you do not have an active internet connection, you can nd contact information on your purchase invoice, packing slip,
bill, or Dell product catalog.
78 Getting help and contacting Dell
