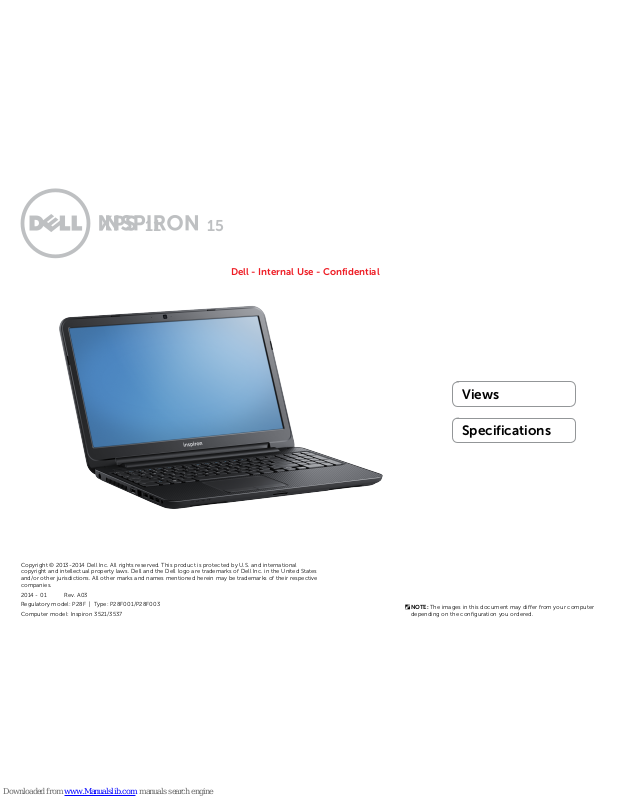

Page 1
Views
Specifications
Copyright © 2013-2014 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States
and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective
companies.
2014 - 01 Rev. A03
Regulatory model: P28F | Type: P28F001/P28F003
Computer model: Inspiron 3521/3537
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.
1511
Dell - Internal Use - Confidential
Page 2
1 Power-status light
Indicates the power state of the computer.
White light — Power adapter is connected and the
battery is fully charged.
2 Hard-drive activity light
Turns on when the computer reads from or writes to the
hard drive.
3 Battery-status light
Indicates the battery state of the computer.
Solid yellow light — Battery charge is low.
Blinking yellow light — Battery charge is critical.
4 Wireless-status light
Turns on when wireless is turned on.
5 Media-card reader
Reads from and writes to media cards.
2
3 4
5
1
Views
Specifications
Front
Left
Right
Base
Display
Front
Page 3
1 Power-adapter port
Connect a power adapter to provide power to your
computer and charge the battery.
2 HDMI port
Connect a TV or another HDMI-in enabled device.
Provides video and audio output.
3 Network port
Connect an Ethernet (RJ45) cable from a router or a
broadband modem for network or internet access.
The two lights next to the connector indicate the
connectivity status and network activity.
4 USB 3.0 ports (2)
Connect peripherals such as storage devices, printers,
and so on. Provide data transfer speeds up to 5 Gbps.
5 USB 2.0 port
Connect peripherals such as storage devices, printers,
and so on. Provides data transfer speeds up to
480 Mbps.
6 Headset port
Connect a headphone, a microphone, or a headphone
and microphone combo (headset).
1 2 3 4 5
6
Views
Specifications
Front
Left
Right
Base
Display
Left
Page 4
1 USB 2.0 port (supports Windows debugging)
Connect peripherals such as storage devices, printers,
and so on. Provides data transfer speeds up to
480 Mbps.
This USB port can be used for Windows debugging.
2 Optical drive
Reads from and writes to CDs and DVDs.
3 Security-cable slot
Connect a security cable to prevent unauthorized
movement of your computer.
321
Views
Specifications
Front
Left
Right
Base
Display
Right
Page 5
1 Power button
Press to turn on the computer if it is turned off or in
Sleep state.
Press to put the computer in Sleep state if it is turned on.
Press and hold for 10 seconds to force shut-down the
computer.
NOTE: You can customize the power-button behavior in Power
Options. For more information, see Me and My Dell at
dell.com/support.
2 Left-click button
Press to left click.
3 Touchpad
Move your finger on the touchpad to move the mouse
pointer. Tap to left-click.
4 Right-click button
Press to right click.
1
43
2
Views
Specifications
Front
Left
Right
Base
Display
Base
Page 6
1 Digital microphone
Provides high-quality digital sound input for audio
recording, voice calls, and so on.
2 Camera
Allows you to video chat, capture photos, and record
videos.
3 Camera-status light
Turns on when the camera is in use.
21 3
Views
Specifications
Front
Left
Right
Base
Display
Display
Page 7
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Dimensions and Weight
Non-touch Touch
Height (front to back):
With 4-cell battery 0.98 in to 1.09 in
(24.85 mm to 27.60 mm)
1.07 in to 1.19 in
(27.25 mm to 30.15 mm)
With 6-cell battery 0.98 in to 1.25 in
(24.85 mm to 31.80 mm)
1.07 in to 1.37 in
(27.25 mm to 34.80 mm)
Width 14.80 in (376 mm)
Depth 10.20 in (259 mm)
Weight (maximum):
With 4-cell battery 4.85 lb (2.20 kg) 5.51 lb (2.50 kg)
With 6-cell battery 5.18 lb (2.35 kg) 5.84 lb (2.65 kg)
NOTE: The weight of your laptop varies depending on the configuration ordered
and the manufacturing variability.
Page 8
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
System Information
Inspiron 3521 Inspiron 3537
Computer model Inspiron 3521 Inspiron 3537
Processor • Intel Celeron Dual Core
(2nd generation)
• Intel Pentium Dual Core
(2nd generation)
• Intel Core i3 ULV (3rd generation)
• Intel Core i5 ULV (3rd generation)
• Intel Core i7 ULV (3rd generation)
• Intel Celeron Dual Core
(4th generation)
• Intel Pentium Dual Core
(4th generation)
• Intel Core i3 ULV (4th generation)
• Intel Core i5 ULV (4th generation)
• Intel Core i7 ULV (4th generation)
L1 cache 64 KB per core
L2 cache 256 KB per core
L3 cache Up to 4 MB
Chipset Intel HM76 Integrated in processor
www
Page 9
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Memory
Connectors Two internally-accessible SODIMM connectors
Type:
Inspiron 3521 Dual-channel DDR3
Inspiron 3537 Dual-channel DDR3L
Speed Up to 1600 MHz
Configurations supported 2 GB, 4 GB, 6 GB, 8 GB, and 16 GB
Page 10
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Ports and Connectors
External:
Network One RJ45 port
USB • Two USB 3.0 ports
• One USB 2.0 port
• One USB 2.0 port with Windows debugging
HDMI One HDMI port
Audio One headphone and microphone combo (headset) port
Internal:
Mini-card One full mini-card slot for Wi-Fi and Bluetooth combo card
Page 11
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Communications
Ethernet 10/100 Mbps Ethernet controller integrated on system board
Wireless • Wi-Fi 802.11 b/g/n
• Bluetooth 4.0
Page 12
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Video
Inspiron 3521 Inspiron 3537
Controller:
Integrated Intel HD Graphics 4000 Intel HD Graphics 5100/4200/4400
series
Discrete • AMD Radeon HD 7670M
• AMD Radeon HD 8730M
• AMD Radeon HD 8670M
• AMD Radeon HD 8850M
Memory:
Integrated Shared system memory
Discrete Up to 2 GB
Page 13
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Audio
Controller ALC3223
Speakers Two
Speaker output:
Average 2 watt
Peak 2 watt
Microphone Single digital microphone in the camera assembly
Volume controls Program menus and keyboard media-control keys
Page 14
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Storage
Interface • SATA 1.5 Gbps
• SATA 3.0 Gbps
• SATA 6.0 Gbps
Hard drive One 2.5-inch drive (supports Intel Smart Response Technology)
Optical drives One 9.5 mm SATA drive
Drives supported DVD+/-RW
Page 15
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Media-card reader
Type One 8-in-1 slot
Cards supported • Secure Digital (SD) memory card
• SD High-Capacity (SDHC) card
• Secure-Digital Extended Capacity (SDXC) card with Ultra High Speed (UHS)
• Memory Stick
• Memory Stick PRO
• Memory Stick XC (MSXC)
• MultiMedia Card (MMC)
• MultiMedia Card plus (MMC+)
Page 16
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Display
Type • 15.6-inch HD
• 15.6-inch HD with touch
Resolution (maximum) 1366 x 768
Dimensions:
Height 8.83 in (224.30 mm)
Width 14.17 in (360 mm)
Diagonal 15.60 in (396.24 mm)
Refresh rate 60 Hz
Operating angle 0 degree (closed) to 140 degrees
Pixel pitch 0.252 mm x 0.252 mm
Controls Brightness can be controlled using shortcutkeys.
Page 17
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Keyboard
Type Chiclet keyboard
Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be
used to type alternate characters or to perform secondary functions. To type
the alternate character, press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the shortcut keys by changing
Function Key Behavior in System Setup.
Page 18
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Camera
Resolution:
Still image 0.92 megapixel
Video 1280 x 720 (HD) at 30 fps (maximum)
Diagonal viewing angle 74 degrees
Page 19
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Touchpad
Resolution:
Horizontal
Vertical
1560 dpi
2553 dpi
Dimensions:
Width 2.13 in (54 mm)
Height 3.86 in (98 mm)
Page 20
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Battery
Type • 4-cell “smart” lithium ion (40 WHr) — non-touch only
• 6-cell “smart” lithium ion (65 WHr)
Dimensions: 4-cell 6-cell
Height:
Touch N/A 1.08 in (27.40 mm)
Non touch 0.79 in (20.00 mm) 1.08 in (27.40 mm)
Width 10.72 in (272.40 mm) 10.72 in (272.40 mm)
Depth 1.94 in (49.30 mm) 1.94 in (49.30 mm)
Weight 0.57 lb (0.26 kg) 0.79 lb (0.36 kg)
Voltage 14.80 VDC 11.10 VDC
Operating time Varies depending on operating conditions and can significantly reduce under
certain power-intensive conditions.
Life span (approximate) 300 discharge/charge cycles
Temperature range:
Operating 0 °C to 35 °C (32 °F to 95 °F)
Storage –40 °C to 65 °C (–40 °F to 149 °F)
Coin-cell battery CR-2032
Page 21
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Power Adapter
Type • 65 W
• 90 W
Input voltage 100 VAC–240 VAC
Input frequency 50 Hz–60 Hz
Input current 1.50A/1.60A/1.70A/2.50A
Output current 3.34 A/4.62 A
Rated output voltage 19.50 VDC
Temperature range:
Operating 0 °C to 40 °C (32 °F to 104 °F)
Storage –40 °C to 70 °C (–40 °F to 158 °F)
Page 22
Specifications
Views
Battery
System
Information
Memory
Ports and
Connectors
Dimensions and
Weight
Computer
Environment
Storage
Touchpad Power AdapterCamera
Communications Video Audio
Display
Media-card
reader
Keyboard
Computer Environment
Airborne contaminant level G1 as defined by ISA-S71.04-1985
Operating Storage
Temperature range 0 °C to 40 °C (32 °F to 104 °F) –40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity (maximum) 10 % to 90 % (non-condensing) 10 % to 95 % (non-condensing)
Vibration (maximum)
*
0.66 GRMS 1.30 GRMS
Shock (maximum)
†
110 G 160 G
Altitude (maximum) –15.20 m to 3048 m
(–50 ft to 10,000 ft)
–15.20 m to 10,668 m
(–50 ft to 35,000 ft)
* Measured using a random vibration spectrum that simulates user environment
† Measured with hard drive in operating status and a 2-ms half-sine pulse for operating. Also measured with hard drive in head-parked position and
a 2-ms half-sine pulse for storage
Loading...
