Dell External OEMR R210II, PowerEdge R210 II Getting Started Manual
Dell PowerEdge
R210 II Systems
Getting Started
With Your System
Guide de mise en route
Primeiros passos com o sistema
Procedimientos iniciales con el sistema
Dell PowerEdge
R210 II Systems
Getting Started
With Your System
Regulatory Model: E10S Series
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data
if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury, or death.
___________________
Information in this publication is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
®
is a registered trademark and Core™ is a trademark of Intel Corporation in the U.S. and
Intel
other countries. Microsoft
of Microsoft Corporation in the United States and/or other countries. Red Hat
®
Linux
SUSE ™ is a trademark of Novell, Inc. in the United States and other countries. Citrix
XenServer
and/or other countries. VMware
United States or other countries.
Other trademarks and trade names may be used in this publication to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
Regulatory Model E10S Series
December 2010 P/N RGTPR Rev. A00
and are registered trademarks of Red Hat, Inc. in the United States and/or other countries.
®
are either registered trademarks or trademarks of Citrix Systems, Inc. in the United States
®
and Windows Server® are either trademarks or registered trademarks
®
is a registered trademarks or trademark of VMWare, Inc. in the
®
and Red Hat Enterprise
®
and
Installation and Configuration
WARNING: Before performing the following procedure, review the safety
instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.

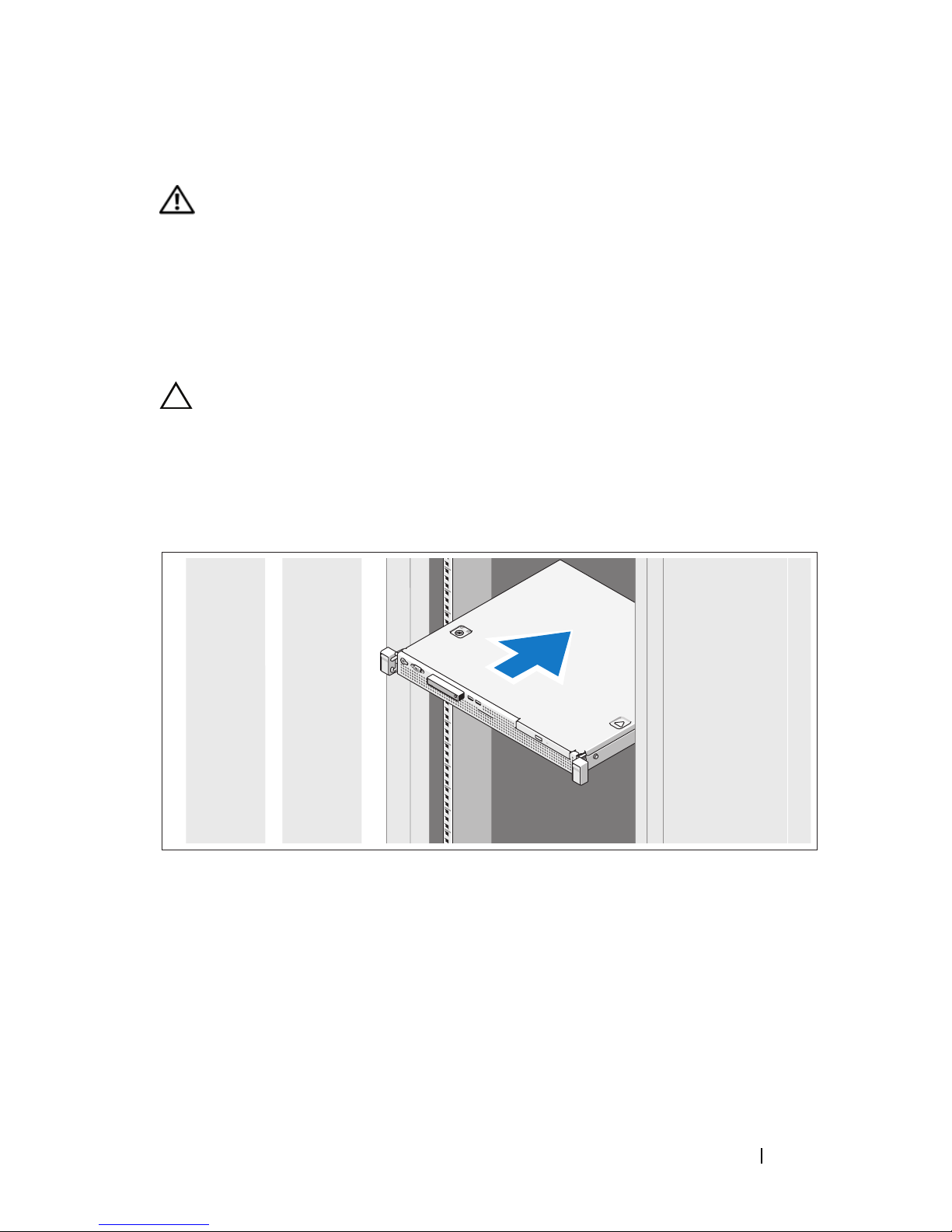

Installing the Rails and System in a Rack
CAUTION: If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified by
the manufacturer.
For more information, see
"Technical Specifications" on page 9.
Assemble the rails and install the system in the rack following the safety
instructions and the rack installation instructions provided with your system.
Getting Started With Your System 3

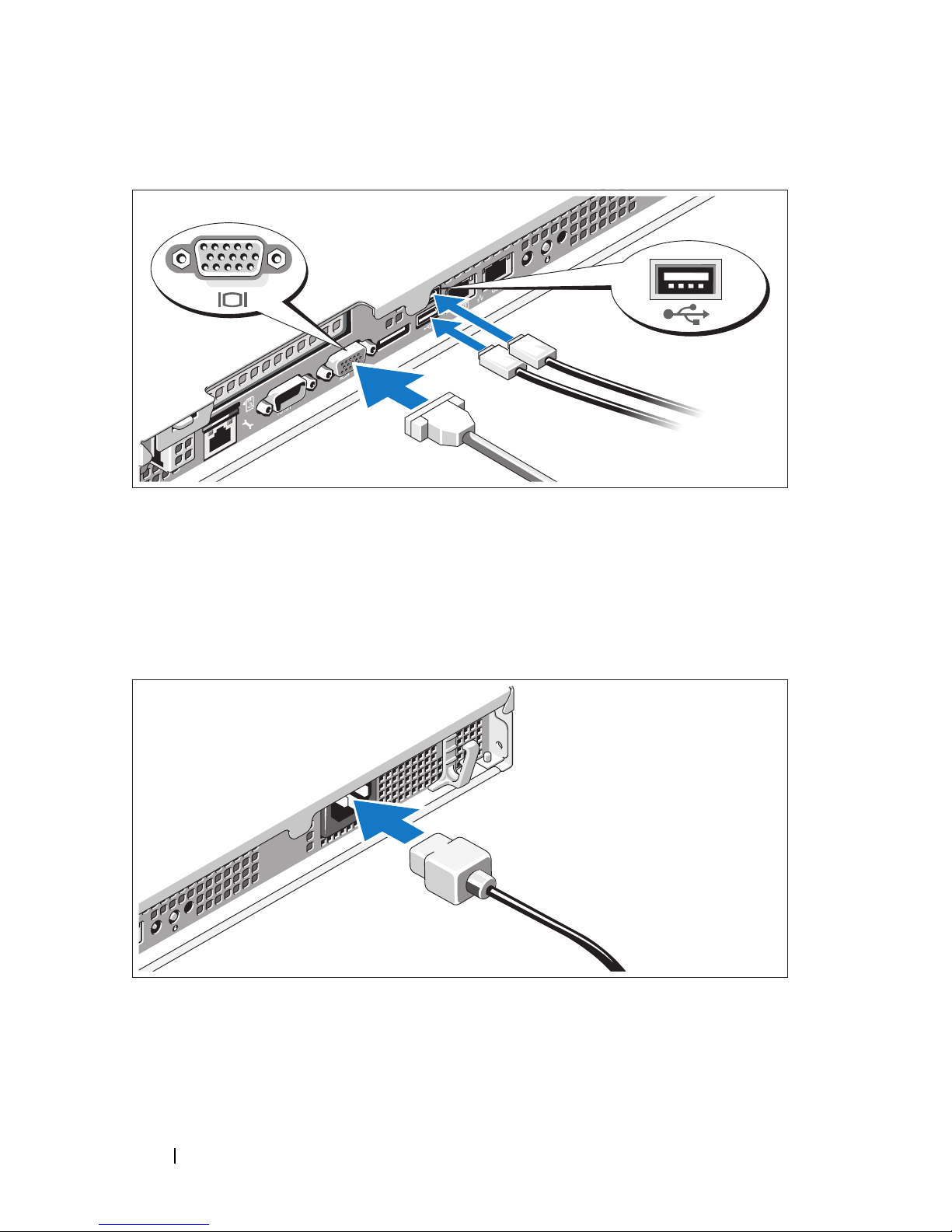

Optional—Connecting the Keyboard, Mouse, and Monitor
Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable
to plug into each connector. Be sure to tighten the screws (if any) on the
monitor's cable connector.
Connecting the Power Cable
Connect the system’s power cable to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor.
4 Getting Started With Your System

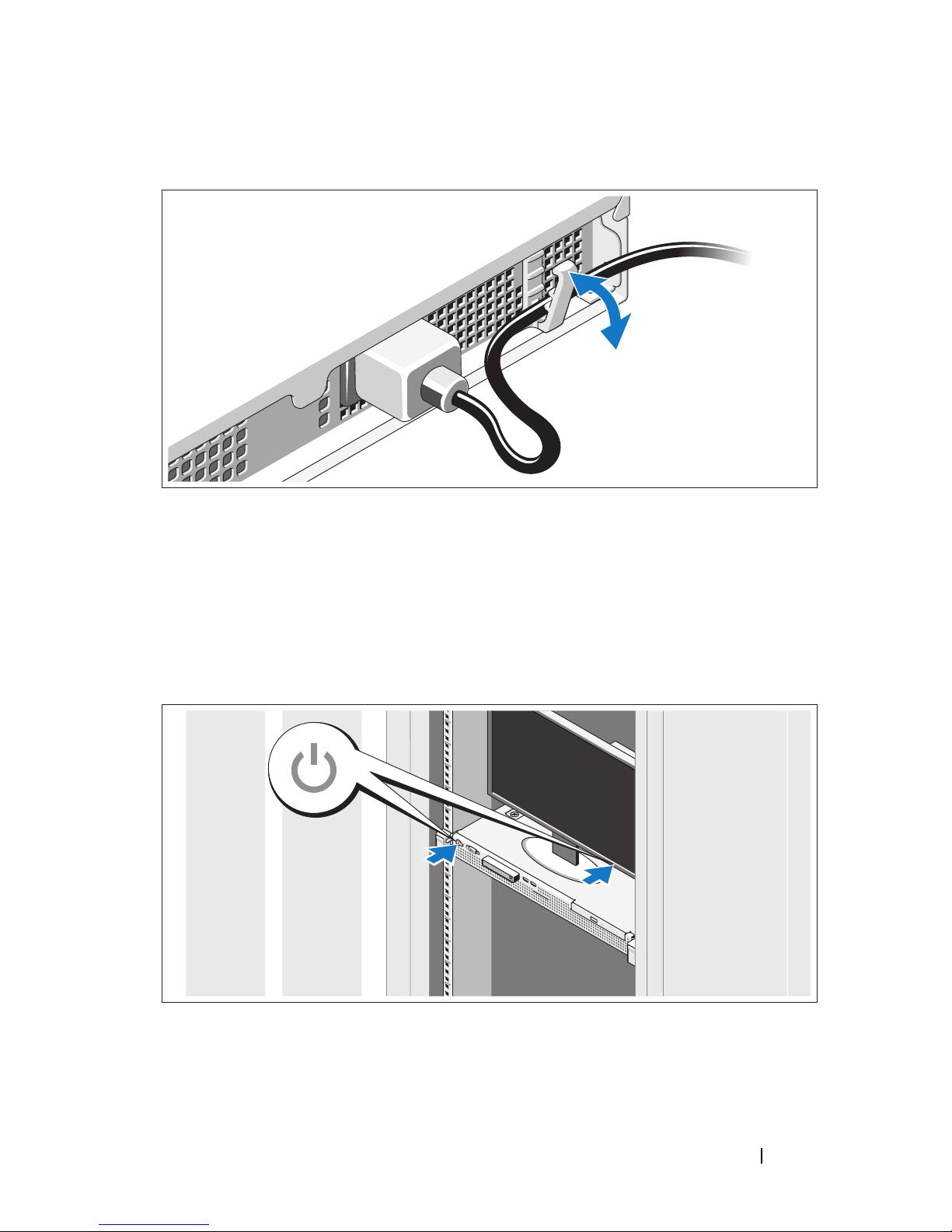

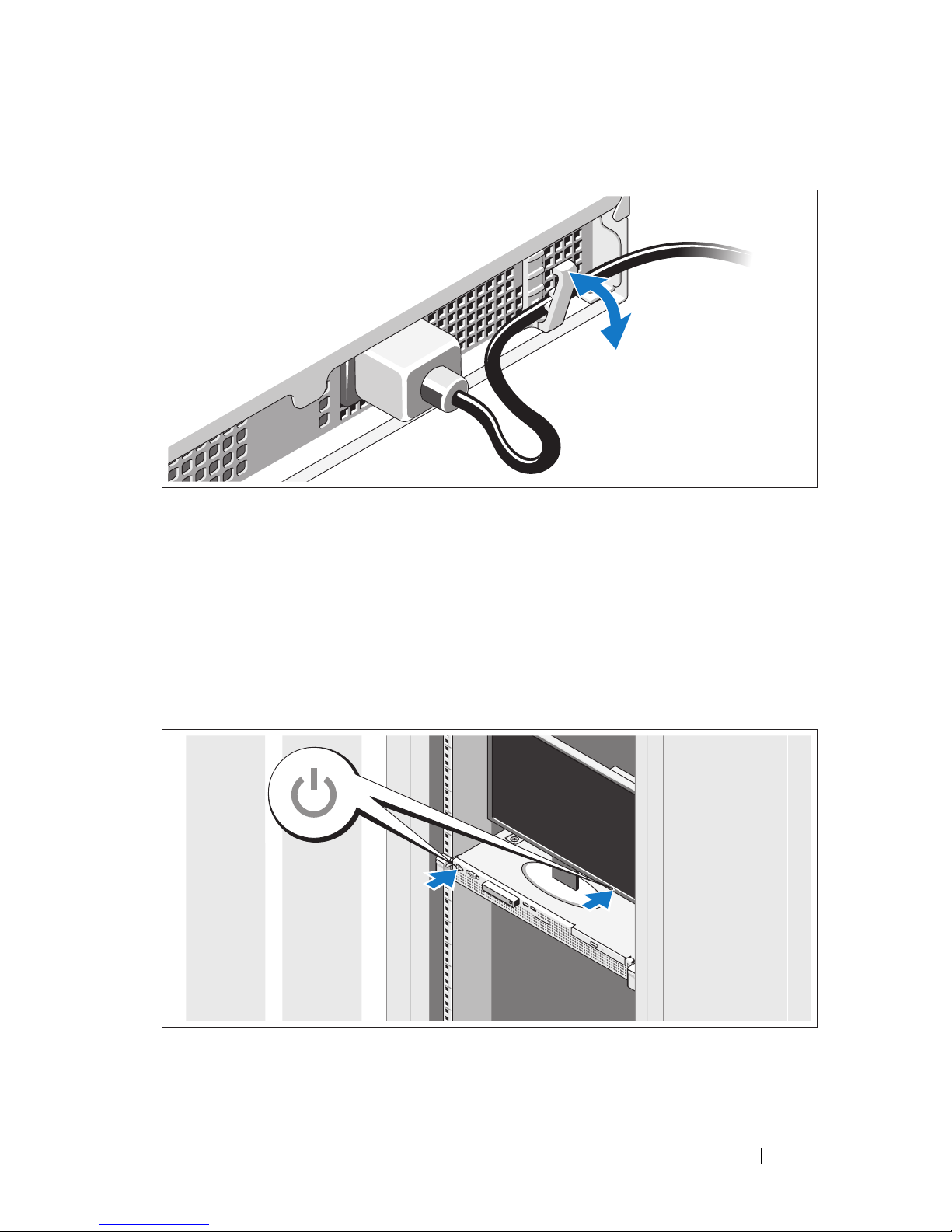

Securing the Power Cable
Bend the system power cable as shown in the illustration and secure the cable
in the retention clip.
Plug the other end of the power cable into a grounded electrical outlet or
a separate power source such as an uninterrupted power supply (UPS) or
a power distribution unit (PDU).
Turning On the System
Press the power button on the system and the monitor. The power indicators
should light.
Getting Started With Your System 5

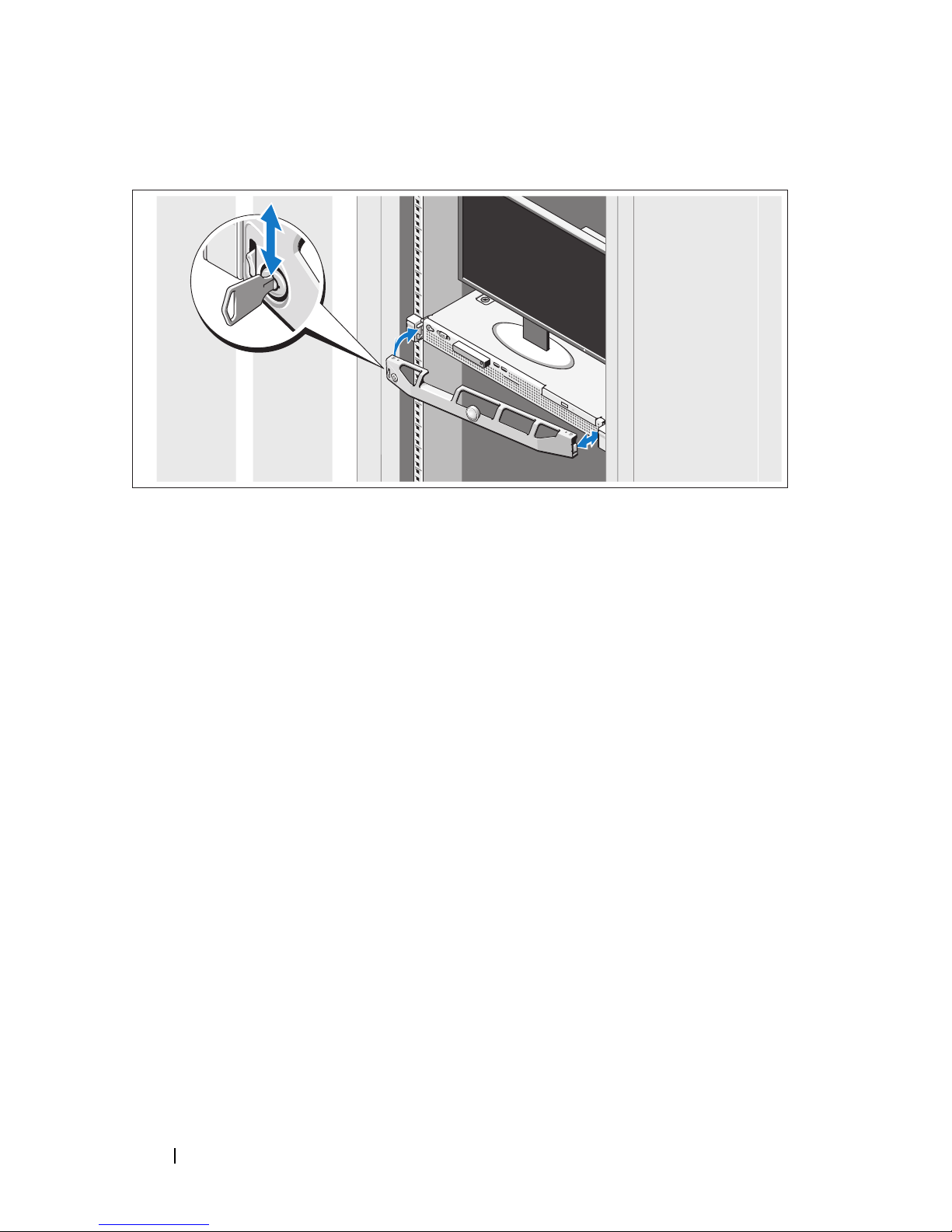

Installing the Optional Bezel
Install the bezel (optional).
Complete the Operating System Setup
If you purchased a preinstalled operating system, see the operating system
documentation that ships with your system. To install an operating system for
the first time, see the installation and configuration documentation for your
operating system. Be sure the operating system is installed before installing
hardware or software not purchased with the system.
Supported Operating Systems
• Microsoft Small Business Server 2011 Standard and Essential Editions
• Microsoft Windows Server 2008 R2 SP1 (x64) Web, Standard,
Foundation, and Enterprise Editions
• Microsoft Windows
and Enterprise Editions
• Microsoft Windows Server 2008 SP2 (x86) Web, Standard,
and Enterprise Editions
• Microsoft Windows Server 2008 SP2 (x64) Web, Standard,
and Enterprise Editions
Server 2008 R2 (x64) Web, Standard, Foundation,
• Microsoft Windows Server 2008 R2 SP1(x64) with Hyper-V for
Standard and Enterprise Editions
6 Getting Started With Your System
• Microsoft Windows Server 2008 R2 (x64) with Hyper-V for Standard and
Enterprise Editions
• Microsoft Windows Server 2008 SP2 (x64) with Hyper-V for Standard and
Enterprise Editions
• VMware ESX 4.1 Update 1 (Classic)
• VMware ESX 4.1 Update 1 (Embedded)
• Citrix XenServer 5.6 Feature Pack 1
• Red Hat Enterprise Linux
6.0 (x86_64)
• SUSE Linux Enterprise Server 11 SP1 (x86_64)
NOTE: For the latest information on supported operating systems,
see support.dell.com.
Dell Software License Agreement
• Before using your system, please read the Dell Software License
Agreement that came with your system.
• You must consider any CD, DVD, or diskette set of Dell installed
software as BACKUP copies of the software installed on your system's
hard-disk drive.
• If you do not accept the terms of the agreement, please call the customer
assistance telephone number. For customers in the United States,
call 800-WWW-DELL (800-999-3355). For customers outside the
United States, visit
support.dell.com
and select your country or region
from the top of the page.
Getting Started With Your System 7
Other Information You May Need
WARNING: See the safety and regulatory information that shipped with
your system. Warranty information may be included within this document
or as a separate document.
• The rack documentation included with your rack solution describes how
to install your system into a rack.
•The
• Any media that ships with your system that provides documentation and
Owner’s Manual
and describes how to troubleshoot the system and install or replace
system components. This document is available online at
support.dell.com/manuals
tools for configuring and managing your system, including those pertaining
to the operating system, system management software, system updates,
and system components that you purchased with your system.
NOTE: Always check for updates on support.dell.com/manuals and read the
updates first because they often supersede information in other documents.
provides information about system features
.
Obtaining Technical Assistance
If you do not understand a procedure in this guide or if the system does
not perform as expected, see your Owner’s Manual. Dell offers
comprehensive hardware training and certification. See dell.com/training
for more information. This service may not be offered in all locations.
8 Getting Started With Your System
Technical Specifications
Processor
Processor type One Intel Core processor i3-2100 product family
or
One Intel Xeon processor E3-1200 product family
or
One Intel Pentium processor (when available)
Expansion Bus
Bus type PCI Express Generation 2
Expansion slots One full-height, half-length x16 link
Memory
Architecture 1066 MHz and 1333 MHz DDR3 unbuffered
Error Correcting Code (ECC) DIMMs
Memory module sockets Four 240-pin
Memory module capacities 1 GB, 2 GB, 4 GB, or 8 GB
Minimum RAM 1 GB
Maximum RAM 32 GB
Drives
Hard drives Up to two 3.5-inch cabled SAS or SATA
internal drives
or
Up to two 2.5-inch cabled SAS or SATA
internal drives
Optical drive One optional internal SATA DVD-ROM or
DVD+/-RW drive
NOTE: DVD devices are data only.
Optional external USB DVD-ROM
Getting Started With Your System 9
Connectors
Back
NIC
Serial
USB
Video
eSATA
Two RJ-45 (for integrated 1 GB NICs)
9-pin, DTE, 16550-compatible
Two 4-pin, USB 2.0-compliant
15-pin VGA
One 7-pin connector
Front
Video
USB
15-pin VGA
Two 4-pin, USB 2.0-compliant
Internal
USB
Two 4-pin, USB 2.0-compliant
Video
Video type Matrox G200, integrated in Winbond WPCM450
Video memory 8 MB
Power
AC power supply (per power supply)
Wa t ta g e
Vol tag e
Heat dissipation
Maximum inrush current
250 W
100 VAC–240 VAC, 50 Hz/60 Hz, 4.0 A–2.0 A
1040 BTU/hr maximum
Under typical line conditions and over the entire
system ambient operating range, the inrush
current may reach 25 A
Batteries
System battery
CR 2032 3.0-V lithium coin cell
10 Getting Started With Your System
Physical
Height 4.24 cm (1.67 inches)
Width 43.4 cm (17.09 inches)
Depth 39.37 cm (15.5 inches)
Weight
8.058 kg (17.77 lb)
(maximum configuration)
Environmental
NOTE: For additional information about environmental measurements for specific
system configurations, see dell.com/environmental_datasheets.
Temperature
Operating
10 °C to 35 °C (50 °F to 95 °F) with a maximum
temperature gradation of 10 °C per hour
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1 ºF/550 ft.
Storage
Relative humidity
Operating
–40 °C to 65 °C (–40 °F to 149°F) with a
maximum temperature gradation of 20 °C
per hour
20% to 80% (noncondensing) with a maximum
humidity gradation of 10% per hour
Storage
Maximum vibration
Operating
Storage
5% to 95% (noncondensing)
0.26 Grms at 5 Hz–350 Hz for 15 min
1.87 Grms at 10 Hz–500 Hz for 15 min
Getting Started With Your System 11
Environmental (continued)
Maximum shock
Operating
Storage
Altitude
Operating
Storage
One shock pulse in the positive z axis (one pulse
on each side of the system) of 31 G for 2.6 ms in
the operational orientation
Six consecutively executed shock pulses in
the positive and negative x, y, and z axes
(one pulse on each side of the system) of 71 G for
up to 2 ms
Six consecutively executed shock pulses in the
positive and negative x, y, and z axes (one pulse
on each side of the system) of 32 G faired
square wave pulse with velocity change at
270 inches/second (686 centimeters/second)
–16 m to 3048 m (–50 ft to 10,000 ft)
NOTE: For altitudes above 2950 feet, the maximum
operating temperature is derated 1 ºF/550 ft.
–16 m to 10,600 m (–50 ft to 35,000 ft)
Airborne Contaminant Level
Class
G1 as defined by ISA-S71.04-1985
12 Getting Started With Your System
Systèmes
Dell PowerEdge R210 II
Guide de mise en route
Modèle réglementaire : série E10S
Remarques, précautions et avertissements
REMARQUE : Une REMARQUE indique des informations importantes qui peuvent
vous aider à mieux utiliser votre ordinateur.
PRÉCAUTION : Une PRÉCAUTION vous avertit d'un risque d'endommagement
du matériel ou de perte de données en cas de non-respect des instructions.
AVERTISSEMENT: Un AVERTISSEMENT indique un risque d'endommagement
du matériel, de blessures corporelles ou même de mort.
___________________
Les informations que contient cette publication sont sujettes à modification sans préavis.
© 2010 Dell Inc. Tous droits réservés.
La reproduction de ce document de quelque manière que ce soit sans l'autorisation écrite de Dell Inc.
est strictement interdite.
Marques utilisées dans ce document : Dell™, le logo DELL et PowerEdge™ sont des marques de
Dell Inc. Intel
et dans d'autres pays. Microsoft
Microsoft Corporation aux États-Unis et/ou dans d'autres pays. Red Hat
sont des marques déposées de Red Hat, Inc. aux États-Unis et/ou dans d'autres pays. SUSE™ est une
marque de Novell, Inc. aux États-Unis et dans d'autres pays. Citrix
déposées ou des marques de Citrix Systems, Inc. aux États-Unis et/ou dans d'autres pays. VMware
est une marque déposée ou une marque de VMware, Inc. aux États-Unis et dans d'autres pays.
D'autres marques et noms commerciaux peuvent être utilisés dans ce document pour faire référence
aux entités se réclamant de ces marques et de ces noms ou à leurs produits. Dell Inc. rejette tout intérêt
propriétaire dans les marques et les noms commerciaux autres que les siens.
Modèle réglementaire : série E10S
Décembre 2010 N/P RGTPR Rév. A00
®
est une marque déposée et Core™ est une marque d'Intel Corporation aux États-Unis
®
et Windows Server® sont des marques ou des marques déposées de
®
et Red Hat Enterprise Linux®
®
et XenServer® sont des marques
®
Loading...
