Dell™Dimension™8250Series
Technical Overview Controls and Lights Solving Problems Advanced Troubleshooting Technical Specifications System Setup Program Adding and Replacing Parts Documentation
Hints, Notices, and Cautions
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the Tell Me How help file.
IfyoupurchasedaDell™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.
Information in this document is subject to change without notice.
©2002–2003DellComputerCorporation.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and Dimension are trademarks of Dell Computer Corporation; Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
Model DHM
March2003Rev.A02
HINT: A HINT indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page
Advanced Troubleshooting
Dell™Dimension™8250Series
Diagnostic Lights Beep Codes System Messages Drivers Using System Restore Resolving Software and Hardware Incompatibilities Reinstalling Microsoft®Windows®XP
Diagnostic Lights
To help you troubleshoot a problem, your computer is equipped with four lights on the back panel labeled "A," "B," "C," and "D." These lights can be yellow or green. When the computer starts normally, the lights flash. After the computer starts, the lights remain green. If the computer malfunctions, the color and sequence of the lights identify the problem.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
Light Pattern
Problem Description
Suggested Resolution
The computer is in a normal off condition or a possible pre-BIOS failure has occurred.
Verify that the computer power cable is plugged into the computer and a working electrical outlet. Press the power button.
Other failure has occurred.
l Ensure that the cables are properly connected from the hard drive, CD drive, and DVD
drive to the system board.
l If the problem persists, contact Dell. See your Owner's Manual for contact information.
A possible expansion card failure has occurred.
1. Determine if a conflict exists by removing a card (not the video card) and then restarting the computer.
2. If the problem persists, reinstall the card that you removed, remove a different card, and then restart the computer.
3. Repeat this process for each card. If the computer starts normally, troubleshoot the last card you removed from the computer for resource conflicts (see "Resolving
Software and Hardware Incompatibilities").
4. If the problem persists, contact Dell. See your Owner's Manual for contact information.
Memory modules are detected, but a memory failure has occurred.
Remove and reinstall all memory modules and CRIMMs. Ensure that all the connector tabs are locked. Restart the computer.
Install the memory modules in memory connectors RIMM1 (located closest to the microprocessor) and RIMM2 and ensure that, if no additional memory is used, CRIMMs are installed in memory connectors RIMM3 and RIMM4.
If you installed memory modules in memory connectors RIMM3 and RIMM4 that were not purchased from Dell, remove the modules and replace them with the CRIMMs that were originally installed in your computer.
If available, install Dell memory of the same type into your computer.
If the problem persists, contact Dell. See your Owner's Manual for contact information.
A possible microprocessor failure has occurred.
Reinstall the microprocessor and restart the computer.
Memory modules are detected, but a memory configuration or compatibility error exists.
l Ensure that there are no special memory module/memory connector placement
requirements (see "Adding Memory").
l Verify that the memory modules that you are installing are compatible with your
computer. See "Memory" in the "Technical Specifications."
l Reinstall the memory modules and restart the computer. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
A possible floppy or hard drive failure has occurred.
Check all power and data cable connections and restart the computer.
Beep Codes
Your computer might emit a series of beeps during start-up if the monitor cannot display errors or problems. This series of beeps, called a beep code, identifies a problem. One possible beep code (code 1-3-1) consists of one beep, a burst of three beeps, and then one beep. This beep code tells you that the computer encountered a memory problem.
Reseating the memory modules may fix the beep code errors in the following table. If the problem persists, see "Contacting Dell" in your Owner's Manual for
instructions on obtaining technical assistance.
If you hear one of the following beep codes, see "Contacting Dell" in your Owner's Manual for instructions on obtaining technical assistance.
No memory modules are detected.
l Reinstall all memory modules and restart the computer. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
A possible BIOS failure has occurred; the computer is in the recovery mode.
Run the BIOS Recovery Utility, wait for recovery completion, and then restart the computer.
A possible video card failure has occurred or a bad on-board video exists.
l If the computer has a video card, remove the card and reinstall it. l If the problem persists or the computer has integrated video, contact Dell. See your
Owner's Manual for contact information.
A possible USB failure has occurred.
Resinstall all USB devices, check cable connections, and then restart the computer.
The computer is in a normal operating condition after POST.
None.
Code
Cause
1-3-1 through 2-4-4
Memory not being properly identified or used
4-3-1
Memory failure above address 0FFFFh
Code
Cause
1-1-2
Microprocessor register failure
1-1-3
NVRAM
1-1-4
ROM BIOS checksum failure
1-2-1
Programmable interval timer
1-2-2
DMA initialization failure
1-2-3
DMA page register read/write failure
3-1-1
Slave DMA register failure
3-1-2
Master DMA register failure
3-1-3
Master interrupt mask register failure
3-1-4
Slave interrupt mask register failure
3-2-2
Interrupt vector loading failure
3-2-4
Keyboard Controller Test failure
3-3-1
NVRAM power loss
3-3-2
NVRAM configuration
3-3-4
Video Memory Test failure
3-4-1
Screen initialization failure
3-4-2
Screen retrace failure
3-4-3
Search for video ROM failure
4-2-1
No time tick
4-2-2
Shutdown failure
4-2-3
Gate A20 failure
4-2-4
Unexpected interrupt in protected mode
4-3-3
Timer-chip counter 2 failure
System Messages
Drivers
What Is a Driver?
A driver is a program that controls a device such as a printer, mouse, or keyboard. All devices require a driver program.
A driver acts like a translator between the device and the programs that use the device. Each device has its own set of specialized commands that only its driver recognizes.
4-3-4
Time-of-day clock stopped
4-4-1
Serial or parallel port test failure
4-4-4
Cache test failure
HINT: If the message you received is not listed in the table, see the documentation for either the operating system or the program that was running
when the message appeared.
Message
Possible Cause
Corrective Action
8042 Gate-A20 error
The keyboard controller failed its test.
If you receive this message after you make changes in the system setup
program, enter the program and restore the original value(s).
Address Line Short!
An error in the address decoding circuitry in the memory has occurred.
Reseat the memory modules.
C: Drive Error
C: Drive Failure
The hard drive is not working or is not configured correctly.
Ensure that the drive is installed correctly in the computer and defined correctly in the system setup program.
Cache Memory Bad, Do Not Enable Cache
The cache memory is not operating.
See "Contacting Dell" in your Owner's Manual for instructions on obtaining technical assistance.
CH-2 Timer Error
An error is occurring on the timer on the system board.
See "Contacting Dell" in your Owner's Manual for instructions on obtaining technical assistance.
CMOS Battery State Low
CMOS Checksum Failure
CMOS System Options Not Set
CMOS Display Type Mismatch
CMOS Memory Size Mismatch
CMOS Time and Date Not Set
The system configuration information in the system setup program is incorrect or the battery charge may be low.
Enter the system setup program, verify the system configuration, and then restart the computer.
Diskette Boot Failure
Drive A or B is present but has failed the BIOS POST.
Ensure that the drive is installed correctly in the computer and defined correctly in the system setup program. Check the interface cable at both ends.
DMA Error
DMA 1 Error
DMA 2 Error
Error in the DMA controller on the system board.
The keyboard or system board may need to be replaced.
FDD Controller Failure
HDD Controller Failure
The BIOS cannot communicate with the floppy drive or hard drive controller.
Ensure that the floppy drive or the hard drive is installed correctly in the computer and defined correctly in the system setup program. Check the interface cable at both ends.
INTR1 Error
INTR2 Error
An interrupt channel on the system board failed to POST.
The keyboard or system board may need to be replaced. Invalid Boot Diskette
The operating system cannot be located on drive A or drive C.
Enter the system setup program and confirm that drive A or drive C is properly identified.
Keyboard Error
The BIOS has detected a stuck key.
Ensure that nothing is resting on the keyboard; if a key appears to be stuck, carefully pry it up. If the problem persists, you may need to replace the keyboard.
KB/Interface Error
An error occurred with the keyboard connector.
Ensure that nothing is resting on the keyboard; if a key appears to be stuck, carefully pry it up. If the problem persists, you may need to replace the keyboard.
No ROM Basic
The operating system cannot be located on drive A or drive C.
Enter the system setup program and confirm that drive A or drive C is properly identified.
Many drivers, such as the keyboard driver, come with your Microsoft®Windows®operating system. You may need to install drivers if you:
l Upgrade your operating system l Reinstall your operating system l Connect or install a new device
If you experience a problem with any device, perform the steps in the following sections to identify whether the driver is the source of your problem and if necessary, to update the driver.
Identifying Drivers
1. Click the Start button and click Control Panel.
2. In the Control Panel window, under Pick a Category, click Performance and Maintenance.
3. In the Performance and Maintenance window, click System.
4. In the System Properties window, click the Hardware tab.
5. Click Device Manager.
6. In the Device Manager window, scroll down the list to see if any device has an exclamation point (a yellow circle with a [!]) on the device icon.
If an exclamation point is next to the device name, you may need to reinstall the driver or install a new driver.
Reinstalling Drivers
Using Windows XP Device Driver Rollback
If a problem occurs on your computer after you install or update a driver, use Windows XP Device Driver Rollback to replace the driver with the previously installed version.
To use Device Driver Rollback:
1. Click the Start button and click Control Panel.
2. In the Control Panel window, under Pick a Category, click Performance and Maintenance.
3. In the Performance and Maintenance window, click System.
4. In the System Properties window, click the Hardware tab.
5. Click Device Manager.
6. In the Device Manager window, right-click the device for which the new driver was installed and click Properties.
7. Click the Drivers tab.
8. Click Roll Back Driver.
If Device Driver Rollback does not resolve the problem, then use System Restore to return your computer to the operating state that existed before you installed the new driver.
Using the Dell Dimension ResourceCD
If using Device Driver Rollback or System Restore does not resolve the problem, then reinstall the driver from the Dell Dimension ResourceCD:
1. With the Windows desktop displayed, insert the ResourceCD into the CD or DVD drive.
If this is your first time to use the ResourceCD, go to step2. If not, go to step5.
2. When the ResourceCD installation program starts, follow the prompts on the screen.
3. When the InstallShield Wizard Complete window appears, remove the ResourceCD and click Finish to restart the computer.
4. When you see the Windows desktop, reinsert the ResourceCD into the CD or DVD drive.
5. At the Welcome Dell System Owner screen, click Next.
A message stating that the ResourceCD is detecting hardware in your computer appears.
The drivers that are used by your computer are automatically displayed in the My Drivers—The ResourceCD has identified these components in your system window.
6. Click the driver that you want to reinstall and follow the instructions on the screen.
If a particular driver is not listed, then that driver is not required by your operating system.
NOTICE: The Dell Support website and your Dell Dimension ResourceCD provideapproveddriversforDell™computers.Ifyouinstalldriversobtained
from other sources, your computer might not work correctly.
HINT: The ResourceCD displays drivers only for hardware that came on your computer. If you installed additional hardware, the drivers for the new
hardware might not be displayed by the ResourceCD. If those drivers are not displayed, exit the ResourceCD program. For drivers information, see the documentation that came with the device.
Using System Restore
The Microsoft®Windows®XP operating system provides System Restore to allow you to return your computer to an earlier operating state (without affecting data files) if changes to the hardware, software, or other system settings have left the computer in an undesirable operating state. See Windows Help for information on using System Restore. To access Windows Help, see "Finding Help Information."
Creating a Restore Point
1. Click the Start button and click Help and Support.
3. Follow the instructions on the screen.
Restoring the Computer to an Earlier Operating State
If problems occur after you install a device driver, use Device Driver Rollback to resolve the problem. If that is unsuccessful, then use System Restore.
1. Click the Start button, point to All Programs® Accessories® System Tools, and then click System Restore.
2. Ensure that Restore my computer to an earlier time is selected and click Next.
3. Click a calendar date to which you want to restore your computer.
The Select a Restore Point screen provides a calendar that allows you to see and select restore points. All calendar dates with available restore points appear in bold.
4. Select a restore point and click Next.
If a calendar date has only one restore point, then that restore point is automatically selected. If two or more restore points are available, click the restore point that you prefer.
5. Click Next.
The Restoration Complete screen appears after System Restore finishes collecting data and then the computer restarts.
6. After the computer restarts, click OK.
To change the restore point, you can either repeat the steps using a different restore point, or you can undo the restoration.
Undoing the Last System Restore
1. Click the Start button, point to All Programs® Accessories® System Tools, and then click System Restore.
2. Click Undo my last restoration and click Next.
3. Click Next.
The System Restore screen appears and the computer restarts.
4. After the computer restarts, click OK.
Enabling System Restore
If you reinstall Windows XP with less than 200 MB of free hard-disk space available, System Restore is automatically disabled. To see if System Restore is enabled:
1. Click the Start button and click Control Panel.
2. Click Performance and Maintenance.
3. Click System.
4. Click the System Restore tab.
5. Ensure that Turn off System Restore is unchecked.
Resolving Software and Hardware Incompatibilities
Windows XP IRQ conflicts occur if a device either is not detected during the operating system setup or is detected but incorrectly configured.
To check for conflicts on a computer running Windows XP:
NOTICE: Make regular backups of your data files. System Restore does not monitor your data files or recover them.
NOTICE: Before you restore the computer to an earlier operating state, save and close all open files and close all open programs. Do not alter, open, or
delete any files or programs until the system restoration is complete.
NOTICE: Before you undo the last system restore, save and close all open files and close all open programs. Do not alter, open, or delete any files or
programs until the system restoration is complete.
1. Click the Start button and click Control Panel.
2. Click Performance and Maintenance and click System.
3. Click the Hardware tab and click Device Manager.
4. In the Device Manager list, check for conflicts with the other devices.
Conflicts are indicated by a yellow exclamation point (!) beside the conflicting device or a red (X) if the device has been disabled.
5. Double-click any conflict to display the Properties window.
If an IRQ conflict exists, the Device status area in the Properties window reports the cards or devices that share the device's IRQ.
6. Resolve conflicts by reconfiguring the devices or removing the devices from the Device Manager.
To use the Windows XP Hardware Troubleshooter:
1. Click the Start button and click Help and Support.
2. Type hardware troubleshooter in the Search field and click the arrow to start the search.
3. Click Hardware Troubleshooter in the Search Results list.
4. In the Hardware Troubleshooter list, click I need to resolve a hardware conflict on my computer, and click Next.
Reinstalling Microsoft®Windows®XP
Before You Reinstall
If you are reinstalling the Windows XP operating system to correct a problem with a newly installed driver, use Windows XP Device Driver Rollback to replace the device driver with the previously installed version.
If Device Driver Rollback does not resolve the problem, then use System Restore to return your operating system to the operating state it was in before you installed the new device driver.
Reinstalling Windows XP
To reinstall Windows XP, perform the steps in the following sections in the order in which they are listed.
The reinstallation process can take 1 to 2 hours to complete. After the reinstallation is complete, you need to reinstall the device drivers, virus protection program, and other software.
Preparing to Boot From the Operating System CD
1. Insert the Operating System CD into the CD or DVD drive.
2. Exit any program or utility that might run after you insert the CD.
3. Shut down and restart the computer.
4. Press<F12>immediatelyaftertheDELL™logoappears.
If the operating system logo appears, wait until you see the Windows desktop, and then shut down the computer and try again.
5. Use the arrow keys to select CD-ROM and press <Enter>.
6. When the Press any key to boot from CD message appears on the screen, press any key.
Starting Windows XP Setup
1. When the Windows XP Setup screen appears, press <Enter> to select To set up Windows now.
2. Read the information in the Microsoft Windows Licensing Agreement screen, and then press <F8> to accept the license agreement.
3. If your computer already has Windows XP installed and you want to recover your current Windows XP data, type r to select the repair option, and then remove the CD from the drive.
4. If you want to install a new copy of Windows XP, press <Esc> to select the fresh copy option.
5. Press <Enter> to select the highlighted partition (recommended), and then follow the instructions on the screen.
The Windows XP Setup screen appears, and the operating system begins to copy files and install the devices. The computer restarts multiple times.
Completing the GUI Setup
NOTICE: The Operating System CD provides options for reinstalling Windows XP. The options can overwrite files and possibly affect programs installed
on your hard drive. Therefore, do not reinstall Windows XP unless instructed to do so by a Dell technical support representative.
NOTICE: To prevent conflicts with Windows XP, disable any virus protection software installed on your computer before you reinstall Windows XP. See
the documentation that came with the software for instructions.
HINT: The time required to complete the setup depends on the size of the hard drive and the speed of your computer.
1. When the Regional and Language Options screen appears, select the settings for your location and click Next.
2. Enter your name and organization (optional) in the Personalize Your Software screen and click Next.
3. If you are reinstalling Windows XP Home Edition, at the What's your computer's name window, enter a name for your computer (or accept the name provided) and click Next.
If you are reinstalling Windows XP Professional, at the Computer Name and Administrator Password window, enter a name for your computer (or accept the one provided) and a password, and then click Next.
4. If you have a modem installed, enter the requested information and click Next when the Modem Dialing Information screen appears.
5. Enter the date, time, and time zone in the Date and Time Settings window and click Next.
6. If your computer has a network adapter, click Typical in the Networking Settings screen and click Next.
If your computer does not have a network adapter, this option does not appear.
7. If you are reinstalling Windows XP Professional, you may be prompted to provide further network information regarding your network configuration, such as the domain name or workgroup name. If you are unsure of your settings, accept the default selections.
Windows XP installs the operating system components, configures the computer, and then restarts the computer.
Completing the Operating System Setup
1. When the Welcome to Microsoft screen appears, click Next.
2. When the How will this computer connect to the Internet? message appears, click Skip.
3. When the Ready to register with Microsoft? screen appears, click No, not at this time and click Next.
When the Who will use this computer? screen appears, you can enter up to five users.
4. Click Next.
5. Click Finish to complete the setup and remove the CD from the drive.
Reinstalling Drivers and Software
1. Reinstall the appropriate drivers.
2. Reinstall your virus protection software. See the documentation that came with the software for instructions.
3. Reinstall your other software programs. See the documentation that came with the software for instructions.
Back to Contents Page
NOTICE: When the computer restarts, the following message appears: Press any key to boot from the CD. Do not press any key when this message
appears.
NOTICE: When the computer restarts, the following message appears: Press any key to boot from the CD. Do not press any key when this message
appears.
Back to Contents Page
Documentation
Dell™Dimension™8250Series
Finding Information for Your Computer Printed Documentation Online Documentation
Finding Information for Your Computer
What Are You Looking For?
Find it Here
l A diagnostic program for my computer l Drivers for my computer l My computer documentation l My device documentation
ResourceCD
You can use this CD to access documentation or reinstall drivers
l How to set up a printer l How to troubleshoot and solve problems l How to add parts l How to contact Dell
Owner's Manual
l Express Service Code and Service Tag
Number
l Microsoft®Windows®License Label
Express Service Code and Product Key
These labels are located on your computer.
l How to reinstall my operating system
Operating System CD
If you reinstall your operating system, use the ResourceCD to reinstall drivers for the devices that came with your computer.
l Latest drivers for my computer l Answers to technical service and support
questions
l Online discussions with other users and
technical support
l Documentation for my computer
Dell Support Website
The Dell Support website provides several online tools, including:
l Knowledge Base — Hints, tips, and online courses l Customer Forum — Online discussion with other Dell customers l Upgrades — Upgrade information for components, such as memory, the hard drive, and the
operating system
l Customer Care — Contact information, order status, warranty, and repair information l Downloads — Drivers, patches, and software updates
Printed Documentation
To save PDF files (files with an extension of .pdf) to your hard drive, right-click the document title, click Save Target As in Microsoft®Internet Explorer or Save Link As in Netscape Navigator, and specify a location on your hard drive.
Right-click only the following link:
Dell Dimension 8250 setup diagram (.pdf) (1.41 MB) — Provides instructions on how to go through initial setup of your computer.
Dell Dimension 8250 Owner's Manual (.pdf) (1.69 MB) — Provides information on adding upgrades, performing basic troubleshooting procedures, and
reinstalling drivers. It also provides technical specifications.
Online Documentation
The Tell Me How help file is already loaded on your hard drive when you receive your computer. To open the file:
1. Click the Start button, and click Help and Support.
2. Click User and system guides, and click User's guides.
3. Click Tell Me How.
The Tell Me How help file allows you to search for information in multiple ways. You can quickly link to information on the following topics:
l Hardware and software features of your computer l The Windows desktop, where you can change your wallpaper and screen saver, create shortcuts, and position icons l Software access, installation, and removal l Basic file management, such as finding, copying, deleting, and renaming files l Tips on using your computer hardware
Downloading the Tell Me How Help File
1. Right-click the following link to the file: Dell Dimension 8250 System Tell Me How (.chm) (563 KB).
l Reference — Computer documentation, product specifications, and white papers
l How to set up my computer
Setup Diagram
l Tips on using Windows l How to clean my computer l How to use my mouse and keyboard
Tell Me How Help File
1. Click the Start button, and then click Help and Support.
2. Click User and system guides, and then click User's guides.
3. Click Tell Me How.
l How to use Windows XP l Documentation for my computer and devices
Windows XP Help and Support Center
1. Click the Start button and then click Help and Support.
2. Type a word or phrase that describes your problem and click the arrow icon.
3. Click the topic that describes your problem.
4. Follow the instructions shown on the screen.
HINT: You must right-click the link for a portable document format (PDF) file and save the file to your hard drive. Attempting to open large PDF files
through your browser causes your computer to freeze.
HINT: PDFfilesrequireAdobe™AcrobatReader,whichcanbedownloadedfromtheAdobeWorldWideWebsiteatwww.adobe.com/acrobat/. To
view a PDF file, launch Acrobat Reader. Click File® Open and select the PDF file.
HINT: Tell Me How help files (files with an extension of .chm) require Microsoft Internet Explorer 4.0 or later.
2. Click Save Target As in Microsoft Internet Explorer or Save Link As in Netscape Navigator, and specify a location on your hard drive.
Viewing the Tell Me How Help File
1. Click the Start button on the Windows desktop, point to Programs, and then click Windows Explorer.
2. Navigate to the directory in which you saved the Tell Me How help file.
3. Double-click the file (tellhow.chm).
Back to Contents Page
Back to Contents Page
Adding and Replacing Parts
Dell™Dimension™8250Series
Turning Off the Computer
1. Save and close any open files and exit any open programs.
2. Click the Start button and then click Turn off Computer.
3. Click Turn off.
The computer automatically turns off after the shutdown process finishes.
4. Turn off your monitor and any other devices connected to power.
Reattaching the Front Door and Hinge Arms
To prevent damage to your computer, the front door is designed to "break away" if it is lifted up too far. If the front door breaks away, you might need to reattach both the front door and the hinge arms.
Reattaching the Front Door
1. Shut down the computer through the Start menu.
2. Lower the hinge arms to the vertical position.
3. Align the two clips on the inside of the front door with the two hinge arms.
4. Press inward on the front door until it clips to both hinge arms.
Reattaching the Hinge Arms
Turning Off the Computer Reattaching the Front Door and Hinge Arms Opening the Computer Cover Installing and Removing Cards Adding Memory Adding or Replacing the AGP Card Drives Hard Drive
Front-Panel Inserts Floppy Drive CD/DVD Drive Replacing the Microprocessor Removing the Front I/O Panel Power Supply System Board Closing the Computer Cover
NOTICE: To prevent data loss, you must turn off your computer through the Start menu rather than by pressing the power button.
HINT: If you are having difficulty turning off your computer, see "General Problems."
1. Shut down the computer through the Start menu.
2. Disconnect the power cable from your computer.
3. Remove the front door, if it is attached.
The front door snaps off of the two hinge arms.
4. Remove the front-panel insert above the front-door bay area.
Pull the bottom of the insert with your fingers to remove it.
5. Lift both hinge arms to the horizontal position.
6. Use the two view slots to align the pivot bar with the two pivot-bar slots.
7. Pull the arms toward you until they snap into place.
If the hinge arms don't snap back into place on the first attempt, slightly reposition the arms and try again.
8. After the hinge arms clip into place, lower and raise the arms two or three times to properly seat them.
9. Reattach the front-panel insert.
10. Reconnect the power cable to your computer.
11. Reattach the front door.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions listed in your Owner's Manual.
NOTICE: Using excessive force to pull the hinge arms into place may damage the arms or the front panel.
Opening the Computer Cover
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Lay the computer on its side so that the arrow on the bottom of the computer points up.
5. Open the cover:
a. Facing the back of the computer, press the release button on the right side of the computer with one hand while pulling up on the top of the
b. Press the release button on the left side of the computer with one hand while pulling up on the top of the cover with the other hand.
c. Hold the bottom of the computer with one hand, and then pull open the cover with the other hand.
Installing and Removing Cards
YourDell™computerprovidesslotsforuptofour32-bit, 33-MHz cards.
Cards
If you are installing or replacing a card, follow the procedures in the next section. If you are removing but not replacing a card, see "Removing a Card."
Installing a Card
1. If you are replacing a card, remove the current driver for the card from the operating system.
2. Shut down the computer through the Start menu.
3. Turn off any attached devices and disconnect them from their electrical outlets.
CAUTION: Before you begin any of the procedures in this section, follow the steps listed in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: Ensure that sufficient space exists to support the open cover—at least 30 cm (1 ft) of desk top space.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
4. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
5. Open the computer cover.
6. Press the lever on the card retention arm and raise the retention arm.
7. If you are installing a new card, remove the filler bracket to create a card-slot opening. Then continue with step 9.
8. If you are replacing a card that is already installed in the computer, remove the card.
If necessary, disconnect any cables connected to the card. Grasp the card by its top corners, and ease it out of its connector.
9. Prepare the card for installation.
See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your computer.
10. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
If the card is full-length, insert the end of the card into the card guide bracket as you lower the card toward its connector on the system board. Insert the card firmly into the card connector on the system board.
11. Before you lower the retention arm, ensure that:
l The tops of all cards and filler brackets are flush with the alignment bar l The notch in the top of the card or filler bracket fits around the alignment guide
Press the arm into place, securing the card(s) in the computer.
CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be
sure to unplug your computer from its electrical outlet before installing any cards. Verify that the standby power light on the system board is off.
12. Connect any cables that should be attached to the card.
See the documentation for the card for information about the card's cable connections.
13. Close the computer cover, reconnect the computer and devices to electrical outlets, and turn them on.
14. Install any drivers required for the card as described in the card documentation.
Removing a Card
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Open the computer cover.
5. Press the lever on the card retention arm and raise the retention arm.
6. If necessary, disconnect any cables connected to the card.
7. Grasp the card by its top corners, and ease it out of its connector.
8. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.
If you need a filler bracket, contact Dell. See your Owner's Manual for contact information.
9. Lower the retention arm and press it into place, securing the card(s) in the computer.
10. Close the computer cover, reconnect the computer and devices to electrical outlets, and turn them on.
11. Remove the card's driver from the operating system.
Adding Memory
You can increase your computer memory by installing memory modules on the system board. For information on the type of memory supported by your computer, look under "Memory" in "Technical Specifications."
RDRAM Overview
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or
cause damage to the equipment.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
RDRAM technology requires that all memory connectors have either a memory module or a continuity module installed. Memory modules and continuity modules are easily identified—memory modules have a metal cover on one side of the module and continuity modules do not.
Memory modules are the actual components that provide memory for the microprocessor; continuity modules are used only to complete the memory circuit if memory modules are not installed in all of the memory connectors.
Another RDRAM requirement is that memory modules must be installed in pairs of matched memory size. This means that if you purchased your computer with 128 MB of memory installed and you want to add another 128 MB of memory, you must remove the two continuity modules and replace them with two 64-MB memory modules.
The only two valid memory configurations are:
l A pair of matched memory modules installed in connectors RIMM1 and RIMM2 with continuity modules installed in connectors RIMM3 and RIMM4
or
l A pair of matched memory modules installed in connectors RIMM1 and RIMM2 and another matched pair installed in connectors RIMM3 and RIMM4
Removing a Memory Module
NOTICE: If you remove your original memory modules from the computer during a memory upgrade, keep them separate from any new modules that
you may have, even if the new modules were purchased from Dell. Your original memory modules must be installed as a pair in either connectors RIMM1 and RIMM2 or RIMM3 and RIMM4. Do not pair one original memory module with one new memory module in connectors RIMM1 and RIMM2 or RIMM3 and RIMM4. Otherwise, your computer may not start properly.
HINT: The metal cover on a memory module is manufactured in various colors. The color of the metal cover has no effect on the module's performance.
NOTICE: You can only install continuity modules in connectors RIMM3 and RIMM4.
HINT: Mixed pairs of PC1066 and PC800 modules all function as PC800.
HINT: Memory purchased from Dell is covered under your computer warranty.
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Open the computer cover.
5. Press out the securing clip at each end of the memory module connector.
6. Grasp the module and pull up.
If the module is difficult to remove, gently ease the module back and forth to remove it from the connector.
Adding a Memory Module
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Open the computer cover.
5. Press out the securing clip at each end of the memory module connector.
6. Align the notch on the bottom of the module with the crossbar in the connector.
7. Insert the module straight down into the connector, ensuring that it fits into the vertical guides at each end of the connector. Press firmly on the ends of the module until it snaps into place.
If you insert the module correctly, the securing clips snap into the cutouts at each end of the module.
8. Close the computer cover.
9. Connect your computer and devices to electrical outlets, and turn them on.
10. Right-click the My Computer icon and then click Properties.
11. Click the General tab.
12. To verify that the memory is installed correctly, check the amount of memory (RAM) listed.
Adding or Replacing the AGP Card
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To avoid damage to the memory module, press the module straight down into the socket with equal force applied at each end of the module.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
YourDell™computerprovidesaconnectorforanAGPcard.
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Open the computer cover.
Removing an AGP Card
1. Remove the filler bracket by raising the hinged lever and sliding the bracket up.
2. Press the card lever toward the PCI connector.
3. Pull the card up and out of the card clip.
Installing an AGP Card
1. To add or replace the card, press the card lever toward the PCI connector and gently press the card into the AGP connector until it clicks into place.
2. Release the card lever, ensuring that the tab fits into the notch on the front end of the card.
3. Secure the card by lowering the hinged lever on the back panel.
4. Close the computer cover.
5. Connect the monitor cable to the card's video connector.
6. Connect your computer and devices to electrical outlets, and turn them on.
Drives
Your computer supports:
l Two hard drives l Two floppy or optional Zip drives l Two CD or DVD drives
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
Hard Drive
1. If you are replacing a hard drive that contains data you want to keep, back up your files before you begin this procedure.
2. Shut down the computer through the Start menu.
3. Turn off your computer and any devices.
4. Ground yourself by touching an unpainted metal surface on the chassis, such as the metal around the card-slot openings at the back of the computer, before touching anything inside your computer.
While you work, periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal components.
5. Disconnect your computer and devices from their power sources. Also, disconnect any telephone or telecommunication lines from the computer.
6. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
7. Open the computer cover.
Removing a Hard Drive
1. Disconnect the power and hard-drive cables from the drive.
2. Press in on the tabs on each side of the drive and slide the drive up and out.
Installing a Hard Drive
1. Unpack the replacement hard drive, and prepare it for installation.
2. Check the documentation for the drive to verify that it is configured for your computer.
3. If your replacement hard drive does not have the bracket rails attached, remove the rails from the old drive by removing the two screws that secure each rail to the drive. Attach the bracket rails to the new drive by aligning the screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four screws (two screws on each rail).
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently
cushion it.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
4. Install the hard drive into the computer by gently sliding the drive into place until you hear it securely click.
5. Connect the power and hard-drive cables to the drive.
6. Check all connectors to be certain that they are properly cabled and firmly seated.
7. Close the computer cover.
8. Connect your computer and devices to electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
Adding a Second Hard Drive
1. Check the documentation for the drive to verify that it is configured for your computer.
2. Shut down the computer through the Start menu.
3. Turn off your computer and any devices.
4. Ground yourself by touching an unpainted metal surface on the chassis, such as the metal around the card-slot openings at the back of the computer, before touching anything inside your computer.
While you work, periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal components.
5. Disconnect your computer and devices from their power sources. Also, disconnect any telephone or telecommunication lines from the computer.
6. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
7. Open the computer cover.
NOTICE: Match the colored strip on the cable with pin 1 on the drive (pin 1 is marked as "1").
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To avoid damage to the drive, do not set it on a hard surface. Instead, set the drive on a surface, such as a foam pad, that will sufficiently
cushion it.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.

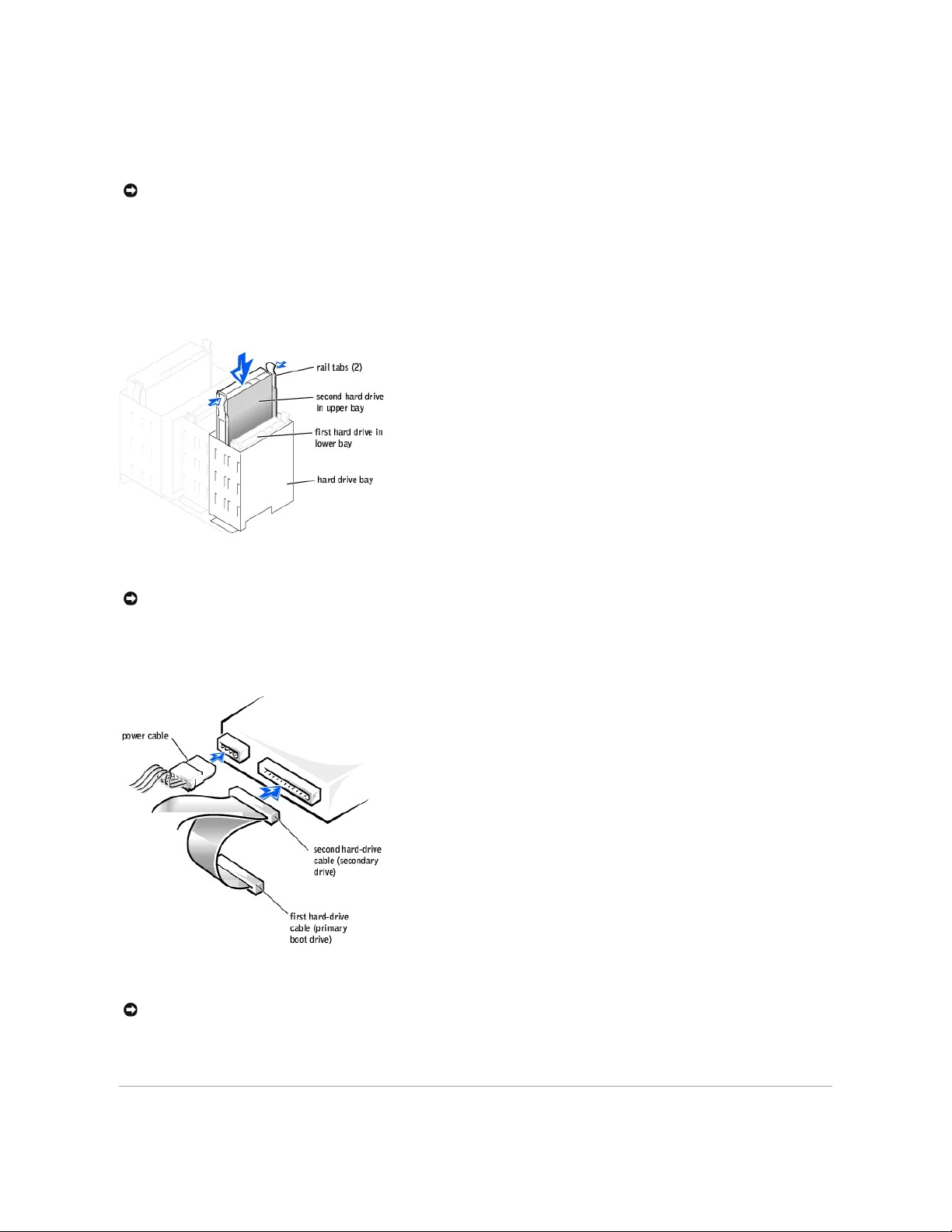

8. Remove the two green plastic rails from the inside of the hard-drive bay by gently pulling the rails up and out of the bay.
9. Attach the rails to the hard drive using the two screws attached to the rails.
Ensure that the rail tabs are positioned at the back of the hard drive.
10. Remove the first hard drive from the upper bay and install it in the lower bay: a. Disconnect the power and the hard-drive cables from the back of the first hard drive. b. Press in the two green rail tabs and pull the first hard drive out of the upper bay.
c. Gently slide the first hard drive into the lower bay until you hear a click.
d. Reconnect the power and hard-drive cables to the back of the first hard drive.
11. Gently slide the new hard drive into the upper bay until you hear a click.
12. Connect a power cable to the drive.
13. Locate the extra connector on the drive cable that is attached to your first hard drive and attach the connector to the second hard drive.
Your computer uses cable-select drive cables. This means that the device connected to the end connector of the drive cable is the master device and the device connected to the middle connector is the slave device. Be sure that the jumper setting on the new device is set for "cable select" (see the documentation that came with the drive for information).
14. Close the computer cover.
15. Connect your computer and devices to their electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
NOTICE: Do not install any drive into the lower hard-drive bay until you have removed the green drive rails from the inside of the hard-drive bay.
NOTICE: Match the colored strip on the cable with pin 1 on the drive.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
Front-Panel Inserts
If you are installing a new floppy or CD/DVD drive instead of replacing a drive, remove the front-panel inserts.

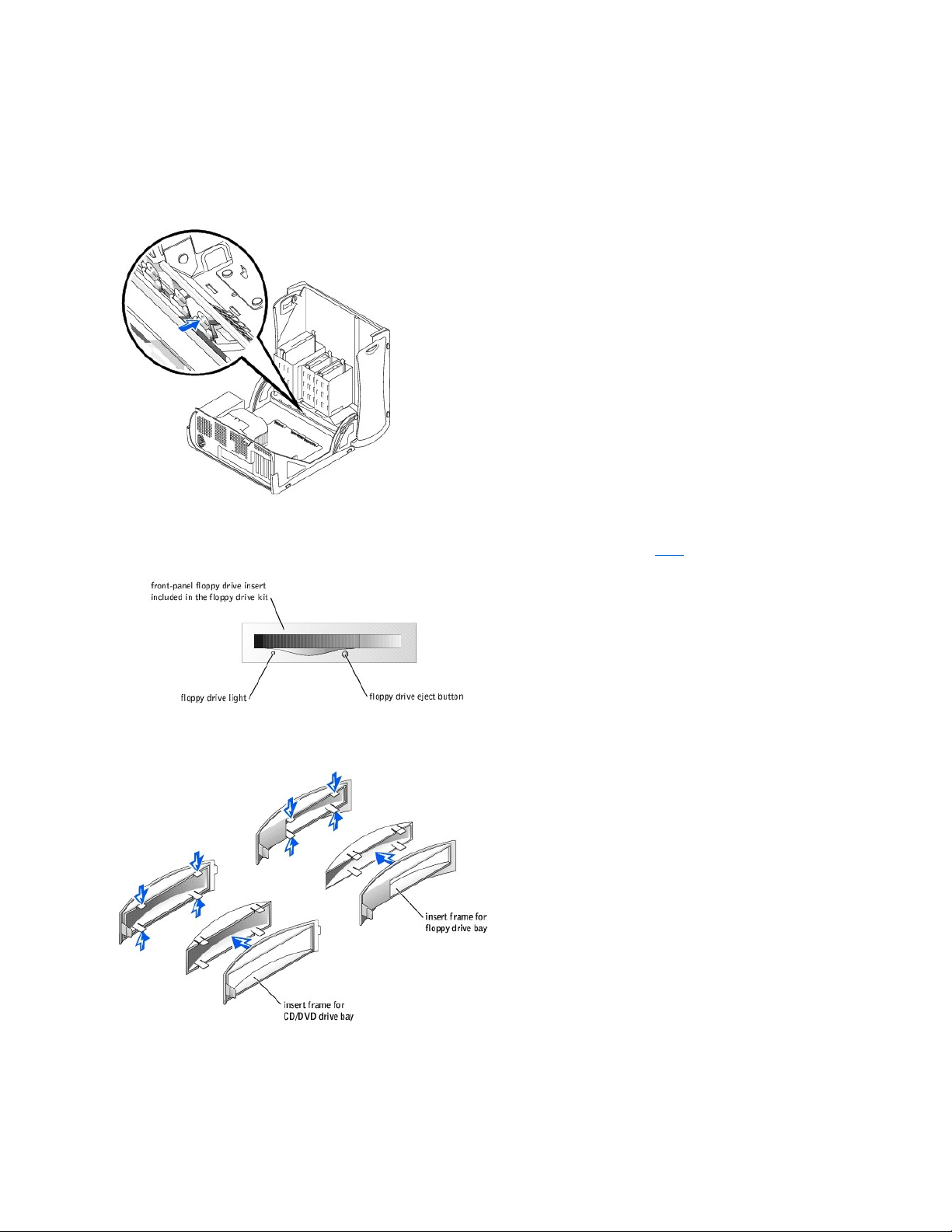

1. Open the cover to a 90-degree angle.
2. Locate the insert that is in front of the drive bay that you want to use.
3. From inside the computer, press in the release tab of the insert.
4. From the outside of the computer, pull the insert away from the computer's front panel.
5. If you purchased your floppy drive from Dell, you received a front-panel insert in your floppy drive kit. Proceed to step7.
6. If you are installing a CD/DVD drive or a floppy drive that was not purchased from Dell, remove the insert from the insert frame by pressing on the four tabs.
7. If you purchased your floppy drive from Dell, attach the insert that you received in the floppy drive kit over the front of the drive bay. If you are installing a CD/DVD drive or floppy drive that was not purchased from Dell, reattach the empty insert frame over the front of the drive bay.
8. To attach either insert, face the front of the computer and slip the left side of the insert into the left side of the drive bay opening. Then, slightly press in the right-side insert release tab and gently push in the insert.
Floppy Drive
1. Shut down the computer through the Start menu.
2. Turn off your computer and any devices.
3. Ground yourself by touching an unpainted metal surface on the chassis, such as the metal around the card-slot openings at the back of the computer, before touching anything inside your computer.
While you work, periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal components.
4. Disconnect your computer and devices from their power sources. Also, disconnect any telephone or telecommunication lines from the computer.
5. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
6. Open the computer cover.
Removing a Floppy Drive
1. Disconnect the power and floppy-drive cables from the back of the floppy drive.
2. Press inward on the two tabs on the sides of the drive, slide the drive upward, and remove it from the floppy-drive bay.
Installing a Floppy Drive
1. If you are replacing a drive and the new drive does not have the bracket rails attached, remove the rails from the old drive by removing the two screws that secure each rail to the drive. Attach the bracket to the new drive by aligning the screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four screws (two screws on each rail).
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
2. Gently slide the drive into place until the tabs securely click into position.
3. Attach the power and floppy-drive cables to the floppy drive.
4. If you are installing a new floppy drive rather than replacing a drive, remove the front-panel inserts.
5. Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.
6. Close the computer cover.
7. Connect your computer and devices to their electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
CD/DVD Drive
1. Shut down the computer through the Start menu.
2. Turn off your computer and any devices.
3. Ground yourself by touching an unpainted metal surface on the chassis, such as the metal around the card-slot openings at the back of the computer, before touching anything inside your computer.
While you work, periodically touch an unpainted metal surface on the computer chassis to dissipate any static electricity that might harm internal components.
4. Disconnect your computer and devices from their power sources. Also, disconnect any telephone or telecommunication lines from the computer.
5. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
6. Open the computer cover.
Removing a CD/DVD Drive
NOTICE: To connect a network cable, first plug the cable in to the network wall jack and then plug it in to the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
1. Disconnect the power, audio, and CD/DVD drive cables from the back of the drive.
2. Press inward on the two tabs on the sides of the drive, and then slide the drive upward and remove it from the drive bay.
Installing a CD/DVD Drive
1. If you are installing a new drive, unpack the drive and prepare it for installation.
Check the documentation that accompanied the drive to verify that the drive is configured for your computer. If you are installing an IDE drive, configure the drive for the cable select setting.
2. Connect the new drive to the set of rails that are attached to the inside of the cover. If a set of rails is not attached inside the cover, contact Dell. See your Owner's Manual for contact information.
3. If you are installing a replacement drive and the new drive does not have the bracket rails attached, remove the rails from the old drive by removing the two screws that secure each rail to the drive. Attach the bracket to the new drive by aligning the screw holes on the drive with the screw holes on the bracket rails and then inserting and tightening all four screws (two screws on each rail).
4. Gently slide the drive into place until the tabs securely click into position.
5. Connect the power, audio, and CD/DVD drive cables to the drive.
6. If you are installing a new CD/DVD drive rather than replacing a drive, remove the front-panel inserts.
7. If you are installing a drive that has its own controller card, install the controller card in a card slot.
8. Check all cable connections, and fold cables out of the way to provide airflow for the fan and cooling vents.
9. Close the computer cover.
10. Connect your computer and devices to their electrical outlets, and turn them on.
See the documentation that came with the drive for instructions on installing any software required for drive operation.
Replacing the Microprocessor
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the power cable from your computer, and then press the power button to ground the system board.
4. Open the computer cover.
5. Disconnect the cooling fan power cable from the FAN2 connector on the system board.
6. Disconnect the +12-VDC P2 DC power cable from the connector on the system board.
7. Lift up the airflow shroud.
NOTICE: To connect a network cable, first plug the cable in to the network wall jack and then plug it in to the computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
8. For each of the metal securing clips that secure the heat sink to the microprocessor, press down on the clip's latch to release the clip from the retention base. Then lift each clip out of the tabs on the retention base and away from the heat sink.
9. Lift the heat sink away from the microprocessor.
10. Pull the socket lever up straight up until the microprocessor is released.
The microprocessor uses a ZIF socket with a lever-type handle that secures or releases the microprocessor.
11. Remove the microprocessor from the socket.
Leave the release lever extended in the release position so that the socket is ready for the new microprocessor.
Installing the Microprocessor
1. If the release lever on the ZIF socket is not extended to the release position, move it to that position.
2. Align pin-1 (the beveled corner) of the microprocessor package and pin-1 of the socket.
NOTICE: Gently rock the heat sink and then lift it to remove it.
NOTICE: Do not discard the original heat sink and securing clips unless you are installing a microprocessor upgrade kit from Dell. If you are not installing
a microprocessor upgrade kit from Dell, reuse the original heat sink, blower, and securing clips when installing your new microprocessor.
NOTICE: Be careful not to bend any of the pins when you remove the microprocessor package from the ZIF socket. Bending the package pins can
permanently damage the microprocessor.
NOTICE: You must position the microprocessor package correctly in the socket to avoid permanent damage to the microprocessor and the computer.
3. Carefully set the microprocessor in the socket and press it down lightly to seat it.
4. Rotate the lever back toward the system board until it snaps into place, securing the microprocessor package.
5. If you are installing a new heat sink, remove the film covering the bottom of the heat sink.
6. Lower the heat sink to the microprocessor so that the heat sink fits in the retention base.
7. For each of the replacement metal clips, fit the end of the clip that does not have the latch over its tab on the retention base. Then, fit the middle of the clip over the middle tab on the retention base, and press down on the clip's latch to secure the clip to the retention base.
8. Lower the airflow shroud over the heat sink.
9. Reconnect the cooling fan power cable to the FAN2 connector on the system board.
10. Plug the +12-VDC P2 DC power cable into the connector on the system board.
11. Close the computer cover.
12. Connect your computer and devices to their electrical outlets, and turn them on.
If you are installing a microprocessor replacement kit from Dell, return the original heat sink assembly and microprocessor package to Dell in the same package in which your replacement kit was sent. Your microprocessor replacement kit should include a replacement microprocessor heat sink and one replacement securing clip.
Removing the Front I/O Panel
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the power cable from your computer, and then press the power button to ground the system board.
4. Open the computer cover.
5. Disconnect the control panel cable from the control panel connector. Disconnect the I/O cable from the connector on the system board.
Note the routing of the control panel cable as you remove it from the computer so that you can replace it correctly.
NOTICE: The microprocessor pins are delicate. To avoid damage, ensure that the microprocessor aligns properly with the socket, and do not use
excessive force when installing the processor.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps listed in the safety instructions in your Owner's Manual.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
6. Remove all cables that are connected to the front I/O panel.
7. From inside the computer cover, remove the mounting screw that secures the front I/O panel to the computer.
8. Remove the front I/O panel from the computer.
9. Reinstall the front I/O panel by reversing steps 5 through 7.
10. Close the computer cover.
11. Connect your computer and devices to their electrical outlets, and turn them on.
Power Supply
Removing the Power Supply
1. Shut down the computer through the Start menu.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the power cable from your computer, and then press the power button to ground the system board.
4. Open the computer cover.
5. Be sure the AC power cable is disconnected from the back of the power supply. Then disconnect the DC power cables from the system board and the drives.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
Note the routing of the DC power cables underneath the tabs in the computer frame as you remove them from the system board and drives. It is important to route these cables properly when you replace them to prevent them from being pinched or crimped.
6. Remove the two screws that secure the power supply to the back of the computer.
7. Press the "PUSH" button located on the floor of the computer frame.
8. Slide the power supply toward the front of the system approximately 1 inch.
9. Lift the power supply up and out of the computer.
Replacing the Power Supply
1. Slide the power supply into place.
2. Replace the two screws that secure the power supply to the back of the computer frame.
3. Reconnect the DC power cables.
4. Close the computer cover.
5. Connect your computer and devices to their electrical outlets, and turn them on.
System Board
Removing the System Board
1. Shut down the computer through the Start menu.
2. Ensure that your computer and attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut down your computer, turn them off now.
3. Disconnect any telephone or telecommunication lines from the computer.
4. Disconnect your computer and all attached devices from their electrical outlets, and then press the power button to ground the system board.
5. Open the computer cover.
6. Remove any components that restrict access to the system board.
7. Disconnect all cables from the system board.
8. Before you remove the existing system board assembly, visually compare the replacement system board to the existing system board to make sure that you have the correct part.
9. Pull up on the tab and slide the system board assembly toward the front of the computer, and then lift it up and away.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
CAUTION: Before you begin any of the procedures in this section, follow the steps in the safety instructions in your Owner's Manual.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the network wall jack.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the cover.
NOTICE: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the
computer. While you work, periodically touch an unpainted metal surface to dissipate any static electricity that could harm internal components.
NOTICE: The system board and metal tray are connected and are removed as one piece.
10. Place the system board assembly that you just removed next to the replacement system board.
Replacing the System Board
1. Transfer components from the existing system board to the replacement system board:
a. Remove the memory modules and install them on the replacement board.
b. Remove the heat-sink assembly and microprocessor from the existing system board and transfer them to the replacement system board.
2. Configure the settings of the replacement system board.
3. Set the jumpers on the replacement system board so they are identical to the ones on the existing board.
4. Orient the replacement board by aligning the notches on the bottom to the tabs on the computer.
5. Slide the system board assembly toward the back of the computer until it clicks into place.
6. Replace any components and cables that you removed from the system board.
7. Reconnect all cables to their connectors at the back of the computer.
8. Close the computer cover.
9. Connect your computer and devices to electrical outlets, and turn them on.
Closing the Computer Cover
1. Ensure that all cables are connected, and fold cables out of the way.
Gently pull the power cables toward you so that they do not get caught underneath the drives.
2. Ensure that no tools or extra parts are left inside the computer.
3. Close the cover:
a. Pivot the cover down. b. Press down on the right side of the cover until it closes.
c. Press down on the left side of the cover until it closes.
d. Ensure that both sides of the cover are locked. If not, repeat step 3.
4. Connect your computer and devices to electrical outlets, and turn them on.
CAUTION: The microprocessor package and heat-sink assembly can get hot. To avoid burns, ensure that the package and assembly have had
sufficient time to cool before you touch them.
NOTE: Some components and connectors on the replacement system board may be in different locations than the corresponding connectors on the
existing system board.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
NOTICE: To connect a network cable, first plug the cable into the network wall jack and then plug it into the computer.
Back to Contents Page
Back to Contents Page
Solving Problems
Finding Help Information
Battery Problems
Drive Problems
Floppy drive problems
Dell™Dimension™8250Series
Finding Help Information Battery Problems Drive Problems E-Mail, Modem, and Internet Problems Error Messages General Problems IEEE 1394 Device Problems Keyboard Problems
 
Mouse Problems Network Problems Power Problems Printer Problems Scanner Problems Sound and Speaker Problems Video and Monitor Problems
To access the Tell Me How help file —
1. Click the Start button, and then click Help and Support.
2. Click User and system guides, and then click User's guides.
3. Click Tell Me How.
To access Microsoft®Windows®help —
1. Click the Start button, and then click Help and Support.
2. Type a word or phrase that describes your problem, and then click the arrow icon.
3. Click the topic that describes your problem.
4. Follow the instructions shown on the screen.
To locate additional information for your computer — See "Finding Information for Your Computer."
CAUTION: There is a danger of a new battery exploding if it is incorrectly installed. Replace the battery only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
Replace the battery — If you have to repeatedly reset time and date information after turning on the computer, or if an incorrect time or
date displays during start-up, replace the battery using the instructions in your Owner's Manual. If the battery still does not work properly, contact Dell. See your Owner's Manual for contact information.
Ensure that Windows®recognizes the drive — Click the Start button and click My Computer. If the floppy drive is not listed, perform a full
scan with your antivirus software to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive.
Test the drive —
l Insert another disk to eliminate the possibility that the original floppy disk is defective. l Insert a bootable floppy disk and reboot the computer.
Ensure that the disk is not full or write-protected — Ensure that the disk has available space and that it is not write-protected (locked).
See the following illustration.
CD drive problems
Problems writing to a CD-RW drive
DVD drive problems
Hard drive problems
E-Mail, Modem, and Internet Problems
NOTICE: Do not attempt to clean drive heads with a swab. You may accidentally misalign the heads, which can render the drive inoperable.
Clean the drive — Use a commercially available cleaning kit.
HINT: High-speed CD drive vibration is normal and may cause noise. This does not indicate a defect in the drive or the CD.
Adjust the Windows volume control — Click the speaker icon in the lower-right corner of your screen.
l Ensure that the volume is turned up by clicking the slidebar and dragging it up. l Ensure that the sound is not muted by clicking any boxes that are checked.
Test the drive with another CD — Insert another CD to eliminate the possibility that the original CD is defective.
Check the speakers and subwoofer — See "Sound and Speaker Problems."
Ensure that Windows recognizes the drive — Click the Start button and click My Computer. If the CD drive is not listed, perform a full scan
with your antivirus software to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive.
Clean the disc — See the Tell Me How help file for instructions on cleaning your CDs.To access help files, see "Finding Help Information."
Close other programs — The CD-RW drive must receive a steady stream of data when writing. If the stream is interrupted, an error occurs.
Try closing all programs before writing to the CD-RW.
Turn off Standby mode in Windows before writing to a CD-RW disc — For information on power conservation modes, see the Tell Me How
help file or search for the keyword standby in Windows Help. To access help files, see "Finding Help Information."
HINT: Because of different regions worldwide and different disc formats, not all DVD titles work in all DVD drives.
Test the drive with another DVD — Insert another DVD to eliminate the possibility that the original DVD is defective.
Ensure that Windows recognizes the drive — Click the Start button and click My Computer. If the DVD drive is not listed, perform a full scan
with your antivirus software to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive.
Clean the disc — See the Tell Me How help file for instructions on cleaning your DVDs. To access help files, see "Finding Help Information."
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
Run Check Disk —
1. Click the Start button and click My Computer.
2. Right-click the drive letter (local disk) that you want to scan for errors, and then click Properties.
3. Click the Tools tab.
4. Under Error-checking, click Check Now.
5. Click Start.
HINT: Connect the modem to an analog telephone jack only. The modem does not operate while it is connected to a digital telephone network.
Check the telephone line connection — Verify that the telephone line is connected to the jack on the modem. (The jack has either a green
label or a connector-shaped icon next to it.) Ensure that you hear a click when you insert the telephone line connector into the modem.
Error Messages
If the message is not listed, see the documentation for the operating system or the program that was running when the message appeared.
General Problems
The computer stops responding
A program stops responding
Check the telephone jack — Disconnect the telephone line from the modem and connect it to a telephone. Listen for a dial tone.
Connect the modem directly to the telephone wall jack — If you have other telephone devices sharing the line, such as an answering
machine, fax machine, surge protector, or line splitter, then bypass them and use the telephone to connect the modem directly to the telephone wall jack.
Use a different telephone line — Ifyouareusingalinethatis3m(10ft)ormoreinlength,tryashorterone.
Run the Modem Helper diagnostics — Click the Start button, point to All Programs, and then click Modem Helper. Follow the instructions on
the screen to identify and resolve modem problems. (Modem Helper is not available on all computers.)
Verify that the modem is communicating with Windows®—
1. Click the Start button, and then click Control Panel.
2. Click Printers and Other Hardware.
3. Click Phone and Modem Options.
5. Click the COM port for your modem.
6. Click Properties, click the Diagnostics tab, and then click Query Modem to verify that the modem is communicating with Windows.
If all commands receive responses, the modem is operating properly.
Turn off call waiting (catch-phone) — See your telephone directory for instructions on deactivating this feature. Then adjust the dial-up
networking connection properties.
1. Click the Start button, and then click Control Panel.
2. Click Printers and Other Hardware, and then click Phone and Modem Options.
3. Click your connection type to highlight it.
4. Click the Dialing Rules tab, and then click Edit.
5. Click the To Disable Call Waiting box to place a checkmark in it.
6. Select the disable code from the drop-down menu (for example, *70).
7. Click Apply, and then click OK.
Ensure that you are connected to the Internet — With the Outlook Express e-mail program open, click File. If Work Offline has a checkmark
next to it, click the checkmark to remove it and connect to the Internet.
Ensure that you have subscribed to an Internet service provider — Contact an Internet service provider to subscribe.
Contact your Internet service provider — Contact your Internet service provider for assistance.
A filename cannot contain any of the following characters: \ / : * ? " < > | — Do not use these characters in filenames.
A required .DLL file was not found — The program that you are trying to open is missing an essential file. To remove and then reinstall the
program:
2. Click Control Panel.
3. Click Add or Remove Programs.
4. Select the program you want to remove.
5. Click the Change or Remove Program icon.
6. See the program documentation for installation instructions.
Insert bootable media — The operating system is trying to boot to a nonbootable floppy disk or CD. Insert a bootable floppy disk or CD.
Non-system disk error — A floppy disk is in the floppy drive. Remove the floppy disk and restart the computer.
Not enough memory or resources. Close some programs and try again — You have too many programs open. Close all windows and open
the program that you want to use. In some cases, you might have to restart your computer to restore computer resources. If so, try running the program that you want to use first.
Operating system not found — Contact Dell. See your Owner's Manual for contact information.
The file being copied is too large for the destination drive — The file that you are trying to copy is too large to fit on the disk. Try copying
the file to a blank disk or using a larger-capacity disk.
x
:\ is not accessible. The device is not ready — The floppy drive cannot read the disk. Insert a floppy disk into the drive and try again.
Turn the computer off — If your computer locks up and you are unable to get a response by pressing a key on your keyboard or moving
your mouse, press and hold the power button for at least 8 to 10 seconds until the computer turns off. Then press the power button again to turn on the computer. You might lose data if you are unable to perform an operating system shutdown.
End the program —
1. Press <Ctrl><Shift><Esc> simultaneously.
2. Click Applications.
3. Click the program that is no longer responding.
4. Click End Task.
A program crashes repeatedly
A program is designed for an earlier Windows operating system
A solid blue screen appears
Other software problems
Other technical problems
General hardware problems
If your computer exhibits one or more of the following symptoms, a device conflict may exist:
l Your computer locks up, particularly while using a specific device. l A recently added device does not work. l A sound card emits noise or demonstrates other problems. l Unintelligible characters print from the printer. l The mouse pointer does not move or "stutters" when it moves. l Messages appear stating that the computer is not operating at maximum performance. l Errors occur and programs crash for no apparent reason. l Nothing displays on the monitor.
HINT: Software usually includes installation instructions in its documentation or on a floppy disk or CD.
Check the software documentation — Many software manufacturers maintain websites with information that may help you solve the
problem. Ensure that you properly installed and configured the program. If necessary, uninstall and then reinstall the program.
Run the Program Compatibility Wizard —
Windows XP provides a Program Compatibility Wizard that configures a program so it runs in an environment similar to non-Windows XP operating system environments.
1. Click the Start button, point to All Programs® Accessories, and then click Program Compatibility Wizard.
2. In the welcome screen, click Next.
3. Follow the instructions on the screen.
Turn the computer off — If the computer does not respond to a keystroke or a proper shutdown, press the power button for at least 8 to
10secondsuntilthecomputerturnsoff.Pressthepowerbuttonagaintorestartthecomputer.Thechkdskprogramautomaticallyruns
during the start-up process. Follow the instructions on the screen.
Check the software documentation or contact the software manufacturer for troubleshooting information
Back up your files immediately — If your computer has a CD-RW drive or a zip drive installed, see the drive's documentation for
instructions.
Ensure that you have not made an error while entering data — See the program documentation to make sure that the values or characters
you are entering are valid.
Check for viruses — Use a virus-scanning program to check the hard drive, floppy disks, or CDs.
Restart the computer — Save and close any open files, exit any open programs, and then shut down your computer through the Start menu
instead of pressing the power button. Otherwise, you may lose data.
l Ensure that the program is compatible with the operating system installed on your computer and that your computer meets the
minimum hardware requirements needed to run the software. See the software documentation for information.
l If necessary, uninstall and then reinstall the program.
Ensure that you properly installed and configured the program — See the software documentation for information. If necessary, uninstall
and then reinstall the program.
Go to the Dell Support website —
Go to support.dell.com for help with general usage, installation, and troubleshooting questions.The support website offers several different tools to help you, such as Dell Forum—a chat room where you can communicate with other Dell customers about their computers and gain access to technical support through e-mail. See "Finding Information for Your Computer" for more information about the website. See "Dell Technical Support Policy (U.S. Only)" in your Owner's Manual for a description of the hardware and software support provided by Dell.
Call Dell — If you cannot solve your problem using the Dell Support website or e-mail service, call Dell for technical assistance. See your
Owner's Manual for contact information. See "Dell Technical Support Policy (U.S. Only)" in your Owner's Manual for a description of the hardware and software support provided by Dell.
Remove any recently added hardware to see if it resolves the conflict — If removing the hardware resolves the conflict, see the hardware
IEEE 1394 Device Problems
Keyboard Problems
Mouse Problems
documentation for configuration and troubleshooting instructions. If the problem persists, contact the hardware manufacturer for technical assistance.
Check your operating system documentation for additional troubleshooting information
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
HINT: Check Windows Explorer to see if your device is listed as a drive.
Check the IEEE 1394 device — Ensure that the IEEE 1394 device is properly inserted into the connector.
Ensure that the IEEE 1394 device is recognized by Windows®—
2. Click Control Panel.
3. Click Printers and Other Hardware.
If your IEEE 1394 device is listed, Windows recognizes the device.
If you have problems with a Dell-provided IEEE 1394 device — Contact Dell. See your Owner's Manual for contact information.
If you have problems with a IEEE 1394 device not provided by Dell — Contact the IEEE 1394 device manufacturer.
Restart the computer —
l If the mouse is functioning, shut down the computer through the Start menu. After the computer shuts down, press the power button
to restart the computer.
l If the computer does not respond to a keystroke or the mouse, press the power button for at least 8 to 10 seconds until the computer
turns off. Press the power button again to restart the computer.
Check the keyboard cable —
l Ensure that the keyboard cable is firmly connected to the computer. l Shut down the computer, reconnect the keyboard cable as shown on the setup diagram for your computer, and then restart the
computer.
l Check the cable connector for bent or broken pins and for damaged or frayed cables. Straighten bent pins. l Remove keyboard extension cables and connect the keyboard directly to the computer.
Test the keyboard — Connect a properly working keyboard to the computer, and try using the keyboard. If the new keyboard works, the
original keyboard is faulty.
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
Restart the computer —
1. Simultaneously press <Ctrl><Esc> to display the Start menu.
2. Type u, press the keyboard arrow keys to highlight Shut down or Turn Off, and then press <Enter>.
3. After the computer turns off, press the power button to restart the computer.
If you connected the mouse before turning on the computer, reconnect the mouse cable —
1. Simultaneously press <Ctrl><Esc> to display the Start menu.
2. Type u, press the keyboard arrow keys to highlight Shut down or Turn Off, and then press <Enter>.
3. After the computer turns off, reconnect the mouse cable as shown on the setup diagram for your computer.
4. Start the computer.
If you connected the mouse after turning on the computer, remove the power cable, and then reconnect the mouse cable — If the
mouse is connected after the power is turned on, the mouse appears to be nonfunctional. To make the mouse function properly:
1. While your computer is on, remove the power cable from the back of the computer.
2. Connect the mouse to the computer.
3. Reconnect the power cable.
4. Turn on your computer.
Pressing the power button does not clear the computer's settings and does not restore mouse functionality.
Check the mouse cable —
l Check the cable connector for bent or broken pins and for damaged or frayed cables. Straighten bent pins. l Ensure that the cable is firmly connected to the computer.
Test the mouse — Connect a properly working mouse to the computer, and try using the mouse. If the new mouse works, the original
mouse was faulty.
Check the mouse settings —
Network Problems
Power Problems
1. Click the Start button, click Control Panel, and then click Printers and Other Hardware.
2. Click Mouse.
3. Try adjusting the settings.
Reinstall the mouse driver — See "Reinstalling Drivers."
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
Check the network cable connector — Ensure that the network cable is connected.
Check the network lights on the back of the computer —
l A solid green connection speed light indicates a 10-Mbps connection; a solid orange connection speed light indicates a 100-Mbps
connection.
l A flashing yellow network activity light indicates that data is actively being transferred on the network.
Note that the lights do not function if the Low Power Mode option is set to Enabled in the system setup program and the computer is turned off, or if a faulty network cable is connected to the network adapter.
Restart the computer and try to log on to the network again
Check your network settings — Contact your network administrator or the person who set up your network to verify that your network
settings are correct and that the network is functioning.
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
Adjust the Power Properties — Your computer may be in standby or hibernate mode. For information on power conservation modes, see
the Tell Me How help file, or search for the keyword standby or hibernate in Windows®Help. To access help files, see "Finding Help
Information."
If the power light is green and the computer is not responding — See "Diagnostic Lights."
If the power light is blinking green — The computer is in standby mode. Press a key on the keyboard or move the mouse to resume normal
operation.
If the power light is off — The computer is either turned off or is not receiving power.
l Reseat the power cable into both the power connector on the back of the computer and the electrical outlet. l If the computer is plugged into a power strip, ensure that the power strip is plugged into an electrical outlet and that the power strip
is turned on.
l Ensure that the electrical outlet is working by testing it with another device, such as a lamp. l Bypass power protection devices, power strips, and power extension cables to verify that the computer turns on. l Ensure that the main power cable is securely connected to the system board. l Ensure that the front panel cable is securely connected to the system board. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
If the power light is amber and green — The computer is receiving electrical power, but an internal power problem might exist.
l Ensure that the voltage selection switch is set to match the AC power at your location (see the safety instructions in your Owner's
Manual).
l Ensure that the microprocessor power cable is securely connected to the system board. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
If the power light is steady amber — The computer is receiving electrical power, but an internal power problem might exist.
l Ensure that the microprocessor power cable is securely connected to the system board. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
If the power light is blinking amber — A device might be malfunctioning or incorrectly installed.
l Remove and then reinstall the memory modules. l Remove and then reinstall any cards. l If the problem persists, contact Dell. See your Owner's Manual for contact information.
Eliminate interference — Electrical appliances on the same circuit or operating near the computer can cause interference. Other causes of
interference are:
l Power extension cables l Keyboard and mouse extension cables
Printer Problems
Scanner Problems
Sound and Speaker Problems
No sound from speakers
l Too many devices on a power strip l Multiple power strips connected to the same electrical outlet
HINT: Dell does not cover the printer's warranty. If you need technical assistance for your printer, call the printer's manufacturer. See the printer
documentation for the correct phone number.
Check the printer documentation — See the printer documentation for setup and troubleshooting information.
Ensure that the printer is turned on — See the printer documentation for power button information.
Verify the printer cable connections —
l See the printer documentation for cable connection information. l Ensure that the printer cables are securely connected to the printer and the computer.
Test the electrical outlet — Ensure that the electrical outlet is working by testing it with another device, such as a lamp.
Verify that the printer is recognized by Windows®—
2. Click Control Panel.
3. Click Printers and Other Hardware.
4. Click View installed printers or fax printers.
If the printer is listed, right-click the printer icon.
5. Click Properties, and then select the Ports tab. For a parallel printer, ensure that the Print to the following port(s): setting is LPT1
(Printer Port). For a USB printer, ensure that the Print to the following port(s): setting is USB.
Reinstall the printer driver — See the printer documentation for instructions.
HINT: Dell does not cover the scanner's warranty. If you need technical assistance for your scanner, call the scanner's manufacturer. See the scanner
documentation for the correct phone number.
Check the scanner documentation — See the scanner documentation for setup and troubleshooting information.
Unlock the scanner — Ensure that your scanner is unlocked if it has a locking tab or button.
Restart the computer and try the scanner again
Check the cable connections —
l If your scanner has a power cable, ensure that the power cable is firmly connected to a working electrical outlet and that the scanner
is turned on.
l Ensure that the scanner cable is firmly connected to the computer and to the scanner.
Verify that the scanner is recognized by Microsoft®Windows®—
2. Click Control Panel.
3. Click Printers and Other Hardware.
4. Click Scanners and Cameras.
If your scanner is listed, Windows recognizes the scanner.
Reinstall the scanner driver — See the scanner documentation for instructions.
HINT: The volume control in some MP3 players overrides the Windows®volume setting. If you have been listening to MP3 songs, ensure that you did
not turn the player volume down or off.
Check the speaker cable connections — Ensure that the speakers are connected as shown on the setup diagram supplied with the
speakers.
Ensure that the subwoofer and the speakers are turned on — See the setup diagram supplied with the speakers. If your speakers have
volume controls, adjust the volume, bass, or treble to eliminate distortion.
Adjust the Windows volume control — Click or double-click the speaker icon in the lower-right corner of your screen. Ensure that the volume
is turned up and that the sound is not muted.
Disconnect headphones from the headphone connector — Sound from the speakers is automatically disabled when headphones are
connected to the computer's front-panel headphone connector.
No sound from headphones
Video and Monitor Problems
If the screen is blank
If the screen is difficult to read
Back to Contents Page
Test the electrical outlet — Ensure that the electrical outlet is working by testing it with another device, such as a lamp.
Enable digital mode — Your speakers do not work if the CD drive is operating in analog mode. To enable digital mode:
1. Click the Start button, click Control Panel, and then click Sounds, Speech, and Audio Devices.
2. Click Sounds and Audio Devices.
3. Click the Hardware tab.
4. Double-click the name of your CD drive.
5. Click the Properties tab.
6. Check the Enable digital CD audio for this CD-ROM device box.
Eliminate possible interference — Turn off nearby fans, fluorescent lights, or halogen lamps to check for interference.
Run the speaker diagnostics — Some speaker systems have self- diagnostics. See the speaker documentation for diagnostics instructions.
Reinstall the audio (sound) driver — See "Reinstalling Drivers."
Check for interrupt request conflicts — See "Resolving Software and Hardware Incompatibilities."
Check the headphone cable connection — Ensure that the headphone cable is securely inserted into the headphone connector.
Disable digital mode — Your headphones do not work if the CD drive is operating in digital mode. To disable digital mode:
1. Click the Start button, click Control Panel, and then click Sounds, Speech, and Audio Devices.
2. Click Sounds and Audio Devices.
3. Click the Hardware tab.
4. Double-click the name of your CD drive.
5. Click the Properties tab.
6. Uncheck the Enable digital CD audio for this CD-ROM device box.
Adjust the Windows volume control — Click or double-click the speaker icon in the lower-right corner of your screen. Ensure that the volume
is turned up and that the sound is not muted.
HINT: See the monitor documentation for troubleshooting procedures.
Check the monitor power light — If the power light is off, firmly press the button to ensure that the monitor is turned on. If the power light
is lit or blinking, the monitor has power. If the power light is blinking, press a key on the keyboard or move the mouse.
Check the monitor cable connection — Check the connector for bent or broken pins. (It is normal for monitor cable connectors to have
missing pins.) Ensure that the video cable is connected as shown on the setup diagram for your computer.
Test the electrical outlet — Ensure that the electrical outlet is working by testing it with another device, such as a lamp.
Swap the power cables — Swap the computer and monitor power cables to determine if the power cable is defective.
Test the video extension cable (if used) — If you are using a video extension cable and removing the cable solves the problem, the cable is
defective.
Test another monitor — If another monitor is available, connect it to the computer.
Check the diagnostic lights — See "Diagnostic Lights."
Check the monitor settings — See the monitor documentation for instructions on adjusting the contrast and brightness, demagnetizing
(degaussing) the monitor, and running the monitor self-test.
Move the subwoofer away from the monitor — Ifyourspeakersystemincludesasubwoofer,ensurethatthesubwooferisatleast60cm
(2ft)awayfromthemonitor.
Move the monitor away from external power sources — Fans, fluorescent lights, halogen lamps, and other electrical devices can cause the
screen image to appear "shaky." Turn off nearby devices to check for interference.
Rotate the monitor to face a different direction — Eliminate sunlight glare, which can cause poor picture quality.
Adjust the Windows®display settings —
1. Click the Start button, and then click Control Panel.
2. Click Appearance and Themes.
3. Click Display, and then click the Settings tab.
4. Try different settings for Screen resolution and Color quality.
Restore the recommended settings — Restore the original resolution and refresh rate settings. See the Tell Me How help file for instructions.
To access help files, see "Finding Help Information."
Back to Contents Page
Technical Specifications
Dell™Dimension™8250Series
Microprocessor Memory Computer Information Video Audio Expansion Bus
Drives Connectors Controls and Lights Power Physical Environmental
Microprocessor
Microprocessor type
Intel®Pentium®4 microprocessor that runs at 2.0 GHz internally and 400 MHz externally; or 2.26, 2.4,
2.53, 2.66, 2.8, or 3.06 GHz internally and 533 MHz externally
L1 cache
8 KB
L2 cache
512-KB pipelined-burst, eight-way set associative, write-back SRAM
Memory
Type
PC800 or PC1066 RDRAM (non-ECC)
Memory connectors
four
Memory capacities
64-, 128-, 256-, and 512-MB non-ECC
Minimum memory
128 MB
Maximum memory
2 GB for PC800
1.5 GB for PC1066
Memory type
PC 1066 (non-ECC) only on computers with a 533­MHz system clock speed
PC 800 (non-ECC) on computers with either a 400- or a 533-MHz system clock speed
Memory speed
PC800
40 ns or faster
PC1066
32 ns or faster
BIOS address
F8000h
Computer Information
System chip set
Intel 850E
DMA channels
eight
Interrupt levels
15
BIOS chip
4 Mb
NIC
integrated PCI Network Interface with ASF support as defined by DMTF
System clock
100 MHz X 4 for 400 FSB or 133 MHz X 4 for 533 FSB ­data rate
Video
Type
AGP 4X, PCI
Audio
Type
Analog Devices AD1981a AC97 Codec
1
1
Present only on computers with integrated audio capabilities.
ExpansionBus
Bus types
PCI and AGP
Bus speed
PCI: 33 MHz AGP: 66 MHz
AGP  connector
one
connector size
172 pins
connector data width (maximum)
32 bits
bus protocols
4x/2x modes at 1.5 V
PCI  connectors
four
connector size
120 pins
connector data width (maximum)
32 bits
Drives
Externally accessible
two 3.5-inch bays two 5.25-inch bays
Available devices
ATA-66 or ATA-100 Ultra DMA hard drive, CD drive, Zip drive, DVD drive, CD-RW drive, DVD/CD-RW combo drive, and DVD+RW drive
Internally accessible
two bays for 1-inch–high hard drives
Connectors
Externally accessible:
Serial
9-pin connector; 16550C-compatible
Parallel
25-hole connector (bidirectional)
Video
15-hole connector
Network Adapter
RJ45 connector
PS/2 (keyboard and mouse)
6-pin mini-DIN connector
USB
two front-panel and six back-panel USB 2.0–compliant connectors
Audio
2
three connectors for line-in, line-out, and microphone; one front panel connector for headphones
System board connectors:
Primary IDE channel
40-pin connector on PCI local bus
Secondary IDE channel
40-pin connector on PCI local bus
Floppy drive
34-pin connector
Telephony (TAPI)
4-pin connector
Fan
3-pin connector
2
Present only on computers with integrated audio capabilities.
Controls and Lights
Power control
push button
Power light
green light on power button—blinking green in sleep states; solid green for power-on states
Hard-drive access light
green
Link integrity light (on integrated network adapter)
green light for 10-Mb operation; orange light for 100­Mb operation
Diagnostic code lights
four bicolor (amber and green) located on back panel
Power
DC power supply:
Wattage
250 W
Heat dissipation
853 BTU (fully-loaded computer without monitor)
Voltage (see the safety instructions in your Owner's Manual for important voltage setting information)
90 to 135 V at 50/60 Hz; 180 to
265Vat50/60Hz;100Vat50/60HzforJapanese
computers
Backup battery
Physical
Height
42.5cm (16.7 inches)
Width
18.1 cm (7.13 inches)
Depth
44.7 cm (17.6 inches)
Weight
12.7 kg (28 lb)
Environmental
Temperature:
Operating
10º to 35ºC (50º to 95ºF)
3
Storage
–40º to 65ºC (–40º to 149ºF)
Relative humidity
20% to 80% (noncondensing)
Maximum vibration:
Operating
0.25 G at 3 to 200 Hz at 1/2 octave/min
Back to Contents Page
Storage
0.5 G at 3 to 200 Hz at 1/2 octave/min
Maximum shock:
Operating
bottom half-sine pulse with a change in velocity of
50.8 cm/sec (20 inches/sec)
Storage
23-G faired-square wave with a velocity change of 508 cm/sec (200 inches/sec)
Altitude:
Operating
–15.2 to 3048 m (–50 to 10,000 ft)
3
Storage
–15.2 to 10,670 m (–50 to 35,000 ft)
3
At35°C(95°F),themaximumoperatingaltitudeis914m(3000ft).
Back to Contents Page
System Setup Program
Dell™Dimension™8250Series
Standard Settings Hyper-Threading Viewing Settings Clearing Forgotten Passwords
Standard Settings
The system setup program contains the standard settings for your computer.
See the following figure for an example of the main program screen.
Hyper-Threading
Hyper-Threading is an Intel®technology that can enhance overall performance by allowing one physical microprocessor to function as two logical microprocessors, capable of performing certain tasks simultaneously. It is recommended that you use the Microsoft®Windows®XP operating system because Windows XP is optimized to take advantage of Hyper-Threading technology. While many programs can benefit from Hyper-Threading technology, some programs have not been optimized for Hyper-Threading and may require an update from the software manufacturer. Contact the software manufacturer for updates and information on using your software with Hyper-Threading.
To determine if your computer is using Hyper-Threading technology:
1. Click the Start button, right-click My Computer, and then click Properties.
2. Click Hardware and click Device Manager.
NOTICE: Unless you are an expert computer user, do not change the settings for this program. Certain changes might make your computer work
incorrectly.
HINT: Hyper-Threading is supported only on computers that have 3.06-GHz microprocessors (or higher) installed.
3. In the Device Manager window, click the plus (+) sign next to the processor type. If Hyper-Threading is enabled, the processor is listed twice.
For more information on Hyper-Threading, search the Knowledge Base on the Dell Support website at support.dell.com.
To enable or disable Hyper-Threading:
1. Shut down and restart the computer.
2. WhentheDELL™logoappears,press<F2>immediatelytoenterthesystemsetupprogram.
If you wait too long and the Microsoft Windows logo appears, continue to wait until you see the Windows desktop. Then shut down your computer through the Start menu and try again.
3. When the system setup program screen appears, highlight CPU Information and press <Enter>.
4. When the CPU information screen appears, highlight Hyper-Threading and press the spacebar on the keyboard to select Enable or Disable.
5. Press <ESC> to save the setting and exit the CPU Information screen.
6. Press <ESC> to Save and Exit.
7. When you see the message Save changes and exit now, press <Enter>.
Your computer will restart.
Viewing Settings
1. Turn on (or restart) your computer.
2. WhentheblueDELL™logoappears,press<F2>immediately.
If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft®Windows®desktop. Then shut down your computer and try again.
System Setup Screens
The system setup program screens display the current configuration information for your computer. Information on the screen is divided into five areas:
l Title — The area at the top of all system setup screens that displays your computer's model number. l Computer data — Two boxes below the title that display the system processor, L2 cache, service tag, and the version number of the BIOS. l Options — A scrollable box listing options that define the configuration of your computer (including installed hardware, power conservation, and security
features).
Fields to the right of the listed options contain settings or values. The settings and values that you can change are brighter on the screen. All other settings and values are set by the computer and cannot be changed. When <Enter> appears to the right of an option, press <Enter> to access a pop-up menu of additional options.
l Key functions — A line of boxes across the bottom of the screen that lists keys and their functions within the system setup program. l Help — Press <F1> for information on the option that is selected (highlighted).
Option
Function
System Time
Displays the system time.
System Date
Displays the system date.
Diskette Drive A:
Displays floppy drive details.
Primary Drive 0:
Displays primary hard drive 0. The default is Auto.
Primary Drive 1:
Displays primary hard drive 1 (if installed). The default is Off.
Secondary Drive 0:
Displays secondary hard drive 0. The default is Auto.
Secondary Drive 1:
Displays secondary hard drive device type. The default is Off.
Boot Sequence
Displays boot sequence when <Enter> is pressed.
System Memory
Displays amount of system memory.
AGP Aperture
Displays amount of aperture memory. The default is 128 MB.
CPU Information
Displays CPU information when <Enter> is pressed.
Integrated Devices (Legacy Select Options)
Displays integrated device options when <Enter> is pressed.
PCI IRQ Assignments
Displays PCI IRQ assignments when <Enter> is pressed.
IRQ Reservations
Displays the IRQ reservations when <Enter> is pressed.
System Security
Displays system security options when <Enter> is pressed.
Keyboard Numlock
Turns the Keyboard NumLock option on and off. The default is On.
Report Keyboard Errors
Displays keyboard errors when set to Report. The default is Report.
Auto Power On
Allows auto power-on. The default is Disabled.
Remote Wake Up
Allows remote Wakeup on LAN. The default is Off.
Low Power Mode
Minimizes power use when the computer is off. The default is Disabled.
The following table shows CPU Information option information.
The following table shows Integrated Devices (Legacy Select Options) option information.
The following table shows System Security option information.
Clearing Forgotten Passwords
If you forget your user or setup password, you cannot operate your computer or change settings in the system setup program until you clear the forgotten password(s).
1. Shut down the computer.
2. Turn off any attached devices and disconnect them from their electrical outlets.
3. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
4. Open the computer cover.
5. Locate jumper PSWD on the system board and remove the jumper plug.
6. Close the computer cover, plug your computer into an electrical outlet, and turn on the computer.
The existing password(s) will be erased.
AC Power Recovery
Enables AC power recovery to occur. The default is Off.
Fast Boot
Turns the fast boot option on and off. The default is On.
Suspend Mode
Displays the suspend state used by the computer. The default is S3.
System Event Log
Displays the system event log when <Enter> is pressed.
Asset Tag
Displays asset tag information.
Option
Function
Hyper-Threading
Enables Hyper-Threading. The default is Enabled.
CPU Speed
Sets the CPU speed. The default is Normal.
Bus Speed
Displays the bus speed.
Processor ID
Displays processor ID.
Clock Speed
Displays clock speed.
Cache Size
Displays cache size.
Option
Function
Sound
Turns the integrated sound off and on. The default is On.
Mouse Port
Turns the mouse port off and on. The default is On.
USB Emulation
Turns USB emulation off and on. The default is On.
USB Controller
Turns the USB controller off and on. The default is On.
Serial Port 1
Sets serial port options and turns the port off and on. The default is Auto.
Parallel Port
Displays parallel port settings when <Enter> is pressed. The default mode is PS/2 and the I/O address default is 378h.
IDE Drive Interface
Sets the IDE drive interface options. The default is Auto.
Diskette Interface
Sets diskette interface options. The default is Auto.
PC Speaker
Turns the PC speaker off and on. The default is On.
Primary Video Controller
Sets the primary video controller. The default is AGP.
Video DAC Snoop
Turns the video DAC Snoop off and on. The default is Off.
Option
Function
Password Status
Locks and unlocks the password option. The default is Unlocked.
System Password
Enables and disables the system password. The default is Disabled. Setup Password
Enables and disables the setup password. The default is Disabled.
POST Hotkeys
Selects key that are active during POST. The default is F2 and F12.
PXE BIS Default Policy
Specifies how the computer will respond to boot integrity services authentication requests when no certificate has been installed. When set to Deny (the default), this request is rejected. The request is accepted when set to Accept.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in your Owner's Manual.
NOTICE: This process erases both the system and setup passwords.
NOTICE: To disconnect a network cable, first unplug the cable from your computer, and then unplug it from the network wall jack.
7. Shut down the computer.
8. Turn off any attached devices and disconnect them from their electrical outlets.
9. Disconnect the computer power cable from the wall outlet, and then press the power button to ground the system board.
10. Open the computer cover.
11. Reconnect the jumper plug to jumper PSWD.
12. Close the computer cover.
13. Connect your computer and devices to electrical outlets, and turn them on.
Turning on your computer with the PSWD jumper installed reenables the password feature.
Back to Contents Page
NOTICE: To disconnect a network cable, first unplug the cable from your computer, and then unplug it from the network wall jack.
NOTICE: To connect a network cable, first plug the cable into the network wall jack, and then plug it into the computer.
Back to Contents Page
Technical Overview
Dell™Dimension™8250Series
Looking Inside Your Computer System Board Power Supply DC Power Connectors IDE Interface Cable Connections for Dell-Installed Drives Placement of Dell-Installed Cards
Looking Inside Your Computer
System Board
HINT: The AGP card is removed from the following illustration to provide a better view of the inside of your computer.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions provided in your Owner's Manual.
NOTICE: Be careful when opening the computer cover to ensure that you do not inadvertently disconnect cables from the system board.
Power Supply
The 250-W power supply can operate from an AC power source of 115 VAC at 60 Hz or 230 VAC at 50 Hz. The power supply provides the DC operating voltages and currents listed in the following table.
DC Power Connectors
Power Supply DC Connector Pin Assignments
Output Voltage
Minimum Current (A)
Maximum Current (A)
1
Peak Current (A)
2
+12 VDC
1.0
10.0
4
12.0
+5 VDC
4.0
22.0
4
12.0
+3.3 VDC
1.0/0.0
3
14.0
4
12.0
–12 VDC
0.0
1.0
12.0
+5 VFP
0.0
2.0
12.0
When the current load is outside of the ranges listed, but within each specified output current range, the +5-V, +12-V, and +3.3-V outputs are allowed to regulate at +/–10% of nominal DC voltages.
1
Maximum continuous total DC output cannot exceed 200 W. Maximum continuous combined load on +5-VDC and +3.3-VDC outputs cannot exceed 135 W.
2
Peak +12-VDC output power (up to 12 A) does not exceed 15 seconds in duration. In this condition, the tolerance on the +12-V output is allowed to be +/–
10%.
3
In system applications where +3.3 VDC is not used, these values may be 0 A without affecting the regulation on the other outputs.
4
The required full load combinations are adjusted so that the total output power is less than or equal to 250 W.
DC Power Connector P1
DC Power Connector P2
Pin Number
Signal name
18­AWG Wire 1 +3.3 VDC
Orange
2
+3.3 VDC
Orange
3
COM
Black 4 +5 VDC
Red 5 COM
Black 6 +5 VDC
Red 7 COM
Black 8 POK
Gray 9 +5 VFP
Purple
10
+12 VDC
Yellow
11
+3.3 VDC*
Orange
12
–12 VDC
Blue
13
COM
Black
14
PS ON
Green
15
COM
Black
16
COM
Black
17
COM
Black
18
N/C
N/C
19
+5 VCD
Red
20
+5 VCD
Red
*Sense connector.
DC Power Connectors P3, P5, P6, P8, and P9
DC Power Connector P7
IDE Interface Cable Connections for Dell-Installed Drives
Placement of Dell-Installed Cards
Pin Number
Signal Name
18­AWG Wire 1 COM
Black 2 COM
Black 3 +12 VDC
Yellow
4
+12 VDC
Yellow
Pin Number
Signal Name
18­AWG Wire 1 +12 VCD
Yellow
2
COM
Black 3 COM
Black 4 +5 VDC
Red
Pin Number
Signal Name
22­AWG Wire 1 +5 VCD
Red 2 COM
Black 3 COM
Black 4 +12 VDC
Yellow
IDE Channel
Connector Location
Dell­Installed Drive
Primary IDE master
End connector on PRI IDE connector cable
Hard drive
Primary IDE slave
Middle connector on PRI IDE connector cable
Zip drive
Secondary IDE master
End connector on SEC IDE connector cable
CD or DVD drive
Secondary IDE slave
Middle connector on SEC IDE connector cable
CD-RW drive
Card Connector
Card Description
AGP connector
Video
PCI1 connector
Sound
PCI2 connector
Modem
PCI3 connector
Network adapter, wireless network adapter, or swap box
Back to Contents Page
PCI4 connector
1394 FireWire
Back to Contents Page
Controls and Lights
Dell™Dimension™8250Series
Front View Back View
Front View
Back View
1
CD or DVD headphone connector
Use the headphone connector to attach headphones to the CD or DVD drive. Your headphones won't work if the drive is operating in digital mode. To disable digital mode:
1. Click the Start button, click Control Panel, and then click Sounds, Speech, and Audio Devices.
2. Click Sounds and Audio Devices.
3. Click the Hardware tab.
4. Double-click the name of your CD or DVD drive.
5. Click the Properties tab.
6. Uncheck the Enable digital CD audio for this CD-ROM device box.
2
CD or DVD volume control dial
Move the dial to adjust the volume of your audio CD or DVD disc.
3
CD or DVD drive activity light
The drive activity light is on when the computer reads data from the CD or DVD drive. 4
CD or DVD eject button
Press this button to eject your CD from the CD or DVD drive.
5
floppy-drive eject button*
Press this button to eject a disk from the floppy drive.
(On computers with an optional floppy drive.)
6
floppy-drive light button*
The floppy-drive light is on when the computer reads data from or writes data to the floppy drive. Wait until this light turns off before you remove the floppy disk from the drive.
(On computers with an optional floppy drive.)
7
hard drive light
The hard-drive light is on when the computer reads data from or writes data to the hard drive. The light might also be on when devices such as your CD player are operating.
8
power button
Press this button to turn on the computer.
NOTICE: To avoid losing data, do not use the power button to turn off the computer. Instead, perform a Windows
shutdown.
9
service tag
The tag is used to identify your computer when you access the Dell Support website or call technical support.
10
headphone connector
Attach headphones.
11
USB 2.0 connectors (2)
Connect a USB device such as a mouse, keyboard, printer, joystick, or speaker system into any of the USB connectors.
12
front-panel door
Open the door to use the front-panel connectors.
Back to Contents Page
1
power connector
The connection for the power cable.
2
voltage selection switch (may not be available on all computers)
Set the switch for the voltage that most closely matches the AC power available in your location. See the safety instructions in your Owner's Manual for additional information.
3
parallel connector
Connect a parallel device, such as a printer, to the parallel connector. If you have a USB printer, plug it into a USB connector.
4
mouse connector
Plug a standard mouse into the green mouse connector. Turn off the computer and any attached devices before you connect a mouse to the computer. If you have a USB mouse, plug it into a USB connector.
5
network adapter
Attach the UTP cable to an RJ45 jack wall plate or to an RJ45 port on a UTP concentrator or hub and press the other end of the UTP cable into the network adapter connector until the cable snaps securely into place.
Dell recommends the use of Category 5 wiring and connectors for our customers' networks.
6
line-in connector
Use the blue line-in connector (available on computers with integrated sound) to attach a record/playback device such as a cassette player, CD player, or VCR.
On computers with a sound card, the line-in connector is on the card.
7
video connector
Plug the cable from your monitor into the blue connector.
8
line-out connector
Use the green line-out connector (available on computers with integrated sound) to attach headphones and most speakers with integrated amplifiers.
On computers with a sound card, the line-out connector is on the card.
9
microphone connector
Use the pink microphone connector (available on computers with integrated sound) to attach a personal computer microphone for voice or musical input into a sound or telephony program.
On computers with a sound card, the microphone connector is on the card.
10
USB 2.0 connectors (6)
Connect a USB device such as a mouse, keyboard, printer, joystick, or speaker system into any of the USB connectors.
11
keyboard connector
If you have a standard keyboard, plug it into the purple keyboard connector. If you have a USB keyboard, plug it into a USB connector.
12
diagnostic lights (4)
Use the lights to help you troubleshoot a computer problem based on the diagnostic code. For more information, see "Diagnostic Lights."
13
serial connector
Connect a serial device, such as a handheld device, to the serial port.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
