Setting Up Your Inspiron Desktop

INSPIRON

This section provides information about
setting up your Dell Inspiron 620s desktop.

WARNING: Before you begin any of
the procedures in this section, read the
safety information that shipped with
your computer. For additional safety
bestpractices information, see the
Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.

Before Setting Up Your Computer

When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.

Restricting airflow around your computer may
cause it to overheat. To prevent overheating
ensure that you leave at least 10.2 cm (4
inches) at the back of the computer and a
minimum of 5.1 cm (2 inches) on all other
sides. You should never place your computer
in an enclosed space, such as a cabinet or a
drawer when it is poweredon.

5

Setting Up Your Inspiron Desktop

Connect the Display

If you purchased the optional discrete graphics card, connect the display using the connector
on the discrete graphics card. Otherwise, connect the display using either the integrated VGA
or HDMI connector.

NOTE: The integrated VGA and HDMI connectors are disabled if your computer has a
discrete graphics card.

Use the appropriate cable based on the connectors available on your computer and display.
You may need to use an appropriate adapter (DVI‑to‑VGA adapter or HDMI‑to‑DVI adapter)
to connect your display to the discrete graphics card if the connector on your display and the
discrete graphics card is different.

You can purchase the DVI‑to‑VGA adapter, HDMI‑to‑DVI adapter, and additional HDMI or DVI
cables at www.dell.com.

NOTE: When connecting to a single display, connect the display to ONLY ONE of the
connectors on your computer.

NOTE: Your computer supports the Intel multiple monitor feature (disabled by default). This
feature allows you to connect your computer to more than one monitor simultaneously.
To enable this feature, enter the system setup (BIOS) utility and set the Intel Multiple
Monitor Feature to Auto in the Advanced Graphic Configuration section.

6

Setting Up Your Inspiron Desktop

See the following table to identify the connectors on your computer and display.

Connection Type Computer Cable Display

VGA‑to‑VGA
(VGA cable)

DVI‑to‑DVI
(DVI cable)

DVI‑to‑VGA
(DVI‑to‑VGA
adapter + VGA
cable)

HDMI‑to‑HDMI
(HDMI cable)

HDMI‑to‑DVI
(HDMI‑to‑DVI
adapter + DVI
cable)

7

Setting Up Your Inspiron Desktop

Connect the Keyboard and Mouse

Connect the USB keyboard and mouse to the
USB connectors on the back panel of your
computer.

8

Connect the Network Cable (Optional)

A network connection is not required to
complete your computer setup, but if
you have an existing network or Internet
connection that uses a cable connection
(such as a broadband device or Ethernet jack),
you can connect itnow.

NOTE: Use only an Ethernet cable
(RJ45connector) to connect to the
network connector. Do not plug a
telephone cable (RJ11 connector) into
the network connector.

To connect your computer to a network or
a broadband device, connect one end of the
network cable to either a network port or a
broadband device. Connect the other end of
the network cable to the network connector
(RJ45connector) on the back panel of your
computer. A click indicates that the network
cable has been securely attached.

Setting Up Your Inspiron Desktop

9

Setting Up Your Inspiron Desktop

Connect the Power Cable Press the Power Button

10

Setting Up Your Inspiron Desktop

Set Up the Operating System

Your Dell computer is preconfigured with
the Microsoft Windows operating system.
To set up Windows for the first time, follow
the instructions on the screen. These steps
are mandatory and may take some time
to complete. The Windows setup screens
will take you through several procedures
including accepting license agreements,
setting preferences, and setting up an Internet
connection.

CAUTION: Do not interrupt the
operating system’s setup process. Doing
so may render your computer unusable
and you will need to reinstall the
operating system.

NOTE: For optimal performance of your

computer, it is recommended that you
download and install the latest BIOS and
drivers for your computer available at

support.dell.com.

NOTE: For more information on the

operating system and features, go to

support.dell.com/MyNewDell.

11

Setting Up Your Inspiron Desktop

Create System Recovery Media (Recommended)

NOTE: It is recommended that you create

a system recovery media as soon as you
set up Microsoft Windows.

The system recovery media can be used to
restore your computer to the operating state
it was in when you purchased the computer,
while preserving data files (without the need
of the Operating System disc). You can use
the system recovery media if changes to
the hardware, software, drivers, or other
system settings have left the computer in an
undesirable operating state.

You will require the following to create the
system recovery media:

•Dell DataSafe Local Backup

•USB key with a minimum capacity of 8 GB

or DVD‑R/DVD+R/Blu‑ray Disc

NOTE: Dell DataSafe Local Backup does
not support rewritable discs.

12

To create a system recovery media:

1. Insert the disc or USB key in the computer.

2. Click Start
DataSafe Local Backup.

3. Click Create Recovery Media.

4. Follow the instructions on the screen.

NOTE: For information on restoring

your operating system using the system
recovery media, see “System Recovery
Media” on page 46.

→ All Programs→ Dell

Setting Up Your Inspiron Desktop

Set Up the TV Tuner (Optional)

NOTE: Availability of the TV tuner may

vary by region.

To set up the TV tuner:

1. Connect the TV/digital antenna cable

or the cable adapter to the antenna‑in
connector on your computer.

2. Turn on your computer.

3. Click Start
Media Center→ Tasks→ Settings→ TV.

4. Follow the instructions on the screen.

→ AllPrograms→ Windows

Connect to the Internet (Optional)

To connect to the Internet, you need an
external modem or network connection and
an Internet Service Provider (ISP).

If an external USB modem or WLAN adapter
is not a part of your original order, you can
purchase one from www.dell.com.

Setting Up a Wired Connection

•If you are using a dial‑up connection,
connect the telephone line to the optional
external USB modem and to the telephone
wall connector before you set up your
Internet connection.

•Ifyou are using a DSL or cable/satellite
modem connection, contact your ISP
or cellular telephone service for setup
instructions.

To complete setting up your wired Internet
connection, follow the instructions in “Setting
Up Your Internet Connection” onpage14.

13

Setting Up Your Inspiron Desktop

Setting Up a Wireless Connection

NOTE: To set up your wireless router,

see the documentation that shipped with
your router.

Before you can use your wireless Internet
connection, you need to connect to your
wireless router.

To set up your connection to awireless
router:

1. Save and close any open files, and exit any

open programs.

2. Click Start

3. In the search box, type network, and
then click Network and Sharing Center→
Connect to a network.

4. Follow the instructions on the screen to

complete the setup.

14

→ Control Panel.

Setting Up Your Internet
Connection

ISPs and ISP offerings vary by country.
Contact your ISP for offerings available in
your country.

If you cannot connect to the Internet but
have successfully connected in the past,
theISP might have a service outage. Contact
your ISP to check the service status, or try
connecting again later.

Have your ISP information ready. If you do
not have an ISP, the Connect to the Internet
wizard can help you get one.

To set up your Internet connection:

1. Save and close any open files, and exit any

open programs.

2. Click Start

3. In the search box, type network, and then
click Network and Sharing
Center→ Set up a new connection or
network→ Connect to the Internet.

The Connect to the Internet window
appears.

NOTE: If you do not know which type
of connection to select, click Help me

choose or contact your ISP.

4. Follow the instructions on the screen and

use the setup information provided by your
ISP to complete the setup.

→ Control Panel.

Setting Up Your Inspiron Desktop

15

Using Your Inspiron Desktop

This section provides information about the features available on your inspiron desktop.

INSPIRON

Front View Features

1

2

3
4
5

6
7

16

Using Your Inspiron Desktop

1 Optical drive — Plays or records CDs,

DVDs, and Blu‑ray Discs (optional).

2 Media Card Reader — Provides a fast

and convenient way to view and share
digital photos, music, and videos stored
on a media card.

3

Headphone connector —

Connects to a pair of headphones.

NOTE: To connect to a powered
speaker or sound system, use the
line‑out connector at the back of your
computer.

4

Microphone or line-in

connector — Connects to a

microphone or inputs signal for use
with audio programs.

5

USB 2.0 connectors (2) —

Connect to USB devices, such as a
mouse, keyboard, printer, external drive,
or MP3 player.

17

Using Your Inspiron Desktop

6

Power button and light — Turns

the computer on or off when pressed.
The light in the center of this button
indicates the power state:

•Off — The computer is either turned
off, in hibernate mode, or is not
receiving power.

•Solid white — The computer is on.

•Solid amber — The computer is in

sleep/standby mode or there might
be a problem with the system board
or the power supply. Contact Dell
(see “Contacting Dell” on page 57)
for assistance.

•Blinking amber — There may be
a problem with either the system
board or the power supply. Contact
Dell (see “Contacting Dell” on
page57) for assistance.

NOTE: For information on power
problems, see “Power Problems” on
page 29.

18

7

Hard drive activity light — Turns

on when the computer reads or writes
data. A blinking white light indicates
hard drive activity.

CAUTION: To avoid loss of data,
never turn off the computer while
the hard drive activity light is
blinking.

Using Your Inspiron Desktop

19

Using Your Inspiron Desktop

Back View Features

1

2

7

6

20

3
4

5

Using Your Inspiron Desktop

1 Back panel connectors — Connect USB,

audio, video, and other devices to the
appropriate connectors.

2 Expansion card slots — Provide

access to connectors on any installed
PCIExpress cards.

3 Power supply light — Indicates power

availability of the power supply.

NOTE: The power supply light may not
be available on all computers.

4 Voltage selector switch — Allows you to

select the voltage rating appropriate for
your region.

5 Power connector — Connects to the

power cable. The appearance of this
connector may vary.

6 Security cable slot — Allows you to

attach a commercially available security
cable to the computer.

NOTE: Before you buy a security cable,
ensure that it fits into the security cable
slot on your computer.

7 Padlock rings — Allows you to

attach a standard padlock to prevent
unauthorized access to the interior of
your computer.

21

Using Your Inspiron Desktop

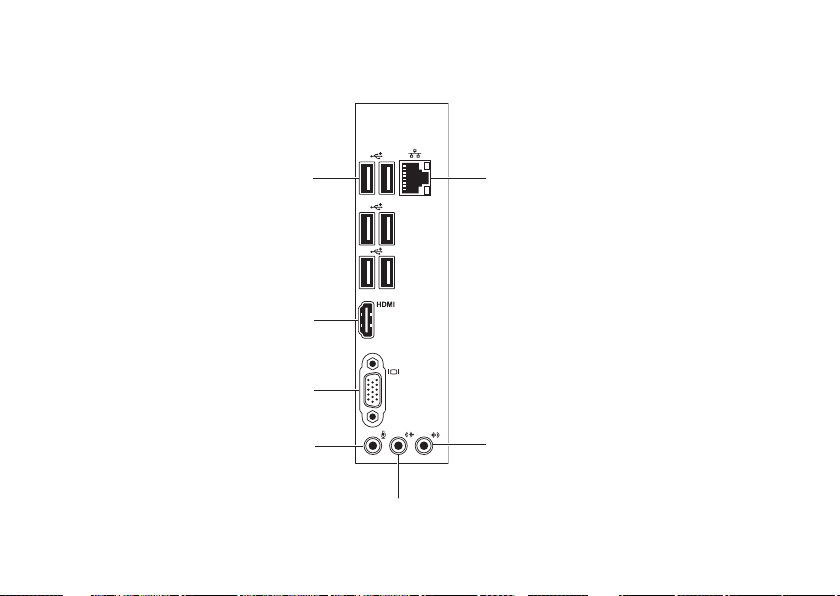

Back Panel Connectors

22

1

2

3

4

5

7

6

Using Your Inspiron Desktop

USB 2.0 connectors (6) —

1

Connect to USB devices, such as a
mouse, keyboard, printer, external drive,
or MP3 player.

HDMI connector — Connects to

2

the HDMI connector on your display
or TV.

VGA connector — Connects to a

3

monitor or projector.

Microphone connector —

4

Connects to amicrophone for voice or
to an audio cable for audio input.

Front L/R line-out connector —

5

Connects to front L/R speakers.

Line-in connector—Connects to

6

recording or playback devices such as
amicrophone, cassette player, CD
player, or VCR.

Network connector and light —

7

Connects your computer to a network
or a broadband device if you are using
a wired network. The two lights next to
the connector indicate the status and
activity for a wired network connection.

23

Using Your Inspiron Desktop

Software Features

Productivity and Communication

You can use your computer to create
presentations, brochures, greeting cards,
fliers, and spreadsheets. You can also edit and
view digital photographs and images. Check
your purchase order for software installed on
your computer.

After connecting to the Internet, you can
access websites, setup an e‑mail accout, and
upload or download files.

24

Entertainment and Multimedia

You can use your computer to watch videos,
play games, create your own CDs/DVDs/
Blu‑ray Discs (optional), listen to music and
radio stations. Your optical disc drive may
support multiple disc media formats including
CDs, DVDs, and Blu‑ray Discs (optional).

You can download or copy pictures and
video files from portable devices, such as
digital cameras and cell phones. Optional
software applications enable you to organize
and create music and video files that can
be recorded to a disc, saved on portable
products such as MP3 players and handheld
entertainment devices, or played and viewed
directly on connected TVs, projectors, and
home theater equipment.

Using Your Inspiron Desktop

Dell DataSafe Online Backup

NOTE: Dell DataSafe Online may not be

available in all regions.

NOTE: A broadband connection is
recommended for fast upload/download
speeds.

Dell DataSafe Online is an automated backup
and recovery service that helps protect
your data and other important files from
catastrophic incidents like theft, fire, or natural
disasters. You can access the service on
your computer using a password‑protected
account. For more information, go to

DellDataSafe.com.

To schedule backups:

1. Double‑click the Dell DataSafe Online

icon

in the notification area of your

desktop.

2. Follow the instructions that appear on the

screen.

Dell Stage

The Dell Stage software provides access
to your favorite media and multi‑touch
applications.

To launch Dell Stage, click Start

All Programs→ Dell Stage→ Dell Stage.

NOTE: Some of the applications on

DellStage can also be launched through
the All Programs menu.

You can customize Dell Stage as follows:

•Rearrange an application shortcut — Select
and hold the application shortcut until
it blinks and then drag the application
shortcut to a desired location on Dell
Stage.

•Minimize — Drag the Dell Stage window to
the bottom of the screen.

•Personalize — Select the settings icon and
then choose the desired option.

→

25

Using Your Inspiron Desktop

The following are the applications available on
Dell Stage:

NOTE: Some of the applications may not
be available based on the selections you
made while purchasing your computer.

• MUSIC — Play music or browse through
your music files by album, artist, or song
title. You can also listen to Internet radio
stations from across the globe. The
optional Napster application allows you to
download songs when connected to the
Internet.

• DOCUMENTS — Provides quick access to
the Documents folder on your computer.

• PHOTO — View, organize, or edit your
pictures. You can create slideshows
and collections of your pictures and
upload them to Facebook or Flickr when
connected to the Internet.

26

•DELL WEB — Provides a preview of up to
four of your favorite web pages. Click or
tap the web page preview to open it in the
web browser.

• VIDEO — View videos. The optional
CinemaNow application allows you to
purchase or rent movies and TV shows
when connected to the Internet.

• SHORTCUTS — Provides quick access to
your frequently‑used programs.

•Web Tile — Provides a preview of up to
four of your favorite web pages. The tile
allows you to add, edit, or delete a web
page preview. Click the web page preview
to open it in the web browser. You can also
create multiple Web Tiles through the Apps
Gallery.

Solving Problems

INSPIRON

This section provides troubleshooting
information for your computer. If you cannot
solve your problem using the following
guidelines, see “Using Support Tools” on
page34 or “Contacting Dell” on page57.

WARNING: Only trained service
personnel should remove the computer
cover. See the Service Manual at
support.dell.com/manuals for advanced
service instructions.

Beep Codes

Your computer might emit a series of beeps
during start‑up if there are errors or problems.
This series of beeps, called a beep code,
identifies a problem. If this occurs, write
down the beep code and contact Dell (see
“Contacting Dell” on page57) for assistance.

NOTE: To replace parts, see the Service
Manual at support.dell.com/manuals.

Beep
Code Possible Problem

One Possible system board failure —

BIOS ROM checksum failure

Two No RAM detected

NOTE: If you installed or
replaced the memory module,
ensure that the memory
module is seated properly.

Three Possible system board failure —

Chipset error

Four RAM read/write failure

Five Real Time Clock failure

Six Video card or chip failure

Seven Processor failure

27

Solving Problems

Network Problems

Wireless Connections

If the network connection is lost — The

wireless router is offline or wireless has been
disabled on the computer.

•Check your wireless router to ensure it is
powered on and connected to your data
source (cable modem or network hub).

•Re‑establish your connection to the
wireless router (see “Setting Up a Wireless
Connection” on page 14).

•Interference may be blocking or
interrupting your wireless connection.
Try moving the computer closer to your
wireless router.

28

Wired Connections

If the network connection is lost — The

network cable is loose or damaged.

•Check the network cable to ensure it is
plugged in and not damaged.

•The link integrity light on the integrated
network connector lets you verify that
your connection is working and provides
information on the status:

– Green (left) — A good connection exists

between a 10/100‑Mbps network and
the computer.

– Amber (left) — A good connection

exists between a 1000‑Mbps network
and the computer.

– Off — The computer is not detecting a

physical connection to the network.

NOTE: The link integrity light on the
network connector is only for the wired
connection. The link integrity light
does not provide status for wireless
connections.

Solving Problems

Power Problems

If the power light is off — The computer is in

hibernate mode, turned off, or is not receiving
power.

•Press the power button. The computer
resumes normal operation if it is off or in
hibernate mode.

•Reseat the power cable into the power
connector on the computer and the
electrical outlet.

•If the computer is plugged into a power
strip, ensure that the power strip is plugged
into an electrical outlet and that the power
strip is turned on.

•Temporarily bypass power protection
devices, power strips, and power extension
cables to verify that the computer turns on
properly.

•Ensure that the electrical outlet is working
by testing it with another device, such as
alamp.

•Ensure that the power supply light on the
back of the computer is on. If the light is
off there may be a possible problem with
the power supply or the power cable.

•If the problem persists, contact Dell (see
“Contacting Dell” onpage 57).

If the power light is solid white and the
computer is not responding — The display

may not be connected or powered on.

•Ensure that the display is properly connected
and then turn it off, then back on.

•If the problem persists, contact Dell (see
“Contacting Dell” onpage 57).

If the power light is solid amber —

The computer is in sleep/standby mode or
there might be a problem with the system
board or the power supply.

•Press a key on the keyboard, move the
connected mouse, or press the power
button to resume normal operation.

•If the problem persists, contact Dell (see
“Contacting Dell” onpage 57).

29

Solving Problems

If the power light is blinking amber — The

computer has detected an error during POST.
There might be a problem with the system
board or the power supply. For assistance,
contact Dell (see “Contacting Dell” on
page57).

If you encounter interference that hinders
reception on your computer — An unwanted

signal is creating interference by interrupting
or blocking other signals. Some possible
causes of interference are:

•Power, keyboard, and mouse extension
cables.

•Too many devices connected to a power
strip.

•Multiple power strips connected to the
same electrical outlet.

30

Memory Problems

If you receive an insufficient memory
message —

•Save and close any open files and exit any
open programs you are not using to see if
that resolves the problem.

•See the software documentation for
minimum memory requirements. If
necessary, install additional memory
(seetheService Manual at
support.dell.com/manuals).

•Reseat the memory modules (see the
Service Manual at
support.dell.com/manuals) to ensure
that your computer is successfully
communicating with the memory.

•If the problem persists, contact Dell (see
“Contacting Dell” onpage 57).

Solving Problems

If you experience other memory problems —

•Ensure that you are following the memory
installation guidelines (see the Service
Manual at support.dell.com/manuals).

•Check if the memory module is
compatible with your computer. Your
computer supports DDR3 memory. For
more information about the type of
memory supported by your computer, see
“Specifications” on page 60.

•Run Dell Diagnostics (see “Dell
Diagnostics” on page 38).

•Reseat the memory modules (see the
Service Manual at
support.dell.com/manuals) to ensure
that your computer is successfully
communicating with the memory.

•If the problem persists, contact Dell (see
“Contacting Dell” onpage 57).

Lockups and Software Problems

If the computer does not start up — Ensure

that the power cable is firmly connected to
the computer and to the electrical outlet.

If a program stops responding — End the
program:

1. Press <Ctrl><Shift><Esc> simultaneously.

2. Click Applications.

3. Click the program that is no longer

responding.

4. Click End Task.

If a program crashes repeatedly — Check

the software documentation. If necessary,
uninstall and then reinstall the program.

NOTE: Software usually includes
installation instructions in its
documentation or on CD.

31

Solving Problems

If the computer stops responding or a solid
blue screen appears —

CAUTION: You might lose data if you are
unable to perform an operating system
shutdown.

If you are unable to get a response by
pressing a key on your keyboard or moving
your mouse, press and hold the power button
for at least 8 to 10 seconds until the computer
turns off and then restart your computer.

32

If a program is designed for an earlier
Microsoft Windows operating system—

Run the Program Compatibility Wizard. The
Program Compatibility Wizard configures a
program so that it runs in an environment
similar to an earlier version of Microsoft
Windows operating system.

To run the Program Compatibility Wizard:

1. Click Start
Programs→ Run programs made for
previous versions of Windows.

2. In the welcome screen, click Next.

3. Follow the instructions on the screen.

→ Control Panel→

Solving Problems

If you have other software problems —

•Back up your files immediately.

•Use a virus‑scanning program to check the

hard drive or CDs.

•Save and close any open files or programs
and shut down your computer through the

Start

•Check the software documentation or
contact the software manufacturer for
troubleshooting information:

menu.

– Ensure that the program is compatible

with the operating system installed on
your computer.

– Ensure that your computer meets

the minimum hardware requirements
needed to run the software. See
the software documentation for
information.

– Ensure that the program is installed and

configured properly.

– Verify that the device drivers do not

conflict with the program.

– If necessary, uninstall and then reinstall

the program.

– Write down any error message that is

displayed to help in troubleshooting
when contacting Dell.

33

Using Support Tools

Dell Support Center

INSPIRON

All the support you need – one convenient
location.

The Dell Support Center provides system alerts,
performance improvement offers, system
information, and links to other Dell tools and
diagnostic services.

To launch the application, click Start

Programs→ Dell→ Dell Support Center→
Launch Dell Support Center.

The Dell Support Center home page displays
your computer’s model number, service tag,
express service code, warranty status, and
alerts on improving the performance of your
computer.

34

→ All

The home page also provides links to access:

PC Checkup — Run hardware diagnostics,
see which program occupies the maximum
memory on your hard drive, and track the
changes made to your computer each day.

PC Checkup Utilities

•Drive Space Manager — Manage your hard

drive using a visual representation of space
consumed by each type of file.

•Performance and Configuration
History — Monitor system events and

changes over time. This utility displays all
hardware scans, tests, system changes,
critical events and restoration points on
the day they occurred.

Using Support Tools

Detailed System Information — View

detailed information about your hardware
and operating system configurations; access
copies of your service contracts, warranty
information, and warranty renewal options.

Get Help — View Dell Technical Support
options, Customer Support, Tours and Training,
Online Tools, Owner’s Manual, Warranty
Information, FAQs, and so on.

Backup and Recovery — Create recovery
media, launch recovery tool, and online file
backup.

System Performance Improvement
Offers— Acquire software and hardware

solutions that will help improve your system
performance.

For more information about Dell
Support Center and to download and
install the available support tools, go to

DellSupportCenter.com.

My Dell Downloads

NOTE: My Dell Downloads may not be

available in all regions.

Some of the software pre‑installed on your
new Dell computer do not include a backup
CD or DVD. This software is available on
the My Dell Downloads website. From this
website you can download available software
for reinstallation or create your own backup
media.

To register and use My Dell Downloads:

1. Go to DownloadStore.dell.com/media.

2. Follow the instructions on the screen to

register and download the software.

3. Reinstall the software or create a backup

media for future use.

35

Using Support Tools

System Messages

If your computer has an issue or error, it may
display a system message that will help you
identify the cause and action needed to resolve
the issue.

NOTE: If the message that appeared is not
listed in the following examples, see the
documentation for either the operating
system or the program that was running
when the message appeared or contact
Dell (see “Contacting Dell” on page 57)
forassistance.

Alert! Previous attempts at booting this
system have failed at checkpoint [nnnn]. For
help in resolving this problem, please note
this checkpoint and contact Dell Technical
Support — The computer failed to complete

the boot routine three consecutive times for
the same error. Contact Dell (see “Contacting
Dell” on page 57) for assistance.

36

CMOS checksum error or RTC is reset, BIOS
Setup default has been loaded— Possible

system board failure or RTC battery low.
Replace thebattery (see the Service Manual
at support.dell.com/manuals) or Contact
Dell (see “Contacting Dell” on page 57) for
assistance.

CPU fan failure — CPU fan has failed. CPU fan
needs replacement. See the Service Manual at

support.dell.com/manuals.

Hard-disk drive failure — Possible hard‑disk

drive failure during POST. Contact Dell (see
“Contacting Dell” on page 57) for assistance.

Hard-disk drive read failure — Possible
hard‑disk drive failure during HDD boot
test. Contact Dell (see “Contacting Dell” on
page57) for assistance.

Keyboard failure — Replace the keyboard or
check the cable for loose connection.

Using Support Tools

No boot device available — No bootable

partition on hard drive, the hard drive cable is
loose, or no bootable device exists.

•If the hard drive is your boot device, ensure
that the cables are connected and that the
drive is installed properly and partitioned
as a boot device.

•Enter system setup and ensure that the
boot sequence information is correct
(seethe Service Manual at

support.dell.com/manuals).

No timer tick interrupt — A chip on the

systemboard might be malfunctioning or
there might be a system board failure (see the
Service Manual at support.dell.com/manuals)
or Contact Dell (see “Contacting Dell” on
page 57) for assistance.

USB over current error — Disconnect the
USB device. Your USB device needs more
power for it to function properly. Use an
external power source to connect the USB
device, or if your device has two USB cables,
connect both ofthem.

CAUTION - Hard Drive SELF MONITORING
SYSTEM has reported that a parameter has
exceeded its normal operating range. Dell
recommends that you back up your data
regularly. A parameter out of range may
or maynot indicate a potential hard drive
problem— S.M.A.R.T error, possible hard drive

failure. Contact Dell (see “Contacting Dell” on
page 57) for assistance.

37

Using Support Tools

Hardware Troubleshooter

If a device is either not detected during the
operating system setup or is detected but
incorrectly configured, you can use the
Hardware Troubleshooter to resolve the
incompatibility.

To start the Hardware Troubleshooter:

1. Click Start

2. Type hardware troubleshooter in the

search field and press <Enter> to start the
search.

3. In the search results, select the option that

best describes the problem and follow the
remaining troubleshooting steps.

38

→ Help and Support.

Dell Diagnostics

If you experience a problem with your
computer, perform the checks in “Lockups
and Software Problems” on page 31 and run
Dell Diagnostics before you contact Dell for
technical assistance.

Ensure that the device you want to test
displays in the system setup utility and is
active. To enter the system setup (BIOS)
utility, turn on (or restart) your computer and
press<F2> when the DELL logo appears.

Using Support Tools

Starting Dell ePSA Diagnostics

Enhanced Pre‑boot System Assessment (ePSA)
tests devices such as the system board,
keyboard, display, memory, hard drive, and
so on.

1. Turn on (or restart) your computer.

2. When the DELL logo appears, press <F12>

immediately.

NOTE: If you wait too long and the
operating system logo appears, continue
to wait until you see the Microsoft
Windows desktop; then, shut down your
computer and try again.

3. Select Diagnostics from the boot menu

and press <Enter>.

4. Follow the instructions on the screen.

If a device fails a test, the test stops and
the computer beeps. Write down the error
code(s) that appear on the screen and contact
Dell (see “Contacting Dell” on page 57) for
assistance.

•To stop ePSA and restart your computer,
press <n>.

•To continue to the next test, press <y>.

•To re‑run the failed test, press <r>.

If ePSA completes successfully, the following
message appears “Do you want to run

the remaining memory tests? This
will take about 30 minutes or
more. Do you want to continue?
(Recommended).”

If you are experiencing memory issues,
press<y>, otherwise press <n>. The following
message is displayed: “Enhanced Pre-boot
System Assessment Complete.”

5. Click Exit to restart your computer.

39

Using Support Tools

Starting Dell PC Checkup

Dell PC Checkup scans and tests your computer
hardware. It provides automated fixes for
common configuration issues.

1. Click Start
Dell Support Center→ Launch PC
Checkup.

2. Select the test you want to run and follow

the instructions on the screen.

NOTE: If a failure is reported after
the tests complete, make note of the
device(s) and the test(s) it failed. Contact
Dell (see “Contacting Dell” on page57)
for assistance.

3. Close the window to exit PC Checkup.

40

→ All Programs→ Dell→

Restoring Your Operating System

You can restore the operating system on your computer using any of the following options:

CAUTION: Using Dell Factory Image Restore or the
your operating system permanently deletes all data files on your computer. If possible,
backup your data files before using these options.

Option Use

System Restore as the first solution

Dell DataSafe Local Backup when System Restore does not resolve your problem

System recovery media when operating system failure prevents the use of

System Restore and DataSafe Local Backup

when installing the Dell factory‑installed software on a
newly installed hard drive

Dell Factory Image Restore to restore your computer to the operating state it was in

when you received your computer

Operating System disc to reinstall only the operating system on your computer

NOTE: The Operating System disc may not ship with your computer.

Operating System

disc to restore

INSPIRON

41

Restoring Your Operating System

System Restore

The Microsoft Windows operating systems
provide a System Restore option which allows
you to return your computer to an earlier
operating state (without affecting data files) if
changes to the hardware, software, or other
system settings have left the computer in an
undesirable operating state. Any changes that
System Restore makes to your computer are
completely reversible.

CAUTION: Make regular backups of
your data files. System Restore does not
monitor your data files or recover them.

42

Starting System Restore

1. Click Start .

2. In the search box, type System Restore

and press <Enter>.

NOTE: The User Account Control window
may appear. If you are an administrator on
the computer, click Continue; otherwise,
contact your administrator to continue the
desired action.

3. Click Next and follow the instructions on

the screen.

In the event that System Restore did not
resolve the issue, you may undo the last
system restore.

Restoring Your Operating System

Undoing the Last System Restore

NOTE: Before you undo the last system

restore, save and close all open files and
exit any open programs. Do not alter,
open, or delete any files or programs
until the system restoration is complete.

1. Click Start

2. In the search box, type System Restore

and press <Enter>.

3. Click Undo my last restoration and click
Next.

.

Dell DataSafe Local Backup

CAUTION: Using Dell DataSafe Local
Backup to restore your operating system
permanently removes any programs
or drivers installed after you received
your computer. Create backup media of
applications you need to install on your
computer before using Dell DataSafe
Local Backup. Use Dell DataSafe Local
Backup only if System Restore did not
resolve your operating system problem.

CAUTION: Although Dell DataSafe
Local Backup is designed to preserve
the data files on your computer, it is
recommended that you backup your
data files before using the Dell DataSafe
Local Backup.

NOTE: Dell DataSafe Local Backup may

not be available in all regions.

43

Restoring Your Operating System

NOTE: If Dell DataSafe Local Backup is

not available on your computer, use Dell
Factory Image Restore (see “Dell Factory
Image Restore” on page 47) to restore
your operating system.

You can use Dell DataSafe Local Backup to
restore your hard drive to the operating state
it was in when you purchased your computer,
while preserving the data files.

Dell DataSafe Local Backup allows you to:

•Backup and restore your computer to an
earlier operating state

•Create system recovery media (see “Create
System Recovery Media (Recommended)”
on page 12)

44

Dell DataSafe Local Backup Basic

To restore your operating system and Dell
factory‑installed software while preserving
the data files:

1. Turn off your computer.

2. Disconnect all the devices (USB drive,

printer, and so on) connected to the
computer and remove any newly added
internal hardware.

3. Turn on your computer.

4. When the DELL logo appears, press <F8>
several times to access the Advanced Boot
Options window.

NOTE: If you wait too long and the

operating system logo appears, continue
to wait until you see the Microsoft
Windows desktop; then, shut down your
computer and try again.

5. Select Repair Your Computer.

Restoring Your Operating System

6. Select Dell DataSafe Restore and
Emergency Backup from the System
Recovery Options menu and follow the

instructions on the screen.

NOTE: The restoration process may take
an hour or more depending on the size
of the data to be restored.

NOTE: For more information, see
knowledge base article 353560 at

support.dell.com.

Upgrading to Dell DataSafe Local
Backup Professional

NOTE: Dell DataSafe Local Backup

Professional may be installed on your
computer, if you ordered it at the time of
purchase.

Dell DataSafe Local Backup Professional
provides additional features that allow you to:

•Backup and restore your computer based
on file types

•Backup files to a local storage device

•Schedule automated backups

To upgrade to Dell DataSafe Local Backup
Professional:

1. Double‑click the Dell DataSafe Local

Backup icon
your desktop.

2. Click UPGRADE NOW!

3. Follow the instructions on the screen.

in the notification area of

45

Restoring Your Operating System

System Recovery Media

CAUTION: Although the system
recovery media is designed to preserve
the data files on your computer, it is
recommended that you backup your
data files before using the system
recovery media.

You can use the system recovery media,
created using Dell DataSafe Local Backup, to
return your hard drive to the operating state
it was in when you purchased the computer
while preserving the data files.

Use the system recovery media in case of:

•Operating system failure that prevents the
use of the recovery options installed on
your computer.

•Hard drive failure that prevents data from
being recovered.

46

To restore the operating system and Dell
factory‑installed software on your computer
using the system recovery media:

1. Insert the system recovery disc or USB key

and restart the computer.

2. When the DELL

immediately.

NOTE: If you wait too long and the
operating system logo appears, continue
to wait until you see the Microsoft
Windows desktop; then, shut down your
computer and try again.

3. Select the appropriate boot device from

the list and press <Enter>.

4. Follow the instructions on the screen.

logo appears, press <F12>

Restoring Your Operating System

Dell Factory Image Restore

CAUTION: Using Dell Factory Image
Restore to restore your operating
system permanently deletes all data
on the hard drive and removes any
programs or drivers installed after you
received your computer. If possible,
back up the data before using this
option. Use Dell Factory Image Restore
only if System Restore did not resolve
your operating system problem.

NOTE: Dell Factory Image Restore may

not be available in certain countries or on
certain computers.

NOTE: If Dell Factory Image Restore
is not available on your computer, use
Dell DataSafe Local Backup (see “Dell
DataSafe Local Backup” on page 43) to
restore your operating system.

Use Dell Factory Image Restore only as the
last method to restore your operating system.
This option restores your hard drive to the
operating state it was in when you purchased
the computer. Any programs or files added
since you received your computer—including
data files—are permanently deleted from the
hard drive. Data files include documents,
spreadsheets, e‑mail messages, digital photos,
music files, and so on. If possible, back up all
data before using Dell Factory Image Restore.

Starting Dell Factory Image
Restore

1. Turn on the computer.

2. When the DELL logo appears, press <F8>
several times to access the Advanced Boot
Options window.

NOTE: If you wait too long and the

operating system logo appears, continue
to wait until you see the Microsoft
Windows desktop; then, shut down your
computer and try again.

47

Restoring Your Operating System

3. Select Repair Your Computer.

The System Recovery Options window
appears.

4. Select a keyboard layout and click Next.

5. To access the recovery options, log on

as alocal user. To access the command
prompt, type administrator in the User

name field, then click OK.

6. Click Dell Factory Image Restore.

The Dell Factory Image Restore welcome
screen appears.

NOTE: Depending upon your
configuration, you may need to select

Dell Factory Tools, then Dell Factory
Image Restore.

7. Click Next.

The Confirm Data Deletion screen
appears.

NOTE: If you do not want to proceed
with the Factory Image Restore, click

Cancel.

48

8. Select the check box to confirm that you

want to continue to reformat the hard
drive and restore the system software to
the factory condition, then click Next.

The restore process begins and may
take five or more minutes to complete.
A message appears when the operating
system and factory‑installed applications
have been restored to factory condition.

9. Click Finish to restart the computer.

Getting Help

INSPIRON

If you experience a problem with your
computer, you can complete the following
steps to diagnose and troubleshoot the
problem:

1. See “Solving Problems” on page 27

for information and procedures that
pertain to the problem your computer is
experiencing.

2. See “Dell Diagnostics” on page 38 for

procedures on how to run Dell Diagnostics.

3. Fill out the “Diagnostic Checklist” on

page 56.

4. Use Dell’s extensive suite of online services

available at Dell Support
(support.dell.com) for help with
installation and troubleshooting
procedures. See “Online Services” on
page51 for a more extensive list of Dell
Support online.

5. If the preceding steps have not resolved the
problem, see “Before You Call” on page55.

NOTE: Call Dell Support from a
telephone near or at the computer so
that the support staff can assist you with
any necessary procedures.

NOTE: Dell’s Express Service Code system
may not be available in all countries.

When prompted by Dell’s automated
telephone system, enter your Express
Service Code to route the call directly to
the proper support personnel. If you do not
have an Express Service Code, open the Dell

Accessories folder, double‑click the Express
Service Code icon, and follow the directions.

NOTE: Some of the services are not

always available in all locations outside
the continental U.S. Call your local
Dell representative for information on
availability.

49

Getting Help

Technical Support and Customer Service

Dell’s support service is available to answer
your questions about Dell hardware. Our
support staff use computer‑based diagnostics
to provide fast, accurate answers.

To contact Dell’s support service, see “Before
You Call” on page 55 and then see the contact
information for your region or go to

support.dell.com.

50

DellConnect

DellConnect is a simple online access
tool that allows a Dell service and support
associate to access your computer through
a broadband connection, diagnose your
problem and repair it all under your
supervision. For more information, go to

www.dell.com/DellConnect.

Getting Help

Online Services

You can learn about Dell products and
services on the following websites:

•www.dell.com

•www.dell.com/ap (Asian/Pacific countries

only)

•www.dell.com/jp (Japan only)

•www.euro.dell.com (Europe only)

•www.dell.com/la (Latin American and

Caribbean countries)

•www.dell.ca (Canada only)

You can access Dell Support through the
following websites and e‑mail addresses:

Dell Support Websites

•support.dell.com

•support.jp.dell.com (Japan only)

•support.euro.dell.com (Europe only)

•supportapj.dell.com (Asia Pacific only)

Dell Support E-mail Addresses

•[email protected]

•[email protected]

•[email protected] (Latin America

and Caribbean countries only)

•[email protected] (Asian/Pacific

countries only)

Dell Marketing and Sales E-mail
Addresses

•[email protected] (Asian/Pacific

countries only)

•[email protected] (Canada only)

Anonymous File Transfer Protocol
(FTP)

•ftp.dell.com

Log in as user: anonymous, and use your
e‑mail address as your password.

51

Getting Help

Automated Order-Status Service

To check on the status of any Dell products
thatyou have ordered, you can go to
support.dell.com, or you can call the
automated order‑status service. A recording
prompts you for the information needed to
locate and report on your order.

If you have a problem with your order, such
as missing parts, wrong parts, or incorrect
billing, contact Dell for customer assistance.
Have your invoice or packing slip handy when
you call.

Forthe telephone number to call for your
region, see “Contacting Dell” on page 57.

52

Product Information

If you need information about additional
products available from Dell, or if you would
like to place an order, go to www.dell.com.
For the telephone number to call for your
region or to speak to a sales specialist, see
“Contacting Dell” on page 57.

Getting Help

Returning Items for Repair Under Warranty or for Credit

Prepare all items being returned, whether for
repair or credit, as follows:

NOTE: Before you return the product to
Dell, ensure that you back up any data
onthe hard drive(s) and on any other
storage device in the product. Remove
any and all confidential, proprietary
and personal information, as well as
removable media, such as CDs and media
cards. Dell is not responsible for any of
your confidential, proprietary or personal
information; lost or corrupted data; or
damaged or lost removable media that
may be included with your return.

1. Call Dell to obtain a Return Material
Authorization Number, and write it clearly
and prominently on the outside of the box.
For the telephone number to call for your
region, see “Contacting Dell” on page 57.

2. Include a copy of the invoice and a letter
describing the reason for the return.

3. Include a copy of the Diagnostics Checklist
(see “Diagnostic Checklist” on page 56),
indicating the tests that you have run and any
error messages reported by Dell Diagnostics
(see“Dell Diagnostics” onpage38).

4. Include any accessories that belong with
the item(s) being returned (AC adapter
cable, software, guides, and so on) if the
return is for credit.

53

Getting Help

5. Pack the equipment to be returned in the

original (or equivalent) packing materials.

NOTE: You are responsible for paying
shipping expenses. You are also
responsible for insuring any product
returned, and you assume the risk of
loss during shipment to Dell. Collect
On Delivery (C.O.D.) packages are not
accepted.

NOTE: Returns that are missing any of the
preceding requirements will be refused at
Dell’s receiving dock and returned to you.

54

Getting Help

Before You Call

NOTE: Have your Express Service Code ready when you call. The code helps Dell’s

automated‑support telephone system direct your call more efficiently. You may also be
asked for your Service Tag (located at the top of your computer).

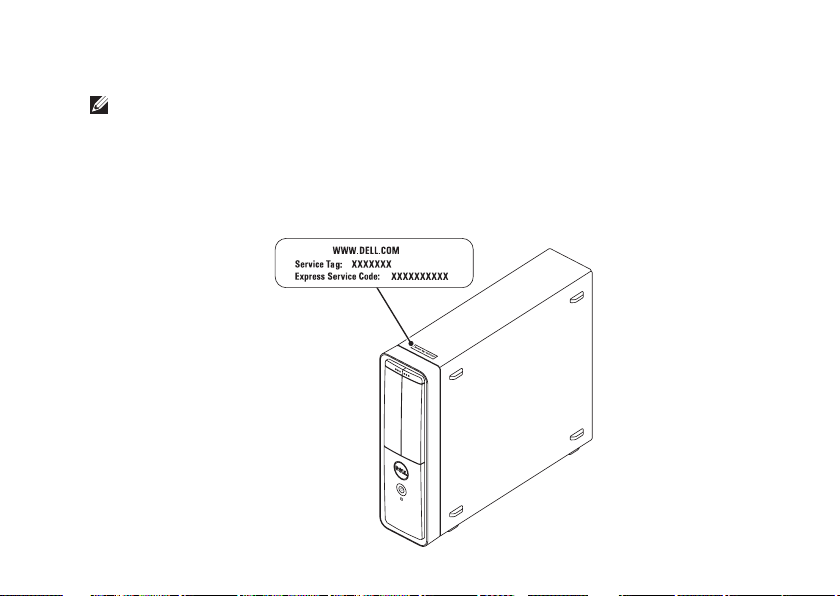

Locating Your Service Tag and Express Service Code

The Service Tag and Express Service Code for your computer can be found on a label at the top
of your computer.

55

Getting Help

Remember to fill out the following
Diagnostics Checklist. If possible, turn on your
computer before you call Dell for assistance
and call from a telephone at or near the
computer. You may be asked to type some
commands at the keyboard, relay detailed
information during operations, or try other
troubleshooting steps possible only at the
computer itself. Ensure that the computer
documentation is available.

56

Diagnostic Checklist

•Name:

•Date:

•Address:

•Phone number:

•Service Tag and Express Service Code

(located on a label at the top of the
computer):

•Return Material Authorization Number
(ifprovided by Dell support technician):

•Operating system and version:

•Devices:

•Expansion cards:

•Are you connected to a network? Yes/No

•Network, version, and network adapter:

•Programs and versions:

Getting Help

See your operating system documentation
to determine the contents of the computer’s
start‑up files. If the computer is connected to
a printer, print each file. Otherwise, record the
contents of each file before calling Dell.

•Error message, beep code, or diagnostic
code:

•Description of problem and
troubleshooting procedures you
performed:

Contacting Dell

For customers in the United States, call
800‑WWW‑DELL (800‑999‑3355).

NOTE: If you do not have an active
Internet connection, you can find contact
information on your purchase invoice,
packing slip, bill, or Dell product catalog.

Dell provides several online and telephone‑
based support and service options. Availability
varies by country and product, and some
services may not be available in your area.

To contact Dell for sales, technical support, or
customer service issues:

1. Go to www.dell.com/ContactDell.

2. Select your country or region.

3. Select the appropriate service or support

link based on your requirement.

4. Choose the method of contacting Dell that

is convenient for you.

57

Finding More Information and Resources

If you need to: See:

INSPIRON

reinstall your operating system “System Recovery Media” on page 46

run a diagnostic program for your computer “Dell Diagnostics” on page 38

reinstall system software “My Dell Downloads” on page 35

for more information about the Microsoft
Windows operating system and features

upgrade your computer with new or
additional components like a new hard drive

reinstall or replace a worn or defective part

58

support.dell.com

the Service Manual at

support.dell.com/manuals

NOTE: In some countries, opening and

replacing parts of your computer may
void your warranty. Check your warranty
and return policies before working inside
your computer.

If you need to: See:

find safety best practices information for your
computer

review Warranty information, Terms and
Conditions (U.S. only), Safety instructions,
Regulatory information, Ergonomics
information, and End User License Agreement

find your Service Tag/Express Service Code —
You must use the service tag to identify your
computer on support.dell.com or to contact
technical support

find drivers and downloads; readme files

access technical support and product help

check on your order status for new purchases

find solutions and answers to common
questions

locate information for last‑minute updates
about technical changes to your computer
or advanced technical‑reference material for
technicians or experienced users

the safety and regulatory documents that
shipped with your computer and also see the
Regulatory Compliance Homepage at

www.dell.com/regulatory_compliance

the top of your computer

“Dell Support Center” on page 34

support.dell.com

Finding More Information and Resources

59

Specifications

This section provides information that you may need when setting up, updating drivers for, and

INSPIRON

upgrading your computer.

NOTE: Offerings may vary by region. For more information regarding the configuration of
your computer, see the Detailed System Information section in the Dell Support Center.
To launch the Dell Support Center, click Start

Dell Support Center→ Launch Dell Support Center.

→ All Programs→ Dell→

Computer Model

Dell Inspiron 620s

Processor

Type Intel Core i3

Intel Core i5

Intel Celeron

Intel Pentium Dual Core

System Chipset

Type Intel H61

60

Drives

Internally
accessible

Externally
accessible

one 3.5‑inch bay for SATA
hard drive

one 5.25‑inch bay for tray‑
load SATA DVD+/‑RW/
Blu‑ray Disc combo
(optional)/
Blu‑ray Disc rewritable
(optional)

Specifications

Memory

Memory module
connectors

Memory module
capacities

Memory type 1333 MHz DDR3 non‑

Minimum
memory

Maximum
memory

Possible memory
configurations

NOTE: For instructions on upgrading
the memory, see the Service Manual at
support.dell.com/manuals.

two user‑accessible
connectors

1 GB, 2 GB, and 4 GB

ECC memory only

1 GB

8 GB

2 GB, 3 GB, 4 GB, 6
GB, and 8 GB

Audio

Audio controller Integrated 5.1 channel;

High Definition Audio

Video

UMA

Video
controller

Discrete

Video
controller

Intel HD Graphics

AMD Radeon HD 6450

61

Specifications

Internal Connectors

PCI Express x1 three 36‑pin connectors

PCI Express x16 one 164‑pin connector

SATA four 7‑pin connectors

External Connectors

Audio:

Front panel one stereo headphones/

speakers connector
and one microphone‑in
connector

Back panel three connectors for 5.1

channel support

Network adapter one RJ45 connector

62

External Connectors

USB two front‑panel and

six back‑panel USB 2.0
compliant connectors

VGA one 15‑hole connector

HDMI one 19‑pin connector

Media Card
Reader

one 8‑in‑1 card reader

Battery

Type 3 V CR‑2032 lithium

coin‑cell

Specifications

Power

Power Supply

Wattage 250 W

Input voltage 100‑127 VAC/

200‑240 VAC

Input frequency 50/60 Hz

Input current 8 A/4 A

Communication

Network adapter 10/100/1000 Ethernet

LAN on system board

Wireless
(optional)

Wi‑Fi

Physical

Height 369 mm (14.52 inches)

Width 110 mm (4.33 inches)

Depth 437 mm (17.20 inches)

Weight 7.50 kg (16.53 lb)

63

Specifications

Computer Environment

Temperature range:

Operating 10°C to 35°C

(50°F to 95°F)

Storage –40°C to 65°C

(–40°F to 149°F)

Relative humidity
(maximum)

Maximum shock (for operating — measured
with Dell Diagnostics running on the hard
drive and a 2‑ms half‑sine pulse; for
non‑operating — measured with the hard
drive in head‑parked position and a 2‑ms
half‑sine pulse):

Operating 40 G for 2 ms with a

Non‑
Operating

64

20% to 80%
(noncondensing)

change in velocity of
20 in/s (51 cm/s)

105 G for 2 ms with a
change in velocity of
50 in/s (127 cm/s)

Computer Environment

Maximum vibration (using a random
vibration spectrum that simulates user
environment):

Operating 0.25 GRMS

Non‑
Operating

Altitude (maximum):

Operating –15.2 to 3048 m

Storage –15.2 to 10,668 m

Airborne
contaminant
level

2.20 GRMS

( –50 to 10,000 ft)

(–50 to 35,000 ft)

G2 or lower as defined
by ISA‑S71.04‑1985

Appendix

Information for NOM, or Official Mexican Standard (Only for Mexico)

The following information is provided in the device(s) described in this document in
accordance with the requirements of the Official Mexican Standard (NOM):

Importer:

Dell México S.A. de C.V.

Paseo de la Reforma 2620 – Flat 11°

Col. Lomas Altas

11950 México, D.F.

INSPIRON

Regulatory
Model Number Regulatory Type Input Voltage

D06D D06D001 115/230 VAC 50/60 Hz 5 A/1.8 A

For details, read the safety information that shipped with your computer.

For additional safety best practices information, see www.dell.com/regulatory_compliance.

Input
Frequency

Rated Output
Current

6 A/3 A

65

Index

C

INSPIRON

calling Dell 55

CDs, playing and creating 24

computer capabilities 24

connect(ing)

display 6

optional network cable 9

to the Internet 13

Contacting Dell online 57

customer service 50

D

DataSafe Local Backup 43

DellConnect 50

Dell Factory Image Restore 47

Dell Stage 25

Diagnostic Checklist 56

66

drivers and downloads 59

DVDs, playing and creating 24

E

e‑mail addresses

for technical support 51

F

finding more information 58

front‑side connectors 16

FTP login, anonymous 51

H

hard drive activity light 18

hardware problems

diagnosing 38

Hardware Troubleshooter 38

Index

HDMI connector 23

help

getting assistance and support 49

I

Internet connection 13

ISP

Internet Service Provider 13

M

memory problems

solving 30

N

network connection

fixing 28

network connector

location 23

P

problems, solving 27

products

information and purchasing 52

R

resources, finding more 58

restoring factory image 47

S

security cable slot 21

Service Tag 55

shipping products

for return or repair 53

software features 24

software problems 31

solving problems 27

specifications 60

support e‑mail addresses 51

67

Index

support sites

worldwide 51

System Messages 36

System Recovery Media 46

system reinstall options 41

System Restore 42

T

TV tuner 13

U

USB 2.0

back connectors 23

front connectors 17

W

warranty returns 53

Windows

Program Compatibility Wizard 32

wireless network connection 28

68
