Page 1

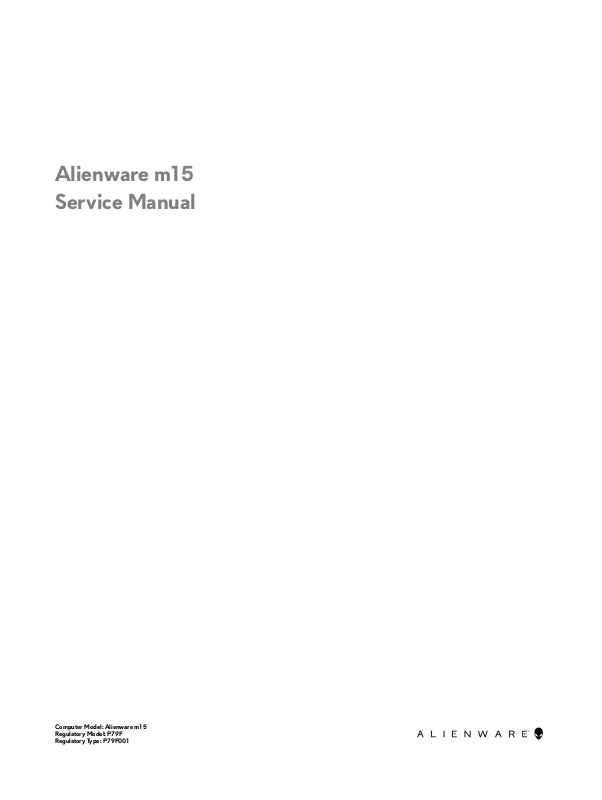

Alienware m15
Service Manual
Computer Model: Alienware m15
Regulatory Model: P79F
Regulatory Type: P79F001
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2018-2019 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.
2019 - 03
Rev. A02
Page 3
Contents
Before working inside your computer................................................................................8
Before you begin ................................................................................................................................................8
After working inside your computer..................................................................................9
Safety instructions............................................................................................................ 10
Electrostatic discharge—ESD protection.............................................................................................................10
ESD eld service kit ...........................................................................................................................................11
Components of an ESD eld service kit..........................................................................................................11
ESD protection summary .............................................................................................................................. 11
Transporting sensitive components......................................................................................................................12
Lifting equipment ........................................................................................................................................12
Recommended tools.......................................................................................................... 13
Screw list............................................................................................................................14
Removing the base cover.................................................................................................. 16
Procedure......................................................................................................................................................... 16
Replacing the base cover.................................................................................................. 19
Procedure......................................................................................................................................................... 19
Removing the battery (half-length).................................................................................22
Prerequisites..................................................................................................................................................... 22
Procedure.........................................................................................................................................................22
Replacing the battery (half-length).................................................................................23
Procedure ........................................................................................................................................................ 23
Post-requisites...................................................................................................................................................23
Removing the battery (full-length)..................................................................................24
Prerequisites..................................................................................................................................................... 24
Procedure.........................................................................................................................................................24
Replacing the battery (full-length)..................................................................................25
Procedure ........................................................................................................................................................25
Post-requisites.................................................................................................................................................. 25
Removing the hard drive.................................................................................................. 26
Prerequisites..................................................................................................................................................... 26
Procedure.........................................................................................................................................................26
3
Page 4
Replacing the hard drive.................................................................................................. 28
Procedure.........................................................................................................................................................28
Post-requisites.................................................................................................................................................. 30
Removing the memory modules........................................................................................31
Prerequisites......................................................................................................................................................31
Procedure..........................................................................................................................................................31
Replacing the memory modules....................................................................................... 33
Procedure ........................................................................................................................................................ 33
Post-requisites...................................................................................................................................................33
Removing the heat sink.................................................................................................... 34
Prerequisites..................................................................................................................................................... 34
Procedure.........................................................................................................................................................34
Replacing the heat sink.....................................................................................................36
Procedure ........................................................................................................................................................36
Post-requisites...................................................................................................................................................37
Removing the fans............................................................................................................ 38
Prerequisites..................................................................................................................................................... 38
Procedure.........................................................................................................................................................38
Replacing the fans............................................................................................................ 40
Procedure ........................................................................................................................................................40
Post-requisites...................................................................................................................................................41
Removing the wireless card..............................................................................................42
Prerequisites..................................................................................................................................................... 42
Procedure.........................................................................................................................................................42
Replacing the wireless card..............................................................................................44
Procedure.........................................................................................................................................................44
Post-requisites.................................................................................................................................................. 45
Removing the solid-state drive/Intel Optane memory module..................................... 46
Prerequisites..................................................................................................................................................... 46
Procedure to remove M.2 2230 solid-state drive................................................................................................46
Procedure to remove M.2 2280 solid-state drive................................................................................................ 47
Replacing the solid-state drive/Intel Optane memory module..................................... 49
Procedure to replace M.2 2230 solid-state drive................................................................................................49
Procedure to replace M.2 2280 solid-state drive.................................................................................................51
Post-requisites.................................................................................................................................................. 52
4
Page 5
Removing the I/O board..................................................................................................53
Prerequisites..................................................................................................................................................... 53
Procedure.........................................................................................................................................................53
Replacing the I/O board..................................................................................................55
Procedure.........................................................................................................................................................55
Post-requisites.................................................................................................................................................. 56
Removing the coin-cell battery........................................................................................57
Prerequisites..................................................................................................................................................... 57
Procedure.........................................................................................................................................................57
Replacing the coin-cell battery........................................................................................ 58
Procedure.........................................................................................................................................................58
Post-requisites.................................................................................................................................................. 58
Removing the touchpad....................................................................................................59
Prerequisites.....................................................................................................................................................59
Procedure.........................................................................................................................................................59
Replacing the touchpad....................................................................................................60
Procedure........................................................................................................................................................ 60
Post-requisites...................................................................................................................................................61
Removing the speakers.....................................................................................................62
Prerequisites..................................................................................................................................................... 62
Procedure.........................................................................................................................................................62
Replacing the speakers.....................................................................................................63
Procedure ........................................................................................................................................................63
Post-requisites...................................................................................................................................................63
Removing the power-adapter port.................................................................................. 64
Prerequisites..................................................................................................................................................... 64
Procedure.........................................................................................................................................................64
Replacing the power-adapter port.................................................................................. 65
Procedure.........................................................................................................................................................65
Post-requisites.................................................................................................................................................. 65
Removing the display assembly....................................................................................... 66
Prerequisites.....................................................................................................................................................66
Procedure.........................................................................................................................................................66
5
Page 6
Replacing the display assembly....................................................................................... 69
Procedure.........................................................................................................................................................69
Post-requisites................................................................................................................................................... 71
Removing the system board............................................................................................. 72
Prerequisites..................................................................................................................................................... 72
Procedure.........................................................................................................................................................72
Replacing the system board............................................................................................. 76
Procedure ........................................................................................................................................................ 76
Post-requisites...................................................................................................................................................78
Entering the Service Tag in the BIOS setup program............................................................................................78
Removing the power-button board..................................................................................79
Prerequisites..................................................................................................................................................... 79
Procedure.........................................................................................................................................................79
Replacing the power-button board................................................................................. 80
Procedure.........................................................................................................................................................80
Post-requisites.................................................................................................................................................. 80
Removing the keyboard....................................................................................................81
Prerequisites......................................................................................................................................................81
Procedure..........................................................................................................................................................81
Replacing the keyboard....................................................................................................83
Procedure.........................................................................................................................................................83
Post-requisites.................................................................................................................................................. 90
Removing the palm rest.................................................................................................... 91
Prerequisites......................................................................................................................................................91
Procedure......................................................................................................................................................... 91
Replacing the palm rest.................................................................................................... 93
Procedure.........................................................................................................................................................93
Post-requisites...................................................................................................................................................93
Device drivers................................................................................................................... 95
Intel Chipset Software Installation Utility............................................................................................................95
Video drivers.................................................................................................................................................... 95
Intel Serial IO driver.......................................................................................................................................... 95
Intel Trusted Execution Engine Interface.............................................................................................................95
Intel Virtual Button driver..................................................................................................................................95
Wireless and Bluetooth drivers...........................................................................................................................95
6
Page 7
System setup.....................................................................................................................96
BIOS overview..................................................................................................................................................96
Entering BIOS setup program............................................................................................................................96
Navigation keys................................................................................................................................................ 96
Boot Sequence................................................................................................................................................. 96
System setup options......................................................................................................................................... 97
Clearing CMOS settings..................................................................................................................................100
Clearing BIOS (System Setup) and System passwords........................................................................................ 101
Troubleshooting.............................................................................................................. 102
Flashing the BIOS............................................................................................................................................102
Flashing BIOS (USB key)................................................................................................................................. 102
Enhanced Pre-Boot System Assessment (ePSA) diagnostics...............................................................................102
Running the ePSA diagnostics.................................................................................................................... 103
System diagnostic lights...................................................................................................................................103
Enabling Intel Optane memory........................................................................................................................ 104
Disabling Intel Optane memory........................................................................................................................104
WiFi power cycle............................................................................................................................................ 104
Flea power release.......................................................................................................................................... 105
Getting help and contacting Alienware.........................................................................106
Self-help resources..........................................................................................................................................106
Contacting Alienware......................................................................................................................................106
7
Page 8
Before working inside your computer
NOTE: The images in this document may dier from your computer depending on the conguration you ordered.
Before you begin
1 Save and close all open les and exit all open applications.
2 Shut down your computer. Click Start → Power → Shut down.
NOTE: If you are using a dierent operating system, see the documentation of your operating system for shut-
down instructions.
3 Disconnect your computer and all attached devices from their electrical outlets.
4 Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.
5 Remove any media card and optical disc from your computer, if applicable.
8
Page 9
After working inside your computer
CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.
1 Replace all screws and ensure that no stray screws remain inside your computer.
2 Connect any external devices, peripherals, or cables you removed before working on your computer.
3 Replace any media cards, discs, or any other parts that you removed before working on your computer.
4 Connect your computer and all attached devices to their electrical outlets.
5 Turn on your computer.
9
Page 10
Safety instructions
Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For
more safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you nish working
inside the computer, replace all covers, panels, and screws before connecting to the electrical outlet.
CAUTION: To avoid damaging the computer, ensure that the work surface is at and clean.
CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching pins and
contacts.
CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical
assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the
safety instructions that shipped with the product or at www.dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface,
such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to
dissipate static electricity, which could harm internal components.
CAUTION: When you disconnect a cable, pull on its connector or on its pull tab, not on the cable itself. Some cables
have connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When
disconnecting cables, keep them evenly aligned to avoid bending any connector pins. When connecting cables,
ensure that the ports and connectors are correctly oriented and aligned.
CAUTION: Press and eject any installed card from the media-card reader.
Electrostatic discharge—ESD protection
ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards,
processors, memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such
as intermittent problems or a shortened product life span. As the industry pushes for lower power requirements and increased
density, ESD protection is an increasing concern.
Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than
in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.
Two recognized types of ESD damage are catastrophic and intermittent failures.
• Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an
immediate and complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has
received a static shock and immediately generates a "No POST/No Video" symptom with a beep code emitted for missing
or nonfunctional memory.
• Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of
intermittent failures means that most of the time when damage occurs, it is not immediately recognizable. The DIMM
receives a static shock, but the tracing is merely weakened and does not immediately produce outward symptoms related to
the damage. The weakened trace may take weeks or months to melt, and in the meantime may cause degradation of
memory integrity, intermittent memory errors, etc.
The more dicult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded")
failure.
Perform the following steps to prevent ESD damage:
• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do
not provide adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on
parts with increased sensitivity to ESD damage.
• Handle all static-sensitive components in a static-safe area. If possible, use anti-static oor pads and workbench pads.
10
Page 11
• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static
packing material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you
discharge static electricity from your body.
• Before transporting a static-sensitive component, place it in an anti-static container or packaging.
ESD eld service kit
The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main
components: anti-static mat, wrist strap, and bonding wire.
Components of an ESD eld service kit
The components of an ESD eld service kit are:
• Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an
anti-static mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal
on the system being worked on. Once deployed properly, service parts can be removed from the ESD bag and placed
directly on the mat. ESD-sensitive items are safe in your hand, on the ESD mat, in the system, or inside a bag.
• Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist
and bare metal on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that
is temporarily placed on the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD
mat, and the hardware is known as bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use
wireless wrist straps. Always be aware that the internal wires of a wrist strap are prone to damage from normal wear and
tear, and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is
recommended to test the wrist strap and bonding wire at least once per week.
• ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit,
it is a best practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap
tester is the best method for doing this test. If you do not have your own wrist strap tester, check with your regional oce to
nd out if they have one. To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your
wrist and push the button to test. A green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test
fails.
• Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts
that are insulators and often highly charged.
• Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For
example, deploying the kit for a server environment is dierent than for a desktop or portable environment. Servers are
typically installed in a rack within a data center; desktops or portables are typically placed on oce desks or cubicles.
Always look for a large open at work area that is free of clutter and large enough to deploy the ESD kit with additional
space to accommodate the type of system that is being repaired. The workspace should also be free of insulators that can
cause an ESD event. On the work area, insulators such as Styrofoam and other plastics should always be moved at least 12
inches or 30 centimeters away from sensitive parts before physically handling any hardware components.
• ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded
bags are preferred. However, you should always return the damaged part using the same ESD bag and packaging that the
new part arrived in. The ESD bag should be folded over and taped shut and all the same foam packing material should be
used in the original box that the new part arrived in. ESD-sensitive devices should be removed from packaging only at an
ESD-protected work surface, and parts should never be placed on top of the ESD bag because only the inside of the bag is
shielded. Always place parts in your hand, on the ESD mat, in the system, or inside an anti-static bag.
• Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to
be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.
ESD protection summary
It is recommended that all eld service technicians use the traditional wired ESD grounding wrist strap and protective antistatic mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from
all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.
11
Page 12
Transporting sensitive components
When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place
these parts in anti-static bags for safe transport.
Lifting equipment
Adhere to the following guidelines when lifting heavy weight equipment:
CAUTION: Do not lift greater than 50 pounds. Always obtain additional resources or use a mechanical lifting device.
1 Get a rm balanced footing. Keep your feet apart for a stable base, and point your toes out.
2 Tighten stomach muscles. Abdominal muscles support your spine when you lift, osetting the force of the load.
3 Lift with your legs, not your back.
4 Keep the load close. The closer it is to your spine, the less force it exerts on your back.
5 Keep your back upright, whether lifting or setting down the load. Do not add the weight of your body to the load. Avoid
twisting your body and back.
6 Follow the same techniques in reverse to set the load down.
12
Page 13
Recommended tools
The procedures in this document may require the following tools:
• Philips screwdriver #1
• Flat-head screwdriver
• Plastic scribe
13
Page 14
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw
type is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the conguration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest assembly M2.5x10 6
Base cover Palm-rest assembly M2.5x10 2
Battery (Half-length) Palm-rest assembly M2x5 4
Battery (Full-length) Palm-rest assembly M2x5 6
Hard-drive assembly Palm-rest assembly M2x5 4
Heat-sink assembly System board M2x3 5
Heat-sink assembly System board M2x5 1
Fan Heat sink M2x3 2
Wireless-card bracket System board M2x3 1
Solid-state drive bracket Palm-rest assembly M2x3 1
Solid-state drive Solid-state drive bracket M2x2 1

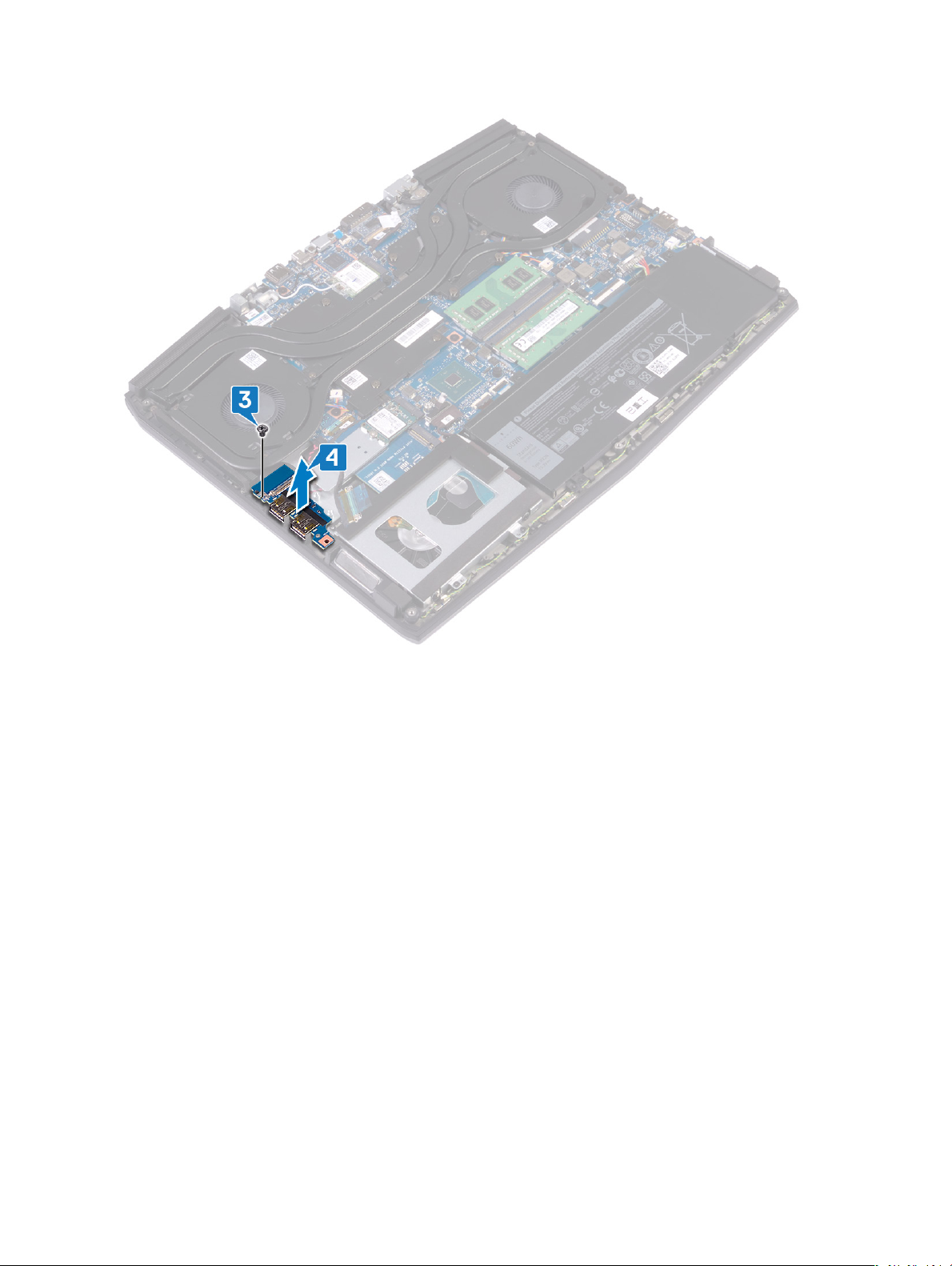

I/O board Palm-rest assembly M2x5 1
Touchpad Palm-rest assembly M2x2.5 4
14
Page 15
Component Secured to Screw type Quantity Screw image
Hinges Palm-rest assembly M2.5x2.5 2
Power-adapter port System board and palm-
rest assembly
Power-button board Palm-rest assembly M2x3 3
USB Type-C port
bracket
System board Palm-rest assembly M2x2 5

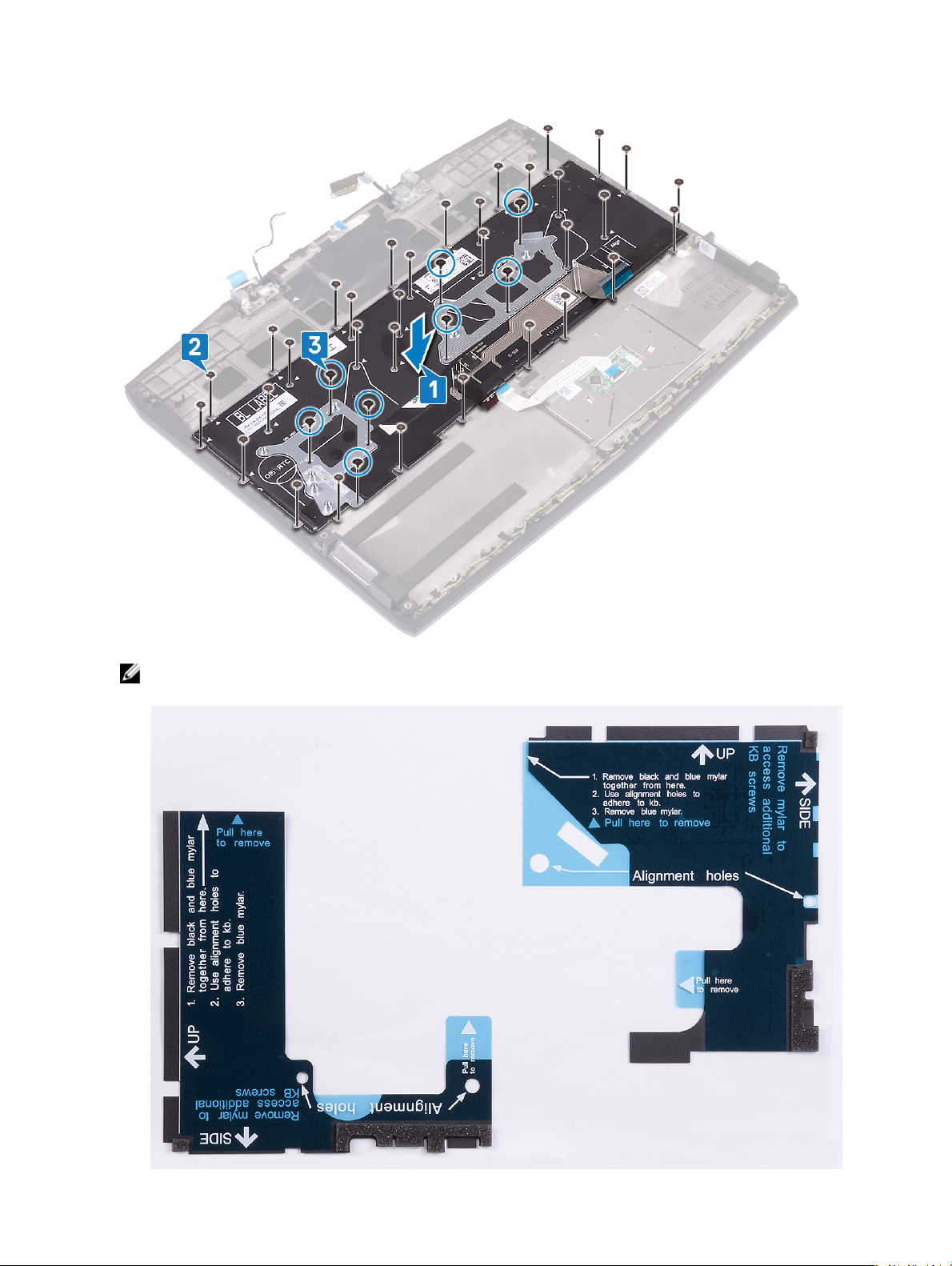

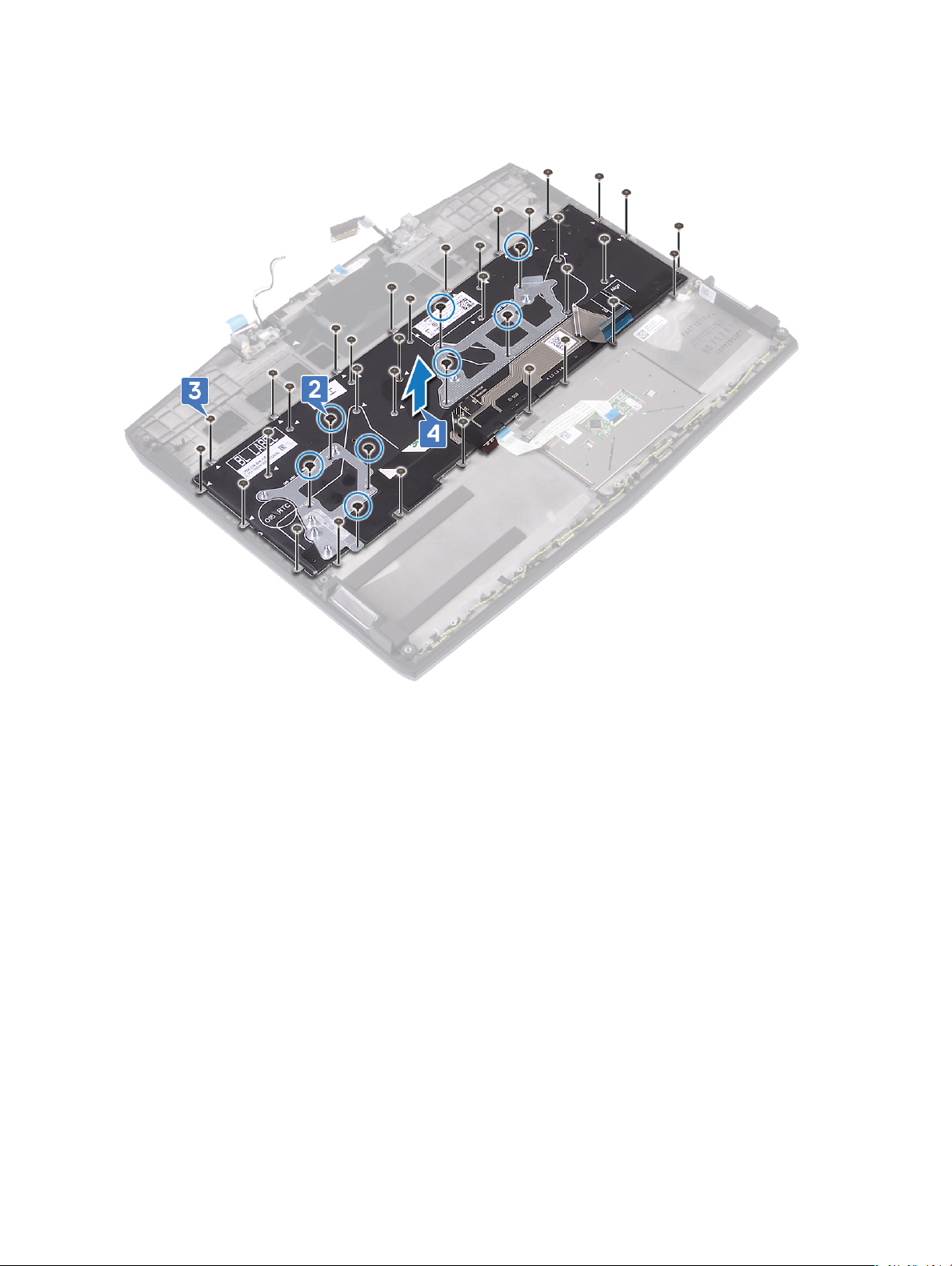

Keyboard bracket Palm-rest assembly M1.2x2.2 8
Keyboard Palm-rest assembly M1.2x1.9 33
System board M2x3 1
M2x3 1
15
Page 16
Removing the base cover
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Loosen the three captive screws on the base cover.
2 Remove the six screws (M2.5x10) that secure the base cover to the palm-rest assembly.
3 Remove the two screws (M2.5x10) from the back that secure the base cover to the palm-rest assembly.
4 Using a plastic scribe, pry the base cover from the computer base.
16
Page 17
5 Rotate the base cover from front to back and remove the base cover o the palm-rest assembly.
17
Page 18
6 Using the pull tab, disconnect the battery cable from the system board.
7 Press and hold the power button for 5 seconds to ground the computer and drain the ea power.
18
Page 19
Replacing the base cover
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Connect the battery cable to the system board.
19
Page 20
2 Rotate the cover from back to front and place the base cover on the palm-rest assembly, and snap the base cover into
place.
3 Tighten the captive screws on the base cover.
4 Replace the six screws (M2.5x10)that secure the base cover to the palm-rest assembly.
20
Page 21
5 Replace the two screws (M2.5x10) in the back that secure the base cover to the palm-rest assembly.
21
Page 22
Removing the battery (half-length)
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Using the pull tab, disconnect the battery cable from the system board (applicable only if not disconnected earlier).
2 Remove the four screws (M2x5) that secure the battery to the palm-rest assembly.
3 Lift the battery o the palm-rest assembly.
22
Page 23
Replacing the battery (half-length)
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the battery with the screw holes on the palm-rest assembly.
2 Replace the four screws (M2x5) that secure the battery to the palm-rest assembly.
3 Connect the battery cable to the system board.
Post-requisites
Replace the base cover.
23
Page 24
Removing the battery (full-length)
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Using the pull tab, disconnect the battery cable from the system board (applicable only if not disconnected earlier).
2 Remove the six screws (M2x5) that secure the battery to the palm-rest assembly.
3 Lift the battery o the palm-rest assembly.
24
Page 25
Replacing the battery (full-length)
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the battery with the screw holes on the palm-rest assembly.
2 Replace the six screws (M2x5) that secure the battery to the palm-rest assembly.
3 Connect the battery cable to the system board.
Post-requisites
Replace the base cover.
25
Page 26
Removing the hard drive
If your computer is using a SATA storage device accelerated by Intel Optane memory, disable Intel Optane before removing
the SATA storage device. For more information about disabling the Intel Optane, see Disabling Intel Optane.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.
Prerequisites
Remove the base cover.
Procedure
NOTE: The hard drive is not available on systems shipped with 6-cell (full-length) battery.
1 Using the pull tab, disconnect the hard-drive cable from the system board.
2 Remove the four screws (M2x5) that secure the hard-drive assembly to the palm-rest assembly.
3 Lift the hard-drive assembly along with its cable o the palm-rest assembly.
26
Page 27
4 Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
5 Lift the hard drive o the hard-drive bracket.
6 Disconnect the interposer from the hard-drive assembly.
27
Page 28
Replacing the hard drive
Enable Intel Optane after replacing the SATA storage. For more information about enabling the Intel Optane, see Enabling
Intel Optane.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.
Procedure
NOTE: The hard drive is not available on systems shipped with 6-cell (full-length) battery.
1 Connect the interposer to the hard-drive assembly.
Place the hard-drive bracket on the hard drive and align the screw holes on the hard-drive bracket with the screw holes on
2
the hard drive.
28
Page 29
3 Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
4 Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.
5 Replace the four screws (M2x5) that secure the hard-drive assembly to the palm-rest assembly.
6 Connect the hard-drive cable to the system board.
29
Page 30
Post-requisites
Replace the base cover.
30
Page 31

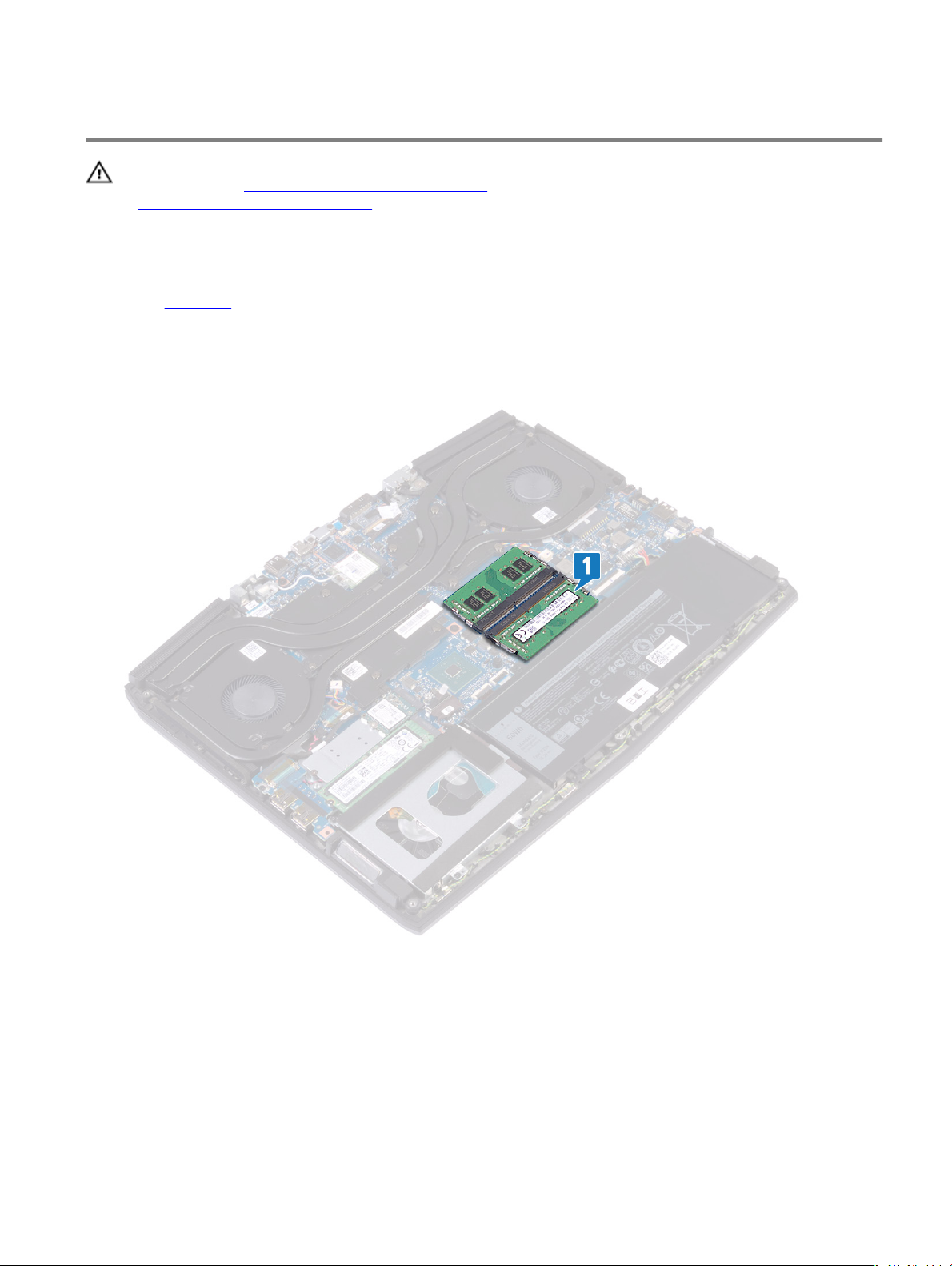

Removing the memory modules
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Locate the memory modules on your computer.
2 Use your ngertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory
module pops up.
31
Page 32

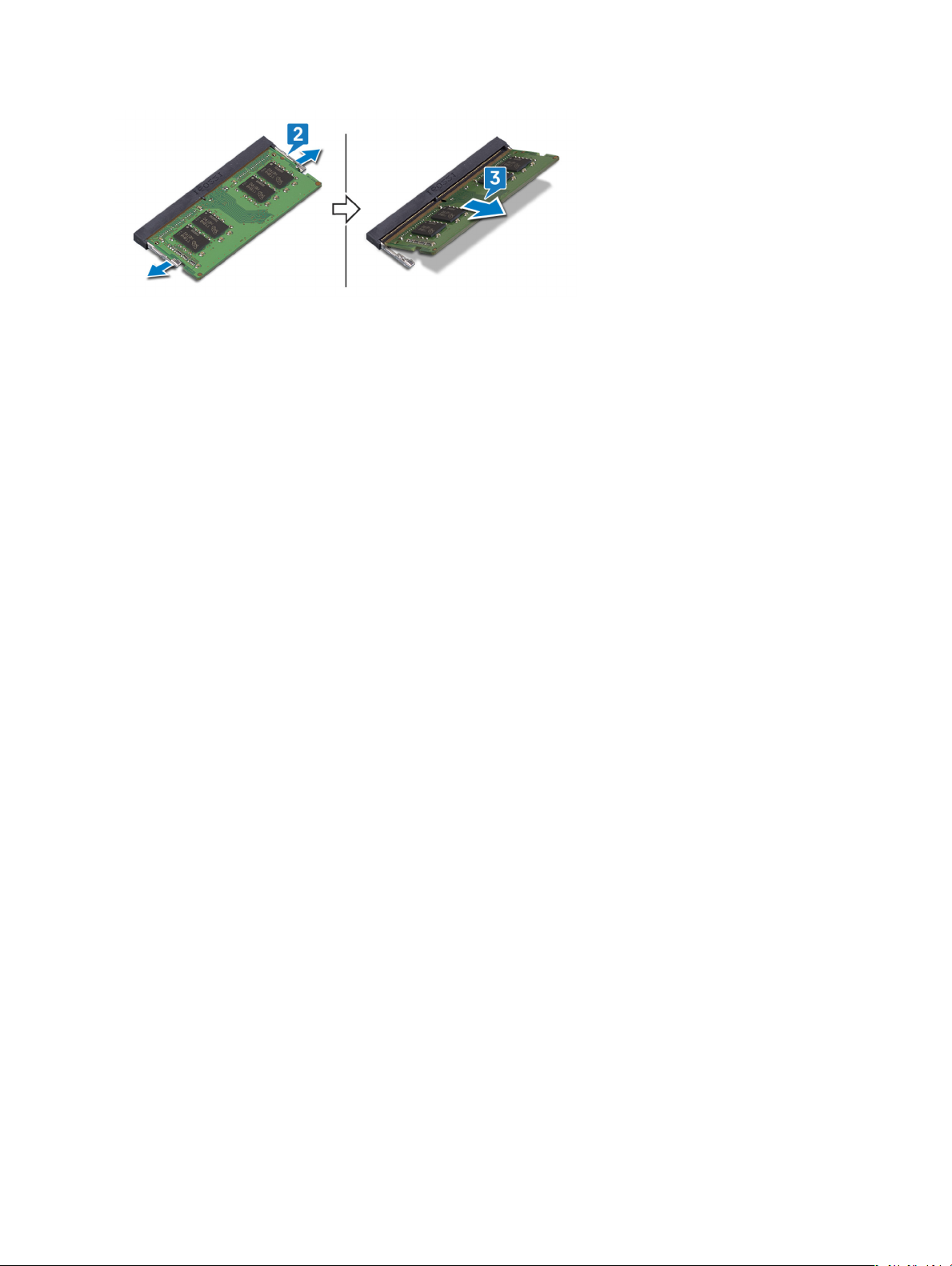

3 Remove the memory modules from the memory-module slot.
32
Page 33
Replacing the memory modules
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure

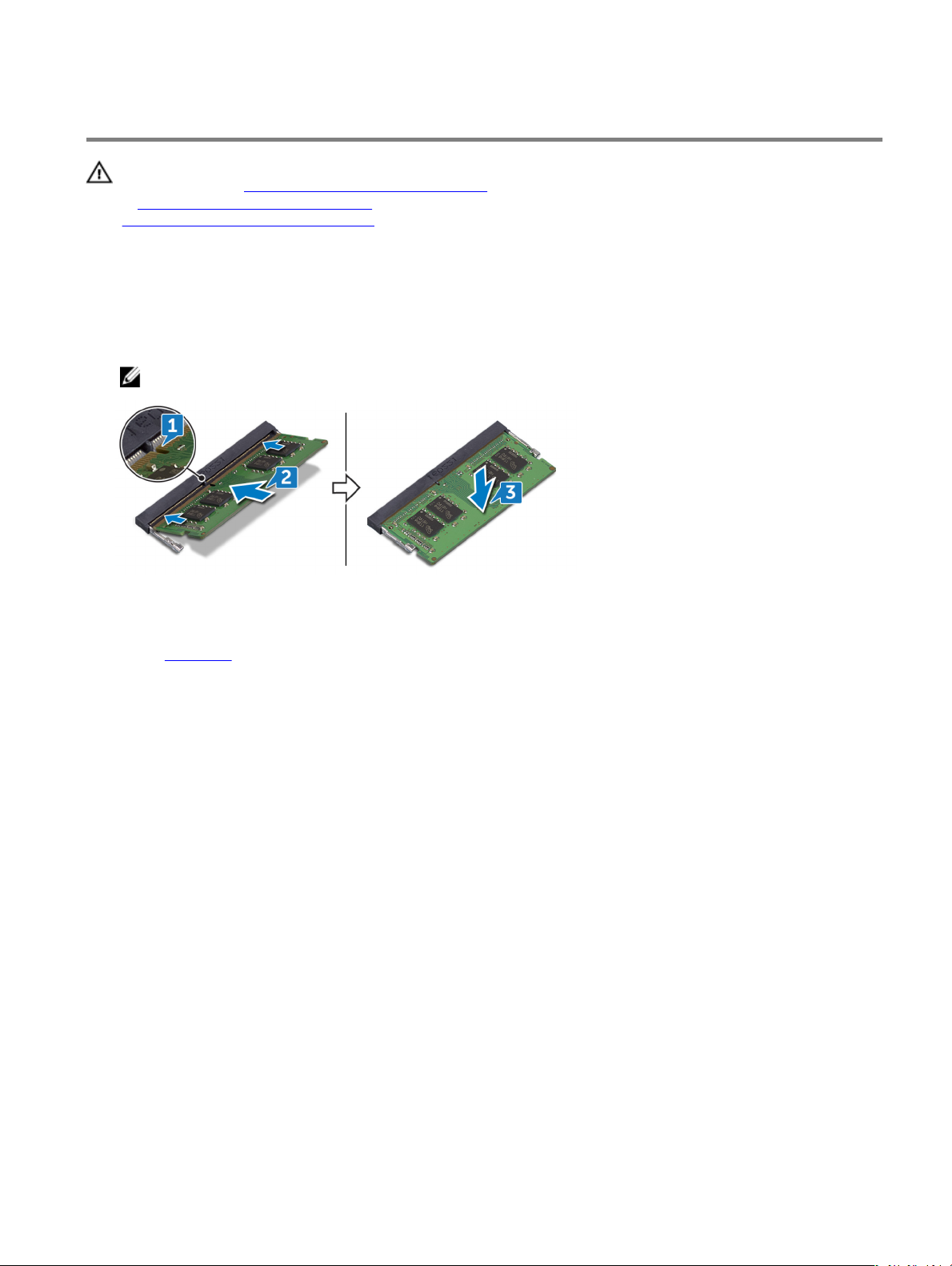

1 Align the notch on the memory module with the tab on the memory-module slot.
2 Slide the memory modules rmly into the slot at an angle.
3 Press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Post-requisites
Replace the base cover.
33
Page 34
Removing the heat sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
WARNING: The heat sink may become hot during normal operation. Allow sucient time for the heat sink to cool
before you touch it.
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in
your skin can reduce the heat transfer capability of the thermal grease.
Prerequisites
Remove the base cover.
Procedure

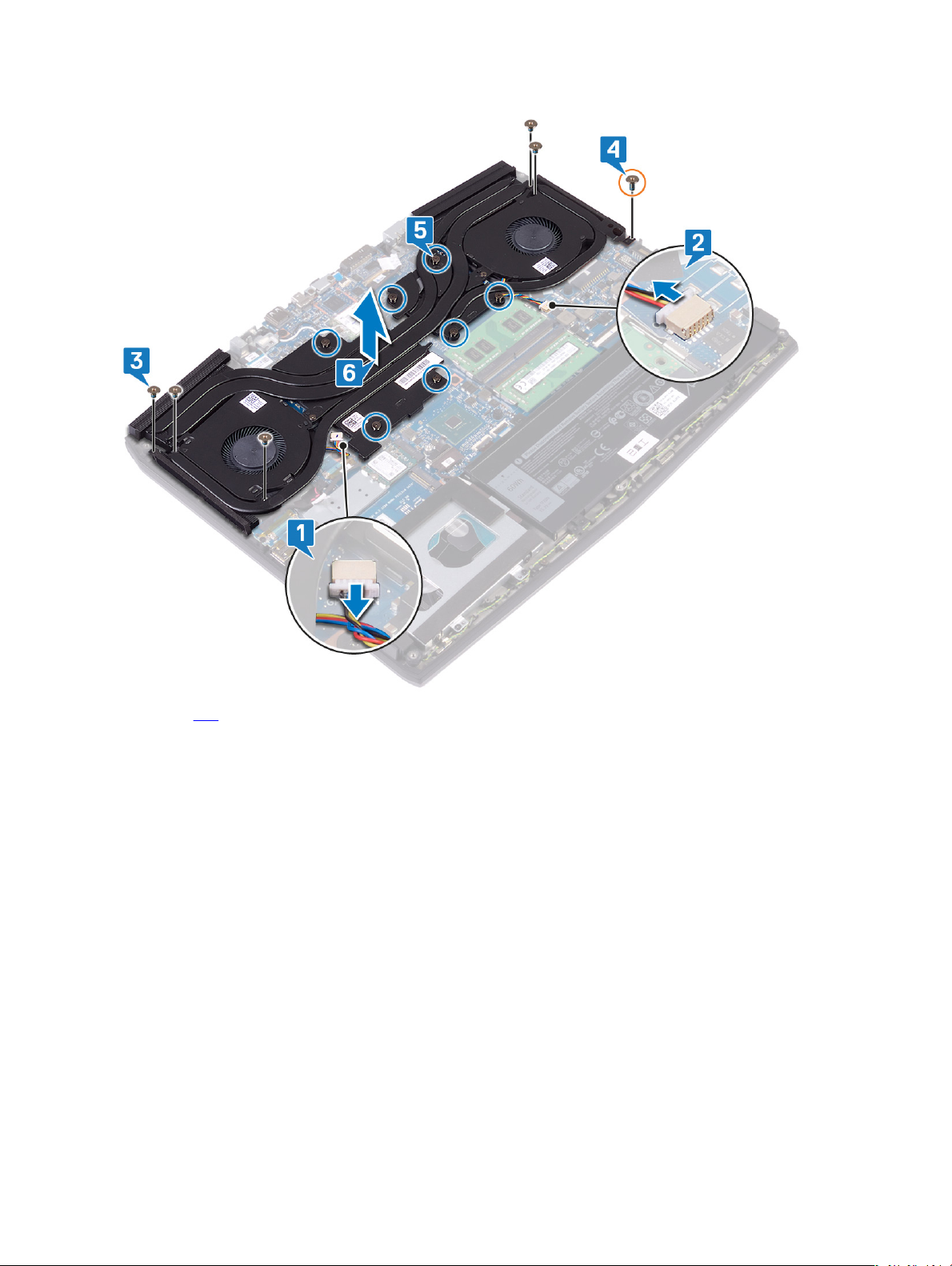

1 Disconnect the left fan cable from the system board.
2 Disconnect the right fan cable from the system board.
3 Remove the ve screws (M2x3) that secure the heat-sink assembly to the system board.
4 Remove the screw (M2x5) that secure the heat-sink assembly to the system board.
5 In the reverse sequential order (7>6>5>4>3>2>1), loosen the seven captive screws that secure the heat-sink assembly to
the system board.
34
Page 35
6 Lift the heat-sink assembly o the system board.
7 Remove the fans.
35
Page 36
Replacing the heat sink
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to
ensure that thermal conductivity is achieved.
Procedure
1 Replace the fans.
2 Place the heat-sink assembly on the system board and align the screw holes on the heat-sink assembly with the screw holes
on the system board.
3 Tighten the captive screws in the sequential order (1>2>3>4>5>6>7) to secure the heat-sink assembly to the system
board.
4 Replace the screw (M2x5) that secure the heat-sink assembly to the system board.
5 Replace the ve screws (M2x3) that secure the heat-sink assembly to the system board.
6 Connect the left fan cable to the system board.
36
Page 37
7 Connect the right fan cable to the system board.
Post-requisites
Replace the base cover.
37
Page 38
Removing the fans
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Follow the procedure from step 1 to step 6 in Removing the heat sink.
Procedure

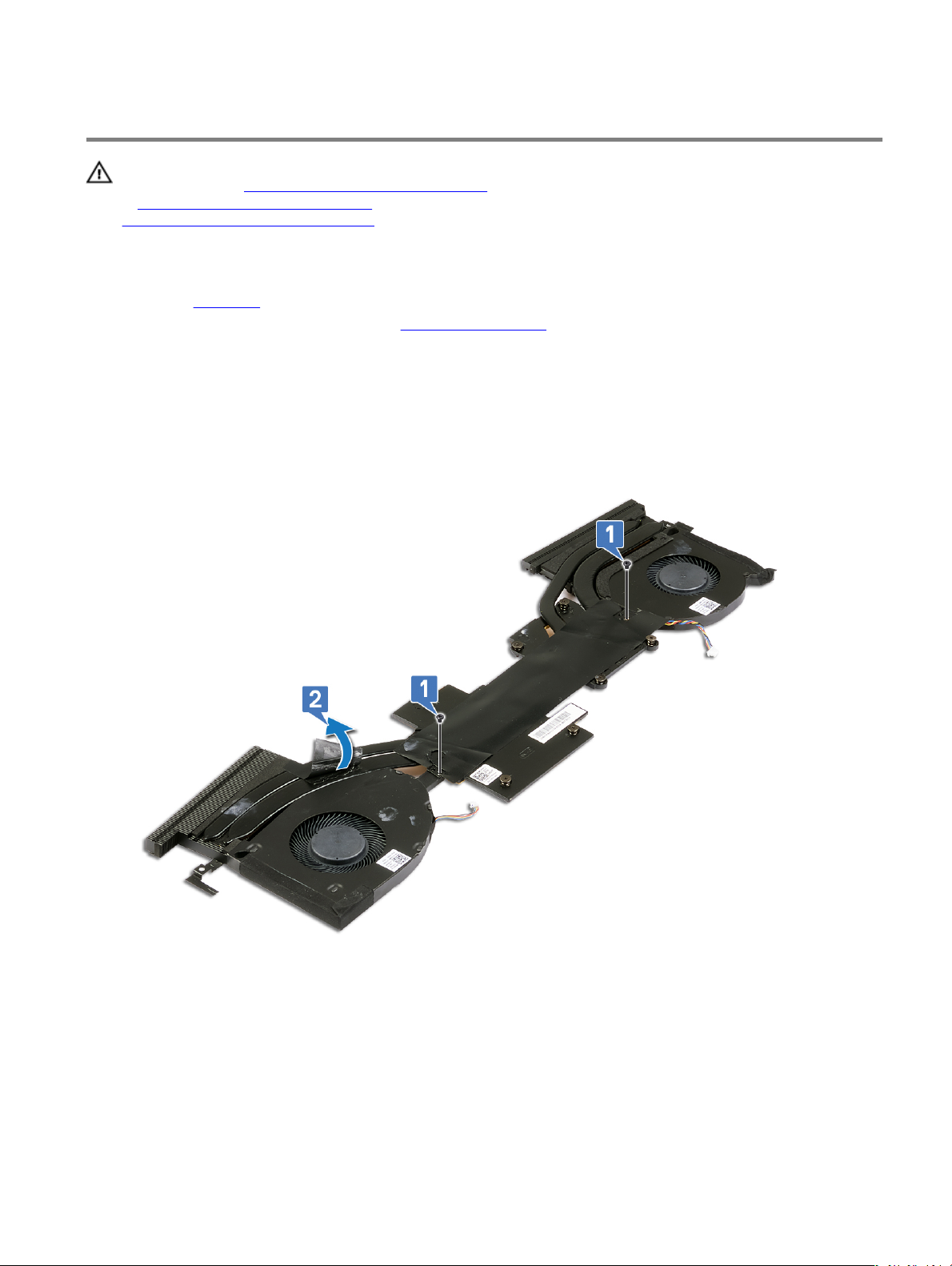

1 Remove the two screws (M2x3) that secure the fans to the heat sink.
2 Peel the tape securing the left fan to the heat sink.
3 Turn the heat-sink assembly over.

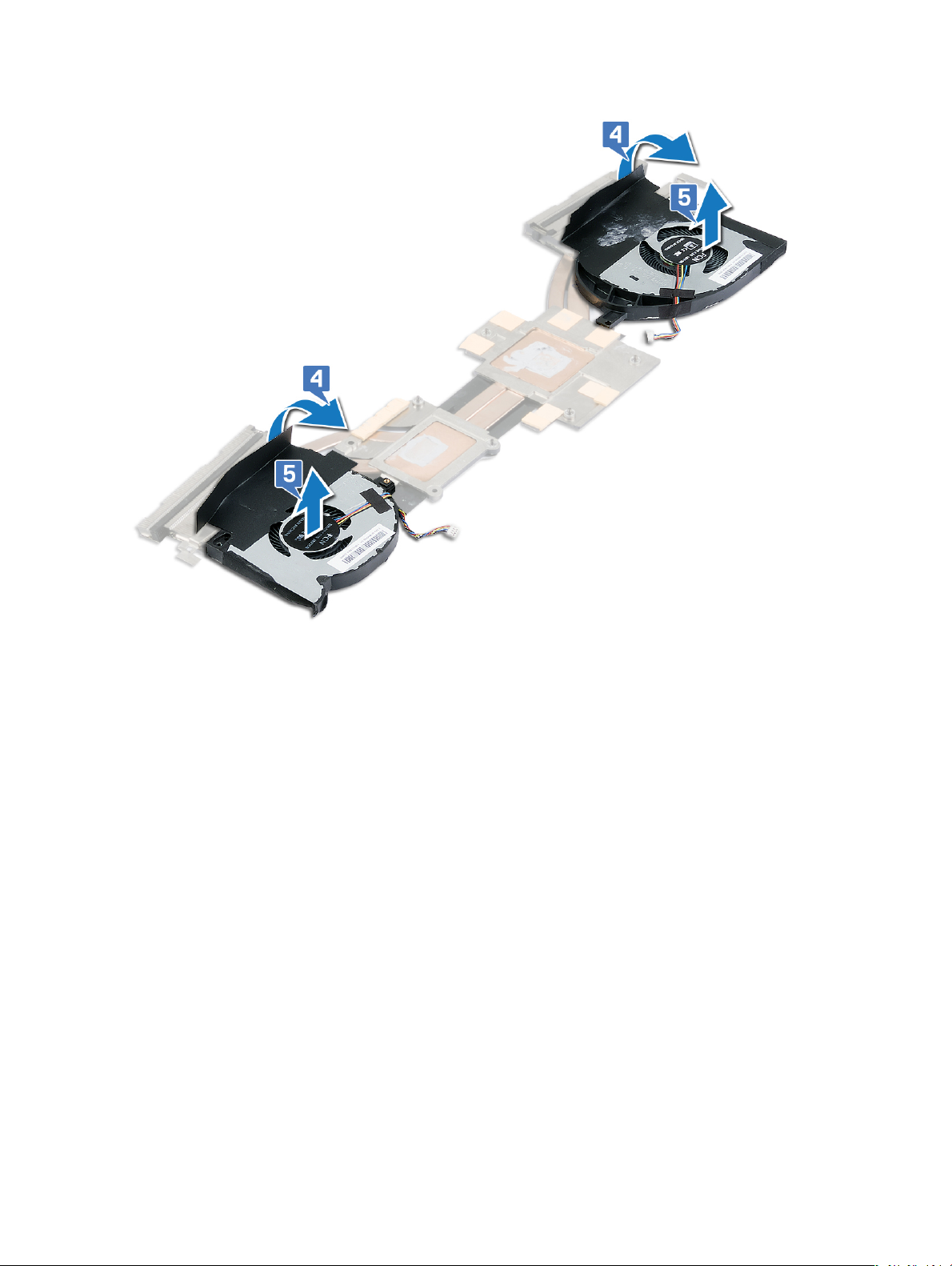

4 Peel the Mylar securing the fans to the heat sink.
38
Page 39
5 Lift the fans o the heat sink.
39
Page 40

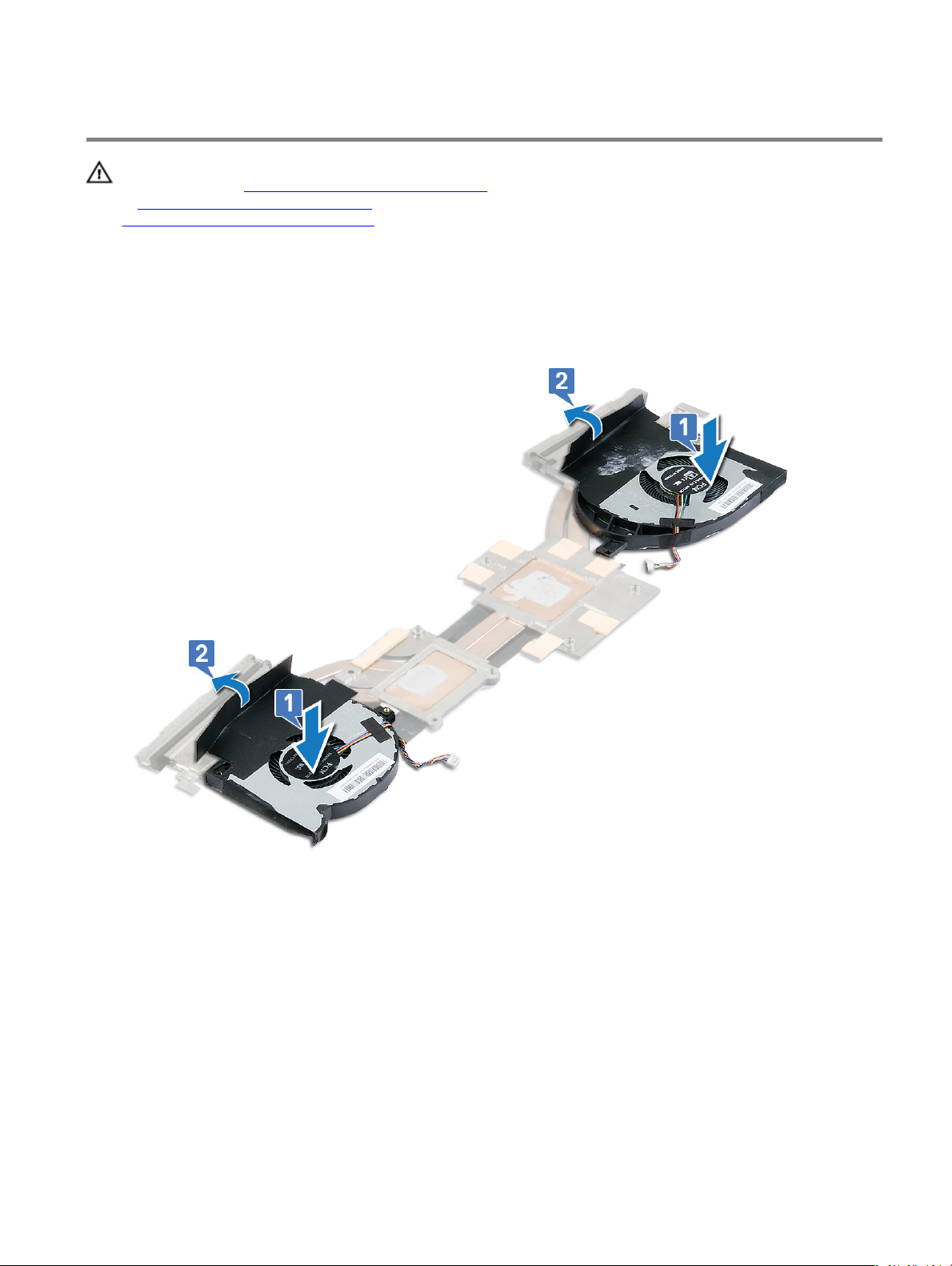

Replacing the fans
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Place the fans on the heat sink and align the screw holes on the fans to the screw holes on the heat sink.
2 Adhere the Mylar that secures the fans to the heat sink.
3 Turn over the heat-sink assembly.

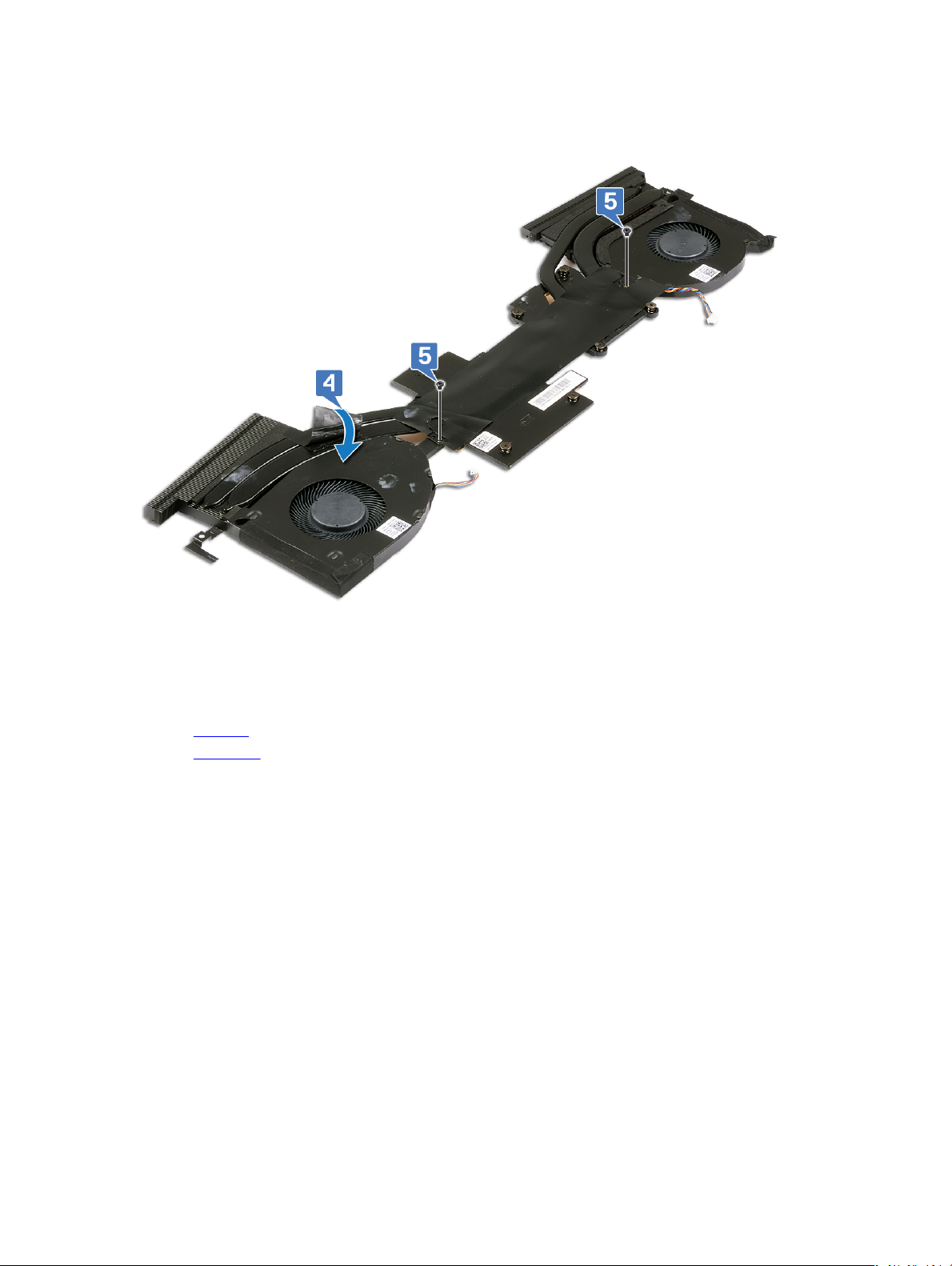

4 Adhere the Mylar that secures the fan to the heat sink.
40
Page 41
5 Replace the two screws (M2x3) that secure the fan to the heat sink.
Post-requisites
1 Replace the heat sink.
2 Replace the base cover.
41
Page 42
Removing the wireless card
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure

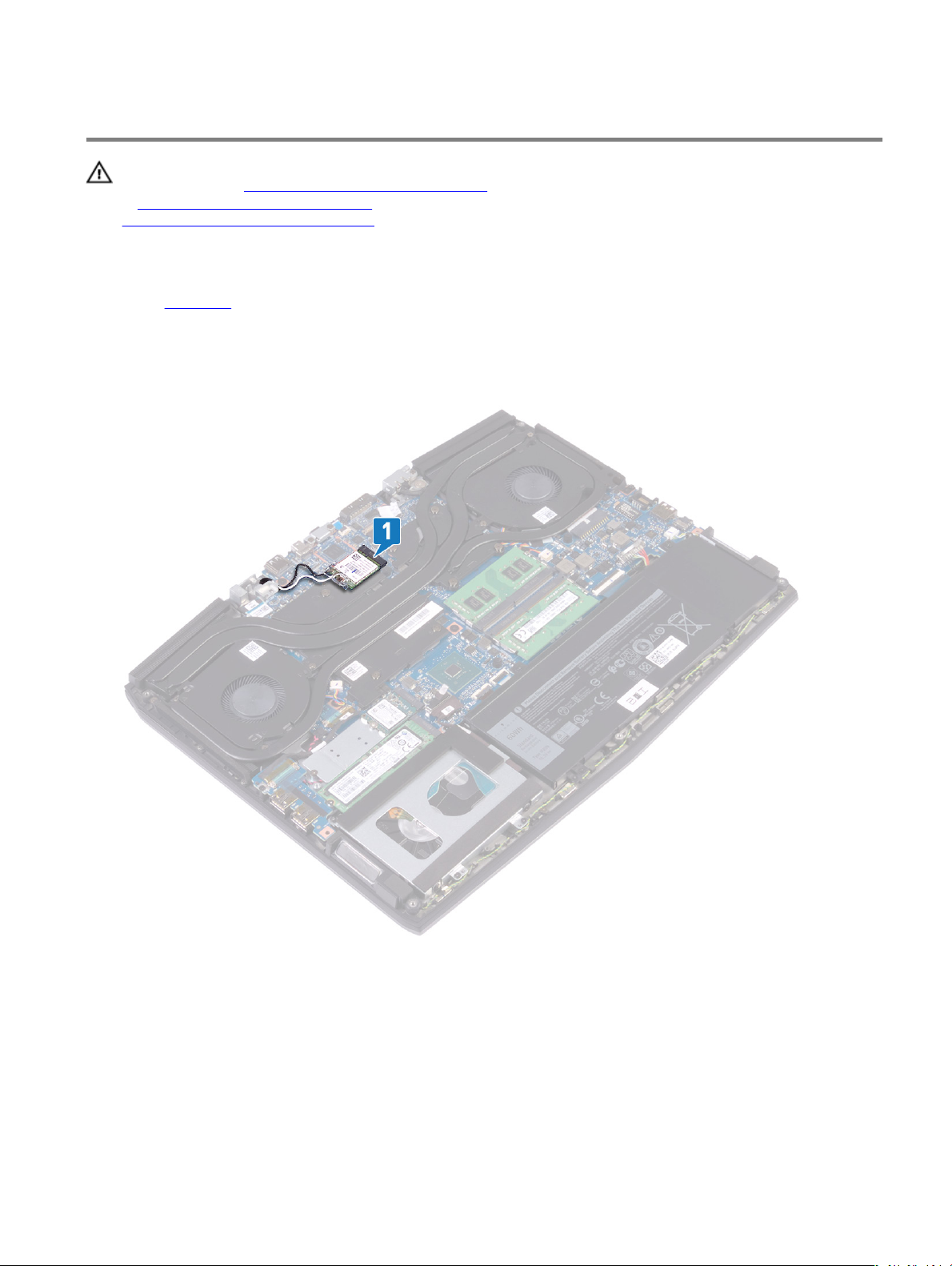

1 Locate the wireless card on your computer.
2 Remove the screw (M2x3) that secures the wireless-card bracket to the system board.
3 Slide and remove the wireless-card bracket from the wireless card.
4 Slide and remove the wireless card from the wireless-card slot.
42
Page 43
5 Disconnect the antenna cables from the wireless card.
43
Page 44
Replacing the wireless card
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
CAUTION: To avoid damage to the wireless card, do not place any cables under it.
1 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 2. Antenna-cable color scheme
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
2 Slide and replace the wireless-card bracket on the wireless-card.
3 Align the notch on the wireless card with the tab on the wireless-card slot and insert the wireless card at an angle into the
wireless-card slot.
4 Replace the screw (M2x3) that secures the wireless-card bracket to the wireless card and the palm rest and keyboard
assembly.
44
Page 45

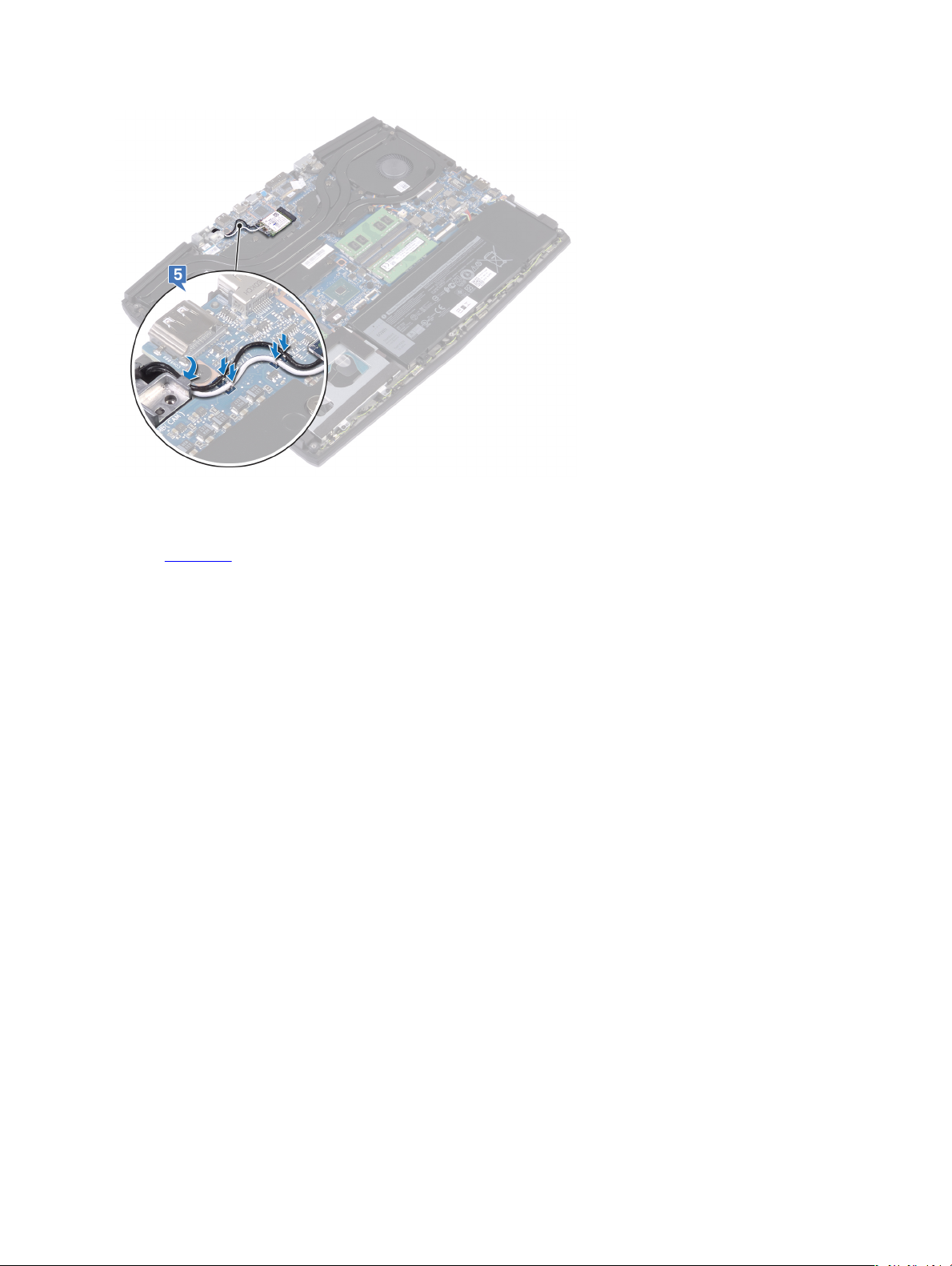

5 Route the antenna cables on to the securing clips on the system board.
Post-requisites
Replace the base cover.
45
Page 46
Removing the solid-state drive/Intel Optane memory module
You need to disable the Intel Optane memory before removing Intel Optane memory module from your computer. For more
information about disabling the Intel Optane memory, see Disabling Intel Optane memory.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.

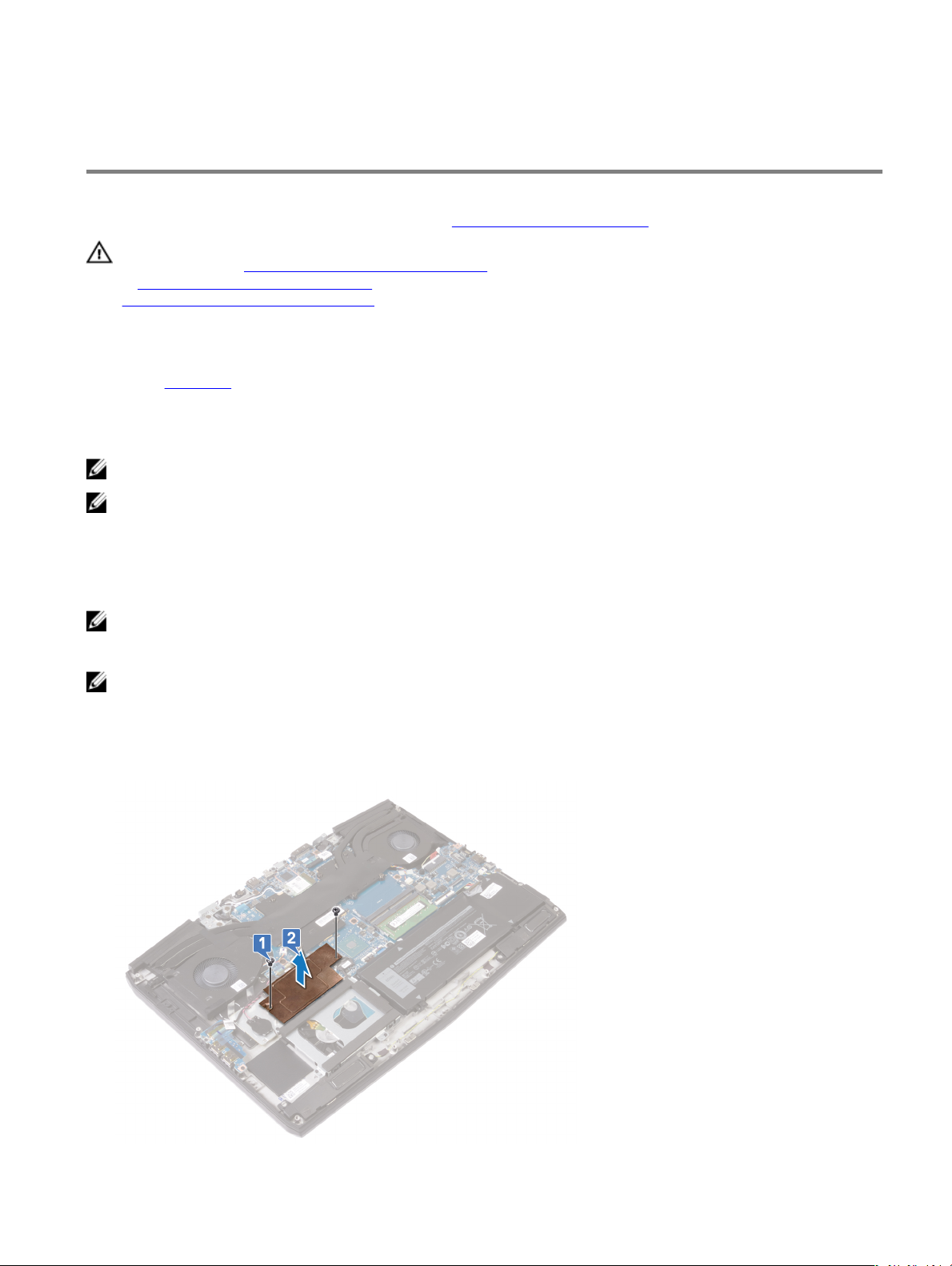

Procedure to remove M.2 2230 solid-state drive
NOTE: This procedure applies only to systems shipped with a M.2 2230 solid-state drive installed.
NOTE: Depending on the conguration ordered the system may have up to two M.2 solid-state drives installed.
Supported solid-state drive congurations per M.2 card slot:
• M.2 2230 solid-state drive + solid-state drive bracket
• M.2 2280 solid-state drive
• M.2 2280 Intel Optane
NOTE: For solid-state drives above 512 GB or Intel Optane above 118 GB a thermal shield is required for optimal
heat dissipation and is installed in the computer when these congurations are ordered. If these congurations are
installed After Point-of-Sale (APOS), contact Dell support for the thermal shield.
NOTE: Depending on the number of M.2 solid-state drives installed at Point-of-Sale, the thermal shield installed in
the computer may be a full shield or a half shield. If two M.2 solid-state drives are installed After Point-of-Sale
(APOS) contact Dell support for the full thermal shield.
1 Remove the two screws (M2x3) that secure the M.2 thermal shield to the palm-rest assembly and system board.
2 Lift the M.2 thermal shield from the palm-rest assembly and system board.
46
Page 47

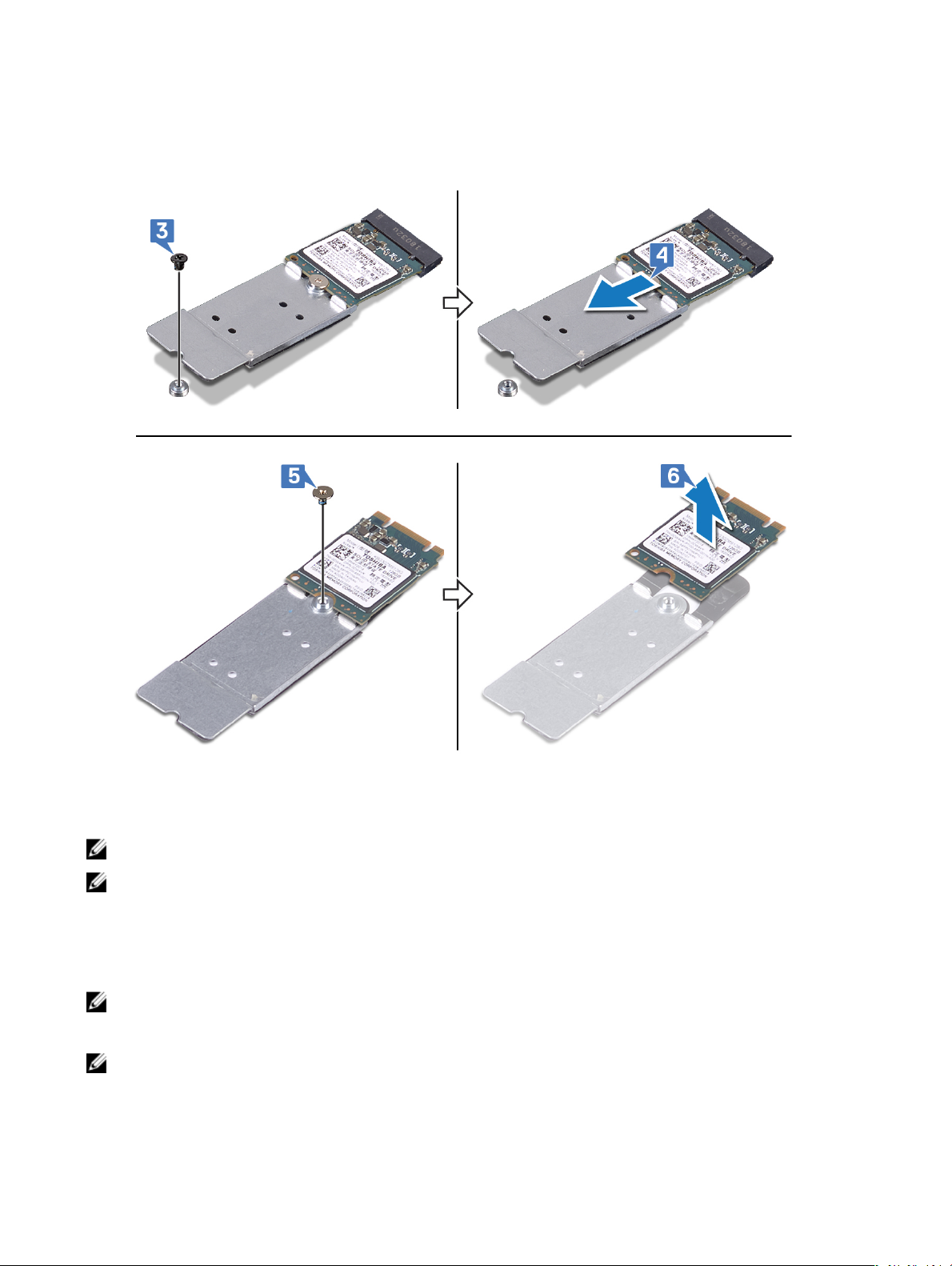

3 Remove the screw (M2x3) that secures the M.2 2230 solid-state drive bracket to the palm-rest assembly.
4 Slide and remove the M.2 2230 solid-state drive along with the bracket from the M.2 slot on the system board.
5 Remove the screw (M1.6x2) that secures M.2 2230 solid-state drive to the solid-state drive bracket.
6 Lift the M.2 2230 card o the solid-state drive bracket.
Procedure to remove M.2 2280 solid-state drive
NOTE: This procedure applies only to systems shipped with a M.2 2280 solid-state drive installed.
NOTE: Depending on the conguration ordered the system may have up to two M.2 solid-state drives installed.
Supported solid-state drive congurations per M.2 solid-state drive slot:
• M.2 2230 solid-state drive + solid-state drive bracket
• M.2 2280 solid-state drive
• M.2 2280 Intel Optane
NOTE: For solid-state drives above 512 GB or Intel Optane above 118 GB a thermal shield is required for optimal
heat dissipation and is installed in the computer when these congurations are ordered. If these congurations are
installed After Point-of-Sale (APOS), contact Dell support for the thermal shield.
NOTE: Depending on the number of M.2 solid-state drives installed at Point-of-Sale, the thermal shield installed in
the computer may be a full shield or a half shield. If two M.2 solid-state drives are installed After Point-of-Sale
(APOS) contact Dell support for the full thermal shield.
1 Remove the two screws (M2x3) that secure the M.2 thermal shield to the palm-rest assembly and system board.
47
Page 48

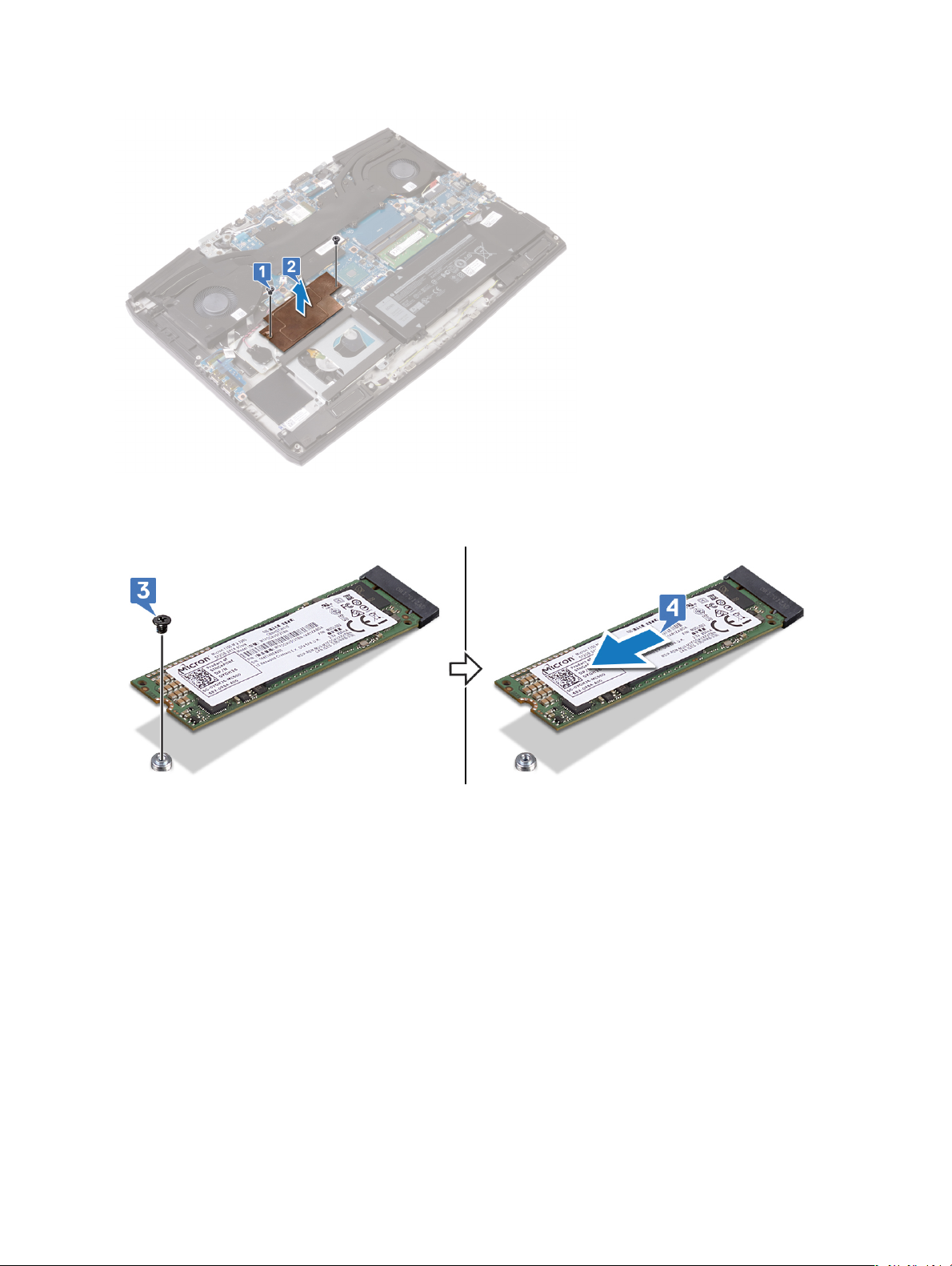

2 Lift the M.2 thermal shield from the palm-rest assembly and system board.
3 Remove the screw (M2x2) that secures the M.2 2280 card to the palm-rest assembly.
4 Slide and remove the M.2 2280 card from the M.2 card slot on the system board.
48
Page 49
Replacing the solid-state drive/Intel Optane memory module
Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about enabling the
Intel Optane memory, see Enabling Intel Optane memory.
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
Procedure to replace M.2 2230 solid-state drive
NOTE: This procedure applies only to systems shipped with a M.2 2230 solid-state drive installed.
NOTE: Depending on the conguration ordered the system may have up to two M.2 solid-state drives installed.
Supported card congurations per M.2 solid-state drive slot:
• M.2 2230 solid-state drive + solid-state drive bracket
• M.2 2280 solid-state drive
• M.2 2280 Intel Optane
NOTE: For solid-state drives above 512 GB or Intel Optane above 118 GB a thermal shield is required for optimal
heat dissipation and is installed in the computer when these congurations are ordered. If these congurations are
installed After Point-of-Sale (APOS), contact Dell support for the thermal shield.
NOTE: Depending on the number of M.2 solid-state drives installed at Point-of-Sale, the thermal shield installed in
the computer may be a full shield or a half shield. If two M.2 solid-state drives are installed After Point-of-Sale
(APOS) contact Dell support for the full thermal shield.

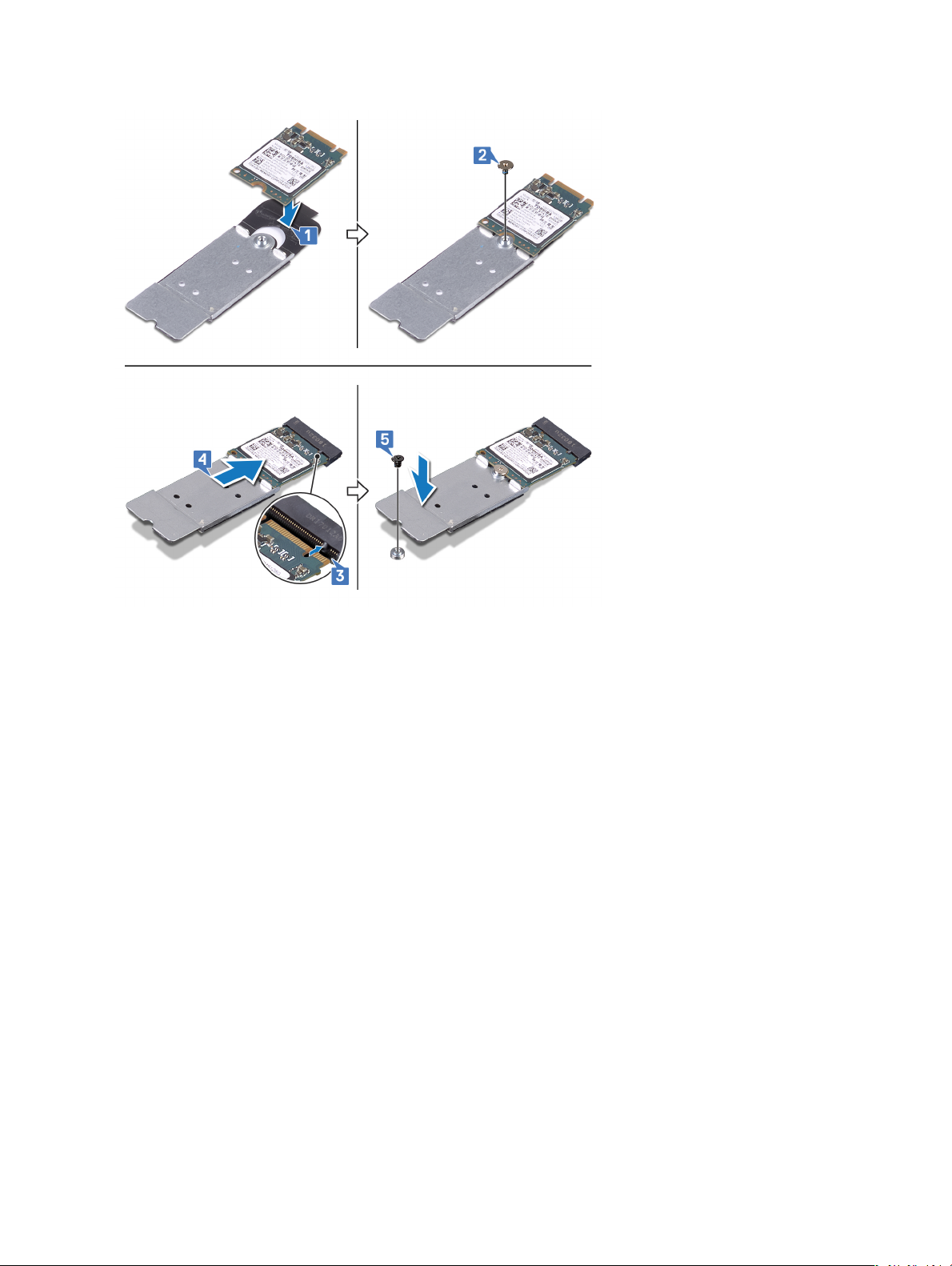

1 Place the M.2 2230 solid-state drive on the M.2 2230 solid-state drive bracket.
2 Replace the screw (M1.6x2) that secures the M.2 2230 solid-state drive to the M.2 2230 solid-state drive bracket.
3 Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
4 Slide the M.2 2230 solid-state drive along with the bracket into the M.2 solid-state drive slot on the system board.
49
Page 50
5 Replace the screw (M2x3) that secures the M.2 2230 bracket to the palm-rest assembly.

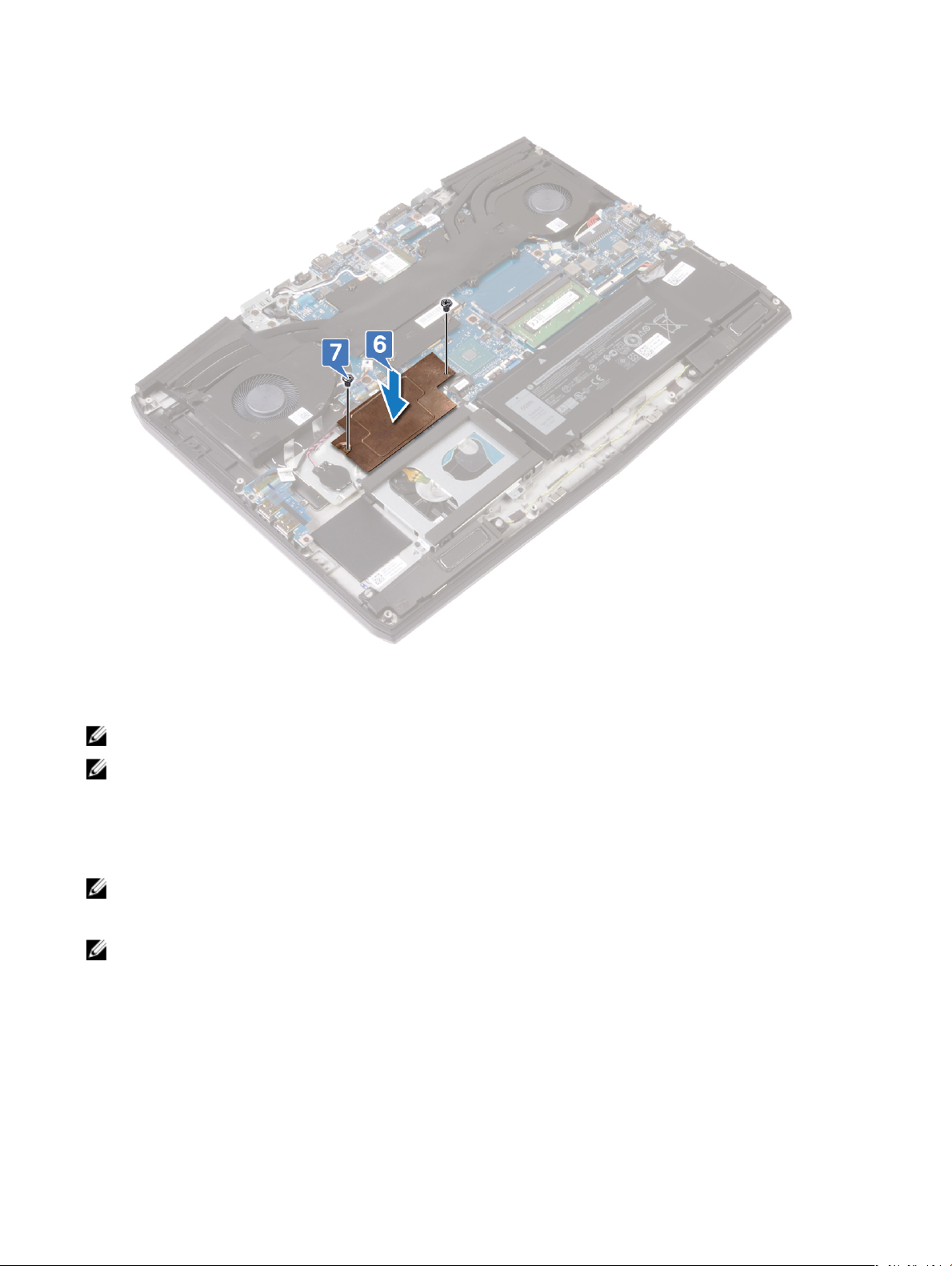

6 Align the screw holes of the M.2 thermal shield with the screw holes on the palm-rest assembly and system board.
50
Page 51
7 Replace the two screws (M2x3) that secure the M.2 thermal shield to the palm-rest assembly and system board.

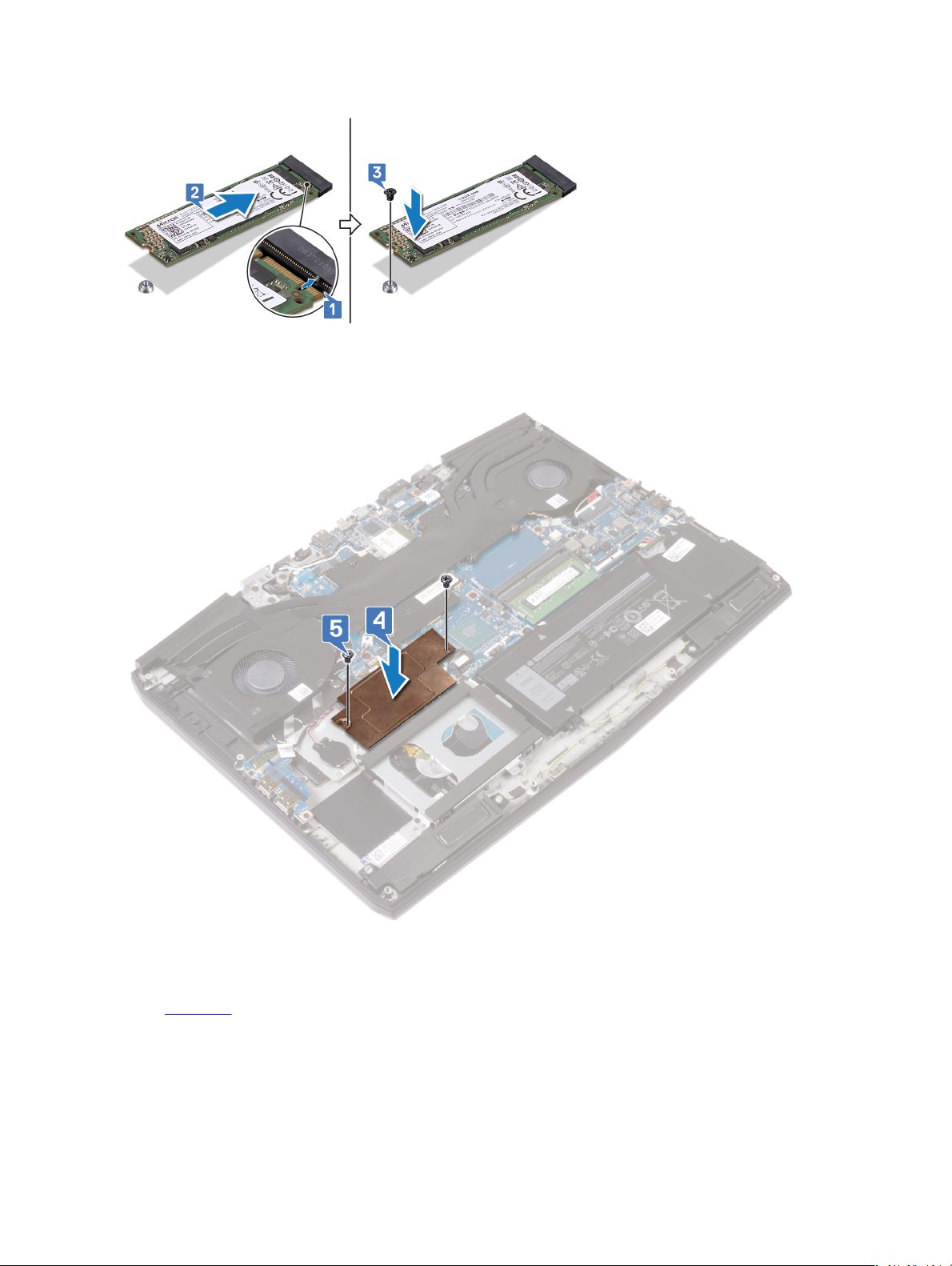

Procedure to replace M.2 2280 solid-state drive
NOTE: This procedure applies only to systems shipped with a M.2 2280 solid-state drive installed.
NOTE: Depending on the conguration ordered the system may have up to two M.2 solid-state drives installed.
Supported solid-state drive congurations per M.2 solid-state drive slot:
• M.2 2230 solid-state drive + solid-state drive bracket
• M.2 2280 solid-state drive
• M.2 2280 Intel Optane
NOTE: For solid-state drives above 512 GB or Intel Optane above 118 GB a thermal shield is required for optimal
heat dissipation and is installed in the computer when these congurations are ordered. If these congurations are
installed After Point-of-Sale (APOS), contact Dell support for the thermal shield.
NOTE: Depending on the number of M.2 solid-state drives installed at Point-of-Sale, the thermal shield installed in
the computer may be a full shield or a half shield. If two M.2 solid-state drives are installed After Point-of-Sale
(APOS) contact Dell support for the full thermal shield.
1 Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot on the system board.
2 Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot on the system board.
51
Page 52
3 Replace the screw (M2x3) that secures the M.2 2280 solid-state drive to the palm-rest assembly.
4 Align the screw holes of the M.2 thermal shield with the screw holes on the palm-rest assembly and system board.
5 Replace the two screws (M2x3) that secure the M.2 thermal shield to the palm-rest assembly and system board.
Post-requisites
Replace the base cover.
52
Page 53

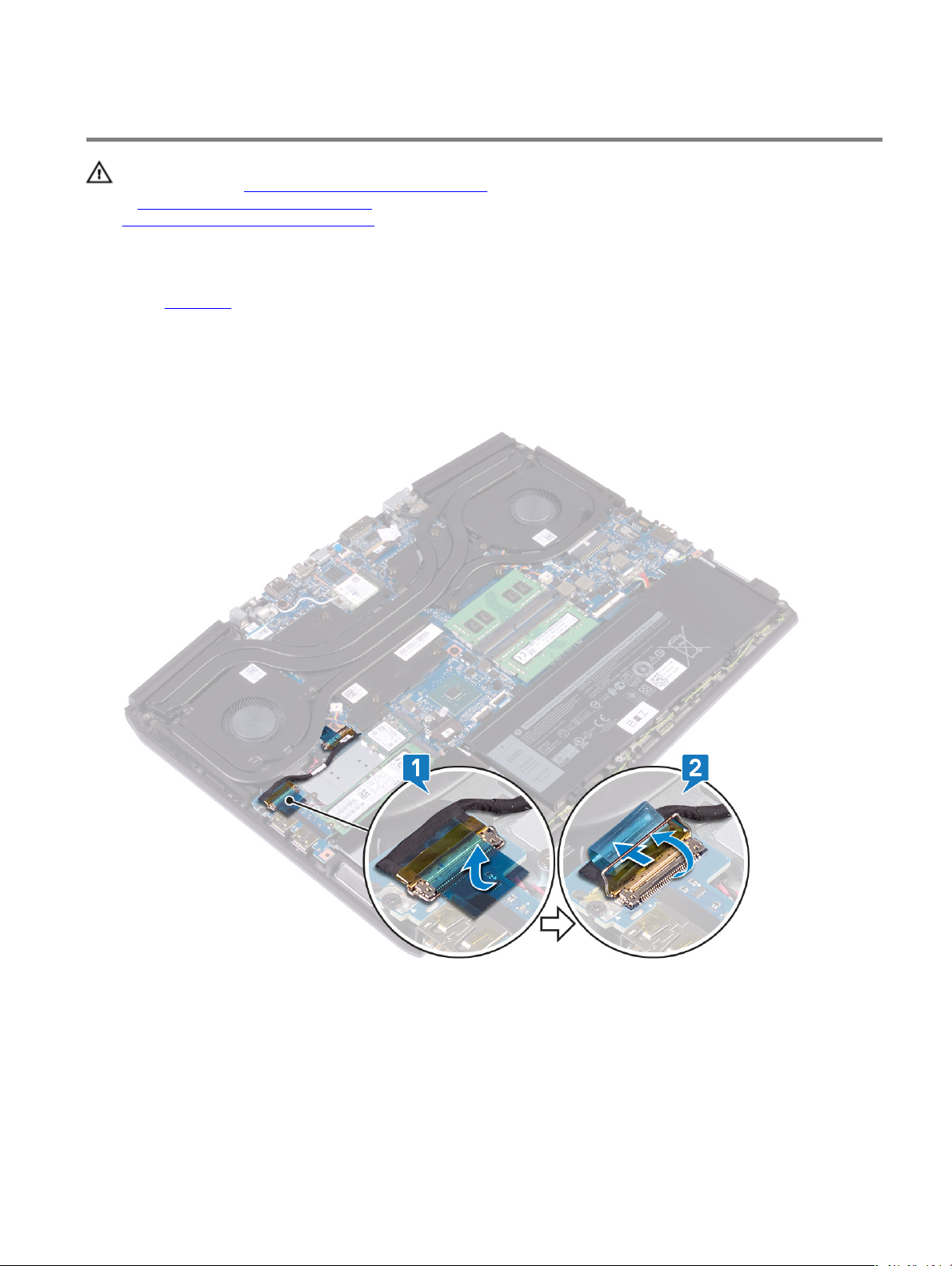

Removing the I/O board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
Remove the base cover.
Procedure
1 Peel the tape that secures the I/O-board cable to the I/O board.
2 Open the latch and disconnect the I/O-board cable from the I/O board.
3 Remove the screw (M2x5) that secures the I/O board to the palm-rest assembly.
53
Page 54
4 Lift the I/O board o the palm-rest assembly.
54
Page 55

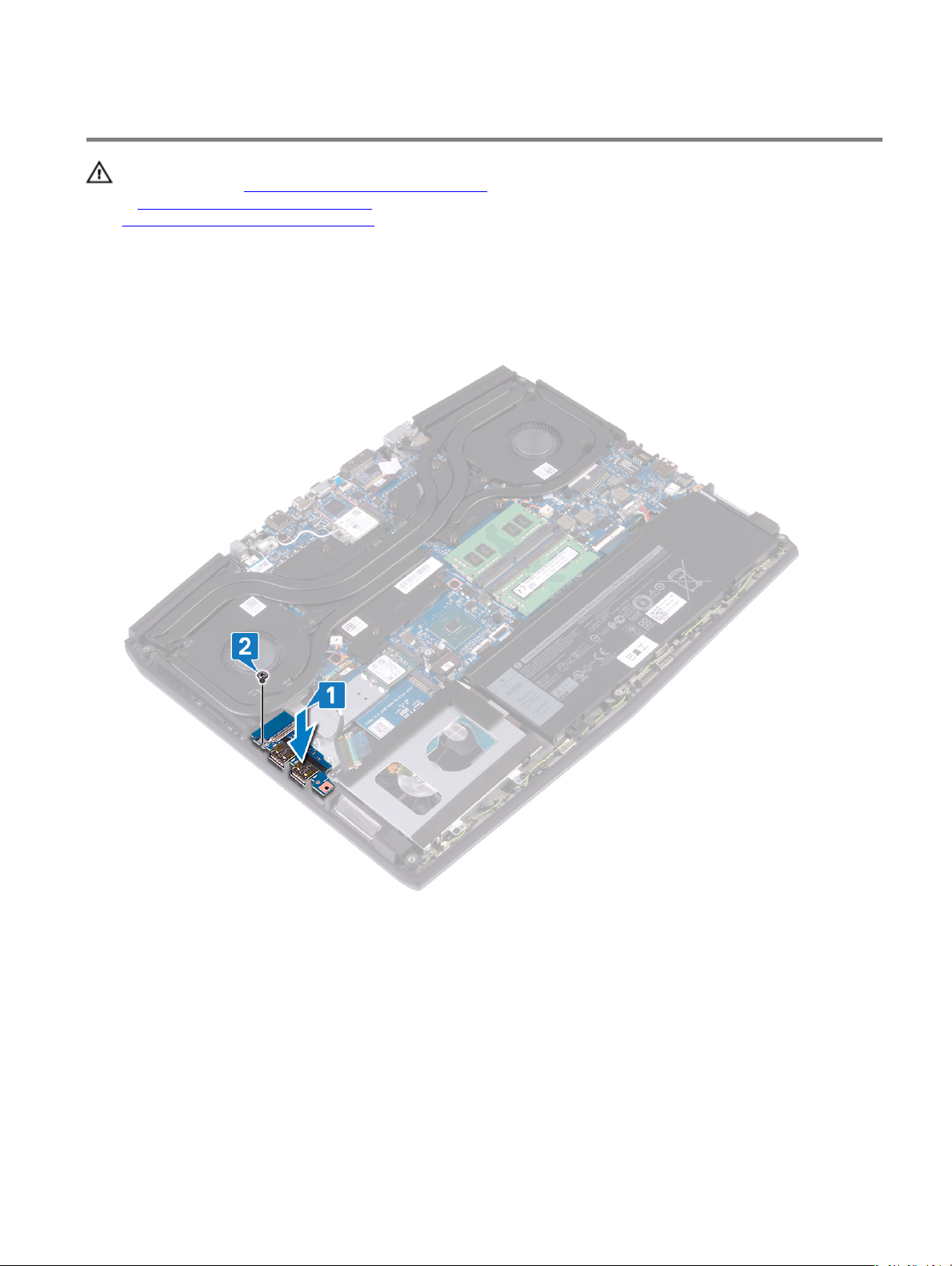

Replacing the I/O board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the USB ports on the I/O board with the slots on the palm-rest assembly.
2 Align the screw hole on the I/O board with the screw hole on the palm-rest assembly and replace the screw (M2x5) that
secures the I/O board to the palm-rest assembly.
3 Connect the I/O-board cable to the connector on the I/O board and close the latch to secure the cable.
55
Page 56
4 Adhere the tape that secures the I/O-board cable to the I/O board.
Post-requisites
Replace the base cover.
56
Page 57

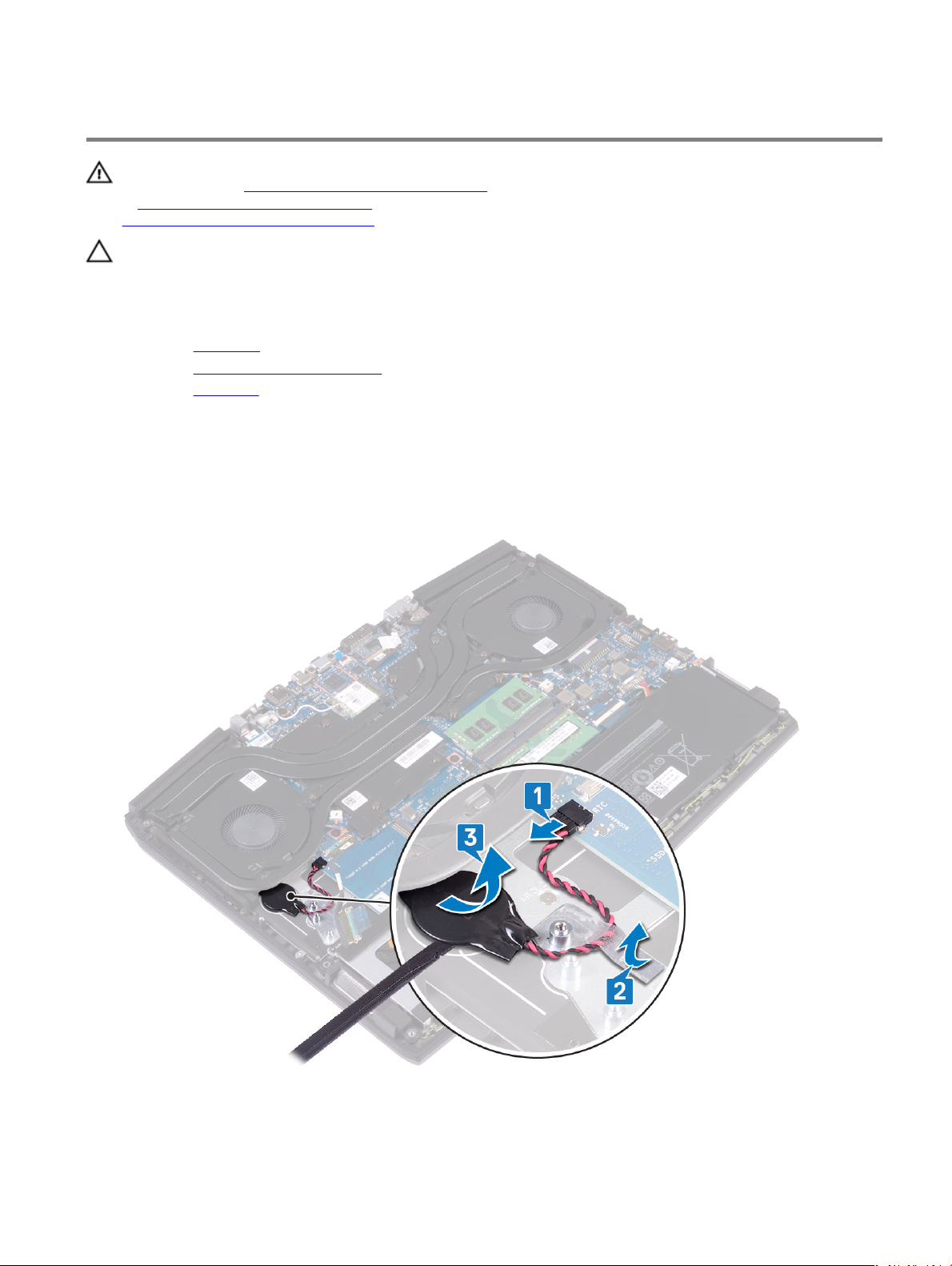

Removing the coin-cell battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
CAUTION: Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended
that you note the BIOS setup program’s settings before removing the coin-cell battery.
Prerequisites
1 Remove the base cover.
2 Remove the solid-state drive/Intel Optane.
3 Remove the I/O board.
Procedure
1 Disconnect the coin-cell battery from the system board.
2 Peel the tape that secures the coin-cell battery cable to the palm-rest assembly.
3 Peel the coin-cell battery o the palm-rest assembly.
57
Page 58

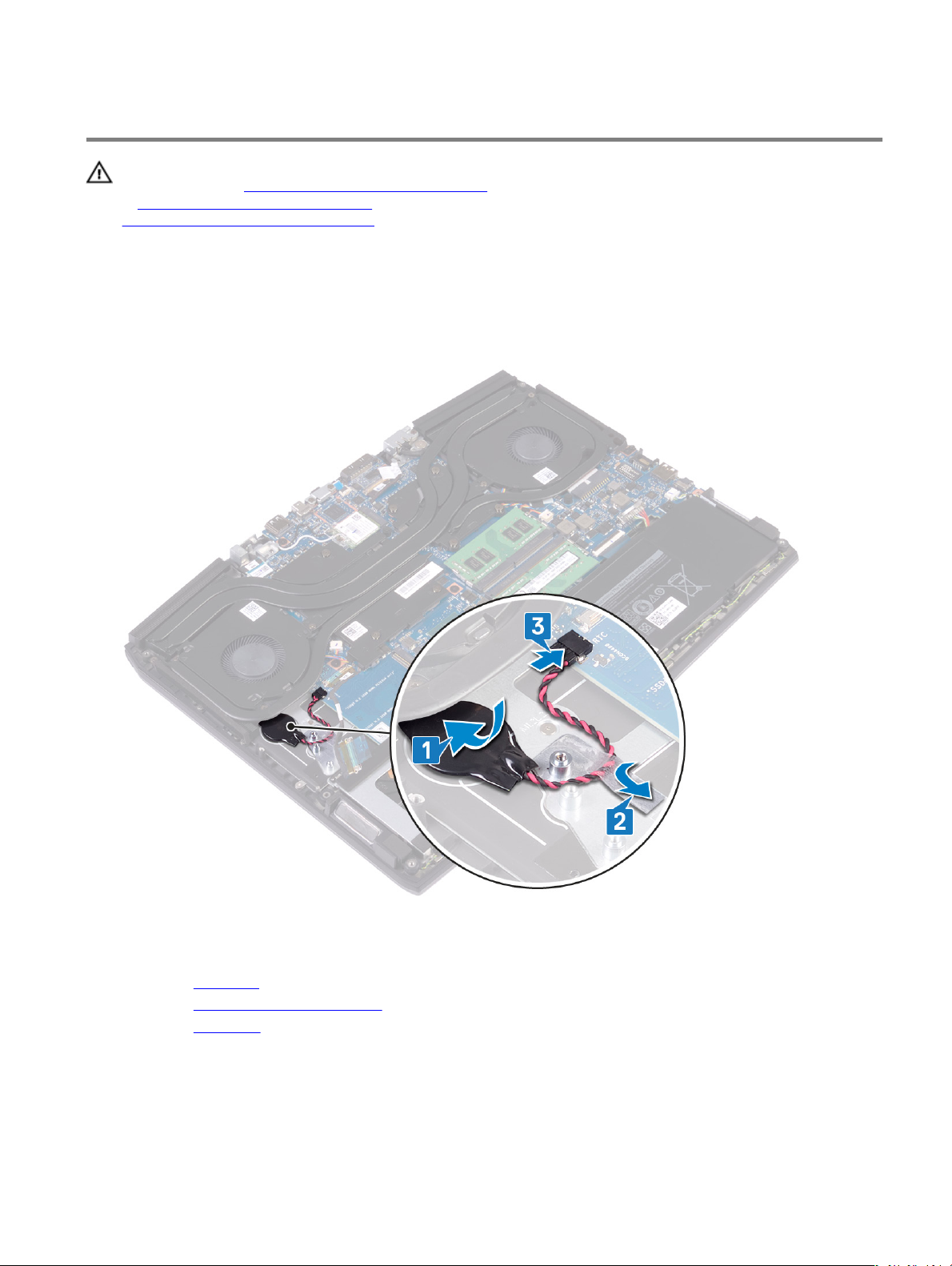

Replacing the coin-cell battery
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Adhere the coin-cell battery to the palm-rest assembly.
2 Adhere the tape that secures the coin-cell battery to the palm-rest assembly.
3 Connect the battery cable to the system board.
Post-requisites
1 Replace the I/O board.
2 Replace the solid-state drive/Intel Optane.
3 Replace the base cover.
58
Page 59

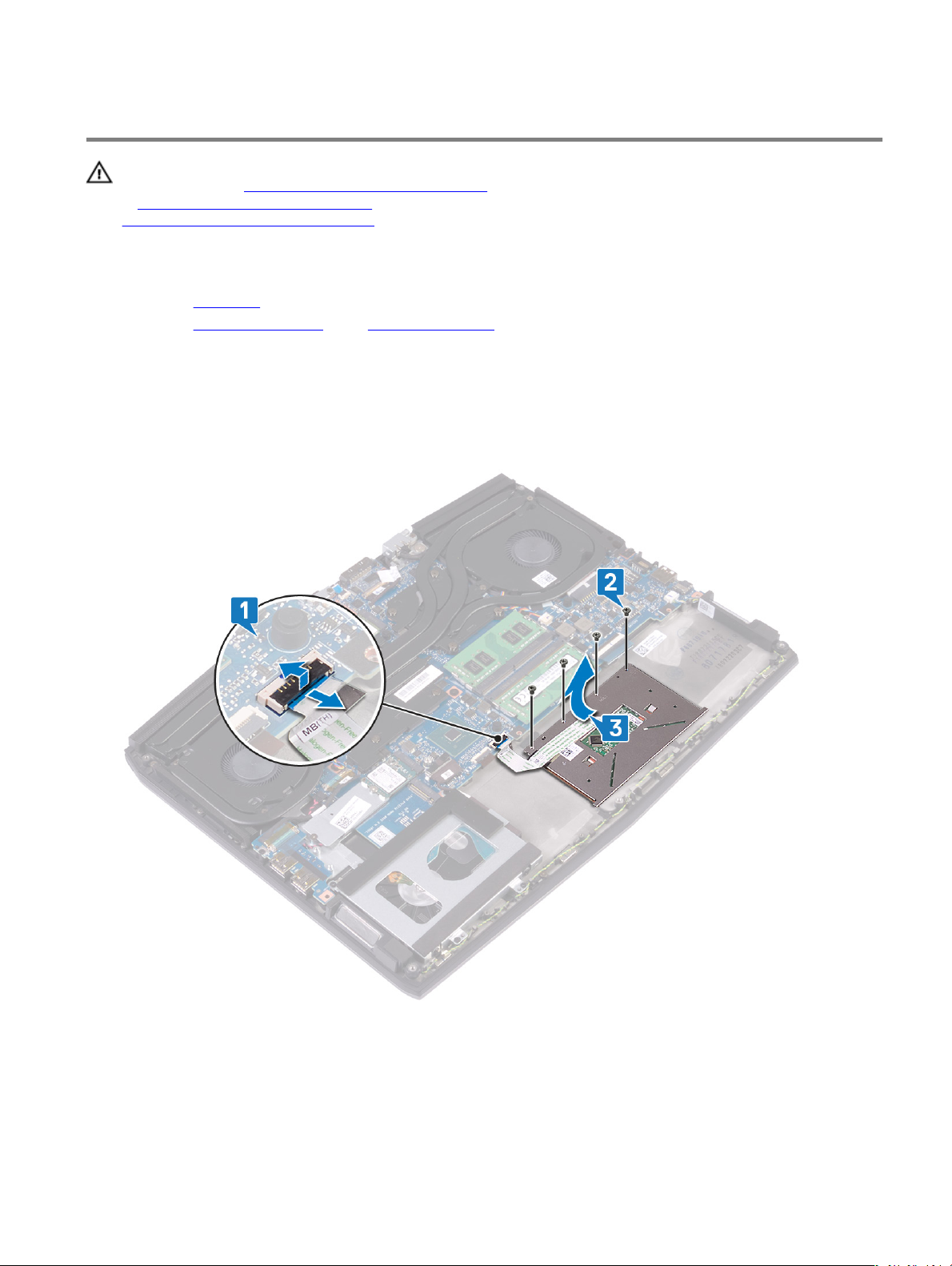

Removing the touchpad
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
Procedure
1 Open the latch and disconnect the touchpad cable from the system board.
2 Remove the four screws (M2x2.5) that secure the touchpad to the palm-rest assembly.
3 Slide the touchpad along with its cable at an angle and lift the touchpad o the palm-rest assembly.
59
Page 60
Replacing the touchpad
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure

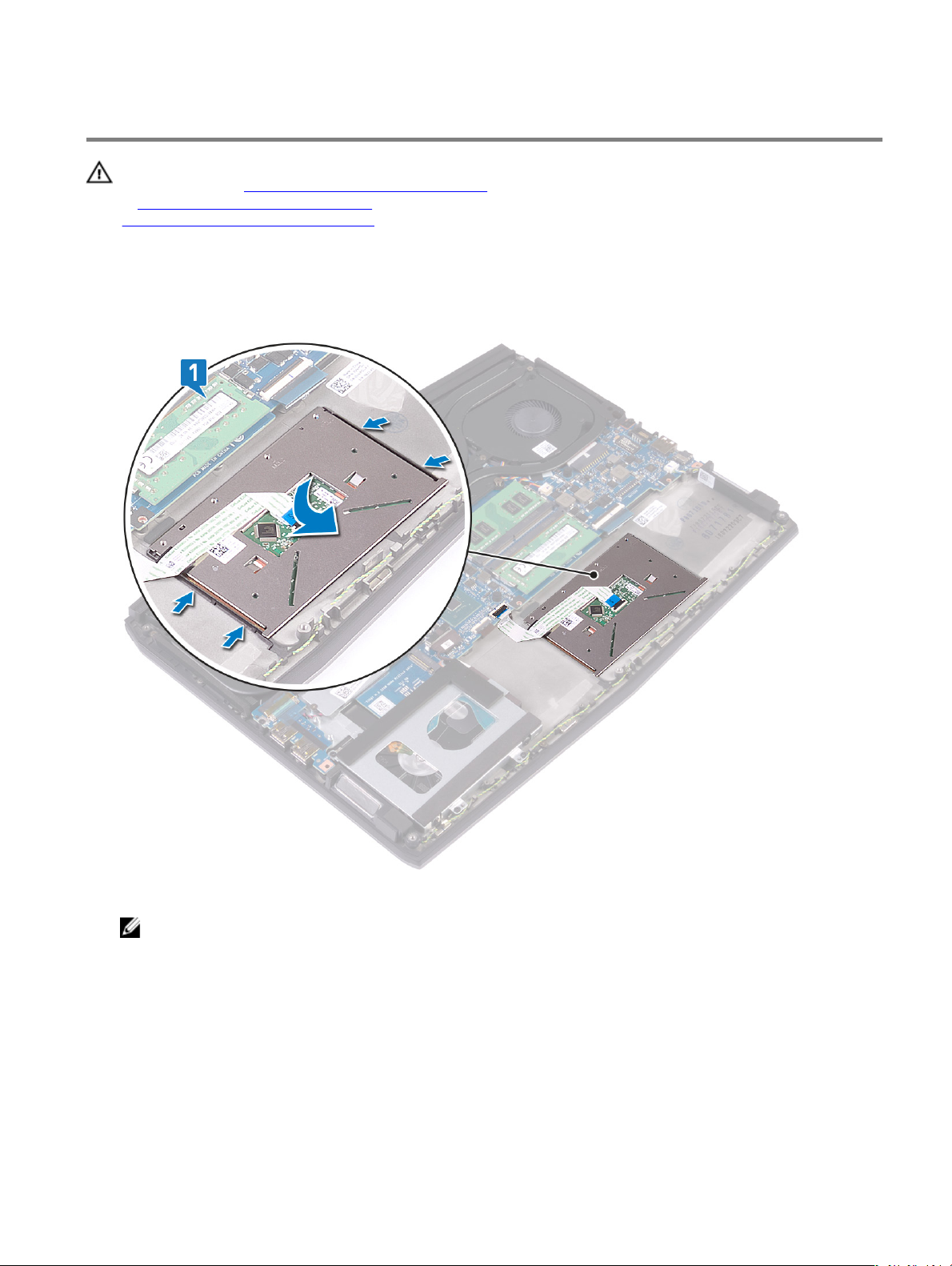

1 Slide and place the touchpad into the slot on the palm-rest assembly. Ensure that the touchpad is aligned with the guides
available on the palm-rest assembly, and the gap on either sides of the touchpad is equal.
2 Replace the four screws (M2x2.5) that secure the touchpad to the palm-rest assembly.
NOTE: Turn the computer over and open the display. Ensure that the touchpad is equally aligned along all four
sides.
60
Page 61

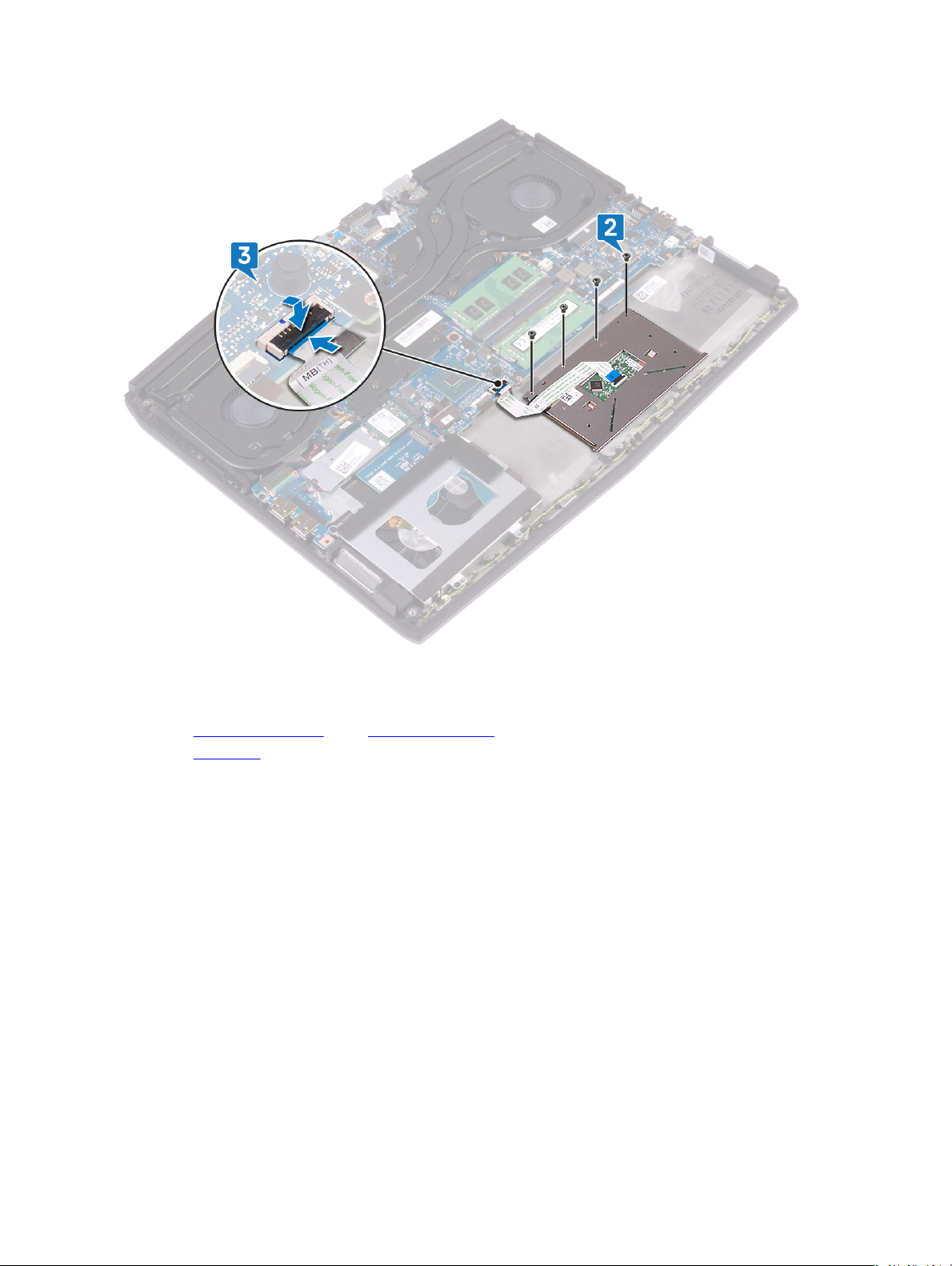

3 Slide the touchpad cable into the connector on the system board and close the latch to secure the touchpad cable.
Post-requisites
1 Replace the battery (half-length) or the battery (full-length), whichever applicable.
2 Replace the base cover.
61
Page 62

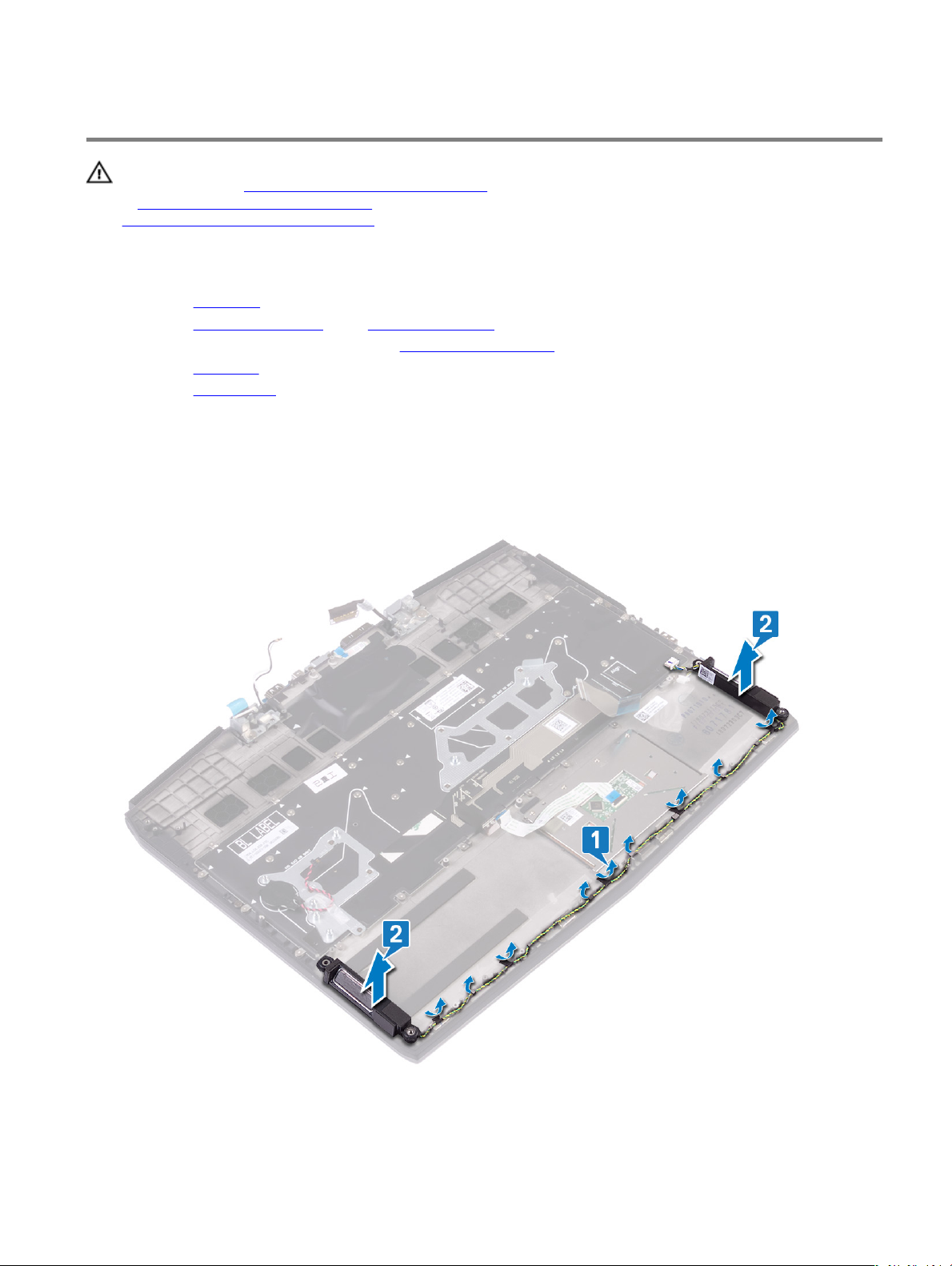

Removing the speakers
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
3 Follow the procedure from step 1 to step 3 in Removing the hard drive.
4 Remove the I/O board.
5 Remove the system board.
Procedure
1 Disconnect the speaker cable from the system board.
2 Note the speaker cable routing and remove it from the routing guides on palm-rest assembly.
3 Lift the speakers, along with the cable, o the palm-rest assembly.
62
Page 63

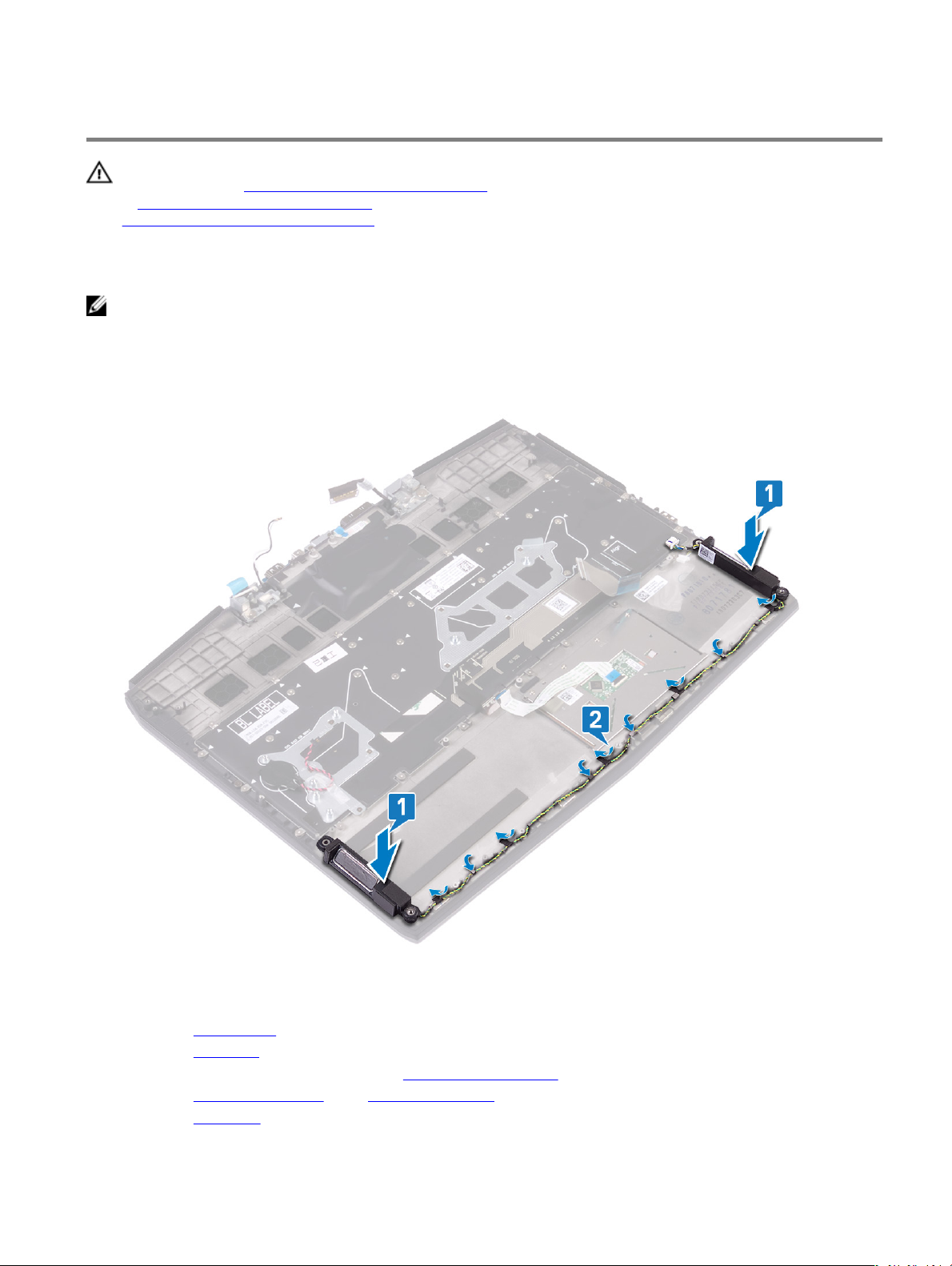

Replacing the speakers
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
NOTE: If the rubber grommets are pushed out of the speakers when removing the speakers, push them back in place
before replacing the speakers.
1 Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest assembly.
2 Route the speaker cable through the routing guides on the palm-rest assembly.
3 Connect the speaker cable to the system board.
Post-requisites
1 Replace the system board.
2 Replace the I/O board.
3 Follow the procedure from step 4 to step 6 in Replacing the hard drive.
4 Replace the battery (half-length) or the battery (full-length), whichever applicable.
5 Replace the base cover.
63
Page 64

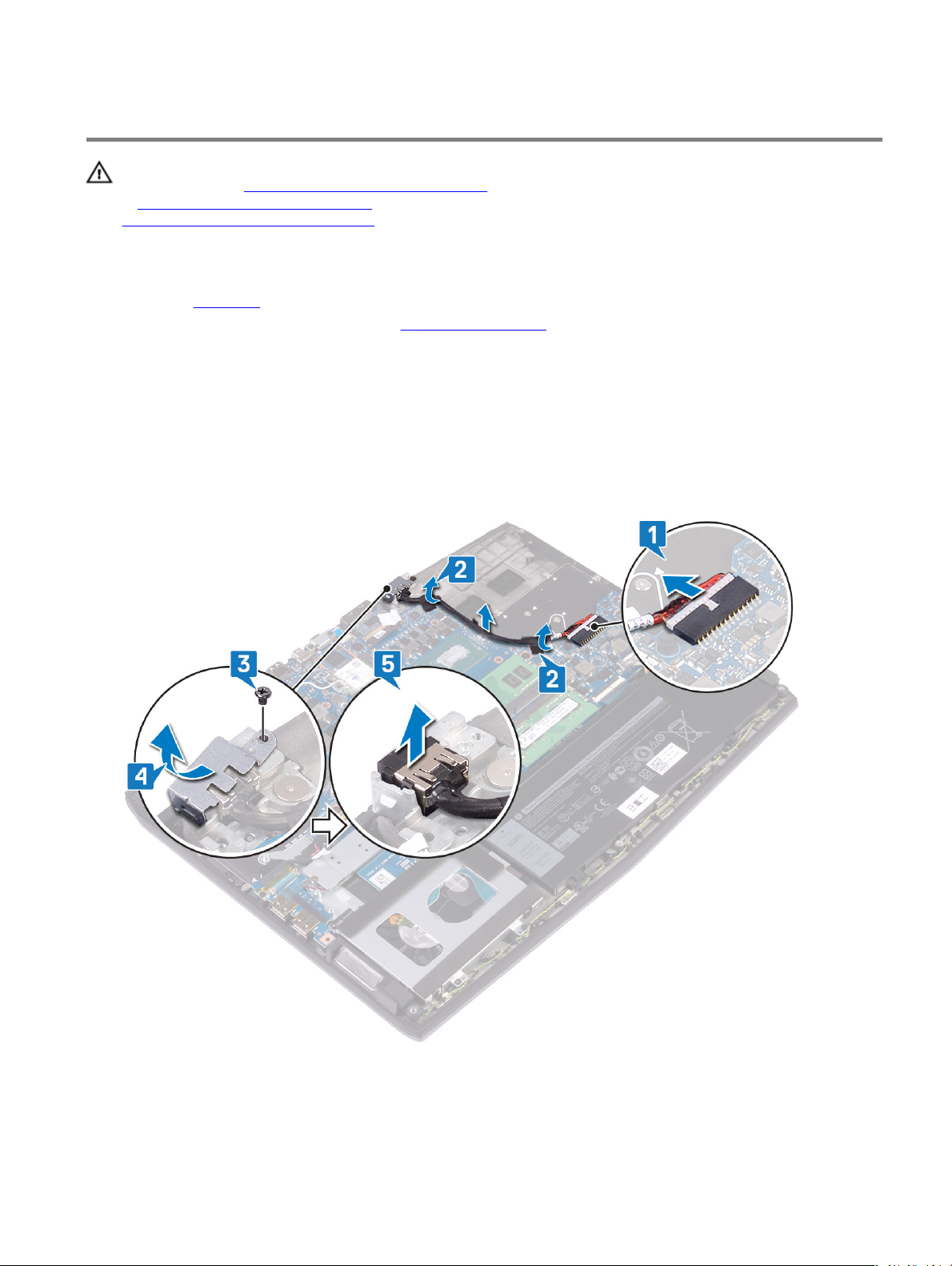

Removing the power-adapter port
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Follow the procedure from step 1 to step 6 in Removing the heat sink.
Procedure
1 Disconnect the power-adapter port cable from the system board.
2 Peel the tape that secures the power-adapter port cable to the system board.
3 Remove the screw (M2x3) that secures the power-adapter port bracket to the system board and palm-rest assembly.
4 Rotate the power-adapter port bracket o the power-adapter port.
5 Lift the power-adapter port along with its cable o the palm-rest assembly.
64
Page 65

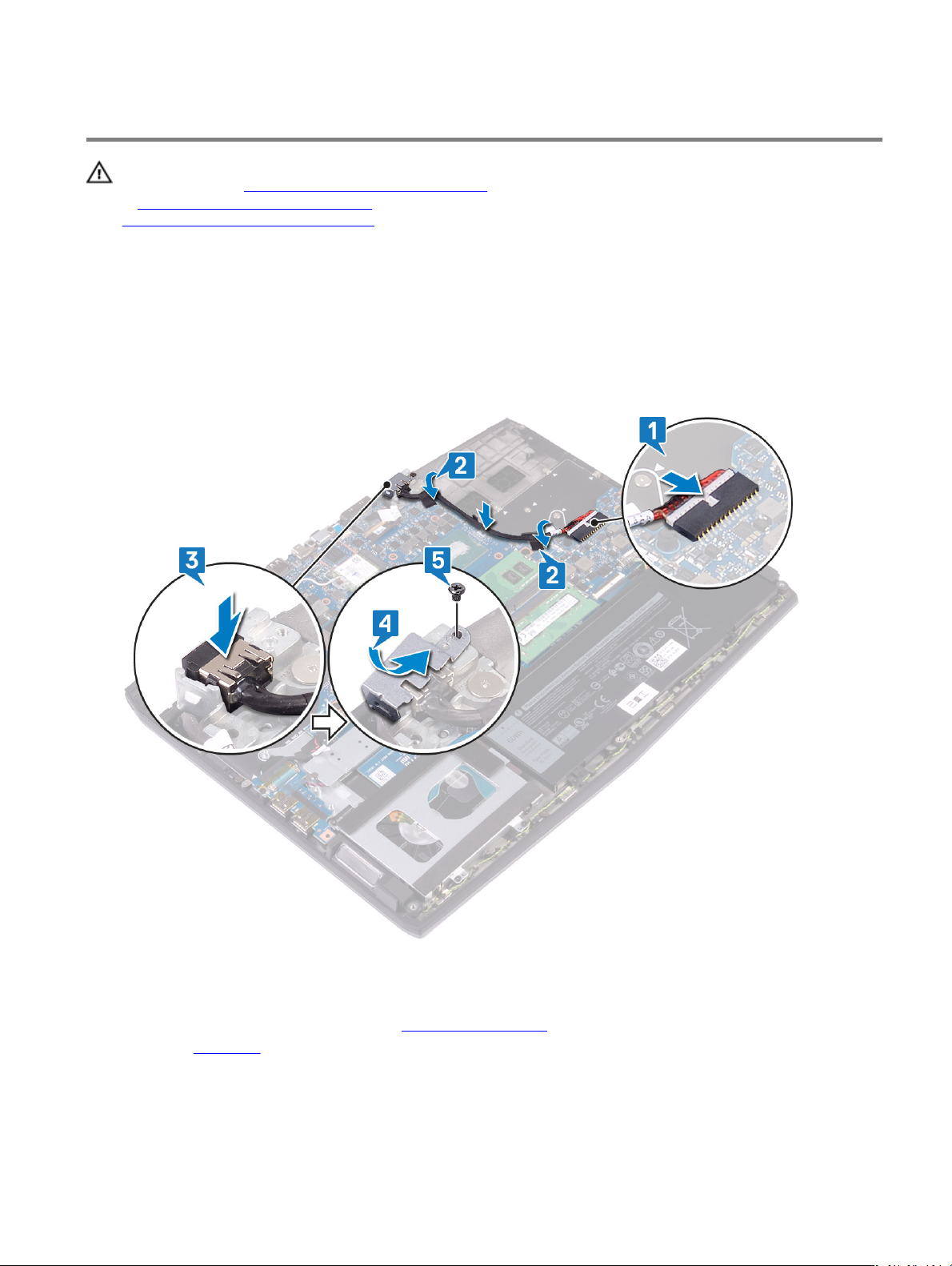

Replacing the power-adapter port
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Connect the power-adapter port cable to the system board.
2 Adhere the tape that secures the power-adapter port cable to the system board.
3 Place the power-adapter port into the slot, and adhere the power-adapter port on the palm-rest assembly.
4 Clip and rotate the power-adapter port bracket onto the power-adapter port.
5 Replace the screw (M2x3) that secures the power-adapter port bracket to the system board and palm-rest assembly.
Post-requisites
1 Follow the procedure from step 2 to step 7 in Replacing the heat sink.
2 Replace the base cover.
65
Page 66

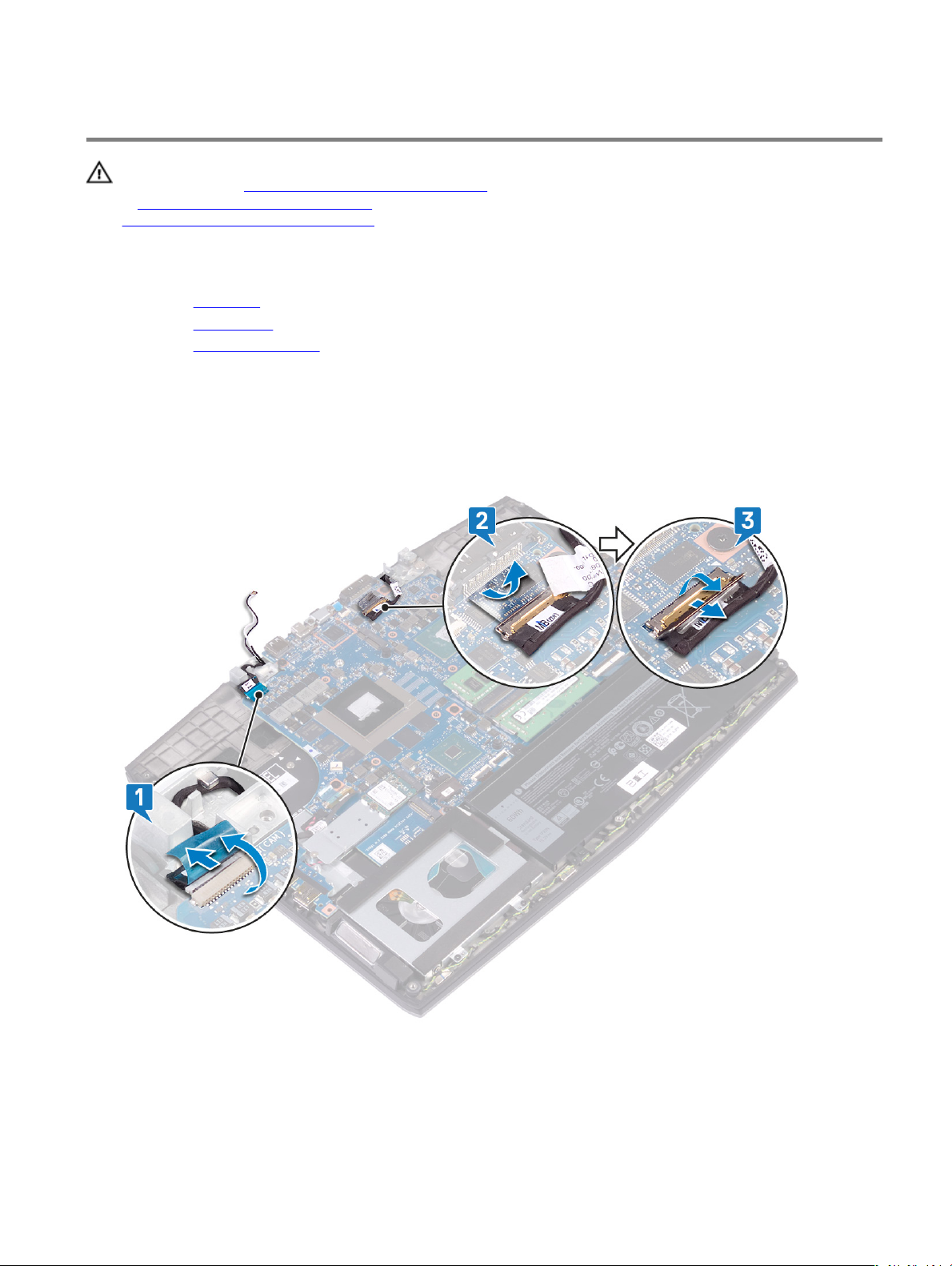

Removing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the wireless card.
3 Remove the power-adapter port.
Procedure

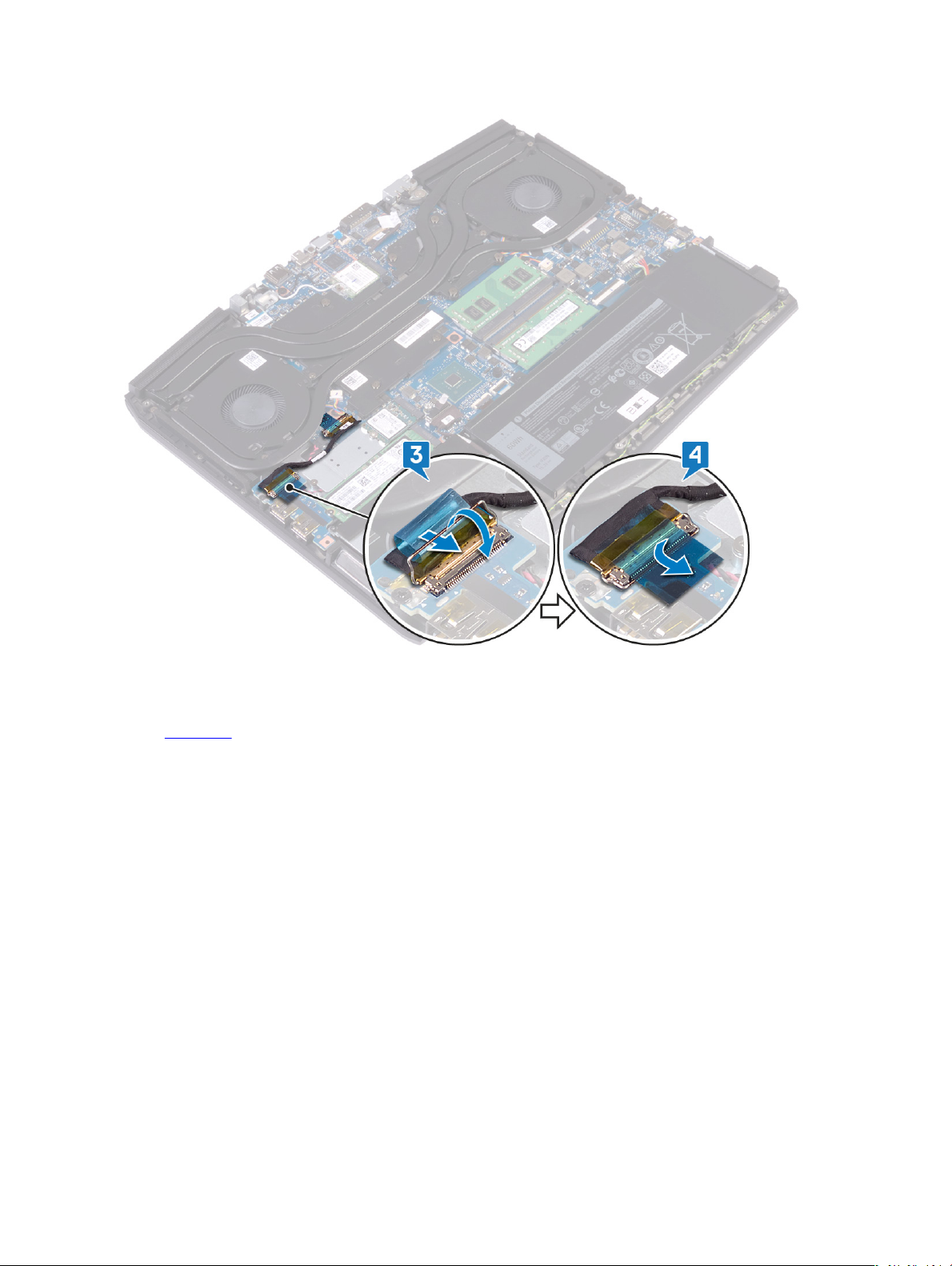

1 Peel the tape that secures the camera cable to the system board and disconnect the camera cable.
2 Peel the tape that secures the display cable to the system board.
3 Open the latch and disconnect the display cable from the system board.
4 Open the display at an angle of 90 degrees.
66
Page 67

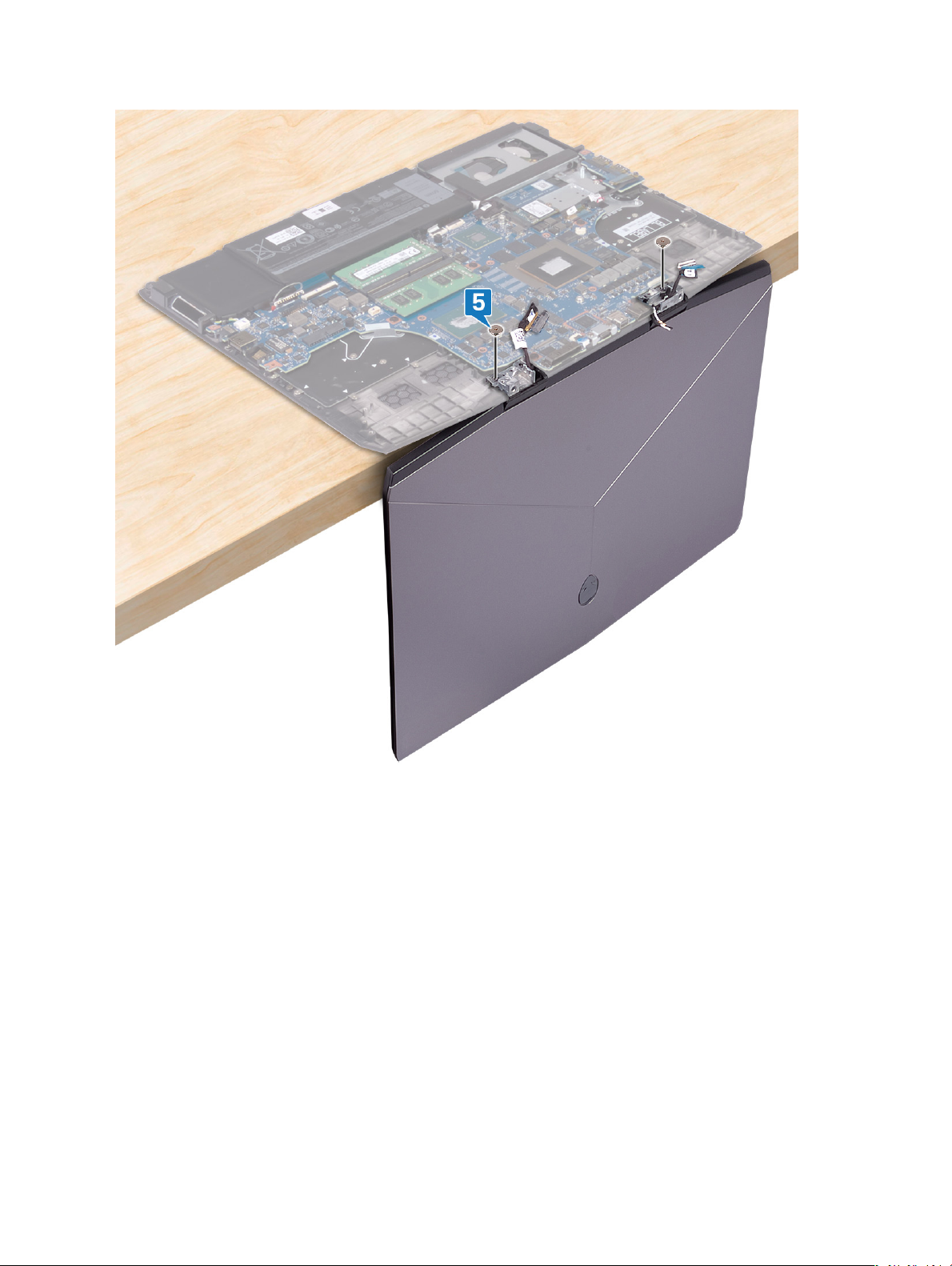

5 Remove the two screws (M2.5x2.5) that secures the hinges to the palm-rest assembly.
67
Page 68

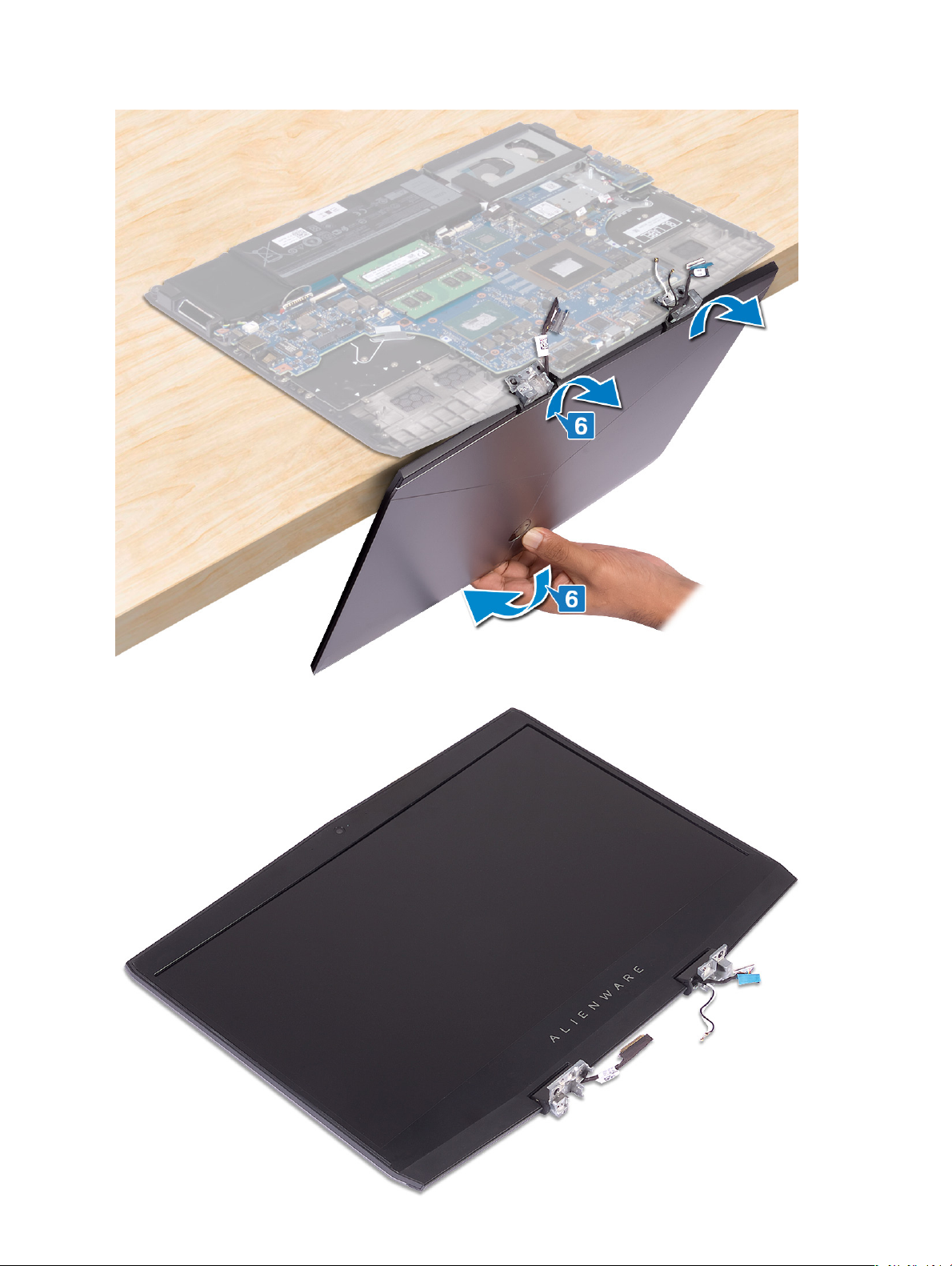

6 Rotate the display assembly inward and lift up and away from the palm-rest assembly.
68
Page 69

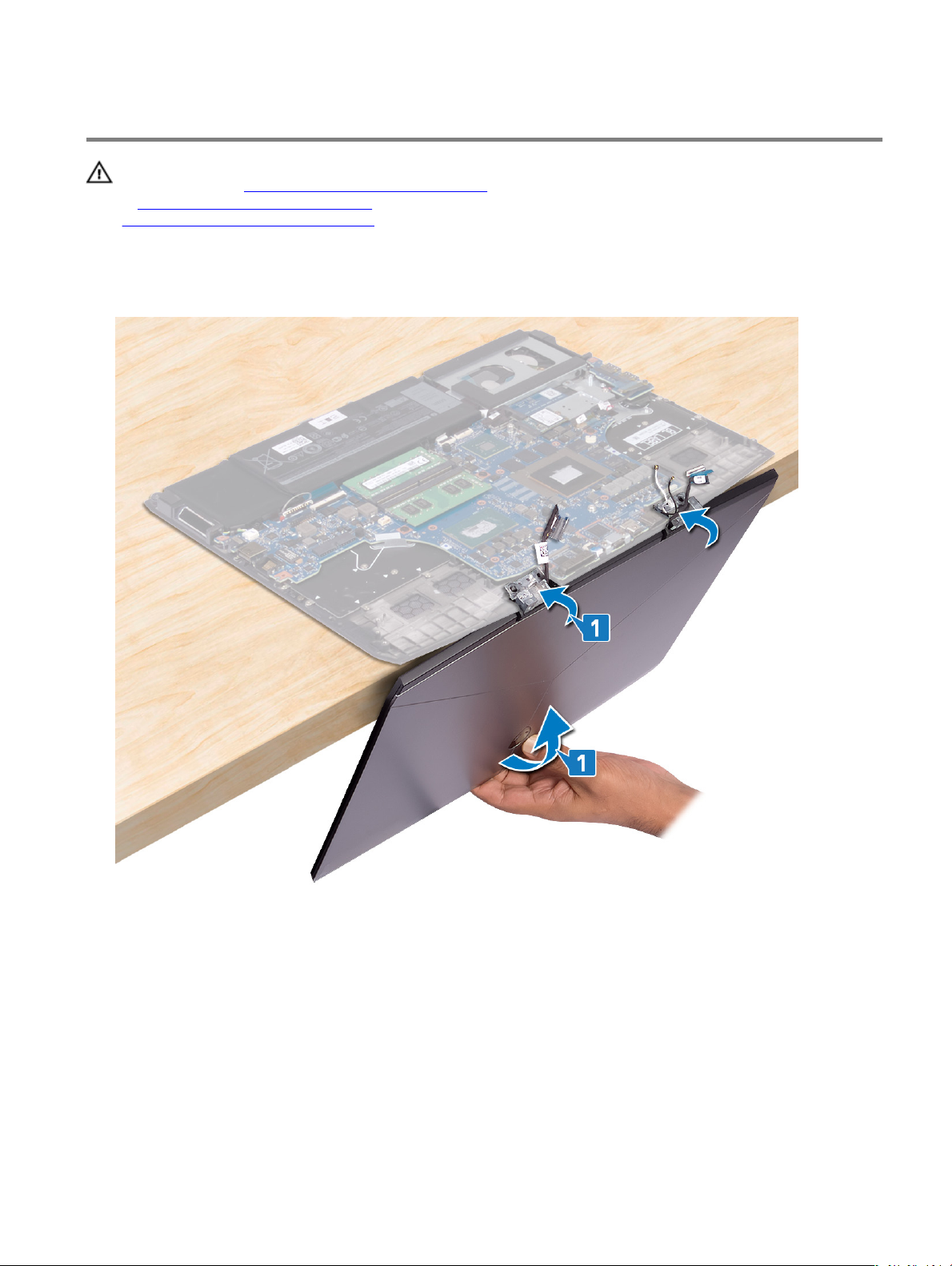

Replacing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Open the hinges to 90 degree and place the display assembly on the palm-rest assembly by rotating outward.
69
Page 70
2 Replace the two screws (M2.5x2.5) that secures the hinges to the palm-rest assembly.
3 Close the display and turn the computer over.
4 Slide the display cable into the connector on the system board and close the latch to secure the cable.
5 Adhere the tape that secures the display cable to the system board.
70
Page 71
6 Connect the camera cable to the system board and adhere the tape that secures the camera cable to the system board.
Post-requisites
1 Replace the power-adapter port.
2 Replace the wireless card.
3 Replace the base cover.
71
Page 72
Removing the system board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup
program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program.
You must make the appropriate changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can
reconnect the cables correctly after you replace the system board.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
3 Follow the procedure from step 1 to step 3 in Removing the hard drive.
4 Remove the memory modules.
5 Remove the wireless card.
6 Remove the solid-state drive/Intel Optane.
7 Follow the procedure from step 1 to step 6 in Removing the heat sink.
8 Remove the power-adapter port.
Procedure
1 Remove the two screws (M2x3) that secure the USB Type-C port bracket to the system board.
2 Lift the USB Type-C port bracket from the system board.
3 Peel the tape that secures the display cable to the system board.
72
Page 73

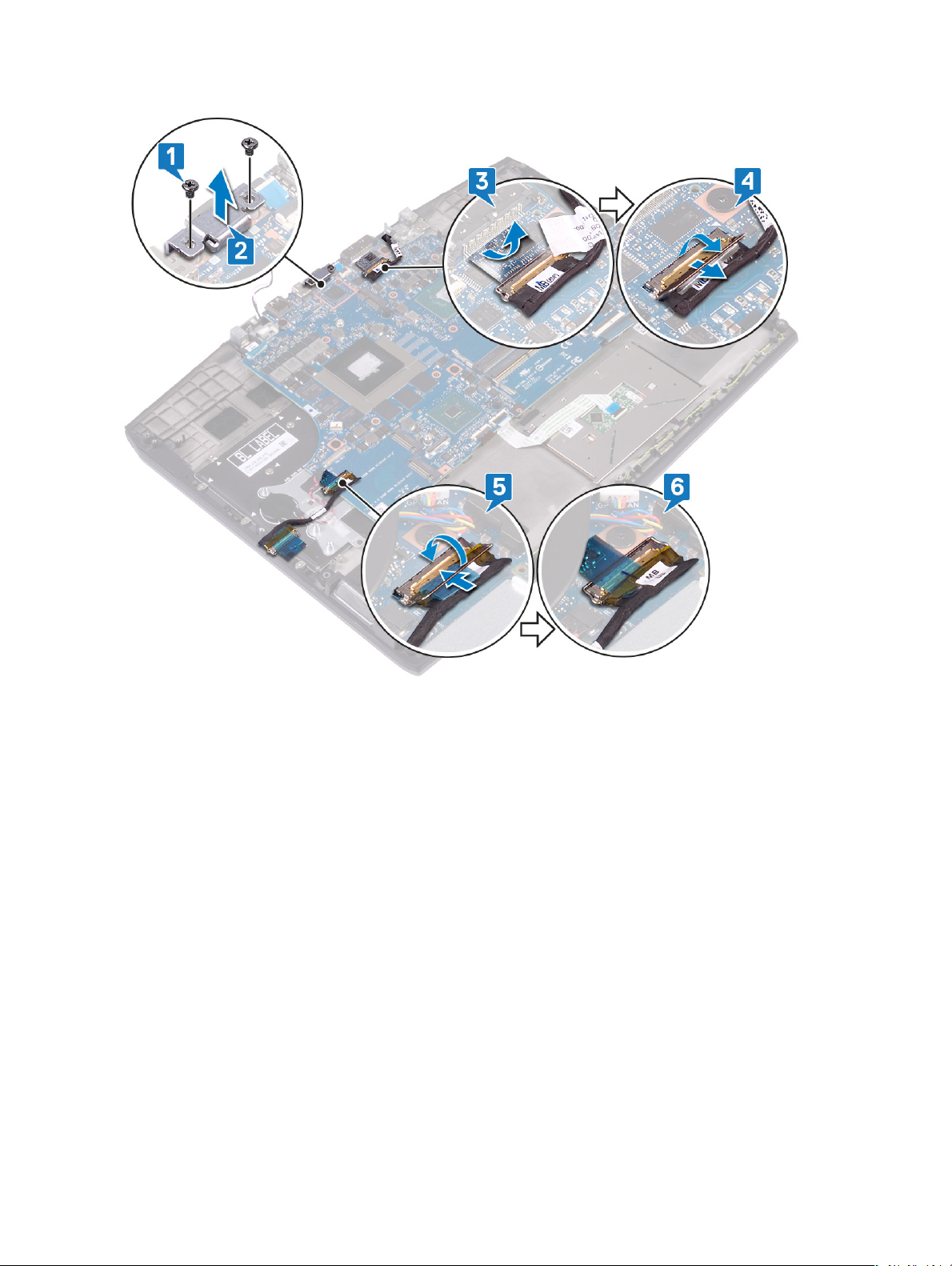

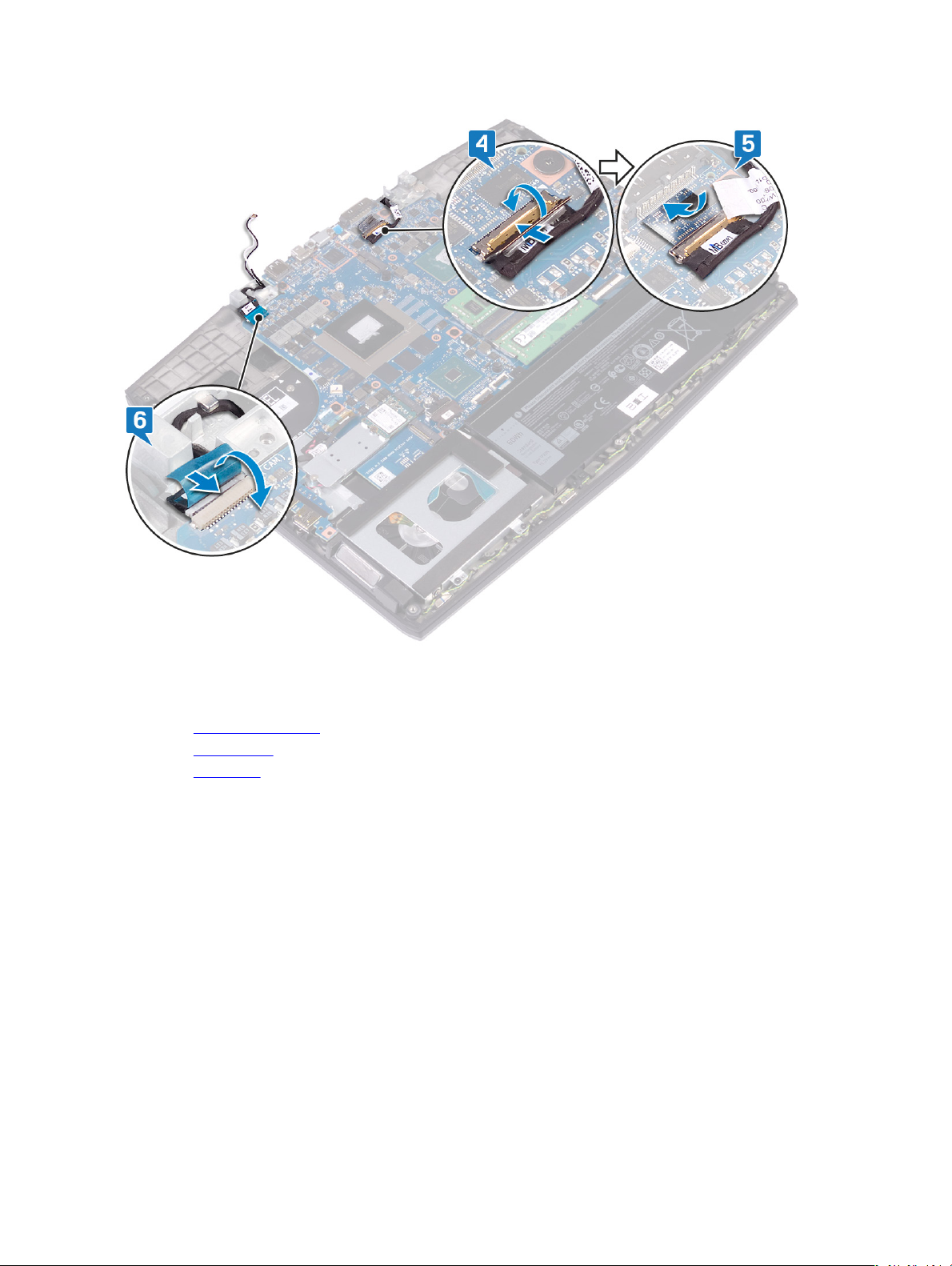

4 Open the latch and disconnect the display cable from the system board.
5 Disconnect the speaker cable from the system board.
6 Open the latch and disconnect the keyboard cable from the system board.
7 Open the latch and disconnect the touchpad cable from the system board.
8 Open the latch and disconnect the keyboard back-light cable from the system board.
9 Disconnect the coin-cell battery from the system board.
10 Disconnect the camera cable from the system board.
73
Page 74

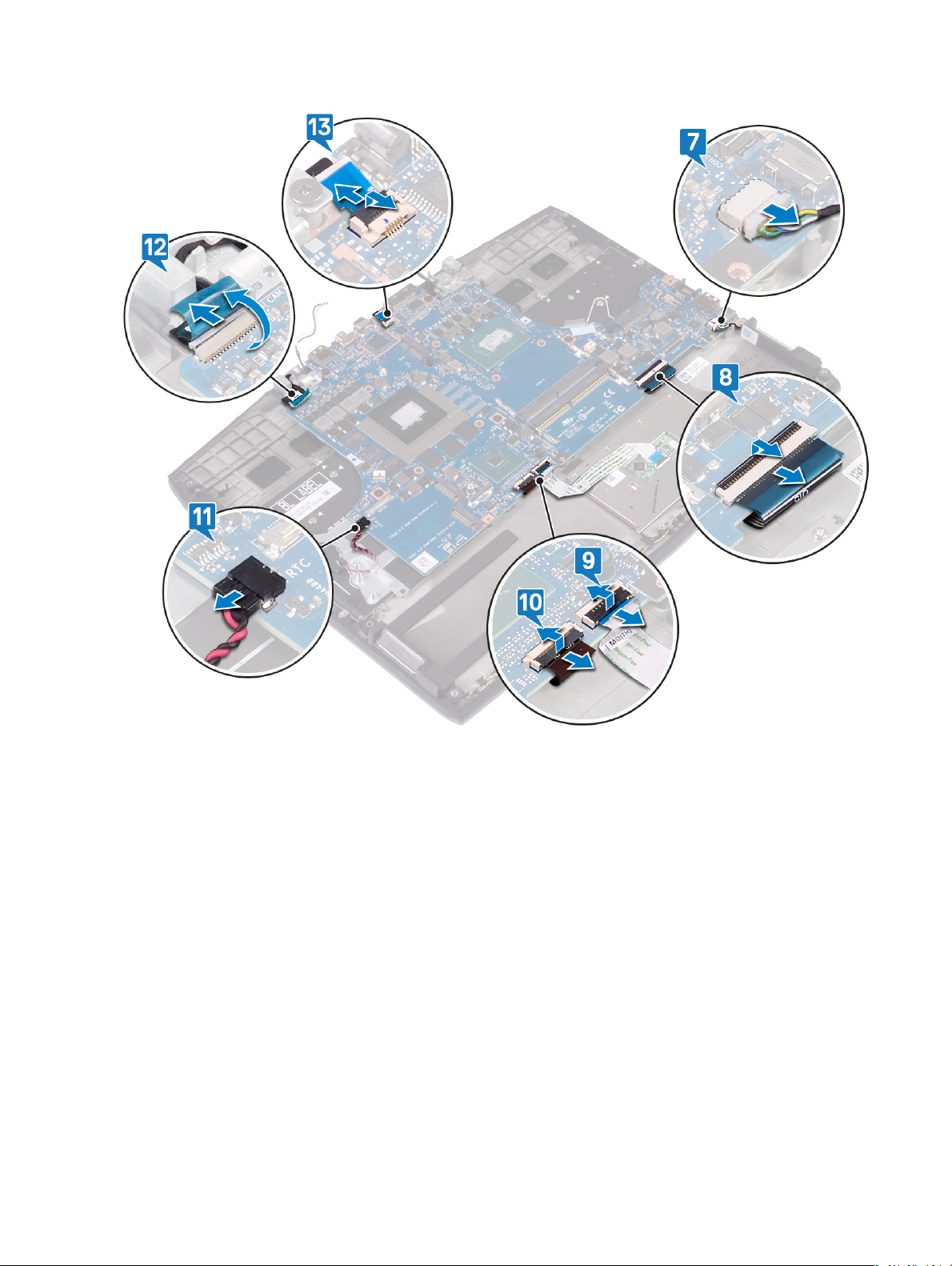

11 Disconnect the power-button cable from the system board.
12 Remove the ve screws (M2x2) that secure the system board to palm-rest assembly.
74
Page 75

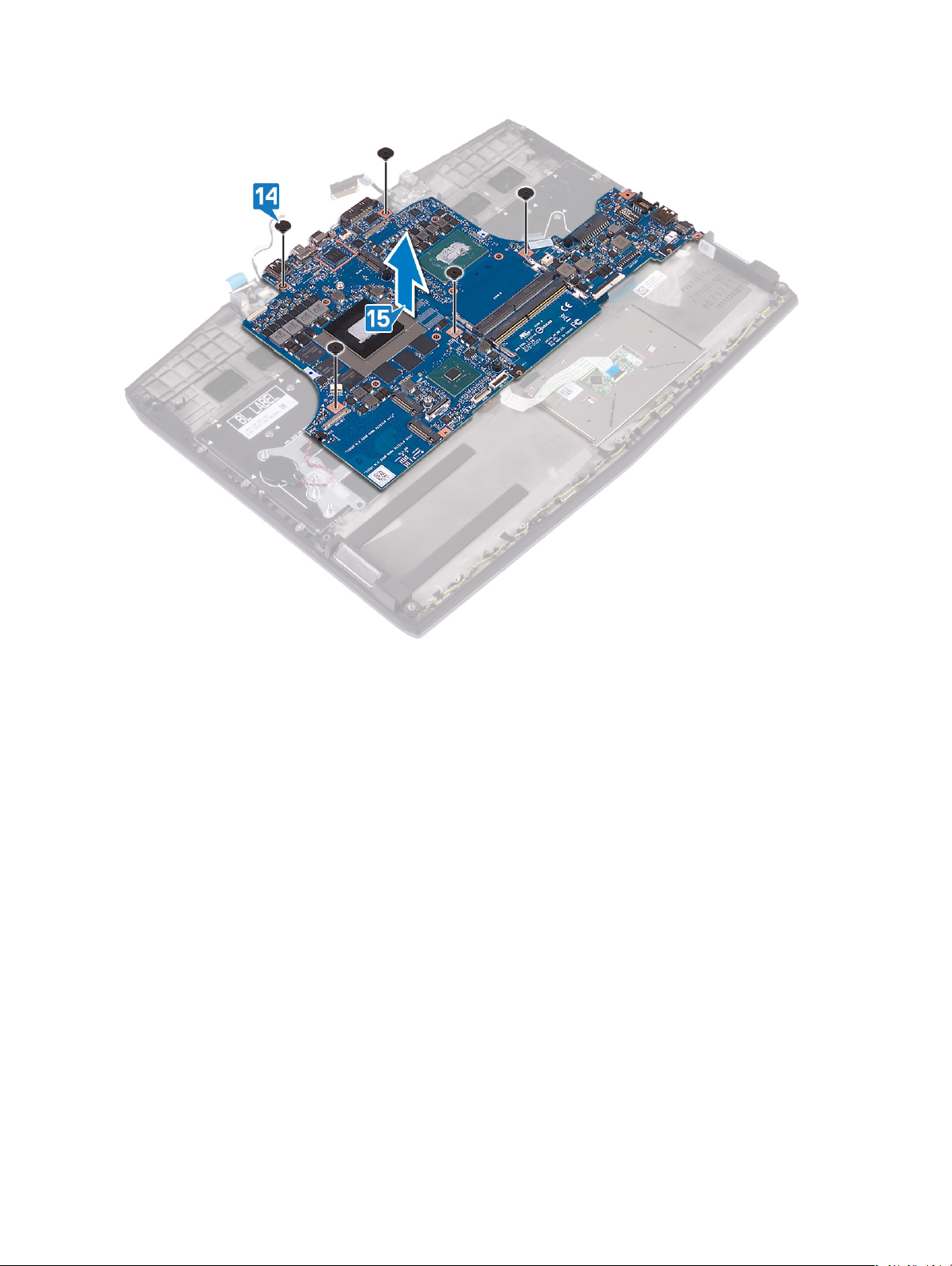

13 Lift the system board o the palm-rest assembly.
75
Page 76
Replacing the system board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You must enter the Service Tag in the BIOS setup
program after you replace the system board.
NOTE: Replacing the system board removes any changes you have made to the BIOS using the BIOS setup program.
You must make the appropriate changes again after you replace the system board.
Procedure

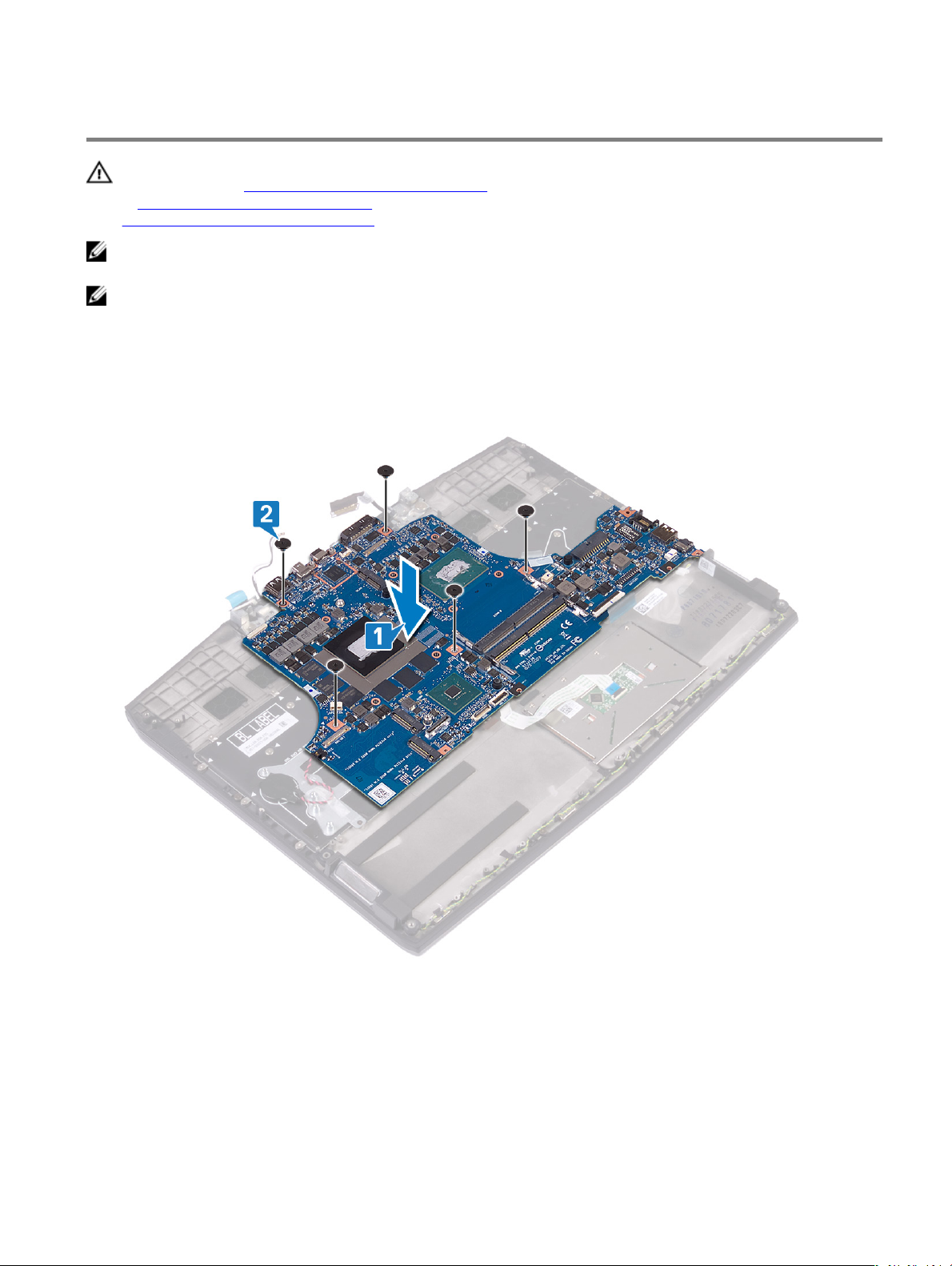

1 Align the screw hole on the system board with the screw hole on the palm-rest assembly.
2 Replace the ve screws (M2x2) that secure the system board to the palm-rest assembly.
3 Connect the power-button cable to the system board.
4 Connect the camera cable to the system board and close the latch to secure the cable.
5 Connect the coin-cell battery to the system board.
6 Connect the keyboard back-light cable to the system board and close the latch to secure the cable.
7 Connect the touchpad cable to the system board and close the latch to secure the cable.
8 Connect the keyboard cable to the system board and close the latch to secure the cable.
76
Page 77
9 Connect the speaker cable to the system board.
10 Connect the display cable and close the latch to secure the cable.
11 Adhere the tape that secures the display cable to the system board.
12 Align the screw holes of the USB Type-C port bracket with the screw holes on the system board.
77
Page 78

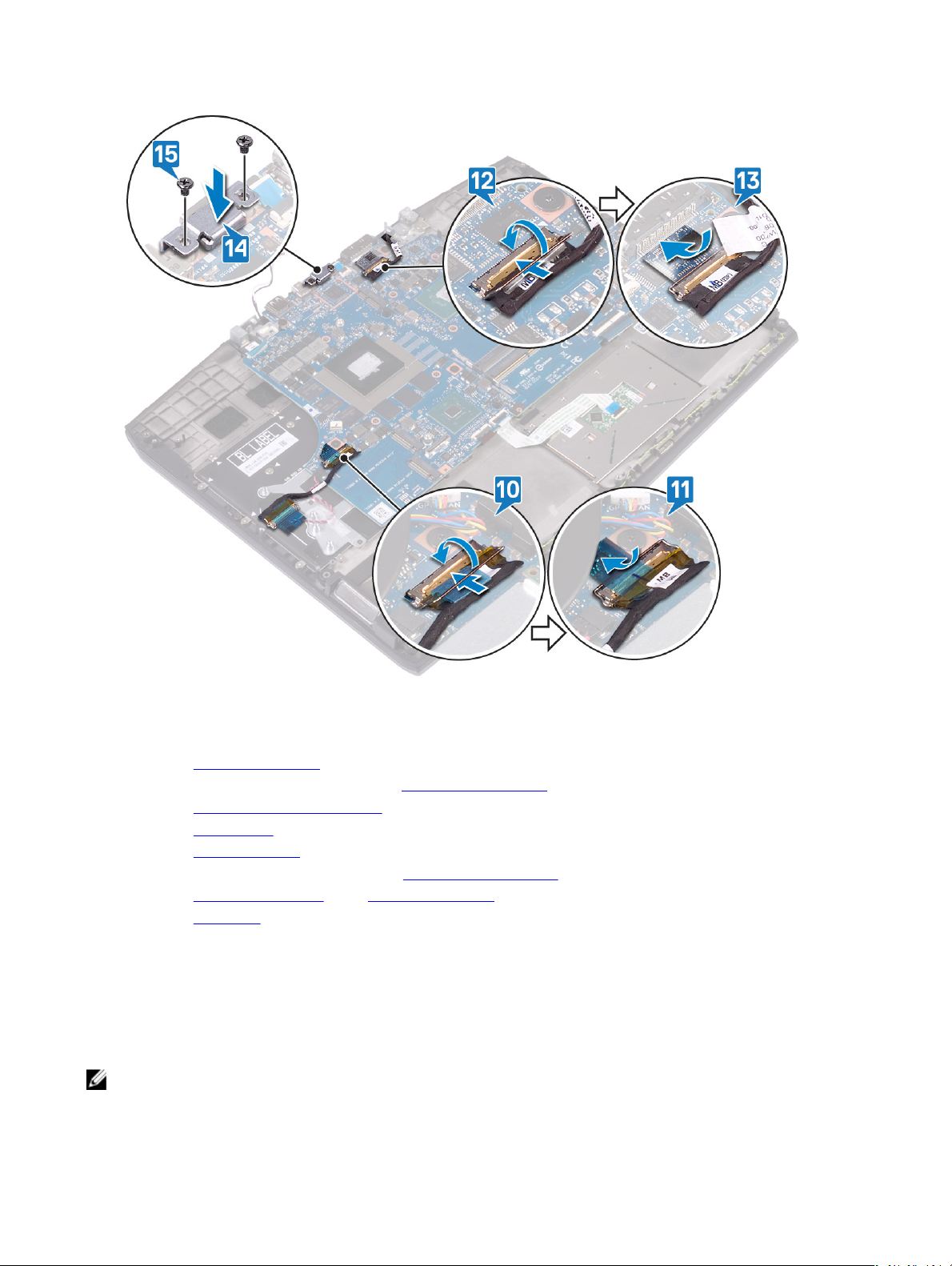

13 Replace the two screws (M2x3) that secure the USB Type-C port bracket to the system board.
Post-requisites
1 Replace the power-adapter port.
2 Follow the procedure from step 2 to step 7 in Replacing the heat sink.
3 Replace the solid-state drive/Intel Optane.
4 Replace the wireless card.
5 Replace the memory modules.
6 Follow the procedure from step 4 to step 6 in Replacing the hard drive.
7 Replace the battery (half-length) or the battery (full-length), whichever applicable.
8 Replace the base cover.
Entering the Service Tag in the BIOS setup program
1 Turn on or restart your computer.
2 Press F2 when the Dell logo is displayed to enter the BIOS setup program.
3 Navigate to the Main tab and enter the Service Tag in the Service Tag Input eld.
NOTE: Service tag is the alphanumeric identier located at the back side of your computer.
78
Page 79

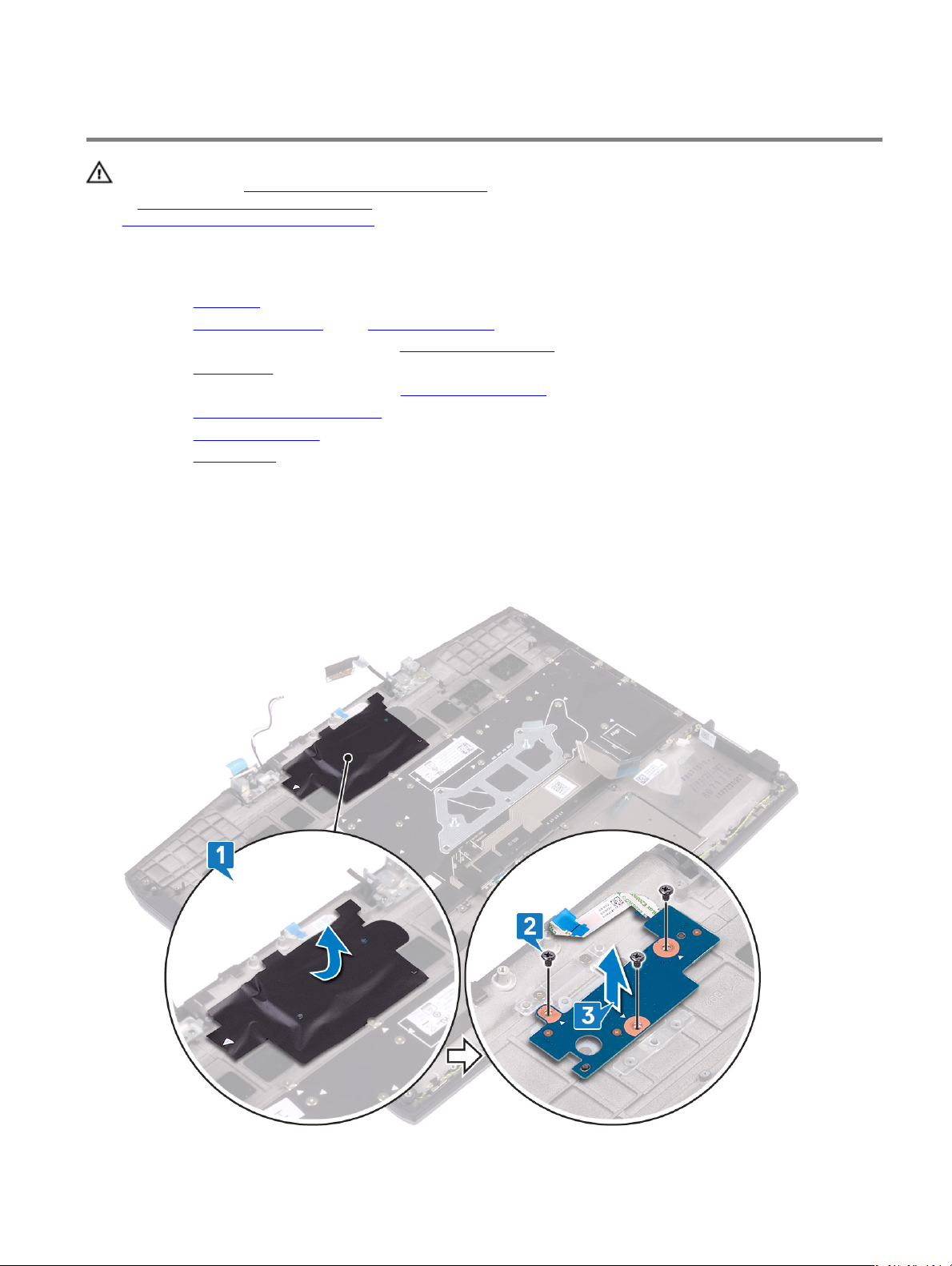

Removing the power-button board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
3 Follow the procedure from step 1 to step 3 in Removing the hard drive.
4 Remove the wireless card.
5 Follow the procedure from step 1 to step 6 in Removing the heat sink.
6 Remove the solid-state drive/Intel Optane.
7 Remove the power-adapter port.
8 Remove the system board.
Procedure
1 Peel the Mylar that covers the power-button board to the palm-rest assembly.
2 Remove the three screws (M2x3) that secure the power-button board to palm-rest assembly.
3 Lift the power-button board o the palm-rest assembly.
79
Page 80

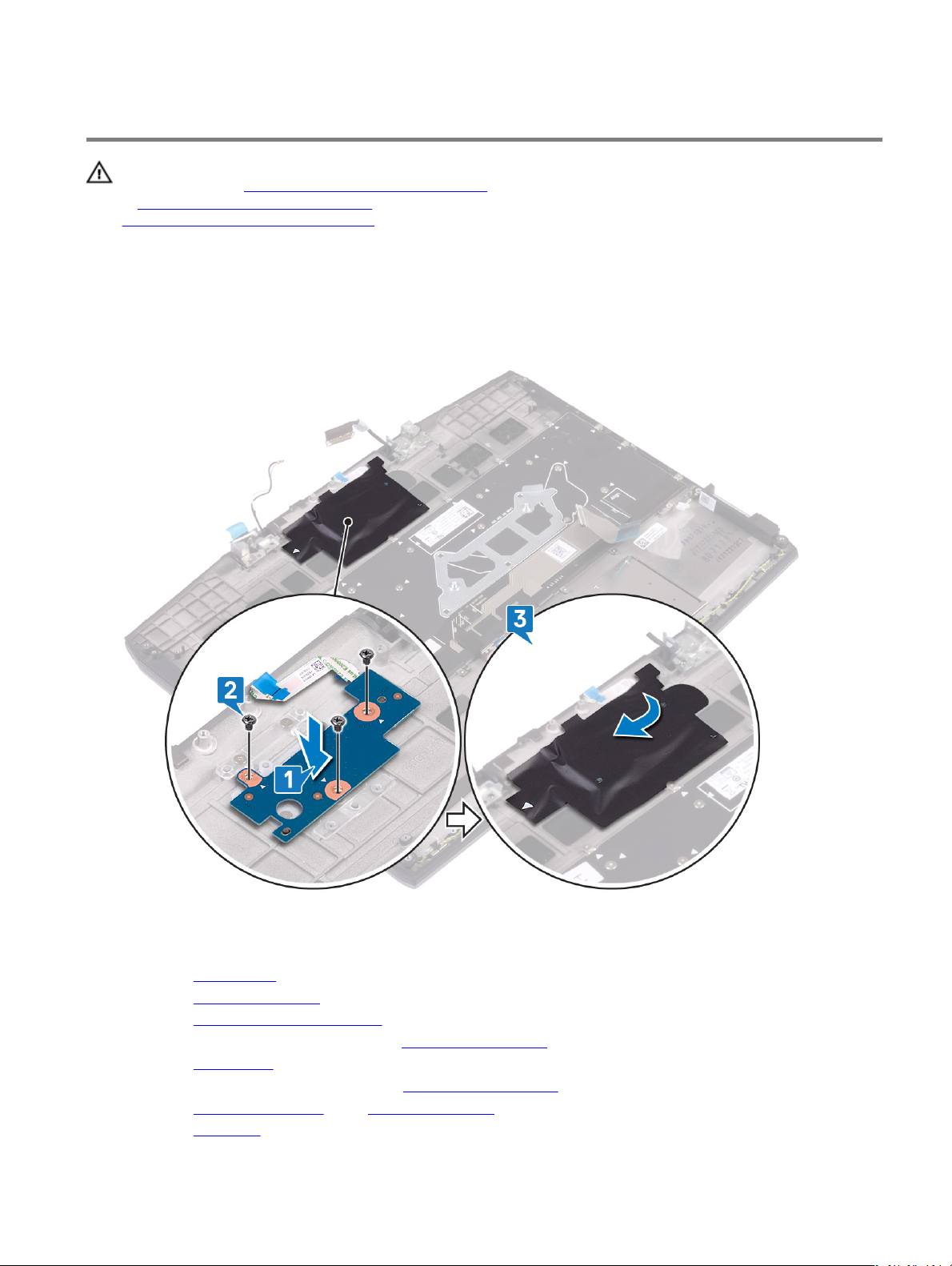

Replacing the power-button board
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the power-button board with the screw holes on the palm-rest assembly.
2 Replace the three screws (M2x3) that secure the power-button board to the palm-rest assembly.
3 Adhere the Mylar that covers the power-button board to the palm-rest assembly.
Post-requisites
1 Replace the system board.
2 Replace the power-adapter port.
3 Replace the solid-state drive/Intel Optane.
4 Follow the procedure from step 2 to step 7 in Replacing the heat sink.
5 Replace the wireless card.
6 Follow the procedure from step 4 to step 6 in Replacing the hard drive.
7 Replace the battery (half-length) or the battery (full-length), whichever applicable.
8 Replace the base cover.
80
Page 81
Removing the keyboard
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
3 Follow the procedure from step 1 to step 3 in Removing the hard drive.
4 Remove the wireless card.
5 Follow the procedure from step 1 to step 6 in Removing the heat sink.
6 Remove the I/O board.
7 Remove the solid-state drive/Intel Optane.
8 Remove the coin-cell battery.
9 Remove the power-adapter port.
10 Remove the system board.
Procedure

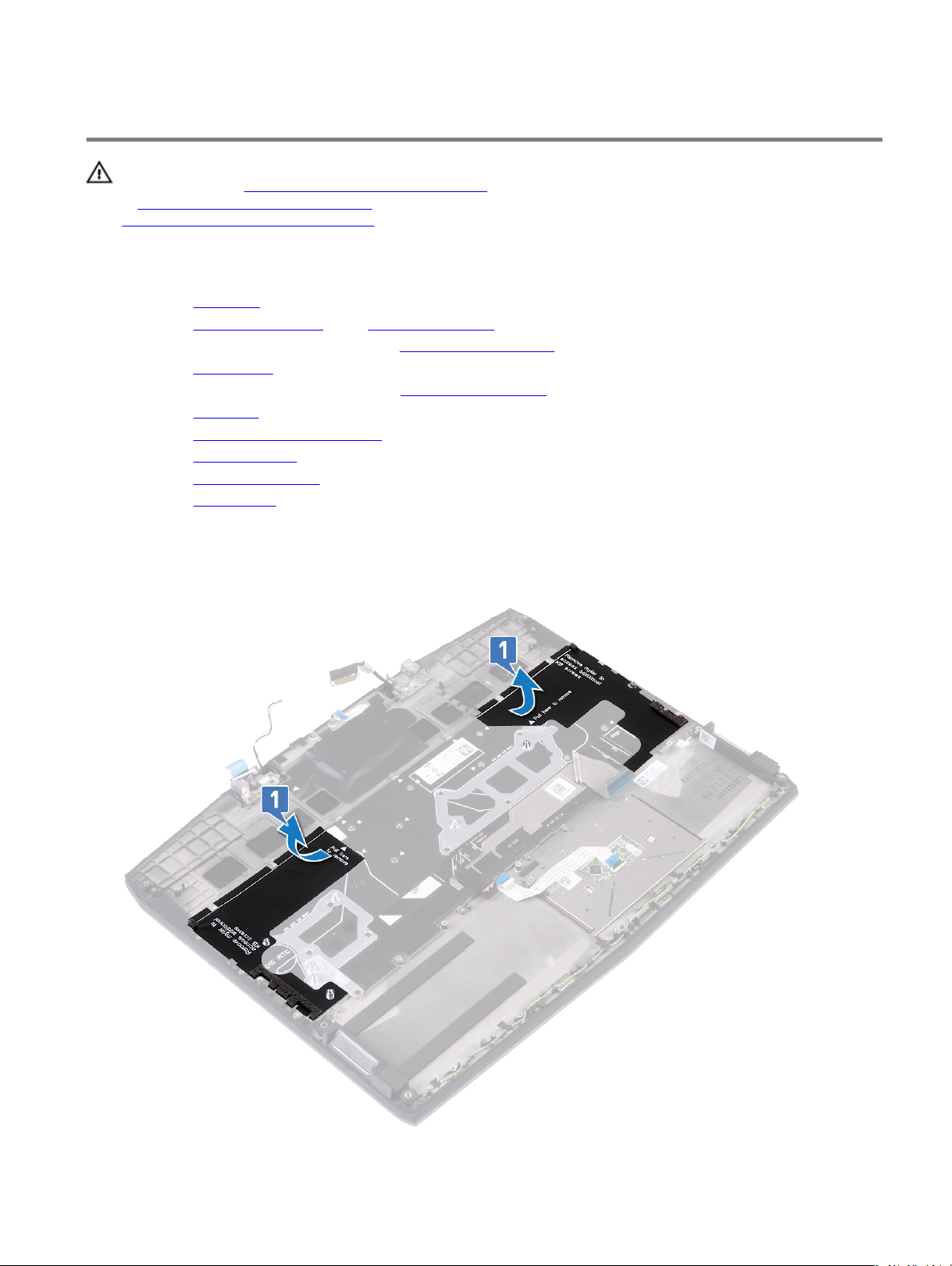

1 Peel the keyboard Mylar o the keyboard bracket.
81
Page 82
2 Remove the eight screws (M1.2x2.2) that secure the keyboard bracket to the palm-rest assembly.
3 Remove the 33 screws (M1.2x1.9) that secure the keyboard to the palm-rest assembly.
4 Lift the keyboard o the palm-rest assembly.
82
Page 83
Replacing the keyboard
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the keyboard with the screw holes on the palm-rest assembly.
2 Replace the 33 screws (M1.2x1.9) that secure the keyboard to the palm-rest assembly.
83
Page 84
3 Replace the eight screws (M1.2x2.2) that secure the keyboard bracket to the palm-rest assembly.
NOTE: The keyboard is shipped with a Mylar, that has to be adhered to the keyboard bracket after replacing the
screws. Mylar has three layers: clear release paper, black Mylar, and blue Mylar.
84
Page 85

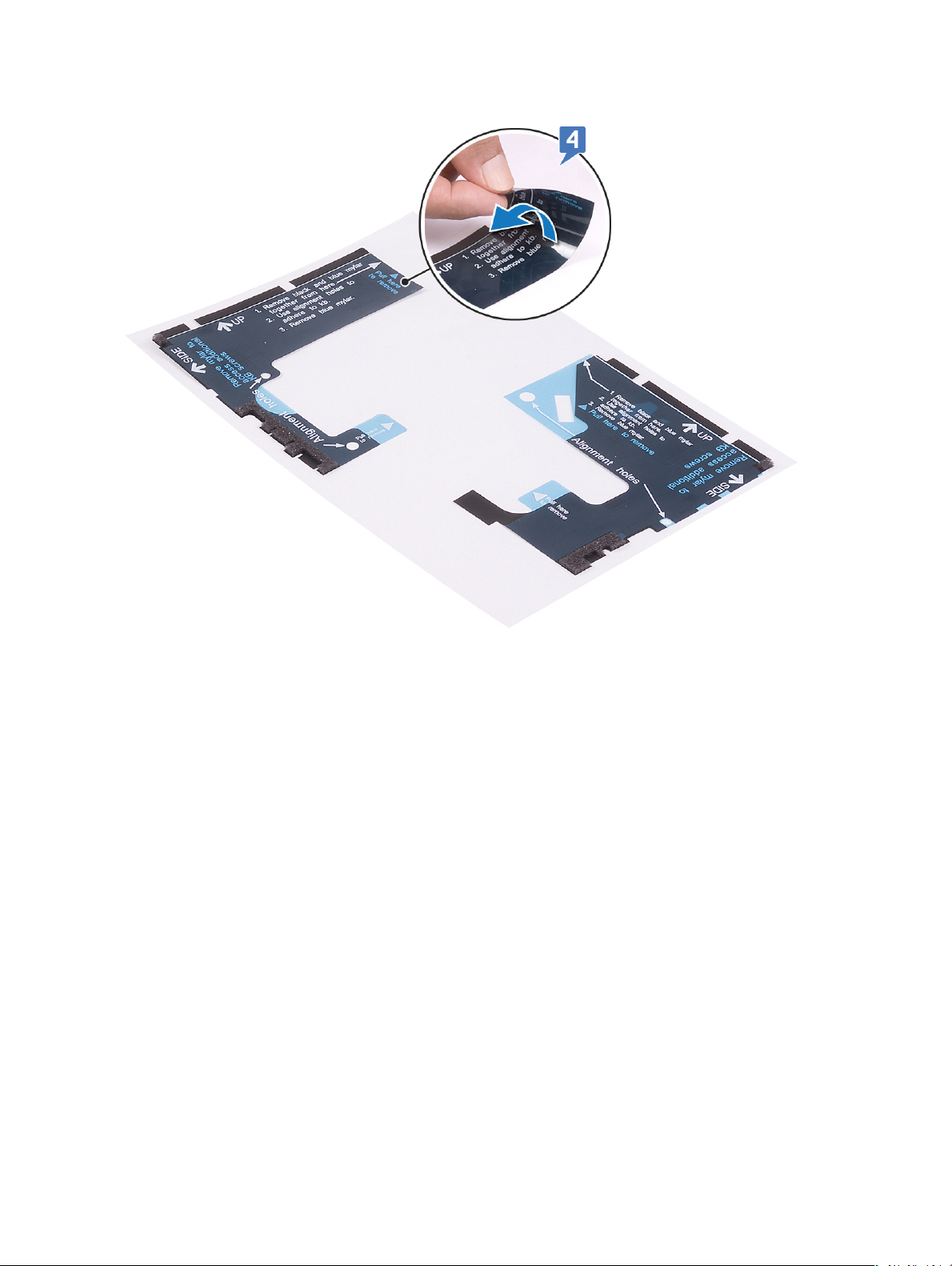

4 Peel the left black Mylar, along with the blue Mylar from the clear release paper.
85
Page 86

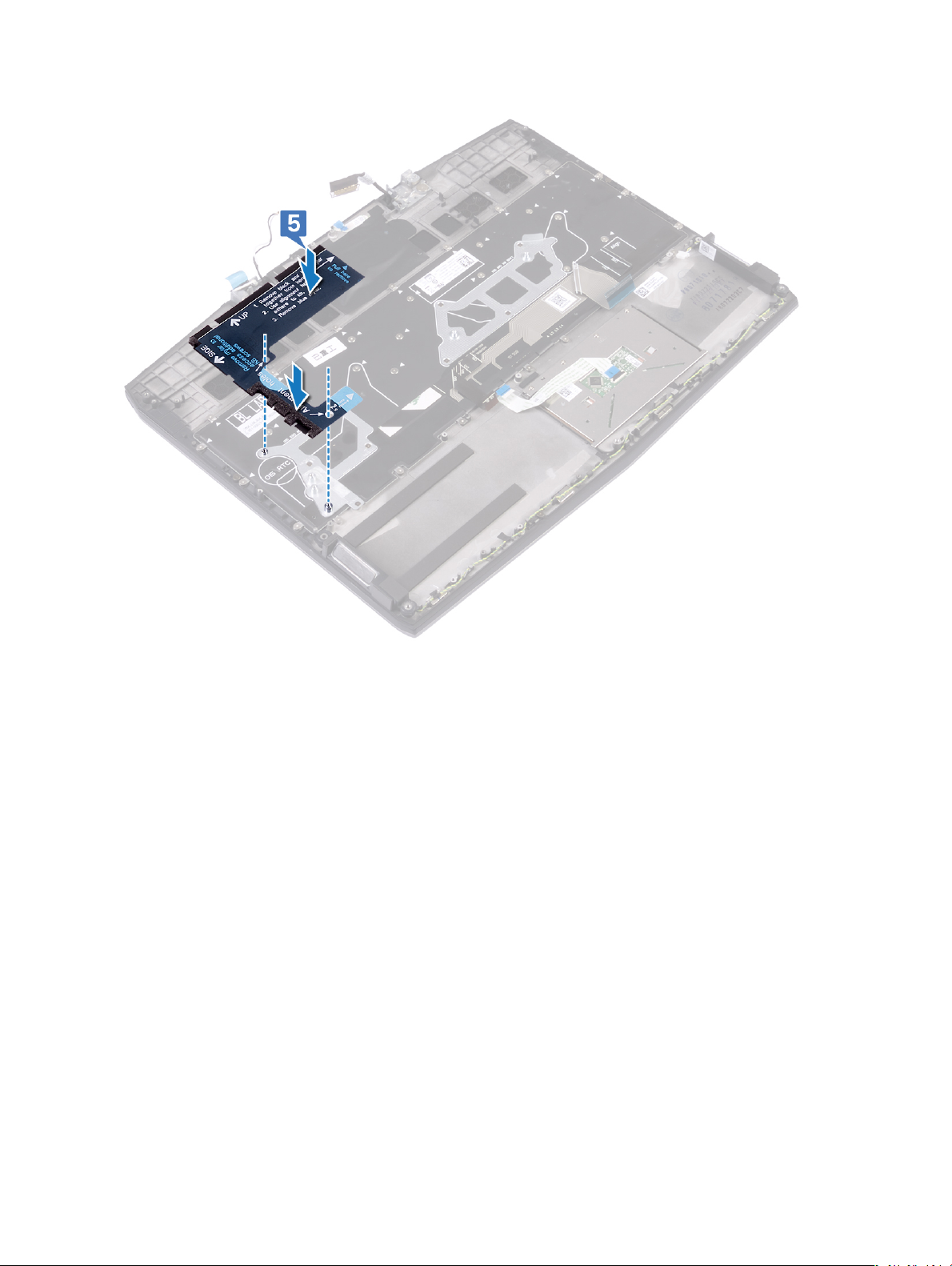

5 Using the alignment holes, adhere the keyboard Mylar on the left side of the keyboard bracket.
86
Page 87

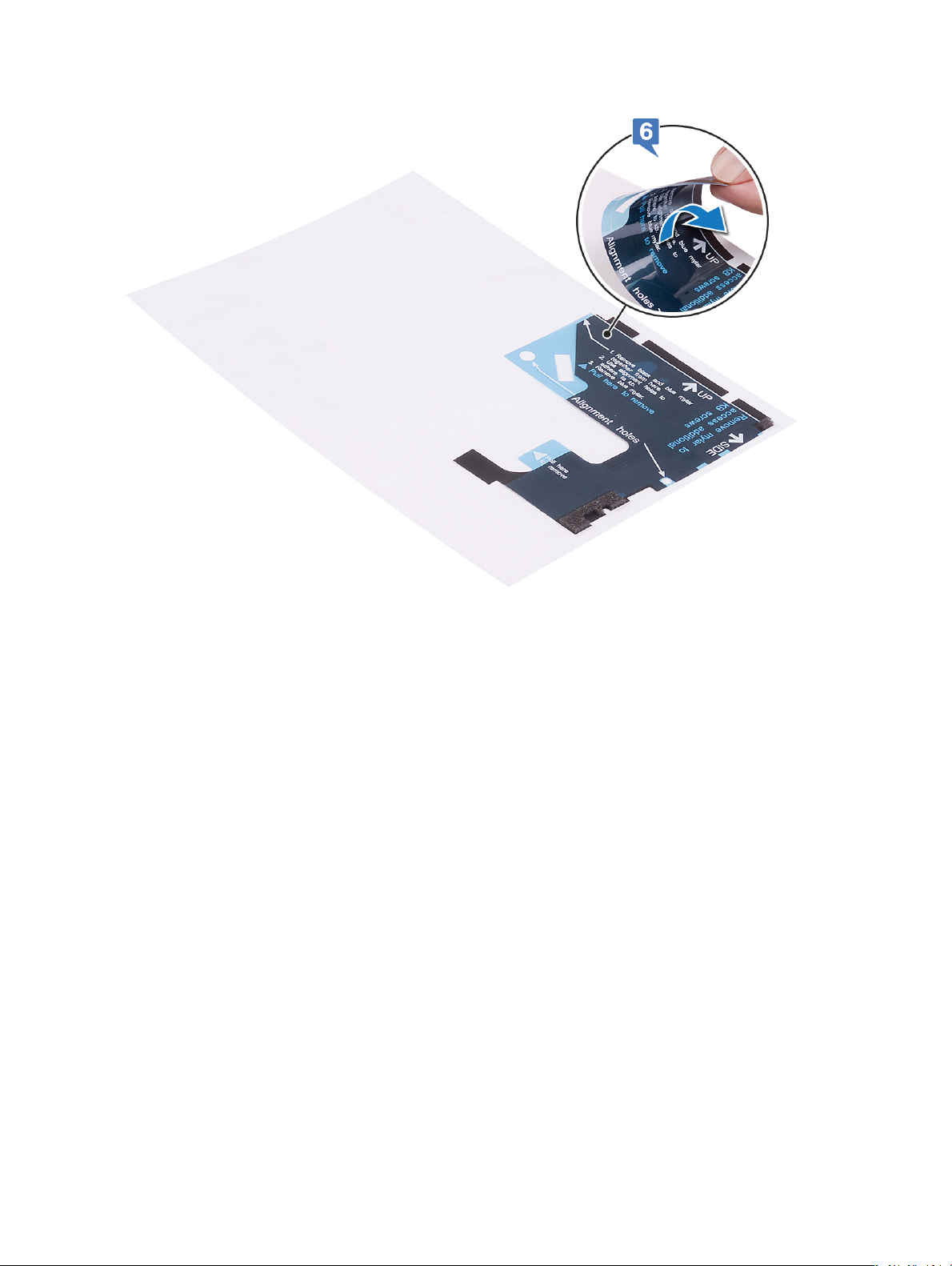

6 Peel the right black Mylar, along with the blue Mylar from the clear release paper.
87
Page 88

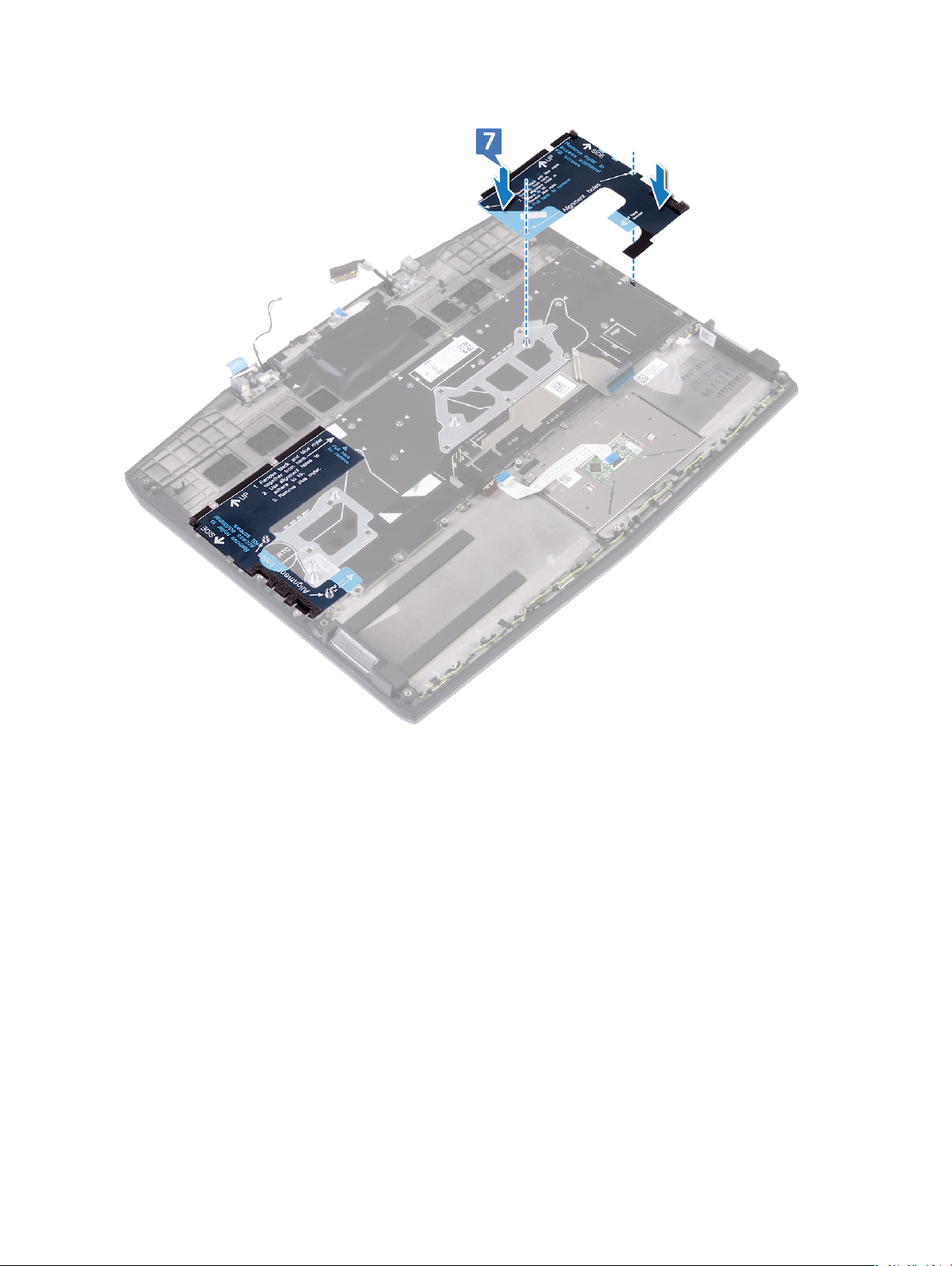

7 Using the alignment holes, adhere the keyboard Mylar on the right side of the keyboard bracket.
88
Page 89

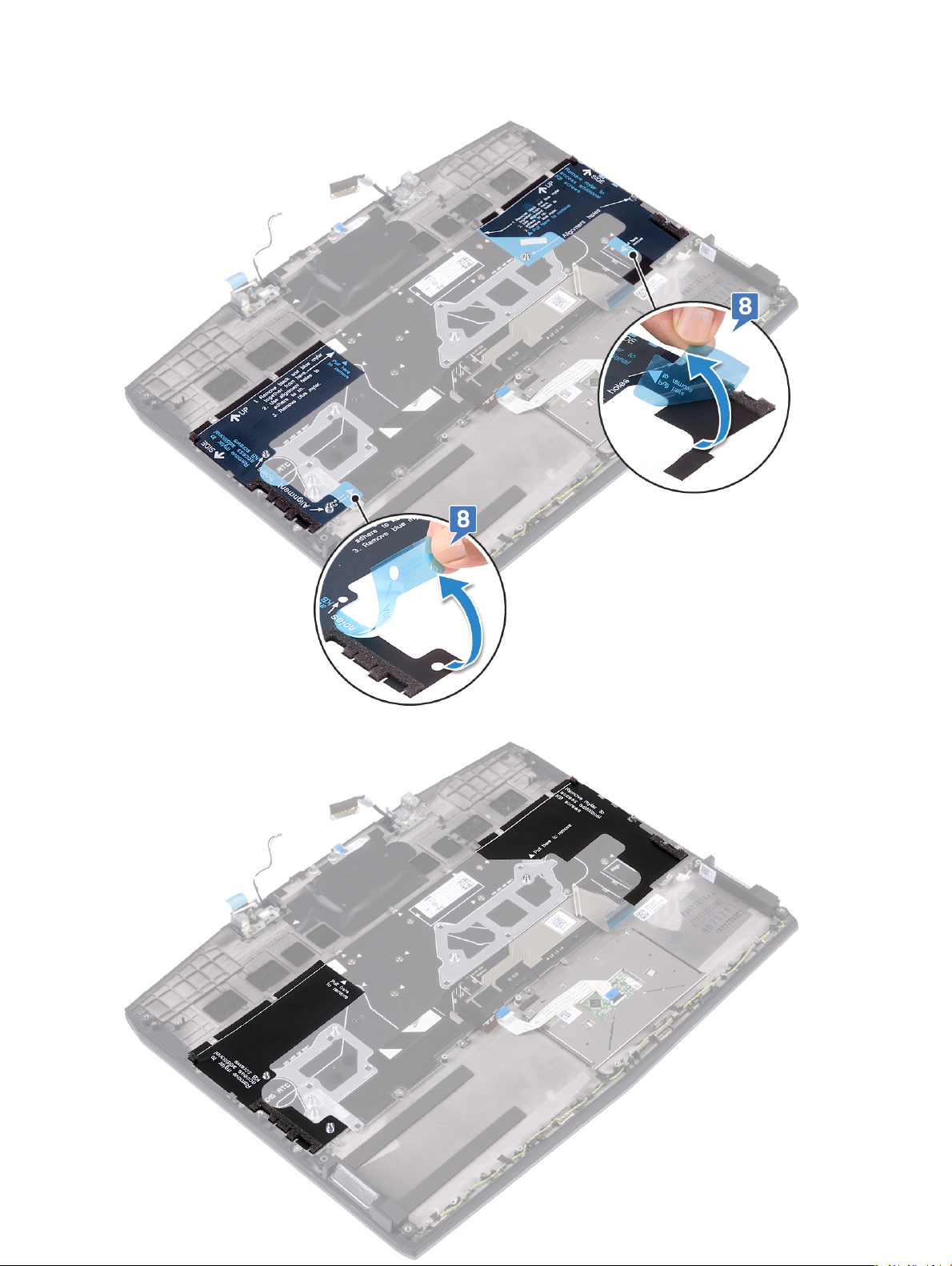

8 Peel the blue Mylar from both the sides.
89
Page 90
Post-requisites
1 Replace the system board.
2 Replace the power-adapter port.
3 Replace the coin-cell battery.
4 Replace the solid-state drive/Intel Optane.
5 Replace the I/O board.
6 Follow the procedure from step 2 to step 7 in Replacing the heat sink.
7 Replace the wireless card.
8 Follow the procedure from step 4 to step 6 in Replacing the hard drive.
9 Replace the battery (half-length) or the battery (full-length), whichever applicable.
10 Replace the base cover.
90
Page 91
Removing the palm rest
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Prerequisites
1 Remove the base cover.
2 Remove the battery (half-length) or the battery (full-length), whichever applicable.
3 Follow the procedure from step 1 to step 3 in Removing the hard drive.
4 Remove the solid-state drive/Intel Optane.
5 Remove the I/O board.
6 Remove the coin-cell battery.
7 Remove the wireless card.
8 Follow the procedure from step 1 to step 6 in Removing the heat sink.
9 Remove the speakers.
10 Remove the touchpad.
11 Remove the power-adapter port.
12 Remove the display assembly.
13 Remove the system board.
14 Remove the power-button board.
15 Remove the keyboard.
Procedure

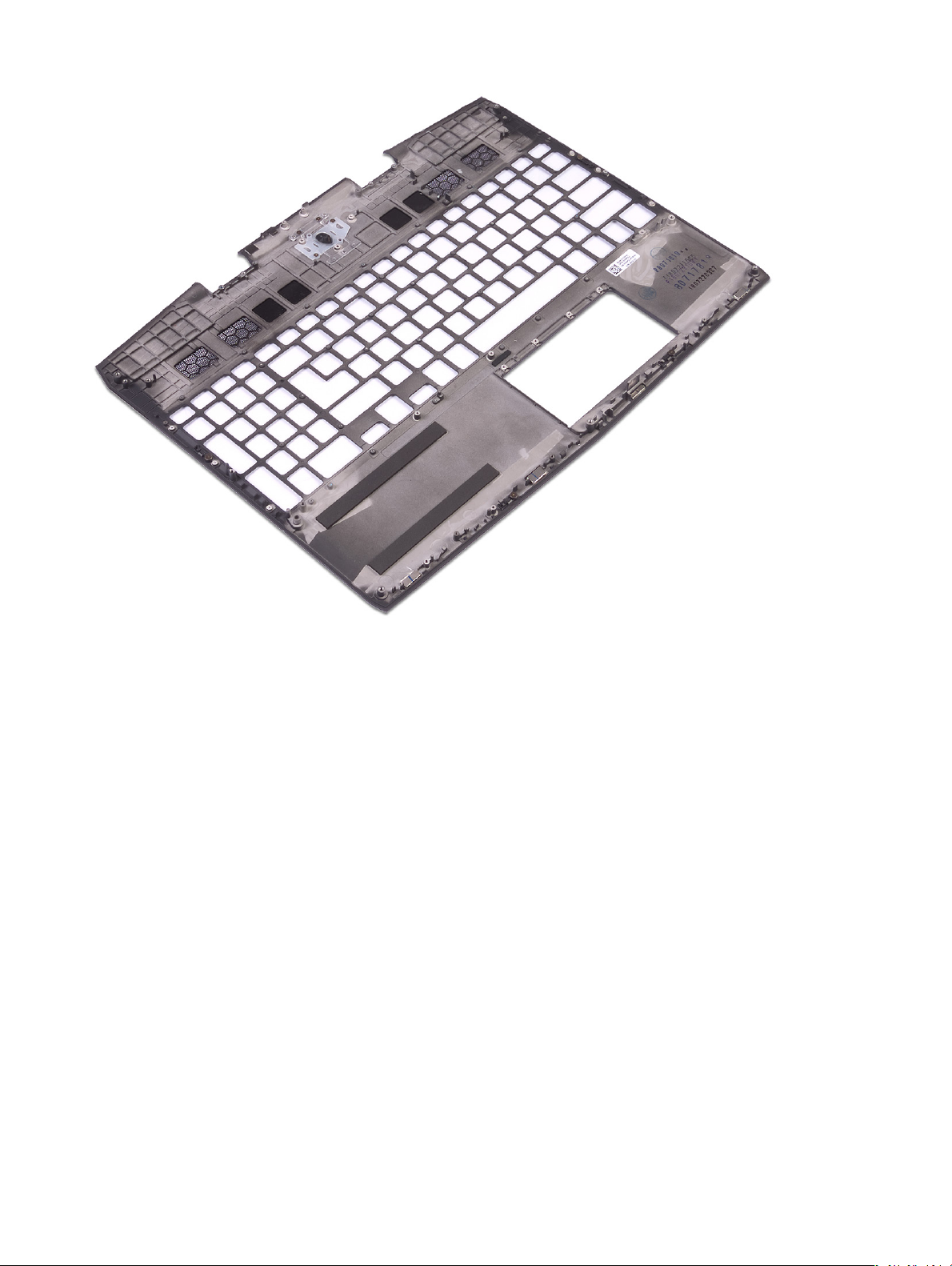

After performing the steps in the pre-requisites, we are left with the palm rest.
91
Page 92
92
Page 93

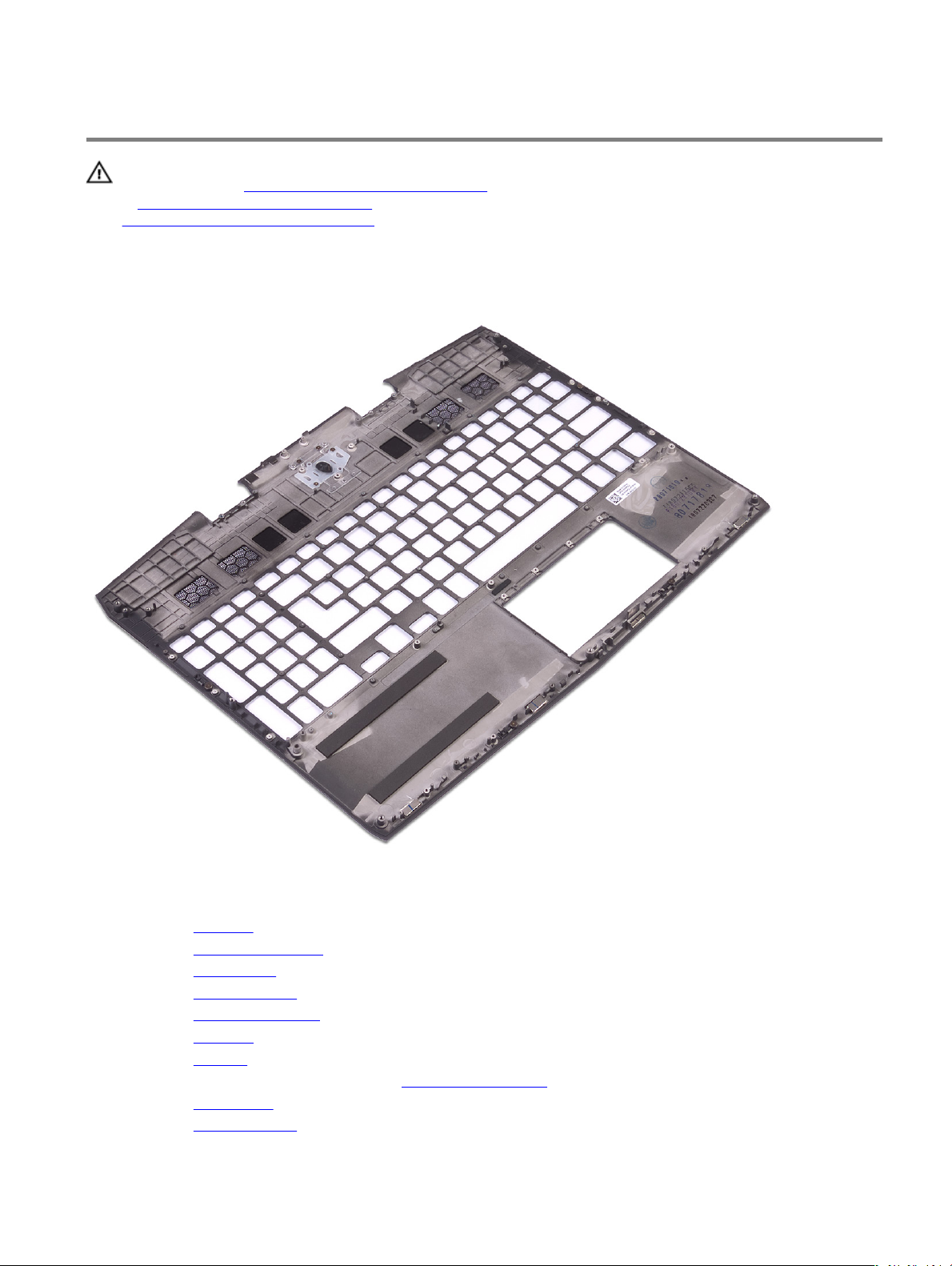

Replacing the palm rest
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure
Place the palm rest on a at surface.
Post-requisites
1 Replace the keyboard.
2 Replace the power-button board.
3 Replace the system board.
4 Replace the display assembly.
5 Replace the power-adapter port.
6 Replace the touchpad.
7 Replace the speakers.
8 Follow the procedure from step 2 to step 7 in Replacing the heat sink.
9 Replace the wireless card.
10 Replace the coin-cell battery.
93
Page 94
11 Replace the I/O board.
12 Replace the solid-state drive/Intel Optane.
13 Follow the procedure from step 4 to step 6 in Replacing the hard drive.
14 Replace the battery (half-length) or the battery (full-length), whichever applicable.
15 Replace the base cover.
94
Page 95
Device drivers
Intel Chipset Software Installation Utility
In the Device Manager, check if the chipset driver is installed.
Install the Intel chipset updates from www.dell.com/support.
Video drivers
In the Device Manager, check if the video driver is installed.
Install the video driver update from www.dell.com/support.
Intel Serial IO driver
In the Device Manager, check if the Intel Serial IO driver is installed.
Install the driver updates from www.dell.com/support.
Intel Trusted Execution Engine Interface
In the Device Manager, check if the Intel Trusted Execution Engine Interface driver is installed.
Install the driver update from www.dell.com/support.
Intel Virtual Button driver
In the Device Manager, check if the Intel Virtual Button driver is installed.
Install the driver updates from www.dell.com/support.
Wireless and Bluetooth drivers
In the Device Manager, check if the network card driver is installed.
Install the driver updates from www.dell.com/support.
In the Device Manager, check if the Bluetooth driver is installed.
Install the driver updates from www.dell.com/support.
95
Page 96
System setup
NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not be
displayed.
BIOS overview
CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain
changes can make your computer work incorrectly.
NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program
screen information for future reference.
Use the BIOS Setup program for the following purposes:
• Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.
• Change the system conguration information.
• Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling
base devices.
Entering BIOS setup program
1 Turn on (or restart) your computer.
2 During POST, when the DELL logo is displayed, watch for the F2 prompt to appear, and then press F2 immediately.
NOTE: The F2 prompt indicates that the keyboard is initialized. This prompt can appear very quickly, so you
must watch for it, and then press F2. If you press F2 before the F2 prompt, this keystroke is lost. If you wait too
long and the operating system logo appears, continue to wait until you see the desktop. Then, turn o your
computer and try again.
Navigation keys
NOTE: For most of the System Setup options, changes that you make are recorded but do not take eect until you
restart the system.
Keys Navigation
Up arrow Moves to the previous eld.
Down arrow Moves to the next eld.
Enter Selects a value in the selected eld (if applicable) or follow the link in the eld.
Spacebar Expands or collapses a drop-down list, if applicable.
Tab Moves to the next focus area.
NOTE: For the standard graphics browser only.
Esc Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a
message that prompts you to save any unsaved changes and restarts the system.
Boot Sequence
Boot Sequence allows you to bypass the System Setup–dened boot device order and boot directly to a specic device (for
example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:
96
Page 97
• Access System Setup by pressing F2 key
• Bring up the one-time boot menu by pressing F12 key
The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options
are:
• Removable Drive (if available)
• STXXXX Drive
NOTE: XXX denotes the SATA drive number.
• Optical Drive (if available)
• SATA Hard Drive (if available)
• Diagnostics
NOTE: Choosing Diagnostics, will display the ePSA diagnostics screen.
The boot sequence screen also displays the option to access the System Setup screen.
System setup options
NOTE: Depending on your computer and its installed devices, the items listed in this section may or may not appear.
Table 3. System setup options—Main menu
Main
System Time Displays the current time in hh:mm:ss format.
System Date Displays the current date in mm/dd/yyyy format.
BIOS Version Displays the BIOS version.
Product Name Displays the model number of your computer.
Service Tag Displays the service tag of your computer.
Asset Tag Displays the asset tag of your computer.
CPU Type Displays the processor type.
CPU Speed Displays the processor speed.
CPU ID Displays the processor identication code.
CPU L1 Cache Displays the processor L1 cache size.
CPU L2 Cache Displays the processor L2 cache size.
CPU L3 Cache Displays the processor L3 cache size.
Integrated Graphics Displays the integrated graphics.
Discrete Graphics 1 Displays the rst discrete graphics installed on your
computer.
Discrete Graphics 1 Displays the second discrete graphics installed on your
computer.
First HDD Displays the type of hard drive installed.
M.2 PCIe SSD-1 Displays the type of primary SSD installed.
AC Adapter Type Displays the AC adapter type.
System Memory Displays the system memory information.
Memory Speed Displays the memory speed information.
97
Page 98
Table 4. System setup options—Advanced menu
Advanced
Intel(R) SpeedStep(TM) Enables you to enable or disable Intel Speedstep
Integrated NIC Enables you to enable or disable the on-board LAN
USB Emulation Enables you to enable or disable the USB emulation feature.
USB Powershare Enables you to charge USB devices when the computer is
USB Wake Support Enables you to enable the USB devices to wake the
Technology.
Default: Enabled
NOTE: If enabled, the processor clock speed and core
voltage are adjusted dynamically based on the
processor load.
controller.
Default: Enabled
This feature denes how the BIOS, in the absence of a USBaware operating system, handles USB devices. USB
emulation is always enabled during POST.
Default: Enabled
NOTE: You cannot boot any type of USB device
(oppy, hard drive, or memory key) when this option
is o.
turned o or in standby mode.
Default: Enabled
computer from Standby.
Default: Disabled
NOTE: If USB PowerShare is enabled, a device
connected to the USB PowerShare connector may not
wake the computer.
Sleep Mode Enable or disable sleep mode.
Intel Speed Shift Technology Enable/disable Intel Speed Shift Technology support.
Setting this option to enable to allows the operating system
to select the appropriate processor performance
automatically.
Default: Enabled
SATA Operation Enables you to congure the operating mode of the
integrated SATA hard drive controller.
Default: AHCI
Adapter Warnings Ebales you to choose if the computer should display warning
messages when you use AC adapters that are not supported
by your computer.
Default: Enabled
Function Key Behavior Enables you to set function key or multimedia key as the
default function key behavior.
Default: Function key
Express Charge Enables you to charge your computer battery using
Standard Charge or Express Charge mode.
Default: Express Charge
Battery Health Displays the battery health.
Intel(R) Software Guard Extensions Enable or disable Intel Software Guard Extensions.
98
Page 99
Advanced
Intel(R) Software Guard Extensions allocated memory
size
BIOS Recovery from Hard Drive Enable the user to recover from certain corrupted BIOS
BIOS Auto-Recovery Enable or disable BIOS Auto-Recovery.
SupportAssist System Resolution
Auto OS Recovery Threshold Control the automatic boot ow for SupportAssist System
SupportAssist OS Recovery Enable or disable SupportAssist OS recovery.
Intel(R) Rapid Storage Technology
Non-RAID Physical Disks Displays the disk using the Intel(R) Rapid Storage
Table 5. System setup options—Security menu
Default: Software Controlled
Displays the allocated memory size for Intel Software Guard
Extensions.
conditions from a recovery le on the user primary hard
drive
Default: Enabled
Default: Disabled
Resolution Console and for Dell OS Recovery tool.
Default: 2
Default: Enabled
Technology.
Security
Unlock Setup Status Displays if the setup status is unlocked.
Admin Password Status Displays if the administrator password is clear or set.
Default: Not set
System Password Status Displays if the system password is clear or set.
Default: Not set
HDD Password Status Displays if the HDD password is clear or set.
Default: Not set
Admin Password Enables you to set the administrator password. The
administrator password controls access to the system setup
utility.
System Password Enables you to set the system password. The system
password controls access to the computer at boot.
HDD password Enables you to set, change or delete the hard-disk drive
password.
Password Change Enables you to permit or deny system password or HDD
password changes.
Default: Permitted
Computrace Enable or disable the BIOS module interface of the
optional Computrace Service from Absolute Software.
Default: Activate
Firmware TPM Enables you to enable or disable the rmware TPM
function.
Default: Enabled
PPI Bypass for Clear Command Enables you to control the TPM Physical Presence Interface
(PPI). When enabled, this setting will allow the OS to skip
99
Page 100
Security
BIOS PPI user prompts when issuing the Clear command.
Changes to this setting take eect immediately.
Default: Enabled
UEFI Capsule Firmware Updates Enable or disable BIOS updates through UEFI capsule
update packages.
Default: Enabled
Table 6. System setup options—Boot menu
Boot
Boot List Option Displays the available boot options.
Default: UEFI
File Browser Add Boot Option Enables you to add the boot options.
File Browser Del Boot Option Enables you to delete the boot options
Secure Boot Enable or disable the secure boot feature.
Default: Disabled
Legacy Option ROMs Enable or disable the Legacy Option ROMs.
Default: Disabled
Attempt Legacy Boot Enable or disable Attempt Legacy Boot.
Default: Disabled
Boot Option Priorities Displays the boot sequence.
Boot Option #1 Displays the available rst boot option.
Boot Option #2 Displays the available second boot option.
Boot Option #3 Displays the available third boot option.
Table 7. System setup options—Exit menu
Exit
Save Changes and Reset Allows you to exit system setup and save your changes.
Discard Changes and Reset Allows you to exit system setup and load previous values for
all system setup options.
Restore Defaults Allows you to restore default values for all system setup
options.
Discard Changes Allows you to load previous values for all system setup
options.
Save Changes Allows you to save the changes for all system setup options.
Clearing CMOS settings
CAUTION: Clearing CMOS settings will reset the BIOS settings on your computer.
1 Remove the base cover.
2 Disconnect the battery cable from the system board.
3 Remove the coin-cell battery.
4 Wait for one minute.
5 Replace the coin-cell battery.
6 Connect the battery cable to the system board.
100
