Dell 5560 User Manual

Dell Vostro 5560

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Front And Back View

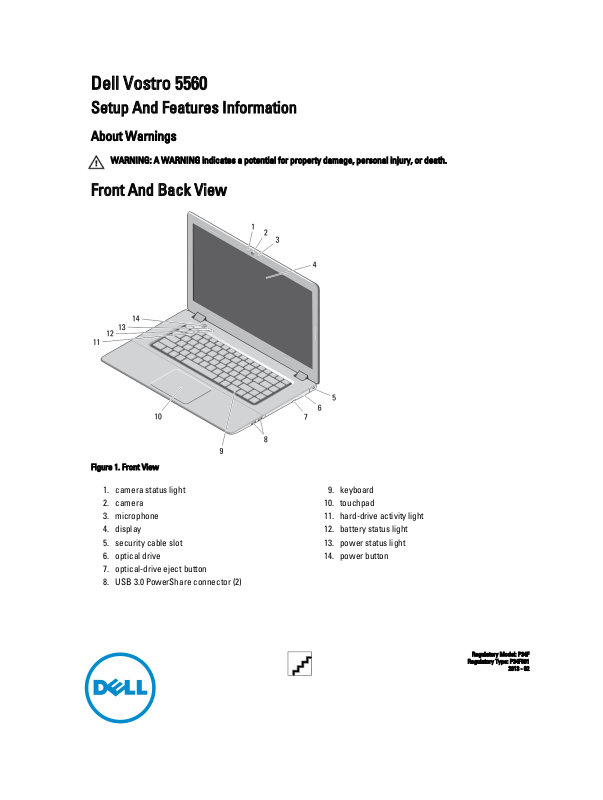

Figure 1. Front View

1. camera status light

2. camera

3. microphone

4. display

5. security cable slot

6. optical drive

7. optical-drive eject button

8. USB 3.0 PowerShare connector (2)

9. keyboard

10. touchpad

11. hard-drive activity light

12. battery status light

13. power status light

14. power button

Regulatory Model: P34F

Regulatory Type: P34F001

2013 - 02

Figure 2. Back View

1. cooling vents

2. power connector

3. network connector

4. VGA connector

5. SD card reader

WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can
damage the computer or cause a fire. The computer turns on the fan when the computer gets hot. Fan noise is
normal and does not indicate a problem with the fan or the computer.

6. HDMI connector

7. USB 3.0 powershare connector

8. audio connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with
your computer. For additional best practices information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips
vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip or
electrical outlet may cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you
follow the angle of the connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

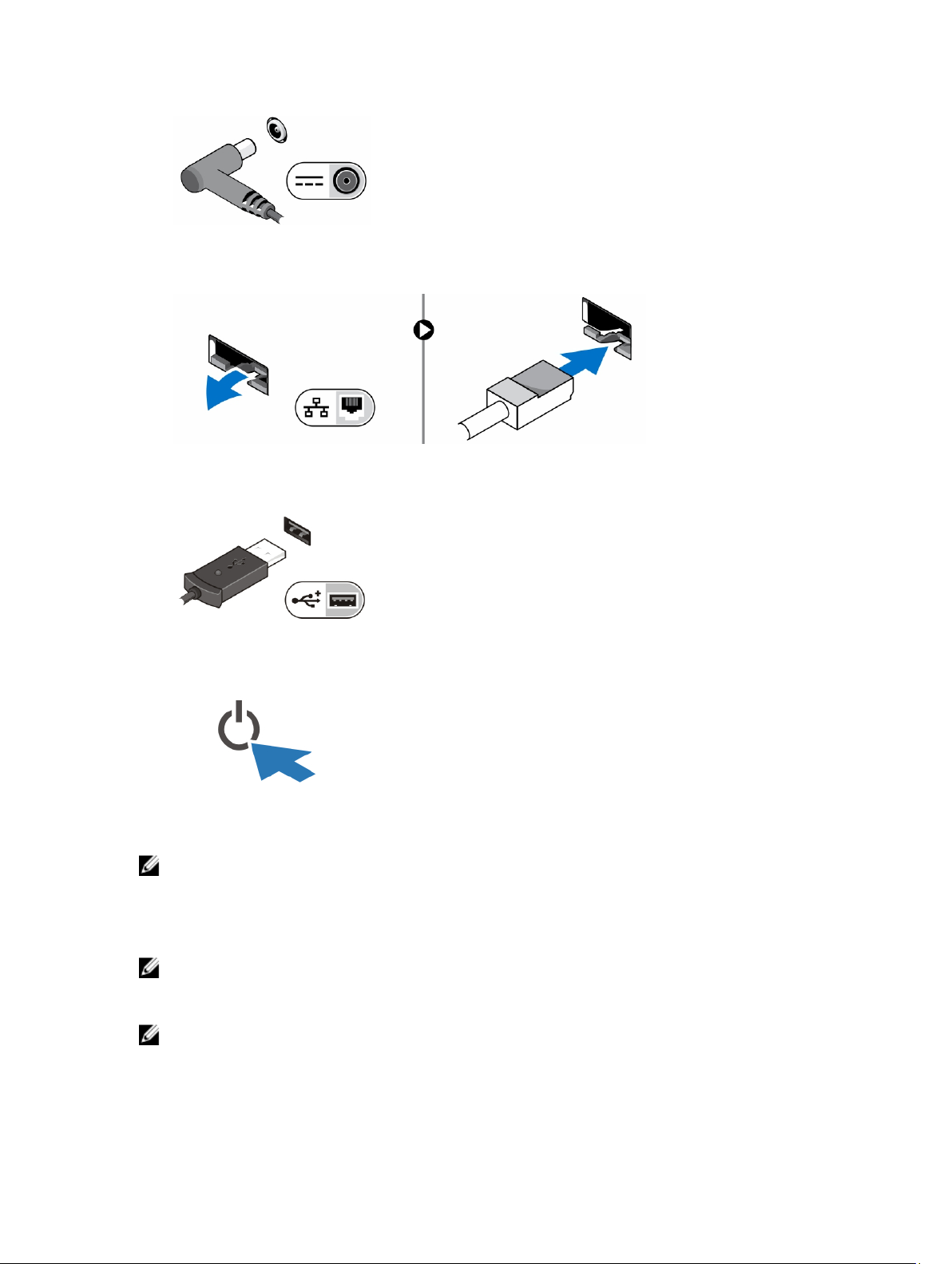

1. Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet.

2
