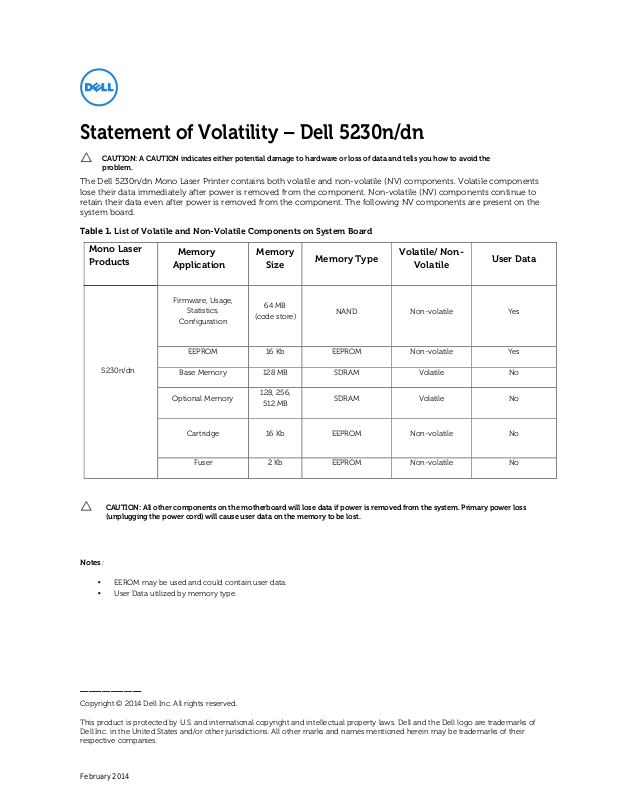

Statement of Volatility – Dell 5230n/dn

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.

The Dell 5230n/dn Mono Laser Printer contains both volatile and non-volatile (NV) components. Volatile components
lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to
retain their data even after power is removed from the component. The following NV components are present on the
system board.

Table 1. List of Volatile and Non-Volatile Components on System Board

Products

Memory
Application

Memory

Size

Memory Type

Volatile/ Non-

Volatile

Firmware, Usage,

Statistics,

Configuration

64 MB

(code store)

NAND Non-volatile Yes

5230n/dn

CAUTION: All other components on the motherboard will lose data if power is removed from the system. Primary power loss
(unplugging the power cord) will cause user data on the memory to be lost.

EEPROM 16 Kb EEPROM Non-volatile Yes

Base Memory 128 MB SDRAM Volatile No

Optional Memory

Cartridge 16 Kb EEPROM Non-volatile No

Fuser 2 Kb EEPROM Non-volatile No

128, 256,

512 MB

SDRAM Volatile No

User Data

Notes

:

• EEROM may be used and could contain user data.

• User Data utilized by memory type.
