Delfield TS3 Parts List
Accessory Item
Pan/Tray Slides
Available on Specication Line reach-in products.
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________

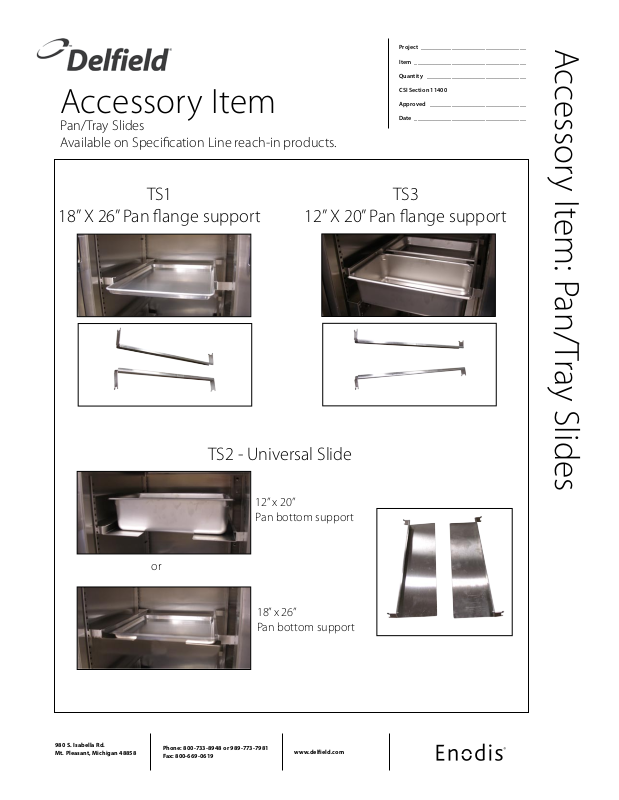

Accessory Item: Pan/Tray Slides
TS1
18” X 26” Pan ange support
TS2 - Universal Slide
TS3
12” X 20” Pan ange support
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
or
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
12” x 20”
Pan bottom support
18” x 26”
Pan bottom support
www.delfield.co m
TS5
TS6
18” X 26” Pan bottom support
TS4
18” X 26” Pan rod type ange
support assembly
Fits in 1/2 section - 18 levels
Pan /Tray Slid es
12” X 20” Pan bottom support
Tray slide requirements for full sections at indicated Center
Type 1.5” Center 2” Center 3” Center 4” Center 5” Center 6” Center
TS1 17 26 17 13 10 8
TS2 - 25 17 12 10 8
TS3 - - 17 12 9 7
TS5 - - - 13 10 8
TS6 - - - 13 10 8
Tray slide requirements for half sections (top half) at indicated centers
Type 1.5” Center 2” Center 3” Center 4” Center 5” Center 6” Center
TS1 7 10 6 5 4 4
TS2 - 10 6 5 4 4
TS3 - - 6 5 4 3
TS5 - - - 5 4 4
TS6 - - - 5 4 3
Tray slide requirements for half sections (bottom half) at indicated centers
Type 1.5” Center 2” Center 3” Center 4” Center 5” Center 6” Center
TS1 8 12 8 6 5 4
TS2 - 10 6 6 5 4
TS3 - - 8 6 5 4
TS5 - - - 6 5 4
TS6 - - - 6 5 4
Rack slide types TS4 are designed per half section. Spacing is at 1.5” centers.
Accessory Item
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
Printed in the U.S.A.
DSTraySlide
08/08
