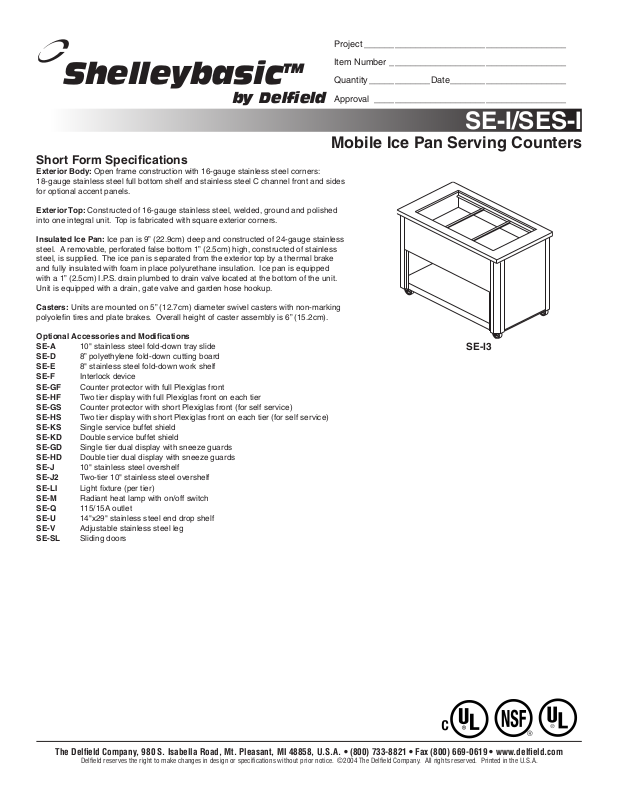

Delfield SE-I2 General Manual

Project ________________________________________

Shelleybasic

TM

by Delfield

Item Number ___________________________________

Quantity ____________Date_______________________

Approval ______________________________________

Mobile Ice Pan Serving Counters

Short Form Specications

Exterior Body: Open frame construction with 16-gauge stainless steel corners:

18-gauge stainless steel full bottom shelf and stainless steel C channel front and sides
for optional accent panels.

Exterior Top: Constructed of 16-gauge stainless steel, welded, ground and polished
into one integral unit. Top is fabricated with square exterior corners.

Insulated Ice Pan: Ice pan is 9” (22.9cm) deep and constructed of 24-gauge stainless
steel. A removable, perforated false bottom 1” (2.5cm) high, constructed of stainless
steel, is supplied. The ice pan is separated from the exterior top by a thermal brake
and fully insulated with foam in place polyurethane insulation. Ice pan is equipped
with a 1” (2.5cm) I.P.S. drain plumbed to drain valve located at the bottom of the unit.
Unit is equipped with a drain, gate valve and garden hose hookup.

Casters: Units are mounted on 5” (12.7cm) diameter swivel casters with non-marking
polyolen tires and plate brakes. Overall height of caster assembly is 6” (15.2cm).

Optional Accessories and Modications
SE-A 10" stainless steel fold-down tray slide
SE-D 8” polyethylene fold-down cutting board
SE-E 8" stainless steel fold-down work shelf
SE-F Interlock device
SE-GF Counter protector with full Plexiglas front
SE-HF Two tier display with full Plexiglas front on each tier
SE-GS Counter protector with short Plexiglas front (for self service)
SE-HS Two tier display with short Plexiglas front on each tier (for self service)
SE-KS Single service buffet shield
SE-KD Double service buffet shield
SE-GD Single tier dual display with sneeze guards
SE-HD Double tier dual display with sneeze guards
SE-J 10" stainless steel overshelf
SE-J2 Two-tier 10" stainless steel overshelf
SE-LI Light xture (per tier)
SE-M Radiant heat lamp with on/off switch
SE-Q 115/15A outlet
SE-U 14"x29" stainless steel end drop shelf
SE-V Adjustable stainless steel leg
SE-SL Sliding doors

SE-I/SES-I

SE-I3

The Deleld Company, 980 S. Isabella Road, Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.deleld.com

Deleld reserves the right to make changes in design or specications without prior notice. ©2004 The Deleld Company. All rights reserved. Printed in the U.S.A.

29.00”
(73.66cm)

SE-I/SES-I

Mobile Ice Pan Serving Counters

50.00”

(127cm)

PLAN VIEW

ELEVATION VIEW

Mechanical Data - Standard Unit

MODEL 12 X 20 SHIP FRT.
NUMBER PANS HELD L D H WT CLASS

ICE COOLED SERVING COUNTERS
SE-I2 2 39" 29" 36" 200 100
SE-I3 3 50" 29" 36" 245 100
SE-I4 4 64" 29" 36" 280 100
SE-I5 5 78" 29" 36" 330 100
SE-I6 6 92" 29" 36" 380 100

36.00”
(91.44cm)

END VIEW

Add S for 30" high models. (example SES-I)

The Deleld Company, 980 S. Isabella Road, Mt. Pleasant, MI 48858, U.S.A. • [phone] • Fax [phone] • www.deleld.com

Deleld reserves the right to make changes in design or specications without prior notice. ©2004 The Deleld Company. All rights reserved. Printed in the U.S.A.

DSSEI 02/04
