Shelleyglas®/Shelleysteel®
Mobile Serving Counters
Parts List
Contents
Carving Counters - Common Components ................................................................................................................................................................. 2
Frost Top Serving Counters - Common Components .............................................................................................................................................. 2
Heated Serving Counters - Common Components .................................................................................................................................................. 3
Heated and Ice Cooled Combo Counters - Common Components .................................................................................................................... 4
Heated and Refrigerated Combo Counters - Common Components ................................................................................................................ 4
Heated Trimline L-shaped Serving Counter - Common Components ............................................................................................................... 4
Ice Cream Counters - Common Components ............................................................................................................................................................. 5
Milk Counters - Common Components ........................................................................................................................................................................ 5
Milk And Ice Cream Counters - Common Components .......................................................................................................................................... 5
Refrigerated Cold Pans - Common Components....................................................................................................................................................... 6
Refrigerated w/ LiquiTec Cold Pans - Common Components ...............................................................................................................................6
Refrigerated Cold Pans - Optional Components ........................................................................................................................................................6
Part Prints ................................................................................................................................................................................................................................. 7
Heated Door Assembly ....................................................................................................................................................................................................... 7
Condensing Unit Assembly 1/4 H.P. R404a Low ......................................................................................................................................................... 8
Condensing Unit Assembly 1/3 H.P. R404a, Low ........................................................................................................................................................ 9
Food Well Assembly With Thermostat Control .........................................................................................................................................................10
500W Food Well ...................................................................................................................................................................................................................11
Document Number: Parts_List_SG_SS Updated: 12/17
Carving Counters - Common Components
Key Description Part Number
Bulb, Heatlamp, 250W, 120V 2193947
Caster, Swivel, Break 3234783
Control, Infinite, 120V/15A 2194107KT-S
Cord, Lead,14/3 w/Nema 5-15 Plug 2183348
Door Assembly, 18X16, Right 000-187-0062-S
Heatlamp Assembly, Carving 000-BE5-0030-S
Knob, Control, Infinite 3234557
Lamp Assembly, Hatco LW-Ir 2195283
Light, Pilot, 125V, Red 2194190
Meat Holder Assembly 000-BE9-0000-S
Meat Holder Bar 043-B8X-0001-S
Pan, Full Size, 2-1/2DP 3234117
Switch, Rocker, 20A/125V, 2190154
Switch, SPST, 15 AMP 2194099
Well, Hot Food, w/o Drain 0160015-S
Frost Top Serving Counters - Common Components
Description Part Number Note
Assy, 1/4 Hp Cond Unit 000-BN5-0030-S [A]
Caster, 5, Plt, Swvl, Brk, 3234783
Drain, Plastic, 1ips, 2.87 3234242
Expansion Valve, 1/4, low 3516225
Interlock Assy, Sg 3234669
Panel, Shy Lvr, End 356-411-0001-S [B]
Panel, Shy Lvr, Frt/rear 356-411-0000-S [B]
Switch, Rocker, 20a/125v 2190154
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
2 Updated: 12/17
Heated Serving Counters - Common Components
5
1
4
2
3
Key Description Part Number
Food Warmer, 208V, w/o Drain 0160195-S X X X X X X X X X X
1 Deflector Plate 026-061-0001-S X X X X X X X X X X
2 Heating Element 208V 2194007 X X X X X X X X X X
Heating Element 6190215 X X X X X
3 Hot Food Well, 12 x 20 0160015-S X X X X X X X X X X
4 Thermostat (Heated Insert) 2194460 X X X X X
5 Control Knob 3234557 X X X X X X X X X X
Heated Door Assembly 000-442-0031-S X X X X [D]
Heated Door Assembly 000-442-0030-S X [D]
Hi-Limt Safety Switch 2194335 X X X X X X X X X X
Infinite Control 208V 2194110KT-S X X X X X X X X X X
On/Off Switch 2194212 X X X X X X X X X X
Pilot Light 2194095 X X X X X X X X X X
NOTE: [D] Assembly drawing on page 7.
KH/SH-2
KH/SH-3
KH/SH-4
KH/SH-5
KH/SH-6
KH/SH-2-NU
KH/SH-3-NU
KH/SH-4-NU
KH/SH-5-NU
KH/SH-6-NU
Note
Updated: 12/17 3
Heated and Ice Cooled Combo Counters - Common Components
Description Part Number Note
Access Panel 272-412-0000-S [B]
Bottom, Perforated 265-102-0030-S [B]
Caster, 5", with brake 3234783
Control Knob 3234557
Drain 3234242
Food Warmer, 208V, w/o Drain 0160195-S [C]
Heating Element 2194007
Infinite Control 208V 2194110KT-S
On/Off Switch 2194212
Pilot Light 2194095
Thermostat, Non Adjust (High Limit) 2194335
NOTE: [B] Part drawing on page 7.
NOTE: [C] Exploded view on page 3.
Heated and Refrigerated Combo Counters - Common Components
Description Part Number Note
Caster, 5", with brake 3234783
Circuit Breaker 2194327
Condensing Unit, 1/4HP 000-BN5-0030-S [A]
Control Knob 3234557
Drain 3234242
Expansion Valve 3516225
Food Warmer Assembly, 208V, w/o Drain 0160195-S [C]
Heating Element 2194007
Infinite Control 208V 2194110KT-S
Louver Panel, End 356-411-0001-S [B]
Louver Panel, Front/Rear 356-411-0000-S [B]
Low Pressure Control 2193927
On/Off Switch 2194212
Pilot Light 2194095
Rocker Switch 2190154
Thermostat, Non Adjust (High Limit) 2194335
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
NOTE: [C] Exploded view on page 3.
Heated Trimline L-shaped Serving Counter - Common Components
Description Part Number
Control, Infinite, 240V/15A 2194110KT-S
Cord,10/3, 10.5 FT 2183390
Element, Heating, 208/230V 2194007
Hot Food Well Assembly w/o Drain 0160015-S
Insulation, Blanket 3434664
Knob, Control, Infinite 3234557
Leg, 6, S/S, w/Flanged Foot 3234452
Light, Pilot, 250V, Amber 2194095
Plate, Deflector 026-061-0001-S
Switch, 30A, Double Pole 2194212
Thermostat, Non Adjust 2194335
4 Updated: 12/17
Obsolete Ice Cream Counters - Common Components
Replacement parts only. Units are no longer in production as of 3-30-17.
Description Part Number Note
Assy, 1/4 Hp Cond Unit 000-BN5-0030-S [A]
Caster, 5, Plt, Swvl, Brk, 3234783
Drain, Plastic, 1ips, 2.87 3234242
Expansion Valve, 1/4, low 3516225
Interlock Assy, Sg, 3234669
Lid, Large, Ice Cream, 3234188
Low Pressure Control 2193927
Panel, Shy Lvr, End 359-411-0001-S [B]
Panel, Shy Lvr, Frt/rear 359-411-0000-S [B]
Spring, Extension, 6150201
Switch, Rocker, 20a/125v, 2190154
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
Obsolete Milk Counters - Common Components
Replacement parts only. Units are no longer in production as of 3-30-17.
Description Part Number Note
Caster, 5, Plt, Swvl, Brk, 3234783
Cond Unit, 1/4hp, Hi, R134a 3526674
Drain, Plastic, 1ips, 2.87 3234242
Drier, Filter, 1/4odf 3516101
Expansion Valve, R134A 3516062
Interlock Assy, Sg 3234669
Lid, Large, Ice Cream, 3234188
Low Pressure Control 2193927
Panel, Shy Lvr, End 359-411-0001-S [B]
Panel, Shy Lvr, Frt/rear 359-411-0000-S [B]
Spring, Extension, 6150201
Switch, Rocker, 20a/125v 2190154
NOTE: [B] Part drawing on page 7.
Obsolete Milk And Ice Cream Counters - Common Components
Replacement parts only. Units are no longer in production as of 3-30-17.
Description Part Number Note
Assy, 1/4 Hp Cond Unit 000-BN5-0030-S [A]
Caster, 5, Plt, Swvl, Brk 3234783
Drain, Plastic, 1ips, 2.87 3234242
Expansion Valve, 1/4, hi 3516273
Expansion Valve, 1/4, low 3516225
Interlock Assy, Sg 3234669
Lid, Large, Ice Cream 3234188
Low Pressure Control 2193927
Panel, Shy Lvr, End 359-411-0001-S [B]
Panel, Shy Lvr, Frt/rear 359-411-0000-S [B]
Spring, Extension, 6150201
Switch, Rocker, 20a/125v, 2190154
Termperature Control 5090025
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
Updated: 12/17 5
Refrigerated Cold Pans - Common Components
Description Part Number Note
Caster, 5", with brake 3234783
Condensing Unit, 1/4HP 000-BN5-0030-S [A]
Drain 3234242
Expansion Valve 3516225
Louver Panel, End 356-411-0001-S [B]
Louver Panel, Front/Rear 356-411-0000-S [B]
Low Pressure Control 2193927
Rocker Switch 2190154
Solenoid Valve with Coil 3516074
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
Refrigerated w/ LiquiTec Cold Pans - Common Components
Description Production Note Part Number Note
Caster, 5", with brake 3234783
Condensing Unit, 1/4HP 000-BN5-0030-S [A]
Expansion Valve 3516225
Louver Panel, End 359-411-0001-S [B]
Louver Panel, Front/Rear 359-411-0000-S [B]
Low Pressure Control Dual hookup only 2193927
Rocker Switch 2190154
Temperature Control, Ranco Built before 12-1-17 2194231
Control Assembly, LT, MK7 Built after 12-1-17 000-CZ0-0058KT-S
NOTE: [A] Exploded view on page 8.
NOTE: [B] Part drawing on page 7.
Refrigerated Cold Pans - Optional Components
Description Part Number Note
Condensing Unit Assembly, 115V, 1/4 H.P. R404a Low, N8630, N8643, N8656, N8669 000-BN5-0030-S [A]
Condensing Unit Assembly, 220V/50Hz, 1/4 H.P. R404a Low, N8630, N8643, N8656, N8669 000-BN5-003J-S [A]
Condensing Unit Assembly, 115V, 1/3 H.P. R404a, Low, N8681 000-BN5-003G-S [E]
Condensing Unit Assembly, 220V/50Hz, 1/3 H.P. R404a, Low, N8681 000-BN5-003M-S [E]
8600 Food Well Assembly With Thermostat Control [F]
N8700-DESP Parts [G]
NOTE: [A] Exploded view on page 8.
NOTE: [E] Exploded view on page 9.
NOTE: [F] Exploded view on page 10.
NOTE: [G] Exploded view on page 11.
6 Updated: 12/17
Part Prints
Description Part Number Print
Bottom, Perforated 265-102-0030-S
Access Panel 272-412-0000-S
Louver Panel, Front/Rear, SS 201 356-411-0000-S
Louver Panel, Front/Rear, SS 430 359-411-0000-S
Louver Panel, End, SS 201 356-411-0001-S
Louver Panel, End, SS 430 359-411-0001-S
Heated Door Assembly
Description Part Number
Heated Door Assembly 000-442-0030-S
Door Gasket 1701249
Flag Hinge 3234067
Heated Door Assembly 000-442-0031-S
Door Gasket 1701244
Flag Hinge 3234067
Updated: 12/17 7

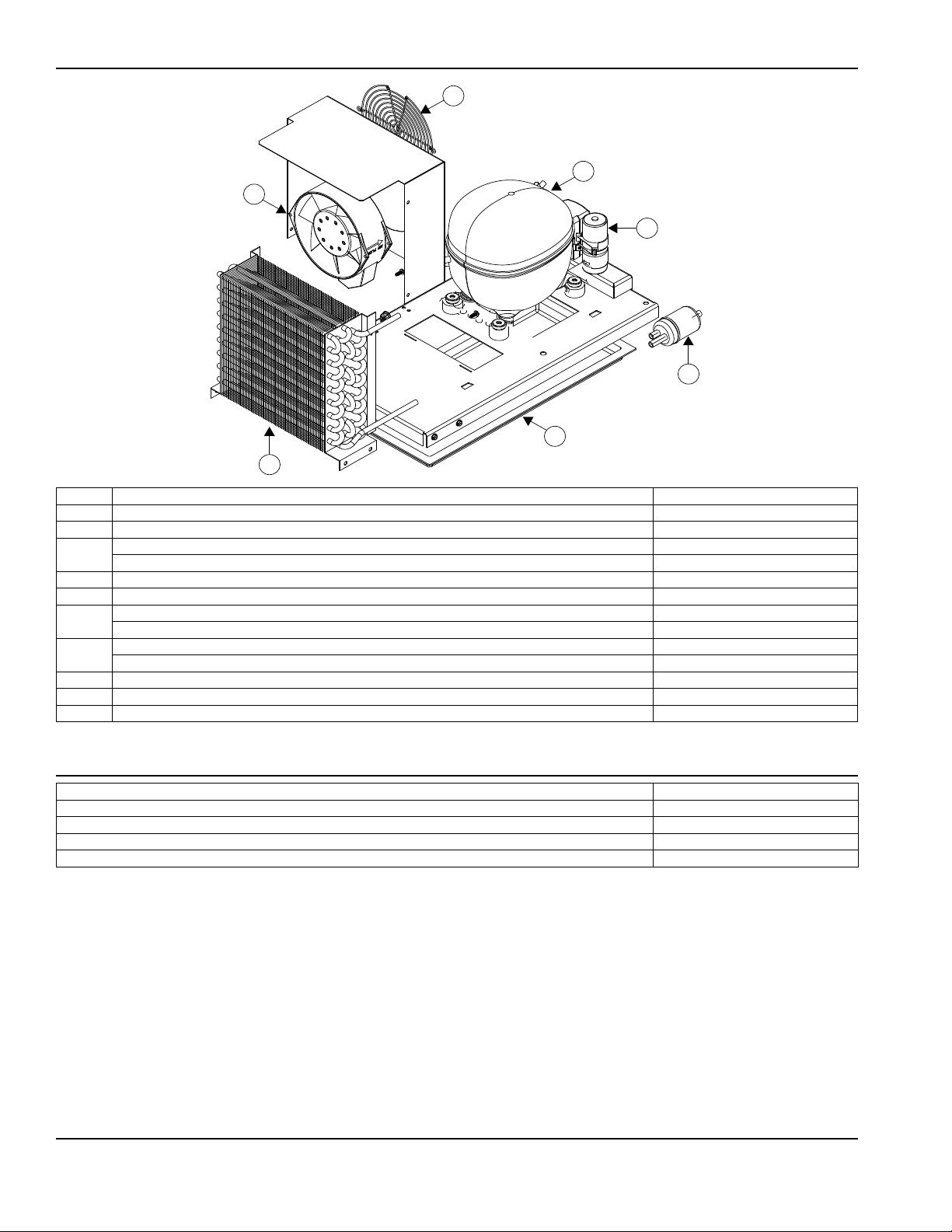

Condensing Unit Assembly 1/4 H.P. R404a Low
1
2
3
4
5
6
7
Key Description Part Number
Condensing Unit Assembly, 115V 000-BN5-0030-S
Condensing Unit Assembly, 220V/50Hz 000-BN5-003J-S
1 Fan, Axial, 5.5” 120V 2160028
Fan, Axial, 5.5”, 230V 2160029
2 Fan Guard, 6.0” 2160030
3 Shroud, Condenser Coil 026-C58-0037-S
4 Compressor, NF5.5CLX, 115V/60Hz 3526999
Compressor 220/50Hz 3527013
5 Capacitor, Start 280MFD 2194787
Compressor relay and overload, NF5.5CLX 3516444
6 Filter-dryer, (2) inlet .25” 3516322
7 Pan, condensate 039-231-0030-S
8 Condenser Coil 3516454
Miscellaneous Parts Not Included in Condensing Unit
Description Part Number
15 Amp switch, 120V 2194099
15 Amp switch, 220V 2194400
Cord/plug assembly 2183348
Expansion valve 3516225
8 Updated: 12/17
Condensing Unit Assembly 1/3 H.P. R404a, Low
2
4
3
1
5
6
8
9
10
Key Description Part Number Note
Condensing Unit Assembly, 115V 000-BN5-003G-S
Condensing Unit Assembly, 220V/50Hz 000-BN5-003M-S
1 Fan, Axial, 5.5”, 115V 2160028
Fan, Axial, 5.5”, 230V 2160029
2 Guard, Fan, 6.0” 2160030
3 Shroud, Condenser Coil 026-C58-0037-S
4 Compressor, NF7.0. 115V/60Hz 3527000
Compressor, 220V/50Hz 3527012
5 Capacitor, Start 320MFD 2194788
Compressor relay and overload, NF7CLX 3516438
6 High pressure switch 3516324
7 Filter-dryer, (2) inlet .25” 3516322
8 Receiver tank 3516658 [H]
9 Pan, condensate 075-231-0030-S
10 Condenser Coil 3516454
NOTE: [H] Re-piping may be required for installation.
7
Miscellaneous Parts Not Included in Condensing Unit
Description Part Number
15 Amp switch, 120V 2194099
15 Amp switch, 220V 2194400
Cord/plug assembly 2183348
Expansion valve 3516225
Updated: 12/17 9

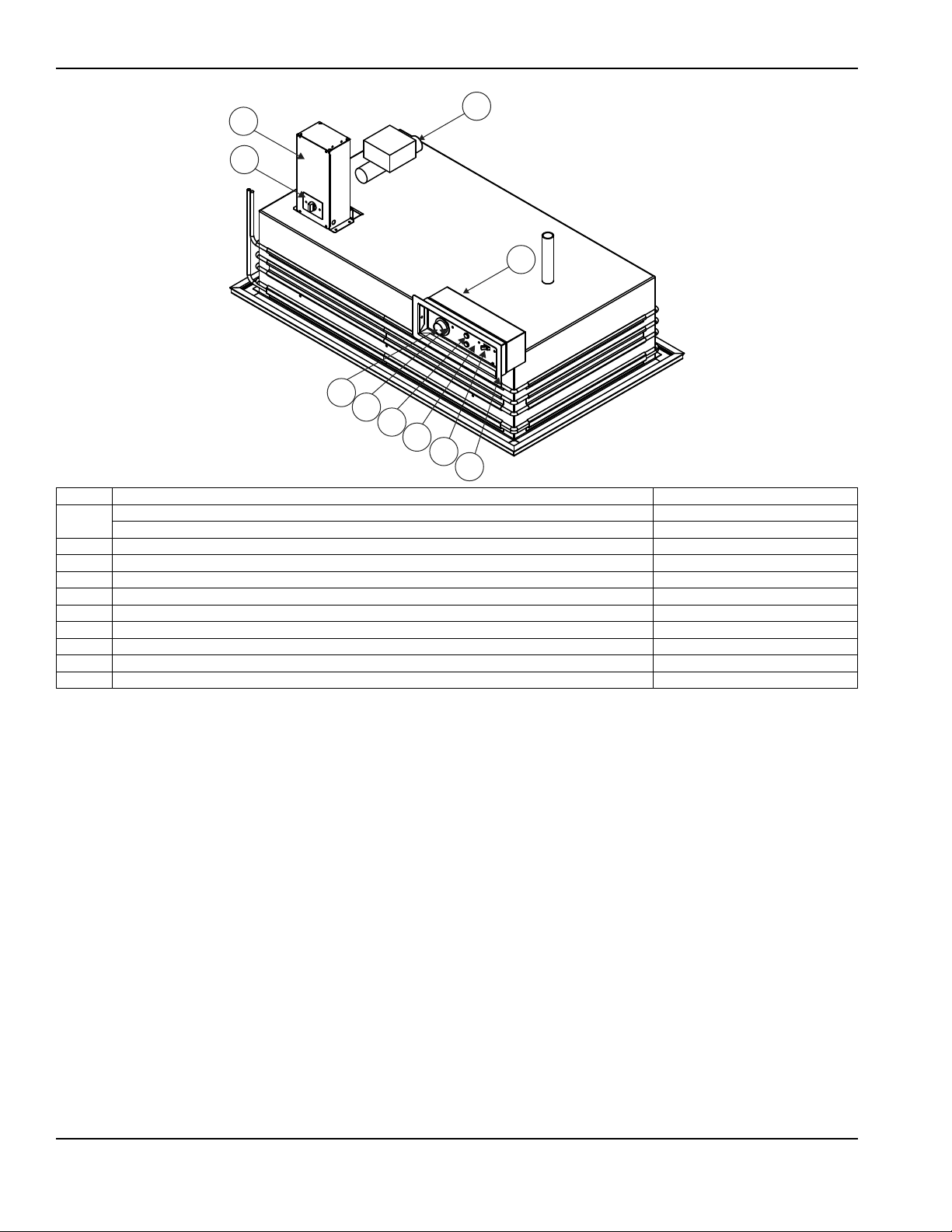

Food Well Assembly With Thermostat Control
10
1
9
2
8
7
6
5
4
3
Key Description Part Number
1 Immersion heater 120V, 1Ph 2194075
Immersion heater 240V 1Ph 5KW 2193974
2 Box, control, galv, 8600 series 026-AO6-0041-S
3 Front, collar, mounting, 8600 372-ANQ-003D-S
4 Switch, 3 position, 30Amp 2193979
5 Cover, control box, 8700 series 372-ANS-0001-S
6 Light, pilot, 125V, red 2194190
7 Thermostat, electric (heated) 2194202
8 Knob, thermostat control (heated) 3234556-S
9 Contactor, 2 Pole, 120V 2194974
10 Temperature control (cold) 3516054
10 Updated: 12/17

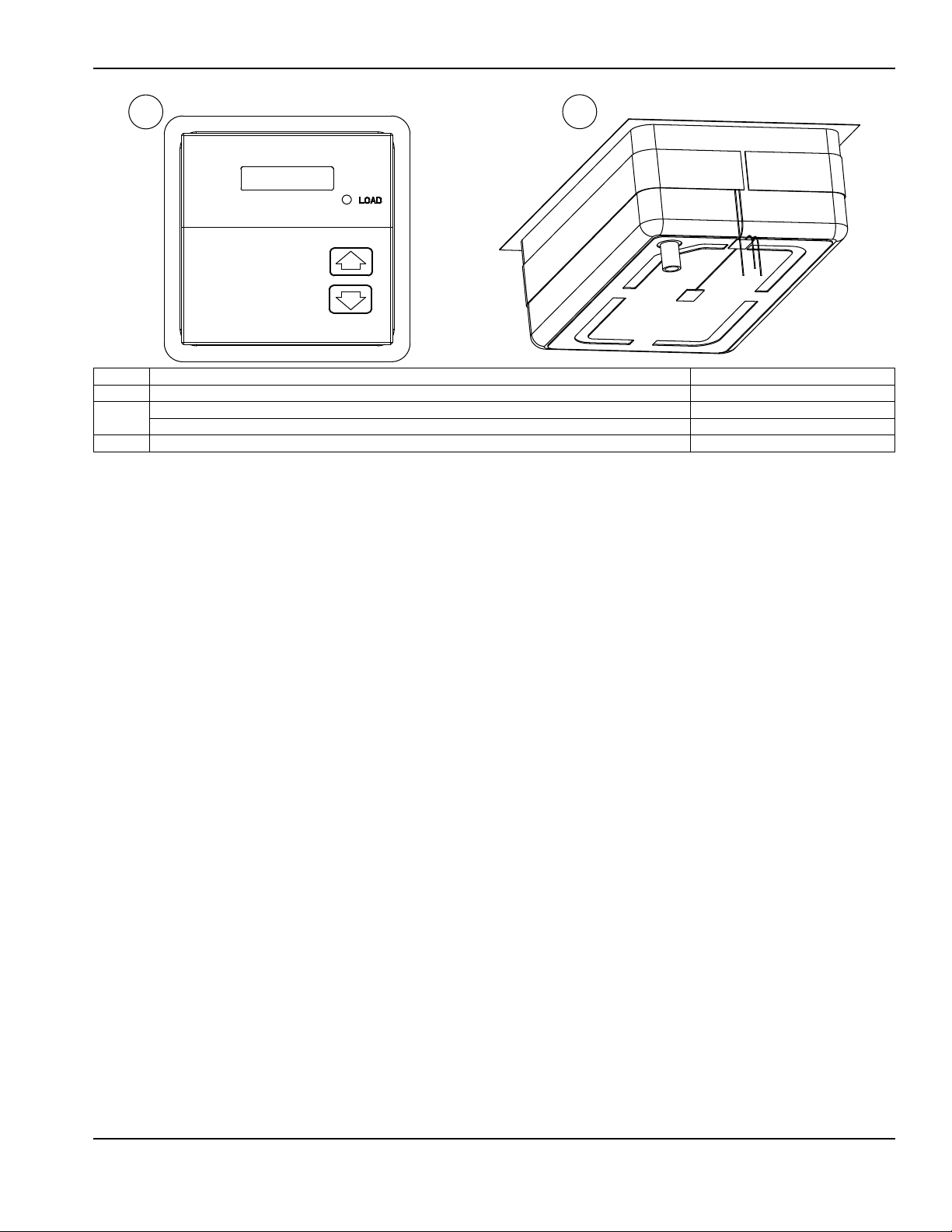

500W Food Well
1
Key Description Part Number
1 Control, 500W Food Well 2195319
2 Food Well/Heatpad, 208V-500W 3234798
Food Well/Heatpad, 240V-500W 3234950
Food Well/Heatpad, 208V-500W, Without Drain 3234951
NOTE: When replacing the well not to apply pressure directly to the pad.
2
Updated: 12/17 11
DELFIELD
980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858
WWW.DELFIELD.COM
800-733-8821
WWW.WELBILT.COM
Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions.
Our cutting-edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
All of our products are backed by KitchenCare® – our aftermarket, repair, and parts service.
CLEVELAND
CONVOTHERM®
DELFIELD®
FITKITCHEN™
FRYMASTER®
GARLAND
KOLPAK®
LINCOLN
MANITOWOC®
MERCO®
MERRYCHEF®
MULTIPLEX®
Loading...
