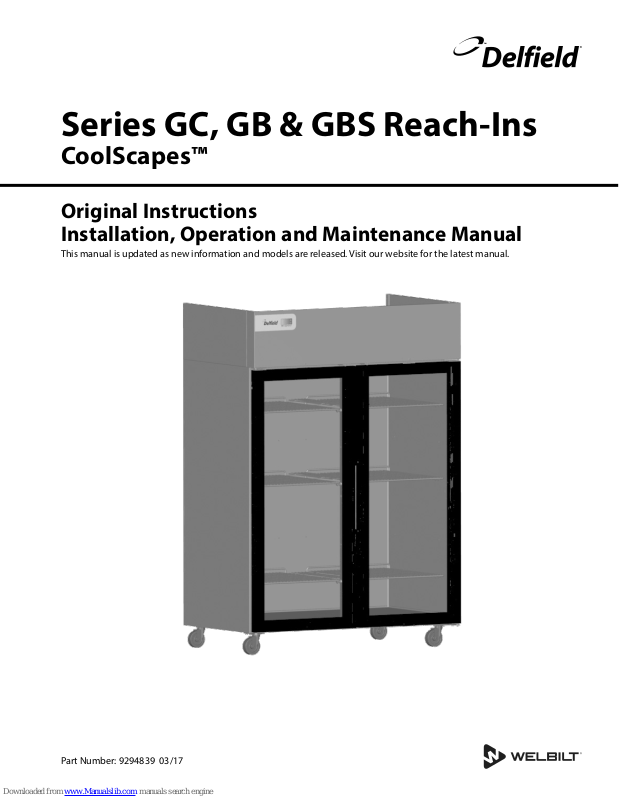

Delfield GBSR1P-G, GBR1P-GH, GBR1P-S, GBR1P-SH, GBR1P-G Original Instructions Manual

Series GC, GB & GBS Reach-Ins

CoolScapes™

Original Instructions
Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

Part Number: 9294839 03/17

Safety Notices

Warning

n

Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.

DANGER

Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.

DANGER

Keep power cord AWAY from HEATED surfaces. DO NOT
immerse power cord or plug in water. DO NOT let power
cord hang over edge of table or counter.

DANGER

All utility connections and fixtures must be maintained
in accordance with Local and national codes.

Warning

n

Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.

Warning

n

Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.

Warning

n

Do not use electrical appliances or accessories other
than those supplied by the manufacturer.

Warning

n

Use caution when handling metal surface edges of all
equipment.

Warning

n

This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.

Caution

,

Use caution handling, moving and use of the R290
refrigerators to avoid either damaging the refrigerant
tubing or increasing the risk of a leak. Components
shall be replaced with like components. Servicing shall
be done by a factory authorized service personnel to
minimize the risk of possible ignition due to incorrect
parts or improper service.

Notice

Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations,
or contact information for service agents in your area.

Warning

n

This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glasswool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.

Section 1
General Information

Section 2
Installation

Section 3
Operation

Section 4
Maintenance

Section 5
Troubleshooting

Table of Contents

Model Numbers .................................................................................................................. 4

Serial Number Information ...............................................................................................4

Warranty Information ........................................................................................................ 4

Regulatory Certifications ..................................................................................................4

Location ..............................................................................................................................5

Weight of Equipment .........................................................................................................6

Clearance Requirements ....................................................................................................6

Dimensions ......................................................................................................................... 7

Electrical Service ................................................................................................................ 8

Voltage .......................................................................................................................................................8

Fuse/Circuit Breaker ..............................................................................................................................8

Ground Fault Circuit Interrupter .......................................................................................................8

Rated Amperages, Horsepower, Voltage & Power Cord Chart ...............................................8

Drain Connections ..............................................................................................................9

Heat of Rejection ................................................................................................................ 9

Leveling .............................................................................................................................10

Stabilizing .........................................................................................................................10

Leg & Caster Installation ..................................................................................................10

Reversible Door Instructions ........................................................................................... 11

Applicable to Full Door Better Models ........................................................................................11

Pilaster Clip Kit Installation Instructions ........................................................................12

Applicable to GC Models .................................................................................................................. 12

New Bottom Hinge Cartridge Installation ...................................................................... 13

T-1 Tray Slide Installation ................................................................................................14

T-2 Tray Slide Installation ................................................................................................15

T-3 Tray Slide Installation ................................................................................................16

T-4 Rack Slide Installation ...............................................................................................17

R290 Controls/Programming/Settings ...........................................................................19

R290 Temperature Control & Display ........................................................................................... 20

R290 Evaporator Fan Operation ..................................................................................................... 21

R290 Changing Display from Fahrenheit to Celsius on ERC112 Control ......................... 22

Cleaning and Sanitizing Procedures ...............................................................................23

General .................................................................................................................................................... 23

Interior Cleaning .................................................................................................................................. 24

Exterior Cleaning ................................................................................................................................. 24

Drain ......................................................................................................................................................... 25

Cleaning the Condenser Coil .......................................................................................................... 25

Casters ..................................................................................................................................................... 25

Doors/Hinges ........................................................................................................................................ 25

Preventing Blower Coil Corrosion ................................................................................................. 25

Problem -> Cause -> Correction Chart ............................................................................27

Part Number: 9294839 03/17 3

Section 1

General Information

Model Numbers

This manual covers the following models:

1 Section Refrigerators

Glass Doors Solid Doors

GBR1P-G(H) GBR1P-S(H)

GBSR1P-G(H) GBSR1P-S(H)

GCR1P-G(H) GCR1P-S(H)

2 Section Refrigerators

Glass Doors Solid Doors

GBR2P-G(H) GBR2P-S(H)

GBSR2P-G(H) GBSR2P-S(H)

GCR2P-G(H) GCR2P-S(H)

3 Section Refrigerators

Glass Doors Solid Doors

GBR3P-G(H) GBR3P-S(H)

GBSR3P-G(H) GBSR3P-S(H)

GCR3P-G(H) GCR3P-S(H)

Solid Doors Freezers

1 Section 2 Section 3 Section

GBF1P-S(H) GBF2P-S(H) GBF3P-S(H)

GBSF1P-S(H) GBSF2P-S(H) GBSF3P-S(H)

GCF1P-S(H) GCF2P-S(H) GCF3P-S(H)

Serial Number Information

The serial number is on the identification plate that also
includes the model number. The identification plate is
located near the top front corner of the left interior wall.

Always have the serial number of your unit available
when calling for parts or service.

Warranty Information

Visit
http://www.delfield.com/warranty to:

• Register your product for warranty.

• Verify warranty information.

• View and download a copy of your warranty.

Regulatory Certifications

Models are certified by:

•

•

•

National Sanitation Foundation (NSF)

Underwriters Laboratories (UL)

Underwriters Laboratories of Canada (cUL)

4 Part Number: 9294839 03/17

Section 2

Installation

DANGER

Installation must comply with all applicable fire and
health codes in your jurisdiction.

DANGER

Use appropriate safety equipment during installation
and servicing.

Warning

n

Do not damage the refrigeration circuit when installing,
maintaining or servicing the unit.

Location

Warning

n

This equipment must be positioned so that the plug is
accessible unless other means for disconnection from
the power supply (e.g., circuit breaker or disconnect
switch) is provided.

Warning

n

Adequate means must be provided to limit the
movement of this appliance without depending on or
transmitting stress to the electrical conduit or gas lines.

The location selected for the equipment must meet the
following criteria. If any of these criteria are not met, select
another location.

• The location MUST be level, stable and capable of
supporting the weight of the equipment.

• The location MUST be free from and clear of
combustible materials.

• Equipment MUST be level both front to back and side to
side.

• Position the equipment so it will not tip or slide.

• Front casters MUST be locked once positioned.

• Recommended air temperature is 60° - 100°F
(16° - 38°C).

• Proper air supply for ventilation is REQUIRED AND
CRITICAL for safe and efficient operation. Refer to
Clearance Requirements chart on page 6.

• Do not obstruct the flow of ventilation air. Make sure the
air vents of the equipment are not blocked.

• Do not install the equipment directly over a drain.
Steam rising up out of the drain will adversely affect
operation, air circulation, and damage electrical /
electronic components.

Warning

n

To avoid instability the installation area must be capable
of supporting the combined weight of the equipment
and product. Additionally the equipment must be level
side to side and front to back.

Warning

n

This equipment is intended for indoor use only. Do not
install or operate this equipment in outdoor areas.

Part Number: 9294839 03/17 5

Installation Section 2

Weight of Equipment

Description Models Weight

1 Section Refrigerators

Glass Doors GBR1P-G(H),

GBSR1P-G(H),
GCR1P-G(H)

Solid Doors GBR1P-S(H) 312 lbs (142 kg)

GBSR1P-S(H) 351 lbs (159 kg)

GCR1P-S(H) 282 lbs (128 kg)

2 Section Refrigerators

Glass Doors GBR2P-G(H),

GBSR2P-G(H),
GCR2P-G(H)

Solid Doors GBR2P-S(H),

GBSR2P-S(H)

GCR2P-S(H) 430 lbs (195 kg)

3 Section Refrigerators

Glass Doors GBR3P-G,

GBSR3P-G,
GCR3P-G

Solid Doors GBR3P-S(H) 727 lbs (330 kg)

GBSR3P-S(H) 767 lbs (348 kg)

GCR3P-S(H) 668 lbs (303 kg)

1 Section Freezers

Solid Doors GBF1P-S(H) 336 lbs (152 kg)

GBSF1P-S(H) 354 lbs (161 kg)

GCF1P-S(H) 299 lbs (136 kg)

2 Section Freezers

Solid Doors GBF2P-S(H) 532 lbs (241 kg)

GBSF2P-S(H) 495 lbs (225 kg)

GCF2P-S(H) 445 lbs (202 kg)

3 Section Freezers

Solid Doors GBF3P-S(H),

GBSF3P-S(H)

GCF3P-S(H) 707 lbs (321 kg)

236 lbs (107 kg)

322 lbs (146 kg)

495 lbs (225 kg)

485 lbs (220 kg)

772 lbs (350 kg)

Clearance Requirements

DANGER

Minimum clearance requirements are the same for
noncombustible locations as for combustible locations.
The flooring under the appliance must be made of a
noncombustible material.

DANGER

Risk of fire/shock. All minimum clearances must be
maintained. Do not obstruct vents or openings.

Top

12.00” (305mm)

• Keep the vents clean and free of obstruction.

• Casters or optional legs must be used and not removed.

6 Part Number: 9294839 03/17

Section 2 Installation

Dimensions

Model Length Depth Height

GBR1P-G(H),
GBR1P-S(H),
GBSR1P-G(H),
GBSR1P-S(H),
GCR1P-G(H),
GCR1P-S(H)

GBR2P-G(H),
GBR2P-S(H),
GBSR2P-G(H),
GBSR2P-S(H),
GCR2P-G(H),
GCR2P-S(H)

GBR3P-G,
GBR3P-S(H),
GBSR3P-G,
GBSR3P-S(H),
GCR3P-G,
GCR3P-S(H),

GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)

GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)

GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)

1 Section Refrigerators

27.34”

(70cm)

32.44”

(82cm)

2 Section Refrigerators

55.16”

(140cm)

32.44”

(82cm)

3 Section Refrigerators

82.97”

(211cm)

32.44”

(82cm)

1 Section Freezers

27.34”

(70cm)

32.44”

(82cm)

2 Section Freezers

55.16”

(140cm)

32.44”

(82cm)

3 Section Freezers

82.97”

(211cm)

32.44”

(82cm)

79.50”

(202cm)

79.50”

(202cm)

79.50”

(202cm)

79.50”

(202cm)

79.50”

(202cm)

79.50”

(202cm)

GBR1P-G(H),
GBR1P-S(H),
GBSR1P-G(H),
GBSR1P-S(H),
GCR1P-G(H),
GCR1P-S(H)

GBR2P-G(H),
GBR2P-S(H),
GBSR2P-G(H),
GBSR2P-S(H),
GCR2P-G(H),
GCR2P-S(H)

GBR3P-G,
GBR3P-S(H),
GBSR3P-G,
GBSR3P-S(H),
GCR3P-G,
GCR3P-S(H),

GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)

GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)

GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)

Model Volume

1 Section Refrigerators

3

21ft

(595L)

2 Section Refrigerators

3

46ft

(1303L)

3 Section Refrigerators

3

71ft

(2010L)

1 Section Freezers

3

21ft

(595L)

2 Section Freezers

3

46ft

(1303L)

3 Section Freezers

3

71ft

(2010L)

Part Number: 9294839 03/17 7

Installation Section 2

Electrical Service

DANGER

Check all wiring connections, including factory
terminals, before operation. Connections can become
loose during shipment and installation.

Warning

n

This appliance must be grounded and all field wiring
must conform to all applicable local and national
codes. Refer to rating plate for proper voltage. It is the
responsibility of the end user to provide the disconnect
means to satisfy the authority having jurisdiction.

VOLTAGE

All electrical work, including wire routing and grounding,
must conform to local, state and national electrical codes.

The following precautions must be observed:

• The equipment must be grounded.

• A separate fuse/circuit breaker must be provided for
each unit.

• Check all green ground screws, cables and wire
connections to verify they are tight before start-up.

FUSE/CIRCUIT BREAKER

A separate fuse/circuit breaker must be provided for each
unit.

GROUND FAULT CIRCUIT INTERRUPTER

Ground Fault Circuit Interrupter (GFCI/GFI) protection is
a system that shuts down the electric circuit (opens it)
when it senses an unexpected loss of power, presumably
to ground. Manitowoc does not recommend the use of
GFCI/GFI circuit protection to energize our equipment.
If code requires the use of a GFCI/GFI then you must
follow the local code. The circuit must be dedicated, sized
properly and there must be a panel GFCI/GFI breaker. We
do not recommend the use of GFCI/GFI outlets to energize
our equipment as they are known for more intermittent
nuisance trips than panel breakers.

RATED AMPERAGES, HORSEPOWER, VOLTAGE & POWER CORD CHART

Maximum 10ft (3m) cord with plug.

Glass Door Models Solid Door Models Amps HP Voltage, Cycle, Phase NEMA Plug

4.2 0.22 115, 60, 1 5-15p

6.0 0.33 115, 60, 1 5-15p

6.5 0.355 115, 60, 1 5-15p

7.2 0.55 115, 60, 1 5-15p

10.0 0.68 115, 60, 1 5-15p

14.7 0.55 (x2) 115, 60, 1 5-20P

Refrigerators

Freezers

GBR1P-G(H),
GBSR1P-G(H),
GCR1P-G(H)

1 Section

GBR2P-G(H),
GBSR2P-G(H),
GCR2P-G(H)

2 Section

GBR3P-G,
GBSR3P-G,
GCR3P-G

3 Section

NA

1 Section

NA

2 Section

NA

3 Section

GBR1P-S(H),
GBSR1P-S(H),
GCR1P-S(H)

GBR2P-S(H),
GBSR2P-S(H),
GCR2P-S(H)

GBR3P-S(H),
GBSR3P-S(H),
GCR3P-S(H)

GBF1P-S(H),
GBSF1P-S(H),
GCF1P-S(H)

GBF2P-S(H),
GBSF2P-S(H),
GCF2P-S(H)

GBF3P-S(H),
GBSF3P-S(H),
GCF3P-S(H)

8 Part Number: 9294839 03/17

Section 2 Installation

Drain Connections

Warning

n

Moisture collecting from improper drainage can create a
slippery surface on the floor and a hazard to employees.
It is the owner’s responsibility to provide a container or
outlet for drainage.

Refrigeration

Heat of

Rejection

(BTU)

Charge

Model

Full Height Doors
GBR1P-G,
GBSR1P-G,
GCR1P-G

Glass

Half Height Doors
GBR1P-GH,
GBSR1P-GH,
GCR1P-GH

Full Height Doors
GBR1P-S,
GBSR1P-S,
GCR1P-S

Solid

Half Height Doors
GBR1P-SH,
GBSR1P-SH,
GCR1P-SH

Full Height Doors
GBR2P-G,
GBSR2P-G,
GCR2P-G

Glass

Half Height Doors
GBR2P-GH,
GBSR2P-GH,
GCR2P-GH

Full Height Doors
GBR2P-S,
GBSR2P-S,
GCR2P-S

Solid

Half Height Doors
GBR2P-SH,
GBSR2P-SH,
GCR2P-SH

Full Height Doors
GBR3P-G,
GBSR3P-G,

Glass

GCR3P-G

BTU/Hour

Capacity

1 Section Refrigerators

1920 490 113g

1920 540 113g

1920 385 113g

1920 400 113g

2 Section Refrigerators

2540 780 113g

2540 880 113g

2540 565 113g

2540 590 113g

3 Section Refrigerators

3865 1175 118g

Model

Full Height Doors
GBR3P-S,
GBSR3P-S,
GCR3P-S

Solid

Half Height Doors
GBR3P-SH,
GBSR3P-SH,
GCR3P-SH

Full Height Doors
GBF1P-S,
GBSF1P-S,
GCF1P-S

Solid

Half Height Doors
GBF1P-SH,
GBSF1P-SH,
GCF1P-SH

Full Height Doors
GBF2P-S,
GBSF2P-S,
GCF2P-S

Solid

Half Height Doors
GBF2P-SH,
GBSF2P-SH,
GCF2P-SH

Full Height Doors
GBF3P-S,
GBSF3P-S,
GCF3P-S

Solid

Half Height Doors
GBF3P-SH,
GBSF3P-SH,
GCF3P-SH

BTU/Hour

Capacity

3865 850 118g

3865 895 118g

1 Section Freezers

2035 760 93g

2035 790 93g

2 Section Freezers

2485 1275 109g

2485 1340 109g

3 Section Freezers

4065 1700 109g/system

4065 1795 109g/system

Heat of

Rejection

(BTU)

Charge

Part Number: 9294839 03/17 9

Installation Section 2

Leveling

After the cabinet has been placed in the desired location,
cabinets with legs must be leveled. Level units from front to
back and from side to side. Leveling will insure proper door
operation and removal of condensate. Cabinets with casters
must have the caster brake set so the cabinet cannot move.

Stabilizing

It is very important that all legs are properly adjusted to
keep the cabinet level, evenly distribute the weight and to
make sure the unit will not rock, lean or be unstable.

Leg & Caster Installation

DANGER

Legs or casters must be installed and the legs or casters
must be screwed in completely to prevent bending.
When casters are installed the mass of this unit will
allow it to move uncontrolled on an inclined surface.
These units must be tethered/secured to comply with
all applicable codes.

Warning

n

The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters after
installation is the owner’s and operator’s responsibility.

To install the legs or casters:

1. Remove unit from skid.

NOTE: The bolts used to hold the unit to the skid should
be re-used as the fourth hex head bolt for each caster
or leg plate installation. The bolt should not measure
over 2” (5cm) in length.

2. Raise unit to access leg/caster mounting holes on
bottom of unit.

3. Attach the legs or casters to bottom of cabinet using
hex head bolts.

Warning

n

Use a jack to lift the refrigeration unit off the ground
just far enough to remove the leg/caster. Place blocking
underneath the unit. Do not work underneath a raised
unit without proper blocking. Do not lift the unit more
than necessary to remove the leg/caster. Lifting the unit
too far can make the unit unstable.

Caution

,

All single-section units require that the swivel casters be
mounted on the front and rigid casters be mounted on
the rear.

10 Part Number: 9294839 03/17

Section 2 Installation

Shelf Installation

APPLICABLE TO GC MODELS

1. If the shelves are attached to the shelf pins, detach the
shelves and set them aside. Cut zip ties if necessary.

2. Tighten the shelf pins to the refrigerator side walls and
mullions.

Caution

,

Shelf pins can be become damaged and unusable if
shelves are loaded while the pins are loose.

3. Place the shelves back on the pins.

APPLICABLE TO GB MODELS

1. Insert the clips into the pilaster holes at the desired
shelf heights.

2. Set the shelves on the clips.

Part Number: 9294839 03/17 11

Installation Section 2

Reversible Door Instructions

APPLICABLE TO FULL DOOR BETTER MODELS

1. Open the door.

2. Remove two bolts securing the hinge bracket above
the door.

11. Locate the provided alternate top hinge bracket.

12. Place the hinge bracket over the top hinge pin.

13. Open the door.

3. Lift the door up and out.

4. Save the hinge bracket.

5. Remove the door lock and move it to the other side.
Use the original screws and the vacant hinge holes.

14. Using the original screws install the hinge bracket on
the new side in the vacant lock holes.

6. Remove three bolts securing the hinge bracket to the
bottom of the unit.

7. Flip it over and install it on the opposite side.

8. Rotate the door 180°.

9. Move the white nylon washer from the top hinge pin to
the bottom hinge pin.

10. Insert the bottom hinge pin into the hinge bracket.

15. Check for proper closure and gasket seal.

16. Adjust hinges as needed.

12 Part Number: 9294839 03/17

Section 2 Installation

Pilaster Clip Kit Installation Instructions

APPLICABLE TO GC MODELS

4. Insert the clips into the pilaster holes at the desired
shelf heights.

1. If the shelves are attached to the shelf pins, detach and
set them aside. Cut zip ties if necessary.

2. Remove the shelf pins from refrigerator side walls
and mullions. These holes will be used to mount the
pilasters.

5. Set the shelves on the clips.

3. Match up the pilaster mounting holes with the
refrigerator and mullion holes. Secure with provided
screws.

Part Number: 9294839 03/17 13

Installation Section 2

New Bottom Hinge Cartridge Installation

1. Install the new cartridge into the door as received. The
new cartridge will be in the CLOSED position.

2. As you unload the hinge tension be careful to hold
on tight because you should feel the strong spring
tension as you rotate the hinge. Place the hinge

bracket on the square hinge pin and rotate it ½ turn to
the outside of the door.

3. After the hinge has been rotated, it will now be in the
OPEN position and NOT under spring tension.

4. Mount the door back onto the cabinet with the door
OPEN. The door should now close properly.

5. Begin closing the door, the door should finish closing
on it’s own. If the door stays open remove the door and
hinge bracket.

6. Using the hinge bracket rotate the square peg on the
cartridge until you feel tension and resistance if you
move the hinge in either direction. The hinge is now in
the CLOSED position. Repeat instructions starting with
step 2.

14 Part Number: 9294839 03/17

Section 2 Installation

T-1 Tray Slide Installation

Edge Support for 18” x 26” pans

Installed T-1 Tray Slide for 18”x 26” Pans

System Name T-1
Slide Style Tray
Support Style Edge
Compatible with 12” x 20” Pans No
Compatible with 18” x 26” Pans Yes

The T-1 tray slide system is designed to support 18” x 26”
pans by the edge of the pan. The slides are shaped as a C
channel.

Each set of tray slides is mounted at the same height across
a door section. If the tray slides are not at the same height,
the pan cannot be held securely. For each pan, one set of
two (2) tray slides is used. The only exception to this rule is
when 1.5” pan spacing is desired. For 1.5” spacing, the tray
slides are mounted every 3” and the top and bottom of
each tray slide is used to hold a pan.

Centers

1.5” 2.0” 3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section

17 26 17 13 10 8

Maximum Tray Slides for a Half Section (Top)

7 10 6 5 4 4

Maximum Tray Slides for a Half Section (Bottom)

8 12 8 6 5 4

T-1 Installation Instructions

1. For each pan, mount a pair of tray slides; one on each
side of the door section at the same height. Mount the
tray slides onto the pilasters by sliding the tray slide
tabs down into the cutouts. Make sure that all tabs are
engaged securely to each pilaster.

NOTE: A dead-blow hammer is recommended to seat the
tab into the cutouts.

Pilaster

Slider

2. Verify that all tray slides are lined up evenly.

NOTE: An easy check to verify correct installation is to slide
an 18” x 26” pan onto each slide. If the pan is held securely,
and is level inside the door section, the installation has
been successful.

Part Number: 9294839 03/17 15

Installation Section 2

T-2 Tray Slide Installation

Universal Bottom Support for 12” x 20” and 18” x 26”
pans

T-2 Tray Slide System

T-2 Installation Instructions

1. For each pan, two (2) tray slides will be used. Each tray
slide must have another tray slide at the same height,
on the opposite side of the door section. Mount the

Installed T-2 tray slide with both size pans

System Name T-2
Slide Style Tray
Support Style Bottom
Compatible with 12” x 20” Pans Yes
Compatible with 18” x 26” Pans Yes

tray slides onto the pilasters by sliding the tabs down
into the pilaster cutouts. Make sure that all tabs are
engaged securely to each pilaster.

NOTE: A dead-blow hammer is recommended to seat the
tab into the cutouts.

The T-2 (Universal) tray slide system is designed to support
both 12” x 20” and 18” x 26” pans by the bottom. The tray
slide is an L shaped piece of formed stainless steel.

Each set of tray slides is mounted at the same height across
a door section. If the tray slides are not at the same height,
the pan cannot be held securely. For each pan, one set of
two (2) tray slides is used.

Centers

2.0” 3.0” 4.0” 5.0” 6.0”
Maximum Tray Slides for a Full Section

25 17 12 10 8

Maximum Tray Slides for a Half Section (Top)

10 6 5 4 4

Maximum Tray Slides for a Half Section (Bottom)

10 6 6 5 4

Pilaster

Slider

2. Verify that all tray slides are lined up evenly.

NOTE: An easy check to verify correct installation is to slide
a pan onto each slide. If the pan is held securely, and is level
inside the door section, the installation has been successful.

16 Part Number: 9294839 03/17

Section 2 Installation

T-3 Tray Slide Installation

Edge Support for 12” x 20” pans

T-3 Tray Slide for 12”x 20” pans

System Name T-3
Slide Style Tray
Support Style Edge
Compatible with 12” x 20” Pans Yes
Compatible with 18” x 26” Pans No

The T-3 tray slide system is designed to support 12” x 20”
pans by the edge of the pan. The slides are shaped as a C
channel.

Each set of tray slides is mounted at the same height across
a door section. If the tray slides are not at the same height,
the pan cannot be held securely. For each pan, one set of
two (2) tray slides is used.

Centers

3.0” 4.0” 5.0” 6.0”

Maximum Tray Slides for a Full Section

17 12 9 7

Maximum Tray Slides for a Half Section (Top)

6 5 4 3

Maximum Tray Slides for a Half Section (Bottom)

8 6 5 4

T-3 Installation Instructions

1. For each pan, two (2) tray slides will be used. Each tray
slide must have another tray slide at the same height,
on the opposite side of the door section. Mount the
tray slides onto the pilasters by sliding the tabs down
into the pilaster cutouts. Make sure that all tabs are
engaged securely to each pilaster.

NOTE: A dead-blow hammer is recommended to seat the
tab into the cutouts.

Pilaster

Slider

2. Verify that all tray slides are lined up evenly.

NOTE: An easy check to verify correct installation is to slide a
pan of the appropriate size into each slide. If the pan is held
securely, and is level inside the door section, the installation
has been successful.

Part Number: 9294839 03/17 17

Installation Section 2

T-4 Rack Slide Installation

Edge Support for 18” x 26” pans

Installed T-4 Tray Slide for 18”x 26” pan

System Name T-4
Slide Style Rack
Support Style Edge
Compatible with 12” x 20” Pans No
Compatible with 18” x 26” Pans Yes

3. Repeat steps 1-2 on the opposite side. Verify that all
mounting plates are lined up across the door section.

4. For a full section installation, repeat steps 1-3 for the
upper half.

5. Place each rack on two (2) mounting plates.

Pilaster

Rack

Mounting Plate

6. Verify that all tray slides are lined up evenly.

NOTE: An easy check to verify correct installation is to slide a
pan of the appropriate size into each slide. If the pan is held
securely, and is level inside the door section, the installation
has been successful.

The T-4 rack slide system is designed to support 18” x 26”
pans by the edge of the pan. The T-4 rack slide system
consists mounting plates for each side, and a set of racks.
The racks are formed of heavy gauge metal wire.

Each set of rack slides is mounted at the same height across
a door section. If the rack slides are not at the same height,
the pan cannot be held securely. Each rack uses two (2)
mounting plates.

T-4 Installation Instructions

1. Start assembling the mounting plates at the bottom
of the door section. Place a bottom mounting plate so
that each set of tabs engages a cutout on the pilaster.
Push the mounting plate down to secure the plate to
the cutouts.

NOTE: A dead-blow hammer is recommended to seat the
tab into the cutouts.

2. On the same side place a top mounting plate with the
bottom edge 20” (51cm) above the top of the lower
mounting plate.

18 Part Number: 9294839 03/17

Section 3

Operation

DANGER

Do not operate any appliance with a damaged cord
or plug. All repairs must be performed by a qualified
service company.

DANGER

Never stand on the unit! They are not designed to
hold the weight of an adult, and may collapse or tip if
misused in this manner.

Warning

n

Do not contact moving parts.

Warning

n

All covers and access panels must be in place and
properly secured, before operating this equipment.

Warning

n

Do not use electrical appliances inside the food storage
compartment of this appliance.

Warning

n

The operator of this equipment is solely responsible
for ensuring safe holding temperature levels for all
food items. Failure to do so could result in unsafe food
products for customers.

Warning

n

Overloading shelves can damage equipment or cause
bodily injury.

Warning

n

Damp or wet hands may stick to cold surfaces.

R290 Controls/Programming/Settings

R290 Refrigerator

Refrigerators are factory set at mid-range to maintain about
38ºF (3ºC) box temperature.

1. At initial start-up or anytime power is disconnected,
then reconnected to the unit, the control will go into
defrost mode.

2. The control will enter a DEFROST mode and the display
will read dEF. The compressor and condenser fan as
well as the evaporator fan will remain off until this
initial defrost is complete. This initial defrost cycle may
take up to 35 minutes to complete.

3. The display will continue to read dEF for an additional
30 minutes while the cooling cycle cools the box to the
set temperature.

4. Then the digital thermostat will display box
temperature.

5. The temperature control will cycle the compressor,
evaporator fan motor and condenser fan motor to
maintain box temperature at the control setting. For
more information see R290 Evaporator Fan Operation
on page 21.

R290 Refrigerator Defrost

The temperature control also monitors the evaporator
temperature and will turn off the compressor and
condenser fan motor when needed to allow accumulated
frost on the evaporator to clear. During this defrost cycle,
the digital temperature display will read dEF. After the
defrost cycle is complete, the temperature control will
return to a normal cooling cycle, but the display will
continue to read dEF until the evaporator returns to normal
cooling temperatures (up to 30 minutes).

Warning

n

Do not block the supply and return air grills or the air
space around the air grills. Keep plastic wrappings,
paper, labels, etc. from being airborne and lodging in
the grills. Failure to keep the air grills clear will result in
unsatisfactory operation of the system.

Caution

,

Do not throw items into the storage area. Failure to
heed this recommendation could result in damage to
the interior of the cabinet or to the blower coil.

Part Number: 9294839 03/17 19

Operation Section 3

R290 Freezer

Freezers are factory set at mid-range to maintain about -2ºF
(-19ºC) box temperature.

1. At initial start-up or anytime power is disconnected,
then reconnected to the unit, the control will go into
defrost mode

2. The control will enter a DEFROST mode and the display
will read dEF. The compressor and condenser fan as
well as the evaporator fan will remain off until this
initial defrost is complete. This initial defrost cycle may
take up to 35 minutes to complete.

3. The display will continue to read dEF for an additional
30 minutes while the freezing cycle cools the box to the
set temperature.

4. Then the thermostat will display box temperature.

5. The temperature control will cycle the compressor,
evaporator fan motor and condenser fan motor to
maintain box temperature at the control setting. For
more information see R290 Evaporator Fan Operation
on page 21.

R290 Freezer Automatic Defrost

The control also monitors compressor total running time
and will enter a defrost cycle after total compressor running
time is greater than seven hours since the last defrost cycle
OR if evaporator coil temperature drops below -30ºF (-34ºC)
(indicating excessive frost on the coil).

R290 Freezer Manual Defrost

If a manual defrost is desired, hold the upper left button for
five seconds or unplug the unit for several seconds, then
plug unit back in. This will cause the control to re-initialize
and then enter a defrost cycle.

When the control enters the defrost mode, it switches off
the evaporator fan motor, compressor and condenser fan
motor, and switches on the defrost heater to warm the
evaporator coil. Thereby melting all frost accumulated
during the previous refrigeration cycle. The digital
temperature display will now read dEF. The control will
continue the defrost cycle for a MINIMUM of six minutes
and a MAXIMUM of 35 minutes depending on the amount
of frost accumulated on the evaporator coil.

After the defrost cycle is complete, the control returns
to a normal refrigeration cycle, however the evaporator
fan motor will not switch on until the evaporator reaches

-5°F (-21°C) or two minutes AFTER the compressor and
condenser fan motor have begun operating. The digital
temperature display will continue to read dEF until the
evaporator has returned to normal freezing temperatures
(up to 30 minutes).

R290 TEMPERATURE CONTROL & DISPLAY

V

V

Control Display

Operation / Indication

Status Displayed Comments

Normal (°C) Temp. [°C] Unit depends on setting

Normal (°F) Temp. [°F]

Show set-point Temp.

Set to Defrost dEF / Temp Depends on setting

Sensor 1 defect E01 Air sensor

Sensor 2 defect E02 Coil sensor

High temperature alarm Hi Automatically switching

Low temperature alarm Lo

Line voltage too hight uHi

Line voltage too low uLi

(parameters in control)

(parameters in control
or as chosen by upper

left button)

at 2 sec rate

20 Part Number: 9294839 03/17

Section 3 Operation

R290 Temperature Control & Display Operation

Press upper or lower right button.

• Display show actual set-point (blinking).

» If buttons untouched for 3 seconds returns to normal.

• Increase set-point by pressing upper button. Max value
depends on parameters in control.

• Decrease set-point by pressing lower button. Min value
depends on parameters in control.

» If buttons untouched for 3 seconds returns to normal

and stores new set-point.

Press upper left button for 5 seconds.

• Start defrost.

Press lower left button for 5 seconds.

• Unit goes into stand-by mode.

» The display will read off, then a period.

• Press the lower left button again for 5 seconds.

» The display will read on.
» The unit will then start up in the defrost mode, and

display will read dEF.

R290 Power Switch

Two and three door units are equipped with a power
disconnect switch located behind the louvered end panel.
Switch must be in the on position for the unit to operate. If
the switch is turned off, then returned to the on position,
the unit will enter a defrost cycle and the display will read
dEF.

R290 Energy Saver Switch

Select freezers are equipped with an energy saver switch
for service use. It is located in the electrical box behind
the front shroud. It controls the length of time that heat
is applied to the door perimeter. The normal operating
position for this switch is the on position, providing the
shortest amount of time. If excessive condensation is
observed on the door opening, switch to the off position
with the help of an authorized service agent. The off
position will increase the length of time the door heater is
on.

R290 Temperature Alarm

The alarm will flash “HI” or “LO” 90 minutes after the unit
has reached its alarm temperature point or after any
power interruption if the temperature is above or below
the alarm set points. Refrigerators are factory set at mid­range to maintain about 38ºF (3ºC) box temperature. The
high refrigerator temperature point is 50°F (10°C). The low
refrigerator temperature point is 25°F (-4°C). Freezers are
factory set at mid-range to maintain about -2ºF (-19ºC) box
temperature. The high freezer temperature point is 20°F
(-7°C). Freezers do not have a low temperature point.

R290 EVAPORATOR FAN OPERATION

During normal operation the evaporator fan may cycle
and/or pulse independently of the compressor. Consult
Technical Support at 1-844-724-CARE if you are unsure of
the proper function.

Cooling Cycle Defrost Cycle

Compressor OnCompressor

Off

Off

Evap Fan OnEvap Fan

Refrigerator X Cycles On 2-Min,

Freezer X X X

On

Evap Fan

Off 2-Min

Off

Evap Fan

Compressor

Off

Evap Fan OnEvap Fan

X

Off

Part Number: 9294839 03/17 21

Operation Section 3

R290 CHANGING DISPLAY FROM FAHRENHEIT TO
CELSIUS ON ERC112 CONTROL

1. Simultaneously hold the up and down arrows for
5 seconds to access menu for password protected
parameters.

2. Screen should temporarily flash PAS and then move to
a numeric screen.

3. Scroll to 187 using the up/down arrows and push the
stand-by button (lower left button) to enter.

6. -F should be displayed indicating Fahrenheit. Use
the down arrow to change it to -C for Celsius and hit
the stand-by button (lower left button) to enter the
change.

7. Push the defrost button (upper left button) to move
out of the display unit menu.

4. Scroll to dis using the up/down arrows and push the
stand-by button (lower left button) to enter into the
display menu.

5. Scroll to CFu using the up/down arrows and push the
stand-by button (lower left button) to enter the display
unit menu.

8. Push the defrost button (upper left button) to move
out of the display menu and back to the normal display.

NOTE: For steps 7 and 8, display will return back to normal
display after 30 seconds of inactivity.

22 Part Number: 9294839 03/17

Section 4

Maintenance

DANGER

It is the responsibility of the equipment owner to
perform a Personal Protective Equipment Hazard
Assessment to ensure adequate protection during
maintenance procedures.

DANGER

Failure to disconnect the power at the main power
supply disconnect could result in serious injury or death.
The power switch DOES NOT disconnect all incoming
power.

DANGER

Disconnect electric power at the main power disconnect
for all equipment being serviced. Observe correct
polarity of incoming line voltage. Incorrect polarity can
lead to erratic operation.

Warning

n

Never use sharp objects or tools to remove ice or frost.
Do not use mechanical devices or other means to
accelerate the defrosting process.

Cleaning and Sanitizing Procedures

Caution

,

Maintenance and servicing work other than cleaning as
described in this manual must be done by an authorized
service personnel.

GENERAL

Warning

n

When using cleaning fluids or chemicals, rubber gloves
and eye protection (and/or face shield) must be worn.

You are responsible for maintaining the equipment
in accordance with the instructions in this manual.
Maintenance procedures are not covered by the warranty.

Maintenance Daily Weekly Monthly

Interior X X X

Gasket X X X

Exterior X X X

Drain X X X

Condenser Coil X X X

Casters X X X

Part Number: 9294839 03/17 23

After Prolonged

Shutdown

At Start-Up

Maintenance Section 4

INTERIOR CLEANING

Notice

When cleaning interior and exterior of unit, care should
be taken to avoid the front power switch and the rear
power cord. Keep water and/or cleaning solutions away
from these parts.

Notice

Never use a high-pressure water jet for cleaning or hose
down or flood interior or exterior of units with water. Do
not use power cleaning equipment, steel wool, scrapers
or wire brushes on stainless steel or painted surfaces.

The interior can be cleaned using soap and warm water. If
this isn’t sufficient, try ammonia and water or a nonabrasive
liquid cleaner.

EXTERIOR CLEANING

Notice

Never use an acid based cleaning solution on exterior
panels! Many food products have an acidic content,
which can deteriorate the finish. Be sure to clean the
stainless steel surfaces of ALL food products.

Clean the area around the unit as often as necessary to
maintain cleanliness and efficient operation.

Wipe gasket and surfaces with a damp cloth rinsed in water
to remove dust and dirt from the outside of the unit. Always
rub with the “grain” of the stainless steel to avoid marring
the finish. If a greasy residue persists, use a damp cloth
rinsed in a mild dish soap and water solution. Wipe dry with
a clean, soft cloth.

Never use steel wool or abrasive pads for cleaning. Never
use chlorinated, citrus based or abrasive cleaners.

Stainless steel exterior panels have a clear coating that
is stain resistant and easy to clean. Products containing
abrasives will damage the coating and scratch the panels.
Daily cleaning may be followed by an application of
stainless steel cleaner which will eliminate water spotting
and fingerprints. Early signs of stainless steel breakdown
are small pits and cracks. If this has begun, clean thoroughly
and start to apply stainless steel cleaners in attempt to
restore the steel.

24 Part Number: 9294839 03/17

Section 4 Maintenance

DRAIN

Each unit has a drain located inside the unit that removes
the condensation from the evaporator coil and routes it
to an external condensate evaporator pan. Each drain can
become loose or disconnected during normal use. If you
notice water accumulation on the inside of the unit, be sure
the drain tube is connected to the evaporator drain pan.
If water is collecting underneath the unit, make sure the
end of the drain tube is in the condensate evaporator. The
leveling of the unit is important as the units are designed to
drain properly when level. Be sure all drain lines are free of
obstructions.

CLEANING THE CONDENSER COIL

In order to maintain proper refrigeration performance, the
condenser fins must be cleaned of dust, dirt and grease
regularly. It is recommended that this be done monthly. If
conditions are such that the condenser is totally blocked
in a month, the frequency of cleaning should be increased.
Clean the condenser with a vacuum cleaner or stiff brush. If
extremely dirty, a commercially available condenser cleaner
may be required.

Failure to maintain a clean condenser coil can initially cause
high temperatures and excessive run times. Continuous
operation with a dirty or clogged condenser coil can
result in compressor failure. Neglecting the condenser coil
cleaning procedures will void any warranties associated
with the compressor and cost to replace the compressor.

DOORS/HINGES

Over time and with heavy-use doors, the hinges may
become loose. If this happens, tighten the screws that
mount the hinge brackets to the frame of the unit. Loose
or sagging doors can cause the hinges to pull out of the
frame, which may damage both the doors and the hinges.
In some cases this may require qualified service agents or
maintenance personnel to perform repairs.

PREVENTING BLOWER COIL CORROSION

To help prevent corrosion of the blower coil, store all acidic
items, such as pickles and tomatoes, in seal-able containers.
Immediately wipe up all spills.

CASTERS

Wipe casters with a damp cloth monthly to prevent
corrosion.

Part Number: 9294839 03/17 25

Maintenance Section 4

THIS PAGE INTENTIONALLY LEFT BLANK

26 Part Number: 9294839 03/17

Section 5

Troubleshooting

Problem -> Cause -> Correction Chart

Problem Cause Correction

Cabinet not running Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker.

Power cord unplugged. Plug in power cord.

Thermostat set too high. Set thermostat to lower temperature.

Main power switch turned off. Turn main power switch on.

Cabinet in defrost cycle.

(Freezer models)

Condensing unit runs

for long periods or

continuously

Cabinet temperature is

too high

Cabinet is noisy Loose part(s). Locate and tighten loose part(s).

Refrigerator is freezing

product

Compressor will not

start

Temperature display

reads E1

Temperature display

reads E2

Temperature display

reads E6

Temperature display

reads E13

Excessive amount of warm product placed in

cabinet.

Prolonged door openings or door(s) ajar. Make sure door(s) are closed when not in use. Avoid

Door gasket(s) not sealing properly. Check gasket condition. Adjust door or replace gasket if

Dirty condenser coil. Clean the condenser coil.

Evaporator coil iced over. Turn unit off and allow coil to defrost.

Thermostat set too high. Set thermostat to lower temperature.

Poor air circulation in cabinet. Re-arrange product to allow proper air circulation.

Exterior thermometer is out of calibration. Re-calibrate thermometer.

Excessive amount of warm product placed in

cabinet.

Prolonged door openings or door(s) ajar. Make sure door(s) are closed when not in use.

Dirty condenser coil. Clean the condenser coil.

Evaporator coil iced over. Turn unit off and allow coil to defrost.

Thermostat is set too low. Set thermostat to higher temperature.

Dirty condenser coil. Clean the condenser coil.

Not enough cabinet clearance for proper

refrigeration system operation.

Low voltage to cabinet. Check and correct incoming voltage to cabinet.

Box temperature sensor circuit is either open or

shorted.

Coil temperature sensor circuit is either open or

shorted.

Control has a defective potentiometer. Replace control.

Communication error between controller and

display.

Allow adequate time for product to cool down.

Allow adequate time for product to cool down.

Move cabinet or make other adjustments to gain proper

Check resistance of sensor for open or short and replace
sensor if either condition is found. If not, replace control.

Check resistance of sensor for open or short and replace
sensor if either condition is found. If not, replace control.

Check for loose plugs on cable from control to display. If
there are no loose plugs the display or control may need

Wait for defrost cycle to finish.

prolonged door openings.

necessary.

Make sure thermostat is not set too cold.

Also, check gasket condition.

Avoid prolonged door openings.

Make sure thermostat is not set too cold.

Also, check gasket condition.

cabinet clearances.

to be replaced.

Part Number: 9294839 03/17 27

DELFIELD

980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858

800-733-8821

WWW.DELFIELD.COM

Every new piece of Welbilt equipment comes with KitchenCare® and you choose the level of service that meets
your operational needs from one restaurant to multiple locations.

StarCare – Warranty & lifetime service, certied OEM parts, global parts inventory, performance audited

ExtraCare — CareCode, 24/7 Support, online/mobile product information

LifeCare – Install & equipment orientation, planned maintenance, KitchenConnect™, MenuConnect®

Talk with KitchenCare® • 1-844-724-CARE • www.mtwkitchencare.com

To learn how Welbilt and its leading brands can equip you, visit our global web site at www.welbilt.
com, then discover the regional or local resources available to you.

©2017 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specications without notice.

Part Number: 9294839 03/17
