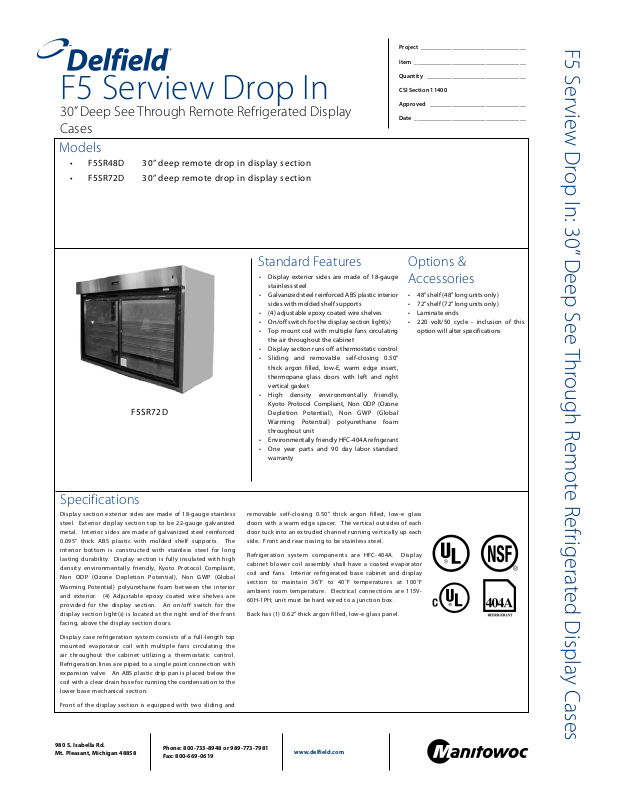

Delfield F5SR48D User Manual
F5 Serview Drop In
30” Deep See Through Remote Refrigerated Display
Cases
Models
F5SR 48D 30” deep remote drop in dis play s ection
•
•
F5SR 72D 30” deep remote drop in dis play s ection
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
F5 Serview Drop In: 30” Deep See Through Remote Refrigerated Display Cases
F5SR 72D
Specifications
Dis play se ctio n exte rior si des are m ade of 18- gaug e stai nless
ste el. E xter ior dis play se ctio n t op to be 22-g auge ga lvan ized
met al. Inte rior s ides ar e made of g alva nized s teel re info rced
0.0 95” thi ck AB S pla stic w ith m olde d s helf s uppo rts. The
int erio r bo ttom is co nstr ucte d wi th sta inles s s teel for lon g
las ting du rabi lity. Dis play se ctio n i s f ully in sula ted wit h h igh
den sity env iron menta lly fr iend ly, K yoto Pr otoco l Co mpli ant,
No n OD P ( Ozon e D eple tio n Po tent ial ), N on GW P (G lob al
War ming Pote ntia l) po lyur ethan e foa m bet ween the i nter ior
and ext erio r. ( 4) Ad just able epox y co ated wir e she lves are
pro vide d fo r th e di spla y se ctio n. An on/ off swi tch for the
dis play se ctio n l ight( s) is loca ted at the rig ht end of the fro nt
fac ing, abo ve t he d ispl ay s ecti on d oors.
Dis play ca se refr iger ation s ystem c onsis ts of a full -len gth top
mou nted eva pora tor coi l w ith mul tipl e f ans cir cula ting the
air th rough out th e ca bine t ut iliz ing a the rmos tatic co ntrol .
Ref rige rati on l ines are pipe d to a s ingl e po int conne ctio n wi th
exp ansi on v alve . An ABS pla stic dri p pa n i s pl aced bel ow t he
coi l wit h a cl ear d rain hose for r unni ng the cond ensa tion to th e
low er b ase mech anic al s ecti on.
Fro nt of the dis play se ctio n i s equi pped wi th two sli ding an d
Standard Features
Display exterior sides are made of 18-gauge
•
stainless steel
Galvanized steel reinforced ABS plastic interior
•
sides wit h molded shelf supports
(4) adjus table epoxy coated wire sh elves
•
On/off sw itch for the display sect ion light(s)
•
Top mount coil with multiple fans circulating
•
the air throughout the ca binet
Display section runs off a thermostatic control
•
Slidi ng a nd r emovable self- closing 0.50”
•
thick argon filled, low-E, warm edge inser t,
thermopane glass doors with left and right
vertical gasket
Hig h dens ity e nvironment ally friendl y,
•
Kyoto Protocol Compliant, Non ODP (Ozone
Depl etion Po tential), N on GWP (Global
Warmi ng Potential ) polyureth ane foam
throughout unit
Environmentally friend ly HFC-404A refrigerant
•
One year par ts and 90 day labor standard
•
warranty
rem ovab le sel f-cl osin g 0 .50” th ick a rgon f ille d, low -e gl ass
doo rs w ith a w arm edge spa cer. The ver tic al o utsi des of e ach
doo r tu ck i nto an e xtru ded chan nel runni ng v erti call y up eac h
sid e. Fron t an d re ar n osin g to be stai nles s st eel.
Re frig erat ion s yst em c ompo nen ts a re H FC-4 04A . D ispl ay
cab inet b lowe r coil a ssem bly sh all ha ve a coa ted ev apor ator
coi l and f ans. I nter ior re frig erate d bas e cabi net a nd dis play
se ctio n t o m ain tain 36 ˚F to 40 ˚F te mper atur es at 10 0˚F
amb ient r oom tem pera ture. Ele ctr ical co nnec tion s are 115 V-
60H -1PH ; un it m ust be hard wire d to a junc tion box .
Bac k ha s ( 1) 0 .62” t hick arg on f ille d, l ow-e gla ss p anel .
Options &
Accessories
•
•
•
•
48” shelf (48” long units only)
72” shelf (72” long units only)
Laminate e nds
220 volt/50 cycle - inclusion of this
option wi ll alter specifications
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
34.00”
Mechanical Access
Remote Models
1.75"
4cm
Cutout
3.00" x 12.00"
(7.6cm x 30.5cm)
Centered
Front To Back
0.25"(0.6cm)
From End
Front Of Unit
J=Junction Box
R=Refrigeration
Lines, 1/4" Liquid,
3/8" Suction
D=1/2" I.D. Drain
R
D
J
3.75"
9.5cm
3.75"
9.5cm
15.00"
38cm
86cm
34.00”
86cm
Plan View F5SR48D Plan View F5SR72D
6.50”
17cm
34.00”
86cm
48.00”
122cm
Elevation View F5SR48D
Elevation View F5SR72D
72.00”
183cm
42.00”
107cm
30.00”
76cm
Right End View
F5SR48D, F5SR72D
30” Deep See Through Remote R efr igerated Display Cas es
Specifications
Model
F5SR48D 28.2ft
F5SR72D 44.0ft
* Recommended
F5 Serview Drop In
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Shelf
Area
Storage
Capacity
2
2
3
19.0ft
3
29.4ft
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
H.P.*
Evap Cap
BTU/˚TD
Cabinet Load
BTU/Hour
1/2 150 1867 115/60/1 4.0 NA 540lbs/245kg
3/4 450 2791 115/60/1 4.0 NA 680lbs/308kg
Printed in the U.S.A.
DSF5SRD
03/10
V/Hz/Ph Amps
Nema
Plug
Ship Weight
