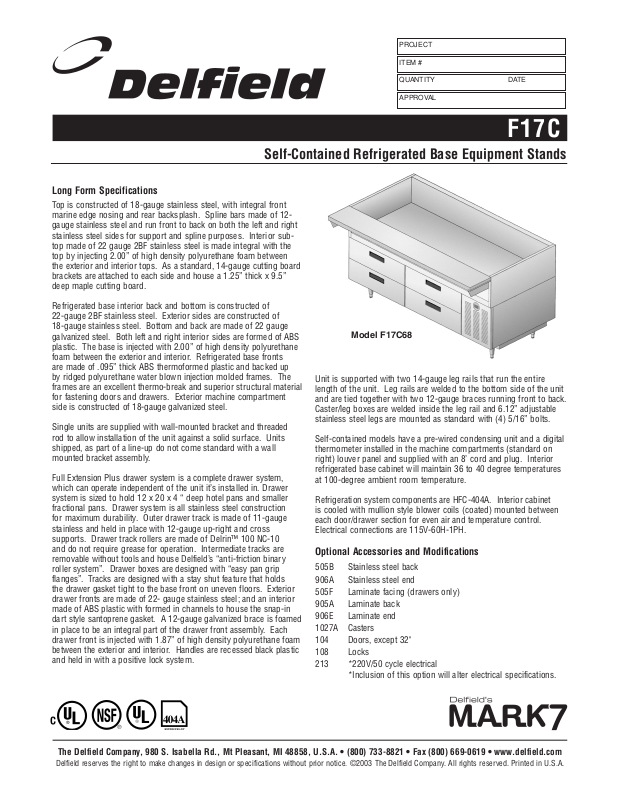

Delfield F17C General Manual

Self-Contained฀Refrigerated฀Base฀Equipment฀Stands
Long฀Form฀Specifications
Top฀is฀constructed฀of฀18-gauge฀stainless฀steel,฀with฀integral฀front฀
marine฀edge฀nosing฀and฀rear฀backsplash.฀฀Spline฀bars฀made฀of฀12-
gauge฀stainless฀steel฀and฀run฀front฀to฀back฀on฀both฀the฀left฀and฀right฀
stainless฀steel฀sides฀for฀support฀and฀spline฀purposes.฀฀Interior฀sub-
top฀made฀of฀22฀gauge฀2BF฀stainless฀steel฀is฀made฀integral฀with฀the฀
top฀by฀injecting฀2.00”฀of฀high฀density฀polyurethane฀foam฀between฀
the฀exterior฀and฀interior฀tops.฀฀As฀a฀standard,฀14-gauge฀cutting฀board฀
deep฀maple฀cutting฀board.฀฀
Refrigerated฀base฀interior฀back฀and฀bottom฀is฀constructed฀of฀
22-gauge฀2BF฀stainless฀steel.฀฀Exterior฀sides฀are฀constructed฀of฀
18-gauge฀stainless฀steel.฀฀Bottom฀and฀back฀are฀made฀of฀22฀gauge฀
galvanized฀steel.฀฀Both฀left฀and฀right฀interior฀sides฀are฀formed฀of฀ABS฀
plastic.฀฀The฀base฀is฀injected฀with฀2.00”฀of฀high฀density฀polyurethane฀
foam฀between฀the฀exterior฀and฀interior.฀฀Refrigerated฀base฀fronts฀
are฀made฀of฀.095”฀thick฀ABS฀thermoformed฀plastic฀and฀backed฀up฀
by฀ridged฀polyurethane฀water฀blown฀injection฀molded฀frames.฀฀The฀
frames฀are฀an฀excellent฀thermo-break฀and฀superior฀structural฀material฀
for฀fastening฀doors฀and฀drawers.฀฀Exterior฀machine฀compartment฀
side฀is฀constructed฀of฀18-gauge฀galvanized฀steel.฀฀
Single฀units฀are฀supplied฀with฀wall-mounted฀bracket฀and฀threaded฀
rod฀to฀allow฀installation฀of฀the฀unit฀against฀a฀solid฀surface.฀฀Units฀
shipped,฀as฀part฀of฀a฀line-up฀do฀not฀come฀standard฀with฀a฀wall฀
mounted฀bracket฀assembly.
Full฀Extension฀Plus฀drawer฀system฀is฀a฀complete฀drawer฀system,฀
which฀can฀operate฀independent฀of฀the฀unit฀it’s฀installed฀in.฀Drawer฀
system฀is฀sized฀to฀hold฀12฀x฀20฀x฀4฀“฀deep฀hotel฀pans฀and฀smaller฀
fractional฀pans.฀฀Drawer฀system฀is฀all฀stainless฀steel฀construction฀
for฀maximum฀durability.฀฀Outer฀drawer฀track฀is฀made฀of฀11-gauge฀
stainless฀and฀held฀in฀place฀with฀12-gauge฀up-right฀and฀cross฀
supports.฀฀Drawer฀track฀rollers฀are฀made฀of฀Delrin™฀100฀NC-10฀
and฀do฀not฀require฀grease฀for฀operation.฀฀Intermediate฀tracks฀are฀
removable฀without฀tools฀and฀house฀Delfield’s฀“anti-friction฀binary฀
roller฀system”.฀฀Drawer฀boxes฀are฀designed฀with฀“easy฀pan฀grip฀
flanges”.฀฀Tracks฀are฀designed฀with฀a฀stay฀shut฀feature฀that฀holds฀
the฀drawer฀gasket฀tight฀to฀the฀base฀front฀on฀uneven฀floors.฀฀Exterior฀
drawer฀fronts฀are฀made฀of฀22-฀gauge฀stainless฀steel;฀and฀an฀interior฀
made฀of฀ABS฀plastic฀with฀formed฀in฀channels฀to฀house฀the฀snap-in฀
dart฀style฀santoprene฀gasket.฀฀A฀12-gauge฀galvanized฀brace฀is฀foamed฀
in฀place฀to฀be฀an฀integral฀part฀of฀the฀drawer฀front฀assembly.฀฀Each฀
drawer฀front฀is฀injected฀with฀1.87”฀of฀high฀density฀polyurethane฀foam฀
between฀the฀exterior฀and฀interior.฀฀Handles฀are฀recessed฀black฀plastic฀
and฀held฀in฀with฀a฀positive฀lock฀system.
PROJECT
ITEM฀#
QUANTITY฀DATE
APPROVAL
F17C
Model฀F17C68
Unit฀is฀supported฀with฀two฀14-gauge฀leg฀rails฀that฀run฀the฀entire฀
length฀of฀the฀unit.฀฀Leg฀rails฀are฀welded฀to฀the฀bottom฀side฀of฀the฀unit฀
and฀are฀tied฀together฀with฀two฀12-gauge฀braces฀running฀front฀to฀back.฀฀
Caster/leg฀boxes฀are฀welded฀inside฀the฀leg฀rail฀and฀6.12”฀adjustable฀
stainless฀steel฀legs฀are฀mounted฀as฀standard฀with฀(4)฀5/16”฀bolts.
Self-contained฀models฀have฀a฀pre-wired฀condensing฀unit฀and฀a฀digital฀
thermometer฀installed฀in฀the฀machine฀compartments฀(standard฀on฀
right)฀louver฀panel฀and฀supplied฀with฀an฀8’฀cord฀and฀plug.฀฀Interior฀
refrigerated฀base฀cabinet฀will฀maintain฀36฀to฀40฀degree฀temperatures฀
at฀100-degree฀ambient฀room฀temperature.฀
Refrigeration฀system฀components฀are฀HFC-404A.฀฀Interior฀cabinet฀
is฀cooled฀with฀mullion฀style฀blower฀coils฀(coated)฀mounted฀between฀
each฀door/drawer฀section฀for฀even฀air฀and฀temperature฀control.฀฀
Electrical฀connections฀are฀115V-60H-1PH.฀฀
Optional฀Accessories฀and฀Modifications
505B฀฀฀฀฀Stainless฀steel฀back
906A฀฀฀฀฀Stainless฀steel฀end
505F฀฀฀฀฀฀Laminate฀facing฀(drawers฀only)
905A฀฀฀฀฀Laminate฀back
906E฀฀฀฀฀฀Laminate฀end
1027A฀฀฀Casters
104฀฀฀฀฀฀฀฀Doors,฀except฀32"
108฀฀฀฀฀฀฀฀Locks฀฀
213฀฀฀฀฀฀฀฀*220V/50฀cycle฀electrical
฀฀฀฀฀฀฀฀฀฀฀฀฀฀*฀Inclusion฀of฀this฀option฀will฀alter฀electrical฀specifications.
The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com
Delfield฀reserves฀the฀right฀to฀make฀changes฀in฀design฀or฀specifications฀without฀prior฀notice.฀©2003฀The฀Delfield฀Company.฀All฀rights฀reserved.฀Printed฀in฀U.S.A.฀
ELEVATION฀VIEW
F17C52
ELEVATION฀VIEW
F17C60
ELEVATION฀VIEW
F17C68
ELEVATION฀VIEW
F17C78
ELEVATION฀VIEW
F17C87
ELEVATION฀VIEW
F17C95
ELEVATION฀VIEW
F17C110
1/5฀HP฀115V-60C-1PH
1/5฀HP฀115V-60C-1PH
1/5฀HP฀115V-60C-1PH
1/5฀HP฀115V-60C-1PH
1/4฀HP฀115V-60C-1PH
1/4฀HP฀115V-60C-1PH
1/4฀HP฀115V-60C-1PH
6"
[15.2cm]
14"
[35.6cm]
14"
[35.6cm]
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
19"฀(48.3cm)
19"฀(48.3cm)
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
14"
[35.6cm]
14"
[35.6cm]
14"
[35.6cm]
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
19"฀(48.3cm)
19"฀(48.3cm)
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
27"฀(68.6cm)฀REF'G
14"
[35.6cm]
14"
[35.6cm]
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
32"฀(81.3cm)฀REF'G
52"฀[132.1cm]
60"฀[152.4cm]
68"฀[172.7cm]
95"฀[241.3cm]
110"฀[279.4cm]
87"฀[221cm]
78"฀[198.1cm]
50"
[127cm]
58"
[147.3cm]
66"
[168cm]
76"
[193cm]
85"
[216cm]
93"
[236cm]
108"
[274cm]
F17C
Self-Contained฀Refrigerated฀Base฀Equipment฀Stands
(19",฀24",฀32"฀drawers)
Mechanical฀Data–Standard฀Unit
฀฀฀฀
MODEL฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀NUMBER฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀PAN*฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀VOLTS,฀HERTZ฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀BTU฀DESIGN฀฀฀฀฀฀฀฀BTU฀SYSTEM฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀SHIP
฀฀฀฀NUMBER฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀OF฀DRAWERS฀฀฀฀฀฀฀฀฀฀฀฀฀CAPACITY฀฀฀฀฀฀฀฀฀฀฀฀฀฀H.P.฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀PHASE฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀AMPS฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀LOAD฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀CAPACITY฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀WEIGHT
F17C52฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
F17C60
F17C68
F17C78
F17C87
F17C95
F17C110
*12”฀x฀20”฀x฀4”฀deep฀pans฀not฀included.฀฀฀5-15P฀NEMA฀plug฀used฀on฀all฀lengths.
The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com
Delfield฀reserves฀the฀right฀to฀make฀changes฀in฀design฀or฀specifications฀without฀prior฀notice.฀©2003฀The฀Delfield฀Company.฀All฀rights฀reserved.฀Printed฀in฀U.S.A.฀
26.08"฀(66.24cm)
28.18฀(71.57cm)
฀(27"฀drawers)
฀฀฀฀฀฀฀฀฀฀฀
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
฀฀฀฀฀฀฀฀฀฀฀
฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
฀฀฀฀฀฀฀฀฀฀฀฀฀฀
30.74"
78.07cm
2.00"
5.08cm
6.13"
15.57cm
7.62"
19.38cm
25.50"
64.77cm
26.00"
66.04cm
36.00"
91.44cm
40.00"
101.6cm
END฀VIEW฀
ALL฀MODELS
30.74"
78.1cm
9.5"
24cm
END฀VIEW฀
ALL฀MODELS
(2)฀32”฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀4฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/5฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀฀8.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀452฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1727฀฀฀฀฀฀฀฀฀410฀lbs/฀186฀kg
(2)฀19฀&฀(2)฀27”฀฀฀฀฀฀฀฀฀฀฀฀฀6฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/5฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀฀8.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀556฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1727฀฀฀฀฀฀฀฀฀460฀lbs/฀208฀kg
(4)฀27”฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀8฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/5฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀฀8.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀632฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1727฀฀฀฀฀฀฀฀฀500฀lbs/฀227฀kg
(4)฀32”฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀8฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/5฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀฀8.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀726฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1727฀฀฀฀฀฀฀฀฀580฀lbs/฀263฀kg
(2)฀19฀&฀(4)฀27”฀฀฀฀฀฀฀฀฀฀฀฀10฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/4฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀10.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀868฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀2341฀฀฀฀฀฀฀฀฀625฀lbs/฀283฀kg
(6)฀27”฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀12฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/4฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀10.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1001฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀2341฀฀฀฀฀฀฀฀฀700฀lbs/฀317฀kg
(6)฀32”฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀12฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1/4฀฀฀฀฀฀฀฀฀฀฀฀฀115/60/1฀฀฀฀฀฀฀฀฀฀฀฀10.0฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀1143฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀2341฀฀฀฀฀฀฀฀฀750฀lbs/฀340฀kg
