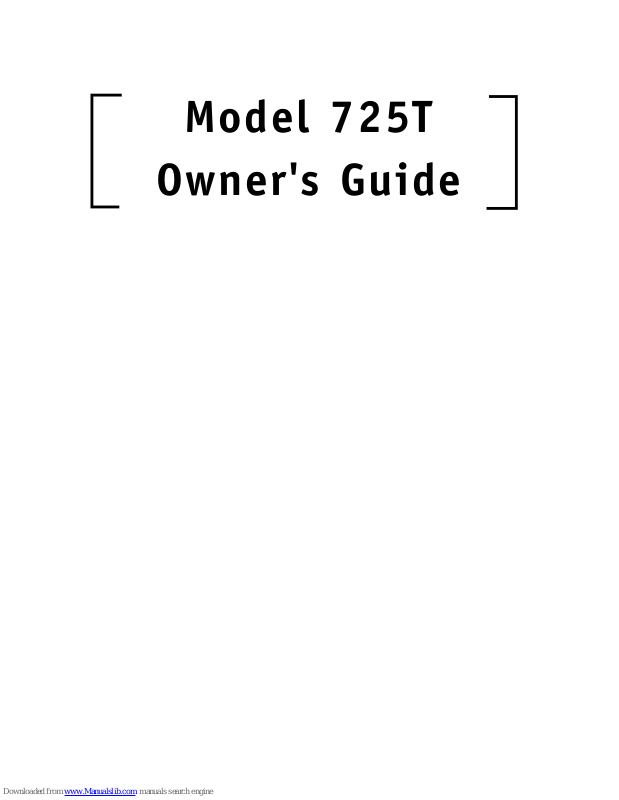

DEI 725T Owner's Manual

Model 725T

Owner's Guide

i

©

2002 Directed Electronics, Inc.

Limited Lifetime

Consumer Warranty

For a period of one calendar year from the date of purchase of this auto-security
device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or
replace (with a comparable reconditioned model), free of cost, any electronic control
module which proves to be defective in workmanship or material under normal use,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL
AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY
INSTALLED. If warranty service is necessary you must have a clear copy of your sales
receipt containing all of the information shown on the following page.

After the first calendar year, from the date of purchase of this auto-security device,
Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model) any electronic control module which proves
to be defective in workmanship or material under normal use FOR A CHARGE OF
$45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PRO­FESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS
ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy
of your sales receipt containing all of the information shown on the following page.

This warranty contains the entire agreement relating to warranty and supersedes all
previous and contemporaneous representations or understandings, whether written or
oral. IN ANY EVENT, DEI IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS
CONTENTS.

This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or
construction. This warranty is nontransferable and does not apply to any unit that
has been modified or used in a manner contrary to its intended purpose and does not
cover batteries. The unit in question must be returned to the manufacturer, postage
prepaid. This warranty d

oes n

ot

cover labor costs for the removal, diagnosis, trou­bleshooting or reinstallation of the unit. For service on an out-of-warranty product a
flat rate fee by model is charged. Contact your authorized dealer to obtain the ser­vice charge for your unit.

These systems are a deterrent against possible theft. Directed Electronics, Inc. is not
offering a guarantee or insuring against the theft of the automobile or its contents
and disclaims any liability for the theft of the vehicle and/or its contents. Directed
Electronics does not authorize any person to create for it any other obligation or lia­bility in connection with this security system.

ii

©

2002 Directed Electronics, Inc.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD­ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM­MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU­SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR­RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF
NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR
ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT
NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,
REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE
ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR
THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.

IMPORTANT NOTE:

This product warranty is automatically void if its date code or serial number is
defaced, missing, or altered. This warranty will not be valid unless you have com­pleted the warranty card and mailed it to Directed Electronics, Inc. within 10 days
after purchase to the address listed on the warranty registration card.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■ Date of purchase

■ Your full name and address

■ Authorized dealer's company name and address

■ Type of system installed

■ Year, make, model and color of the automobile

■ Automobile license number

■ Vehicle identification number

■ All security options installed on automobile

■ Installation receipts

1

©

2002 Directed Electronics, Inc.

Table of Contents

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

What is Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Passive Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Arming While Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disarming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

High Security Disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Nuisance Prevention Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Valet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Arming Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

System Status Chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Interpreting Zone Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table of Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Code Hopping® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2

©

2002 Directed Electronics, Inc.

Standard Configuration

LED

Arm

Disarm

Pani

c

Silent Mode
Auxiliary Output

3

©

2002 Directed Electronics, Inc.

What is Included

■ The control module

■ A pair of two-button transmitters

■ A Stinger

®

Doubleguard®dual-stage shock sensor

(on board the control module)

■ The Revenger

®

Soft Chirp®six-tone programmable siren

■ The red status LED indicator light

■ A push-button Valet

®

switch

■ Your warranty card

Important Information

Congratulations on the purchase of your state-of-the-art vehicle

security system. By carefully reading this guide prior to using your

system, you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing the Directed website at www.directed.com.

This system has been designed to provide years of trouble-free

operation. The system requires no specific maintenance. Your

remote control is powered by a miniature 12V battery, type GP23A,

that will last approximately one year under normal use. When the

System Maintenance

4

©

2002 Directed Electronics, Inc.

battery weakens, operating range will be reduced and the LED on

the remote will light dim.

Your warranty card must be returned within 10 days of purchase

and the bar-code serial number must not be removed. If the war-

ranty card is not returned you do not have a warranty. It is also

necessary to keep your proof of purchase. Make sure you receive

the warranty card from your dealer.

This device complies with Part 15 of FCC rules. Operation is sub-

ject to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interfer-

ence received, including interference that may cause undesired

operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to oper-

ate this device.

FCC/ID Notice

Your Warranty

5

©

2002 Directed Electronics, Inc.

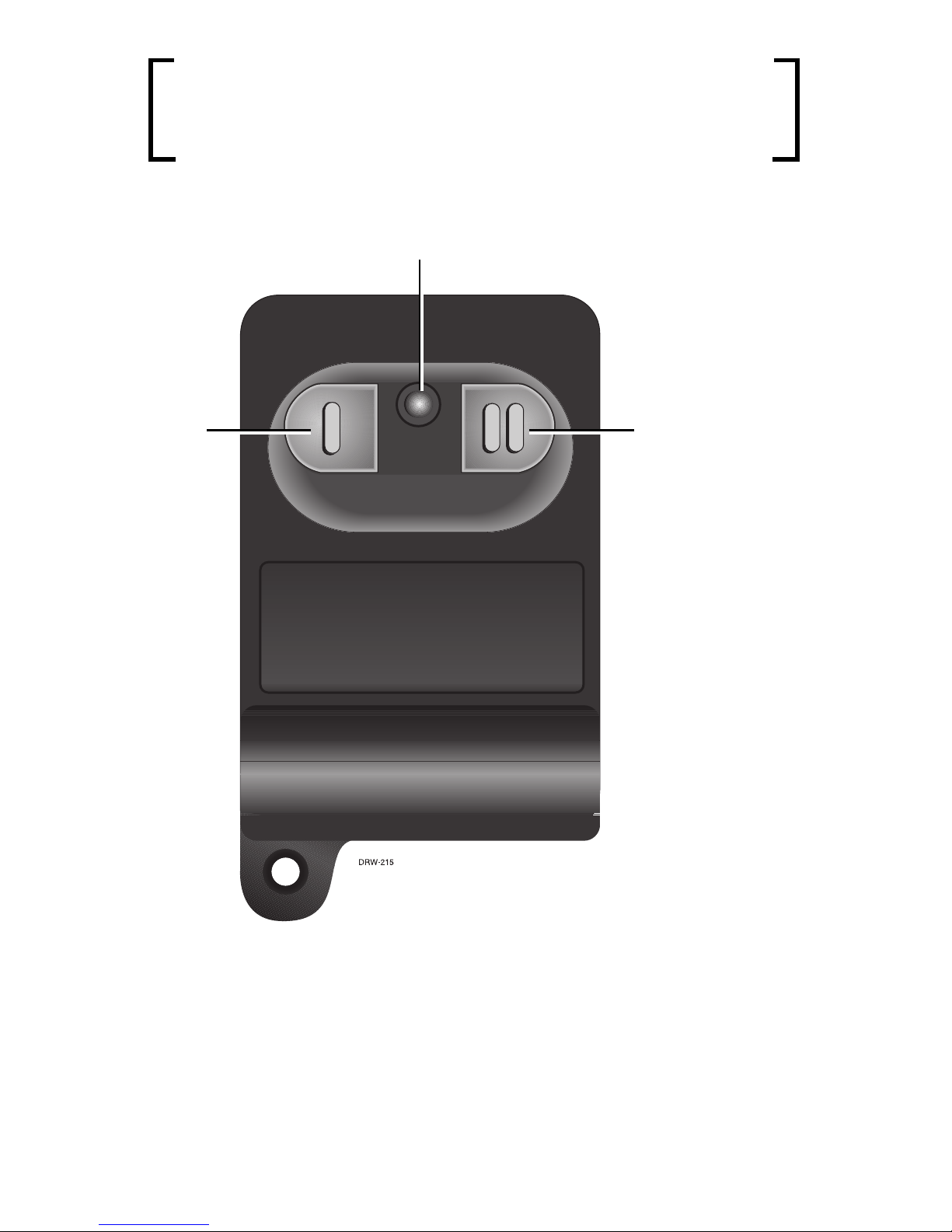

Transmitter Functions

Button I

The arm, disarm and panic functions, are usually controlled by .

Button II

Silent Mode

™

and an optional auxiliary function, such as trunk

release, are usually controlled by . Silent Mode works by press-

ing for less than one second before arming or disarming.

Trunk release requires you to press for 1.5 seconds.

Using Your System

You can turn on, or arm, the system by pressing of your trans-

mitter for one second. When the system arms, you will hear a short

siren sound, or chirp, and see the parking lights flash once. If the

vehicle’s power door locks are controlled by the system, the doors

will lock. While the system is armed, the status LED will flash

approximately twice per second, indicating that the system is

actively protecting the vehicle. If you hear a second chirp after

arming and see the status LED flashes in groups, refer to the

Diagnostics section of this manual. This extra chirp is called

Bypass Notification.

Arming

6

©

2002 Directed Electronics, Inc.

The system can also be programmed to arm itself automatically

(called passive arming). If the system is programmed for passive

arming, it will automatically arm 30 seconds after the ignition is

turned off and the system "sees" you leave the vehicle by open-

ing and closing a door. Whenever the system is in its 30-second

passive arming countdown, the status LED will flash twice as fast

as it does when the system is armed.

NOTE: If any protected entry point (such as a door or a switch-protect­ed trunk or hood) is open, the system will not passively arm (unless
forced passive arming is programmed on. See Programming Options sec­tion). Additionally, each time a sensor is triggered during the arming
countdown, the 30-second countdown starts over.

When armed, your vehicle is protected in the following ways:

■ Light impacts will trigger the Warn Away

®

signal. When trig-

gered, the siren will chirp and the parking lights will flash for

a few seconds.

■ Heavy impacts will trigger the system. The trigger sequence

is 30 seconds of constant siren and flashing parking lights.

■ If a door is opened, the system will immediately start chirp-

ing the siren and flashing the parking lights. Three seconds

later, the siren output changes to a continuous blast. This

progressive response gives you time to disarm the system

with your transmitter if you inadvertently open the door

while the system is armed, while still providing an instant

response (even if the door is immediately closed).

Passive Arming

7

©

2002 Directed Electronics, Inc.

■ Turning on the ignition key will trip the same two-stage

response as opening a door.

■ The optional starter kill prevents the vehicle’s starter from

cranking.

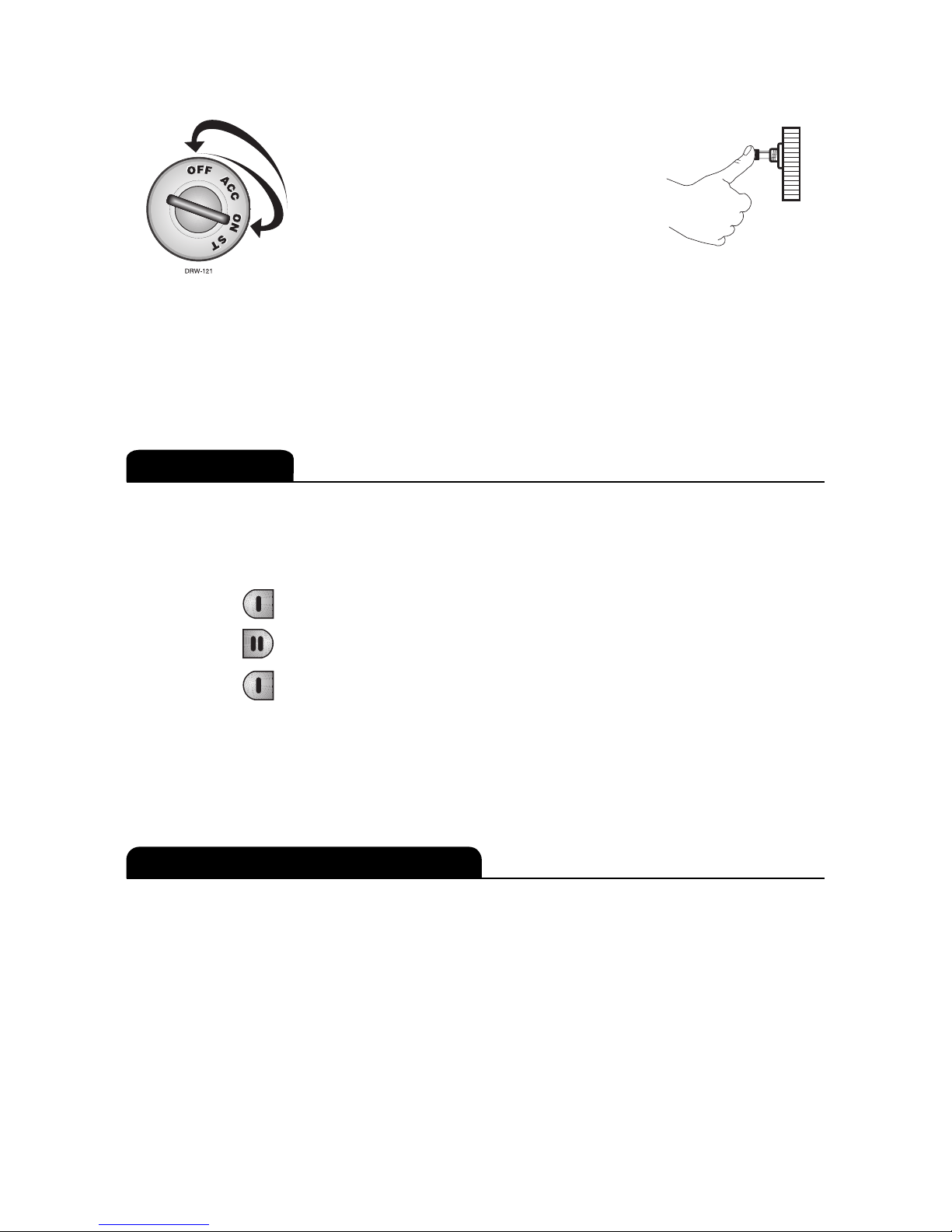

Your system can be armed while driving the vehicle! Simply press

on your transmitter for two seconds while the vehicle is run-

ning. The system will chirp once and then once more to indicate

that the ignition is on. The system will not respond to any input

except the door triggers and the starter kill relay (if installed) will

not be activated. The system can be disarmed at any time by

pressing on the transmitter once more, or it will disarm when

the key is turned off. The siren will chirp twice and the LED will

stop flashing. If you do not disarm the system, it will trigger when

any door is opened to exit the vehicle.

To turn off, or disarm, the system, press again. You will hear

two chirps, and the parking lights will flash twice. If the power

locks are controlled by the system the doors will unlock. If the

siren chirps either four or five times when disarming, refer to the

Diagnostics section of this guide. This is called Tamper Alert.

Disarming

Arming While Driving

8

©

2002 Directed Electronics, Inc.

Your system includes a High Security Disarm feature. During the

triggered sequence, using the transmitter to disarm the system

will only stop the triggered sequence (the siren will stop and the

parking lights will stop flashing). However, the system will remain

armed and the doors will stay locked. This is extremely useful if

you must stop the system from sounding, but are unable to visu-

ally check the vehicle. The trigger will stop, but the vehicle will

remain protected.

To disarm with the transmitter during a trigger, press on your

transmitter. The siren will stop sounding. Next press once

more and the system will chirp four or five times (reporting the

trigger) and disarm.

This feature allows you to disarm the system without the trans-

mitter should it be lost, damaged or disabled. In order to disarm

without a transmitter, you must have the vehicle's ignition key and

know where the Valet switch is located. Be sure to check with the

installer for the location of the Valet switch.

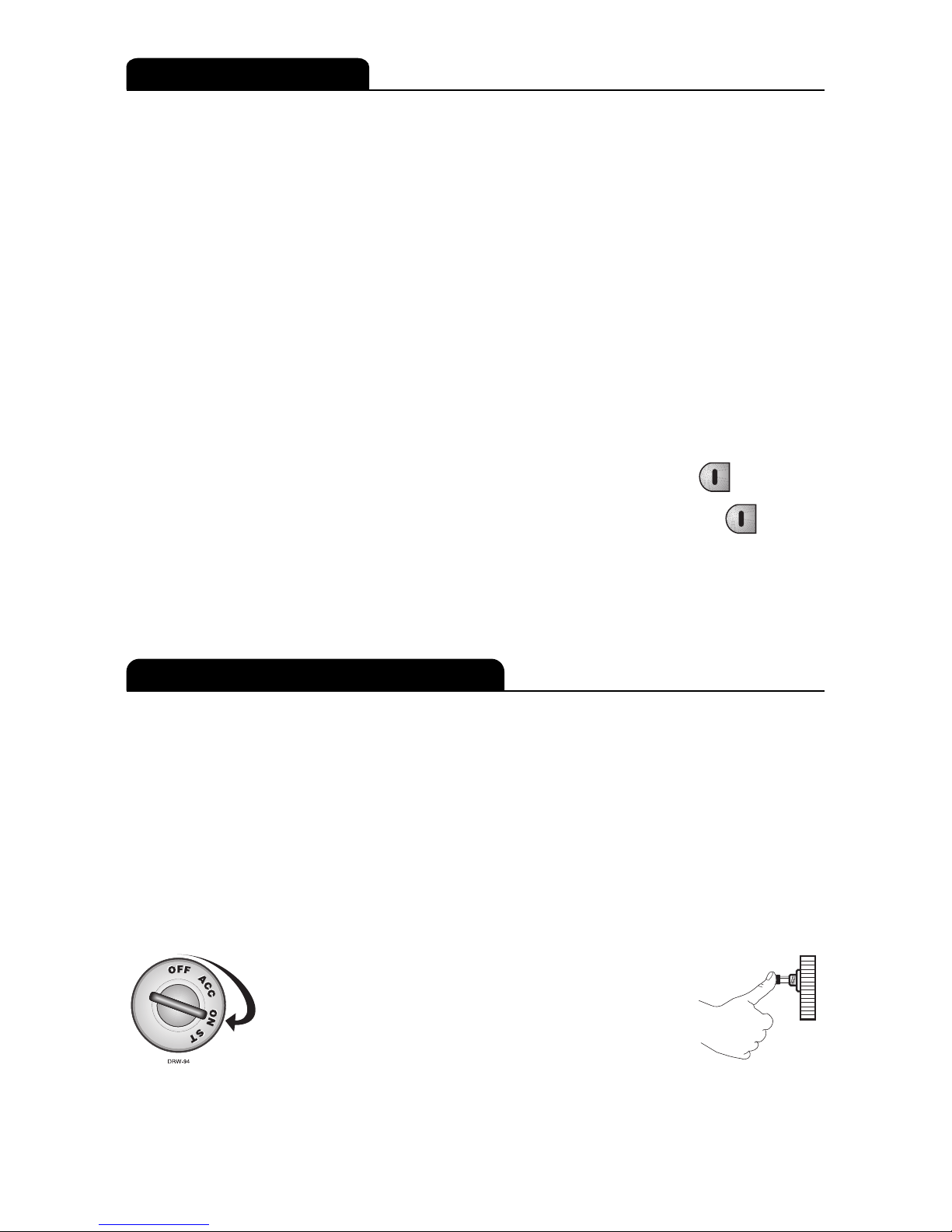

Turn on the ignition. Press the

Valet switch within 15 seconds. The

system should now disarm. If it

does not, you may have waited too

long, so turn the ignition off and

on and try again.

DRW-35

Disarming Without a Transmitter

High Security Disarm

9

©

2002 Directed Electronics, Inc.

To temporarily turn off the arm or disarm chirps, use Silent Mode™.

Simply press briefly before arming or disarming, and the con-

firmation chirp(s) will be eliminated for that one operation only.

If you want the arm/disarm chirps turned off permanently, your

dealer can do this for you.

NOTE: The Warn Away®response to lighter impacts is bypassed if the sys-
tem is armed using Silent Mode. This ensures that no chirps will be emit­ted by the siren in an environment you want to remain chirp-free. The
system is still fully able to trigger. Only the Warn Away response is
defeated.

If you are threatened in or near your vehicle, you can attract

attention by triggering the system with your transmitter! Just press

for 1.5 seconds, and you will enter Panic Mode. The siren will

sound and the parking lights will flash for 30 seconds. To stop

Panic Mode at any time, press on the transmitter again.

You can prevent your system from automatically arming and trig-

gering by using Valet Mode. This is very useful when washing the

vehicle or having it serviced. In Valet Mode, the system will not

arm, even with the transmitter, but all convenience functions

(door locks, trunk release, etc.) will work normally.

Valet Mode

Panic Mode

Silent Mode

10

©

2002 Directed Electronics, Inc.

The same procedure can be used to either enter or exit Valet®Mode:

2. Turn the ignition on.

2. Turn the ignition off.

3. Press and release the

Valet

®

switch within 10

seconds.

The status LED will light steady if you have entered Valet Mode,

and it will go out if you have exited Valet Mode.

Using Remote Valet as you enter or exit the vehicle:

1. Open any door.

2. Press (or the arm/disarm button).

3. Press (or the auxiliary output button).

4. Press again.

The status LED will light steady if you have entered Valet Mode,

and it will go out if you exited Valet Mode.

Your system has Directed’s Nuisance Prevention® Circuitry (NPC®).

It prevents annoying repetitive trigger sequences due to faulty

door pin switches or environmental conditions such as thunder,

jackhammers, airport noise, etc.

If the alarm triggers three times within a 60-minute period and

each time the same sensor or switch triggers the alarm, NPC® will

Nuisance Prevention Circuitry

Remote Valet

DRW-35

11

©

2002 Directed Electronics, Inc.

interpret those triggers as false alarms. After the third trigger,

NPC® ignores, or bypasses, that sensor or switch (along with any

other sensors or switches sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the system while it is being

bypassed, the 60-minute bypass period will start over. This ensures

that a sensor that continually triggers will remain bypassed.

Doors are covered by NPC® differently; if the alarm is triggered by

an open door for three full cycles, the doors will be bypassed until

the trigger ceases.

NOTE: Arming and disarming the system does not reset this function.The
only ways to reset a bypassed zone are for it to not trigger for 60 min­utes, or to turn on the ignition. If testing your system, it is important
to remember that the NPC® programming can cause zones to be
bypassed and appear to stop working. If five chirps are heard when dis­arming, NPC® has been engaged. If you wish to clear the NPC® memory,
turn the ignition key on.

12

©

2002 Directed Electronics, Inc.

Diagnostics

The microprocessor at the heart of your security system is con-

stantly monitoring all of the switches and sensors that are con-

nected to it. It detects any faulty switches and sensors and pre-

vents them from disabling the entire system. The microprocessor

will also record and report any triggers that occurred during your

absence. Refer to the System Status Chirps and Table of Zones

charts for diagnostic information.

If the system is armed with an input active (door open, sensor

triggering, etc.) the unit will chirp once when arming and then

one more time a few seconds later. This is called Bypass

Notification.

NOTE: Bypass Notification will not occur when using Silent Mode or if
chirps have been programmed OFF.

The security system will ignore the input that was active when the

system was armed, until the input goes away. Three seconds later

the system will monitor that input normally. For example, if your

vehicle has interior light exit delay, and you arm the system before

the interior light goes out, you may hear Bypass Notification

chirps. Once the light shuts off, however, the doors are monitored

normally.

Arming Diagnostics

13

©

2002 Directed Electronics, Inc.

Extra disarm chirps are the Tamper Alert. If four chirps are heard

when disarming, the system was triggered in your absence. If five

chirps are heard, a zone was triggered so many times that Nui-

sance Prevention® Circuitry has bypassed that zone. The status

LED will indicate which zone was involved. (See Table of Zones

section of this guide.) The system will retain this information in

its memory, and continue to chirp four or five times each time it

is disarmed, until the next time the ignition key is turned on.

The siren will chirp when arming/disarming the system. The pat-

tern of chirps will audibly report the system’s status as described

below.

Action Number of Chirps Description

Arm 1 System armed

Arm 1 (3-second delay), 1 System armed with

Bypass Notification

Disarm 2 System disarmed

Disarm 4 System disarmed with

Tamper Alert

Disarm 5 System disarmed NPC

active

System Status Chirps

Disarming Diagnostics

14

©

2002 Directed Electronics, Inc.

The zone number is the number of LED flashes used by the system

to identify that input. The standard input assignments are listed

below, along with spaces to write in any optional sensors or

switches you have had installed.

Warn Away responses are not reported by arming or disarming

diagnostics. If you receive a Bypass notification when arming or a

Tamper Alert notification when disarming, look at the LED. Active

or triggered zones will be indicated by a pattern of blinks by the

LED.

If Zone 3 was active or triggered, the LED will blink three times

with a two-second pause. Then it will blink three times again, and

repeat until the ignition is turned on.

NOTE: Your system stores the last two triggered zones in memory. If your
system has been triggered but the LED has been reset by turning on the
ignition, your dealer can still recall the last two zones that were trig­gered. Contact your dealer for details.

Interpreting Zone Diagnostics

Zone - Number Dealer-Installed

of LED Flashes Description Options

1 Instant trigger - often used

for hood/trunk pinswitches

2 Instant trigger - a heavier impact

detected by the shock sensor

3 Door switch trigger

5 Ignition trigger

Table of Zones

15

©

2002 Directed Electronics, Inc.

Code Hopping

®

The receiver and transmitters each use a mathematical formula

called an algorithm to change their code each time the transmit-

ter is used. This technology has been developed to increase the

security of the unit. The control unit knows what the next codes

should be. This helps to keep the transmitter synchronized with

the control unit even if you use the remote control out of range

of the vehicle. However, if the transmitter has been pressed many

times out of range of the vehicle, or the battery has been removed,

it may get out of sync with the control unit and fail to operate the

system. To resynchronize the remote control simply press sev-

eral times within range of the vehicle. The alarm will automatical-

ly resynchronize and respond to the transmitters normally.

16

©

2002 Directed Electronics, Inc.

Programming Options

Programming options control what your system does during nor-

mal operation, and require few or no additional parts. However,

some may require additional installation labor. The factory set-

tings are in bold.

■ Active arming (only with the transmitter) or passive arming

(automatic arming 30 seconds after the last door is closed).

■ Arming/disarming confirmation chirps on or off.

■ Passive door locking (with passive arming) or active door

locking (only when arming with the transmitter). This feature

only works if passive arming has been selected for step one.

■ The ignition switch-controlled door locking feature on or off.

With this feature on, the doors will lock 3 seconds after the

key is turned on, and unlock when the key is turned off.

NOTE: If the door is open when the ignition is turned on, the doors will
not lock.

■ Panic mode enabled/disabled with the ignition on. (Some

states have laws against siren capability in a moving vehicle).

■ Automatic Engine Disable (AED) on or off. This feature deters

theft of the vehicle, whether or not the alarm is armed. If

AED is programmed on, the starter of the vehicle will be dis-

abled 30 seconds after the ignition is turned off. The LED will

flash slowly (one-half its normal armed rate) to indicate the

AED arming cycle. 30 seconds later, the starter of the vehicle

will be disabled. To start the car, you will need to arm the car

17

©

2002 Directed Electronics, Inc.

with the remote and then disarm it with the remote. You can

also disarm the AED feature by turning the ignition on and

pressing the Valet button once. AED is also disabled when in

Valet mode.

NOTE: This feature will only function if the Failsafe starter kill relay has
been installed.

■ Forced passive arming on or off. If your system is pro-

grammed to passively arm and this feature has been pro-

grammed on, the system will passively arm after one hour,

even if a protected entry has been left open. If a door has

accidentally been left ajar when leaving the vehicle, forced

passive arming ensures that the system will arm in one hour

NOTE: When forced passive arming occurs, the entry point that has been
left open, and anything connected to the same zone, is bypassed and
cannot trigger the system. The remaining inputs to the system are fully
operational.

■ Siren tones and chirp volume. The output of the Revenger

®

Soft Chirp®siren consists of six different tones in sequence.

Any of these tones can be eliminated by your dealer, result-

ing in a unique, easily identifiable siren sound. The siren

chirps can be either full volume or 6 decibels quieter than

the full alarm blast.

18

©

2002 Directed Electronics, Inc.

Glossary of Terms

Control Unit: The “brain” of your system. Usually hidden under-

neath the dash area of the vehicle. It houses the microprocessor

which monitors your vehicle and controls all of the alarm's functions.

Failsafe

®

Starter Kill (Optional): An automatic switch controlled

by the security system which prevents the vehicle’s starter from

cranking whenever the system is armed. The vehicle is never pre-

vented from cranking when the system is disarmed, in Valet mode,

or should the starter kill switch itself fail. Your system is ready for

this feature, however installation may require additional labor.

Input: A physical connection to the system. An input can be pro-

vided by a sensor, pinswitch or to existing systems in the vehicle,

such as ignition or courtesy lights.

LED: A red light mounted somewhere in the vehicle. It is used to

indicate the status of your system. It is also used to report trig-

gers and faults in the system or sensors.

Shock Sensor: This system is packaged with a Doubleguard

®

Shock

Sensor. This sensor is mounted in the vehicle and is designed to

pick up impacts to the vehicle or glass.

Siren: Noise generating device usually installed in the engine

compartment of the vehicle. It is responsible for generating the

“chirps” you hear, as well as the six tones you hear while the alarm

is triggered.

19

©

2002 Directed Electronics, Inc.

Transmitter: Hand-held, remote control which operates the vari-

ous functions of your system.

Trigger or triggered response: This is what happens when the

alarm “goes off” or “trips.” The triggered response of your system

consists of 30 seconds of siren sounding and parking light flashing.

Valet

®

Switch: A small push button switch mounted somewhere

inside the vehicle. It is used to override the alarm when a trans-

mitter is lost or damaged, or to enter Valet mode.

Warn Away

®

Response: Lighter impacts to the vehicle will gener-

ate the Warn-Away response. It consists of several seconds of siren

chirps and parking light flashes.

Zone: A zone is a separate input that the alarm can recognize as

unique. Each input to the system is connected to a particular

zone. Often two or more inputs may share the same zone.

20

©

2002 Directed Electronics, Inc.

Security & Convenience

Expansions

Here we have listed only some of the many expansion options

available for use with your system. Please consult your dealer for

a complete list of all the options available to you.

Field Disturbance Sensor: An invisible dome of coverage is estab-

lished by the 508D “radar” sensor. Your system can react to any

intrusions into this field with the triggered sequence.

Backup Battery: The 520T keeps the system armed, triggers the

alarm and keeps the starter kill active if main battery power is dis-

connected.

Electronic Hood Lock: This prevents the vehicle’s hood from being

opened whenever the system is in alarm mode, keeping thieves

away from the system’s siren, the battery connections, or other

components under the hood.

Audio Sensor: Metal on glass, glass cracking, or breaking glass

produce distinctive acoustic signatures. The 506T audio sensor

uses a microphone to pick up sounds, and then analyze them with

proprietary acoustic software to determine if the glass has been

struck.

21

©

2002 Directed Electronics, Inc.

Power Trunk Release: The auxiliary output of the system can be

used to operate a factory power release for the vehicle’s trunk or

hatch. (An optional relay may be required.) If the factory release

is not power-activated, DEI's 522T trunk-release solenoid can

often be added.

Power Locks: This system offers lock outputs that can control

some manufacturers' power door lock systems. For other systems,

additional parts may be required.

Valet

®

Start System: For the ultimate in convenience, the Valet

Start System can start your vehicle, monitor engine functions, and

power your climate control system with a push of a button! Over-

rev protection, open-hood lockout, brake-pedal shutdown, and

automatic timer shutdown are all included. (Only for automatic-

transmission, fuel-injected gasoline vehicles).

Power Window Control: Automatic power window control is pro-

vided with the 529T or 530T systems. These can operate power

windows, roll them up automatically when the system is armed,

and roll them down when the auxiliary output button is pressed.

The 530T also provides one touch switch operation.

QUICK REFERENCE GUIDE:

To arm using your remote

■ Press for less than a second. When armed the siren chirps once
and the parking lights flash once.

Arming

■ Press of your transmitter for one second. When the system arms,
you will hear a short chirp, and see the parking lights flash once. If
the vehicle’s power door locks are controlled by the system, the doors
will lock.

Arming while driving

■ Press on your transmitter for two seconds while the vehicle is
running. The system will chirp once and then once more to indicate
that the ignition is on.

Disarming

■ Press . You will hear two chirps, and the parking lights will flash
twice. If the power locks are controlled by the system, the doors will
unlock.

Disarming without a transmitter

■ Turn on the ignition. Press the Valet switch within 15 seconds. The
system should now disarm; if it does not, you may have waited too
long. Turn the ignition off and on and try again.

Silent Mode

■ Press briefly before arming or disarming, and the confirmation
chirp(s) will be eliminated for that one operation only.

Panic Mode

■ Press for 1.5 seconds, and you will enter Panic Mode. The siren
will sound and the parking lights will flash for 30 seconds.

To enter or exit Valet®Mode with the Valet switch

■ Turn the ignition to "run" position, then turn to "off" position. Press
and release the Valet switch within 10 seconds. The status LED will
light steady if you have entered Valet Mode, and it will go out if you
exited Valet Mode.

Using Remote Valet as you enter or exit the vehicle

■ Open any door. Press . Press . Press again. The status LED
will light steady if you have entered Valet Mode, and it will go out if
you have exited Valet Mode.

Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.

✂

✂

Directed Electronics, Inc.

Vista, CA 92083

www.directed.com

© 2002 Directed Electronics, Inc. - All rights reserved

G725T 4-02

The company behind this system is Directed Electronics, Inc.

Since its inception, Directed has had one purpose, to provide consumers with the
finest vehicle security and car stereo products and accessories available. The recipient
of more than 20 patents in the field of advanced electronic technology, Directed is
ISO 9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America
and around the world.

Call [phone] for more information about our products and services.

Directed®is committed to delivering world class quality products

and services that excite and delight our customers.
