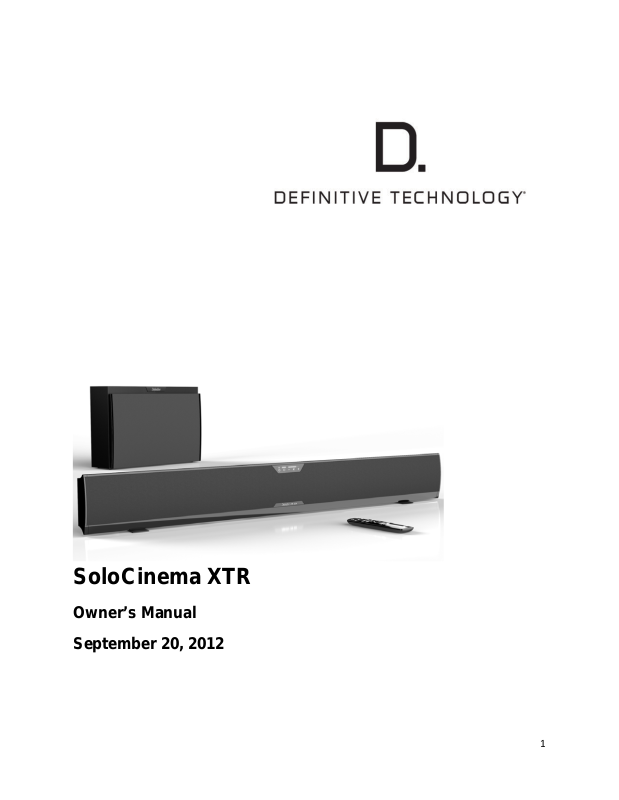

SoloCinema XTR

Owner’s Manual September 20, 2012

Safety Precautions

CAUTION! To reduce the risk of electric shock and fire, do not remove the cover or back plate

of this device. There are no user serviceable parts inside. Please refer all servicing to licensed service technicians. CAUTION! The international symbol of a lightning bolt inside a triangle is intended to alert the user to uninsulated “dangerous voltage” within the device’s enclosure. The international symbol of an exclamation point inside a triangle is intended to alert the user to the presence of important operating, maintenance and servicing information in the manual accompanying the device.

CAUTION! To prevent electrical shock, match wide blade of plug to wide slot, fully insert. CAUTION! To reduce the risk of electrical shock, do not expose this equipment to rain or

moisture.

1) Read Instructions— All safety and operating instructions should be read before operating the device.

2) Retain Instructions— The safety and operating instructions should be retained for future reference.

3) Heed Warnings— All warnings on the device and in the operating instructions should be adhered to.

4) Follow Instructions— All operating and safety instructions should be followed.

5) Water & Moisture— The device should never be used in, on or near waterfor risk of fatal

shock.

6) Carts & Stands— The device should only be used on carts or stands recommended by the manufacturer.

7) Wall & Ceiling Mounting— The device should be mounted on a wall or ceiling only as recommended by the manufacturer.

8) Ventilation— The device should always be located in such a way that it maintains proper ventilation. It should never be placed in a built-in installation or anywhere that may impede the flow of air around the product.

9) Heat— Never locate the device near heat sources such as radiators, floor registers, stoves or other heat-generating devices.

10) Power Supply— The device should only be connected to a power supply of the type described in the operating instructions or as marked on the device.

11) Power Cord Protection— Power cables should be routed so they are not likely to be stepped on or crushed by items placed on them or against them. Special attention should be paid to areas where the plug enters a socket or fused strip and where the cord exits the device.

12) Cleaning— The device should be cleaned in accordance with manufacturer’s instructions.

13) Periods Of Non-Use— The device should be unplugged when not being used for extended

periods.

14) Dangerous Entry— Care should be taken that no foreign objects or liquids fall or are spilled inside the device.

15) Damage Requiring Service— The device should be serviced by licensed technicians when: • The plug or power supply cord has been damaged. • Objects have fallen or liquid spilled inside of the device • The device has been exposed to moisture. • The device does not appear to be operating properly or exhibits a marked change in performance. • The device has been dropped or the cabinet becomes damaged.

16) Service— The device should always be serviced by licensed technicians. Only replacement parts specified by the manufacturer should be used. The use of unauthorized substitutions may result in fire, shock, or other hazards.

Contents

Chapter 1 4 Welcome Chapter 2 5 What’s in the Carton Chapter 3 6 SoloCinema XTR Product Overview Chapter 4 7 Feature Highlights Chapter 5 8 Wall or Table-top Mounting Instructions Chapter 6 11 Connecting Your System Chapter 7 14 Remote Control Chapter 8 16 Front Panel Control Functions and Display Chapter 9 17 On Screen Display (OSD) Set-up Menu Functions Chapter 10 21 Specifications Chapter 11 22 Using High Speed HDMI Cables Chapter 12 23 Tips and Troubleshooting: FAQ’s Chapter 13 26 IR Remote Control Function and Data List Chapter 14 27 Service Chapter 15 28 Warranty Chapter 16 29 Technology Acknowledgements

Welcome!

Thank you for choosing a Definitive Technology SoloCinema XTR integrated home theater

system. In order to ensure that you experience the finest performance possible, we encourage you to take a few moments to fully read this owner’s manual and familiarize yourself with the proper installation and setup procedures. Enjoy.

Unpacking your SoloCinema XTR

Please unpack the components carefully. Please inspect for shipping damage. Any visible damage most likely occurred in handling after it left our plant and should be reported at once to your retailer, distributor, or shipping company.

Owner’s manual

Please read and follow the instructions in this manual prior to finalizing your plans and before powering speakers

Accessories

Parts and accessories you will need to mount and operate your SoloCinema XTR are included in the box as illustrated. Connecting cables for your TV and source components, and wall anchors for wall mounting the SoloCinema, are not included

Accessory Box contains mounting hardware

Two adjustable-height support feet, two support L-brackets, screws, and three rubber feet (required for using the subwoofer on its back) are included.

Packing materials

Please save all cartons and packing materials in case you move, or need to ship your SoloCinema XTR.

What’s in the Carton

The items that are included with your SoloCinema XTR system are pictured here:

Product Overview

Style, convenience, performance… simplified

For music and movie lovers who want all the performance of a full size home theater audio system, but are unwilling to deal with the size and complexity of a component system, Definitive offers the SoloCinema XTR. This is a three-piece system, including a lowprofile, fully powered, 5.1-channel surround sound speaker bar; a convenient, stylish remote; and a slim, easy-to-place, wireless powered subwoofer. No other audio components- receiver, amplifier or L/C/R speakers – are required. Just plug in your sources and TV to enjoy spine-tingling cinematic and music performances in your home.

Enjoying a superb sounding, audiophile-grade surround experience has never been so convenient. Simply connect the Solo Cinema XTR to your TV and sources. You’ll enjoy enveloping, high impact surround sound, from a beautiful, unobtrusive sound system, without the bother of hanging multiple speakers, or running wires to a subwoofer.

SoloCinema XTR has a full array of inputs, including HDMI 1.4a, and supports all the latest uncompressed digital surround formats, including Dolby HD™. Regardless of which TV and source components you own, SoloCinema XTR delivers a spine-tingling surround performance that rivals component audio systems. At only 2-3/8″ deep, the SoloCinema XTR is the perfect complement to today’s ultra-slim TVs. It can be either wall or shelf mounted with the supplied brackets and hardware.

Wireless Subwoofer:

TrueHD® and DTS-

The ultra-slim, 8-inch, 250 watt powered SoloCinema XTR subwoofer is great sounding, beautifully styled, and most importantly - easily concealed! It communicates with the system wirelessly, with uncompromised signal quality, for the ultimate in convenience and décor friendliness. The slim subwoofer is easily hidden behind or underneath furniture (placed on its back). Its clean, modern styling makes it an object d’art when in sight. Just plug the subwoofer into the wall socket. No other system connection is needed.

A bit of placement experimentation may significantly help the performance, as placing a subwoofer near wall or room boundaries can increase the output considerably. Three rubber feet are supplied, and can be attached to the back of the product for placing it on its back, underneath a couch or other furniture.

Feature Highlights

• A three-piece system including a high gloss aluminum surround bar, a stylish remote control, and a slim, wireless, powered subwoofer

• The perfect audio-for-video solution: stunning surround-sound performance in a stylish, ultra-slim package that perfectly complements flat-panel TV sets

• Includes all the latest surround decoding, including lossless Dolby

TrueHD and DTSHD™ to enjoy all the audio performance benefits from Blu-ray discs

• Dolby

Volume ensures consistent volume from source to source, and keeps annoying

TV commercials’ volume in check

• Patented Definitive Spatial Array technology, teamed with SRS

surround optimizer

algorithms, engulf you in lifelike surround sound…without the bother of using 5 speakers

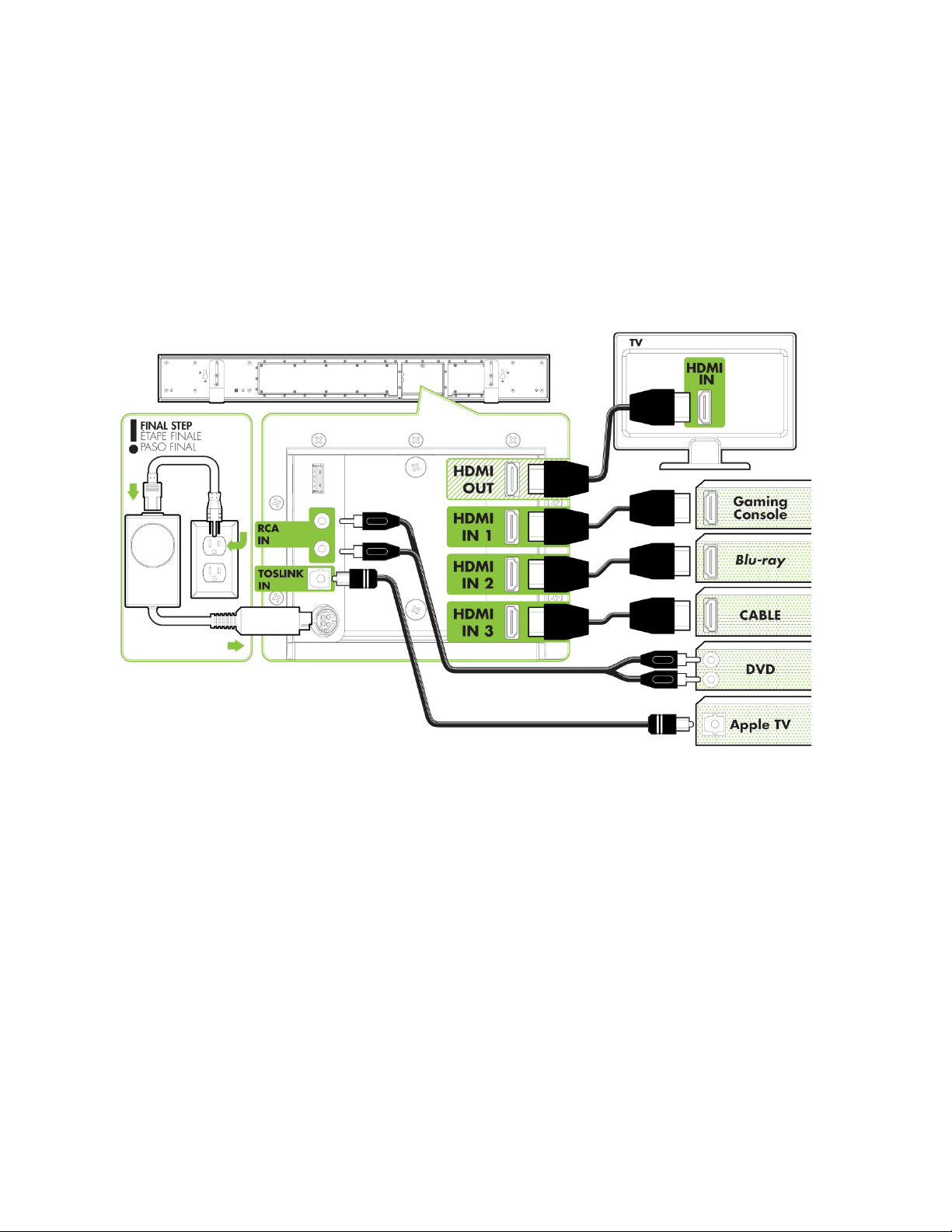

• Full Audio/Video source switching, as follows:

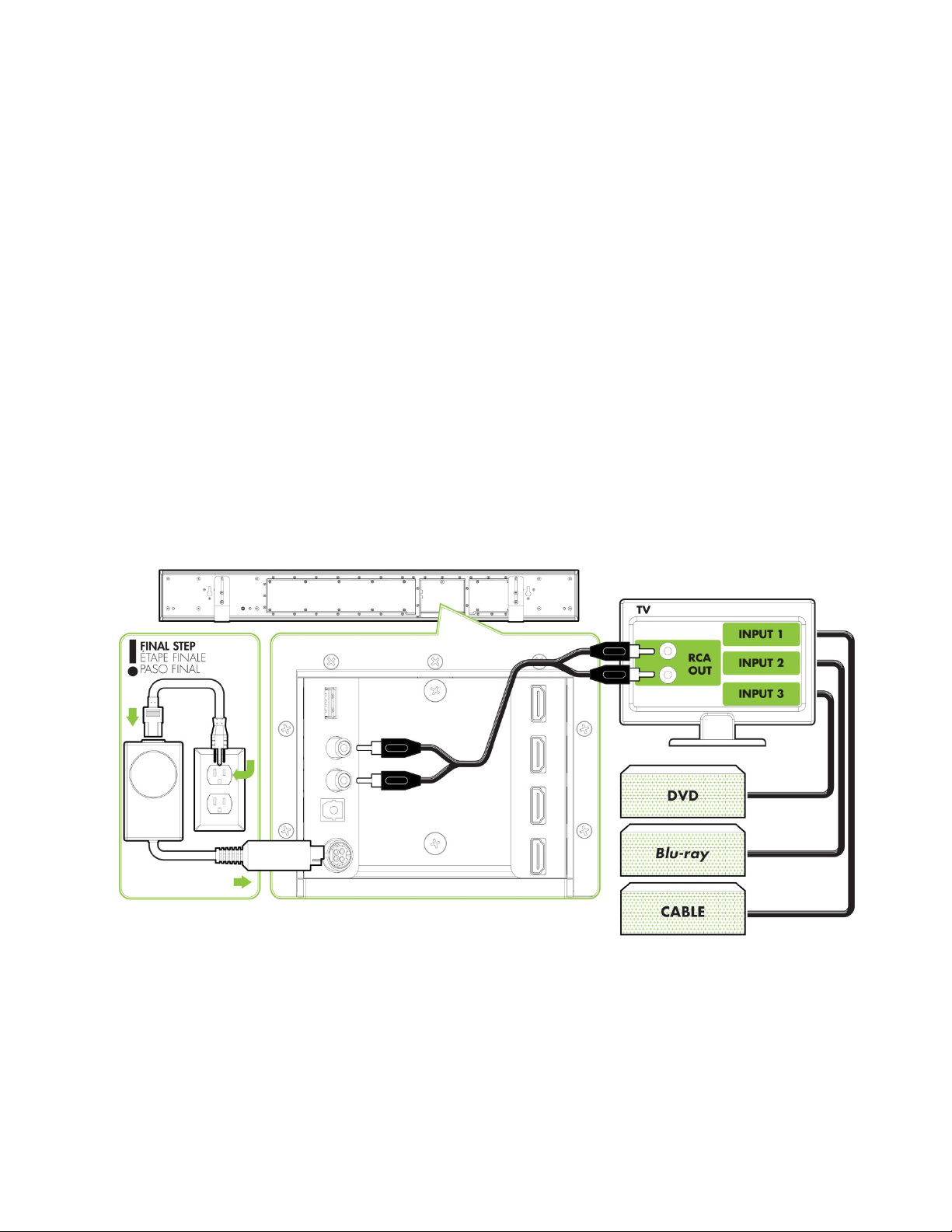

o Inputs: three HDMI 1.4a inputs, one optical digital input, one analog audio input; o Outputs: one HDMI 1.4a output for connecting to your TV set (supports 3D video)

• A wireless, ultra-slim, 8-inch, 250-watt powered subwoofer is easily concealed. It can be tucked behind a couch or easy chair, or even placed on its back (with the woofer firing up) underneath a couch or bed

• Built-in IR remote “flashers” allows the unit to be placed in front of a TV (for example, when used on a table top) without disrupting the TVs remote functions

• The ergonomically engineered, supplied remote control allows you to easily switch sources. It also enables you to make on-the fly volum e, bass, and center-channel volume adjustments from your easy chair.

• Front-panel user interface controls located on the upper front panel of the soundbar make source and volume adjustments easy when the remote is misplaced

Mounting Instructions Using the On-Wall bracket

The SoloCinema XTR system was designed to wall-mount near your thin wall-mounted television. A bracket has been provided to secure and install your sound bar on the wall. Note: DO NOT mount the sound bar directly to the wall. You must use the supplied bracket to ensure proper operation and reliability.

Use the Supplied Template: A cardboard mounting template is provided. Temporarily fix the template in the intended location with pins or tape.

Tips for Leveling Template: Use a bubble level to make sure the template is level. Mark holes with pencil; remove the template.

Drill Screw Holes in Wall: Pre-drill the pilot-hole locations for mounting screws (not included). Use screws rated to hold securely in the wall material and have screw heads at least 0.33 inch (8.5mm) in diameter.

*NOTE* Measure Twice Make sure the sound bar clears the ceiling, adjacent walls, corners, beams, lighting fixtures and door/ window frames. Leave at least 1-2" (25-50 mm) above the sound bar location, to allow the soundbar to slide onto the screws. Make sure the center of the template is centered with the TV screen’s center point.

Secure Bracket to Wall: It is best if at least one screw hits a wall stud. If there is no stud behind the pilot-hole location, install wall anchors (not included) to secure the bracket screws. Drive screws in by hand.

Hang Sound bar on Posts: Line up the bar so that the posts enter the center part of the + shaped channels. Slide the bar down so the post heads hold the bar firmly in place.

Using the L-Bracket shelf supports

When to Use: Use these adjustable supports when placing the sound bar on a shelf below the TV. They allow you to angle the speaker up towards ear level.

Attach rubber pads: Remove the two supplied rubber pads from the accessories bag. Peel the paper from the back of the pads, exposing the adhesive. Attach the rubber pads to the bottom edge of the sound bar, approximately four inches (100 mm) in front of the left and right sides.
