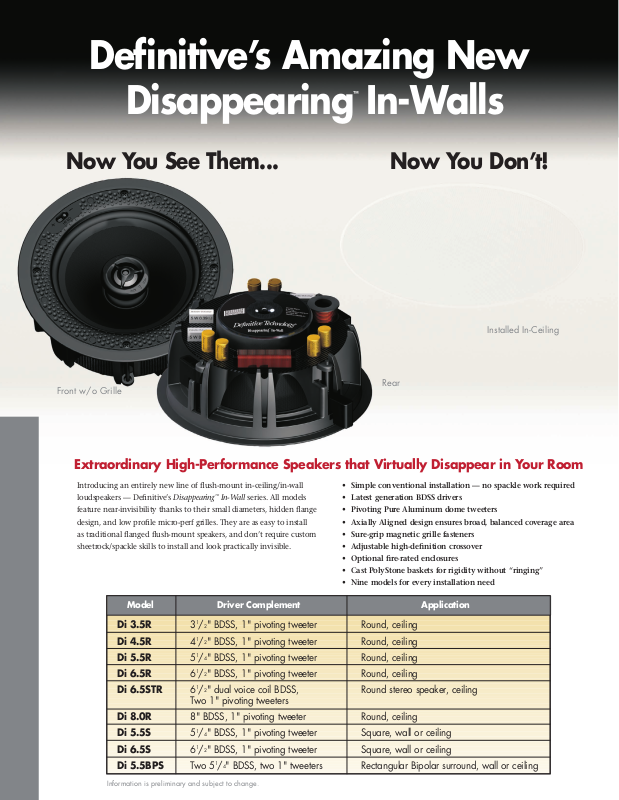

Definitive Technology Di 3.5R, Di 4.5R, Di 5.5R, Di 6.5R, Di 6.5STR Information Sheet

Definitive’s Amazing New

™

Disappearing

In-Walls

Now You See Them... Now You Don’t!

Installed In-Ceiling

Front w/o Grille

Rear

Extraordinary High-Performance Speakers that Virtually Disappear in Your Room

Introducing an entirely new line of flush-mount in-ceiling/in-wall

loudspeakers — Definitive’s Disappearing™In-W all series. All models

feature near-invisibility thanks to their small diameters, hidden flange

design, and low profile micro-perf grilles. They are as easy to install

as traditional flanged flush-mount speakers, and don’t require custom

sheetrock/spackle skills to install and look practically invisible.

Model Driver Complement Application

Di 3.5R 31/2" BDSS, 1" pivoting tweeter Round, ceiling
Di 4.5R 4
Di 5.5R 5
Di 6.5R 61/2" BDSS, 1" pivoting tweeter Round, ceiling
Di 6.5STR 6

Di 8.0R 8" BDSS, 1" pivoting tweeter Round, ceiling
Di 5.5S 5
Di 6.5S 61/2" BDSS, 1" pivoting tweeter Square, wall or ceiling
Di 5.5BPS Two 5

Information is preliminary and subject to change.

1

/2" BDSS, 1" pivoting tweeter Round, ceiling

1

/4" BDSS, 1" pivoting tweeter Round, ceiling

1

/2" dual voice coil BDSS, Round stereo speaker, ceiling

Two 1" pivoting tweeters

1

/4" BDSS, 1" pivoting tweeter Square, wall or ceiling

1

/4" BDSS, two 1" tweeters Rectangular Bipolar surround, wall or ceiling

• Simple conventional installation — no spackle work required

• Latest generation BDSS drivers

• Pivoting Pure Aluminum dome tweeters

• Axially Aligned design ensures broad, balanced coverage area

• Sure-grip magnetic grille fasteners

• Adjustable high-definition crossover

• Optional fire-rated enclosures

• Cast PolyStone baskets for rigidity without “ringing”

• Nine models for every installation need

DISAPPEARING

™

IN-WALLS

High precision, tight
tolerance audiophile-grade
crossover components

Cast PolyStone basket

Disappearing In-Walls Advanced Technology

The Disappearing In-Wall models feature Definitive’s most advanced techn-

ologies such as BDSS drivers and pivoting Pure Aluminum dome tweeters for

spectacular audio performance far beyond traditional flush-mount speakers.

Definitive’s exclusive Balanced Dual Surround System (BDSS) driver technology

permits these new flush mounts to deliver more bass output and dynamic

range than larger drivers. For example, the 41/2" driver-based model has the

bass and dynamics of a 51/4" traditional speaker, while the 51/4" performs like

a traditional 61/2", and so on.

New and improved rotating
clamp installation system

Axially Aligned pivoting
tweeter and BDSS driver for
the broadest dispersion and
best off-axis response

With a pivoting 1" Pure Aluminum dome tweeter featuring a specially shaped

housing that avoids the diffraction distortions of traditional post-mounted

tweeters, and a sophisticated adjustable crossover network, the Disappearing

In-Wall models deliver the kind of lifelike sonic performance and broad even

dispersion that have made Definitive Technology the most highly reviewed

speaker brand in the USA.

Fire-rated pre-construction enclosures will be available as options, allowing

integrators, architects and designers to specify Disappearing In-Wall Speakers

in multi-family and commercial applications.

Energy-absorbing baffle
material reduces diffraction
for superior sound quality

11433 Cronridge Drive, Owings Mills, Maryland 21117, U.S.A.

[phone] • www.definitivetech.com
