Owner’s Manual
CS9080, CS9060, CS9040
CS9080 CS9060 CS9040
2
DEFINITIVE TECHNOLOGY
WHAT OBSESSION SOUNDS LIKE
Thank you for choosing the Definitive Technology BP9000 center channel loudspeaker. The BP9000 range offers some of the most cutting-edge audio technologies designed for use in audio/video systems of the highest quality. Because of its wide range, high-power handling and articulate clarity, the BP9000 center channel is ideal for use in any high performance home theater system.
Our engineers have spent many years developing this product. In order to ensure that you experience the finest performance possible, we encourage you to take a moment to fully read this owner’s manual and familiarize yourself with the proper installation and set-up procedures for your center channel loudspeaker.
SAFETY PRECAUTIONS
CAUTION! To reduce the risk of electric shock and fire, do not remove the cover or back plate of this device. There are no user serviceable parts inside. Please refer all servicing to licensed service technicians. Avis: Risque de choc electricque, ne pas ouvrir.
CAUTION! The international symbol of a lightning bolt inside of a triangle is intended to alert the user to uninsulated “dangerous voltage” within the device’s enclosure. The international symbol of an exclamation point inside of a triangle is intended to alert the user to the presence of important operating, maintenance and servicing information in the manual accompanying the device.
CAUTION! To prevent electrical shock, match wide blade of plug to wide slot, fully insert. Attention: Pour eviter les chocs electriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu'au fond.
CAUTION! To reduce the risk of electrical shock, do not expose this equipment to rain or moisture.
1. READ INSTRUCTIONS—All safety and operating instructions should be read before operating the device.
2. RETAIN INSTRUCTIONS—The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS—All warnings on the device and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS—All operating and safety instructions should be followed.
5. WATER & MOISTURE—The device should never be used in, on or near water for risk of fatal shock.
6. VENTILATION—The device should always be located in such a way that it maintains proper ventilation. It should never be placed in a built-in installation or anywhere that may impede the flow of air through its heat sink.
7. HEAT—Never locate the device near heat sources such as radiators, floor registers, stoves or other heat-generating devices.
8. POWER SUPPLY—The device should only be connected to a power supply of the type described in the operating instructions or as marked on the device.
4
9. POWER CORD PROTECTION—Power cables should be routed so they are not likely to be stepped on or crushed by items placed on them or against them. Special attention should be paid to areas where the plug enters a socket or fused strip and where the cord exits the device.
10. CLEANING—The device should be cleaned in accordance with manufacturer’s instructions. We recommend using a lint roller or household duster for the grille cloth.
11. PERIODS OF NON-USE—The device should be unplugged when not being used for extended periods of time.
12. DANGEROUS ENTRY—Care should be taken that no foreign objects or liquids fall or are spilled inside the device.
13. DAMAGE REQUIRING SERVICE—The device should be serviced by licensed technicians when:
• The plug or power supply cord has been damaged.
• Objects have fallen on or liquid has spilled inside the device.
• The device has been exposed to moisture.
• The device does not appear to be operating properly or exhibits a marked change in performance.
• The device has been dropped or the cabinet becomes damaged.
14. SERVICE—The device should always be serviced by licensed technicians. Only replacement parts specified by the manufacturer should be used. The use of unauthorized substitutions may result in
fire, shock, or other hazards.
POWER SUPPLY
1. The fuse and power disconnect device are located on the back
of the speaker.
2. The disconnect device is the power cord, detachable at either
the speaker or the wall.
3. The power cord must be disconnected from the speaker
before servicing.
This symbol on our electrical products or their packaging indicates that it is forbidden in Europe to discard the product in question as domestic waste. In order to ensure that you dispose of the products correctly, please dispose of the products according to local laws and regulations on the disposal of electrical and electronic equipment. In doing so you are contributing to the retention of natural resources and to the promotion of environmental protection by the treatment and disposal of electronic waste.
We're delighted that you're part of our Definitive Technology family.
Please take a few minutes to register your product* so we have a complete record of your purchase. Doing so helps us serve you the best we can now and in the future. It also lets us contact you for any service or warranty alerts (if required).
Register here: http://www.definitivetechnology.com/registration No internet? Call Customer Service
M-F 9:30 a.m. - 6 p.m. US ET at
(800) 228-7148 (US & Canada), 01 (410) 363-7148 (all other countries)
Note: the data we gather during online registration is never sold or distributed to third parties.
*Serial number can be found at the back of the manual
5
Unpacking Your CS9000 Speaker
Please unpack your BP9000 center channel speaker carefully. We recommend saving all cartons and packing materials in case you move or need to ship your system. It is important to save this booklet, as it contains the serial number for your product. You can also find the serial number on the back of your BP9000 center channel speaker. Each loudspeaker leaves our factory in perfect condition. Any visible or concealed damage most likely occurred in handling after it left our factory. If you discover any shipping damage, please report this to your Definitive Technology dealer or the company that delivered your loudspeaker.
Accessories Included:
1. Power cord:
US - Qty (1) for CS9080 and CS9060 models
EU/UK - Qty (2) for CS9080 and CS9060 models
Positioning Your Speakers
Your BP9000 center channel speaker is designed to deliver immense clarity and focus to the vocal range and accurately reproduce even the most demanding audio content. To optimize its performance, please follow these simple guidelines. Although the following
FIGURE 1 – Positioning your center channel speakers
recommendations will usually yield the best results, all rooms and listening setups are different, so do not be afraid to experiment with the speaker placement. Whatever sounds best to you is likely correct.
6
Connecting Your Loudspeakers
STRIP 1/4" (6MM) WIRE
(SPEAKER)
1. UNSCREW BOTTOM SET OF BINDING POST AND CONNECT WIRE
2. TIGHTEN UNTIL SECURE

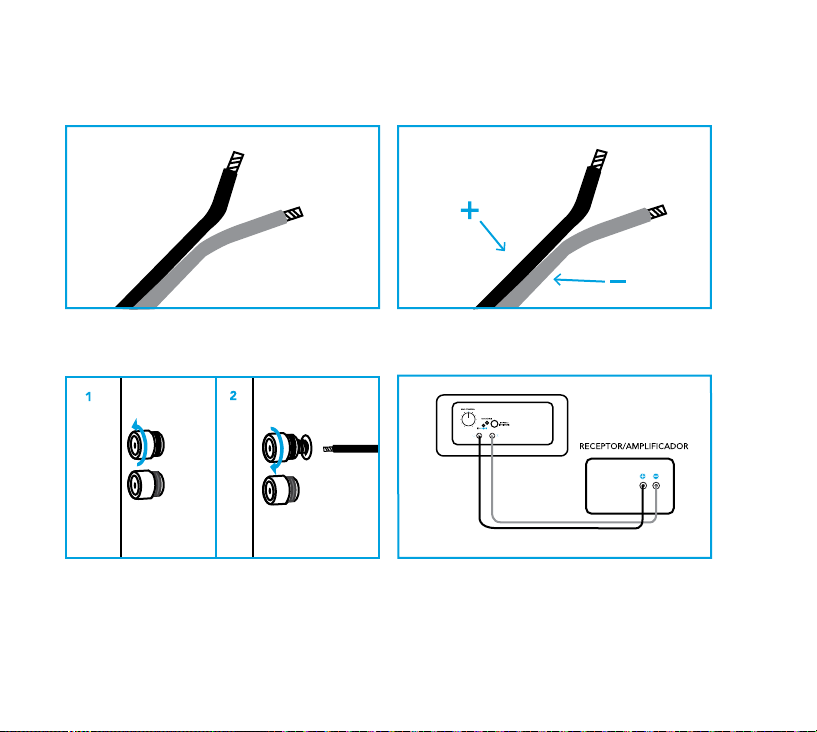

FIGURE 2 – Wiring and Polarity
1. IDENTIFY MARKINGS ON WIRE AND ASSIGN +/–
2. APPLY BANANA PLUGS OR SPADES AT THIS POINT IF APPLICABLE
ENSURE THAT THE SPEAKER IS ALWAYS CONNECTED TO THE RECEIVER OR AMPLIFIER + TO + AND – TO –
7
Connection Options: Speaker-Level Only or Speaker-Level + LFE Connector
Use the manual speaker setup functions in your receiver or processor to set speaker configuration, speaker distance and channel balance. Consult your receiver/processor manual to learn how to access and use the setup menus. Use the settings called for in Figure 3.
Note: We recommend that you do not use your receiver’s auto setup functions as they can be ineffective in setting up and adjusting speakers with integrated powered subwoofers.
Connection Option 1: Speaker-Level Only (recommended)
Option 1 offers an incredibly precise, full-range sound. The internal cross­over network distributes all frequencies to their intended drivers, and the integrated subwoofer works harmoniously with the mid-range array.
Directions:
• Connect speaker wire from receiver/ amplifier to speaker level input on the back of the speaker
• Adjust receiver/processor settings to: Speaker (Large); Subwoofer (No)

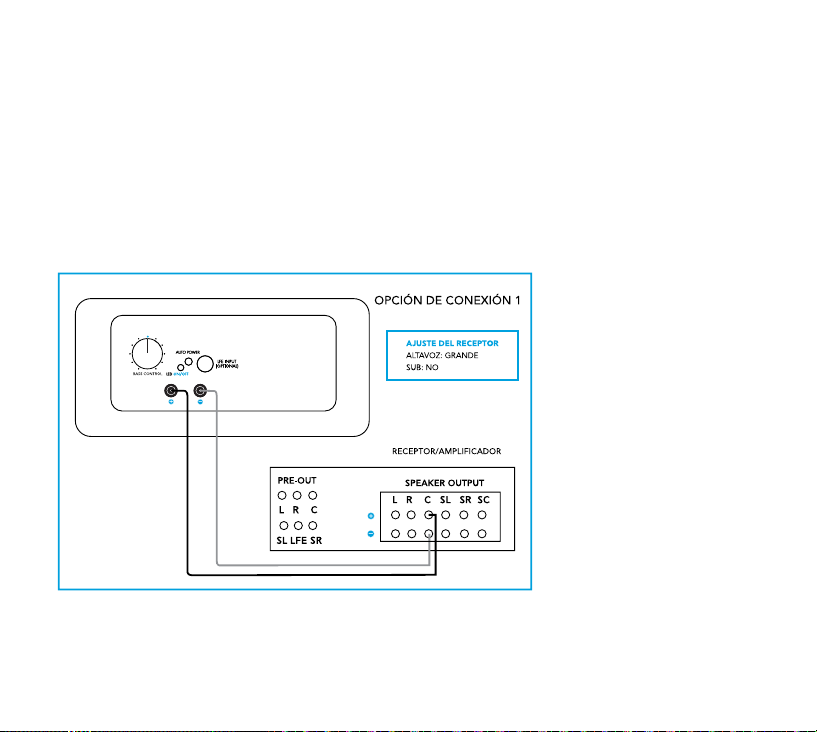

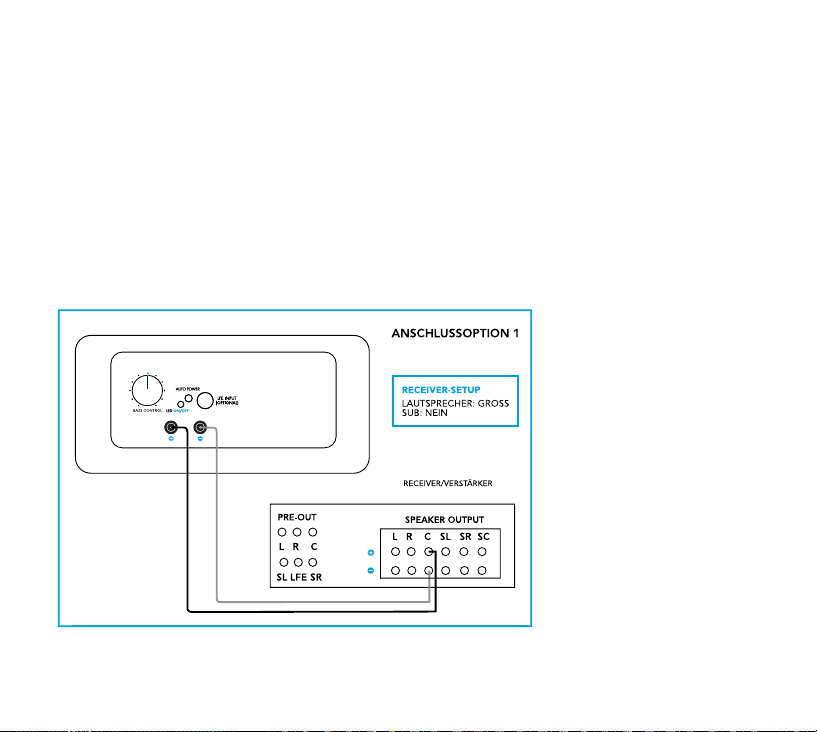

FIGURE 3 – Speaker-Level Only Connection Diagram
8
Connection Option 2: Speaker-Level + LFE
Directions:
• Connect speaker wire from receiver/amplifier to speaker level input on the back of the speaker
• Connect RCA Cable from Center Channel Pre-Out on back of the receiver/ processor to LFE Input on the back of the center channel
• Adjust receiver or processor settings to: Speaker (Small); Subwoofer (Yes)

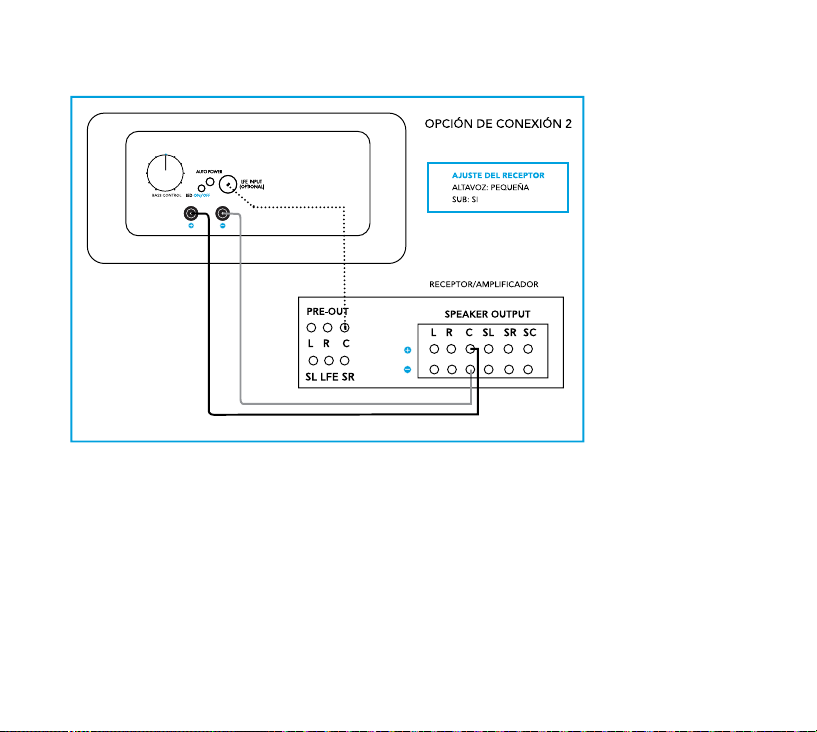

FIGURE 4 – Speaker-Level + LFE Connector Connection Diagram
For those who demand greater customization, Option 2 gives you the ability to control the amount of low frequencies (those below the crossover point set in your receiver/processor) sent to the integrated subwoofer. Should you prefer Option 2, we highly recommend setting the crossover point in your receiver/processor to 80Hz or below to avoid disturbing the delicate blending between the subwoofer and midrange. In addition, careful balance between the subwoofer output level of your receiver and the bass control on the back of your speaker should be considered. We recommend starting with the bass control at 12 o’clock (as shown in Figure 4).
9
Powering the Active Subwoofer (CS9080 and CS9060 only)
For CS9080 and CS9060 owners, your BP9000 center channel speaker contains a integrated powered subwoofer designed to extend the frequency response and dynamic range of the center channel.
Your center channel should be plugged into an electrical socket to power the integrated subwoofer. To highlight the integrated powered subwoofers, you will see an LED"D." logo at the bottom front panel of each BP9000 center channel speaker. The CS9040 center channel uses a passive bass radiator and will receive All necessary power from your amplifier. This LED logo will default to “on” but can be completely disabled by simply pressing the LED ON/ OFF button on the back of the loudspeaker. When enabled, the LED logo will engage only once it’s receiving an active signal from your receiver/processor. It will automatically turn off/standby after 20 minutes of no active signal.
Note: Do not connect the Low Level input to your receiver’s LFE output. The center channel speakers are not designed to be a dedicated subwoofer.
Intelligent Bass Control
Definitive Technology has long believed that the best loudspeaker is one that reproduces a full-range audio signal as precisely as possible. Our sonic signature allows you to not just hear what is on the screen, but to feel it as well. Intelligent Bass Control ™ (found on the CS9060 and CS9080 models only) gives you the ability to modulate deep bass up or down in level while simultaneously maintaining optimal mid-range clarity regardless of where the bass control is set. Simply rotate the dial on the back of the loudspeaker to your preferred bass setting and the speaker will do the rest. That’s it. We recommend starting at the mid-point and adjust to your preference from there.
For advanced instructions on Intelligent Bass Control ™ including integrating with room correction software (ex. Audyssey), please visit our website or give us a call.
10
CS9040 CS9060 CS9080
SPECIFICATIONS
DIMENSIONS
PRODUCT WEIGHT
DRIVER COMPLEMENT
SUBWOOFER SYSTEMS DRIVER COMPLEMENT
FREQUENCY RESPONSE 50Hz-40kHz 50Hz-40kHz 24Hz-40kHz
SENSITIVITY 89dBSPL 91dBSPL 91dBSPL
IMPEDANCE 8 ohms 8 ohms 8 ohms
RECOMMENDED INPUT POWER
NOMINAL POWER (1% THD, 5 SEC.) none 150W 300W
5.95" H x 20.75" W x
12" D (15.1 cm H x 52.7
cm W x 30.4 cm D)
20 lbs. 26 lbs.
(2) 4.5" (11.4 cm)
drivers, (1) 1" (2.5 cm)
aluminum dome tweeter
(1) 8" (20.3 cm)
bass radiator
50-200W 50-300W 50-300W
5.95" H x 20.75" W
x 12" D (15.1 cm H x
52.7cm W x 30.4 cm D)
(2) 4.5" (11.4 cm)
drivers, (1) 1" (2.5 cm)
aluminum dome
tweeter
(1) 8" (20.3 cm) woofer
7" H x 23" W x 14.25" D
(17.8 cm H x 58.4 cm W
x 36.2 cm D)
36 lbs.
(2) 5.25" (13.3 cm) drivers,
(1) 1" (2.5 cm) aluminum
dome tweeter
(1) 8" (20.3 cm) woofer; (1)
10" (25.4 cm) bass radiator
Technical Assistance
It is our pleasure to offer assistance if you have any questions regarding your BP9000 or its setup. Please contact your nearest Definitive Technology dealer or call us directly at (800) 228-7148 (US & Canada), 01 (410) 363-7148 (all other countries) or e-mail info@definitivetech.com. Technical support is offered in English only.
11
Troubleshooting
If you experience any difficulties with your BP9000 center channel speakers, try the suggestions below. If you still have problems, contact your Definitive Technology Authorized Dealer for assistance.
1. Audible distortion when the speakers are playing at loud levels is caused by turning up your receiver or amplifier louder than the receiver or the speakers are capable of playing. Most receivers and amplifiers put out their full-rated power well before the volume control is turned all the way up, so the position of the volume control is a poor indicator of its power limit. If your speakers distort when you play them loud, turn the volume down!
2. If you experience a lack of bass, it is likely that one speaker is out of phase (polarity) with the other and needs to be rewired with closer attention to connecting positive to positive and negative to negative on both channels. Most speaker wire has some indicator (such as color-coding, ribbing or writing) on one of the two conductors to help you maintain consistency. It is essential to connect both speakers to the amplifier in the same way (in phase). You may also experience lack of bass if the bass volume knob is turned down or not on.
3. Make sure all your system interconnects and power cords are solidly in place.
4. Should you hear hum or noise coming from your speakers, try plugging the speakers’ power cords into a different AC circuit than your amplifier.
5. The system has sophisticated internal protection circuitry. If for some reason the protection circuitry trips, turn off your system and wait five minutes before trying the system again. If the speakers’ built-in amplifier should overheat, the system will turn off until the amplifier cools down and resets.
6. Check to be sure that your power cord has not been damaged.
7. Check that no foreign objects or liquid has entered the speaker cabinet.
8. If you cannot get the subwoofer driver to turn on or if no sound comes out and you are sure the system is set up
properly, please bring the loudspeaker to your Definitive Technology Authorized Dealer for assistance; call first.
12
Definitive Technology Offices
1 Viper Way, Vista, CA 92081
Phone: (800) 228-7148 (US & Canada), 01 (410) 363-7148 (all other countries)
Service
Service and warranty work on your Definitive loudspeakers will normally be performed by your local Definitive Technology dealer. If, however, you wish to return the speaker to us, please contact us first, describing the problem and requesting authorization as well as the location of the nearest factory service center. Please note that the address given in this booklet is the address of our offices only. Under no circumstances should loudspeakers be shipped to our offices or returned without contacting us first and obtaining return authorization.
Limited Warranty:
5-Years for Drivers and Cabinets, 3-Years for Electronic Components
DEI Sales Co., dba Definitive Technology (herein “Definitive”) warrants to the original retail purchaser only that this Definitive loudspeaker product (the “Product”) will be free from defects in material and workmanship for a period of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date of the original purchase from a Definitive Authorized Dealer. If the Product is defective in material or workmanship, Definitive or its Authorized Dealer will, at its option, repair or replace the warranted product at no additional charge, except as set forth below. All replaced parts and Product(s) become the property of Definitive. Product that is repaired or replaced under this warranty will be returned to you, within a reasonable time, freight collect. This warranty is non-transferrable and is automatically void if the original purchaser sells or otherwise transfers the Product to any other party.
This Warranty does not include service or parts to repair damage caused by accident, misuse, abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage in excess of the rated maximum of the unit, cosmetic appearance of cabinetry not directly attributable to defects in material or workmanship. This warranty does not cover the elimination of externally generated static or noise, or the correction of antenna problems or weak reception. This warranty does not cover labor costs or damage to the Product caused by installation or removal of the Product. Definitive Technology makes no warranty with respect to its products purchased from dealers or outlets other than Definitive Technology Authorized Dealer.
13
THE WARRANTY IS AUTOMATICALLY VOID IF:
1) The product has been damaged, altered in any way, mishandled during transportation, or tampered with.
2) The product is damaged due to accident, fire, flood, unreasonable use, misuse, abuse, customer applied cleaners, failure to observe manufacturers warnings, neglect or related events.
3) Repair or modification of the Product has not been made or authorized by Definitive Technology.
4) The product has been improperly installed or used.
Product must be returned (insured and prepaid), together with the original dated proof of purchase to the Authorized Dealer from whom the Product was purchased, or to the nearest Definitive factory service center. Product must be shipped in the original shipping container or its equivalent. Definitive is not responsible or liable for loss or damage to Product in transit.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY THAT APPLIES TO YOUR PRODUCT. DEFINITIVE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH YOUR PRODUCT OR THIS WARRANTY. ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS, IMPLIED,WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY EXCLUDED AND DISCLAIMED TO THE MAXIMUM EXTENT ALLOWED BY LAW. ALL IMPLIED WARRANTIES ON PRODUCT ARE LIMITED TO THE DURATION OF THIS EXPRESSED WARRANTY. DEFINITIVE HAS NO LIABILITY FOR ACTS OF THIRD PARTIES. DEFINITIVE’S LIABILITY, WHETHER BASED ON CONTRACT, TORT, STRICT LIABILITY, OR ANY OTHER THEORY, SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT FOR WHICH A CLAIM HAS BEEN MADE. UNDER NO CIRCUMSTANCE WILL DEFINITIVE BEAR ANY LIABILITY FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN THE CONSUMER AND DEFINITIVE SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA. DEFINITIVE RESERVES THE RIGHT TO MODIFY THIS WARRANTY STATEMENT AT ANY TIME.
Some states do not allow the exclusion or limitation of consequential or incidental damages, or implied warranties, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
©2016 DEI Sales Co. All rights reserved.
14
AVERTISSEMENTS DE SÉCURITÉ
CAUTION! AVERTISSEMENT! Pour réduire le risque de choc électrique et de feu, n'enlevez pas le courvercle ou la plaque arrière de cet appareil. Il n'y a pas de pièce utilisable par l'utilisateur à l'intéreur. Veuillez consulter un technicien accrédité pour toute réparation. Avis: Risque de choc électricque, ne pas ouvrir.
AVERTISSEMENT! Le symbole international d'un éclair à l'intérieur d'un triangle est conçu pour alerter l'utilisateur d'une tension dangereuse non isolée à l'intérieur du caisson de l'appareil. Le symbole international d'un point d' exclamation à l'intérieur d'un triangle est conçu pour aviser l'utilisateur de la présence d'une information importante d'opération, de maintenance et de réparation dans le manuel qui accompagne l'appareil.
AVERTISSEMENT! Pour éviter les risques de chocs électriques, introduisez la lame la plus large de la fiche dans la fente la plus large de la prise et poussez jusqu'au fond.
AVERTISSEMENT! Pour éviter les risques de chocs électriques, n'exposez pas cet équipement à la pluie ou à l'humidité.
1. LISEZ LES INSTRUCTIONS — Toutes les instructions de sécurité et d'opération doivent être lues avant d'utiliser l'appareil.
2. CONSERVEZ LES INSTRUCTIONS — Les instructions de sécurité et d'opération doivent être conservées pour référence ultérieure.
3. TENEZ COMPTE DES AVERTISSEMENTS — Tous les avertissements sur cet appareil et dans les instructions d'opération doivent être suivis.
4. SUIVEZ LES INSTRUCTIONS — Toutes les instructions d'opération et de sécurité doivent être suivies.
5. EAU ET HUMIDITÉ —TL'appareil ne doit jamais être utilisé dans ou près de l'eau car il y a risque de choc fatal.
6. AÉRATION — L'appareil doit toujours être placé de manière à être bien aéré. Il ne doit jamais être placé dans une installation intégrée ou dans tout endroit qui peut entraver le flux d'air à travers son puits thermique.
7. CHALEUR — Ne placez jamais l'appareil près de toute source de chaleur telle des appareils de chauffage, des grilles de soufflage, des poêles ou tout autre appareil produisant de la chaleur.
8. ALIMENTATION — L'appareil doit être connecté uniquement à une alimentation du type décrit dans les instructions d'opération ou tel qu'indiqué sur l'appareil.
9. PROTECTION DU CORDON D'ALIMENTATION — Les cordons d'alimentation doivent être acheminés de manière à ne pas être piétinés ou écrasés par des objets placés sur eux ou contre eux. Une attention spéciale doit être apportée aux endroits où la fiche entre dans une prise ou une bande dénudée et où le cordon sort de l'appareil.
10.NETTOYAGE — L'appareil doit être nettoyé selon les instructions du fabricant. Nous recommandons l’utilisation d’un rouleau adhésif ou d’un plumeau pour nettoyer le tissu protecteur.
11.PÉRIODES DE NON UTILISATION — L’appareil devrait être débranché lorsqu’il n’est pas utilisé pour une longue durée.
12.ENTRÉE DANGEREUSE — Portez attention à ce qu'aucun objet ou liquide ne tombe ou soit renversé à l'intérieur de l'appareil.
13.DOMMAGE NÉCESSITANT UNE RÉPARATION —L'appareil doit être réparé par un technicien agréé lorsque :
• La fiche ou le cordon d'alimentation a été endommagé.
• Des objets sont tombés ou un liquide a été renversé à l'intérieur de l'appareil.
• L'appareil a été exposé à l'humidité.
• L'appareil ne semble pas fonctionner correctement ou a un changement de performance.
• L'appareil a été échappé ou le caisson est endommagé.
14.RÉPARATION — L'appareil doit toujours être réparé par un techicien agréé. Uniquement les pièces spécifiées par le fabricant doivent être utilisées. L'utilisation de pièces de substitutions non
ALIMENTATION
1. Le fusible et le dispositif de déconnexion de l'appareil sont situés à
l'arrière du hautparleur.
2. Le dispositif de déconnexion de l'appareil est le cordon
d'alimentation, détachable du haut parleur ou du mur.
3. Le cordon d'alimentation doit être déconnecté du haut-parleur avant
la réparation.
Ce symbole sur votre produit ou sur son emballage indique qu'il est interdit en Europe de le jeter dans des poubellesdomestiques. Afin de vous assurer de jeter correctement le produit, veuillez le jeter selon les lois et règlements locaux régissant les appareils et équipements électriques. Ainsi, vous contribuerez à la conservation des ressources naturelles et à la promotion de la protection environnementale par le
traitement et la l'élimination des déchets.
FR
15
Nous sommes heureux que vous fassiez partie de notre famille Definitive Technology.
Veuillez prendre quelques minutes pour enregistrer votreproduit* afin que nous ayons un dossier compet de votre achat. Ainsi, nous pourrons mieux vous servir dans le futur. Cela nous permet également de vous contacter pour toute question de réparation ou de garantie (si nécesaire)
Enregistrez le produit à: http://www.definitivetechnology.com/registration
Vous n'avez pas Internet? Téphonez au service à la clientèle
Lundi au vendredi 9:h30 à 18 h É.-U. HE au 800-228-7148 (É.-U. et Canada), 01-410-363-7148 (et tous les autres pays)
Note: tles données que nous recueillons lors de l'enregistrement en ligne ne sont jamais vendues ou partagées à des tierces parties.
*Le numéro de série se retrouve à l'endos du manuel
Déballer votre haut-pareur CS9000
Veuillez déballer soigneusement votre enceinte de canal centrale BP9000. Nous vous recommandons deconserver toutes les boîtes et le matériel d'emballage, en cas de déménagement ou d'expédition de votre système. Il est important de conserver ce livret car il contient le numéro de série du produit. Vous pouvez aussi trouver le numéro de série à l'arrière de votre enceinte de canal centrale BP9000. Chaque haut-parleur quitte notre usine dans une condition parfaite. Tout dommage visible ou caché a probablement été causé lors de la manipulation ,après que le produit ait quitté notre usine. Si vous découvrez tout dommange causé par l'expédition, veuillez aviser votre vendeur Definitive Technology ou l'entreprise qui a livré votre haut-parleur.
16
Accessories Included:
1. Cordon d'alimentation:
• É.-U. - Qté (1) pour les modèles CS9080 et CS9060
• É.-U. /R.-U. - Qté (2) pour les modèles CS9080 et CS9060
Positionner votre haut-parleur
Votre enceinte de canal centrale BP9000 est conçue pour livrer une immense clarté et se concentrer sur la gamme vocale et pour reproduire précisément le contenu le plus exigent. Pour optimiser ses performances, veuillez suivre ces consignes simples. Bien que les recommandations suivantes devraient vous apporter les meilleurs résultats, toutes les pièces et les installations d'écoute sont différentes, alors n'hésitez pas à expérimenter avec l'emplacement de votre haut-parleur. Ce qui sonne le mieux pour vous est ce qui convient.
FIGURE 1 | Positionnement du haut-parleur BP9000 pour canal central
NOTE: VEUILLEZ VOUS ASSURER QUE TOUTE TABLETTE UTILISÉE POUR LE CANAL
CENTRAL EST COTÉE POUR SOUTENIR CORRECTEMENT UN MINIMUM DE 36LBS
• UN HAUT-PARLEUR POUR CANAL CENTRAL DOIT ÊTRE POSITIONNÉ AUSSI ROCHE DU CENTRE DE VOTRE ÉCRAN QUE POSSIBLE SANS OBSTRUER LA VUE.
• POUR PROFITER AU MAXIMUM DES AVANTAGES DES RADIATEURS DE FRÉQUENCES BASSES INTÉGRÉS À VOTRE HAUT-PARLEUR POUR CANAL CENTRAL, LAISSEZ UN MINIMUM DE 1-2 PO (2,5-5 CM) D’ESPACE ENTRE LE DESSUS DU HAUT-PARLEUR ET TOUTE SURFACE
17
Connecter vos haut-parleurs
DÉNUDEZ LE CÂBLE DE 1/4 PO (6 MM)
HAUT-PARLEUR
1. DÉVISSEZ LE JEU DU BAS DE LA BORNE DE RACCORDEMENT ET CONNECTEZ LE CÂBLE
2. SERREZ JUSQU'À CE QUE FIXÉ
FIGURE 2 – Câblage et polarité
18
1. MARQUZ LE CÂBLE AVEC DES SIGNES +/–
2. APPLIQUEZ LES FICHES BANANES ET LES COSSES RECTANGULAIRES À CE MOMENT, SI APPLICABLE
ASSUREZ-VOUS QUE LE HAUT-PARLEUR SOIT TOUJOURS CONNECTÉ AU RÉCEPTEUR OU AMPLIFICATEUR + À+ ET– À –
Loading...
+ 42 hidden pages
