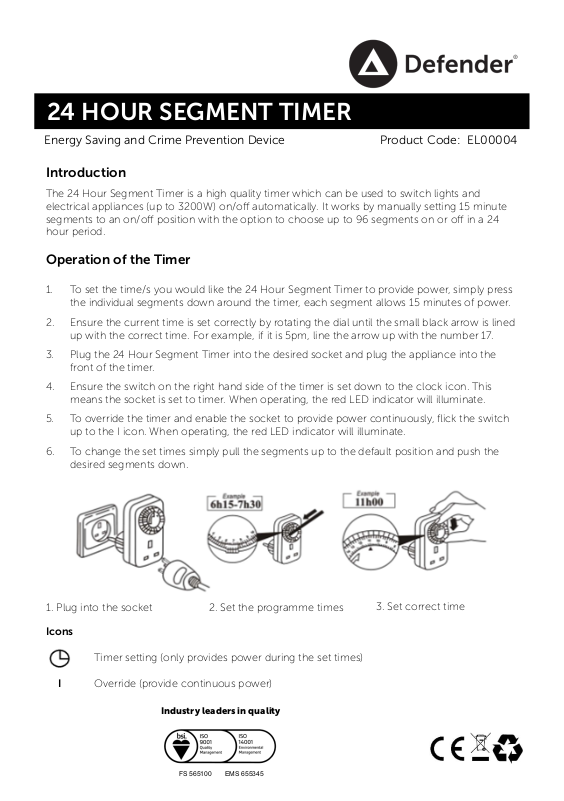

24 HOUR SEGMENT TIMER
Energy Saving and Crime Prevention Device Product Code: EL00004
Introduction
The 24 Hour Segment Timer is a high quality timer which can be used to switch lights and
electrical appliances (up to 3200W) on/o automatically. It works by manually setting 15 minute
segments to an on/o position with the option to choose up to 96 segments on or o in a 24
hour period.
Operation of the Timer
1. To set the time/s you would like the 24 Hour Segment Timer to provide power, simply press
the individual segments down around the timer, each segment allows 15 minutes of power.
2. Ensure the current time is set correctly by rotating the dial until the small black arrow is lined
up with the correct time. For example, if it is 5pm, line the arrow up with the number 17.
3. Plug the 24 Hour Segment Timer into the desired socket and plug the appliance into the
front of the timer.
4. Ensure the switch on the right hand side of the timer is set down to the clock icon. This
means the socket is set to timer. When operating, the red LED indicator will illuminate.
5. To override the timer and enable the socket to provide power continuously, flick the switch
up to the I icon. When operating, the red LED indicator will illuminate.
6. To change the set times simply pull the segments up to the default position and push the
desired segments down.
1. Plug into the socket
Icons
Timer setting (only provides power during the set times)
I Override (provide continuous power)
Industry leaders in quality
2. Set the programme times
FS 565100 EMS 655345
3. Set correct time
