Page 1
Page 1 of 5
DZ 95700 2/20/13
Page 2
If you should happen to have any questions with this product or you have an installation
question, please feel free to call us at:
1-800-779-8222
If you would like to find out more information on Dee Zee’s products, please feel free to visit
our website at:
WWW.DEEZEE.COM

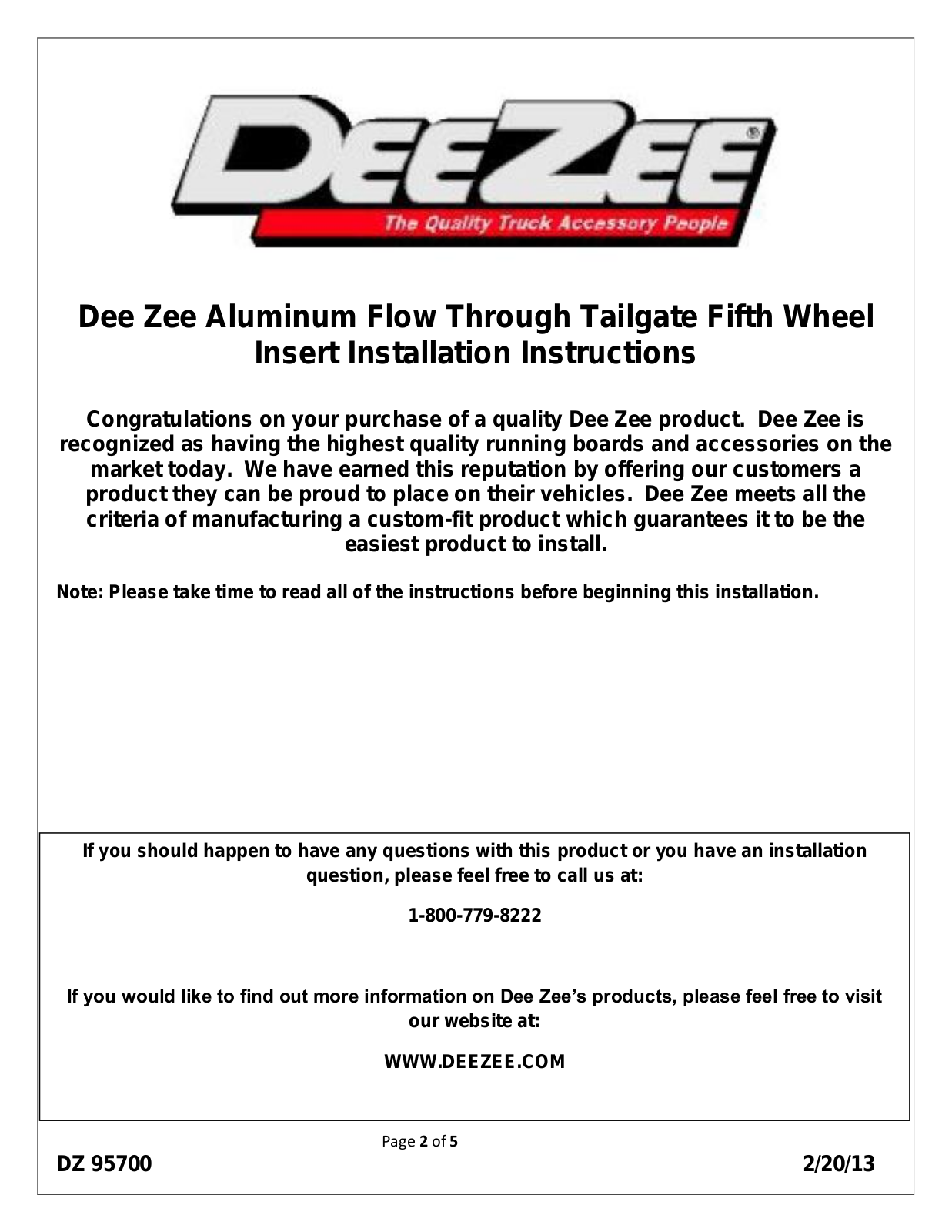

Dee Zee Aluminum Flow Through Tailgate Fifth Wheel
Insert Installation Instructions
Congratulations on your purchase of a quality Dee Zee product. Dee Zee is
recognized as having the highest quality running boards and accessories on the
market today. We have earned this reputation by offering our customers a
product they can be proud to place on their vehicles. Dee Zee meets all the
criteria of manufacturing a custom-fit product which guarantees it to be the
easiest product to install.
Note: Please take time to read all of the instructions before beginning this installation.
Page 2 of 5
DZ 95700 2/20/13
Page 3

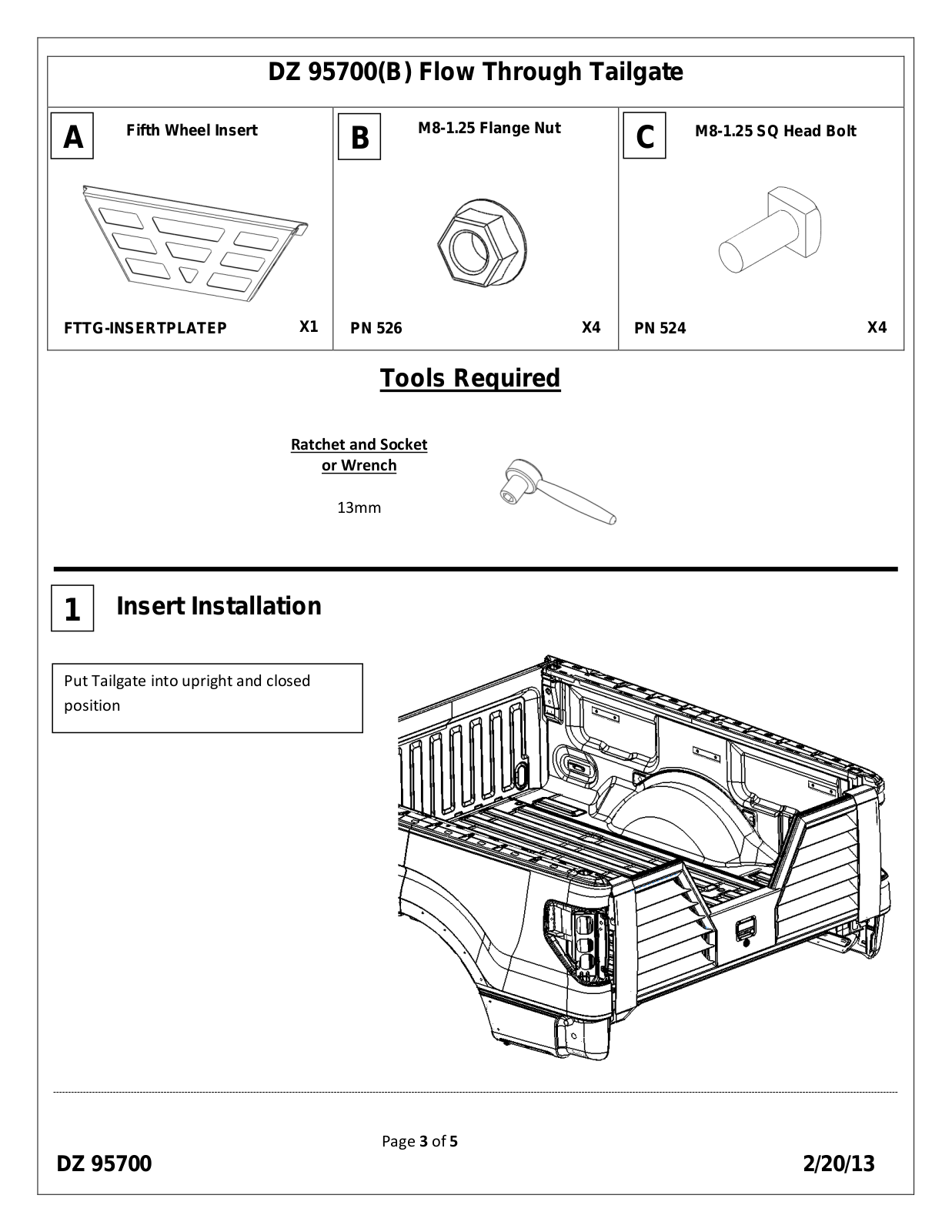

DZ 95700(B) Flow Through Tailgate
1
X4
M8-1.25 Flange Nut
X4
PN 526
Fifth Wheel Insert
A
X1
FTTG-INSERTPLATEP
B
C
M8-1.25 SQ Head Bolt
PN 524
Insert Installation
Put Tailgate into upright and closed
position
Tools Required
Ratchet and Socket
or Wrench
13mm
Page 3 of 5
DZ 95700 2/20/13
Page 4

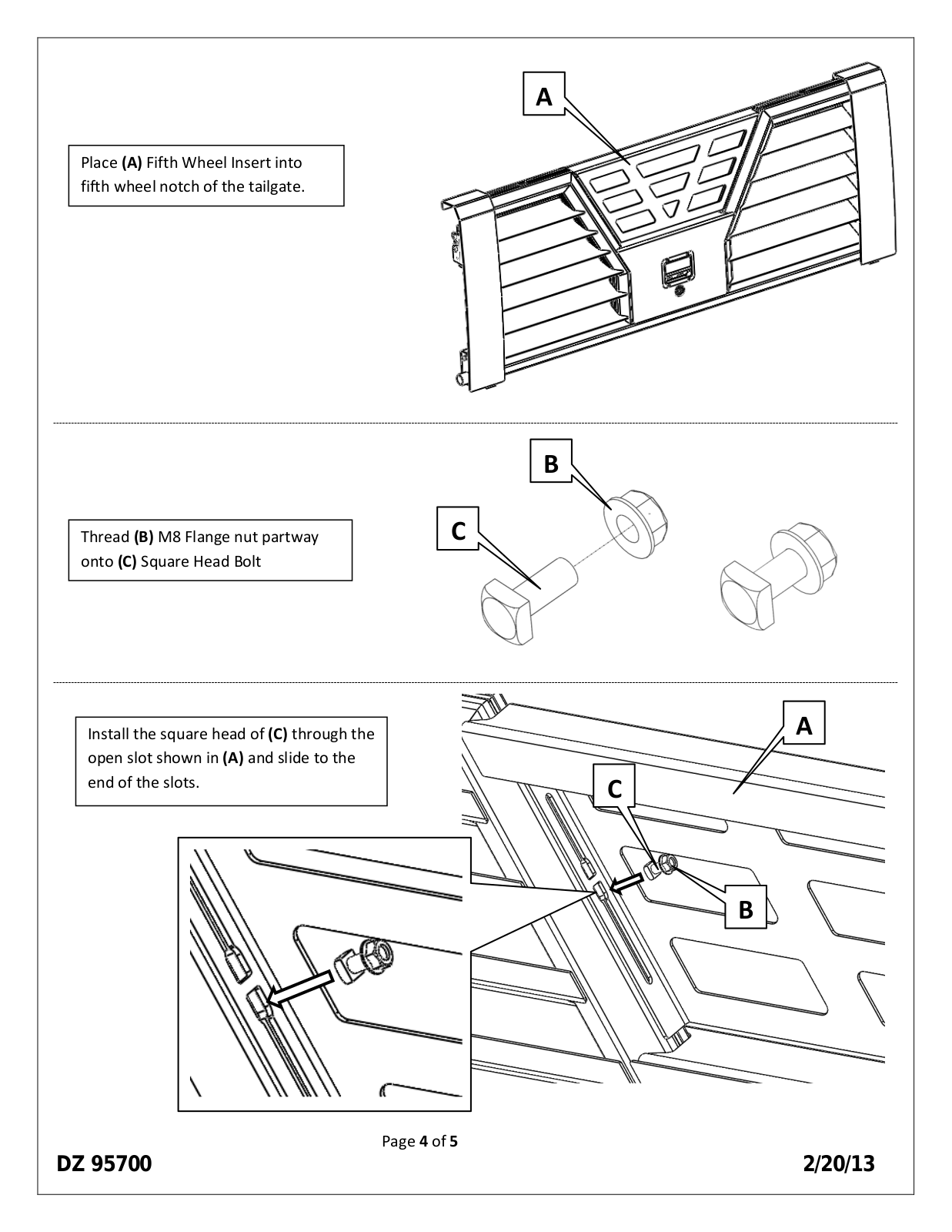

Place (A) Fifth Wheel Insert into
fifth wheel notch of the tailgate.
Install the square head of (C) through the
open slot shown in (A) and slide to the
end of the slots.
A
A
C
B
Thread (B) M8 Flange nut partway
onto (C) Square Head Bolt
C
B
Page 4 of 5
DZ 95700 2/20/13
Page 5
A C B C B

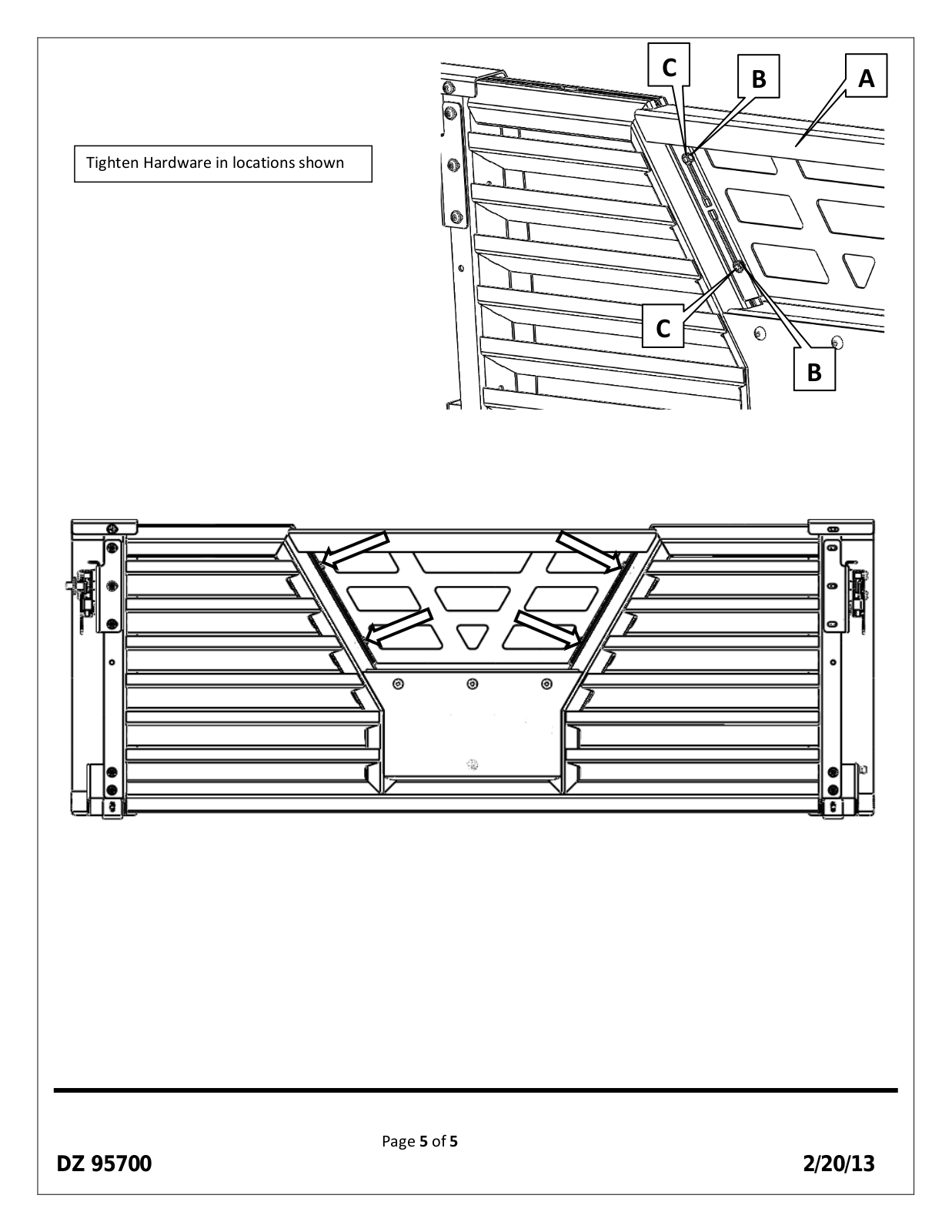

Tighten Hardware in locations shown
Page 5 of 5
DZ 95700 2/20/13
