½ Ladder Rack
This product is designed to transport ladders in the bed of a pickup truck
Page 3
Page 4
Hardware List
Qty.
Description
Part
1
Front Leg Socket
A
1
Rear Leg Socket
B
1
Front Mounting Bracket
C
1
Rear Mounting Bracket
D
2
Legs
E
2
Extensions
F
1
Ladder Stop
G
2
Strap
H
9
Lock Washer
I
9
Blind Fastener
J
1
Carriage Bolt M10x80
K
9
Hex Bolt M8x30
L
2
Carriage Bolt M10x20
M
1
Installation Tool
N
10
Flat Washer
O
Page 5
Tools Needed:
• Electric Drill with ½” and 7/32” drill bits
• Straight Screwdriver
• Framing Square
• Center Punch
• Hacksaw
• Ruler
• Tape
Page 6
Mounting the ½ Ladder Rack
Note: This illustration shows installation on the passenger side for the front leg. If installation is
intended for the driver saide, simply reverse the parts
Note: If your pick up has a bed liner, you may need to trim, drill, or cut the liner for proper and
secure installation of the ½ ladder rack
Note: If the best mounting hole location is between floor spacer and/or extra 5/16” flat
washers have been provided to fill the void or rotate the leg socket 90 degrees to the rear of
the vehicle if possible.
Step 1: Drill ½” hole for the blind fastener. Place a drop of oil on the black oxide bolt before
assembling as shown above. Place the blind fastener in the hole and use a ½” or 4/16” wrench
to tighten black hex bolt until the blind fastener is fully sealed. When setting the black hex bolt,
it will start out hard, as the blind fastener “bulbs out” it will get easier. Note: Ma ke sure that
the blind fastener and Installation tool does not turn during installation.
Step 2: Install the Rope Cleat. The two rope cleats are to be mounted where desired.
Step 3: Place a ladder on the rack and check door entry/head clearance. If there is ample
clearance, and if desired, the rack lets may be shortened as long as a minumum clearance of 2”
about the cab with the ladder is maintained. Remove and cut the legs if desired. Note: cut the
tubing from the bottom of the legs. Double check the measurement before cutting.
WARNING: FAILURE TO FOLLOW OR COMPY WITH ALL THE WARNING AND INSTRUCTIONS IN
THIS MANUAL MAY RESULT IN EQUIPMENT DAMAGE OR SERIOUS BODILY INJURY.
WARNING: OUR LADDER RACK IS ONLY INTENDED AND ONLY SAFE FOR TRANSPORTING
LADDER, LUMBER, PIPES, AND OTHER SIMILAR MATERIALS. IT IS THE USER’S RESPONSIBILITY TO
ENSURE THAT THE MATERIALS BEING TRANSPORTED IS SAFELY SECURED ON THE RACK BEFORE
TANSPORTATION. ANY USE OF THIS PRODUCT FOR OTHER PURPOSES OR MODIFICATIONS
MADE TO THIS PRODUCT CAN CAUSE SERIOUS BODILY INJURY OR PROPERTY DAMAGE.
WARNING: LADDERS MUST BE SECURED PER ANSI STANDARD A 14.2-1990 PARAGRAPH 8.4.4
LADDER DAMAGE WILL OCCURE FROM ROAD SHOCK AND VEHICLE VIBRATION IF THE LADDER
IS NOT PROPERLY SECURED TO THE LADDER RACK. BOUNCING AND SIDE TO SIDE MOTION OF A
Page 7
IMPROPERLY SECURED LADDER WILL CAUSE WEAR AND WEAKEN THE LADDER. USING A
DAMAGE LADDER COULD LEAT TO A STRUCTURAL COLLAPSE AND COULD REUSLT IN A SERIOUS
INJURY OR DEATH.
WARNING: PRIOR TO DRILLING, CHECK UNDER VEHICLE FOR PROPER LOCATIONS TO AVOID
PUNCTURE OR DAMAGE TO FUEL TAK, FUEL LINES, BRAKE LINES, ELECTRIC WIRES , ETC.
WARNING: ALWAYS WER PROTECTIVE EYEWEAR TO KEEP DEBRIS OUT OF YOUR EYES WHEN
CHECKING THE UNDERSIDE OF THE VEHICLE AND WHEN DRILLING
CAUTION: TO PREVENT RESONANT VIBRATION DAMAGE DURING DRIVING WITH UNLOADED
RACKS, THE LEG ASSEMBLY SHOULD BE REMOVED
Page 8

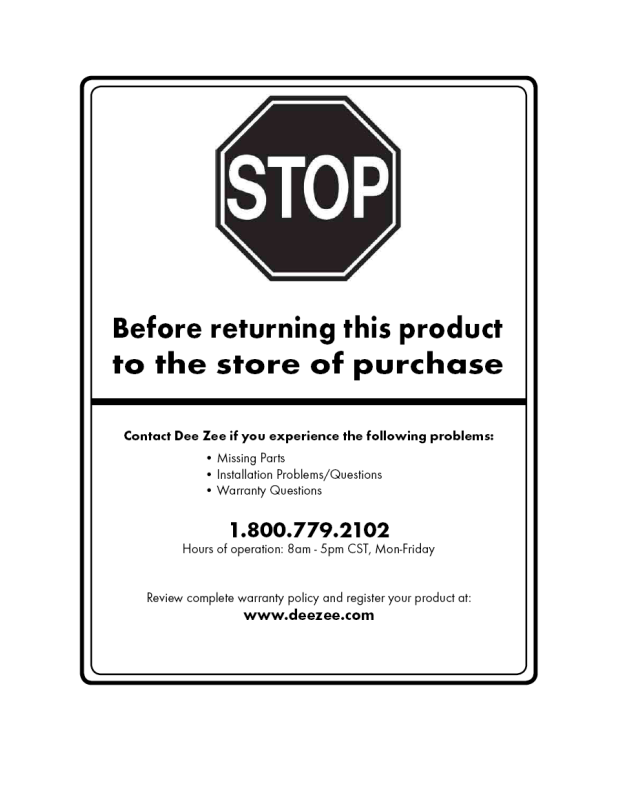

If you have any issues with your purchase do not return to the store. Please contact Dee Zee
customer service at 1-800-779-2102.
Congratulations on the purchase of this fine Dee Zee Product! Please visit www.deezee.com
for a full line of our high Quality products offered at your local Dee Zee retailer.
DEE ZEE, INC WARRANTY AGREEMENT
Warning:
• MAKE SURE ALL HARDWARE CONNECTIONS ARE SECURE
BEFORE EACH USE.
• DO NOT EXCEED 200 POUND WEIGHT LIMIT
• DO NOT USE IF RESTRICTS YOUR VISION OR SAFE
DRIVING.
• ALWAYS CHECK RACK DOES NOT UN-BALANCE THE
VEHICLE IN USE
• ALWAYS OBEY ALL LOCAL, STATE AND FEDERAL
TRAFFIC LAWS.
• UNDER NO CIRCUMSTANCES SHOULD THIS PRODUCT BE
USED TO TRANSPORT PEOPLE OR LIVING ANIMALS.
SERIOUS INJURY OR DEATH MAY RESULT
• USER IS RESPONSIBLE FOR THE SAFE LOADING AND
UNLOADING OF THIS PRODUCT. BE SURE TO USE CAUTION
WHEN STRAPPING DOWN LOADS OR LOOSE ARTICLES.
FOR ADDED SAFETY, ADDITIONAL LIGHTING IS
