INSTALLATION INSTRUCTIONS
SIDEBAR
00-10 CHEVY TAHOE / 00-10 GMC YUKON
(Excl. Z71 Model)
PART # DZ 370781/370782/370783
Page 3
SIDEBAR
00-11 CHEVY TAHOE / 00-11 GMC YUKON
01-11 CADILLAC ESCALADE
Page 1 of 4
IMPORTANT ALERT: GM uses a very strong thread-locking compound on all
body bolts. Use of an air assisted impact ratchet can cause damage to the
threads on factory body mount bolts and the internal nut assembly because of
this thread locking compound.
We only recommend the use of hand tools to slowly remove and reinstall body
mount bolts on all GM vehicles.
PROCEDURE:
CRITICAL INFORMATION: If during the removal process, it becomes increasingly
difficult to unscrew the body mount bolt with hand tools, tighten the bolt several
rotations to clear the thread locking compound from the threads, then reverse
direction and continue to unscrew until the body mount bolt is out. Repeat this
process as necessary on all GM body mount bolts. Use of an appropriate antiseize compound is highly recommended for re-installation. Tighten body mount
bolt to factory torque specifications for your particular model year.

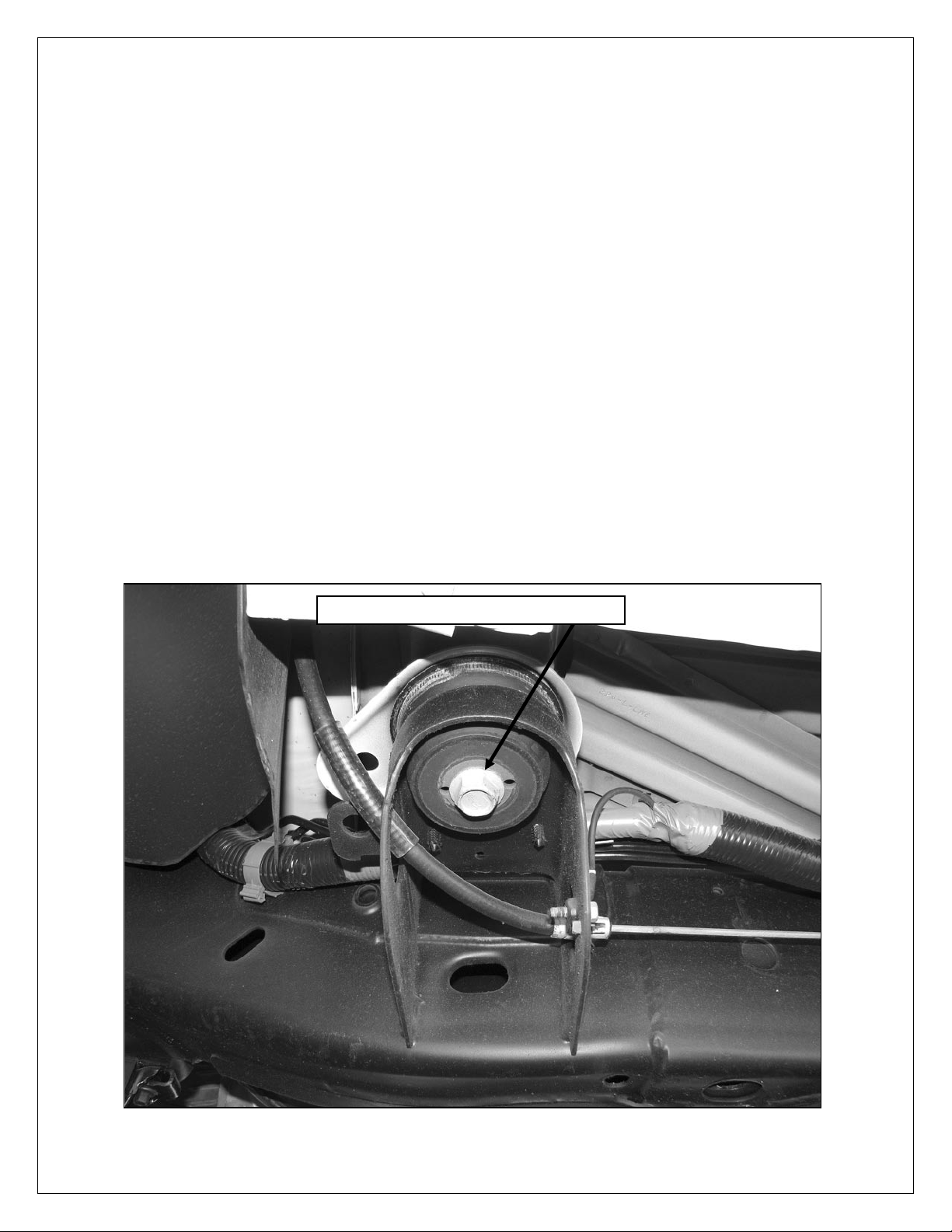

Example of GM factory body mount bolt
Page 4
SIDEBAR
00-11 CHEVY TAHOE / 00-11 GMC YUKON
01-11 CADILLAC ESCALADE
Page 2 of 4

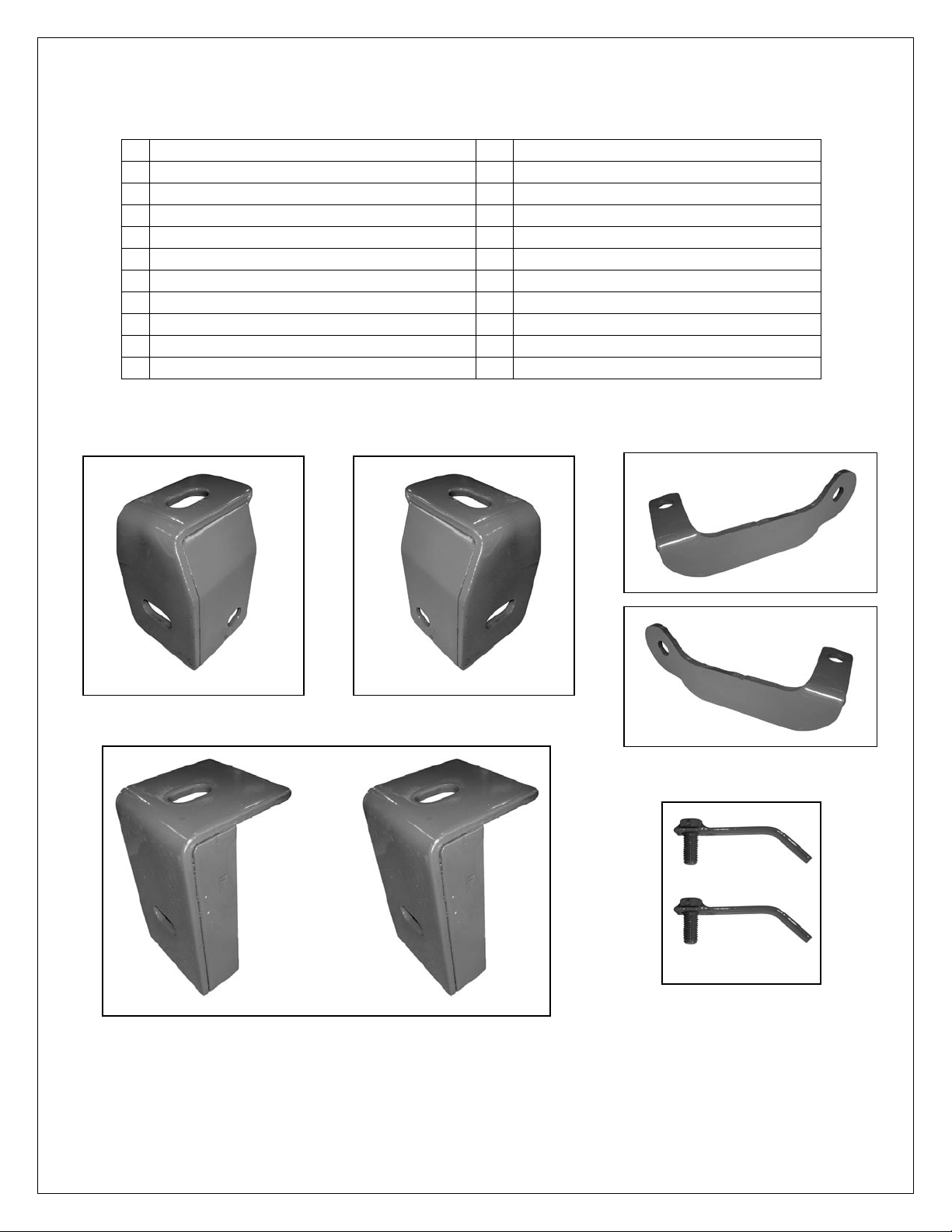

PARTS LIST:
1
Driver/Left Sidebar
4
½” x 2” Hex Head Bolts
1
Passenger/Right Sidebar
4
½” Lock Washers
1
Driver/Left Front Mounting Bracket
4
½” ID x 1-1/2” OD x1/8” Flat Washers
1
Passenger/Right Front Mounting Bracket
2
10mm x 25mm Bolt Plates
1
Driver/Left Rear Mounting Bracket
2
10-1.50mm x 30mm Hex Head Bolts
1
Passenger/Right Rear Mounting Bracket
4
10mm Lock Washers
1
Driver/Left Front Support Bracket
4
10mm Hex Nuts
1
Passenger/Right Front Support Bracket
4
10mm ID x 30mm OD x2.5mm Flat Washers
4
12-1.75mm x 120mm Hex Head Bolts
4
12mm Lock Washers
4
12mm ID x 32mm OD x 3mm Flat Washers
Driver
Side Front
Mounting Bracket
Passenger
Side Front
Mounting Bracket
Rear Mounting Brackets
Driver
Side Front
Support Bracket
Passenger
Side Front
Support Bracket
Bolt Plates
Page 5
SIDEBAR
00-11 CHEVY TAHOE / 00-11 GMC YUKON
01-11 CADILLAC ESCALADE
Page 3 of 4
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLAT ION .
2. From underside of vehicle remove the driver’s side body mounts bolts. Keep factory washers
and rubber bushings in place.
3. Partially attach driver’s side front and rear Mounting Brackets as shown in Figure 1 & 2.
NOTE: For 06-On vehicles, use existing factory body mount bolts to attach Mounting Brackets
to the vehicle. For all other applications, use the included (4) 12mm x 120mm Hex Head Bolts,
(4) 12mm Flat Washers, and (4) 12mm Lock Washers.
4. Attach driver Sidebar to Mounting Brackets using the included (2) ½” x 2” Hex Head Bolts, (2)
½” Lock Washers, and (2) ½” Flat Washers (Figure 3). Do not tighten at this time.
5. Locate the factory slotted and rounded hole on the bottom of the frame by the front body
mount. Insert (1) Bolt Plate through slotted hole so bolt drops through rounded hole (Figure 4).
6. Partially attach driver side front Support Bracket to already inserted Bolt Plate using the
included (1) 10mm Lock Washer, (1) 10mm Hex Nuts, and (1) 10mm Flat Washer. Attach
opposite side of front Support Bracket to front Mounting Bracket using the included (1) 10mm x
30mm Hex Head Bolt, (1) 10mm Lock Washer, (1) 10mm Flat Washer, and (1) 10mm He Nut
(Figure 5).
7. Adjust the Sidebar properly; and then tighten all hardware at this time.
8. Repeat steps 2 – 7 for passenger Sidebar.
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain
abrasives that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the
finish. Mild soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar
(Driver Side Installation Shown)
Driver Side Front
Mounting Bracket
Driver Side Rear
Mounting Bracket
12mm x 120mm Hex
Head Bolt
12mm Lock Washer
12mm Flat Washer
NOTE: For 06-On
vehicles use factory
bolt.

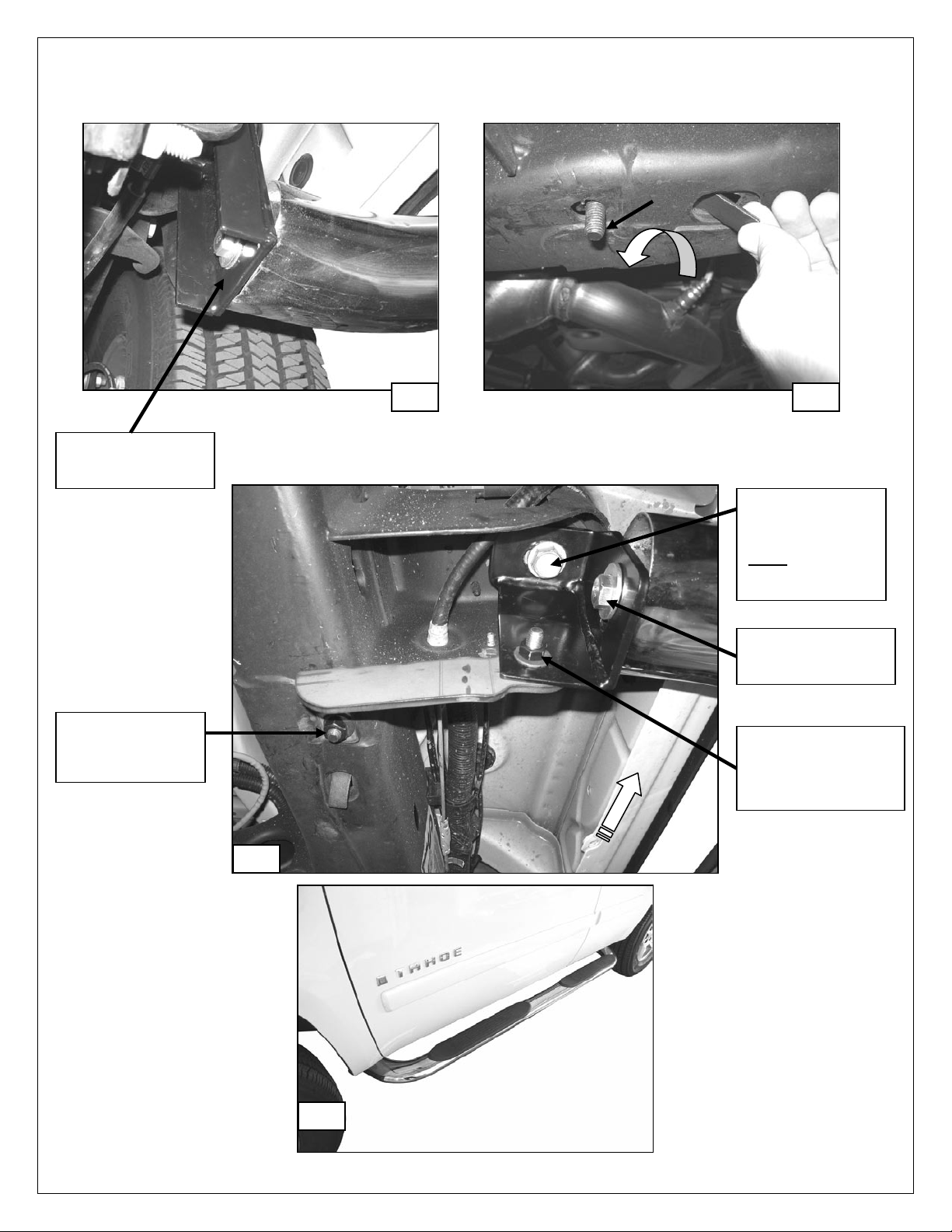

Fig 1
Fig 2
Page 6
SIDEBAR
00-11 CHEVY TAHOE / 00-11 GMC YUKON
01-11 CADILLAC ESCALADE
Page 4 of 4
½” x 2” Hex Head Bolt
½” Lock Washer
½” Flat Washer
(Bolt Plate)
10mm Lock Washer
10mm Flat Washer
10mm Hex Nut
10mm x 30mm Hex
Head Bolt
10mm Lock Washer
10mm Flat Washers
10mm Hex Nut
½” x 2” Hex Head Bolt
½” Lock Washer
½” Flat Washer
12mm x 120mm Hex
Head Bolt
12mm Lock Washer
12mm Flat Washer
NOTE: For 06-On
vehicles use factory
bolt.
Front of
Vehicle
Bolt Plate
Installation
Complete

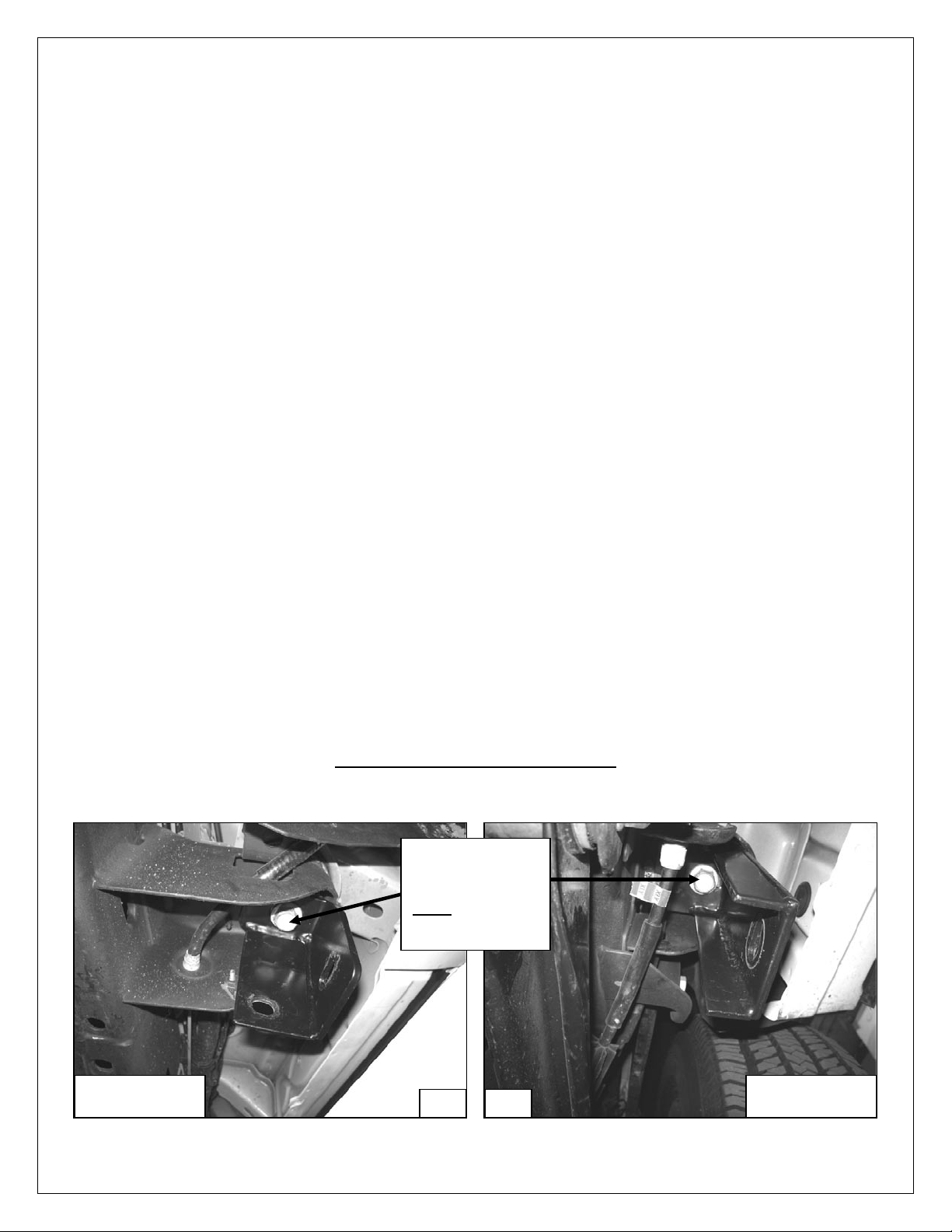

Fig 3
Fig 4
Fig 5
Fig 6
