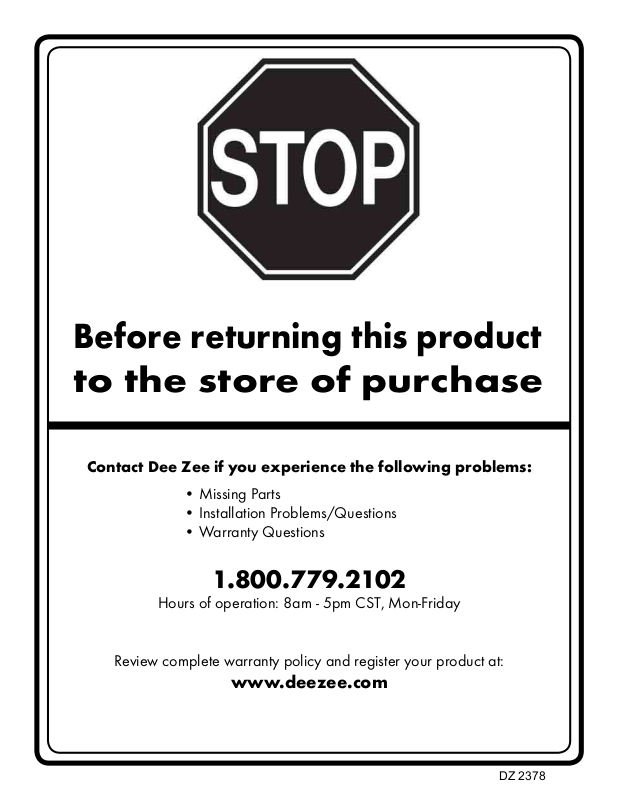

Before returning this product to the store of purchase

Contact Dee Zee if you experience the following problems:

   •MissingParts    •InstallationProblems/Questions    •WarrantyQuestions

1.800.779.2102

Hoursofoperation:8am-5pmCST,Mon-Friday

Reviewcompletewarrantypolicyandregisteryourproductat:

www.deezee.com

Page 2

Dee Zee Running Board Installation Instructions

Congratulations on your purchase of a quality Dee Zee product. Dee Zee is

recognized as having the highest quality running boards and accessories on

the market today. We have earned this reputation by offering our customers

a product they can be proud to place on their vehicles. Dee Zee meets all

the criteria of manufacturing a custom-fit product which guarantees it to

be the easiest product to install.

Note: Please take time to read all of the instructions before beginning this installation.

War ning! Please check for wiring or other obstr uctions before drilling any holes into the vehicle. If it is necessar y to drill any holes into the vehicle, Dee Zee recommends putting a sealant or rust inhibitor around all holes drilled into the body of the vehicle.

War ning! It is the sole responsibility of the vehicle owner to check for tire clearance.

War ning! It is unlawful and dangerous to ride on r unning boards or side box boards while the vehicle is in motion.

Cleaning Instructions: To maintain the bright finish of your Dee Zee running boards, clean with a mild deter gent. For our stainless steel products and accessories, the application of a high grade automotive type wax is recommended.

If you should happen to have any questions with this product or you have an

installation question, please feel fr ee to call us at:

1-800-779-8222

If you would like to find out mor e infor mation on Dee Zee’s products please

feel free to visit our website at:

WWW.DEEZEE.COM

Page 3

B 2230LP

X2 REGULAR CAB

VARIES

X1 LH/ X1 RH

B 2230LP

X3 EXTENDED/CREW CAB

B 2229P

B 2230RP

X2 REGULAR CAB

B 2230RP

X3 EXTENDED/CREW CAB

PN 525

X12

PN 909

X12

FP0200

GSK-41

VARIES

PN 87

PN 70

PN 97

PN 72

X16

PN 71

X12

BRITE TREAD RUNNING BOARD INSTALLATION INSTRUCTION

BRITE TREAD RUNNING BOARD INSTALLATION INSTRUCTIONBRITE TREAD RUNNING BOARD INSTALLATION INSTRUCTION

BRITE TREAD RUNNING BOARD INSTALLATION INSTRUCTION

DZ 1057, DZ 1058, DZ 1059 2014-CURRENT CHEVY 1500 2015-CURRENT CHEVY 2500/3500

DZ 1057, DZ 1058, DZ 1059 2014-CURRENT CHEVY 1500 2015-CURRENT CHEVY 2500/3500 DZ 1057, DZ 1058, DZ 1059 2014-CURRENT CHEVY 1500 2015-CURRENT CHEVY 2500/3500

DZ 1060, DZ 1061, DZ 1062 2014-CURRENT GMC 1500 2015-CURRENT GMC 2500/3500

DZ 1060, DZ 1061, DZ 1062 2014-CURRENT GMC 1500 2015-CURRENT GMC 2500/3500DZ 1060, DZ 1061, DZ 1062 2014-CURRENT GMC 1500 2015-CURRENT GMC 2500/3500

RUNNING BOARD DRIVER SIDE BRACE

A B

MUD FLAP

PASSENGER SIDE BRACE FRONT PASSENGER BRACE

BULB GASKET 1/4 X 3/4" HEX

8mm BOLT

1/4 X 1" RIBNECK

CARRIAGE BOLT

FOR HD DIESEL

8mm U-NUT

JH I

HEAD BOLT

K M

DZ 1059 1 of 10 4/24/2014

SHEET METAL SCREW 1/4" FLAT WASHER

1/4" HEX NUT

Page 4

WRENCH/RATCHET

TORQUE WRENCH

CLAMP

21mm, 13mm, 3/8", 7/16"

TIN SNIPS

There is a difference in the bracket mounting between the gas and the diesel version of this truck.

If your vehicle is a Chevy HD diesel with a DEF tank, start here with step one for installing the brackets.

If your vehicle is not, proceed to step 4 for installing the brackets.

Because this kit includes brackets for either type of vehicle, when you are finished with the installation,

you will have one bracket that will not be used.

The passenger's side is shown. The front of the vehicle is to the right in the picture.

Locate the front body shock mount.

TOOLS REQUIRED

DZ 1059 2 of 10 4/24/2014

Page 5

Remove the bolt from the body shock mount at each of the mounting locations using a 21mm socket.

Put the body shock mount bolt through the hole in the brace [D] and thread it back into the body shock

mount. Align the braces so that they are perpendicular to the side of the vehicle. Tighten the bolts

to 44 ft-lbs plus another half turn.

The driver's side is shown. The front of the vehicle is to the left of the pictures.

REMOVE

BOLT

DZ 1059 3 of 10 4/24/2014

Page 6

Locate the bracket mounting locations on the inside of the rocker panel. Shown below is the driver

side of the crew cab. The front of the vehicle is to the right side.

NOTE:

For regular cab

trucks there will not

be a middle mounting

location.

Depending where your vehicle was manufactured, the front and middle top mounting locations

may have weld nuts instead of open hole. If this is the case, the bolt will thread into the weld nut

and the clip will not be used.

DZ 1059 4 of 10 4/24/2014

Page 7

Install the 8mm U-nut [F] in all of the mounting locations, unless there is a weld nut.

Thread an 8mm bolt [E] part way into all of the top mounting locations.

If your vehicle has the weld nut in the front and middle locations, thread the bolt part way into the

weld nut.

DZ 1059 5 of 10 4/24/2014

Page 8

Slide the open end of the slot in the driver side brace [B] over the 8mm bolt.

Attach the bottom mounting location using the 8mm bolt [E].

Tighten the 8mm bolts using

a 13mm wrench.

Repeat this for all of the mounting locations.

Repeat these step on the passenger side using the passenger side bracket [C].

If you have an HD diesel and installed the brace in steps 1-3, then you will only use bracket [C]

in the middle and rear locations. The middle passenger location will be right next to the DEF tank.

You will need and open end wrench to fit between the DEF tank and the pinch weld to tighten the top bolt.

DZ 1059 6 of 10 4/24/2014

Page 9

Place the bulb-seal gasket [H] onto the backlip of the runing board [A]. Cut the bulb-seal gasket

with tin snips so that it is flush with the ends of the board

Loosely attach the mud flap [G] to the end of the running board using

the 1/4" x 3/4" hex head bolt [J], the 1/4" flat washer [L], and the 1/4" hex nut [M].

Snug the bolts, but do not completely tighten at this time.

DZ 1059 7 of 10 4/24/2014

Page 10

Place the running board on the braces with the bulb seal up against the bottom of the vehicle.

Align the board with the vehicle and make sure that the mud flap is up against the wheel well.

BULB SEAL

AGAINST

DZ 1059 8 of 10 4/24/2014

Page 11

Using the slots in the brace as a guide, drill a 1/4" hole at each mounting location.

Clamp the board to the brace to hold it in position.

Attach the running board to the angle brace using the 1/4" x 1" ribneck carriage bolt [I],

1/4" flat washer [L], and 1/4" hex nut [M]. Tighten using a 7/16" wrench or deep well socket.

DZ 1059 9 of 10 4/24/2014

Page 12

Pressing the flap up against the wheel well, drill two 3/16" holes through the hole in the mud flap

into the sheet metal of the wheel well.

Repeat for the rear of the board.

Check all hardware to make sure it has been tightened.

Repeat the assembly steps for the other side of the vehicle.

Attach the mud flap to the wheel well using two sheet metal screws [K] with a 3/8" socket.

DZ 1059 10 of 10 4/24/2014
