Page 1
Before returning this product
DZ 1052
to the store of purchase
Contact Dee Zee if you experience the following problems:
•MissingParts
•InstallationProblems/Questions
•WarrantyQuestions
1.800.779.2102
Hoursofoperation:8am-5pmCST,Mon-Friday
Reviewcompletewarrantypolicyandregisteryourproductat:
www.deezee.com
Page 2
Dee Zee Running Board Installation Instructions
Congratulations on your purchase of a quality Dee Zee product. Dee Zee is
recognized as having the highest quality running boards and accessories on
the market today. We have earned this reputation by offering our customers
a product they can be proud to place on their vehicles. Dee Zee meets all
the criteria of manufacturing a custom-fit product which guarantees it to
be the easiest product to install.
Note: Please take time to read all of the instructions before beginning this installation.
Warning! Please check for wiring or other obstructions before drilling any holes into
the vehicle. If it is necessary to drill any holes into the vehicle, Dee Zee recommends
putting a sealant or rust inhibitor around all holes drilled into the body of the vehicle.
Warning! It is the sole responsibility of the vehicle owner to check for tire clearance.
Warning! It is unlawful and dangerous to ride on running boards or side box boards
while the vehicle is in motion.
Cleaning Instructions: To maintain the bright finish of your Dee Zee running boards,
clean with a mild detergent. For our stainless steel products and accessories, the
application of a high grade automotive type wax is recommended.
If you should happen to have any questions with this product or you have an
installation question, please feel free to call us at:
1-800-779-8222
If you would like to find out more information on Dee Zee’s products please
feel free to visit our website at:
WWW.DEEZEE.COM
DZ1052.PDF 12/06/06
Page 3
Dee Zee Britetread Running Board Installation Instruction
DZ 1052
(1999 - Current) Chevy Extended Cab Pickup
Britetread Running Board
A
Front Driver Side
Body Mount Bracket
E
X2
Middle Driver Side
Body Mount Bracket
F
B
Bulb Seal
Gasket
G
13.5 ft.
Rear Driver Side
Body Mount Bracket
C
H
Mudflaps
X2
Front Passenger Side
Body Mount Bracket
Middle Passenger Side
Body Mount Bracket
I
This is the shortest in the kit
1/4” Hex Nut
M
This is the shortest in the kit
X1
Rear Passenger
J
This is the tallest in the kit
X1
N
Side Body Mount
Bracket
1/4 x 1“ Sheet
Metal Screw
This is the tallest in the kit
X1
1/4 x 3/4” Carriage
X1
K
PN 87
O
Head Bolt
1/4 x 3/4” Hex
Head Bolt
X1
X12
1/4” Flat Washer
L
PN 72
X1
X16
PN 71
X16
PN 97
X4
PN 70
X4
Page 4
Tools Required:
Ratchet / Wrench
Sizes:
Drill
18mm
Tape Measure
3/16” Drillbit
1/4” Drillbit
Tin-snips
7/16”
3/8”
1

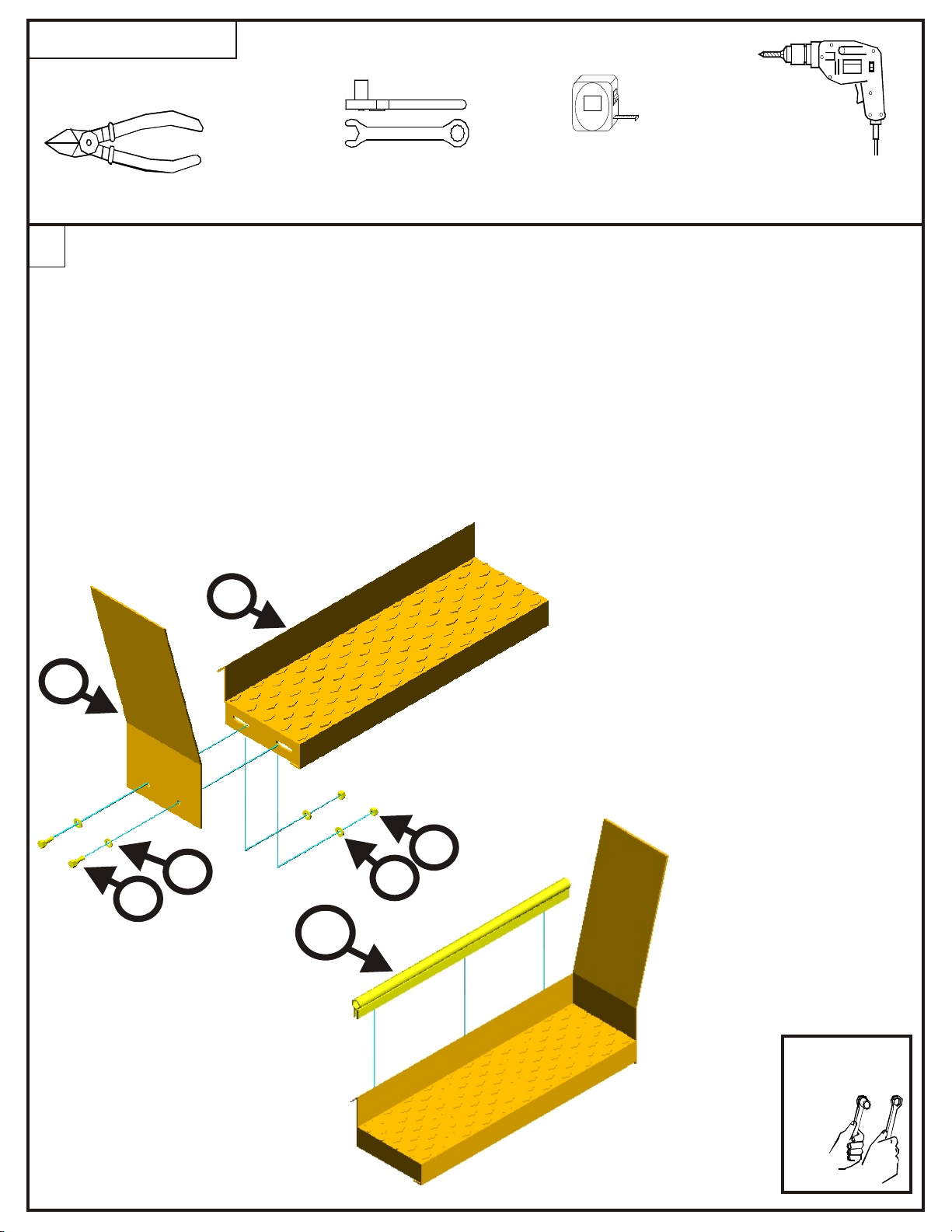

Secure britetread mudflap (C) to britetread running board (A) using 1/4 x 3/4” hex head bolts (O),
1/4” flat washers (L), and 1/4” hex nuts (M). Tighten into place using a 7/16” wrench / or socket.
Place bulb-seal gasket (B) onto the backlip of britetread running board (A) and trim flush with the
britetread mudflap (C) and the end of britetread running board (A).
Fixez le mudflap de britetread (c) au panneau courant de britetread (a) à l'aide des boulons de
tête de sortilège de 1/4 x de 3/4"(o), des rondelles plates de 1/4" (l), et des écrous 1/4"de sortilège
(m). Serrez dans l'endroit à l'aide d'une clé de 7/16"/ou de la douille. Placez la garniture d'ampoulejoint (b) sur le backlip du panneau courant de britetread (a) et équilibrez à affleurement du
mudflap de britetread (c) et de l'extrémité du panneau courant de britetread (a).
A
C
O
L
M
L
Britetread
B
Running Board
7/16“ Wrench
or Socket
Page 5
2

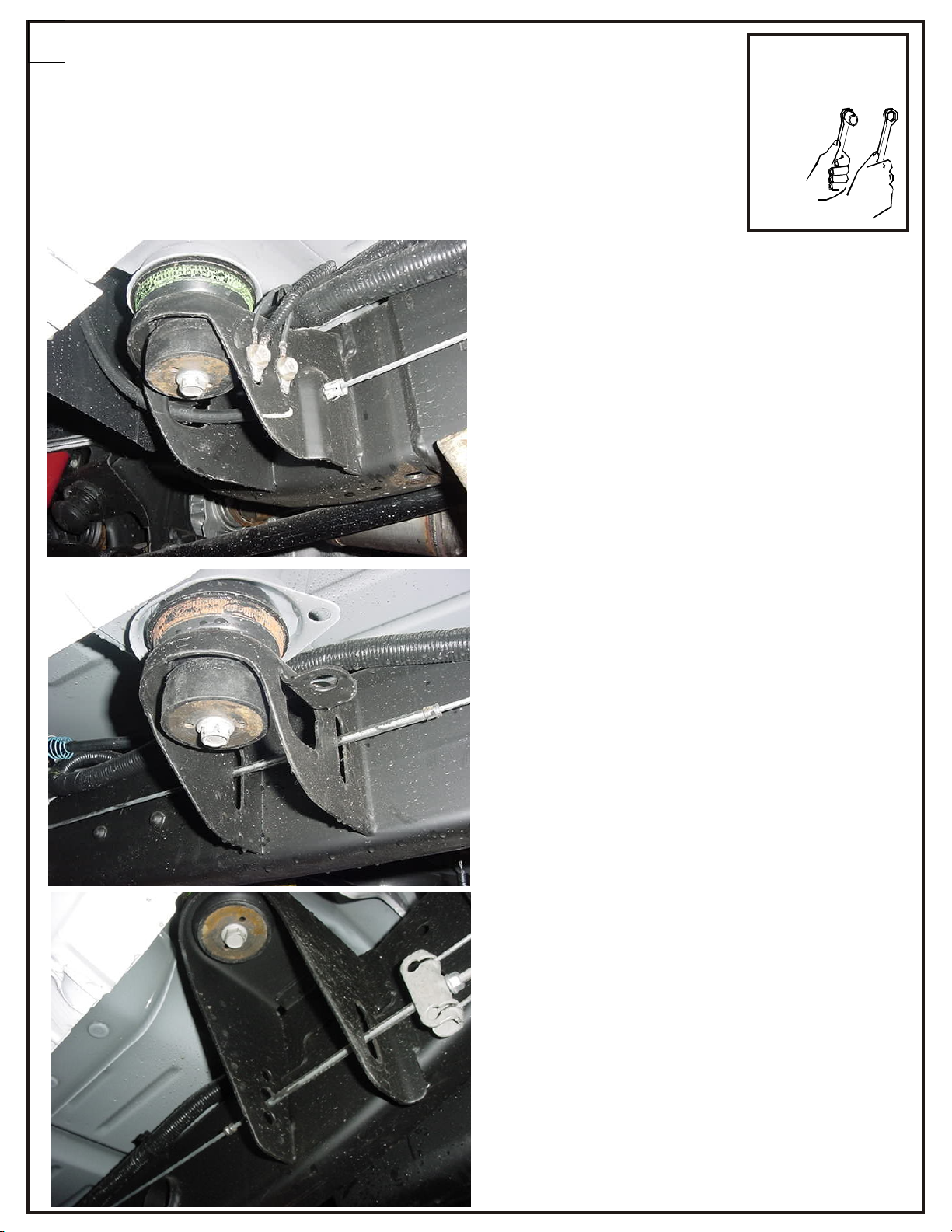

Locate and remove the front / rear body mount bolts shown below using an 18mm socket/ratchet.
Do not discard the body mount bolt or rubber bushing. They will be used in the next step of this
installation.
Plac et enlevez boulons avant/arrière de bâti de corps montrés au-dessous d'employer un 18mm
socket/ratchet. Ne jetez pas la douille de boulon ou en caoutchouc de bâti de corps. Ils seront
employés dans la prochaine étape de cette installation.
Front Body Mount
18mm Wrench
or Socket
Middle Body Mount
Rear Body Mount
Page 6

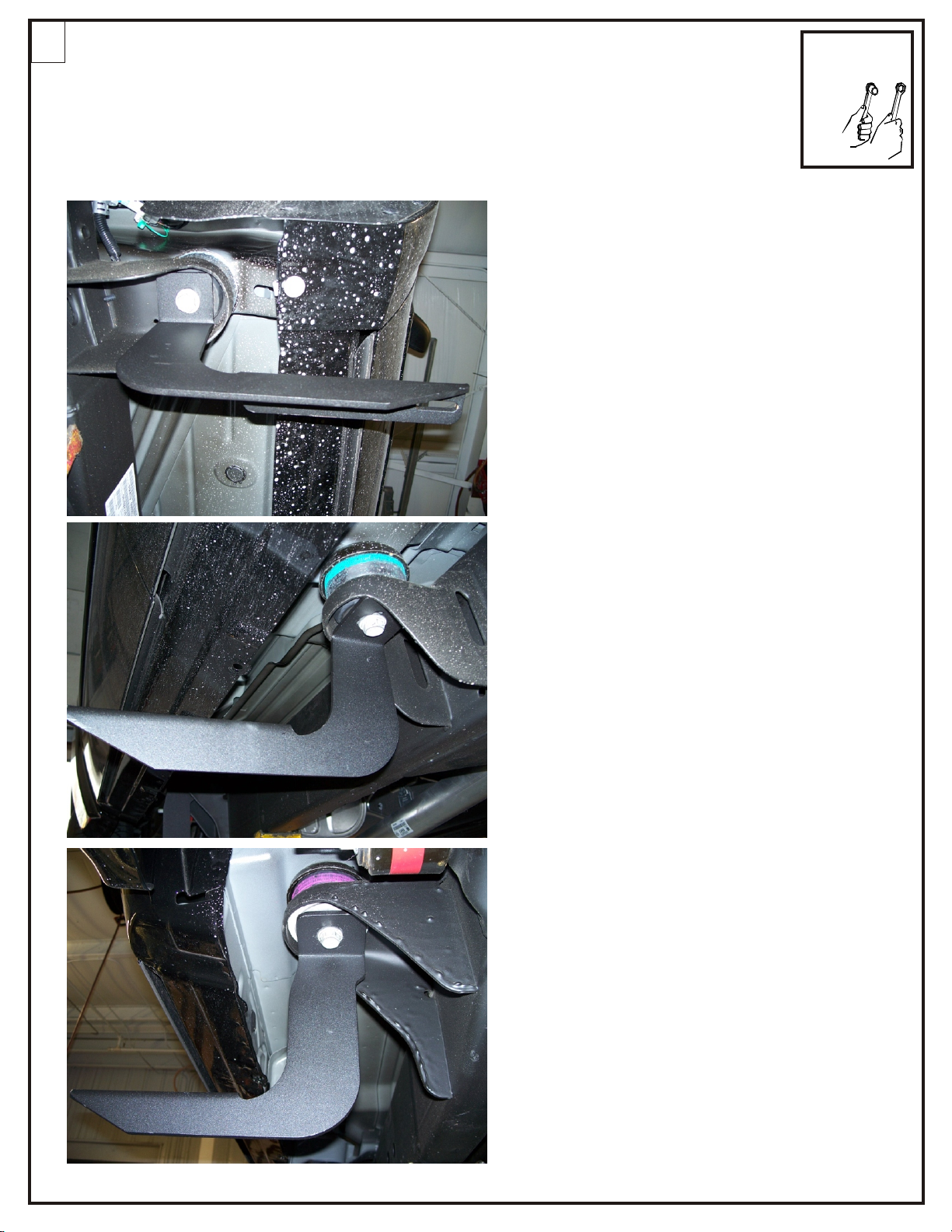

3
Front / Rear
Place the body mount bolt through the hole in the front body mount bracket and the rubber bushing.
Place this assembly up to the body mount locations and tighten into place. See below.
Front Body Mount
18mm Wrench
or Socket
Middle Body Mount
(Looking towards the front of the truck)
Rear Body Mount
(Looking towards the front of the truck)
Page 7
4

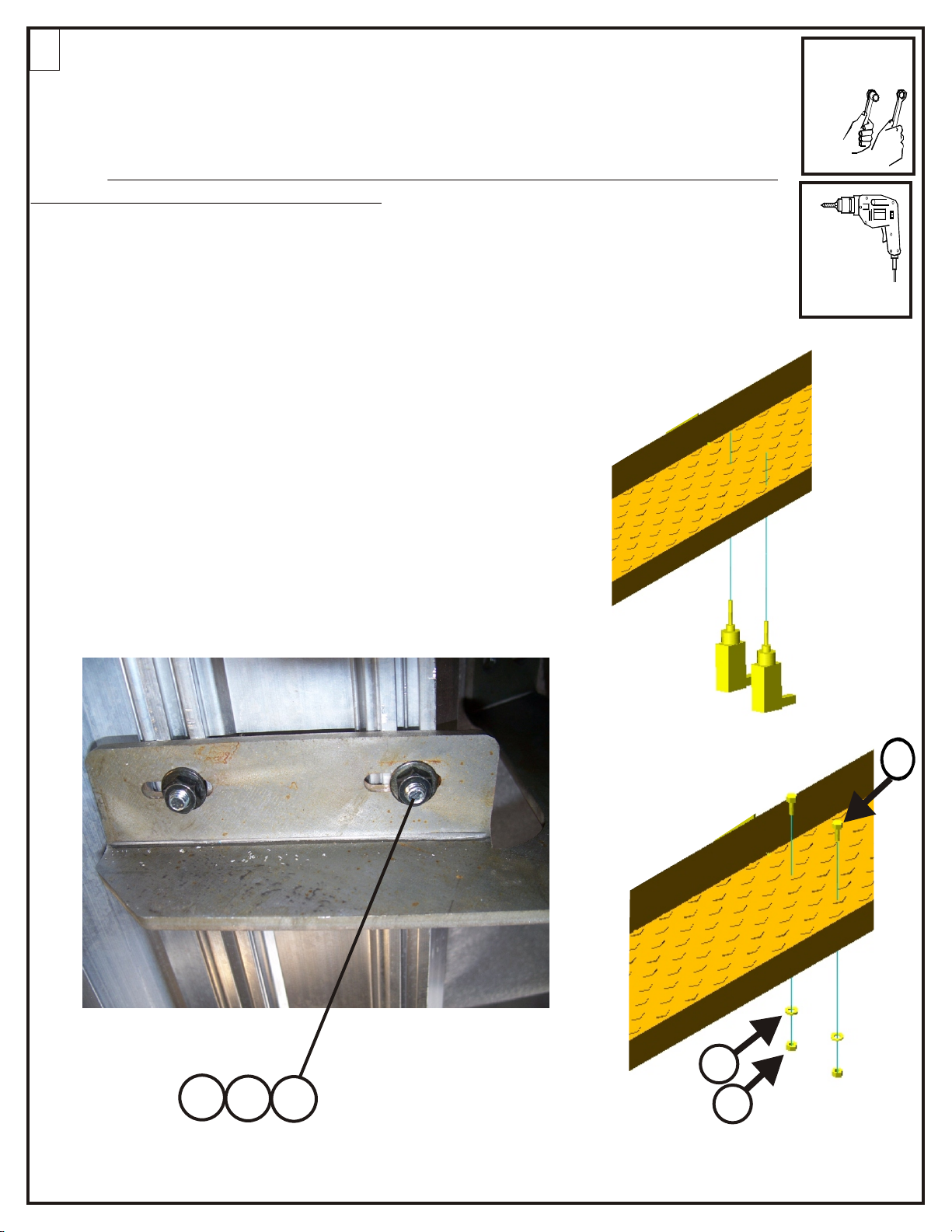

Place the running board up to the front / rear body mount brackets. Make any final adjustments
to the alignment of the running board on the vehicle and then use the existing slots in the body mount
brackets to drill 1/4” holes through the running board. Secure into place using 1/4 x 1” ribneck carriage
head bolts (J), 1/4” flat washers (K), and 1/4” flat washers (L). Tighten into place using a 7/16” wrench /
or socket. Note: It is important that all adjustments to the running board and side box board alignment
are made prior to drilling any holes in the board.
Placez le conseil courant jusqu'à parenthèses avant/arrière de bâti de corps. Faites tous les
ajustements finals à l'alignement du conseil courant sur le véhicule et puis employez les fentes
existantes dans les parenthèses de bâti de corps pour forer des trous de 1/4"par le conseil courant.
Fixez dans l'endroit en utilisant les boulons de tête de chariot de ribneck de 1/4 x de 1"(j), les rondelles
plates de 1/4" (k), et les rondelles plates de 1/4"(l). Serrez dans l'endroit à l'aide d'une clé de 7/16"/ou de
la douille.
7/16” Wrench
or Socket
Drill with a
1/4” drillbit
Britetread
Running
Board
Bracket to Board Mount
Britetread
Running
Board
Drill with a
1/4” Drillbit
K
K
L
M
L
M
Page 8
5

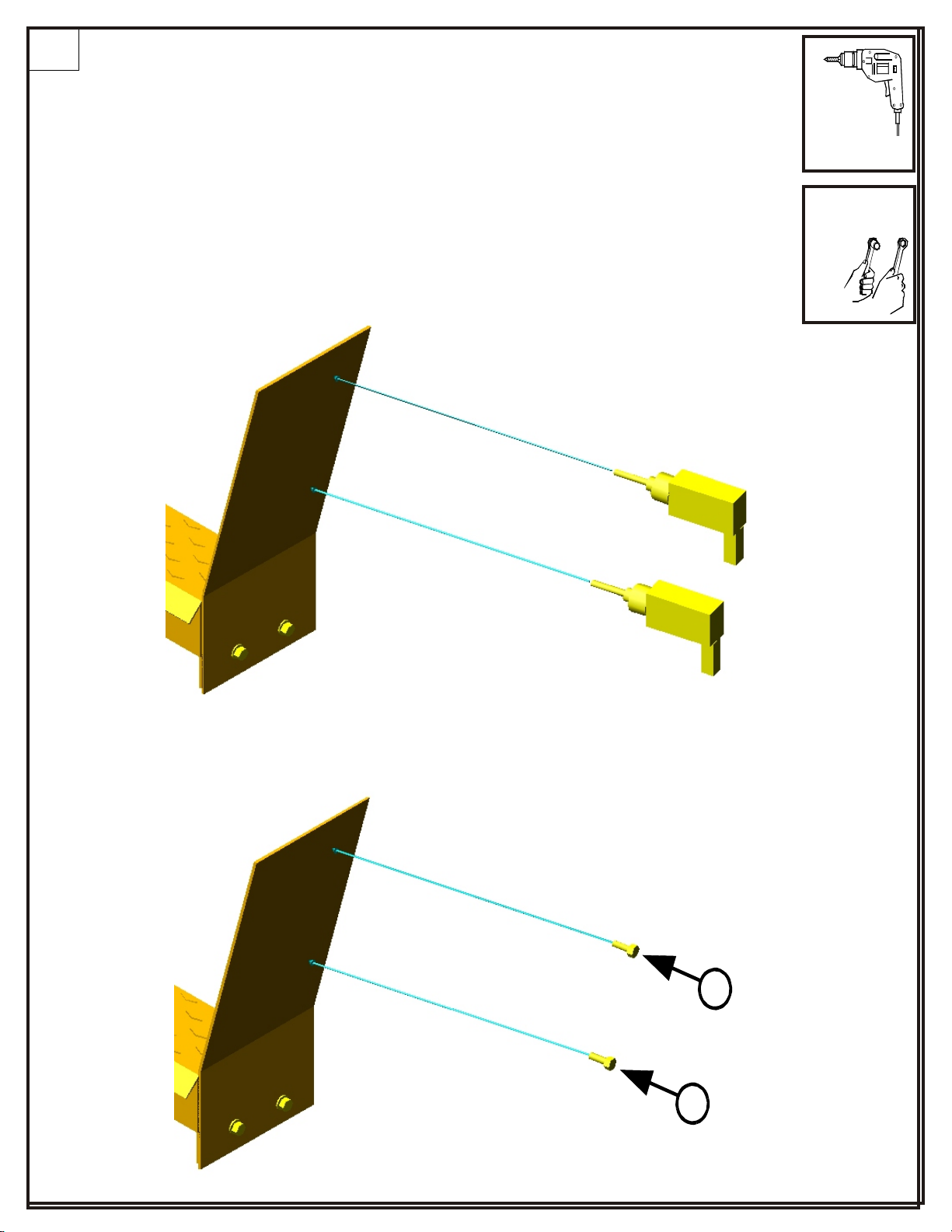

Drill two holes through the britetread mudflap and the sheet metal of the vehicle
wheel well opening. Secure the britetread mudflap to the vehicle wheel well
opening using 1/4 x 1” sheet metal screws (N). Tighten into place using a 3/8”
wrench / or socket.
Drill with a
3/16” drillbit
Forez deux trous par le mudflap de britetread et le métal de feuille de l'ouverture
de soute de train de véhicule. Fixez le mudflap de britetread à l'ouverture de soute
de train de véhicule à l'aide des vis en métal de feuille de 1/4 x de 1"(mj). Serrez dans
l'endroit à l'aide d'une clé de 3/8"/ou du plot.
Britetread
Mudflap
3/8“ Wrench
or Socket
Britetread
Mudflap
N
N
