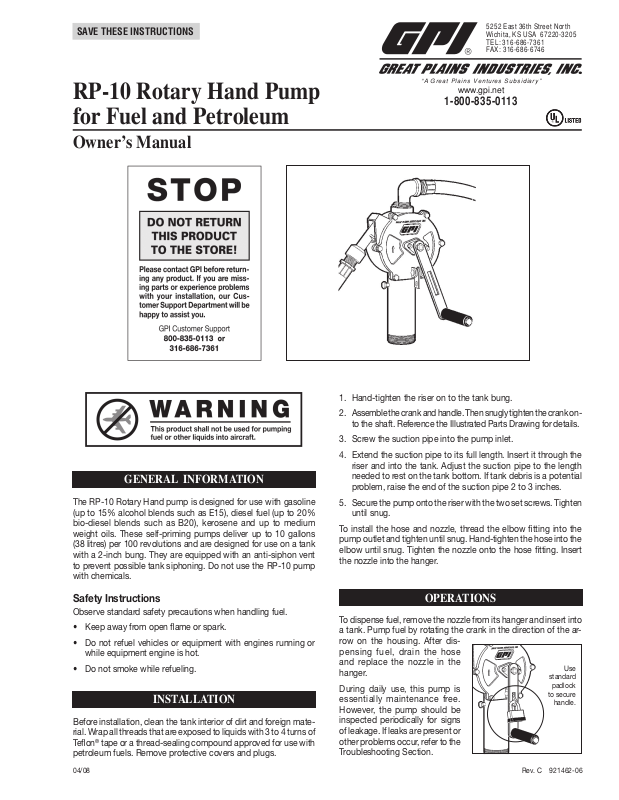

RP-10 Rotary Hand Pump for Fuel and Petroleum
Owner’s Manual
The RP-10 Rotary Hand pump is designed for use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20), kerosene and up to medium weight oils. These self-priming pumps deliver up to 10 gallons (38 litres) per 100 revolutions and are designed for use on a tank with a 2-inch bung. They are equipped with an anti-siphon vent to prevent possible tank siphoning. Do not use the RP-10 pump with chemicals.
Safety Instructions
Observe standard safety precautions when handling fuel.
• Keep away from open flame or spark.
• Do not refuel vehicles or equipment with engines running or while equipment engine is hot.
• Do not smoke while refueling.
Before installation, clean the tank interior of dirt and foreign mate­rial. Wrap all threads that are exposed to liquids with 3 to 4 turns of Teflon® tape or a thread-sealing compound approved for use with petroleum fuels. Remove protective covers and plugs.
04/08
INSTALLATION
1. Hand-tighten the riser on to the tank bung.
2. Assemble the crank and handle. Then snugly tighten the crank on­to the shaft. Reference the Illustrated Parts Drawing for details.
3. Screw the suction pipe into the pump inlet.
4. Extend the suction pipe to its full length. Insert it through the riser and into the tank. Adjust the suction pipe to the length needed to rest on the tank bottom. If tank debris is a potential problem, raise the end of the suction pipe 2 to 3 inches.
5. Secure the pump onto the riser with the two set screws. Tighten until snug.
To install the hose and nozzle, thread the elbow fitting into the pump outlet and tighten until snug. Hand-tighten the hose into the elbow until snug. Tighten the nozzle onto the hose fitting. Insert the nozzle into the hanger.
OPERATIONS
To dispense fuel, remove the nozzle from its hanger and insert into a tank. Pump fuel by rotating the crank in the direction of the ar­row on the housing. After dis­pensing fuel, drain the hose and replace the nozzle in the hanger.
During daily use, this pump is essentially maintenance free. However, the pump should be inspected periodically for signs of leakage. If leaks are present or other problems occur, refer to the Troubleshooting Section.
Rev. C 921462-06
Use
standard
padlock
to secure
handle.
Page 2
SPECIFICATIONS
PARTS AND SERVICE
The Rotary Hand Pump is compatible with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20), kerosene and up to medium weight oils.
Construction: Lightweight, die-cast aluminum housing. Stainless steel shaft. Fluorocarbon seals. Cast iron rotor and carbon vanes. Built-in anti-siphon vent.
Pumping Capacity: Up to 10 gallons (38 litres) per 100 revolutions
Inlet: 1-inch NPT female
Outlet: 3/4-inch NPT female
Shipping Weight: 17 lbs. (7.7 kg)
Hose and Nozzle: 3/4-inch x 8 foot (2.4m) Buna-N
statically grounded hose. Aluminum Alloy unleaded nozzle
Suction Pipe: Plastic, adjustable from 22 to 40 inches (55 to 102cm)
For warranty consideration, parts or other service information, please contact your local distributor or the GPI Customer Service Department, during normal business hours at:
1-800-835-0113
To obtain prompt, efficient service, be prepared with:
• the model number of your pump
• the serial number or manufacturing date code of your pump, and
• parts descriptions and numbers
Reference the Illustrated Parts List for specifics on parts. For war­ranty service, be prepared with your original sales slip or other evidence of purchase date.
CAUTION
Do not return the pump without specific authority from the GPI Customer Service Department. Due to strict regula­tions governing transportation, handling, and disposal of hazardous or flammable liquids, GPI will not accept pumps for rework unless they are completely free of liquid residue.
TROUBLESHOOTING
SYMPTOM PROBABLE CAUSE CORRECTIVE ACTION
A. FLUID LEAKS AROUND 1. Retainer loose Tighten retainer screws. SHAFT
if necessary.
B. FLUID LEAKS AT ANTI- 1. Anti-siphon vent or Remove vent cap. Loosen vent by turning counterclockwise. Remove SIPHON VENT O-ring damaged vent and O-ring. Clean. To replace, seat O-ring on vent and screw vent into place until bottomed out. Replace vent cap.
C. LOW FLOWRATE 1. Internal parts worn or Remove coverplate and inspect for wear on vanes, coverplate, and all debris in vane cavity inside housing surfaces. Replace any scored parts.
2. Vanes cracked Remove coverplate and inspect for chips or cracks on vanes. If necessary, replace vanes.
D. PUMP FAILS TO PUMP 1. Suction pipe leak Remove pump from tank and riser. Inspect the spacer and suction pipe for wear or damage. Replace, as necessary, and install pump on tank.
2. Internal parts worn or Remove coverplate and inspect for wear on vanes, coverplate, and all debris in vane cavity inside housing surfaces. Replace any scored parts.
3. Vanes cracked Remove coverplate and inspect for chips or cracks on vanes. If necessary, install Overhaul Kit or replace vanes.
E. HANDLE TURNS HARD 1. Debris in vane cavity Remove pump from tank. Remove coverplate and inspect for debris in OR PUMP SEIZED cavity. Clean cavity, vanes, and rotor. Flush contamination from tank. Assemble and install pump.
2. Internal parts worn Remove pump from tank. Remove coverplate and inspect for damaged necessary, install Overhaul Kit or replace vanes.
F. VANES STICKING 1. Debris in vane cavity Remove coverplate. Use emery cloth to remove debris or corrosion in vane slots. Apply lubricant (WD-40
2. O-ring worn Check shaft O-ring for excessive wear. Replace Shaft Seal O-ring,
®
) if needed.
Page 3
15
16
13
17
12
14
3
11
4
27
10
9
1
22
23
24
19
20
21
8
28

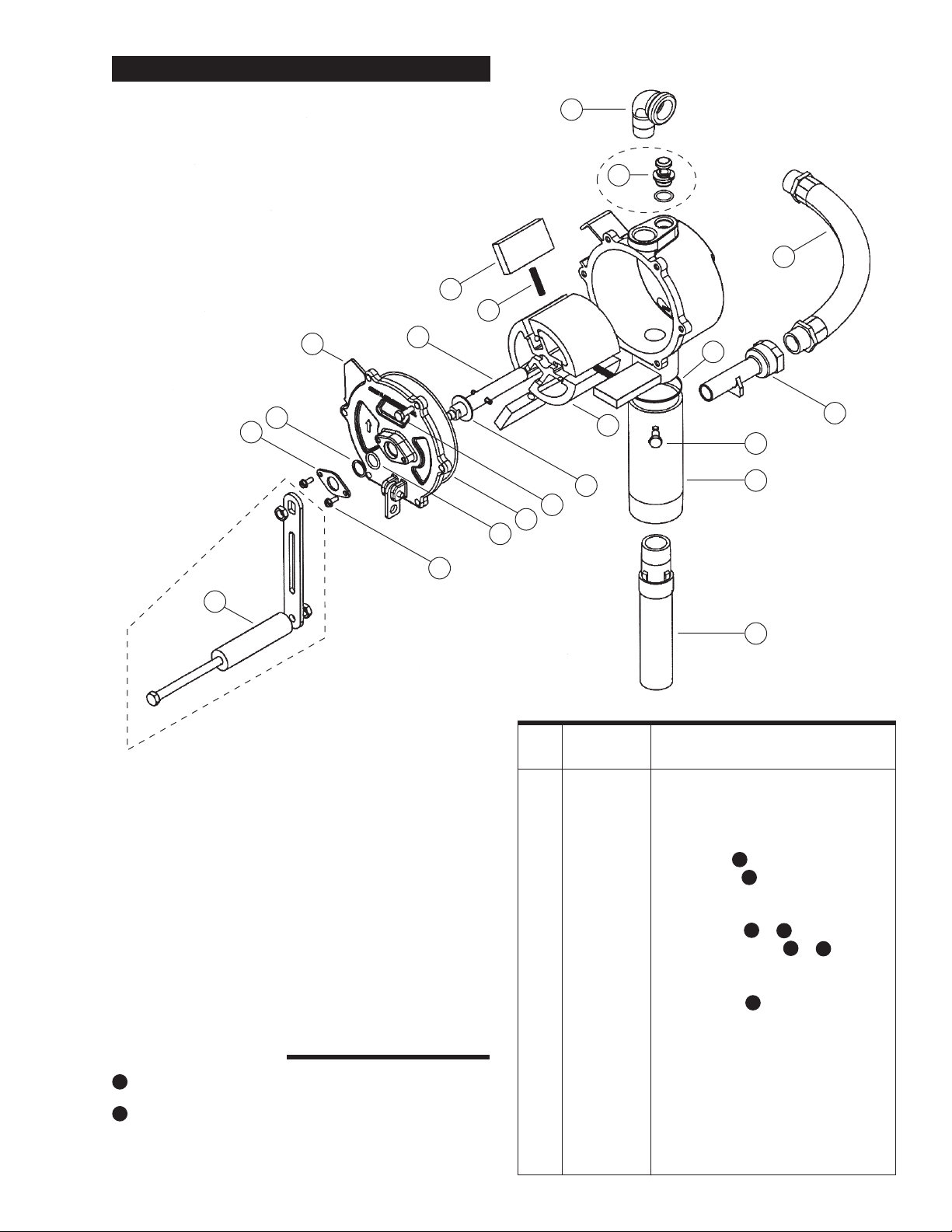

ILLUSTRATED PARTS LIST
Kits and Accessories
123501-1 Shaft Seal Kit includes O-ring, back-up ring,
A
and seal. 123503-1 Overhaul Kit includes vanes, springs, and
B
Shaft Seal Kit. 123505-3 Hardware Kit 115527-2 Suction Pipe Extension, 15 inches or 38.1cm.
Item No.
No. Part No. Description Req’d.
1 123504-1 Anti-Siphon Vent Kit .........................
3 123507-1 Shaft Assembly Kit ...........................
4 123008-1 Coverplate ........................................
8 123509-1 Rotor with Springs Kit ......................
9 123011-1 Vane or (Kit ) ................................
10 123012-1 Spring or (Kit ) ..............................
11 904004-71 Washer ..............................................
12 904004-16 Screw, 1/4-20 x 3/4" .........................
13 901003-63 O-Ring or (Kit or ) ....................
14 901002-58 Back-up Ring or (Kit or ) ..........
15 123013-1 Retainer ............................................
B
B
A
B
A
B
16 904004-60 Retainer Screws ...............................
17 901003-64 O-Ring or (Kit ) .............................
A
19 110100-1 Suction Pipe Assembly .....................
20 123015-1 Riser .................................................
21 904004-59 Set Screws .......................................
22 904004-73 Elbow Fitting .....................................
23 114045-1 Hose Assembly .................................
24 114047-1 Metal Nozzle .....................................
114036-1 Plastic Nozzle ...................................
27 123506-1 Crank Assembly Kit ..........................
28 901001-90 O-Ring ..............................................
1 1 1 1 3 3 1 6 1 1 1 2 1 1 1 2 1 1 1 1 1 1
Page 4
