Deditec RO-INTERFACE-SER Hardware-Description

RO-SER-INTERFACE

Hardware-Description

2010

Oktober

INDEX

1. Introduction 5

1.1. General remarks 5

1.2. Customer satisfaction 5

1.3. Customer response 5

2. Hardware description 7

2.1. Overview screen 7

2.2. Technical data 8

2.3. Selecting between RS-232 or RS-485 interface 9

2.4. Plug-in connector of the module 11

2.4.1. Power supply

2.4.2. RS-232/RS-485 Interface

2.4.2.1. RS-232 Pinout

2.4.2.2. RS-485 Pinout

11
11

12
12

2.5. Control LEDs 13

2.5.1. Definition of LEDs

13

3. Configuring the module 15

3.1. DIP-switches 15

3.2. The "special-mode" 16

3.3. Activating echo 16

3.4. Setting up Baud rate 17

3.5. Setting up module address (RS-485 only) 18

4. Software 20

4.1. Using our products 20

4.1.1. Access via graphical applications

20

Index | 2Seite

INDEX

4.1.2. Access via the DELIB driver library

4.1.3. Access via protocol

4.1.4. Access via provided test programs

20
20

21

4.2. DELIB driver library 22

4.2.1. Overview

4.2.2. Supported operating systems

4.2.3. Supported programming languages

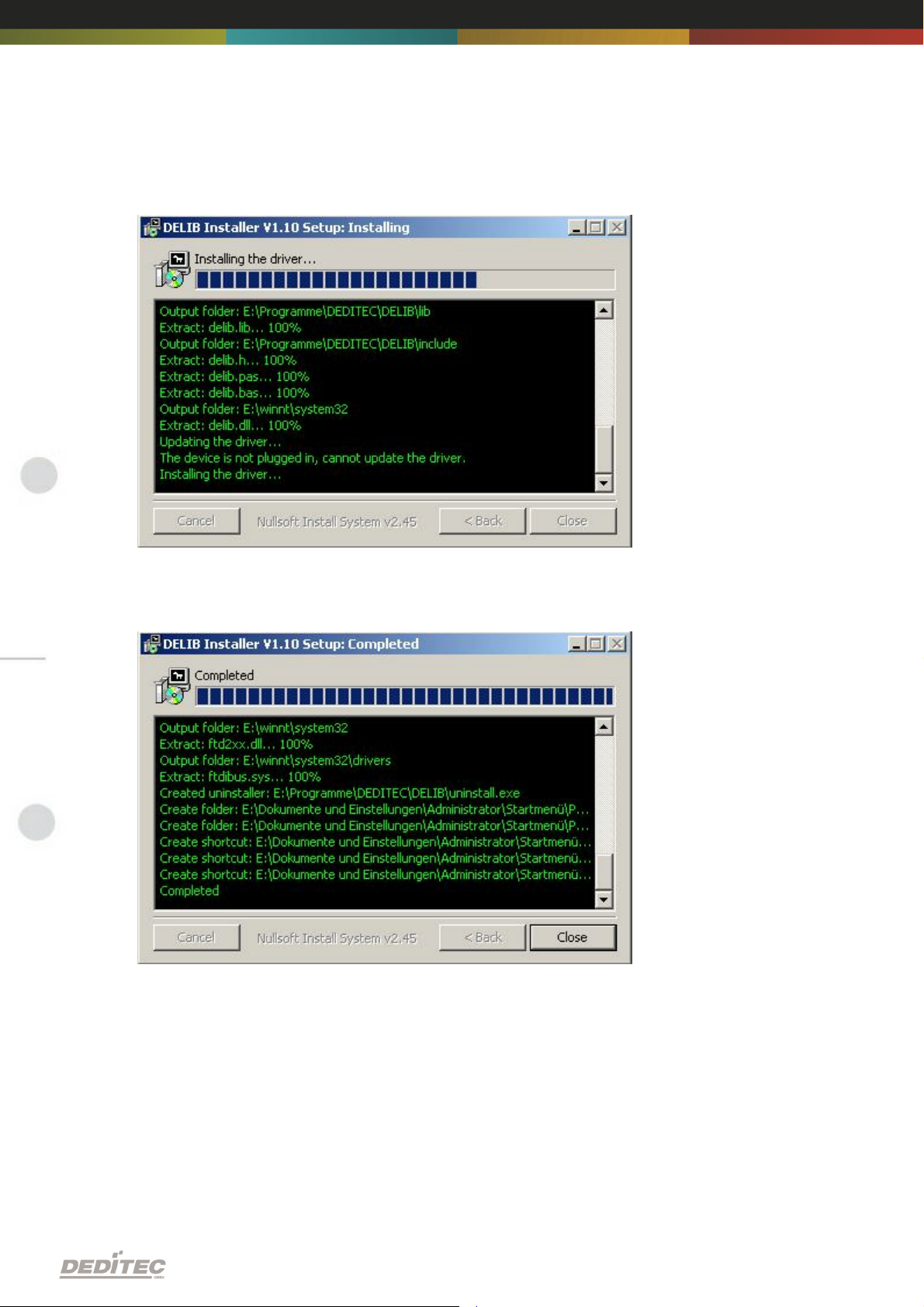

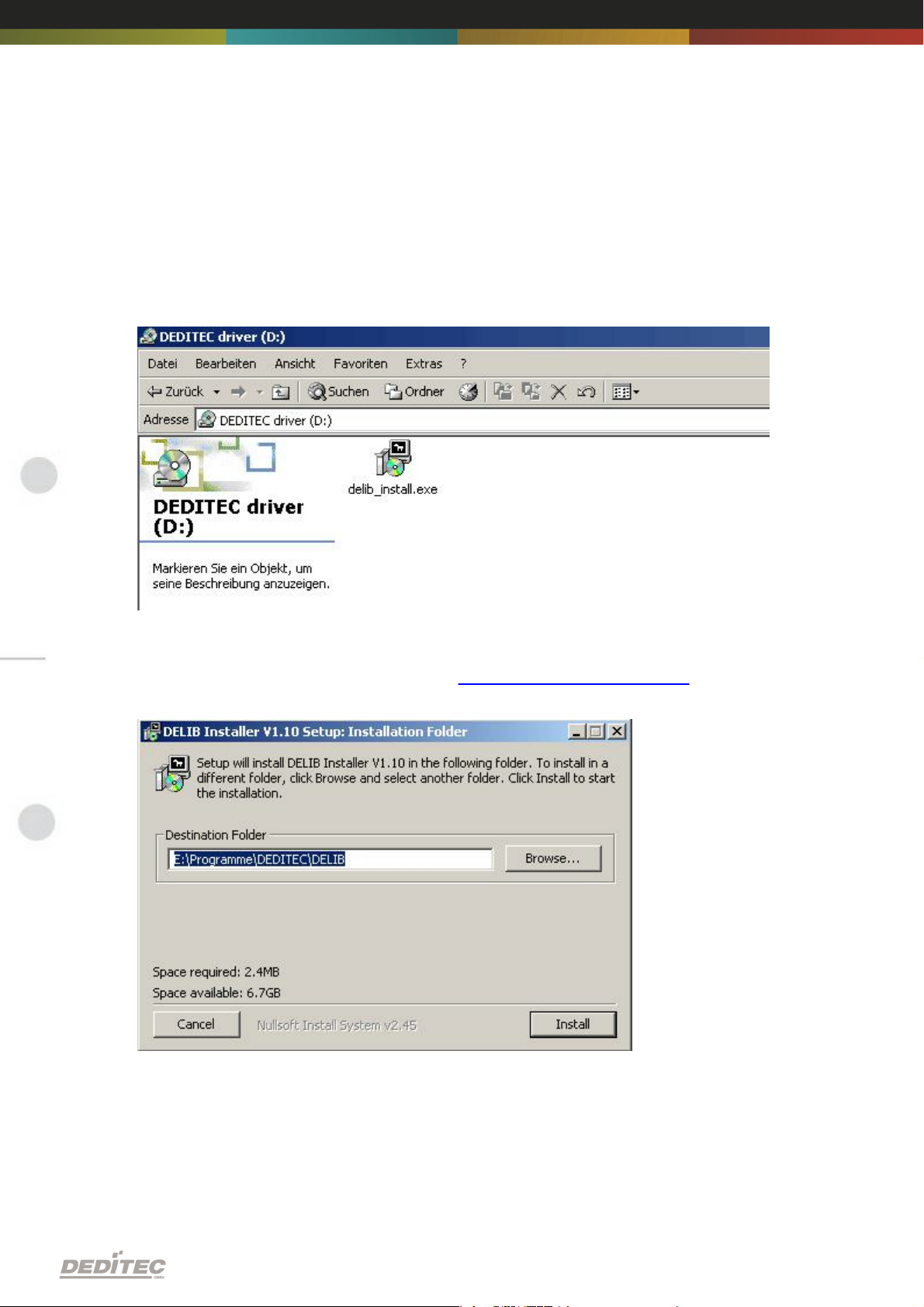

4.2.4. Installation DELIB driver library

4.2.5. DELIB Configuration Utility

22

24
24

25

27

4.3. Test programs 28

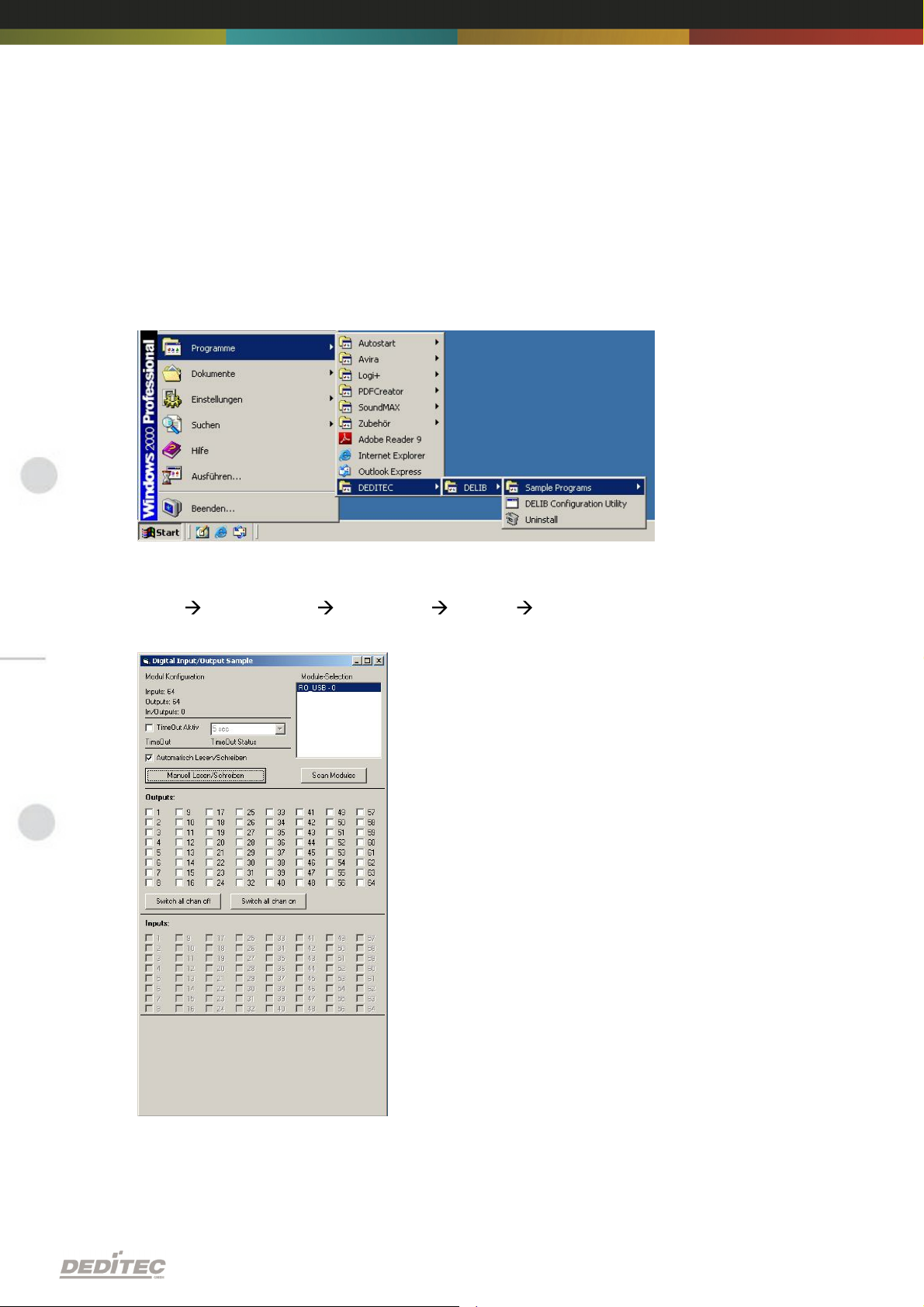

4.3.1. Digital Input-Output Demo

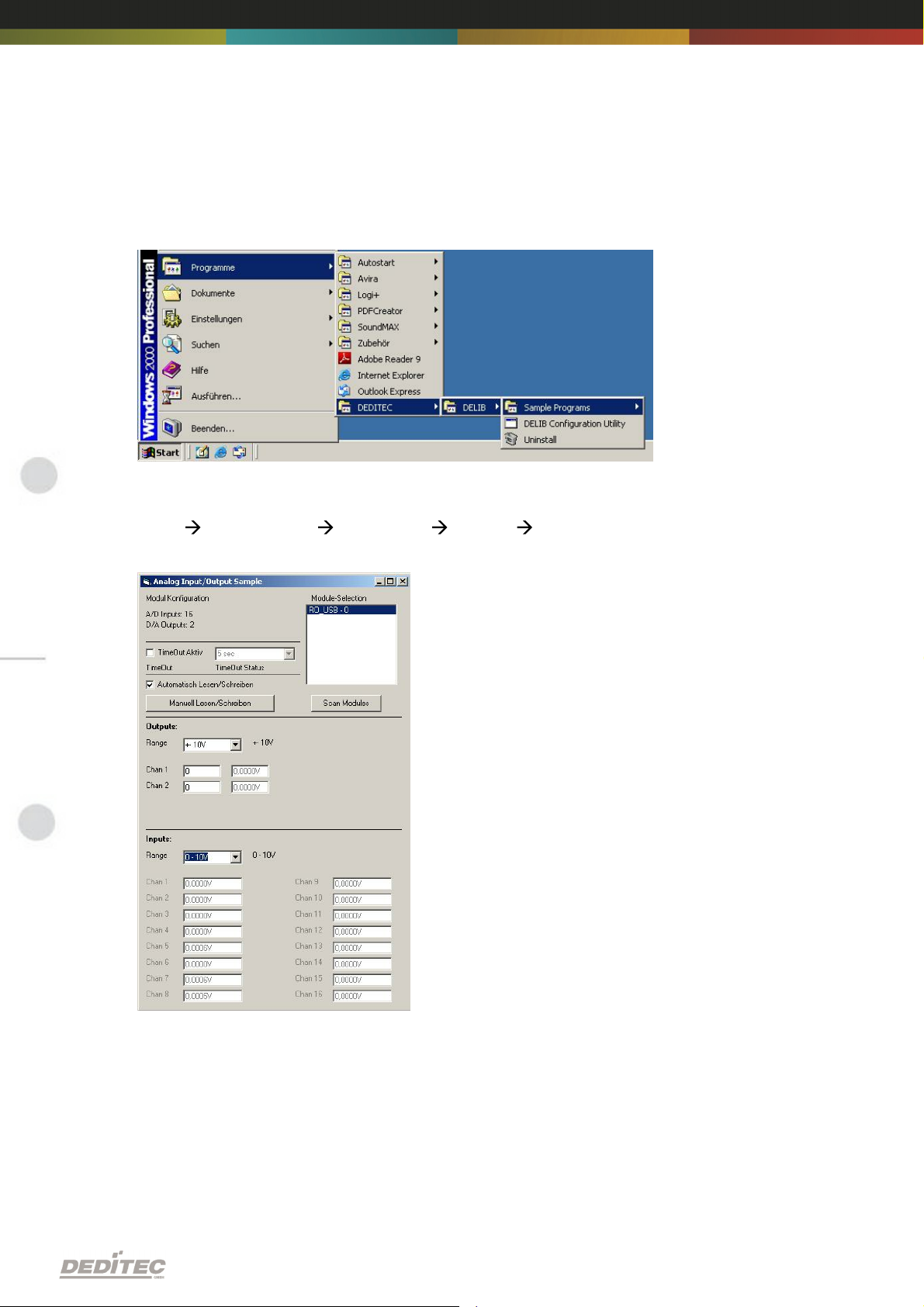

4.3.2. Analog Input-Output Demo

4.3.3. Stepper Demo

28
29
30

5. Appendix 32

5.1. Revisions 32

5.2. Copyrights and trademarks 33

Index | 3Seite

Introduction

I

Introduction | Seite 4

1. Introduction

1.1. General remarks

First of all, we would like to congratulate you to the purchase of a high quality
DEDITEC product.

Our products are being developed by our engineers according to quality
requirements of high standard. Already during design and development we take
care that our products have -besides quality- a long availability and an optimal
flexibility.

Modular design

The modular design of our products reduces the time and the cost of
development. Therefor we can offer you high quality products at a competitive
price.

Availability

Because of the modular design of our products, we have to redesign only a
module instead of the whole product, in case a specific component is no longer
available.

1.2. Customer satisfaction

Our philosophy: a content customer will come again. Therefor customer
satisfaction is in first place for us.

If by any chance, you are not content with the performance of our product,
please contact us by phone or mail immediately.

We take care of the problem.

1.3. Customer response

Our best products are co-developments together with our customers. Therefor
we are thankful for comments and suggestions.

Introduction | Seite 5

Hardware description

II

Hardware description |Seite 6

2. Hardware description

2.1. Overview screen

The figure shows the control module with RS-232/RS-485 interface (left side)
combined with an input/output module (right side).

The figure shows the control module with a RS-232/RS-485 interface (left side)
combined with a flexible conntector input/output module (right side).

Hardware description |Seite 7

2.2. Technical data

Single power supply +7V..+24V DC
7 control LEDs
RS-232/RS-485 interface
Easy to configure over DIP switches
Galvanically isolated interface using optocouplers
Connection through 9 pol. D-SUB connector
Timeout feature providing ability to disconnect outputs for safety reasons
Comfortable connector system with ejection mechanism
Expandable in 16 gradations
Can be combined without any problem to other modules of the RO series

Hardware description |Seite 8

2.3. Selecting between RS-232 or RS-485 interface

The factory setting mode of the interface is RS-232. The following describes
how to change the interface mode to RS-485.

Notice!

Bevore opening the device, please note the following:

Disconnect the power supply (unplug AC/DC adaptor)!

Do not touch electronic components. They could be destroyed by electrostatic
discharge! If necessary, touch grounded metal casings or radiators.

Remove a module‘s side element. Unscrew the three Phillips screws.

Pull the circuit board together with the front panel sideways out.

Lift the front panel from the module.

Next to the left side of the serial interface (D-SUB 9 pol. connector) is a 10pol.
header with corresponding jumpers. The following table shows, which jumpers
to plug-in.

Hardware description |Seite 9

Header

Interface

Set jumper

RS-232

Pin1 & Pin3

Pin2 & Pin4

RS-485

Resistance
terminator

Pin3 & Pin5

Pin4 & Pin6

Pin7 & Pin8

Pin9 & Pin10

Assembling the elements in done the reverse order.

Hardware description |Seite 10

2.4. Plug-in connector of the module

2.4.1. Power supply

The input-power-supply-range lies between +7V and +24V DC. Power supply
can be realized with a standard AC/DC adaptor with 1A output current. A
suitable plug-in connector is included.

2.4.2. RS-232/RS-485 Interface

The connection to the serial bus is realized through a 9 pol D-SUB conector. It
is galvanically isolated through optocouplers.

Hardware description |Seite 11

2.4.2.1. RS-232 Pinout

Pin2TX3RX5GND

Pin2RS-485 B

7

RS-485 A

5

GND

2.4.2.2. RS-485 Pinout

Hardware description |Seite 12

2.5. Control LEDs

LED

Description

3,3V

Internal 3,3V power supply

5V

Internal 5V power supply

Interface
Activity

Active communication over the RS-232/RS-485 bus

ERROR

Error during serial-transfer (for details see document ”Serial
protocol”)

Inputs:
Change

State change between 2 read-out cylces detected

Outputs:
Auto-Off

Due to timeout, all outputs are switched-off for safety
reasons

I/O Access

CPU-access on the inputs and outputs of the connected
modules

The RS-232/RS-485 module has a series of control LEDs. They are used for
easy visual indication of various state functions.

While switching the module on in normal operating mode, the module should
signalize the following sequence:

-

all five LEDs flashing briefly

-

right LED (I/O access) flashing briefly

In ”special mode”, the following signal sequence should be seen:

-

all five LEDs flashing briefly

-

right LED (I/O access) flashing briefly

-

all five LEDs flashing briefly

2.5.1. Definition of LEDs

Hardware description |Seite 13

Configuring the module

III

Configuring the module |Seite 14

3. Configuring the module

DIP-switch A8

DIP-switch A7

Description

ONONSpecial-mode
(115K baud rate, module-address = 0,
Echo = OFF)

ON

OFF

Only for SERVICE-purpose: application
won’t start. Forced into bootloader

OFF

ON

Use setup of DIP-switch A4..A1and B8..B1

OFF

OFF

Use setup of DIP-switch A4..A1and B8..B1

DIP-switch A6

Description

ON

Echo = ON, serial received characters are sent back
(Echo = OFF, if DIP A8 and A7 = ON)

OFF

Echo = OFF

DIP-switch

Description

A5

Reserved

A4 to A1

Setting up the baud rate

B8 to B1

Setting up the serial module number

In order to integrate a module into an existing bus system, it is necessary to first
assign a free module address and the appropriate bit rate. The ”special mode”
may be alternatively used to quickly operate the system.

3.1. DIP-switches

Some of the settings are easily configurable using DIP-switches. Configurable
are ”special mode”, the Baud rate, the module’s address or interface-specific
settings.

Configuring the module |Seite 15

3.2. The "special-mode"

The ”special mode” is to quickly and easily set the device to the default values.
This is helpfull for a quick and easy setup and facilitates an error analysis or an
initial operation.

This mode is active, if switching the DIP-switches A7 and A8 to ”ON. The
remaining DIP-switches are disabled.

The module is now set to a baud rate of 115Kbauds, the module number and
”echo” are inactive.

3.3. Activating echo

Received serial characters are returned back to display them on the monitor
(ON = yes, OFF = no).

Configuring the module |Seite 16

3.4. Setting up Baud rate

Baud rate

DIP-switch
A4

DIP-switch
A3

DIP-switch A2

DIP-switch A1

1,25 Mbit

OnOnOnOn625 Kbit

OnOnOn

Off

250 Kbit

OnOnOffOn125 Kbit

OnOnOff

Off

115200 Bit

On

OffOnOn

57600 Bit

On

OffOnOff

50000 Bit

On

Off

OffOn38400 Bit

On

Off

Off

Off

19200 Bit

OffOnOnOn9600 Bit

OffOnOn

Off

4800 Bit

OffOnOffOn2400 Bit

OffOnOff

Off

1200 Bit

Off

OffOnOn

600 Bit

Off

OffOnOff

300 Bit

Off

Off

Off

On

The table lists the possible Baud rates. The trasfer rate is set using the 4 DIP­switches (A1 to A4).

Configuring the module |Seite 17

3.5. Setting up module address (RS-485 only)

Baud rate

BIt

Value ON

Value OFF

DIP-switch B8

Bit 7

128

0

DIP-switch B7

Bit 6

640DIP-switch B6

Bit 5

320DIP-switch B5

Bit 4

160DIP-switch B4

Bit 3

80DIP-switch B3

Bit 2

40DIP-switch B2

Bit 1

20DIP-switch B1

Bit 0

1

0

Baud rate

Address 0

Address 25

Address 237

DIP-switch B8

Off

OffOnDIP-switch B7

Off

OffOnDIP-switch B6

Off

OffOnDIP-switch B5

OffOnOff

DIP-switch B4

OffOnOn

DIP-switch B3

Off

OffOnDIP-switch B2

Off

Off

Off

DIP-switch B1

OffOnOn

The operation in RS-485 mode allows to connect several modules to the bus. It
is therefore necessary to assign an individual address to each module. This is
realized by means of DIP-switches B1 to B8, resulting in a range of 0 to 255.
The module-no. 0 is ignored, i.e. any no. will address the module.

Examples:

Configuring the module |Seite 18

Software

IV

Software | Seite 19

4. Software

4.1. Using our products

4.1.1. Access via graphical applications

We provide driverinterfaces e.g. for LabVIEW and ProfiLab. The DELIB driver
library is the basis, which can be directly activated by ProfiLAB.

For LabVIEW, we provide a simple driver connection with examples!

4.1.2. Access via the DELIB driver library

In the appendix, you can find the complete function reference for the integration
of our API-functions in your software. In addition we provide examples for the
following programming languages:

C
C++
C#
Delphi
VisualBasic
VB.NET
MS-Office

4.1.3. Access via protocol

The protocol for the activation of our products is open source. So you are able
to use our products on systems without Windows or Linux.

Software | Seite 20

4.1.4. Access via provided test programs

We provide simple handling test programs for the most important functions of
our products. These will be installed automatically by the installation of the
DELIB driver library.

So you can test directly e.g. relays or you can check the voltage of an A/D
converter.

Software | Seite 21

4.2. DELIB driver library

4.2.1. Overview

The following figure explains the structure of the DELIB driver library

The DELIB driver library allows an uniform response of DEDITEC hardware with
particular consideration of the following viewpoints:

Independent of operating system
Independent of programming language
Independent of the product

Program under diverse operating systems

The DELIB driver library allows an uniform response of our products on diverse
operating systems.

We has made sure, that all of our products can be responded by a few
commands.
Whatever which operating system you use. - Therefore the DELIB cares!

Software | Seite 22

Program with diverse programming languages

We provide uniform commands to create own applications. This will be solved
by the DELIB driver library.

You choose the programming language!

It can be simply developed applications under C++, C, Visual Basic, Delphi or
LabVIEW®.

Program independent of the interface

Write your application independent of the interface !
Program an apllication for an USB product of us. - Also, it will work with an

ethernet or RS-232 product of us !

SDK-Kit for Programmer

Integrate the DELIB in your application. On demand you receive an installation
script for free, which allows you, to integrate the DELIB installation in your
apllication.

Software | Seite 23

4.2.2. Supported operating systems

Our products support the following operating systems:

Windows 2000
Windows XP
Windows Vista
Windows 7
Linux

4.2.3. Supported programming languages

Our products are responsive via the following programming languages:

C
C++
C#
Delphi
VisualBasic
VB.NET
MS-Office

Software | Seite 24

4.2.4. Installation DELIB driver library

DELIB stands for DEDITEC Library and contains the necessary libraries for the
modules in the programming languages C, Delphi and Visual Basic.

Insert the DEDITEC driver CD into the drive and start „delib_install.exe“. The
DELIB driver library is also available on http://www.deditec.en/delib

Click on „Install“.

Software | Seite 25

The drivers will be installed.

The DELIB driver library is now installed. Press „Close“ to finish the installation.

You can configure your module with the „DELIB Configuration Utility“ (see
next chapter). This is only necessary, if more than one module is present.

Software | Seite 26

4.2.5. DELIB Configuration Utility

Start the “DELIB Configuration Utility” as follows:
Start Programs DEDITEC DELIB DELIB Configuration Utility.

The „DELIB Configuration Utility“ is a program to configure and subdivide
identical USB-modules in the system. This is only necessary if more than one
module is present.

Software | Seite 27

4.3. Test programs

4.3.1. Digital Input-Output Demo

Start “Digital Input-Output Demo” as follows:
Start Programme DEDITEC DELIB Digital Input-Output Demo.

The screenshot shows a test of the RO-USB-O64-R64. The configuration of the
module (64 inputs and 64 outputs) is shown on the upper left side.

Software | Seite 28

4.3.2. Analog Input-Output Demo

Start “Analog Input-Output Demo” as follows:
Start Programme DEDITEC DELIB Analog Input-Output Demo.

The screenshot shows a test of the RO-USB-AD16-DA2_ISO. The configuration
of the module (16 A/D inputs and 2 D/A outputs) is shown on the upper left side.

Software | Seite 29

4.3.3. Stepper Demo

Start “Stepper Demo” as follows:
Start Programme DEDITEC DELIB Stepper Demo.

The screenshot shows a test of the RO-USB-STEPPER2. The configuration of
the module (2 Stepper) is shown on the upper left side.

Software | Seite 30

Appendix

V

Appendix | Seite 31

5. Appendix

5.1. Revisions

Rev 1.00 First issue
Rev 2.00 Design change

Appendix | Seite 32

5.2. Copyrights and trademarks

Linux is registered trade-mark of Linus Torvalds.

Windows CE is registered trade-mark of Microsoft Corporation.

USB is registered trade-mark of USB Implementers Forum Inc.

LabVIEW is registered trade-mark of National Instruments.

Intel is registered trade-mark of Intel Corporation

AMD is registered trade-mark of Advanced Micro Devices, Inc.

Appendix | Seite 33

RO-DIGITAL-IN-OUT

Hardware-Description

2010

Oktober

INDEX

1. Introduction 6

1.1. General remarks 6

1.2. Customer satisfaction 6

1.3. Customer response 6

2. Hardware description 8

2.1. Opto-coupler inputs 9

2.1.1. Overview screen

2.1.2. Technical data

2.1.3. 16-bit counter

2.1.4. Registering short input pulses

2.1.5. Galvanically decouppled through optocouplers

2.1.6. Plug-in connector on the module

2.1.6.1. Connection wiring

2.1.6.2. Visual control of the inputs

2.1.6.3. Pinout

2.1.7. Variable input voltage range

2.1.7.1. Changing the input voltage

10

11
11
11

12

12

13
13

13

14

2.2. Relay outputs 15

2.2.1. Overview screen

2.2.2. Technical data

2.2.3. Timeout-protection

2.2.4. Plug-in connector on the module

2.2.4.1. Relay-outputs (galvanically decoupled, max.
1A)

2.2.4.2. Connection wiring

2.2.4.3. Visual control of the outputs

2.2.4.4. Pinout

15
16

17
17

17
18
18
18

9

2.3. MOSFET outputs 19

2.3.1. Overview screen

2.3.2. Technical data

2.3.3. Timeout-protection

2.3.4. Plug-in connector on the module

19

20

21
21

Index | 2Seite

INDEX

2.3.4.1. Optocoupler-outputs (galvanically isolated,
max. 2A DC)

2.3.4.2. Connection wiring

2.3.4.3. Pinout

3. Software 24

3.1. Using our products 24

21

22
22

3.1.1. Access via graphical applications

3.1.2. Access via the DELIB driver library

3.1.3. Access via protocol

3.1.4. Access via provided test programs

24
24
24

25

3.2. DELIB driver library 26

3.2.1. Overview

3.2.2. Supported operating systems

3.2.3. Supported programming languages

3.2.4. Installation DELIB driver library

3.2.5. DELIB Configuration Utility

26
28
28
29

31

3.3. Test programs 32

3.3.1. Digital Input-Output Demo

32

4. DELIB API reference 34

4.1. Management functions 34

4.1.1. DapiOpenModule

4.1.2. DapiCloseModule

4.2. Error handling 36

34

35

4.2.1. DapiGetLastError

4.2.2. DapiGetLastErrorText

36

37

4.3. Reading Digital inputs 38

4.3.1. DapiDIGet1

4.3.2. DapiDIGet8

4.3.3. DapiDIGet16

4.3.4. DapiDIGet32

4.3.5. DapiDIGet64

4.3.6. DapiDIGetFF32

4.3.7. DapiDIGetCounter

38
39

40

41
42
43

44

Index | 3Seite

INDEX

4.4. Setting Digital outputs 45

4.4.1. DapiDOSet1

4.4.2. DapiDOSet8

4.4.3. DapiDOSet16

4.4.4. DapiDOSet32

4.4.5. DapiDOSet64

4.4.6. DapiDOReadback32

4.4.7. DapiDOReadback64

45
46

47
48
49

50

51

4.5. Output timeout management 52

4.5.1. DapiSpecialCMDTimeout

4.5.2. DapiSpecialCMDTimeoutGetStatus

52
53

4.6. Test functions 54

4.6.1. DapiPing

54

4.7. Example program 55

5. Appendix 58

5.1. Revisions 58

5.2. Copyrights and trademarks 59

Index | 4Seite

Introduction

I

Introduction | Seite 5

1. Introduction

1.1. General remarks

First of all, we would like to congratulate you to the purchase of a high quality
DEDITEC product.

Our products are being developed by our engineers according to quality
requirements of high standard. Already during design and development we take
care that our products have -besides quality- a long availability and an optimal
flexibility.

Modular design

The modular design of our products reduces the time and the cost of
development. Therefor we can offer you high quality products at a competitive
price.

Availability

Because of the modular design of our products, we have to redesign only a
module instead of the whole product, in case a specific component is no longer
available.

1.2. Customer satisfaction

Our philosophy: a content customer will come again. Therefor customer
satisfaction is in first place for us.

If by any chance, you are not content with the performance of our product,
please contact us by phone or mail immediately.

We take care of the problem.

1.3. Customer response

Our best products are co-developments together with our customers. Therefor
we are thankful for comments and suggestions.

Introduction | Seite 6

Hardware description

II

Hardware description |Seite 7

2. Hardware description

Using the in-/output modules is based on two 16 pol. connectors with each 8
different current circuits. Each state of these (total 16) current circuits is
signalized by a LED. The modules are numbered from left to right (see overview
screen).

Hardware description |Seite 8

2.1. Opto-coupler inputs

2.1.1. Overview screen

The figure shows two modules next to each other with corresponding
numbering of the terminal blocks.

The lower figure shows a flexible conntector module with 32 outputs and
corresponding numbered ports. Each outer end of the module has a 26 pol. wire
trap connector. Thus, multiple modules can be connected in series using a
ribbon cable for each connection.

Hardware description |Seite 9

2.1.2. Technical data

Variable power supply min. 5V, max. 30V AC
16-bit counter for the first 16 input channels
Pulse-detection between 2 read out cycles, indicated by LED
LED status indication of the inputs
Galvanically isolated using optocouplers
Comfortable connector system with ejection mechanism
Expandable in 16 gradations
Can be combined without any problem to other modules of the RO series

Hardware description |Seite 10

2.1.3. 16-bit counter

The first 16 input channels have each a 16 bit counter. Thus, events as light
barriers, turnstiles or push-buttons are counted. Easy logical circuits are
realizable, which may e.g. switch one or several outputs, if a counter reached a
certain amount (set-point is reached). Please refer to the manual ”RO-series” to
implement such logical circuits into software.

2.1.4. Registering short input pulses

Short input pulses between to read-out cycles are registered through an
additional logic and can be separately read-out. A registered pulse on one or
more inputs is signalized by the LED ”Inputs: Change” on the control module.
The LED is extinguishing, if the software-register of the input state change is
read out by the user. For more indformation, see ”Register assignment”.

2.1.5. Galvanically decouppled through optocouplers

AC input optocouplers provide a galvanic isolation of the module towards the
connected equipment. They also provide a safe connection to the module for
reverse currents and high voltage peaks.

Hardware description |Seite 11

2.1.6. Plug-in connector on the module

As terminal block, user-friendly terminal strips with locking protection and
ejection mechanism are used. They are reverse-polarity protected and allow
quick replugging. The wire connection itself is realised with a screwless
connector system. A tool is included with each module.

2.1.6.1. Connection wiring

Connecting the wires is to be effected at the ports with the same numbering, for

example: 1a & 1b, 2a & 2b. ...

The optocoupler inputs are suitable for AC voltage. Therefore it is not necessary
to take care of the connection polarity.

The figure shows two terminal blocks with numbered connection ports.

Hardware description |Seite 12

2.1.6.2. Visual control of the inputs

Port

Pin

Port

Pin11a & 1b

9

9a & 9b

2

2a & 2b

10

10a & 10b

3

3a & 3b

11

11a & 11b

4

4a & 4b

12

12a & 12b

5

5a & 5b

13

13a & 13b

6

6a & 6b

14

14a & 14b

7

7a & 7b

15

15a & 15b

8

8a & 8b

16

16a & 16b

Input voltage range

5V – 15V

15V – 30V

Resistance value

1K

2K2

The state of each input is directly signalized by a separate LED. This simplifies
to detect and rectify wiring errors, because the signals on the cables are directly
observable.

2.1.6.3. Pinout

2.1.7. Variable input voltage range

The factory-default of the inputs is set to a voltage range of 15V to 30V. This
may be changed to a range of 5V to 15V (even afterward).

Hardware description |Seite 13

2.1.7.1. Changing the input voltage

Each terminal block has 8 inputs sudivided in two groups and each group has its
own input voltage range (resulting groups: 1-4, 5-8, 9-12 und 13-16). Each
group‘s input voltage range is defined by a corresponding resistor network.

The following steps describes how to exchange one or more resistor networks.

Notice!

Bevore opening the device, please note the following:

Disconnect the power supply (unplug AC/DC adaptor)!

Do not touch electronic components. They could be destroyed by electrostatic
discharge! If necessary, touch grounded metal casings or radiators.

Remove a module‘s side element. Unscrew the three Phillips screws.

Pull the circuit board together with the front panel sideways out.

Lift the front panel from the module.

Every input module has two single rowed socket terminal strips in which the
resistor networks are plugged in. Please carefully remove the desired resistor
network and replace them it appropriate one.

Assembling the elements in done the reverse order.

Hardware description |Seite 14

2.2. Relay outputs

2.2.1. Overview screen

The figure shows two modules next to each other with corresponding
numbering of the terminal blocks.

The lower figure shows a flexible conntector module with 32 outputs and
corresponding numbered ports. Each outer end of the module has a 26 pol. wire
trap connector. Thus, multiple modules can be connected in series using a
ribbon cable for each connection.

Hardware description |Seite 15

2.2.2. Technical data

Timeout-protection
LED status indication of the outputs
Galvanically isolated using optocouplers
Comfortable connector system with ejection mechanism
Expandable in 16 gradations
Can be combined without any problem to other modules of the RO series
Max. switching voltage: 36V
Max. switching current: 1A
Max. switching power: 20W
Switching cycles according to the manufacturer: 10 Mio.

Hardware description |Seite 16

2.2.3. Timeout-protection

The timeout-protection gives the possibility to switch-off automatically the
outputs on its own to prevent damage. This takes place, if in a predefined time
frame no communication with the module was possible. Reasons could be cable
disruption, PC-crash and more. This way damage control, surcharge of
connected equipment and risk of accidents can be avoided. Switching off the
outputs is indicated by a LED.

2.2.4. Plug-in connector on the module

As terminal block, user-friendly terminal strips with locking protection and
ejection mechanism are used. They are reverse-polarity protected and allow
quick replugging. The wire connection itself is realised with a screwless
connector system. A tool is included with each module.

2.2.4.1. Relay-outputs (galvanically decoupled, max. 1A)

The relays are able to switch voltages up to 36V. The max. current is 1A at a
max. power of 20W.

Additionally, the relays provide a safe electrical isolation of the module to the
connected equipment.

Hardware description |Seite 17

2.2.4.2. Connection wiring

Port

Pin

Port

Pin11a & 1b

9

9a & 9b

2

2a & 2b

10

10a & 10b

3

3a & 3b

11

11a & 11b

4

4a & 4b

12

12a & 12b

5

5a & 5b

13

13a & 13b

6

6a & 6b

14

14a & 14b

7

7a & 7b

15

15a & 15b

8

8a & 8b

16

16a & 16b

Connecting the wires is to be effected at the ports with the same numbering, for

example: 1a & 1b, 2a & 2b. ...

It is not necessary to take care to the correct polarity.

2.2.4.3. Visual control of the outputs

The state of each output is directly signalized by a separate LED. This simplifies
to detect and rectify wiring errors, because the signals on the cables are directly
observable.

2.2.4.4. Pinout

Hardware description |Seite 18

2.3. MOSFET outputs

2.3.1. Overview screen

The figure shows two modules next to each other with corresponding
numbering of the terminal blocks.

The lower figure shows a flexible conntector module with 32 outputs and
corresponding numbered ports. Each outer end of the module has a 26 pol. wire
trap connector. Thus, multiple modules can be connected in series using a
ribbon cable for each connection.

Hardware description |Seite 19

2.3.2. Technical data

Timeout-protection
LED status indication of the outputs
Galvanically isolated using optocouplers
Comfortable connector system with ejection mechanism
Expandable in 16 gradations
Can be combined without any problem to other modules of the RO series
Max. switching voltage: 30V DC
Max. switching current: 2A DC
Max. switching power: 40W

Hardware description |Seite 20

2.3.3. Timeout-protection

The timeout-protection gives the possibility to switch-off automatically the
outputs on its own to prevent damage. This takes place, if in a predefined time
frame no communication with the module was possible. Reasons could be cable
disruption, PC-crash and more. This way damage control, surcharge of
connected equipment and risk of accidents can be avoided. Switching off the
outputs is indicated by a LED.

2.3.4. Plug-in connector on the module

As terminal block, user-friendly terminal strips with locking protection and
ejection mechanism are used. They are reverse-polarity protected and allow
quick replugging. The wire connection itself is realised with a screwless
connector system. A tool is included with each module.

2.3.4.1. Optocoupler-outputs (galvanically isolated, max. 2A DC)

Every output is realized using high current optocouplers. Using optocouplers
provides a secure galvanical decoupling of the module-driven equipment to the
module itself.

Pay attention to the optocoupler’s output polarity while wiring (see figure below)!

Hardware description |Seite 21

2.3.4.2. Connection wiring

Port

Pin

Port

Pin11a & 1b

9

9a & 9b

2

2a & 2b

10

10a & 10b

3

3a & 3b

11

11a & 11b

4

4a & 4b

12

12a & 12b

5

5a & 5b

13

13a & 13b

6

6a & 6b

14

14a & 14b

7

7a & 7b

15

15a & 15b

8

8a & 8b

16

16a & 16b

Connecting the wires is to be effected at the ports with the same numbering, for
example: 1a & 1b, 2a & 2b, ... Pay attention to the optocoupler’s output polarity
while wiring, else the outputs will get damaged. Connect the positive voltage to
port ”a”, and the switched positive voltage to port ”b”.

2.3.4.3. Pinout

Hardware description |Seite 22

Software

III

Software | Seite 23

3. Software

3.1. Using our products

3.1.1. Access via graphical applications

We provide driverinterfaces e.g. for LabVIEW and ProfiLab. The DELIB driver
library is the basis, which can be directly activated by ProfiLAB.

For LabVIEW, we provide a simple driver connection with examples!

3.1.2. Access via the DELIB driver library

In the appendix, you can find the complete function reference for the integration
of our API-functions in your software. In addition we provide examples for the
following programming languages:

C
C++
C#
Delphi
VisualBasic
VB.NET
MS-Office

3.1.3. Access via protocol

The protocol for the activation of our products is open source. So you are able
to use our products on systems without Windows or Linux.

Software | Seite 24

3.1.4. Access via provided test programs

We provide simple handling test programs for the most important functions of
our products. These will be installed automatically by the installation of the
DELIB driver library.

So you can test directly e.g. relays or you can check the voltage of an A/D
converter.

Software | Seite 25

3.2. DELIB driver library

3.2.1. Overview

The following figure explains the structure of the DELIB driver library

The DELIB driver library allows an uniform response of DEDITEC hardware with
particular consideration of the following viewpoints:

Independent of operating system
Independent of programming language
Independent of the product

Program under diverse operating systems

The DELIB driver library allows an uniform response of our products on diverse
operating systems.

We has made sure, that all of our products can be responded by a few
commands.
Whatever which operating system you use. - Therefore the DELIB cares!

Software | Seite 26

Program with diverse programming languages

We provide uniform commands to create own applications. This will be solved
by the DELIB driver library.

You choose the programming language!

It can be simply developed applications under C++, C, Visual Basic, Delphi or
LabVIEW®.

Program independent of the interface

Write your application independent of the interface !
Program an apllication for an USB product of us. - Also, it will work with an

ethernet or RS-232 product of us !

SDK-Kit for Programmer

Integrate the DELIB in your application. On demand you receive an installation
script for free, which allows you, to integrate the DELIB installation in your
apllication.

Software | Seite 27

3.2.2. Supported operating systems

Our products support the following operating systems:

Windows 2000
Windows XP
Windows Vista
Windows 7
Linux

3.2.3. Supported programming languages

Our products are responsive via the following programming languages:

C
C++
C#
Delphi
VisualBasic
VB.NET
MS-Office

Software | Seite 28

3.2.4. Installation DELIB driver library

DELIB stands for DEDITEC Library and contains the necessary libraries for the
modules in the programming languages C, Delphi and Visual Basic.

Insert the DEDITEC driver CD into the drive and start „delib_install.exe“. The
DELIB driver library is also available on http://www.deditec.en/delib

Click on „Install“.

Software | Seite 29

The drivers will be installed.

The DELIB driver library is now installed. Press „Close“ to finish the installation.

You can configure your module with the „DELIB Configuration Utility“ (see
next chapter). This is only necessary, if more than one module is present.

Software | Seite 30

3.2.5. DELIB Configuration Utility

Start the “DELIB Configuration Utility” as follows:
Start Programs DEDITEC DELIB DELIB Configuration Utility.

The „DELIB Configuration Utility“ is a program to configure and subdivide
identical USB-modules in the system. This is only necessary if more than one
module is present.

Software | Seite 31

3.3. Test programs

3.3.1. Digital Input-Output Demo

Start “Digital Input-Output Demo” as follows:
Start Programme DEDITEC DELIB Digital Input-Output Demo.

The screenshot shows a test of the RO-USB-O64-R64. The configuration of the
module (64 inputs and 64 outputs) is shown on the upper left side.

Software | Seite 32

DELIB API reference

IV

DELIB API reference | Seite 33

4. DELIB API reference

// USB-Modul öffnen
handle = DapiOpenModule(RO_USB1, 0);
printf("handle = %x\n", handle);
if (handle==0)
{
// USB Modul wurde nicht gefunden
printf("Modul konnte nicht geöffnet werden\n");
return;
}

4.1. Management functions

4.1.1. DapiOpenModule

Description

This function opens a particular module.

Definition

ULONG DapiOpenModule(ULONG moduleID, ULONG nr);

Parameters

moduleID=Specifies the module, which is to be opened (see delib.h)
nr=Indicates No of module which is to be opened.
nr=0 -> 1. module
nr=1 -> 2. module

Return value

handle=handle to the corresponding module
handle=0 -> Module was not found

Remarks

The handle returned by this function is needed to identify the module for all
other functions.

Example program

DELIB API reference | Seite 34

4.1.2. DapiCloseModule

// Close the module
DapiCloseModule(handle);

Description

This command closes an opened module.

Definition

ULONG DapiCloseModule(ULONG handle);

Parameters

handle=This is the handle of an opened module

Return value

none

Example program

DELIB API reference | Seite 35

4.2. Error handling

ULONG error;
error=DapiGetLastError();
if(error==0) return FALSE;
printf("ERROR = %d", error);

4.2.1. DapiGetLastError

Description

This function returns the last registered error.

Definition

ULONG DapiGetLastError();

Parameters

None

Return value

Error code
0=no error. (see delib.h)

Example program

DELIB API reference | Seite 36

4.2.2. DapiGetLastErrorText

BOOL IsError ()
{
if (DapiGetLastError () != DAPI_ERR_NONE)

{
unsigned char msg[500];

DapiGetLastErrorText((unsigned char*) msg, sizeof(msg));
printf ("Error Code = %x * Message = %s\n", 0, msg);
return TRUE;

}
return FALSE;
}

Description

This function reads the text of the last registered error.

Definition

extern ULONG __stdcall DapiGetLastErrorText(unsigned char * msg, unsigned long msg_length);

Parameters

msg = text buffer
msg_length = length of the buffer

Example program

DELIB API reference | Seite 37

4.3. Reading Digital inputs

4.3.1. DapiDIGet1

Description

This command reads a single digit input.

Definition

ULONG DapiDIGet1(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the number of input that is to be read (0 ..).

Return value

State of the input (0 / 1).

DELIB API reference | Seite 38

4.3.2. DapiDIGet8

Description

This command reads 8 digital inputs simultaneously.

Definition

ULONG DapiDIGet8(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the number of the input, from which it begins to read from (0, 8,

16, 24, 32, ..)

Return value

State of the read inputs.

DELIB API reference | Seite 39

4.3.3. DapiDIGet16

Description

This command reads 16 digital inputs simultaneously.

Definition

ULONG DapiDIGet16(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the number of the input, from which it begins to read from (0, 16,

32, ..)

Return value

State of the read inputs.

DELIB API reference | Seite 40

4.3.4. DapiDIGet32

unsigned long data;
// ---------------------------------------------------­// Einen Wert von den Eingängen lesen (Eingang 1-31)
data = (unsigned long) DapiDIGet32(handle, 0);
// Chan Start = 0
printf("Eingang 0-31 : 0x%x\n", data);
printf("Taste für weiter\n");
getch();
// ---------------------------------------------------­// Einen Wert von den Eingängen lesen (Eingang 32-64)
data = (unsigned long) DapiDIGet32(handle, 32);
// Chan Start = 32
printf("Eingang 32-64 : 0x%x\n", data);
printf("Taste für weiter\n");
getch();

Description

This command reads 32 digital inputs simultaneously.

Definition

ULONG DapiDIGet32(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the number of the input, from which it begins to read from (0, 32,

64, ..)

Return value

State of the read inputs.

Example program

DELIB API reference | Seite 41

4.3.5. DapiDIGet64

Description

This command reads 64 digital inputs simultaneously.

Definition

ULONGLONG DapiDIGet64(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the number of the input,from which it begins to read from (0, 64, ..)

Return value

State of the read inputs.

DELIB API reference | Seite 42

4.3.6. DapiDIGetFF32

Description

This command reads the flip-flops from the inputs and resets them. (Input state
change).

Definition

ULONGLONG DapiDIGet64(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module .
ch=Specifies the number of the input, from which it begins to read from (0, 32,

..)

Return value

State of 32 input change states

DELIB API reference | Seite 43

4.3.7. DapiDIGetCounter

value = DapiDIGetCounter(handle, 0 ,0);
// Reading counter of DI Chan 0

value = DapiDIGetCounter(handle, 1 ,0);
// Reading counter of DI Chan 1

value = DapiDIGetCounter(handle, 8 ,0);
// Reading counter of DI Chan 8

value = DapiDIGetCounter(handle, 0 ,DAPI_CNT_MODE_READ_WITH_RESET);
// Reading AND resetting counter of DI Chan 0

Description

This command reads the counter of a digital input

Definition

ULONG DapiDIGetCounter(handle, ch, par1);

Parameters

handle=This is the handle of an opened module.
ch=Specifies the digital input, from which the counter will be read
par1=0 (Normal counter function)
par1=DAPI_CNT_MODE_READ_WITH_RESET (Reading and resetting the

counter)

Return value

Value of the counter.

Example program

DELIB API reference | Seite 44

4.4. Setting Digital outputs

4.4.1. DapiDOSet1

Description

This is the command to set a single output.

Definition

void DapiDOSet1(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the output to be set to (0 ..)
data=Specifies the data value that is to be written (0 / 1)

Return value

None

DELIB API reference | Seite 45

4.4.2. DapiDOSet8

Description

This command sets 8 digital outputs simultaneously.

Definition

void DapiDOSet8(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the output, from which it begins to write to (0, 8, 16,

24, 32, ..)
data=Specifies the data values, to write to the outputs

Return value

None

DELIB API reference | Seite 46

4.4.3. DapiDOSet16

Description

This command sets 16 digital outputs simultaneously.

Definition

void DapiDOSet16(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the output, from which it begins to write to (0, 16,

32, ..)
data=Specifies the data values, to write to the outputs

Return value

None

DELIB API reference | Seite 47

4.4.4. DapiDOSet32

// Einen Wert auf die Ausgänge schreiben
data = 0x0000ff00; // Ausgänge 9-16 werden auf 1 gesetzt
DapiDOSet32(handle, 0, data); // Chan Start = 0
printf("Schreibe auf Ausgänge Daten=0x%x\n", data);
printf("Taste für weiter\n");
getch();
// ---------------------------------------------------­// Einen Wert auf die Ausgänge schreiben
data = 0x80000000; // Ausgang 32 wird auf 1 gesetzt
DapiDOSet32(handle, 0, data); // Chan Start = 0
printf("Schreibe auf Ausgänge Daten=0x%x\n", data);
printf("Taste für weiter\n");
getch();
// ---------------------------------------------------­// Einen Wert auf die Ausgänge schreiben
data = 0x80000000; // Ausgang 64 wird auf 1 gesetzt
DapiDOSet32(handle, 32, data); // Chan Start = 32
printf("Schreibe auf Ausgänge Daten=0x%x\n", data);
printf("Taste für weiter\n");
getch();

Description

This command sets 32 digital outputs simultaneously.

Definition

void DapiDOSet32(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the output, from which it begins to write to (0, 32,

64, ..)
data=Specifies the data values, to write to the outputs

Return value

None

Example program

DELIB API reference | Seite 48

4.4.5. DapiDOSet64

Description

This command is to set 64 digital outputs.

Definition

void DapiDOSet64(ULONG handle, ULONG ch, ULONG data);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the output, from which it begins to write to (0, 64, ..)
data=Specifies the data values, to write to the outputs

Return value

None

DELIB API reference | Seite 49

4.4.6. DapiDOReadback32

Description

This command reads back the 32 digital outputs.

Definition

ULONG DapiDOReadback32(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the input, from which it begins to read from (0, 32,

..)

Return value

Status of 32 outputs.

DELIB API reference | Seite 50

4.4.7. DapiDOReadback64

Description

This command reads back the 64 digital outputs.

Definition

ULONGLONG DapiDOReadback64(ULONG handle, ULONG ch);

Parameters

handle=This is the handle of an opened module
ch=Specifies the number of the input, from which it begins to read from (0, 64,

..)

Return value

Status of 64 outputs.

DELIB API reference | Seite 51

4.5. Output timeout management

DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT,
DAPI_SPECIAL_TIMEOUT_SET_VALUE_SEC, 3, 7);
//Die Zeit des Timeouts wird auf 3,7sek gesetzt.
DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT,
DAPI_SPECIAL_TIMEOUT_ACTIVATE, 0, 0);
//Der Timeout wird aktiviert.
DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT,
DAPI_SPECIAL_TIMEOUT_DEACTIVATE, 0, 0);
//Der Timeout wird deaktiviert.

4.5.1. DapiSpecialCMDTimeout

Description

This command serves to set the timeout time

Definition

DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT, cmd, par1, par2);

Parameters

handle=This is the handle of an opened module

Set timeout time

cmd=DAPI_SPECIAL_CMD_TIMEOUT_SET_VALUE_SEC
par1=Seconds [s]
par2=Milliseconds [100ms] (value 6 stands for 600ms)

Activate timeout

cmd=DAPI_SPECIAL_CMD_TIMEOUT_ACTIVATE

Deactivate timeout

cmd=DAPI_SPECIAL_CMD_TIMEOUT_DEACTIVATE

Return value

None

Example program

DELIB API reference | Seite 52

4.5.2. DapiSpecialCMDTimeoutGetStatus

status = DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT,
DAPI_SPECIAL_TIMEOUT_GET_STATUS, 0, 0); //Abfrage des Timeout-Status.

Description

This command reads the timeout status.

Definition

ULONG DapiSpecialCommand(handle, DAPI_SPECIAL_CMD_TIMEOUT,
DAPI_SPECIAL_TIMEOUT_GET_STATUS, 0, 0);

Parameters

handle=This is the handle of an opened module

Return value

Return=0 (timeout is deactivated)
Return=1 (timeout is activated)
Return=2 (timeout has occurred)

Example program

DELIB API reference | Seite 53

4.6. Test functions

4.6.1. DapiPing

Description

This command checks the connection of an opened module.

Definition

ULONG DapiPing(ULONG handle, ULONG value);

Parameters

handle=This is the handle of an opened module
value=Given test value to the module

Return value

The given test-value “value“ is also the return value

DELIB API reference | Seite 54

4.7. Example program

// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
//
// (c) DEDITEC GmbH, 2009
//
// web: http://www.deditec.de
//
// mail: [e-mail]
//
//
//
// dtapi_prog_beispiel_input_output.cpp
//
//
// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
// ****************************************************************************
//
//
// Folgende Bibliotheken beim Linken mit einbinden: delib.lib
// Dies bitte in den Projekteinstellungen (Projekt/Einstellungen/Linker(Objekt­Bibliothek-Module) .. letzter Eintrag konfigurieren
#include <windows.h>
#include <stdio.h>
#include "conio.h"
#include "delib.h"
// ---------------------------------------------------------------------------­// ---------------------------------------------------------------------------­// ---------------------------------------------------------------------------­// ---------------------------------------------------------------------------­// ----------------------------------------------------------------------------

void main(void)
{
unsigned long handle;
unsigned long data;
unsigned long anz;
unsigned long i;
unsigned long chan;
// ---------------------------------------------------­// USB-Modul öffnen
handle = DapiOpenModule(USB_Interface8,0);
printf("USB_Interface8 handle = %x\n", handle);
if (handle==0)
{
// USB Modul wurde nicht gefunden
printf("Modul konnte nicht geöffnet werden\n");
printf("TASTE für weiter\n");
getch();

DELIB API reference | Seite 55

return;
}
// Zum Testen - ein Ping senden
// ---------------------------------------------------­printf("PING\n");
anz=10;
for(i=0;i!=anz;++i)
{
data=DapiPing(handle, i);
if(i==data)
{
// OK
printf(".");
}
else
{
// No answer
printf("E");
}
}
printf("\n");

// ---------------------------------------------------­// Einen Wert auf die Ausgänge schreiben
data = 255;
DapiWriteByte(handle, 0, data);
printf("Schreibe auf Adresse=0 daten=0x%x\n", data);
// ---------------------------------------------------­// Einen Wert auf die Ausgänge schreiben
data = 255;
DapiWriteByte(handle, 1, data);
printf("Schreibe auf Adresse=0 daten=0x%x\n", data);
// ---------------------------------------------------­// Einen Wert auf die Ausgänge schreiben
data = 255;
DapiWriteByte(handle, 2, data);
printf("Schreibe auf Adresse=2 daten=0x%x\n", data);
// ---------------------------------------------------­// Einen Wert von den Eingängen lesen
data = (unsigned long) DapiReadByte(handle, 0);
printf("Gelesene Daten = 0x%x\n", data);
// ---------------------------------------------------­// Einen A/D Wert lesen
chan=11; // read chan. 11
data = DapiReadWord(handle, 0xff010000 + chan*2);
printf("Adress=%x, ret=%x volt=%f\n", chan, data, ((float) data) / 1024*5);//
Bei 5 Volt Ref
// ---------------------------------------------------­// Modul wieder schliessen
DapiCloseModule(handle);
printf("TASTE für weiter\n");
getch();
return ;
}

DELIB API reference | Seite 56

Appendix

V

Appendix | Seite 57

5. Appendix

5.1. Revisions

Rev 1.00 First issue
Rev 2.00 Design change

Appendix | Seite 58

5.2. Copyrights and trademarks

Linux is registered trade-mark of Linus Torvalds.

Windows CE is registered trade-mark of Microsoft Corporation.

USB is registered trade-mark of USB Implementers Forum Inc.

LabVIEW is registered trade-mark of National Instruments.

Intel is registered trade-mark of Intel Corporation

AMD is registered trade-mark of Advanced Micro Devices, Inc.

Appendix | Seite 59

RO-Series

Hardware-Description

2010

November

INDEX

1. Introduction 10

1.1. General remarks 10

1.2. Customer satisfaction 10

1.3. Customer response 10

2. Hardware description 12

2.1. Ethernet Interface 12

2.1.1. Hardware description

2.1.1.1. Overview screen

2.1.1.2. Technical data

2.1.1.3. Plug-in connector of the module

2.1.1.3.1. Power supply

2.1.1.3.2. Ethernet interface

2.1.1.4. Buttons of the module

2.1.1.5. Controll LEDs

2.1.1.5.1. Definition of LEDs

2.1.2. Restore basic configuration

2.1.2.1. Restore IP address

2.1.2.2. Restore firmware

2.1.3. Firmware Update

2.1.3.1. DEDITEC Flasher

2.1.3.2. Web interface

2.1.4. Configuring the module

2.1.4.1. Configuration via DELIB Configuration utility

2.1.4.2. Configuration via internal web server

2.1.4.3. Factory settings

12

12

14
15
15
15
16

17

17

18

18
18

19

19

20

22

22
26

27

2.2. CAN Interface 28

2.2.1. Hardware description

2.2.1.1. Overview screen

2.2.1.2. Technical data

2.2.1.3. Plug-in connector of the module

2.2.1.3.1. Power supply

2.2.1.3.2. CAN interface

2.2.1.4. Control LEDs

2.2.1.4.1. Definition of LEDs

Index |

28

28
29

30
30
30

31

31

2Seite

INDEX

2.2.2. Configuring the module

2.2.2.1. DIP-switches

2.2.2.2. The “special mode”

2.2.2.3. Software mode

2.2.2.4. DIP-switch mode

2.2.2.4.1. Setting up the transfer rate

2.2.2.4.2. Setting up the CAN module address

32

32

33

34
36
36

37

2.3. RS-232/RS-485 Interface 39

2.3.1. Hardware description

2.3.1.1. Overview screen

2.3.1.2. Technical data

2.3.1.3. Selecting between RS-232 or RS-485 interface

2.3.1.4. Plug-in connector of the module

2.3.1.4.1. Power supply

2.3.1.4.2. RS-232/RS-485 Interface

2.3.1.4.2.1RS-232 Pinout

2.3.1.4.2.2RS-485 Pinout

2.3.1.5. Control LEDs

2.3.1.5.1. Definition of LEDs

2.3.2. Configuring the module

2.3.2.1. DIP-switches

2.3.2.2. The "special-mode"

2.3.2.3. Activating echo

2.3.2.4. Setting up Baud rate

2.3.2.5. Setting up module address (RS-485 only)

39

39
40

41

43

43

43

44

44
45
45

46

46

47

47
48
49

2.4. USB Interface 50

2.4.1. Hardware description

2.4.1.1. Overview screen

2.4.1.2. Technical data

2.4.1.3. Plug-in connector of the module

2.4.1.3.1. Power supply

2.4.1.3.2. USB interface

2.4.1.4. Control LEDs

2.4.1.4.1. Definition of the LEDs

50

50

51

52
52
52

53
53

2.5. Digital in-/output modules 54

2.5.1. Hardware description

2.5.1.1. Opto-coupler inputs

54

55

Index |

3Seite

INDEX

2.5.1.1.1. Overview screen

2.5.1.1.2. Technical data

2.5.1.1.3. 16-bit counter

2.5.1.1.4. Registering short input pulses

2.5.1.1.5. Galvanically decouppled through optocouplers

2.5.1.1.6. Plug-in connector on the module

2.5.1.1.6.1Connection wiring

2.5.1.1.6.2Visual control of the inputs

2.5.1.1.6.3Pinout

2.5.1.1.7. Variable input voltage range

2.5.1.1.7.1Changing the input voltage

2.5.1.2. Relay outputs

2.5.1.2.1. Overview screen

2.5.1.2.2. Technical data

2.5.1.2.3. Timeout-protection

2.5.1.2.4. Plug-in connector on the module

2.5.1.2.4.1Relay-outputs (galvanically decoupled, max. 1A)

2.5.1.2.4.2Connection wiring

2.5.1.2.4.3Visual control of the outputs

2.5.1.2.4.4Pinout

2.5.1.3. MOSFET outputs

2.5.1.3.1. Overview screen

2.5.1.3.2. Technical data

2.5.1.3.3. Timeout-protection

2.5.1.3.4. Plug-in connector on the module

2.5.1.3.4.1Optocoupler-outputs (galvanically isolated, max. 2A DC)

2.5.1.3.4.2Connection wiring

2.5.1.3.4.3Pinout

55
56

57
57
57

58
58

59
59

59
60

61
61

62

63
63

63
64
64
64

65
65
66

67
67

67

68
68

2.6. Analog in-/output modules 69

2.6.1. Hardware description

2.6.1.1. RO-AD16-DA4

2.6.1.1.1. Overview screen

2.6.1.1.2. Technical data

2.6.1.1.3. Timeout-protection

2.6.1.1.4. Pinout

2.6.1.1.4.1A/D connection wiring (18pol)

2.6.1.1.4.2D/A connection wiring (10pol)

2.6.1.2. RO-AD16

2.6.1.2.1. Overview screen

69

69

70

71
72

73

73

73

74

74

Index |

4Seite

INDEX

2.6.1.2.2. Technical data

2.6.1.2.3. Pinout

2.6.1.2.3.1A/D connection wiring (18pol)

2.6.1.3. RO-AD16_ISO

2.6.1.3.1. Overview screen

2.6.1.3.2. Technical data

2.6.1.3.3. Pinout

2.6.1.3.3.1A/D connection wiring (18pol)

2.6.1.4. RO-DA4

2.6.1.4.1. Overview screen

2.6.1.4.2. Technical data

2.6.1.4.3. Timeout-protection

2.6.1.4.4. Pinout

2.6.1.4.4.1D/A connection wiring (10pol)

2.6.1.5. RO-DA2_ISO

2.6.1.5.1. Overview screen

2.6.1.5.2. Technical data

2.6.1.5.3. Timeout-protection

2.6.1.5.4. Pinout

2.6.1.5.4.1D/A connection wiring (10pol)

75
76

76

77

77
78
79

79

80
80

81

82
82

82

83
83
84

85
86

86

2.7. Stepper module 87

2.7.1. Hardware description

2.7.1.1. Overview screen

2.7.1.2. Technical data

2.7.1.3. Stepping motor control

2.7.1.4. Stepper connection wiring (10pol) - pinout

87

87

88
88
89

3. Software 91

3.1. Using our products 91

3.1.1. Access via graphical applications

3.1.2. Access via the DELIB driver library

3.1.3. Access via protocol

3.1.4. Access via provided test programs

3.2. DELIB driver library 93

3.2.1. Overview

3.2.2. Supported operating systems

3.2.3. Supported programming languages

91
91
91

92

93
95
95

Index |

5Seite

INDEX

3.2.4. Installation DELIB driver library

3.2.5. DELIB Configuration Utility

96
98

3.3. Test programs 99

3.3.1. Digital Input-Output Demo

3.3.2. Analog Input-Output Demo

3.3.3. Stepper Demo

99

100

101

4. DELIB API reference 103

4.1. Management functions 103

4.1.1. DapiOpenModule

4.1.2. DapiCloseModule

4.2. Error handling 105

4.2.1. DapiGetLastError

4.2.2. DapiGetLastErrorText

4.3. Reading Digital inputs 107

4.3.1. DapiDIGet1

4.3.2. DapiDIGet8

4.3.3. DapiDIGet16

4.3.4. DapiDIGet32

4.3.5. DapiDIGet64

4.3.6. DapiDIGetFF32

4.3.7. DapiDIGetCounter

4.4. Setting Digital outputs 114

103

104

105
106

107
108
109

110

111
112
113

4.4.1. DapiDOSet1

4.4.2. DapiDOSet8

4.4.3. DapiDOSet16

4.4.4. DapiDOSet32

4.4.5. DapiDOSet64

4.4.6. DapiDOReadback32

4.4.7. DapiDOReadback64

114
115
116

117
118
119

120

4.5. A/D converter functions 121

4.5.1. DapiADSetMode

4.5.2. DapiADGetMode

4.5.3. DapiADGet

121

123

124

Index |

6Seite

INDEX

4.5.4. DapiADGetVolt

4.5.5. DapiADGetmA

125
126

4.6. D/A outputs management 127

4.6.1. DapiDASetMode

4.6.2. DapiDAGetMode

4.6.3. DapiDASet

4.6.4. DapiDASetVolt

4.6.5. DapiDASetmA

4.6.6. DapiSpecialCmd_DA

127

129
130

131

132
133

4.7. Stepper motor functions 135

4.7.1. DapiStepperCommands

4.7.1.1. DAPI_STEPPER_CMD_GO_POSITION

4.7.1.2.
DAPI_STEPPER_CMD_GO_POSITION_RELATIVE

4.7.1.3. DAPI_STEPPER_CMD_SET_POSITION

4.7.1.4. DAPI_STEPPER_CMD_SET_FREQUENCY

4.7.1.5. DAPI_STEPPER_CMD_GET_FREQUENCY

4.7.1.6.
DAPI_STEPPER_CMD_SET_FREQUENCY_DIRECTLY

4.7.1.7. DAPI_STEPPER_CMD_STOP

4.7.1.8. DAPI_STEPPER_CMD_FULLSTOP

4.7.1.9. DAPI_STEPPER_CMD_DISABLE

4.7.1.10.
DAPI_STEPPER_CMD_SET_MOTORCHARACTERISTIC

4.7.1.11.
DAPI_STEPPER_CMD_GET_MOTORCHARACTERISTIC

4.7.1.12.
DAPI_STEPPER_CMD_MOTORCHARACTERISTIC_EEP
ROM_SAVE

4.7.1.13.
DAPI_STEPPER_CMD_MOTORCHARACTERISTIC_EEP
ROM_LOAD

4.7.1.14.
DAPI_STEPPER_CMD_MOTORCHARACTERISTIC_LOA
D_DEFAULT

4.7.1.15. DAPI_STEPPER_CMD_GO_REFSWITCH

4.7.1.16. DAPI_STEPPER_CMD_GET_CPU_TEMP

4.7.1.17.
DAPI_STEPPER_CMD_GET_MOTOR_SUPPLY_VOLTAG
E

135

135

136

137
138
139

140

141
142

143

144

149

157

158

159
160

161

162

Index |

7Seite

INDEX

4.7.2. DapiStepperGetStatus

4.7.2.1. DAPI_STEPPER_STATUS_GET_ACTIVITY

4.7.2.2. DAPI_STEPPER_STATUS_GET_POSITION

4.7.2.3. DAPI_STEPPER_STATUS_GET_SWITCH

4.7.3. DapiStepperCommandEx

163

163
164

165

166

4.8. Output timeout management 167

4.8.1. DapiSpecialCMDTimeout

4.8.2. DapiSpecialCMDTimeoutGetStatus

167

168

4.9. Test functions 169

4.9.1. DapiPing

169

4.10. Example program 170

5. Appendix 173

5.1. Revisions 173

5.2. Copyrights and trademarks 174

Index |

8Seite
