DeDietrich IniControl Installation, User And Service Manual

Regulation

C003108-A

IniControl
For C 330 / C 630 ECO

Ireland

EN

Installation, User
and Service
Manual

7600717-001-06

Contents

1 Introduction ................................................................................................4

1.1 Symbols used .......................................................4

1.2 Liabilities ...............................................................4

1.2.1 Manufacturer’s liability .............................................4

1.2.2 Installer’s liability .....................................................5

1.2.3 User’s liability ..........................................................5

1.3 Certifications .........................................................6

2 Safety instructions and recommendations ..............................................7

2.1 Recommendations ................................................7

3 Technical specifications ............................................................................8

3.1 Sensor characteristics .........................................8

4 Installation ..................................................................................................9

4.1 Package list ...........................................................9

4.1.1 Standard delivery ....................................................9

4.1.2 Accessories .............................................................9

4.2 Installing the outside sensor ...............................9

4.2.1 Choice of the location ..............................................9

4.2.2 Connecting the outside sensor ..............................10

4.3 Fitting and connecting the control panel .........10

4.4 Electrical connections ........................................11

4.4.1 Connecting a direct heating circuit ........................11

4.4.2 Connection in cascade (with OpenTherm AD287)

option ....................................................................11

5 Commissioning ........................................................................................13

5.1 Control panel .......................................................13

5.1.1 Description of the keys ..........................................13

5.1.2 Description of the display ......................................14

5.2 Switch on the instrument panel ........................15

5.3 Reading out measured values ...........................16

5.3.1 Reading out measured values ..............................16

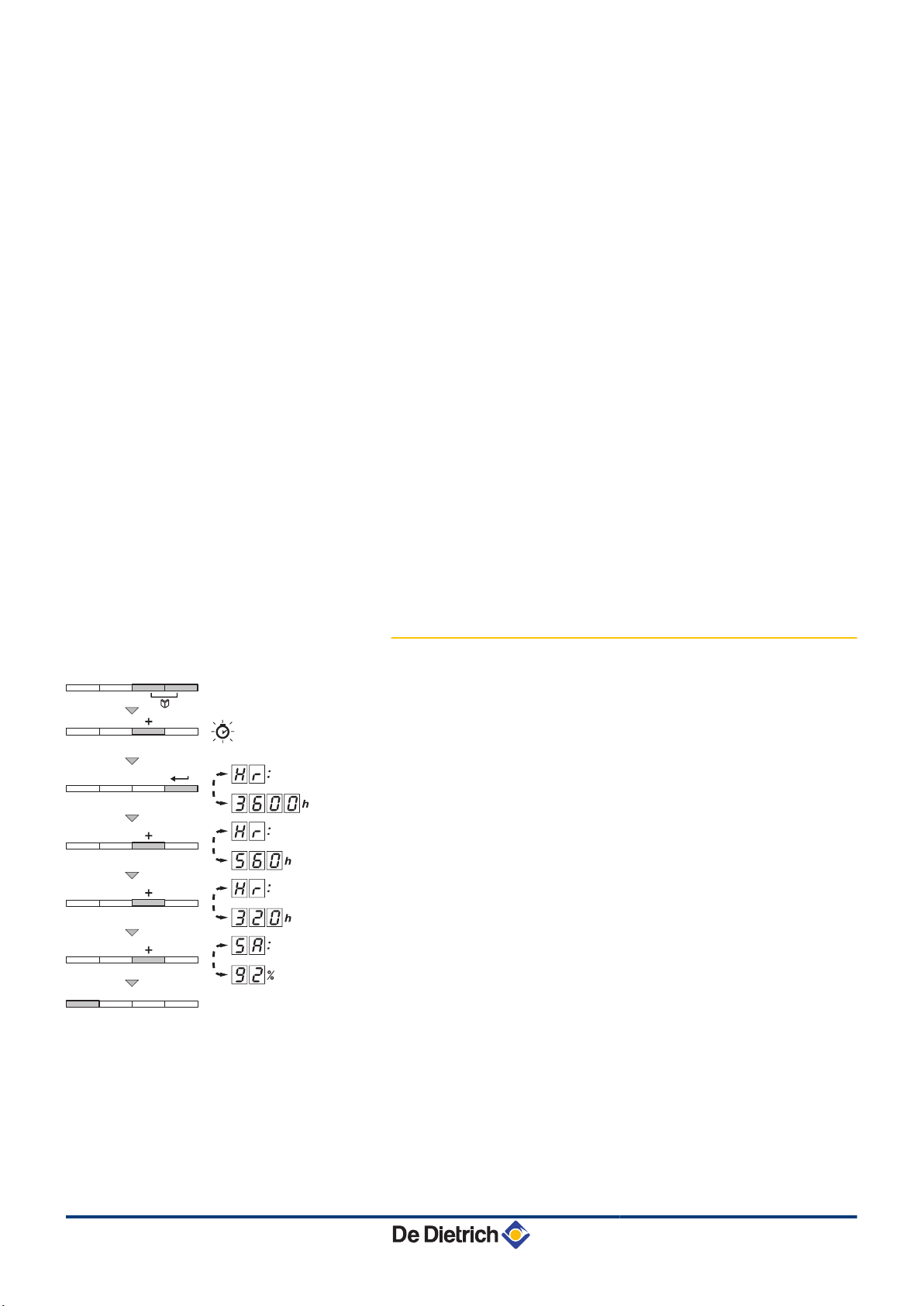

5.3.2 Readout from the hour counter and percentage of

successful starts ....................................................17

5.3.3 Status and sub-status ...........................................18

1

260216 - 7600717-001-06

Contents

5.4 Changing the settings ........................................19

5.4.1 General .................................................................19

5.4.2 Parameter descriptions .........................................19

5.4.3 Modification of the user-level parameters .............23

5.4.4 Modification of the installer-level parameters ........24

5.4.5 Setting the maximum heat input for central heating

operation ...............................................................25

5.4.6 Return to the factory settings Reset Param ..........26

5.4.7 Carrying out an auto-detect ...................................26

5.4.8 Setting the manual mode ......................................27

6 Troubleshooting .......................................................................................28

6.1 Shutdowns and lock-outs ..................................28

6.1.1 General .................................................................28

6.2 Error memory ......................................................35

6.2.1 Error readout memorised ......................................35

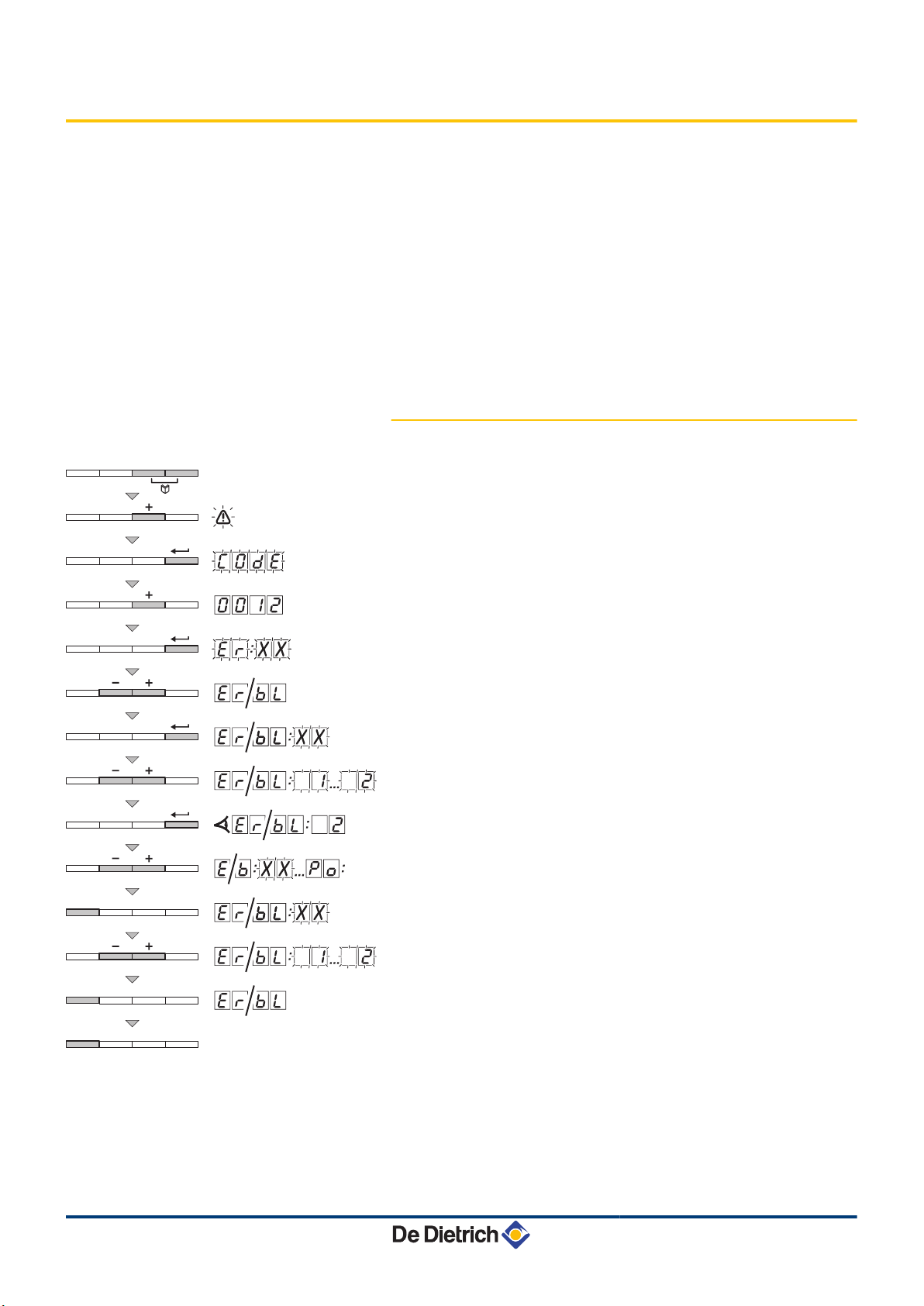

6.2.2 Deletion of the error display ..................................36

2

260216 - 7600717-001-06

3

260216 - 7600717-001-06

IniControl For C 330 / C 630 ECO

1 Introduction

1.1 Symbols used

1. Introduction

In these instructions, various danger levels are employed
to draw the user’s attention to particular information. In so
doing, we wish to safeguard the user’s safety, highlight
hazards and guarantee correct operation of the appliance.

DANGER

Risk of a dangerous situation causing serious
physical injury.

WARNING

1.2 Liabilities

Risk of a dangerous situation causing slight
physical injury.

CAUTION

Risk of material damage.

Signals important information.

¼Signals a referral to other instructions or other pages
in the instructions.

1.2.1. Manufacturer’s liability

Our products are manufactured in compliance with the
requirements of the various applicable European

260216 - 7600717-001-06

Directives. They are therefore delivered with [ marking
and all relevant documentation.

4

1. Introduction

IniControl For C 330 / C 630 ECO

In the interest of customers, we are continuously
endeavouring to make improvements in product quality.
All the specifications stated in this document are therefore
subject to change without notice.

Our liability as the manufacturer may not be invoked in the
following cases:

4 Failure to abide by the instructions on using the

appliance.

4 Faulty or insufficient maintenance of the appliance.
4 Failure to abide by the instructions on installing the

appliance.

1.2.2. Installer’s liability

The installer is responsible for the installation and
commissioning of the appliance. The installer must
respect the following instructions:

4 Read and follow the instructions given in the manuals

provided with the appliance.

4 Carry out installation in compliance with the prevailing

legislation and standards.

4 Perform the initial start up and carry out any checks

necessary.

4 Explain the installation to the user.
4 If a maintenance is necessary, warn the user of the

obligation to check the appliance and maintain it in
good working order.

4 Give all the instruction manuals to the user.

1.2.3. User’s liability

To guarantee optimum operation of the appliance, the
user must respect the following instructions:

4 Read and follow the instructions given in the manuals

provided with the appliance.

4 Call on qualified professionals to carry out installation

and initial start up.

4 Get your installer to explain your installation to you.
4 Ensure the Appliance is serviced in accordance with

the manufacturer’s instructions by a suitable qualified
person.

4 Keep the instruction manuals in good condition close

to the appliance.

5

260216 - 7600717-001-06

IniControl For C 330 / C 630 ECO 1. Introduction

This appliance is not intended to be used by persons
(including children) whose physcial, sensory or mental
capacity is impaired or persons with no experience or
knowledge, unless they have the benefit, through the
intermediary of a person responsible for their safety, of
supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children
do not play with the appliance.

If the mains power lead is damaged it must be replaced
by the original manufacturer, the manufacturer’s dealer or
another competent person to prevent hazardous
situations.

1.3 Certifications

This product complies to the requirements to the
european directives and following standards:

4 2006/95/EC Low Voltage Directive. Reference

Standard: EN60.335.1.

4 2004/108/EC Electromagnetic Compatibility Directive.

Generic standards: EN1000-6-3 , EN 61000-6-1.

260216 - 7600717-001-06

6

2. Safety instructions and recommendations IniControl For C 330 / C 630 ECO

2 Safety instructions and

recommendations

2.1 Recommendations

WARNING

Any intervention on the appliance and heating equipment
must be carried out by a qualified engineer.
For a proper operating of the boiler, follow carefully the
instructions.

Keep this document close to the place where the boiler is
installed.

7

260216 - 7600717-001-06

IniControl For C 330 / C 630 ECO 3. Technical specifications

3 Technical specifications

3.1 Sensor characteristics

Outside sensor

Temperature in °C -20 -16 -12 -8 -4 0 4 8 12 16 20 24

Resistance in Ω 2392 2088 1811 1562 1342 1149 984 842 720 616 528 454

Specifications of the flow sensor circuit B + C
Specifications of the DHW sensor
Specifications of the system sensor

Temperature in °C 0 10 20 25 30 40 50 60 70 80 90

Resistance in Ω 32014 19691 12474 10000 8080 5372 3661 2535 1794 1290 941

260216 - 7600717-001-06

8

4. Installation

4 Installation

4.1 Package list

IniControl For C 330 / C 630 ECO

4.1.1. Standard delivery

The delivery includes:

4 The control panel with the IniControl module

4 Installation, use and maintenance manual for the control panel

4.1.2. Accessories

Various options are available depending on the configuration of the
installation:

Control system options

Description package

BUS connection cable (length 12 m) AD134

voice remote monitoring module AD152

OpenTherm interface AD287

Outside sensor FM46

RX11 cable AD124

Modulating room thermostat AD265

Radio-controlled modulating room thermostat AD266

Digital room thermostat AD137

Wireless settable ambient thermostat AD200

SCU-S05 PCB

SCU-S03 PCB

4.2 Installing the outside sensor

4.2.1. Choice of the location

It is important to select a place that allows the sensor to measure the
outside conditions correctly and effectively.

Advised positions:

4 on one face of the area to be heated, on the north if possible

4 half way up the wall in the room to be heated

4 under the influence of meteorological variations

9

260216 - 7600717-001-06

8800N001-C

8800N002-C

8800N003-C

2

IniControl For C 330 / C 630 ECO

4. Installation

4 protected from direct sunlight

4 easy to access

A

B

H

Z

Recommended position

Possible position

Inhabited height controlled by the sensor

Inhabited area controlled by the sensor

Positions to be avoided:

4 masked by a building element (balcony, roof, etc.)

4 close to a disruptive heat source (sun, chimney, ventilation grid,

etc.)

4.2.2. Connecting the outside sensor

Mount the sensor using the screws and dowels provided.

A
Z

Inserts

Ø4 wood screw

¼For the connection of the outside temperature sensor, refer to
the chapter "Electrical Connections".

4.3 Fitting and connecting the control panel

260216 - 7600717-001-06

¼Refer to the boiler’s installation and service manual.

10

M002709-C

1

3

2

On/off

OT

BL

RL

PCU

SCU-S05

PUMP

ECS S EXT S DE

2 1 21

M002710-C

5

6

7

8

9

0

1

2

3

4

6

7

8

5

1

2

4

4

3

On/off

OT

BL

RL

PCU

PUMP

OTH / MB

INTERFACE

OTH

9

10

11

12 13

4. Installation IniControl For C 330 / C 630 ECO

4.4 Electrical connections

4.4.1. Connecting a direct heating circuit

A

Connect the outside temperature sensor.

SCU-S05 PCB = Option

Z
E

Heating connection pump.

Connect a safety thermostat if the heating circuit is for
underfloor heating.

4 Remove the bridge.

4 Connect the wires from the safety thermostat to the

connector.

4.4.2. Connection in cascade (with OpenTherm
AD287) option

11

A
Z
E
R

Master boiler (DIEMATIC iSystem)

Secondary boiler (DIEMATIC iSystem or IniControl)

Secondary boiler (DIEMATIC iSystem or IniControl)

Cable BUS

260216 - 7600717-001-06
